Sonophotocatalytic treatment of Bismarck Brown G dye and real textile effluent using synthesized novel Fe(0)-doped TiO2 catalyst

Article abstract of DOI:10.1039/c4ra07685k

Using the novel Fe(0)-TiO₂-doped catalyst, the degradation of Bismarck Brown G dye was compared by means of advanced oxidation processes, such as sonolysis (13 mm and 25 mm probe tip diameters), photolysis (UV light) and sonophotolysis. The effect of the initial dye solution pH, H₂O₂ concentration, gas bubbling (argon, oxygen, air and nitrogen), dye concentration and reaction volume were studied. Understanding the degradation mechanism from these studies, the Bismarck Brown G dye treatment was further intensified by catalytic treatments, such as commercial TiO₂, synthesized Fe(0) and synthesized Fe(0)-doped TiO₂ under sonolytic, photolytic and sonophotolytic irradiations. SEM, TEM, XRD and DRS characterization studies of the sonolytically synthesized catalyst shows that they were of uniform shape, nanoscale in size and had good absorption properties. Among the processes studied, sonophotocatalytic treatment of Bismarck Brown G dye in the presence of Fe(0)-doped TiO₂ showed the highest colour removal with the smallest amount of catalyst addition and for larger reaction volume. The practical applicability of the synergistic effects with real textile effluent signifies that the studied process is highly efficient for a safer environment.

Full text of DOI:10.1039/c4ra07685k

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: G. K. Dinesh, S.
Anandan and T. Sivasankar, RSC Adv., 2014, DOI: 10.1039/C4RA07685K.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
Graphical Abstract

RSC Advances
Page 2 of 43
View Article Online
DOI: 10.1039/C4RA07685K
Sonophotocatalytic treatment of Bismarck Brown G dye and real textile
effluent using synthesized novel Fe(0) doped TiO catalyst
2
G. Kumaravel Dinesh
Ph.D. Scholar
Department of Chemical Engineering
National Institute of Technology, Tiruchirappalli – 620 015. Tamil Nadu, India
S. Anandan
Associate Professor
Department of Chemistry
National Institute of Technology, Tiruchirappalli – 620 015. Tamil Nadu, India
T. Sivasankar*
Assistant Professor
Department of Chemical Engineering
National Institute of Technology, Tiruchirappalli – 620 015. Tamil Nadu, India
*: Corresponding author:
Eꢀmail: sivasankar9@gmail.com, ssankar@nitt.edu (T. Sivasankar)
Tel: +91 431 2503131
Fax: +91 431 2500133
1

Page 3 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
Sonophotocatalytic treatment of Bismarck Brown G dye and real textile effluent using
novel synthesized Fe(0) doped TiO catalyst
2
G. Kumaravel Dinesh, Sambandam Anandan and Thirugnanasambandam Sivasankar*
Department of Chemical Engineering, National Institute of Technology
Tiruchirappalli – 620 015. Tamil Nadu, India
Abstract
Using the novel Fe(0)ꢀTiO doped catalyst, the degradation of bismarck brown G dye was
2
compared by means of advanced oxidation processes such as sonolysis (13 mm and 25 mm
probe tip diameter), photolysis (UV light) and sonophotolysis. The effect of initial dye solution
pH, H O concentration, gas bubbling (Argon, Oxygen, Air and Nitrogen), dye concentration and
2
2
reaction volume were studied. Understanding the degradation mechanism from these studies, the
bismarck brown G dye treatment was further intensified by catalytic treatment such as
commercial TiO , synthesized Fe(0) and synthesized Fe(0) doped TiO under sonolytic,
2
2
photolytic and sonophotolytic irradiations. SEM, TEM, XRD and DRS characterization study of
the sonolytically synthesized catalyst shows that they were of uniform in shape, nanoscale in size
and good absorption properties. Among the processes studied, sonophotocatalytic treatment of
bismarck brown G dye in presence of Fe(0) doped TiO showed highest colour removal with
2
lesser catalyst addition and for larger reaction volume. The practical applicability of the
synergistic effects with real textile effluent signifies that the studied process is highly efficient
for safer environment.
Keywords: Bismarck Brown G dye, Fe(0) doped TiO , Ultrasound, UV light, Real textile effluent
2
treatment
2

RSC Advances
Page 4 of 43
View Article Online
DOI: 10.1039/C4RA07685K
1. Introduction
The textile industry is one of the largest water consuming industries as there are different
processes involved, which ultimately discharges wastewater with unconsumed dyes and other
chemicals. Among textile dyes, azo dyes are wellꢀknown for carcinogenic organic substances
wherein the reductive cleavage of its azo linkage produces aromatic amines that lead to cancer in
human liver. The control and efficient removal of these dye pollutants from textile wastewater is
an important measure of environmental protection [1]. Electrocoagulation, adsorption,
biodegradation, chlorination and ozonation are the frequently used primary methods for the
removal of dye compounds from wastewater [2ꢀ4]. However, these treatment processes are nonꢀ
destructive as the pollutants are only transferred from one phase to another, thus requiring
additional method to achieve the complete detoxification of the environment. Moreover, in
general, the primary degradation products of azo dyes are aromatic amines, which are toxic,
carcinogenic, and teratogenic [5,6]. Advanced oxidation processes (AOPs) emerge as an
alternative that quickly, directly and nonꢀselectively oxidizes a broad range of organic pollutants
●
based on the generation of very reactive species for example, hydroxyl radicals ( OH) [7,8].
In recent years, the application of ultrasonic energy for an AOP has drawn attention to
solve problems associated with conventional nonꢀdestructive wastewater treatment. Cavitation
science and engineering is a field involving the application of ultrasonic waves to chemical
processing despite its high cost of electrical consumption [9]. Ultrasound (US) irradiation causes
acoustic cavitation through which micro sized bubble grows and collapses causing intense local
heating, high pressures, and very short lifetimes of bubbles; these transient, localized hot spots
drive highꢀenergy chemical reactions [10]. The result of it is the splitting of water molecules into
●
●
homogeneous radicals (H and OH) within or out of the bubbles through cavitation [11ꢀ13].
3

Page 5 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
The efficiency of the AOP treatment methods depends on the rate of generation of free
radicals and the degree of contact with the contaminants. When these two parameters are
maximized the treatment efficiency would attain its maximum. In this view, process integration
is conceptually advantageous in wastewater treatment since it can eliminate the disadvantages
associated with each individual process [14,15]. Although photocatalysis and sonolysis have
been extensively employed individually for the degradation of several organic species in water,
the studies on their combined use (i.e. sonophotocatalysis) has been limited. Coupling of
ultrasound irradiation with other AOPs such as TiO photocatalysis has produced a synergistic
2
effect in those systems on formation of active species [16,17]. Researchers have used
sonophotocatalysis in a variety of investigations i.e. from water decontamination to direct
pollutant degradation. This process provides an excellent opportunity to reduce reaction time and
the amount of reagents used without the need for extreme physical conditions. Given its
advantages, the sonophotocatalytic process has a futuristic application from an engineering and
fundamental aspect in commercial applications [18]. Several studies involving high frequency
ultrasound have focused on the combinative or hybrid techniques (i.e., the methods of using
ultrasonic irradiations in combination with other advanced oxidation methods and/or biological
treatment) since such novel techniques have proven to be more advantageous than ultrasound
alone in effectively degrading recalcitrant contaminants.
The mechanism of this sonophotocatalysis effect is attributed to (a) activation of the
photocatalyst surface, (b) enhancement of the mass transport of organic compounds, and (c)
aggregate breakage [19]. The degradation of azo dye in aqueous solution using zero valent iron
represents a new generation of environmental remediation technologies that could provide costꢀ
effective solutions to some of the most challenging environmental cleanup problems [20ꢀ22].
4

RSC Advances
Page 6 of 43
View Article Online
DOI: 10.1039/C4RA07685K
Mineralization and recovery of catalyst employed is more desirable than mere decolourisation in
view of environmental safety. Unfortunately, most discoloration methods are unable to remove
total organic carbon (TOC) efficiently.
In this work, commercial TiO , green synthesized Fe(0) and Fe(0) doped TiO has been
2
2
used as a catalyst for sonophotocatalytic degradation of an azo dye, Bismarck Brown G (or Basic
Brown 1). Various studies reveal that the addition of nanoparticles has enhanced the degradation
of pollutants through oxidation path [23ꢀ27]. When employing a catalyst, both oxidation and
●
reduction of the pollutant take place (H mediated reduction pathway, sonolysis of noble metal
ions to form noble metal nanoparticles) [10,28]. Initially, a series of experiments were carried
out by varying initial dye solution pH, H O concentration, gas bubbling (Argon, Nitrogen,
2
2
Oxygen and Air), dye concentration and reaction volume to understand the mechanism of
degradation of the dye under ultrasonic and ultraviolet light irradiations. With the analysis of
these experimental results, the dye treatment was performed with the said catalyst which could
●
●
demonstrate that enhanced OH mediated oxidation as well as H mediated reduction play a
significant role in the acceleration (sonophotolysis) of dye degradation. This study provides a
way to increase the efficiency of sonophotocatalysis and also helps to understand the mechanism
of degradation of the dye using catalyst. Further, the sonophotocatalytic study is extended with
the application of the synthesized catalysts with real textile effluent collected from textile
industry after preliminary physical treatment.
5

Page 7 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
2
. Experimental
.1. Materials
2
2
−1
TiO (Degussa P25, Germany) having a specific surface area of 57 m g was used as a
2
starting material to prepare Fe(0) doped TiO . Bismarck Brown G (BBG) was obtained from
2
SigmaꢀAldrich and used as supplied. BBG is a certified biological stain, for microscopy,
histology and cytology and also used in textile industries. High purity analytical reagents were
used for the sample solution preparation: Hydrochloric acid (Merck), Sodium Hydroxide
(Merck), Hydrogen Peroxide solution (30% w/w, Merck), Ferrous sulphate FeSO .7H O
4 2
(Merck). All reagents used were of analytical grade and the solutions were prepared using
Millipore water.
2.2 Synthesis of Sonocatalysts
2.2.1 Zero Valent Iron
The green synthesis of zero valent iron using polyphenols as the reducing agent has been
illustrated by many research works [29]. In this study, the reaction of ferrous sulphate with green
tea extract as polyphenol source forms the basis for the preparation of zero valent iron. Green tea
o
extract was brewed by heating green tea leaves to 80 C followed by vacuum filtration. Green tea
synthesized nanoscale zeroꢀvalent iron (ZVI) was then prepared by mixing 0.5M FeSO .7H O
4
2
and green tea in a 2:1 volume ratio, resulting in the final ZVI solution. Later, the solution was
centrifuged for 10 min at 6000 RPM by which the pellet remained has been washed twice with
o
deionised water. The resultant ZVI was then dried in hot air oven for 24 hrs at 105 C [22].
6

RSC Advances
Page 8 of 43
View Article Online
DOI: 10.1039/C4RA07685K
2.2.2 Zero Valent Iron Doped TiO2
ZVI doped TiO catalyst was prepared by sonication method. TiO (P25 degussa) was
2
2
mixed with the aqueous solution of FeSO ·7H O (5 atomic weight %). The mixture was
4
2
sonicated for 30 mins to allow the penetration of ZVI (Fe(0)) ions on the titanium dioxide crystal
o
matrix. The supernatant liquid (water) is evaporated by heating at 105 C over a time period of 24
hrs [30].
2.2.3 Characterization of synthesized catalysts
The morphological characteristics of synthesized ZVI and TiO doped ZVI were studied
2
using scanning electron micrograph (SEM) and transmission electron micrograph (TEM). The
images were obtained using SEM with an accelerating voltage of 3 kV. The magnification was
adjusted so as to visualize the shape of ZVI and also the effect of TiO doping on ZVI. UVꢀ
2
Visible diffuse reflectance Spectra (DRS) for the catalysts, TiO , Fe(0) and Fe(0) doped TiO2
2
were recorded to understand the absorption capacity of the catalysts studied. The crystallite sizes
of prepared catalysts were determined with the help of Xꢀray diffractometer. Xꢀray
diffractometer (XRD) were recorded by the radiation source of Cu Kα (40 kV, 30 mA) and NaI
as the detector. The powder samples were analyzed in 2θ range from 10° to 80°. The particle size
(
D) of ZVI and TiO doped ZVI were found using the Debye–Scherrer formula,
2
0
.9
λ
D =
β
cos
θ
eq.1
Where, λ is the xꢀray wavelength, β represents fullꢀwidth half maximum (FWHM)
obtained at a corresponding 2θ angle.
7

Page 9 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
2.3 Degradation study procedure
The experimental setup consists of a 100 ml glass reactor to hold the BBG dye solution
with a water cooling jacket to keep the reactor contents at constant temperature (27 ± 0.5 ºC).
Sonication probe (SONICS Vibraꢀcell, VCX 500) with a titanium tip (13 and 25 mm dia.) which
emits ultrasound waves at 20 kHz and delivers a set power output of 100W is used for all the
experiments. For photolytic experiments, 4 W UV lamps emitting light at 256 nm was used.
1
000 ppm of the BBG dye stock solution was prepared by dissolving 1 g of dye in 1000
ml of Millipore water and from the stock solution required concentration of BBG was prepared.
The initial pH of the BBG solution was altered as 2, 3, 4, 5, 6, 7, 8, 9 and 10 by adding either 0.1
N hydrochloric acid solution or 0.1 N sodium hydroxide solution. For gas bubbling study, the
BBG solution was purged with different gases such as Oxygen, Argon, Nitrogen and Air for a
duration of 5 minutes in order to make the solution saturated with the respective gas nuclei prior
to sonolysis or photolysis [31]. The initial dye concentration was varied as 10, 50 and 100 ppm.
The reaction volume variation study was also performed to identify the effectiveness of the
sonolysis, photolysis and sonophotocatalysis processes so that the studied process could be
employed for field applications. Three different jacketed reactors of capacity 100, 500 and 1000
ml were used. The treatment of dye with catalysts was done by varying the load from 0.1 to 1 g.
It needs to be mentioned that each of the experiments were done thrice and the mean of them has
been reported.
Based on the experimental results of the model dye (i.e. BBG), efforts were made to
employ the sonophotocatalytic process to real textile effluent treatment. For this, the textile
effluent was collected from textile industry after preliminary treatment. The physical and
chemical characteristics of the collected textile effluent were studied as per standard methods
8

RSC Advances
Page 10 of 43
View Article Online
DOI: 10.1039/C4RA07685K
(APHA 1998). The decolourization of BBG and the textile effluent were monitored for every 15
min. with intermittent sampling.
Analytical procedure
The optical absorption spectra of the BBG dye solutions were recorded by JASCO UVꢀ
Visible spectrophotometer with a quartz cuvette of 10 mm path length. The maximum peak for
the absorption spectra of BBG dye is 447 nm. In order to quantify the degree of degradation,
COD (closed reflux method as per standard methods: APHA 1998) analysis of the treated textile
effluent was performed.
3. Results and Discussion
3.1.
Effect of pH
Decolourization of the BBG dye aqueous solution was carried out at various initial pH’s
(2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0 & 10.0). Figure 1 shows that the initial solution pH has a
remarkable influence on the decolourization efficiency (BBG: 10 ppm, Reaction Volume: 100
mL, Treatment time: 60 min.). The UVꢀVis spectral variation of BBG dye at different time
interval under ultrasound irradiation (pH 4, 13 mm probe) is also shown in the figure. The
decolourization of the dye is highest when the initial pH of the aqueous solution is 4.0 and lowest
at an initial pH of 10 for all the conditions studied (13 mm, 25 mm and UV irradiation). Among
all, 25 mm probe has resulted in giving highest colour removal of 66 % followed by 13 mm
probe and it is lower for UV irradiation for all pH variations when compared to US treated dye
solution. The factor that had influenced higehr colour removal with US treated dye is the
ultrasound power which is set as 100W whereas in the case of UV it is only 4W. Sonication
probe with larger diameter (25 mm) have larger irradiating area and provides better energy
9

Page 11 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
dissipation than smaller diameter probe (13 mm). Also, for the same power output the ultrasound
intensity produced with 25 mm probe would be higher than with 13 mm probe. The number of
cavitational events would be higher with larger areas of irradiating surface leading to increased
•
OH radical production for the same conditions [32]. This helps in effective treatment of the BB1
dye solution as the 25 mm probe makes it cavitationally more active volume for the given input
power than 13 mm probe. In acidic conditions the lone pairs of electrons present on the nitrogen
atoms of amino groups of BBG dye would be protonated and it was reported that under this state
the oxidation reaction was highly favoured at lower pH values and the oxidation reaction rate
decreases at higher pH values [1]. It is observed that the decolourization rate had decreased with
increased initial solution pH (beyond pH 4) for all the cases which is due to the deprotonation of
lone pairs of electrons present on the nitrogen atoms of amino groups.
3.2.
Effect of hydrogen peroxide dosage
The addition of hydrogen Peroxide which can act as the activator and strong oxidant
having an oxidation potential of 1.78 eV would result in the additional production of hydroxyl
radicals upon ultrasound and UV irradiation. The resulting hydroxyl radicals (oxidation
potential: 2.80 eV) are the major cause of the increasing oxidation reaction. The effect of
hydrogen peroxide concentration on the removal of the BBG is shown in Fig. 2. Experiments are
conducted by varying H O from 300 to 2100 ppm (BBG: 10 ppm, pH: 6.04, Reaction volume:
2
2
1
00 ml, Treatment time: 60min). When the concentration of H O is increased from 300 to 900
2 2
ppm, the decolourization efficiency has increased from 28 to 59 % for 13 mm probe and 33 to 70
for the 25 mm probe. For UV treated aqueous solution the decolourization efficiency varied
from 15% to 42% from 300 to 2100 ppm. Maximum decolourization is achieved at 900 ppm of
%
1
0

RSC Advances
Page 12 of 43
View Article Online
DOI: 10.1039/C4RA07685K
H O for US irradiation irrespective of the probe tip diameter and at 2100 ppm for UV
2
2
irradiation. The addition of H O concentration exceeding 900 ppm and 2100 ppm reduced the
2
2
decolourization efficiency for US and UV irradiation. This may be attributed to the auto
•
decomposition of H O to oxygen and water, and the recombination of produced OH radicals
2
2
[
33]. Moreover, higher concentrations of H O act as freeꢀradical scavenger itself, thereby
2
•
decreasing the concentration of OH radicals and reducing compound elimination efficiency [27].
For UV treated aqueous solution, optimum H O concentration is on the higher side (2100 ppm)
2
2
than US treated aqueous solution (900 ppm). US has the advantage over UV that mere sonication
•
•
itself produces OH radicals in addition to the OH radicals produced through H O splitting
2
2
•
whereas UV's only resource for producing OH radicals is H O .
2
2
3.3
Effect of gas bubbling
The gases Oxygen, Argon, Nitrogen and Air are bubbled one at a time for 5 minutes in
the BBG aqueous solution (BBG – 10 ppm, pH – 6.04, Reaction volume – 100 ml, Treatment
time: 60 min) prior to irradiation so as to make the solution saturated with the respective gas
nuclei. The maximum decolourization was observed for argon bubbled dye solution for both
sonolysis and photolysis treatment and the least decolourization occurs for nitrogen bubbled dye
solution (Fig. 3). In sonolysis process dissolved gases form the nuclei for cavitation. Argon
bubbled gas gave higher colour removal due to its inert nature and higher specific heat capacity
ratio. At the time of cavitation bubble collapse higher temperatures and pressures are generated
[
9] with monoatomic gases with higher specific heat capacity ratio (γ) than those with
polyatomic gases with lower heat capacity ratio (γ). Unlike other gases of study, argon bubbled
nuclei doesn’t undergo any radical scavenging reactions. In addition to thermal dissociation of
1
1

Page 13 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
oxygen molecule leading to generation of hydroxyl radicals in the oxygen bubbled dye solution,
inside the cavitation bubble oxygen scavenges hydrogen atom to form hydroperoxyl radical
which is an oxidizing agent. This radical causes a number other reactions to occur, resulting in
the formation of H O , O , O and H as products [34]. Formation of atomic nitrogen and oxygen,
2
2
2
2
nitrogen fixation can occur in the cavity bubbled with an air bubbled dye solution. Whereas in
nitrogen bubbled dye solution, nitrogen molecules inside the cavitation bubble may react at high
temperature with hydroxyl radicals and oxygen atoms to give nitrous oxide and nitrogen oxide
•
[
35] thus reducing the activity of OH radical with BBG molecules. This leads to the reduced
colour removal with nitrogen nuclei when compared with other gas nuclei. It also observed that
gas bubbling has minimal effect on the simple photolysis process which is evident that in
•
sonolysis process the gas content is the major drive for the production of OH radicals.
3.4
Effect of initial dye concentration and reaction volume variation
The decolourization efficiency for different initial dye concentrations shows (Fig.4A) that
the efficiency gradually decreases with increase in initial dye concentration (pH – 6.04, Reaction
•
volume – 100 ml, Treatment Time: 60 min.). This shows that the amount of OH radicals
produced by individual processes were not sufficient enough to interact with increasing
concentration of dye molecule. Sonolysis treatment has resulted in higher colour removal than
photolysis treatment irrespective of dye concentration. In photolysis process, when the dye
concentration was increased, the dye starts acting as an internal filter and as a result, the rate of
decolourization of dye decreases. The increasing dye concentration leads to shield the entering
photons in solution and as a result, the rate of decolourization decreases due to reduction in
•
hydroxyl radical ( OH) formation [36].
1
2

RSC Advances
Page 14 of 43
View Article Online
DOI: 10.1039/C4RA07685K
The study with varying reaction volumes of the dye solution is performed to understand
the intensity of the treatment methods undertaken since for real time application of these systems
needs to handle larger volumes of textile effluents. The decolourization efficiency for different
volume of dye solution for the treatment time of 60 minutes is shown in Fig.4B (BBG – 10 ppm,
pH – 6.04, Treatment Time: 60 min). For mere sonolysis and photolysis treatment, the increase
in the reaction volume of the dye had reduced the rate of decolourization. This shows that both
sonolysis and photolysis were not effective when it comes to larger volumes. In the case of
sonolysis, whether it is 13 mm probe or 25 mm probe, the effective irradiation area is restricted
near to the surface of the probe tip. Also, the frequency used in this case is 20 kHz, the length of
the frequency and its intensity is only 6 cm. This means that for the rest of the volume mere
mixing occurs and that the volume of dye solution does not undergo cavitation reaction. This
indicates that with the increase in distance from the irradiation source the intensity of ultrasound
decreases. In the case of photolysis, the same concept holds good that the UV radiation can’t
reach the whole volume of the solution unless the solution is vigorously stirred to bring in
effective contact of the solution with UV light. These reasons limits the effectiveness of
●
production of OH radicals required to act on the dye molecules and hence, these systems
resulted in reduced decolourization efficiency for larger volume reactors.
Summary of the results
The pseudo first order rate constant values for the studies performed were listed in Table
1. From the above studies the following points were to be considered for efficient treatment of
BBG dye:
1
3

Page 15 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
•
•
From pH study, it is understood that the BBG dye should be in hydrophobic form
(or the BBG dye is more hydrophilic) to have effective an interaction between
•
BBG molecule with the produced OH radicals at the point of the cavitation event
or photolytic reaction.
•
From H O study, it is understood that when the number of OH radicals are
2
2
increased in bulk liquid medium upon H O splitting (either through US or UV
2
2
irradiation) efficient colour removal is achieved. The colour removal achieved by
this method is the highest among the parameters studied wherein the production
•
of OH in the bulk liquid medium is instantaneous than compared to gas bubbling.
•
From gas bubbling study, when the gas nuclei is monatomic (argon gas producing
•
more OH radicals) there exists a good colour removal followed by other gas
•
nuclei’s (Oxygen, Air & N ). Again, this study shows the importance of OH
2
•
radical production (or the availability of OH radicals in the bulk liquid medium)
for better treatment.
•
•
From the initial concentration study, with increase in initial dye concentration the
•
available OH radicals for oxidation reaction has significantly reduced providing
lower colour removal under the same experimental conditions. This is a further
indication that the chosen dye is highly hydrophilic.
From volume variation study, there is a reduced colour removal rate with
increased volume of the dye solution showing the limitations of the US and UV
treatment processes that individual processes can’t hold good for larger volumes.
1
4

RSC Advances
Page 16 of 43
View Article Online
DOI: 10.1039/C4RA07685K
•
For efficient colour removal of BBG dye, it can be said that there should more of OH
radicals in the bulk liquid medium and with the amount of energy spent and the chemicals used
for both the processes, a better method is required to reduce the overall cost and at the same time
to achieve better efficiency in a shorter duration. This is the motivation behind to undergo
catalyst preparation for the processes studied for BBG dye colour removal.
3.6 Catalyst characterization
3.6.1 SEM and TEM analysis
The SEM and TEM images of ZVI showed clustered aggregates representing their
crystalline cubic indices as visualised in Fig.5A & 5B. The doping of Fe(0) on the TiO crystal
2
matrix has been clearly identified by the homogenous distribution of TiO with Fe(0). The
2
agglomeration observed in both the images (ZVI doped TiO and ZVI) is due to the Vanderwaals
2
forces among the magnetic Fe(0) particles and higher band gap energy of TiO particles. The
2
high rate of Fe(0) doping is evident as the doping reaction takes place efficiently in a solution
rather than in a solid state of Fe(0). The influence of doping on the particle size has been
identified by XRD spectra and it is in good agreement with the SEM and TEM images.
3.6.2 XRD analysis
XRD spectra of Fe(0) and Fe(0) doped TiO as shown in Fig.5C represents that the
2
doping of Fe(0) with TiO has changed the crystalline behaviour and also the size. It was found
2
that the doping of TiO has caused the increase in particle size of the doped catalyst. From the
2
scherrer equation, the grain size of synthesized Fe(0) was 13.9 nm which has been determined to
1
5

Page 17 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
be increased to 21.4 nm for Fe(0) doped TiO owing to the doping effect. The peaks of Fe(0)
2
representing the Miller indices of (110) and (211) are characteristics of Fe(0) which are found at
the 2θ angle of 28.75° and 45.76° respectively. However, TiO doping has been clearly
2
confirmed by the reduced Fe(0) characteristic peaks and also by high intensity anatase peaks (2θ
=
25.36°, 48.73°) with lesser rutile peaks (2θ = 27.5°, 37.7°). The pure TiO constitutes the most
2
active anatase and also some of the other crystalline rutile phases [37]. The replacement of Fe(0)
in the crystal framework of TiO has been attributed to the reduction of the rutile phases thereby
2
suggesting the active doping. It is also due to the reduction in the oxygen vacancies on the TiO2
surface that inhibits the crystallization of other phases [38]. However, the formed Fe ion were
not of complete metallic form (i.e. Fe(0)) based on XPS data (see the supplementary file) and
much of the Fe were in oxidized state (i.e. Fe O ). The grain size of Fe(0) and Fe(0) doped TiO
2
3
2
from the XRD spectra were calculated using Debye–Scherrer equation and were found to be 13.9
nm and 21.4 nm.
3.6.3 UV-Vis DRS analysis
The UVꢀVis diffuse reflectance spectra of the TiO , Fe(0) and Fe(0) doped TiO was
2
2
shown in Fig.5D. The DRS analysis shows that the % transmittance is decreasing in the order of
TiO >Fe(0)>Fe(0) doped TiO . It can be inferred from the spectra that Fe(0) doped TiO exhibits
2
2
2
a higher light absorption both in visible and ultraviolet range than TiO and Fe(0). Similar kinds
2
of results were reported by several authors [39ꢀ42].
3.7 Decolourization study with Catalyst
1
6

RSC Advances
Page 18 of 43
View Article Online
DOI: 10.1039/C4RA07685K
The commercial TiO and the synthesized catalyst (Fe(0) and Fe(0) doped TiO ) were
2
2
subjected to BBG dye colour removal under ultrasound and UV irradiations. The results were
presented in the following sections.
3.7.1 TiO2
TiO catalyst has been widely as a semiconductor photocatalyst which under UV
2
•
•
irradiation excites creating electron hole pair splitting the water molecules into H and OH
radicals. Adsorption of the pollutant also occurs with the addition of TiO . Hence, the combined
2
•
effect of adsorption of the pollutant on TiO surface and the OH radical production leads to
2
efficient degradation [43]. Fig.6 shows the decolourization of BBG dye upon US and UV
irradiation with varying TiO concentration (BBG – 10 ppm, pH – 6.04, Reaction volume – 100
2
ml, Reaction time: 60 min). When compared to other treatment methods (i.e. initial pH variation,
Gas bubbling, H O concentration variation and volume variation) the decolourization rate of
2
2
UV irradiated solution showed lesser differences with US irradiation. But the decolourization
efficiency showed a larger increase than with all the previous treatment methods studied. The
decolourization efficiency has reached maximum with 0.75g TiO addition and with further
2
increase in TiO the decolourization efficiency was nearly constant and it had slowly started to
2
reduce with an increase in TiO amount. After a certain concentration, the TiO would form a
2
2
cluster obstructing UV irradiation to pass through the whole liquid medium and with US
irradiation it reduces the ultrasound intensity reducing cavitation activity. Apart from this,
increased catalyst dosage can act as a hydroxyl radical scavenger (28). Again, maximum colour
removal of 86% was achieved for 25 mm probe followed by 13 mm probe (81%) and UV
irradiation (80%).
1
7

Page 19 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
3.7.2 n-Fe(0)
The synthesized zero valent iron powder (Fe(0)) is used as a catalyst and its effectiveness
on colour removal upon US and UV irradiation (BBG: 10 ppm, pH: 6.04, Reaction volume: 100
ml, Treatment time: 60 min) is shown in Fig.7. There is a slight increase in the decolourization
rate with US irradiation (87% for 25 mm and 82% for 13 mm – 1g catalyst) and there is a slight
decrease in decolourization efficiency with UV irradiation (78% ꢀ 1g catalyst). Cavitation
•
reaction is known to produce H O also upon recombination of OH radicals and the H O in
2
2
2
2
reaction with the zero valent iron powder (Fe(0)) is corroded [44]. The corroded Fe(0) oxidizes
2
+
•
from Fe(0) to Fe , which then reacts with H O in a Fenton’s like process to generate OH
2
2
3
+
3+
2+
radicals and Fe . The Fe(0) then reduces the Fe back to Fe and the cycle continues. The
reactions were presented below:
2+
ꢀ
Fe(0) + H O → Fe + 2OH
2
2
2
+
3+
ꢀ
•
Fe + H O → Fe + OH + OH
2
2
Whereas, UV treated samples lack this Fenton’s reaction and hence only catalyst activity prevails
for dye colour removal.
3.7.3 n-Fe(0) doped TiO2
It has been reported by several researchers [37,45] that iron doped TiO results in higher
2
UV light absorption [4,22,46]. Also, it is proved that doping of metals with TiO narrows the
2
band gap energy and enhances the separation of electrons and holes which is essential for
photocatalytic activity [37]. This means that ZVIꢀTiO doped catalyst could decompose the dye
2
molecule at a faster rate. The effect of doped catalyst under different treatments (Fig.8) shows
that (BBG: 10 ppm, pH: 6.04, Reaction volume: 100 ml, Catalyst: 0.1g, Treatment time: 60min)
1
8

RSC Advances
Page 20 of 43
View Article Online
DOI: 10.1039/C4RA07685K
doped catalyst activity is the highest than the undoped catalyst irrespective of the treatment
methods with a lesser catalyst addition. In the presence of doped catalyst, the US and UV treated
dye solution resulted in ~99% and 92% respectively.
3.8 Sonophotocatalytic treatment of BBG
The synergistic effects of sonolysis and photocatalyis are well understood from their
basic mechanisms of chemical effect (production of radicals by sonolysis and photolysis) for
degrading pollutants and physical effect (microjets, shockwaves and microturbulence by
sonolysis) for bringing in effective contact between pollutant and radicals. Apart from these, the
combined processes have several other advantages such as regeneration of the catalyst surface,
maintaining uniform dispersion of catalyst, mass transfer enhancement and disintegration of
solid catalyst into smaller particles thus increasing the surface area. Since it was found that for
1
0 ppm BBG concentration had resulted in near complete colour removal with doped catalyst
under the conditions studied (section 3.7.3), the chosen dye concentration was 25 ppm (System:
5 mm probe + UV, Reaction volume: 100 ml, pH: 6.04, Treatment time: 60 min) for various
2
studies of the sonophotocatalytic treatment to have its visible effect. The results were shown in
Fig.9. The synergistic effect of sonophotocatalytic process is clearly observed as the colour
removal efficiency is more when compared with the individual sonolysis & photolysis processes.
Inorder to validate the synergistic effect, simple sonolysis and photolysis experiments (System:
2
5 mm probe, UV, Reaction volume: 100 ml, pH: 6.04, Treatment time: 60 min) were performed
with 25 ppm dye solution. It was observed that simple sonolysis and photolysis could result in
15% and ~5% decolorization where as sonophotolytic treatment had resulted in ~36%
decolourization. From the studies (3.1ꢀ3.3), it is understood that degradation of BBG dye occurs
~
1
9

Page 21 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
through the hydroxylation reaction in the bulk liquid medium. Since, BBG dye is hydrophilic in
nature, it will remain in the bulk aqueous medium and the degradation of these pollutants
•
depends on how far the produced OH radicals move to reach the pollutant molecules [47]. But
•
these OH radicals are highly reactive, short lived and they try to recombine to form water
molecule or hydrogen peroxide without reaching the pollutant molecule under normal conditions.
These uncertainties would be eliminated when the photolysis (which can produce more number
of radicals through UV light illumination in the presence of doped catalyst) and sonolysis (which
•
can yield more number of OH radicals through cavitation) were applied together. UV light
shielding by the catalyst and agglomeration of the catalyst were overthrown by the cavitational
activity through microjets and microturbulence actions (6). These combined effects bring in an
•
effective OH radical production and to have effective oxidation of BBG dye. These effects were
reflected in experimental results that sonophotocatalysis of BBG dye in the presence of doped

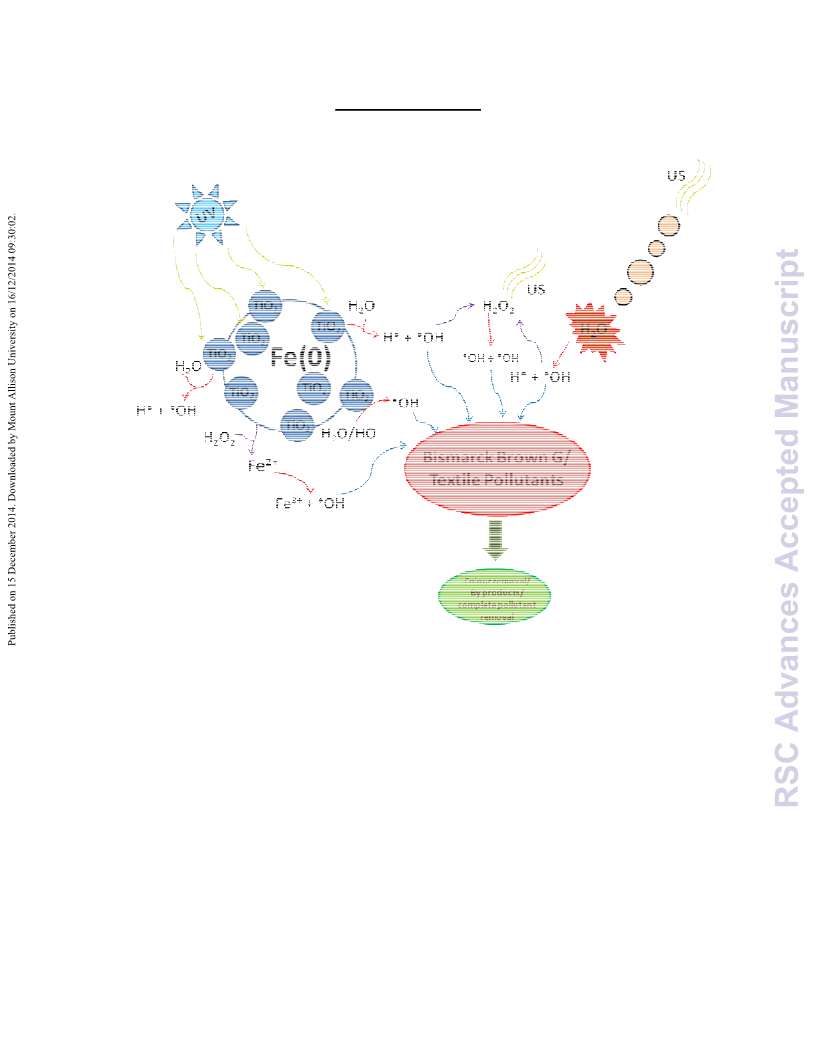

catalyst was highly efficient (98%) than other processes studied. The synergistic mechanism of
ultrasound, ultraviolet irradiation and catalytic activities of Fe(0) doped TiO were pictorially
2
illustrated in Fig.10.
3.9 Sonophotocatalytic treatment of textile effluent
The textile effluent was collected from Textile Industry (Clothing Company, Tirupur,
Tamilnadu, India) after preliminary treatment. The physicoꢀchemical characteristics of the textile
effluent was tested [48] under the same conditions as it was received and were listed in Table 3.
The sonophotocatalytic degradation studies were performed for the effluent with the following
conditions: Reaction volume – 1000 ml, Catalyst (Fe(0) doped TiO ) – 0.1 g, H O – 900ppm,
2
2
2
Gas bubbling – Air. Larger reaction volume of 1000 ml is chosen keeping in mind of practical
2
0

RSC Advances
Page 22 of 43
View Article Online
DOI: 10.1039/C4RA07685K
applicability. It needs to be mentioned here that air is chosen as the bubbling gas as it is the less
costly and for practical application air is the best suited gas which is readily available. Further,
the catalyst and H O concentrations were based on the studies reported elsewhere in this report.
2
2
The UVꢀVis spectrum (Fig.11) of the sonophotocatalytically treated effluent at various time
intervals shows that there is a drastic reduction in the colour removal of the effluent and the
colour removal was evident after 15 min of treatment time itself. The spectrum of raw textile
effluent exhibit characteristics peaks in the visible and UV region indicating the presence of dyes
as well as other organic compounds. In accordance with the spectrum results, it is easily
understood the present treatment methodology could degrade both dyes and other organic
compounds present in textile effluent. The COD analysis was also performed for every 15 min
time interval and the results were presented in Fig.11. Again, there was a drastic reduction in the
COD value during the first 15 min of treatment time and it is in good agreement with the UVꢀVis
spectrum results. The decrease in COD value of the textile effluent from 2400 to 293.5 mg/l is
further evident that the sonophotocatalytic treatment not only helps in complete colour removal
but also degrades the complex compounds present in the textile effluent leading to efficient
treatment.
Conclusions
In this experimental study, the decolourization of 10 ppm of Bismarck Brown G was
investigated by varying several parameters with the application of ultrasound and UV light.
Initial studies of Bismarck Brown G dye with pH, H O , gases (Oxygen, Argon, Nitrogen and
2
2
•
Air), catalyst, dye concentration and variable volume proved to indicate that OH radical
production is the key for effective colour removal. The oxidation reaction is through hydrolysis
2
1

Page 23 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
in the bulk liquid medium either through US or UV. From the individual parametric study, pH
.0 (US & UV), 900 ppm H O (US), 2100 ppm H O (UV), Argon gas bubbling (US & UV),
4
2
2
2
2
lower BBG dye concentration (US & UV) and lower reaction volume (US & UV) gave
maximum decolourization efficiency. Further intense study with the nanocatalyst (Commercial
TiO , green synthesized Fe(0) and Fe(0) doped TiO ) proved effective for higher BBG dye
2
2
colour removal with lesser catalyst quantity. Among the methodology adopted,
sonophotocatalytic is the best treatment method for the BBG dye solution in the presence of
Fe(0) doped TiO . The sonophotocatalytic treatment of real textile wastewater further supports
2
the claim that for practical applicability synergistic effects are more important that individual
parametric effect to handle larger volumes of textile effluents.
Acknowledgements
The authors were grateful to the Ministry of Environment and Forest (MoEF), Government of
India for the financial funding of the project. The authors further extend their gratitude to
Environmental Engineering Laboratory, Department of Civil Engineering, NIT Tiruchirappalli
for assisting in performing effluent characterization and COD analysis.
2
2

RSC Advances
Page 24 of 43
View Article Online
DOI: 10.1039/C4RA07685K
References
[
[
[
[
[
[
1] M.A. Tariq, M. Faisal and M. Muneer, J. Hazard. Mater., 2005, 127, 172.
2] Y.M. Slokar and A.M. Le Marechal, Dyes Pigments, 1998, 37, 335.
3] N. Daneshvar, H. Ashassi–Sorkhabi and A. Tizpar, Sep. Purif. Technol., 2003, 31, 153.
4] C.A. MartınezꢀHuitle and E. Brillas, Appl. Catal. B, 2009, 87, 105–145.
5] J.H. Weisburger, Mutat. Res. 2002, 506-507, 9.
6] C. Jakopitsch, G. Regelsberger, P.G. Furtmuller, F. Ruker, G.A. Peschek and C. Obinger,
Biochem. Biophys. Res. Commun., 2001, 287, 682.
[
[
[
[
[
[
7] M.R. Sohrabi and M. Ghavami, Desalination, 2010, 252, 157.
8] M.A. Behnajady, N. Modirshahla and M. Shokri, Chemosphere, 2004, 55, 129.
9] Y.G. Adewuyi, Environ. Sci. Technol., 2005, 39, 3409.
10] K.S. Suslick, VCH, New York, 1988.
11] K. Makino, M.M. Mossoba and P. Riesz, J. Am. Chem. Soc., 1982, 104, 3537.
12] C. Minero, M. Lucchiari, D. Vione and V. Maurino, Environ. Sci. Technol., 2005, 39,
8
936.
13] P.Y. Feng, A. Brynjolfsson, J.W. Halliday and R.D. Jarrett, J. Phys. Chem., 1970, 74,
221.
14] C. Berberidou, I. Poulios, N.P. Xekoukoulotakis and D. Mantzavinos, Appl. Catal. B,
007, 74, 63.
[
[
[
[
1
2
15] A.M.T. Silva, E. Nouli, A.C. CarmoꢀApolinario, N.P. Xekoukoulotakis and D.
Mantzavinos, Catal. Today, 2007, 124, 232.
16] C. Petrier, M.F. Lamy, A. Francony, A. Benahcene, B. David, V. Renaudin and N.
Gondrexon, J. Phys. Chem., 1994, 98, 10514.
2
3

Page 25 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
[
[
17] I. Hua and M.R. Hoffmann, Environ. Sci. Technol., 1997, 31, 2237.
18] C.G. Joseph, G. Li Puma, A. Bono and D. Krishnaiah, Ultrason. Sonochem., 2009, 16,
83.
19] A. Nakajima, M. Tanaka, Y. Kameshima and K. Okada, J. Photochem. Photobiol. A,
004, 167, 75.
5
[
2
[
[
[
[
[
20] Z. Meng and Z. Juan, Global Environmental Policy in Japan, 2008, 12, 1.
21] J.C. Liping, W. Qingguo, H. Liamheng and W.S. Han, Chemosphere, 1999, 38, 565.
22] G.E. Hog and J.B. Collins, J. Mater. Chem., 2009, 909.
23] P.J. Wiest and O. Kamat, P.V., J. Phys. Chem. A, 2001, 105, 3176.
24] M.H. Entezari, A. Heshmati and A. Sarafrazꢀyazdi, Ultrason. Sonochem., 2005, 12,
1
37.
[
[
25] A.B. Pandit, P.R. Gogate and S. Mujumdar, Ultrason. Sonochem., 2001, 8, 227.
26] J. Wang, W. Sun, Z. Zhang, X. Zhang, R. Li, T. Ma, P. Zhang and Y. Li, J. Mol. Catal.
A: Chem., 2007, 272, 84.
[
27] M. Kubo, H. Fukuda, X.J. Chua and T. Yonemoto, Ind. Eng. Chem. Res., 2007, 46,
6
99.
[
[
[
28] Y. Jiang, Z. Hu, M. Zhou, L. Zhou and B. Xi, Sep. Purif. Technol., 2014, 128, 67.
29] B. Gunawardana, N. Singhal and P. Swedlund, Environ. Eng. Res., 2011, 16, 187.
30] A. Manivel, S. Naveenraj, P.S. Sathish Kumar and S. Anandan, Sci. Adv. Mater., 2010,
2
, 51.
[
[
31] T. Sivasankar and V.S. Moholkar, Chem. Eng. J., 2009, 149, 57.
32] P.R. Gogate, I.Z. Shirgaonkar, M. Sivakumar, P. Senthilkumar, N.P. Vichare and A.B.
Pandit, AIChE J., 2001, 47, 2526.
2
4

RSC Advances
Page 26 of 43
View Article Online
DOI: 10.1039/C4RA07685K
[
[
33] P. Saritha, C. Aparna and V. Himabindu, J. Hazard. Mater., 2007, 149, 609.
34] S. Merouni, O. Hamdaoui, F. Saoudi and M. Chiha, J. Hazard. Mater., 2010, 178,
1
007.
[
[
[
35] N.J.B. Perez and M.F.S. Herrera, Ultrason. Sonochem., 2007, 14, 589.
36] M.H. Obies, F.H. Hussein and A. AꢀAli Drea, Int. J. Chem.. Sci., 2010, 8, 2736.
37] Y. Zhang, F. Lv, T. Wu, L. Yu, R. Zhang, B. Shen, X. Meng, Z. Ye and P. K. Chu, J.
Sol-Gel Sci. Technol., 2011, 59, 387.
[
[
[
[
38] J.C. Yu, J.C. Yu, W.K. Ho, Z.T. Jiang and L.Z. Zhang, Chem. Mater., 2002, 14, 3808.
39] M.I. Litter and J.A. Navio, J. Photochem. Photobiol. A Chem., 1996, 98, 171.
40] Y. Wang, H. Cheng, Y. Hao, J. Ma, W. Li and S. Cai, J. Mater. Sci., 1999, 34, 3721.
41] Y.L. Min, G.Q. He, R.B. Li, W. Zhao, Y.C. Chen and Y.G. Zhang, Sep. Purif. Technol.,
2
013, 106, 97.
42] K.V. Subba Rao, D. Venugopal and M. Subrahmanyam, Indian J. Chem., 1999, 38,
73.
[
1
[
[
43] A. Ghauch, H. Baydoun and P. Dermesropian, Chem. Eng. J., 2011, 172, 18.
44] I. Ganesh, P.P. Kumar, A.K. Gupta, P.S.C. Sekhar, K. Radha, G. Padmanabham and G.
Sundararajan, Process. Appl. Ceram., 2012, 6, 21.
[
[
[
45] G.E. Hoag, J.B. Collins, J.L. Holcomb, J.R. Hoag, M.N. Nadagouda and R.S. Varma, J.
Mater. Chem., 2009, 19, 8671.
46] Y. Cao, Y. Yu, P. Zhang, L. Zhang, T. He, Y. Cao, Sep. Purif. Technol., 2013, 104,
2
56.
47] T. Sivasankar and V.S. Moholkar, Ultrason. Sonochem., 2009, 16, 769.
2
5

Page 27 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
[
48] American Public Health Association (APHA). Standard methods for the examination of
th
water and wastewater, 17 Edition, Washington, DC: American Public Health
Association, 1998.
2
6

RSC Advances
Page 28 of 43
View Article Online
DOI: 10.1039/C4RA07685K
List of Figures
Fig.1 Decolourization of BBG dye solution with initial pH variation
Fig.2 Decolourization of BBG dye solution with the variation of H O (a) 13 mm probe, (b)
2
2
2
5 mm probe & (c) UV light
Fig.3 Decolourization of BBG dye solution with purging of various gases (a) 13 mm probe,
b) 25 mm probe & (c) UV irradiation
(
Fig.4 Decolourization of BBG dye solution. (A) varying BBG concentration and (B) varying
volume
Fig.5 A. SEM images (a) Synthesized Fe(0) and (b) Fe(0) doped TiO ; B. TEM images (a)
2
.
Synthesized Fe(0) and (b) Fe(0) doped TiO ; C. XRD spectra of Fe(0) and Fe(0) doped TiO ; D.
2
.
2
UV-Visible diffuse reflectance Spectra (a) TiO , (b) Fe(0) & (c) Fe-TiO2
2
Fig.6 Decolorization of BBG dye solution with TiO Catalyst
2
Fig.7 Decolorization of BBG dye solution with Fe(0) Catalyst
Fig.8 Decolorization of BBG dye solution with Fe(0)-TiO Catalyst
2
Fig.9 Sonophotolytic degradation of BBG with various parameters
Fig.10 Synergistic effect of the sonophotocatalytic process
Fig.11 COD variation and UV-Visible Spectrum of sonophotocatalytically treated textile effluent
3
3

Page 29 of 43
RSC Advances
View Article Online
DOI: 10.1039/C4RA07685K
70
60
50
40
30
20
10
1
3 mm
5 mm
2
UV
0
2
3
4
5
6
pH
7
8
9
10
Fig.1
3
4
