Mechanism of photoluminescence of Si nanocrystals fabricated in a SiO2 matrix

Article abstract of DOI:10.1063/1.122644

The luminescence properties of silicon nanocrystals fabricated by Si ion implantation into a SiO₂ matrix and subsequent thermal annealing have been studied. To identify the mechanism of photoluminescence of Si nanocrystals, the dependencies of the steady-state photoluminescence on temperature and excitation power density, and the time-resolved photoluminescence have been investigated. The experimental results point to the mechanism of recombination via the levels of centers which are presumably localized at the silicon nanocrystal-silicon dioxide boundary.

Full text of DOI:10.1063/1.122644

Mechanism of photoluminescence of Si nanocrystals fabricated in a SiO 2 matrix
K. S. Zhuravlev, A. M. Gilinsky, and A. Yu. Kobitsky
Citation: Applied Physics Letters 73, 2962 (1998); doi: 10.1063/1.122644
View online: http://dx.doi.org/10.1063/1.122644
View Table of Contents: http://scitation.aip.org/content/aip/journal/apl/73/20?ver=pdfcov
Published by the AIP Publishing
Articles you may be interested in
Phosphorus ion implantation in silicon nanocrystals embedded in SiO 2
J. Appl. Phys. 105, 054307 (2009); 10.1063/1.3088871
Ultraviolet and blue photoluminescence from sputter deposited Ge nanocrystals embedded in SiO 2 matrix
J. Appl. Phys. 103, 103534 (2008); 10.1063/1.2930877
Elucidation of the surface passivation role on the photoluminescence emission yield of silicon nanocrystals
embedded in SiO 2
Appl. Phys. Lett. 80, 1637 (2002); 10.1063/1.1456970
Self-trapped excitons in silicon nanocrystals with sizes below 1.5 nm in Si/SiO 2 multilayers
J. Appl. Phys. 90, 5735 (2001); 10.1063/1.1415537
Analysis of the stretched exponential photoluminescence decay from nanometer-sized silicon crystals in SiO 2
J. Appl. Phys. 86, 6128 (1999); 10.1063/1.371663
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
132.174.255.116 On: Wed, 26 Nov 2014 19:05:37

APPLIED PHYSICS LETTERS
VOLUME 73, NUMBER 20
16 NOVEMBER 1998
Mechanism of photoluminescence of Si nanocrystals fabricated
in a SiO2 matrix
K. S. Zhuravlev,a) A. M. Gilinsky, and A. Yu. Kobitsky
Institute of Semiconductor Physics, Novosibirsk 630090, Russia
͑Received 18 May 1998; accepted for publication 15 September 1998͒
The luminescence properties of silicon nanocrystals fabricated by Si ion implantation into a SiO2
matrix and subsequent thermal annealing have been studied. To identify the mechanism of
photoluminescence of Si nanocrystals, the dependencies of the steady-state photoluminescence on
temperature and excitation power density, and the time-resolved photoluminescence have been
investigated. The experimental results point to the mechanism of recombination via the levels of
centers which are presumably localized at the silicon nanocrystal–silicon dioxide boundary.
© 1998 American Institute of Physics. ͓S0003-6951͑98͒02046-4͔
The observation of intense photoluminescence ͑PL͒ of
porous silicon at room temperature by Canham1 has stimu-
lated extensive investigation of the emission properties of
different kinds of nanocrystal structures, motivated by the
need to integrate optical and electronic devices on silicon
chips. Silicon nanocrystals fabricated by Si ion implantation
into silicon oxide with subsequent thermal annealing are
promising candidates as light emitters. In these nanocrystals
the visible and near-infrared PL in the 1.5–1.7 eV range was
observed,2–5 the nature of which is still under debate. Re-
cently, two different mechanisms of radiative recombination
in silicon nanocrystals were discussed in the literature—4,6
the recombination between quantum confinement levels, and
recombination via levels of defects localized either inside the
nanocrystals or on the interface of nanocrystals with amor-
phous silicon oxide, with different experimental and compu-
tational results pointing to either of the two mechanisms. To
verify the mechanism of radiative recombination in Si
nanocrystals fabricated by thermal annealing of SiO2 layers
implanted with Si, we report here the results of an investiga-
tion of kinetics, excitation power, and temperature dependen-
cies of the PL of Si nanocrystals. The experimental data
point to the mechanism of recombination via the levels of
defect, localized presumably on the nanocrystal–matrix
boundary.
ϭ532 nm, pulse duration 0.15 ␮s, peak power density
0.4 kW/cm2) or a N2 laser (␭ϭ337 nm, pulse duration 7 ns,
peak power density 100 kW/cm2) was used. The photolumi-
nescence measurements were carried out using a double dif-
fraction grating monochromator equipped with a cooled S-1
photomultiplier operated in the photon counting mode. The
PL spectra were corrected for the wavelength-depended sen-
sitivity of the system, which was determined through
blackbody-radiation measurements.
In Fig. 1 a typical room-temperature steady-state PL
spectrum of Si nanocrystals is shown. The spectrum com-
prises an asymmetrical band around 1.5 eV with a width of
about 300 meV. An arrow in Fig. 1 marks the band position
calculated by Khurgin et al.7 for the 3.5 nm cluster size. It is
seen that the band maximum in the calculated spectrum is
shifted to larger energies in comparison with the experimen-
tal one, and has its position at 2.1 eV. In Fig. 2 a dependence
of the steady-state PL intensity (IPL) on excitation power ͑P͒
and its approximation by a power-law function IPLϳP␥ are
shown. The dependence has an overall sublinear character.
At the lowest excitation powers a linear relationship is ob-
served (␥ϭ1), while at higher powers it becomes sublinear
with ␥ϭ0.5. It is necessary to note that the shape of the band
does not change with excitation power. With temperature
decreased, the band exhibits a shift at a rate of Ϫ0.1 meV/K.
The preparation of the samples studied in this work was
described in detail in the paper by Kachurin and co-workers.5
Briefly, 500 nm thick layers of SiO2 grown on Si were im-
planted with 200 and 100 keV Siϩ at a doze of 1
ϫ1017 cmϪ2, and then annealed at 1200 °C for 1 s and at
400 °C for 30 min. As reported in that study, the results of
transmission electron micrography and Raman scattering in-
vestigations evidenced the formation of crystalline silicon
clusters with an average size of 3.5 nm. An Arϩ laser oper-
ating at a wavelength ␭ϭ488 nm and a maximum power
density of 2.5 kW/cm2 at the sample surface was used for
excitation of steady-state PL, while for transient PL excita-
tion a frequency-doubled Q-switched Nd:YAG laser (␭
FIG. 1. Room temperature steady-state PL spectrum of Si nanocrystals. The
arrow indicates the calculated band position of 3.5 nm Si nanocrystals ac-
cording to Khurgin et al. ͑Ref. 7͒.
a͒
Electronic mail: zhur@thermo.isp.nsc.ru
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
0003-6951/98/73(20)/2962/3/$15.00 2962 © 1998 American Institute of Physics
132.174.255.116 On: Wed, 26 Nov 2014 19:05:37

Appl. Phys. Lett., Vol. 73, No. 20, 16 November 1998
Zhuravlev, Gilinsky, and Kobitsky
2963
diative channels. In the opposite case of excitonic recombi-
nation in quantum dots, the saturation of the ground-level PL
is accompanied by the onset of the PL of the excited states of
the dots.9,10 Since we do not observe any change in the spec-
tral shape of the band with excitation intensity, a sublinear
dependence should not be expected for the recombination
between quantum-confined levels in nanocrystals in our ex-
perimental conditions. Third, the absence of the spectral de-
pendence of PL kinetics also points to recombination via
local centers. On the contrary, in the case of the quantum-
confinement recombination model, the PL decay should pro-
ceed faster on the shorter wavelength side of the spectrum
because of the strong dependencies of both the recombina-
tion probability and energy of optical transitions on nano-
crystal radii,7,11 resulting in a redshift of the band with time.
Let us speculate on the nature of the recombination cen-
ter. Recently, a center of recombination on the Si
nanocrystal–silicon dioxide boundary that is responsible for
1.5 eV luminescence was considered by Allan et al.6 They
have shown that a single covalent bond, for example a Si–Si
bond, can act as a trap and a recombination center. Their
calculation shows that a metastable recombination state,
separated from the excited state by an energy barrier, can
exist on the boundary of small nanocrystals. The nonexpo-
nential decay kinetics can be expected in such centers if the
barriers between excited and metastable states of the centers
would have a certain energy spread and, consequently, the
probability of carrier transition from the excited to recombi-
nation state would differ. In our case, since the recombina-
tion centers are localized on the boundaries of nanocrystals,
the barrier height can depend on the local environment.
A particular qualitative characteristic of the center can
be inferred from the temperature dependence of its PL band
energy. It is known that the temperature dependence of the
band energy of a center that is strongly bound with crystal
lattice differs from that of the band gap of the host crystal.
According to the configuration diagram model,12,13 the direc-
tion of the PL band shift with temperature is determined by
the ratio of the frequencies of vibration modes of the ground
and excited states of the center. The blueshift of the band
with decreased temperature that we observe experimentally
enables us to conclude that in our case the frequency of the
vibration mode of the ground state of the center is higher.
In conclusion, we have studied the steady-state and time-
resolved luminescence of 3.5 nm silicon nanocrystals fabri-
cated by Si ion implantation into a SiO2 matrix. We observed
that the 1.5 eV PL band that is usually attributed to the
recombination of quantum-confined carriers in silicon quan-
tum dots displayed a sublinear intensity dependence on the
excitation power, a spectrally uniform decay after transient
excitation, and besides that, the estimated energy position of
the band differs strongly from the experimentally observed.
These data enable us to conclude that the characteristic 1.5
eV luminescence of Si nanoclusters is governed by the re-
combination via the levels of some defect-related centers,
which are presumably localized at the silicon nanocrystal–
silicon dioxide boundary.

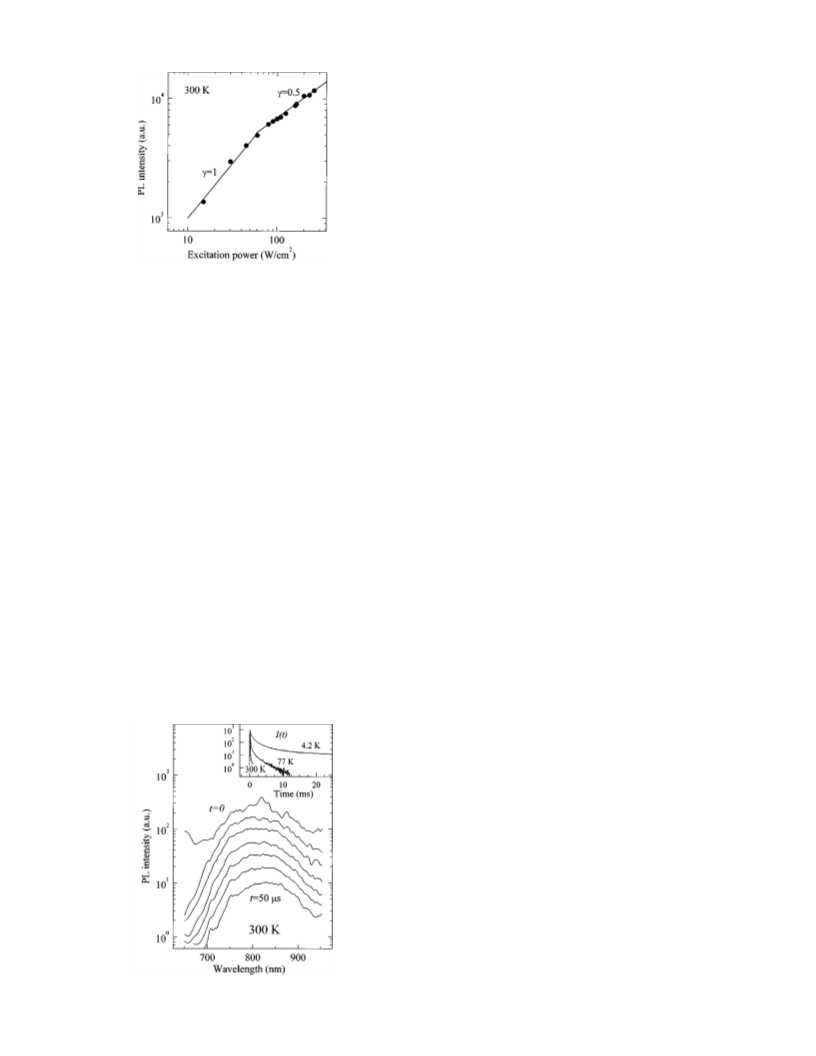

FIG. 2. Dependence of the steady-state PL intensity of the nanocrystals on
the excitation power at room temperature.
In Fig. 3 a set of time-resolved PL spectra measured at
300 K is shown as a function of the delay time after the
excitation pulse. It is seen that the shape of the spectrum
does not change with the delay time. The inset to Fig. 3
shows decay curves integrated over the spectrum taken at
several temperatures on a wider time scale. At all tempera-
tures the decay is nonexponential, the curves are approxi-
mated by stretched exponential functions. The 1/e decay
time is 450, 65, and 20 ␮s at 4.2, 77, and 295 K, respec-
tively. Though the temperature decrease leads to a consider-
able increase of the decay time accompanied by a slight in-
crease of the steady-state PL intensity, we did not observe
any change of the band shape with delay time in this tem-
perature.
The above results support the assumption that radiative
recombination in silicon nanocrystals is mediated by some
defect levels. The following observations point to this con-
clusion. First, the energy of radiative recombination is con-
siderably less than the expected energy of optical transitions
between the quantum-confined levels ͑see Fig. 1͒. Second,
the sublinear dependence of PL intensity on the excitation
power indicates that the recombination is mediated by some
localized centers which saturate at high excitation powers8
and thus let charge carriers recombine via competing nonra-
FIG. 3. Evolution of the transient PL spectrum of Si nanocrystals with time
at room temperature. The spectra were taken at delays of 0.25, 1, 3, 8, 15,
25, and 50 ␮s. The inset shows the decay curves integrated over the band
The authors are grateful to Dr. W. Skorupa, Dr. G. A.
Kachurin, and Dr. I. E. Tyschenko for supplying them with
the samples used in this study and to Dr. A. K. Gutakovsky
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
spectrum at 4.2, 77, and 300 K ͑from upper to lower͒.
132.174.255.116 On: Wed, 26 Nov 2014 19:05:37

2964
Appl. Phys. Lett., Vol. 73, No. 20, 16 November 1998
Zhuravlev, Gilinsky, and Kobitsky
for providing transmission electron micrography data. The
work was partially supported by the Russian Foundation for
Basic Research under Grant No. 97-02-18409.
6 G. Allan, C. Delerue, and M. Lannoo, Phys. Rev. Lett. 76, 2961
͑1996͒.
7 J. B. Khurgin, E. W. Forsythe, G. S. Tompa, and B. A. Khan, Appl. Phys.
Lett. 69, 1241 ͑1996͒.
8 W. Shockley and W. T. Read, Phys. Rev. 87, 835 ͑1952͒.
9 S. Fafard, R. Leon, D. Leonard, J. L. Merz, and P. M. Petroff, Phys. Rev.
B 52, 5752 ͑1995͒.
1 L. T. Canham, Appl. Phys. Lett. 57, 1046 ͑1990͒.
2 T. Shimizu-Iwayama, S. Nakao, and K. Saitoh, Appl. Phys. Lett. 65, 1814
͑1994͒.
10 M. J. Steer, D. J. Mowbray, W. R. Tribe, M. S. Skolnick, M. D. Sturge,
M. Hopkinson, A. G. Cullis, C. R. Whitehouse, and R. Murray, Phys. Rev.
B 54, 1 ͑1996͒.
3 P. Mutti, G. Ghislotti, S. Bertoni, L. Bonoldi, G. F. Cerofolini, L. Meda,
E. Grilli, and M. Guzzi, Appl. Phys. Lett. 66, 851 ͑1995͒.
4 K. S. Min, K. V. Shcheglov, C. M. Yang, H. A. Atwater, M. L. Brong-
ersma, and A. Polman, Appl. Phys. Lett. 69, 2033 ͑1996͒.
5 G. A. Kachurin, I. E. Tyschenko, K. S. Zhuravlev, N. A. Pazdnikov, V. A.
Volodin, A. K. Gutakovsky, A. F. Leier, W. Skorupa, and R. A. Yankov,
Nucl. Instrum. Methods Phys. Res. B 122, 571 ͑1997͒.
11 C. Delerue, G. Allan, and M. Lannoo, Phys. Rev. B 48, 11024 ͑1993͒.
12 R. C. O’Rourke, Phys. Rev. 91, 265 ͑1953͒.
13 K. K. Rebane, Elementary Theory of Vibrational Spectra Structure of
Crystal Impurity Centers, Moscow ͑1969͒, p. 232 ͑in Russian͒.
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
132.174.255.116 On: Wed, 26 Nov 2014 19:05:37
