Enhanced Nitrate-to-Ammonia Activity on Copper-Nickel Alloys via Tuning of Intermediate Adsorption

Article abstract of DOI:10.1021/jacs.9b13347

Electrochemical conversion of nitrate (NO₃^-) into ammonia (NH₃) recycles nitrogen and offers a route to the production of NH₃, which is more valuable than dinitrogen gas. However, today's development of NO₃^- electroreduction remains hindered by the lack of a mechanistic picture of how catalyst structure may be tuned to enhance catalytic activity. Here we demonstrate enhanced NO₃^- reduction reaction (NO₃^-RR) performance on Cu₅₀Ni₅₀ alloy catalysts, including a 0.12 V upshift in the half-wave potential and a 6-fold increase in activity compared to those obtained with pure Cu at 0 V vs reversible hydrogen electrode (RHE). Ni alloying enables tuning of the Cu d-band center and modulates the adsorption energies of intermediates such as *NO₃^-, *NO₂, and *NH₂. Using density functional theory calculations, we identify a NO₃^-RR-to-NH₃ pathway and offer an adsorption energy-activity relationship for the CuNi alloy system. This correlation between catalyst electronic structure and NO₃^-RR activity offers a design platform for further development of NO₃^-RR catalysts.

Full text of DOI:10.1021/jacs.9b13347

Subscriber access provided by Karolinska Institutet, University Library
Article
Enhanced nitrate-to-ammonia activity on copper-
nickel alloys via tuning of intermediate adsorption
Yuhang Wang, Aoni Xu, Ziyun Wang, Linsong Huang, Jun Li, Fengwang Li, Joshua
Wicks, Mingchuan Luo, Dae-Hyun Nam, Chih-Shan Tan, Yu Ding, Jiawen Wu, Yanwei
Lum, Cao-Thang Dinh, David Sinton, Gengfeng Zheng, and Edward H. Sargent
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b13347 • Publication Date (Web): 02 Mar 2020
Downloaded from pubs.acs.org on March 2, 2020
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the
course of their duties.

Page 1 of 27
Journal of the American Chemical Society
1
2
3
1
4
5
Enhanced nitrate-to-ammonia activity on copper-nickel alloys
via tuning of intermediate adsorption
6
2
7
8
9
3
Yuhang Wang†,1, Aoni Xu†,1, Ziyun Wang†,1, Linsong Huang2, Jun Li1,3, Fengwang Li1, Joshua
Wicks1, Mingchuan Luo1, Dae-Hyun Nam1, Chih-Shan Tan1, Yu Ding2, Jiawen Wu2, Yanwei
Lum1, Cao-Thang Dinh1, David Sinton3, Gengfeng Zheng2, Edward H. Sargent*,1
10
11
12
13
4
14
5
15
16
17
6
1Department of Electrical and Computer Engineering, University of Toronto, 10 King’s
College Road, Toronto, ON, M5S 3G4, Canada.
18
19
7
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
8
9
2Laboratory of Advanced Materials, Department of Chemistry, Fudan University, Shanghai
200438, China.
10
11
3Department of Mechanical and Industrial Engineering, University of Toronto, 5 King’s
College Road, Toronto, ON, M5S 3G8, Canada.
12
† These authors contributed equally to this work.
(*)
13
14
Correspondence and requests for materials should be addressed to Edward H. Sargent
(ted.sargent@utoronto.ca) (E.H.S.)
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 27
1
2
3
4
15
Abstract
5
6
7
8
9
-
16
17
18
19
20
21
22
23
24
25
26
27
28
Electrochemical conversion of NO3 into ammonia (NH3) recycles nitrogen and offers
a route to NH3 production that is more valuable than dinitrogen gas. However, today’s
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
development of NO3 electroreduction remains hindered by the lack of a mechanistic
picture of how catalyst structure may be tuned to enhance catalytic activity. Here we
-
demonstrate enhanced nitrate reduction reaction (NO3 RR) performance on Cu50Ni50
alloy catalysts, including a 0.12 V upshift in the half-wave potential and a 6-fold increase
in activity compared to pure Cu at 0 V vs. reversible hydrogen electrode (RHE). Ni
alloying enables tuning of the Cu d-band center and modulates the adsorption energies of
-
intermediates such as *NO3 , *NO2, and *NH2. Using density functional theory (DFT)
-
calculations, we identify a NO3 RR-to-NH3 pathway and offer an adsorption energy-
activity relationship for the CuNi alloy system. This correlation between catalyst
-
electronic structure and NO3 RR activity offers a design platform for further
-
development of NO3 RR catalysts.
29
2
ACS Paragon Plus Environment

Page 3 of 27
Journal of the American Chemical Society
1
2
3
4
5
30
Introduction
6
7
8
31
Human activities to an anthropogenically-induced increase over time in the concentration
-
32
of environmental nitrate (NO3 ):1, 2 the combustion of fossil fuels emits nitrous oxides (NOx);
9
10
-
-
33
34
35
36
fertilizer-intensive agriculture releases NO3 into soil and groundwater; and NO3 -containing
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
waste is discharged from industrial sources. The accumulation of NO3 induces acid rain and
photochemical smog3, 4 and the uptake of NO3 in mammals results in its in vivo conversion to
-
nitrite (NO2 ),5, 6 a cause of methemoglobinemia and a known carcinogen.
-
37
38
39
40
Closing the nitrate-nitrogen cycle1, 2, 7, 8 is therefore of interest: it is desirable to transform
nitrates to harmless9-11 or – better yet – to value-added products.12, 13 The electrochemical
reduction of nitrate provides a route to ammonia production,9, 13 with widespread use as a
fertilizer precursor, chemical feedstock and fuel:
-
41
NO3 + 6H2O + 8e- → NH3 + 9OH-, E0 = 0.69 V vs. RHE (pH = 14)14 (1)
-
42
43
44
Achieving higher-performance NO3 RR electrocatalysts remains challenging, in
significant part because the relationship between catalyst structure and activity is poorly
understood.
-
45
46
47
48
49
50
51
52
To date, Faradaic efficiencies (FE) greater than 90% for NO3 reduction to NH3 have been
achieved on Cu-based catalysts, but typically these require potentials more negative than -0.27
-
V vs. RHE in NO3 -containing 1 M KOH electrolytes, corresponding to an overpotential
exceeding 0.96 V.15-19 Previous studies found that alloying Cu with Ni results in a positive shift
-
in the NO3 RR half-wave potential (E1/2), the potential at which the current is equal to one half
of the mass transfer limiting current, by ~0.1 V,18, 19 a finding that corresponds to enhanced
catalytic activity at a given potential. A mechanism wherein Cu performs the adsorption of
NO3* and Ni is the binding site of H* was proposed by Simpson and Johnson;20 however, this
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 27
1
2
3
4
5
6
7
8
9
-
-
53
54
55
mechanism does not explain enhanced NO3 RR activity on CuNi alloys: Ni converts NO3 to
NH3 inefficiently,19 so that replacing surface Cu atoms with Ni would be expected to reduce
the density of active sites for NH3 production.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
56
57
58
59
60
61
62
63
64
We noted that upshifts in the half-wave potential (E1/2) in reduction reactions typically
suggest an increase in electrocatalytic activity. This, we posited, could arise due to a modulated
intermediate adsorption energy in CuNi alloys compared to pure Cu. Drawing parallels with
oxygen reduction reaction (ORR) literature, we noted that platinum-nickel (PtNi) alloy
catalysts typically exhibit an upshifted half-wave potential of ~0.1 V compared to pure Pt
catalysts.21, 22 Decreasing adsorption energies for oxygenated species on PtNi alloys leads to
increased activity, an instance of scaling relations for ORR catalysts.23 This has been associated
with the shifted d-band center position and surface atomic arrangement reported by Marković
and co-workers.22
65
66
67
68
In sum, the introduction of heteroatoms modulates the electronic structure of catalysts,
enabling the enhancement of electrocatalytic activity.22-25. We explore herein how such a
-
strategy can be employed to design catalysts exhibiting enhanced NO3 RR activity and
selectivity.
69
70
71
72
73
74
75
We began by preparing a series of CuNi alloys with various Cu:Ni compositions, and
observed a 0.12 V upshift in E1/2, and a 0.2 V lower overpotential required for peak NH3 FE.
This occurred at a composition - Cu50Ni50 alloy catalysts - that simultaneously produced a 6-
-
fold increase in NO3 RR activity compared to the case of pure Cu at 0 V vs. RHE (pH = 14).

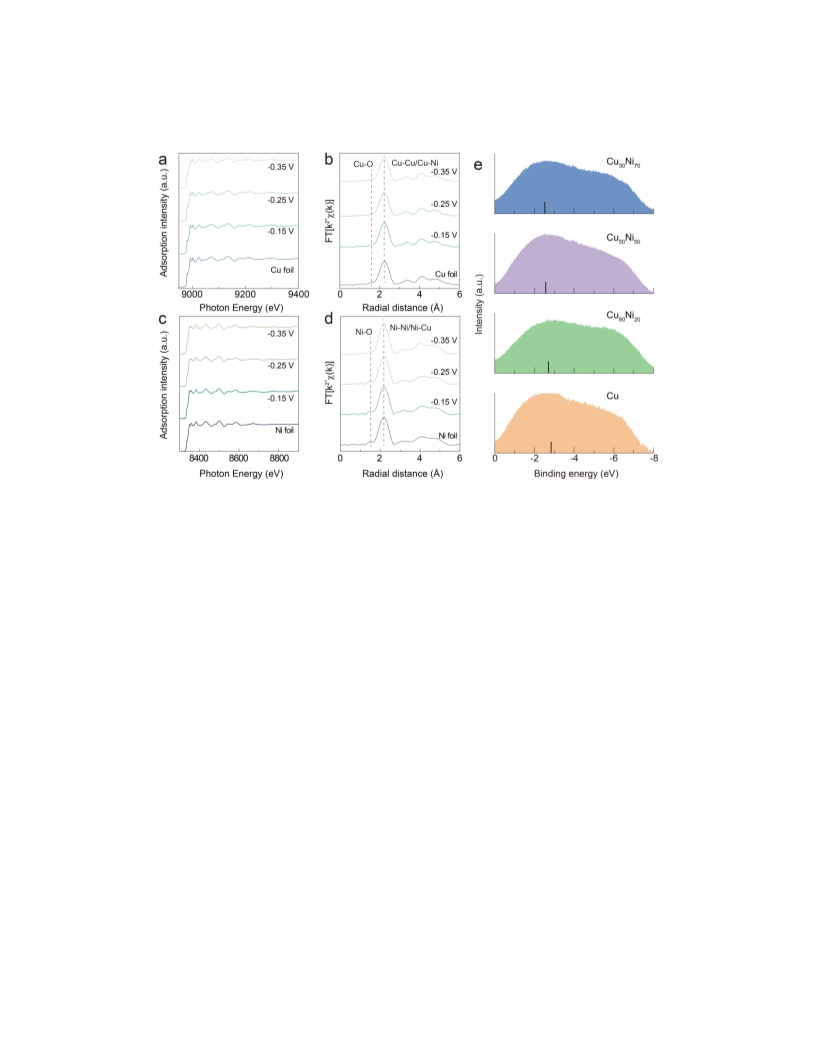

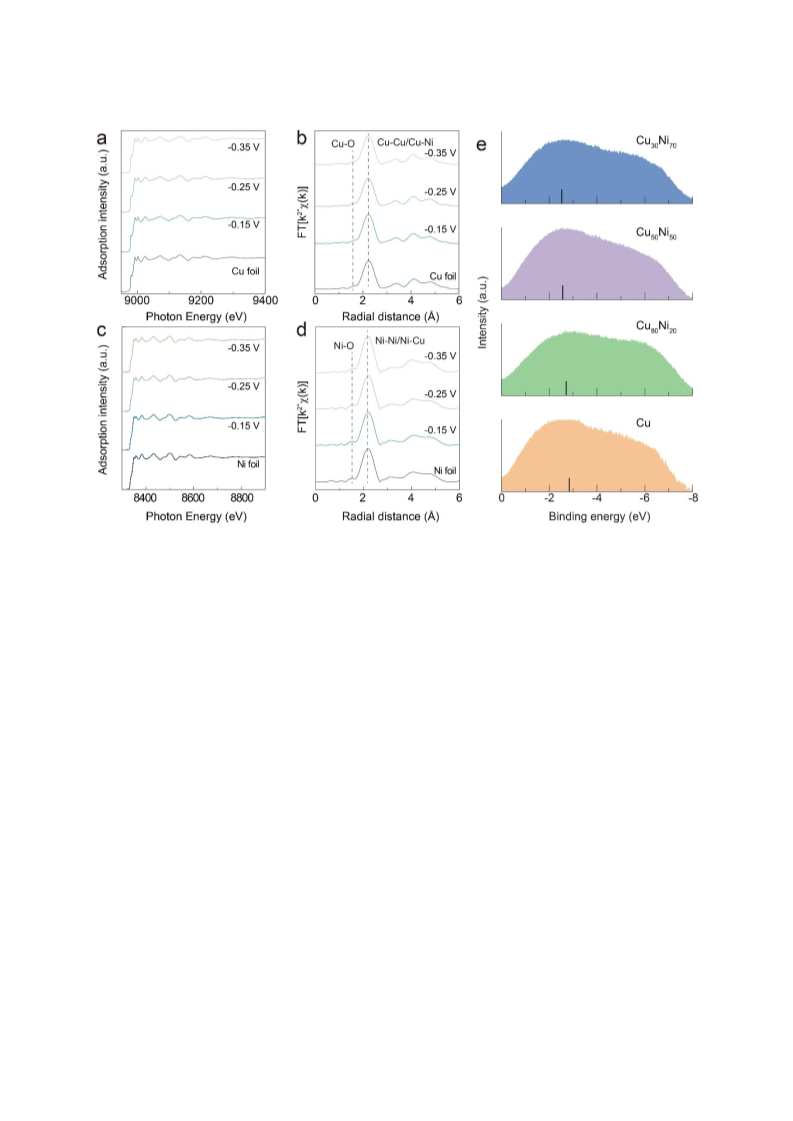

We utilized X-ray photoelectron spectroscopy (XPS), operando X-ray adsorption spectroscopy
(XAS) and ultra-violet photoelectron spectroscopy (UPS) to investigate the electronic structure
of the catalysts and found that the Cu d-band center upshifted toward the Fermi level in CuNi
4
ACS Paragon Plus Environment

Page 5 of 27
Journal of the American Chemical Society
1
2
3
4
5
76
alloys. In addition, we investigate the reaction pathway with DFT calculations, and build an
-
77
intermediate adsorption energy-NO3 RR performance relationship for the CuNi alloy system.
6
7
8
9
78
Results and discussion
10
11
12
79

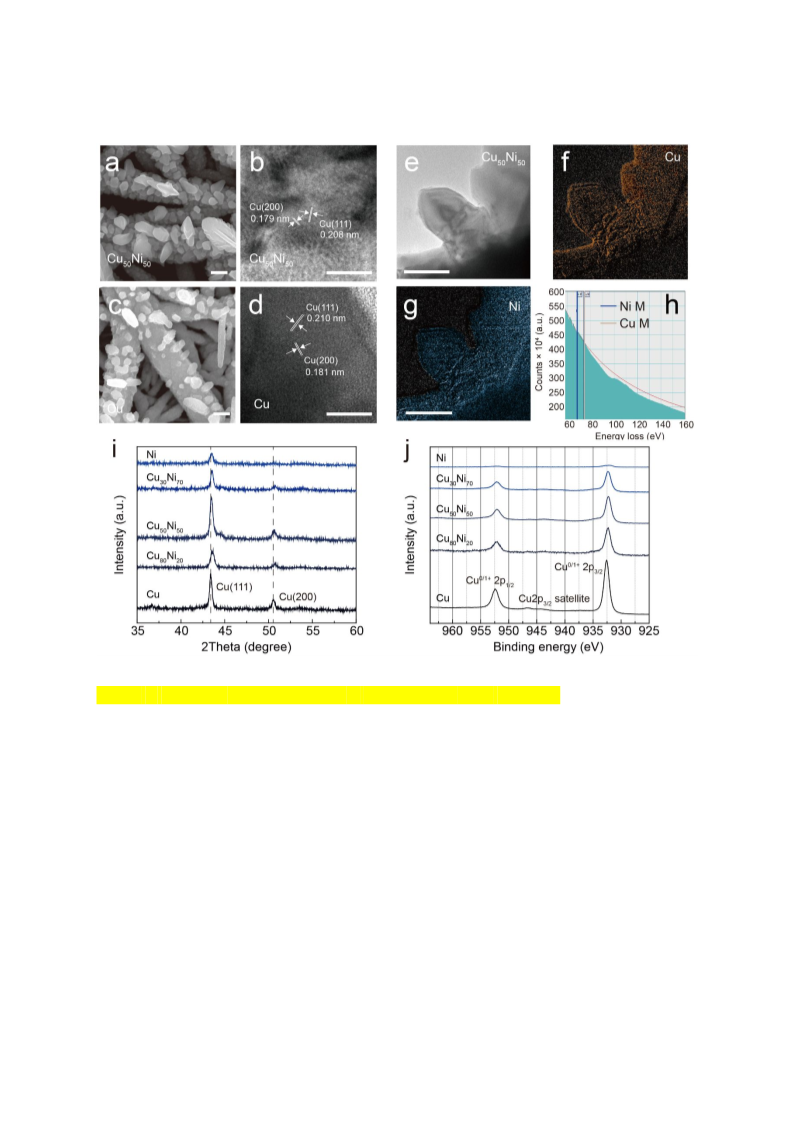

Catalyst synthesis and characterization. We began by electrodepositing catalysts on
both rotating disk electrodes (RDEs) and polytetrafluoroethylene (PTFE) membranes covered
with 300 nm thick Cu seed layers (300 nm Cu/PTFE). We used electron microscopy to
investigate the morphological and crystalline structure of the catalysts. The CuNi catalysts with
Cu-to-Ni ratios of 80:20, 50:50, and 30:70 in the deposition solutions, labeled Cu80Ni20,
Cu50Ni50, and Cu30Ni70, exhibited dendritic morphologies (Fig. 1a, Fig. S1, and S2) with
dendrite diameters in the range of 200-400 nm. Using high resolution transmission electron
microscopy (HRTEM) we observed lattice spacings of 0.208 and 0.179 nm for the Cu(111)
and Cu(200) facets (Fig. 1b) of the Cu50Ni50 catalysts due to the formation of the CuNi alloy
phase; compared to pure Cu dendrites exhibiting lattice spacings of 0.210 and 0.181 nm for
Cu(111) and Cu(200) facets that agree with cubic Cu (Fig. 1d).26 The Cu-to-Ni ratio in the
Cu50Ni50 catalyst, quantified by electron energy loss spectroscopy (EELS, Fig. 1e-h), was
~52:48. We observed similar ratios at other randomly-selected positions (Fig. S3 and Table S1),
arguing against a main role for catalyst heterogeneity in catalytic performance. XRD reveals a
decrease in Cu lattice spacings when Ni is incorporated (Fig. 1i and S4). The Cu(111) and
Cu(100) d-spacings of the Cu50Ni50 catalyst revealed by XRD agrees with the results observed
with HRTEM.
13
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
96
97
98
99
We also looked for evidence of changes in the electronic properties of the Cu and Cu:Ni
catalysts. XPS indicated a notable decrease in the Cu2p binding energy and an increase in the
metallic Ni2p binding energy for the alloyed catalysts (Fig. 1j and S5). Among the three alloyed
catalysts, we found the largest Cu2p binding energy shift of ~0.35 eV in Cu50Ni50. This can be
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 27
1
2
3
4
5
6
100
101
explained through electron redistribution27 which leads to an opposite shift of the Cu3d band
toward the Fermi level,28 tuning the adsorption energy of both H* and NO3*.
7
8
9
102
103
104
105
In the case of the pure Ni catalysts, only the XRD peaks of the Cu/PTFE support were
observed (Fig. 1i). XPS measurements exhibited a very similar Cu2p binding energy compared
to pristine Cu/PTFE (Fig. S6). SEM, elemental mapping, and Ni2p XPS (Fig. S5 and 7) reveal
only Ni, accompanied by NiOx formed by oxidation in air, fully covering the Cu/PTFE fibers.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
106
107
108
109
110
111
112
113
114
115

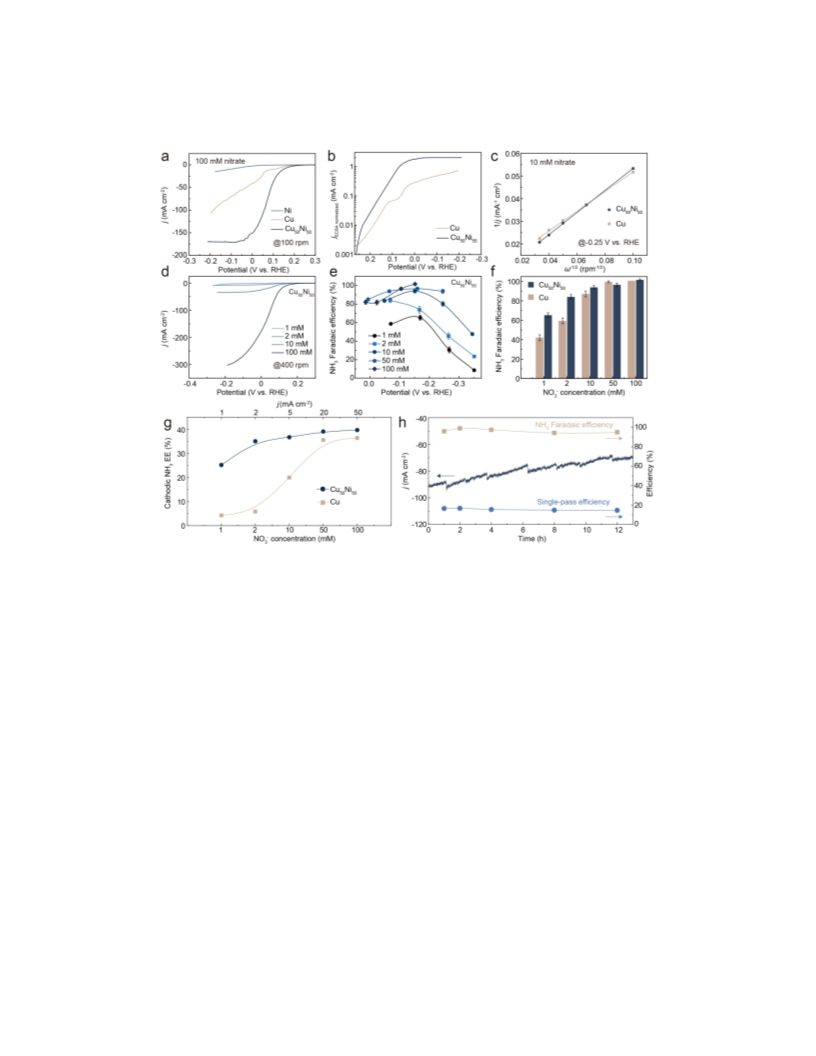

NO3 RR activity and kinetics. To investigate the electrocatalytic activity and kinetics of
-
NO3 reduction, we tested each catalyst on rotating disk electrodes (RDEs). With the Cu50Ni50
-
catalyst, we found an onset potential of ~0.25 V vs. RHE (pH = 14) for NO3 reduction (Fig.
2a). The current density then increased sharply to its transport-limited ceiling of ~170 mA cm-2
(according to equation 1 in Supporting information) at 100 rpm in 1 M KOH + 100 mM KNO3
(pH = 14) electrolyte. On the pure Cu catalysts, we found that a much more negative cathodic
-
potential was required to reach this same NO3 -transport-limited current: the current density
was only 100 mA cm-2 at -0.2 V vs. RHE which was only 60% of that obtained by operating
-
the Cu50Ni50 catalyst at the same potential. The pure Ni catalyst is almost inactive for NO3
reduction (Fig. S8a and b).
116
117
118
119
120
121
122
The current density, normalized to the electrochemically active surface area (ECSA),
increases exponentially to ~1 mA cm-2 along with the cathodic potential for the case of Cu50Ni50.
In contrast, an evident multi-electron transfer process (Fig. 2a and b) was seen on the pure Cu
catalyst. Cu50Ni50 catalysts exhibited a 40% lower ECSA, determined by its double-layer
capacitance, compared to pure Cu (Fig. S9a-c). This translated to a 6-fold increase in ECSA-
normalized current density for Cu50Ni50, compared to pure Cu at 0 V vs. RHE (Fig. 2b). The
-
intrinsic NO3 RR activity was significantly improved using the CuNi alloy systems.
6
ACS Paragon Plus Environment

Page 7 of 27
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
-
123
To gain insight into the kinetics, we plotted Koutecký–Levich (K-L) curves for NO3
124
reduction on the Cu50Ni50 and pure Cu catalysts (Fig. 2c) using their current density vs.
potential (j-V) profiles in 1 M KOH + 10 mM KNO3 (pH = 14) electrolyte (Fig. S10 and S8c).
K-L analysis revealed a four-electron-transfer process for NH3 production on both the Cu50Ni50
and Cu catalysts. The kinetic current density obtained using the Cu50Ni50 catalyst was
calculated from the intercept of the K-L plot and was 220 mA cm-2 at -0.25 V vs. RHE, 2x
higher than in the case of pure Cu controls (Table S2).
125
126
127
128
129
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
130
131
132
133
134
135
136
137
138
We investigated the E1/2 of NO3 RR on catalysts with different Cu:Ni ratios in 1 M KOH
-
+ 10 mM KNO3 electrolyte. On Cu30Ni70, Cu50Ni50, Cu80Ni20 alloys, we found increasing NO3
RR E1/2 compared to the pure Cu catalyst. For instance, at 100 rpm, Cu50Ni50 catalyst exhibited
the highest E1/2 of 0.08 V vs. RHE among all catalysts, while an E1/2 of -0.045 V vs. RHE was
seen in the case of pure Cu (Fig. S11). The improvement in E1/2 further increased to ~120 mV
-
when catalysts were tested in 100 mM KNO3 at the same rotating rate (Fig. 2a). For all NO3
concentrations, Cu50Ni50 catalysts perform better than the pure Cu as evidenced by the
upshifting of E1/2 and the reduced overpotential required for the same current density (Fig. 2d
and S7d).
-
139
140
141
142
143
144
NO3 RR selectivity. We investigated NH3 selectivity using catalysts deposited on
Cu/PTFE supports, e.g. the Cu50Ni50 catalyst on PTFE (labeled Cu50Ni50/PTFE), in a flow
-
electrolyzer.29 We quantified the NH3 product concentration as a function of a range of NO3
concentrations using an indophenol blue method (Fig. S12). To confirm that the NH3 produced
-
15
-
indeed comes from NO3 reduction, NO3 electroreduction was performed using the same
catalyst (Fig. S13).
145
146
We achieved a 99 ± 1% Faradaic efficiency (FE) for NH3 at ~-0.15 V vs. RHE on the
Cu50Ni50/PTFE catalyst in 1 M KOH + 100 mM KNO3 electrolyte (Fig. 2e and Table S3). The
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 27
1
2
3
4
5
6
7
8
9
147
148
149
150
151
152
peak FE for NH3, on Cu50Ni50/PTFE, shifted to a 50 mV lower overpotential compared to that
of the pure Cu/PTFE (Fig. S14). The corresponding current density using Cu50Ni50/PTFE was
more than 1.3 times higher than that obtained using pure Cu controls (Table. S5). We checked
-
-
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
for catalyst reconstruction following NO3 reduction after a 2-hour NO3 RR operation in 100
-
mM NO3 and found that morphologies were retained in the case of both Cu50Ni50/PTFE and
pure Cu/PTFE (Fig. S15).
153
154
155
156
157
158
Alloying with Ni increased the NH3 FE at low overpotentials (potentials > -0.1 V vs. RHE)
-
in different NO3 concentrations. Cu50Ni50 catalysts enhanced the NH3 FE by over 20% at ~0
V vs. RHE compared to pure Cu (Fig. 2f, Table S4 and 5). Specifically, the highest NH3 FE is
-
65 ± 3%, 84 ± 2% and 93 ± 2% in 1, 2, and 10 mM NO3 conditions at pH = 14, respectively.
In contrast, pure Cu is only able to attain a FE of 42 ± 3%, 59 ± 3% and 87 ± 3% at the same
-
NO3 concentrations.
159
160
161
162
163
164
We achieved a peak NH3 half-cell energy efficiency (EE) of 40% using Cu50Ni50/PTFE at
-
50 mA cm-2 in 100 mM NO3 (Fig. 2g). This corresponds to a full-cell EE of 31% for this
catalyst at 50 mA cm-2 in the same electrolyte (Fig. S16), which is 1.3-fold improved compared
to the case of the pure Cu catalyst. A 31% NH3 full-cell EE was also obtained using
-
Cu50Ni50/PTFE at 2 mA cm-2 in 2 mM NO3 (Fig. S16). This is ~6 times greater than that of the
pure Cu catalyst under the same condition.
-
165
166
167
168
169
170
By studying both the NH3 FE on Cu80Ni20 and Cu30Ni70 catalysts in 1 mM NO3 , we found
that the Cu50Ni50 catalyst was the most active and selective catalyst (Fig. S17 and 18). The NH3
FE at -0.06 V vs. RHE was 58 ± 2%. Cu80Ni20 catalysts produced NH3 with a similar FE of 51
± 2%. Introducing 70% Ni into Cu caused a sharp decrease in NH3 FE from ~58% to ~31%.
Depositing pure Ni largely blocked the Cu sites underneath and further reduced the NH3 FE to
11 ± 1%.
8
ACS Paragon Plus Environment

Page 9 of 27
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
171
We implemented the Cu50Ni50 catalyst on a 3D porous electrode by depositing the
Cu50Ni50 catalyst onto a Cu foam with a pore size of ~200 μm (Fig. S19). We achieved, as a
result, a 90 mA cm-2 current density at -0.1 V vs. RHE, which is two-fold higher than the
Cu50Ni50/PTFE electrode in 1 M KOH + 100 M KNO3 (Fig. 4h). The NH3 FE was steady at
172
173
174
-
175
~95% over 12 h of NO3 RR and at a 39% NH3 half-cell energy efficiency (EE). 15% of the
13
14
-
176
input NO3 was converted into NH3 in a single pass (Fig. 4h and Table S7).
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
177
178
179
180
181
182
183
184
185
Electronic structure studies. To shed light on the electronic structure of the CuNi alloy
-
catalysts under NO3 RR conditions, we turned to operando hXAS.30 The Cu50Ni50 catalyst in 1
M KOH + 10 mM KNO3 electrolyte at a series of applied potentials exhibited pure metallic
features in both Ni and Cu K-edge spectra under steady-state operation conditions (Fig. 3a-d,
Fig. S20). We then calculated the operando coordination numbers (CNs) of Ni at different
potentials. The CNs of metal-metal bonds stayed above 11.5 at all potentials (Table S6 and 7).
This result suggests that, in our work, there is unlikely to be a prominent role for subsurface
oxygen species as previously reported in related catalysts under distinct electrochemical (acidic)
conditions.31
186
187
188
189
190
191
192
193
Since the adsorption energy of intermediates is strongly correlated with the d-band center
position of catalysts,32 we performed UPS studies for the pure Cu and the CuNi alloys (Fig.
3e). The pure Cu catalyst exhibited a d-band center location of -2.84 eV (E-EF, Fermi level) on
the background-corrected spectrum. Increasing the Ni composition in the alloys causes an
upshift of the d-band center towards the Fermi level by 0.14, 0.28 and 0.32 eV for Cu80Ni20,
Cu50Ni50 and Cu30Ni70, respectively. These results were in agreement with the XPS results,
wherein we observed the 2p electron redistribution which leads to a positive shift of the Cu3d
band towards the Fermi level. This indicates decreasing anti-bonding occupation and stronger
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 27
1
2
3
4
5
6
194
195
adsorbate bonding,32 which means that alloying Ni with Cu greatly enhances the adsorption
energies of intermediate species.
7
8
9
196
197
198
199
200
Taken together, the activity, selectivity and d-band center positions, allow us to reason
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
that enhanced NO3 RR intermediate adsorption, arising due to the shifted d-band center
-
position, improved the NO3 RR activity and selectivity on CuNi alloys. However, introducing
an excess of Ni, i.e. the Cu30Ni70 catalyst, reaction intermediates too strongly, which lowers
the activity and selectivity.
201
202
203
204
205
206

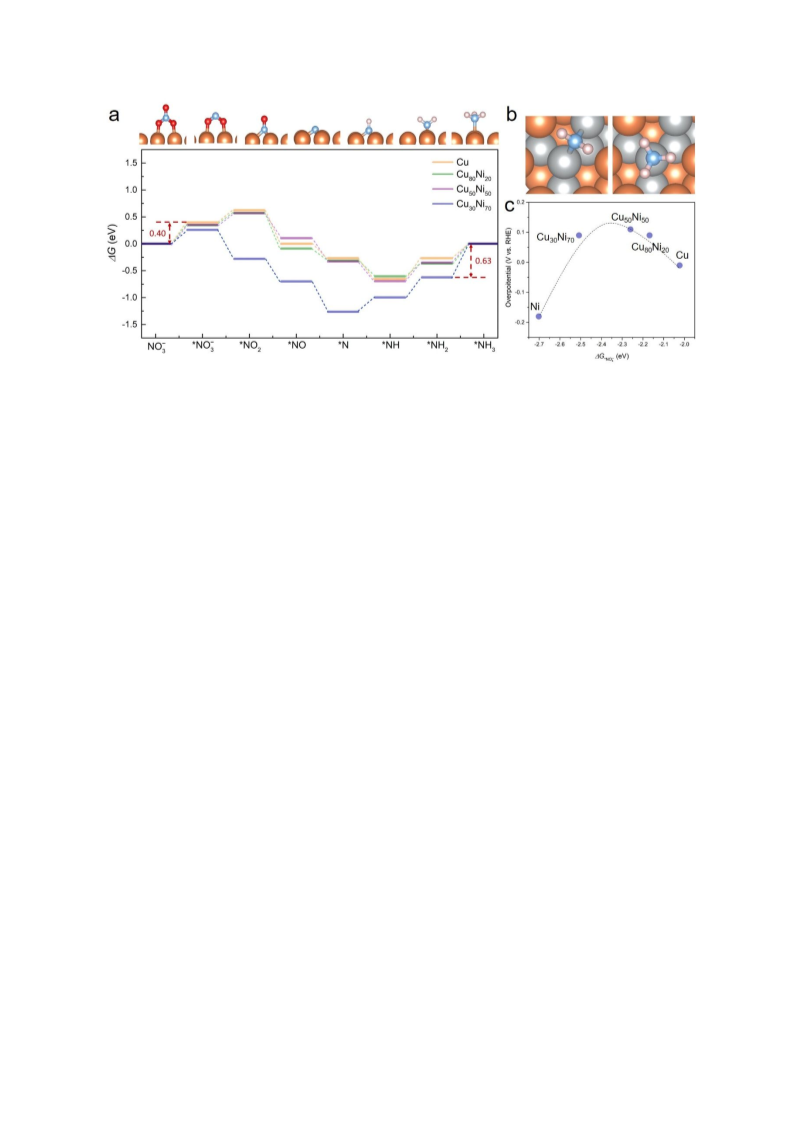

DFT studies. We sought to investigate, using DFT, the relationship between intermediate
-
adsorption and the NO3 RR activity of different CuNi catalysts (Fig. 4a). The stability of CuNi
alloy systems were screened via doping Ni into Cu at various layers and distributions (Fig. S21,
22, and Table S8). Thermodynamics first force Ni atoms to replace the subsurface Cu when
the Ni:Cu ratio is less than 1:1. The substitution takes place on Cu surfaces with a further
increase in the ratio (Fig. S22).
-
207
208
209
The electrochemical reaction NO3 + 6H2O + 8e- → NH3 + 9OH- was represented by a
-
series of deoxidation reactions: *NO3 → *NO2 → *NO → *N followed by hydrogenation
reactions of *N → *NH → *NH2 → *NH3 according to a previous report.33 With the stable CuNi
210
211
212
213
structures we built, we took different adsorbed orientations of intermediates on all possible
active sites into account (Fig. S23 and 24). For all intermediates, the most stable adsorption
-
configurations (Fig. 4a) with the lowest total energies were employed to illustrate the NO3 RR
pathway, and hence assess the activities of different catalysts.
-
214
215
A full NO3 RR pathway in 1 M KOH (pH = 14), including the deoxidation/hydrogenation
-
reactions and intermediates,33 was then calculated (Fig. 4a). On pure Cu, the first NO3
10
ACS Paragon Plus Environment

Page 11 of 27
Journal of the American Chemical Society
1
2
3
4
5
216
adsorption step is the potential-dependent step (PDS) of which the maximum reaction free
energy is 0.40 eV at -0.14 V vs. standard hydrogen electrode (SHE). Introducing Ni atoms
217
6
7
8
9
-
218
219
moves the PDS from NO3 adsorption to the hydrogenation of the *NH2 intermediate (*NH2 +
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
H2O + e- → *NH3 + OH-, Figure 4b), as the result of enhanced adsorption caused by the
-
220
221
222
223
224
225
226
227
upshifted d-band center (Fig. 3e). A volcano-type relationship between the *NO3 adsorption
-
energy and the NO3 RR experimental overpotentials was seen (Fig. 4c). By increasing Ni
-
concentration in CuNi alloys, a stronger adsorption of *NO3 on the surface further modifies
-
the energetics of NO3 RR. However, on Cu30Ni70 alloy and pure Ni, the reaction free energy
for *NH2 hydrogenation increases to -0.39 and -0.34 eV at -0.14 V vs. SHE, as high Ni fractions
lead to *NH2 intermediate adsorptions exceeding the optimal values. This fact, along with a
possible decrease in the number of Cu sites (Fig. S23 and 24), works against the formation of
*NH3 and the selectivity toward NH3 decreases as a result.
228
Conclusions
-
229
230
231
232
233
234
235
236
237
238
239
This work presents the relationship between intermediate adsorption energies and NO3
RR activity on CuNi catalysts. By replacing 50% Cu with Ni, we achieved significantly
-
improved NO3 RR-to-NH3 performance. This includes a 0.12 V upshift in the half-wave
potential, a 0.2 V lower overpotential required to achieve the optimal NH3 FE, and a 6-fold
-
increase in NO3 RR activity on Cu50Ni50 alloy catalysts compared to pure Cu at 0 V vs. RHE
in alkaline conditions (pH = 14). The electronic structure studies revealed an upshifting of the
d-band center toward the Fermi level, a feature that enhances intermediate adsorption energies.
This relationship was then validated by our DFT calculations, wherein we found that
-
introducing Ni atoms moves the PDS from NO3 adsorption to *NH2 hydrogenation due to the
-
enhanced adsorption energy of NO3 on the CuNi surface, and as a result, lowers the
overpotential. Our work demonstrates the effect of the d-band center positions and the induced
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 27
1
2
3
4
5
6
-
240
241
adsorption properties on the NO3 RR activity and selectivity. This work highlights a promising
-
route to design catalysts for selective NO3 RR to NH3.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
12
ACS Paragon Plus Environment

Page 13 of 27
Journal of the American Chemical Society
1
2
3
4
242
Acknowledgements
5
6
7
8
9
243
This work was financially supported by the Ontario Research Fund: Research Excellence
Program, the Natural Sciences and Engineering Research Council (NSERC) of Canada, and
the CIFAR Bio-Inspired Solar Energy program. This research used synchrotron resources of
the Advanced Photon Source (APS), an Office of Science User Facility operated for the U.S.
Department of Energy (DOE) Office of Science by Argonne National Laboratory, and was
supported by the U.S. DOE under Contract No. DE-AC02-06CH11357, and the Canadian Light
Source and its funding partners. All DFT computations were performed on the IBM
BlueGene/Q supercomputer with support from the Southern Ontario Smart Computing
Innovation Platform (SOSCIP) and Niagara supercomputer at the SciNet HPC Consortium.
SOSCIP is funded by the Federal Economic Development Agency of Southern Ontario, the
Province of Ontario, IBM Canada Ltd., Ontario Centres of Excellence, Mitacs and 15 Ontario
academic member institutions. SciNet is funded by: the Canada Foundation for Innovation; the
Government of Ontario; Ontario Research Fund - Research Excellence; and the University of
Toronto. We acknowledge the Toronto Nanofabrication Centre (TNFC) and the Ontario Centre
for the Characterization of Advanced Materials (OCCAM) for sample preparation and
characterization facilities. The authors thank Dr. T. P. Wu, and L. Ma for technical support at
9BM beamline of APS. D.S. acknowledges the NSERC E.W.R Steacie Memorial Fellowship.
J.L. acknowledges the Banting postdoctoral fellowship from Govt. of Canada.
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Supplementary materials
Materials and Methods
Figs. S1 to S24
Tables S1 to S8
13
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 27
1
2
3
4
5
6
7
8
9
267
268
269
Competing financial interests: The authors declare no competing financial interests.
Data and materials availability
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
270
271
All data are reported in the main text and supplementary materials.
14
ACS Paragon Plus Environment

Page 15 of 27
Journal of the American Chemical Society
1
2
3
4
272
Figures
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
273
38
39
40
41
42
43
44
274
Figure 1. Materials characterization of copper-nickel alloy catalysts. (a, b) Representative
SEM and HRTEM images of the Cu50Ni50 catalyst. (c, d) Representative SEM and HRTEM
images of the pure Cu catalyst. The scale bars are 200 nm in a and c, and 10 nm in b and d.
(e-h) The STEM image and EELS mapping analysis of the Cu50Ni50 catalyst. The scale bars
are 100 nm. (i, j) XRD patterns and XPS Cu2p spectra of catalysts with different Cu:Ni ratios.
275
276
277
278
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
279
15
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
280
281
282
283
284
285
286
287
288
289
290
291
Figure 2. Nitrate-to-ammonia electroreduction performance. (a) j-V plots of nitrate
reduction (80% iR corrected) on the Cu50Ni50, pure Cu and pure Ni RDE at 100 rpm in 1 M
KOH + 0.1 M KNO3 electrolyte. (b) ECSA-normalized current densities. (c) Koutecký–Levich
plots of nitrate reduction on Cu50Ni50 and Cu at -0.25 V vs. RHE in 1 M KOH + 10 mM KNO3
electrolyte. (d) j-V plots of nitrate reduction (80% iR corrected) on the Cu50Ni50 RDE at 400
rpm. (e) Nitrate-to-ammonia Faradaic efficiency on the Cu50Ni50/PTFE catalyst in different
nitrate concentrations. (f) Comparison of the highest NH3 Faradaic efficiency on the
Cu50Ni50/PTFE and pure Cu/PTFE catalysts in different nitrate concentrations. (g) Comparison
of the cathodic (half-cell) NH3 energy efficiency (EE) obtained using the Cu50Ni50/PTFE and
pure Cu/PTFE catalysts. (h) Stability and single-pass conversion test of nitrate reduction at -
0.1 V vs. RHE using a Cu50Ni50/Cu foam catalyst.
16
ACS Paragon Plus Environment

Page 17 of 27
Journal of the American Chemical Society
1
2
3
4
292
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
293
32
33
34
35
294
Figure 3. Electronic structure. (a) Operando Cu K-edge hXAS spectra of the Cu50Ni50
catalyst at different applied potentials. (b) Fourier-transformed operando Cu K-edge hXAS
spectra of the Cu50Ni50 catalyst at different applied potentials. (c) Operando Ni K-edge hXAS
spectra of the Cu50Ni50 catalyst at different applied potentials. (d) Fourier-transformed
operando Ni K-edge hXAS spectra of the Cu50Ni50 catalyst at different applied potentials. (e)
The UPS spectra and d-band center positions of pure Cu catalysts and the CuNi alloys.
295
36
296
297
298
299
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
300
17
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
301
302
303
Figure 4. DFT calculations. (a) Reaction free energies for different intermediates on CuNi
surface. (b). Hydrogenation reaction of *NH2 (*NH2 + H2O + e- → *NH3 +OH-) on Cu30Ni70
-
304
305
306
307
surface. (c) The volcano-type relationship between experimental overpotentials of NO3 RR at
-
5 mA cm-2 in 10 mM KNO3 and adsorption energies of *NO3 on all CuNi alloys. Red, pink,
blue, grey and orange spheres correspond to oxygen, hydrogen, nitrogen, nickel and copper
atoms, respectively.
18
ACS Paragon Plus Environment

Page 19 of 27
Journal of the American Chemical Society
1
2
3
4
5
308
References
6
7
8
309
1.
N. Gruber, J. N. Galloway. An Earth-system perspective of the global nitrogen cycle.
Nature 2008, 451, 293-296.
310
9
10
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
2.
3.
4.
5.
6.
D. E. Canfield, A. N. Glazer, P. G. Falkowski. The evolution and future of Earth’s
nitrogen cycle. Science 2010, 330, 192-196.
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Penn State. Clean air act reduces acid rain in eastern United States. ScienceDaily
September 28, 1998,
NOx/VOC office. NOx/VOC somg fact sheet. Canadian Council of Ministers of the
Environment. Ottawa, ON, Canada, 1998.
M. J. Moorcroft, J. Davis, R. G. Compton. Detection and determination of nitrate
and nitrite: a review. Talanta 2001, 54, 785-803.
B. T. Nolan, K. J. Hitt, B. C. Ruddy. Probability of nitrate contamination of recently
recharged groundwaters in the conterminous United States. Environ. Sci. Technol.
2002, 36, 2138-2145.
7.
M. Ascott, D. C. Gooddy, L. Wang, M.E. Stuart, M. A. Lewis, R. S. Ward, A. M.
Binley. Global patterns of nitrate storage in the vadose zone. Nat. Commun. 2017,
8, 1416.
8.
C. L. Ford, Y. J. Park, E. M. Matson, Z. Gordon, A. R. Fout. A bioinspired iron
catalyst for nitrate and perchlorate reduction. Science 2016, 354, 741-743.
M. Duca, M. T. Koper. Powering denitrification: the perspectives of electrocatalytic
nitrate reduction. Energy Environ. Sci. 2012, 5, 9726-9742.
V. Rosca, M. Duca, M. T. de Groot, M. T. Koper. Nitrogen cycle electrocatalysis.
Chem. Rev. 2009, 109, 2209-2244.
9.
10.
11.
S. Seraj, P. Kunal, H. Li, G. Henkelman, S. M. Humphrey, C. J. Werth. PdAu alloy
nanoparticle catalysts: effective candidates for nitrite reduction in water. ACS Catal.
19
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 20 of 27
1
2
3
4
5
6
7
8
9
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
2017, 7, 3268-3276.
12.
13.
D. P. Butcher, A. A. Gewirth. Nitrate reduction pathways on Cu single crystal
surfaces: Effect of oxide and Cl−. Nano Energy 2016, 29, 457-465.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
E. Pérez-Gallent, M. C. Figueiredo, I. Katsounaros, M. T. Koper. Electrocatalytic
reduction of nitrate on copper single crystals in acidic and alkaline solutions.
Electrochim. Acta 2017, 227, 77-84.
14.
15.
J. G. Chen, R. M. Crooks, L. C. Seefeldt, K. L. Bren, R. M. Bullock, M. Y.
Darensbourg, P. L. Hooand, B. Hoffman, M. J. Janik, A. K. Jones, M. G. Kanatzidis,
P. King, K. M. Lancaster, S. V. Lymar, P. Pfromm, W. F. Schneider, R. R. Schrock.
Beyond fossil fuel-driven nitrogen transformations. Science 2018, 360, eaar6611.
D. Reyter, G. Chamoulaud, D. Bélanger, L. Roué. Electrocatalytic reduction of
nitrate on copper electrodes prepared by high-energy ball milling. J. Electroanal.
Chem. 2006, 596, 13-24.
16.
17.
D. Reyter, D. Bélanger, L. Roué. Study of the electroreduction of nitrate on copper
in alkaline solution. Electrochim. Acta 2008, 53, 5977-5984.
N. Comisso, S. Cattarin, S. Fiameni, R. Gerbasi, L. Mattarozzi, M. Musiani, L.
Vázquez-Gómez, E. Verlato. Electrodeposition of Cu–Rh alloys and their use as
cathodes for nitrate reduction. Electrochem. Commun. 2012, 25, 91-93.
L. Mattarozzi, S. Cattarin, N. Comisso, A. Gambirasi, P. Guerriero, M. Musiani, L.
Vázquez-Gómez, E. Verlato. Hydrogen evolution assisted electrodeposition of
porous Cu-Ni alloy electrodes and their use for nitrate reduction in alkali.
Electrochim. Acta 2014, 140, 337-344.
18.
19.
L. Mattarozzi, S. Cattarin, N. Comisso, P. Guerriero, M. Musiani, L. Vázquez-
Gómez, E. Verlato. Electrochemical reduction of nitrate and nitrite in alkaline
media at CuNi alloy electrodes. Electrochim. Acta 2013, 89, 488-496.
20
ACS Paragon Plus Environment

Page 21 of 27
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
358
20.
21.
B. K. Simpson, D. C. Johnson. Electrocatalysis of nitrate reduction at copper-nickel
alloy electrodes in acidic media. Electroanalysis. 2004, 16, 532-538.
V. R. Stamenković, T. J. Schmidt, P. N. Ross, N. M. Marković. Surface composition
effects in electrocatalysis: kinetics of oxygen reduction on well-defined Pt3Ni and
Pt3Co alloy surfaces. J. Phys. Chem. B 2002, 106, 11970-11979.
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
22.
23.
24.
25.
V. R. Stamenković, B. Fowler, B. S. Mun, G. Wang, P. N. Ross, C. A. Lucas, N.
M. Marković. Improved oxygen reduction activity on Pt3Ni(111) via increased
surface site availability. Science 2007, 315, 493-499.
J. K. Nørskow, J. Rossmeisl, A. Logadottir, L. Lindqvist. Origin of the overpotential
for oxygen reduction at a fuel-cell cathode. J. Phys. Chem. B 2004, 108, 17886-
17892.
H. Huang, H. Jia, Z. Liu, P. Gao, J. Zhao, Z. Luo, J. Yang, J. Zeng. Understanding
of strain effects in the electrochemical reduction of CO2: using Pd nanostructures
as an ideal platform. Angew. Chem. Int. Ed. 2017, 56, 3594-3598.
D. Kim, J. Resasco, Y. Yu, A. M. Asiri, P. Yang. Synergistic geometric and
electronic effects for electrochemical reduction of carbon dioxide using gold–
copper bimetallic nanoparticles. Nat. Commun. 2014, 5, 4948.
26.
27.
T. Theivasanthi, M. Alagar. X-ray diffraction studies of copper nanopowder. 2010,
arXiv preprint arXiv:1003.6068.
A. Jha, D.-W. Jeong, J.-O. Shim, W.-J. Jang, Y.-L. Lee, C. V. Rode, H.-S. Roh.
Hydrogen production by the water-gas shift reaction using CuNi/Fe2O3 catalyst.
Catal. Sci. Technol. 2015, 5, 2752-2760.
28.
H. H. Hsieh, Y. K. Chang, W. F. Pong, J. Y. Pieh, P. K. Tseng, T.-K. Sham, I.
Couthard, S. J. Naftel, J. F. Lee, S. C. Chung, K. L. Tsang. Electronic structure of
Ni-Cu alloys: the d-electron charge distribution. Phys. Rev. B 1998, 57, 15204-
21
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 22 of 27
1
2
3
4
5
6
7
8
9
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
15210.
29.
C.-T. Dinh, T. Burdyny, M. G. Kibria, A. Seifitokaldani, C. M. Gabardo, F. P. G.
de Arquer, A. Kiani, J. P. Edwards, P. De Luna, O. S. Bushuyev, C. Zou, R.
Quintero-Bermudez, Y. Pang, D. Sinton, E. H. Sargent. CO2 electroreduction to
ethylen via hydroxide-mediated copper catalysis at an abrupt interface. Science
2018, 360, 783-787.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
30.
J. Li, F. Che, Y. Pang, C. Zou, J. Y. Howe, T. Burdyny, J. P. Edwards, Y. Wang,
F. Li, Z. Wang, P. De Luna, C.-T. Dinh, T.-T. Zhuang, M. I. Saidaminov, S. Cheng,
T. Wu, Y. Z. Finfrock, L. Ma, S.-H. Hsieh, Y.-S. Liu, G. A. Botton, W.-F. Pong, X.
Du, J. Guo, T.-K. Sham, E. H. Sargent, D. Sinton. Copper adparticle enabled
selective electrosynthesis of n-propanol. Nat. Commun. 2018, 9, 4614.
S.-E. Bae, K. L. Stewart, A. A. Gewirth. Nitrate adsorption and reduction on Cu(100)
in acidic solution. J. Am. Chem. Soc. 2007, 129, 10171-10180.
31.
32.
33.
J. K. Nørskov, F. Abild-Pedersen, F. Studt, T. Bligaard. Density functional theory
in surface chemistry and catalysis. Proc. Natl. Acad. Sci. 2011, 108, 937-943.
J.-X. Liu, D. Richards, N. Singh, B. R. Goldsmith. Activity and Selectivity Trends
in electrocatalytic nitrate reduction on transition metals. ACS Catal. 2019, 9, 7052-
7064.
22
ACS Paragon Plus Environment

Page 23 of 27
Journal of the American Chemical Society
1
2
3
4
402

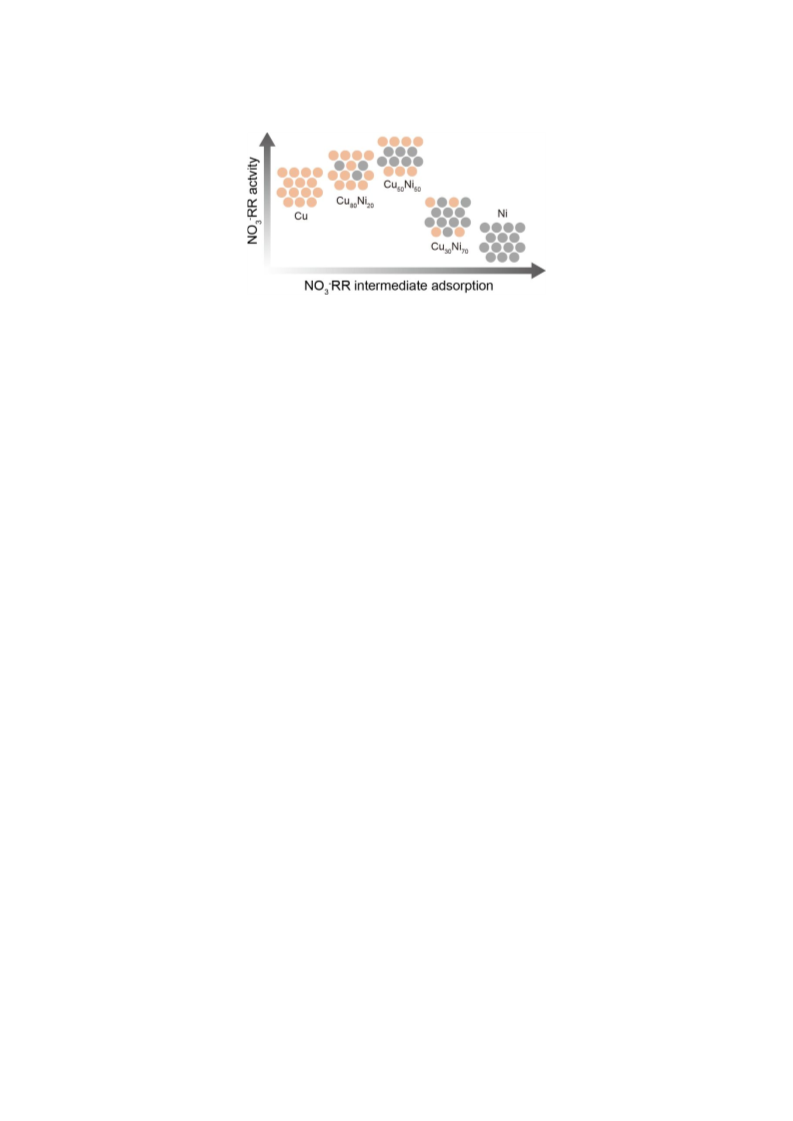

TOC graphic
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
403
23
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 24 of 27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Materials characterization of copper-nickel alloy catalysts. (a, b) Representative SEM and HRTEM
images of the Cu Ni catalyst. (c, d) Representative SEM and HRTEM images of the pure Cu catalyst. The
50 50
scale bars are 200 nm in a and c, and 10 nm in b and d. (e-h) The STEM image and EELS mapping analysis
of the Cu Ni catalyst. The scale bars are 100 nm. (i, j) XRD patterns and XPS Cu2p spectra of catalysts
50 50
with different Cu:Ni ratios.
ACS Paragon Plus Environment

Page 25 of 27
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. Nitrate-to-ammonia electroreduction performance. (a) j-V plots of nitrate reduction (80% iR
corrected) on the Cu Ni , pure Cu and pure Ni RDE at 100 rpm in 1 M KOH + 0.1 M KNO electrolyte. (b)
50 50
3
ECSA-normalized current densities. (c) Koutecký–Levich plots of nitrate reduction on Cu50Ni50 and Cu at -
0.25 V vs. RHE in 1 M KOH + 10 mM KNO electrolyte. (d) plots of nitrate reduction (80% iR corrected)
3
j-V
on the Cu Ni RDE at 400 rpm. (e) Nitrate-to-ammonia Faradaic efficiency on the Cu50Ni50/PTFE catalyst
50 50
in different nitrate concentrations. (f) Comparison of the highest NH Faradaic efficiency on the
3
Cu Ni /PTFE and pure Cu/PTFE catalysts in different nitrate concentrations. (g) Comparison of the
50 50
cathodic (half-cell) NH energy efficiency (EE) obtained using the Cu Ni /PTFE and pure Cu/PTFE
3
50 50
catalysts. (h) Stability and single-pass conversion test of nitrate reduction at -0.1 V vs. RHE using a
Cu Ni /Cu foam catalyst.
50 50
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 26 of 27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. Electronic structure. (a) Operando Cu K-edge hXAS spectra of the Cu Ni catalyst at different
50 50
applied potentials. (b) Fourier-transformed operando Cu K-edge hXAS spectra of the Cu Ni catalyst at
50 50
different applied potentials. (c) Operando Ni K-edge hXAS spectra of the Cu Ni catalyst at different
50 50
applied potentials. (d) Fourier-transformed operando Ni K-edge hXAS spectra of the Cu Ni catalyst at
50 50
different applied potentials. (e) The UPS spectra and d-band center positions of pure Cu catalysts and the
CuNi alloys.
ACS Paragon Plus Environment

Page 27 of 27
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4. DFT calculations. (a) Reaction free energies for different intermediates on CuNi surface. (b).
-
-
Hydrogenation reaction of *NH (*NH + H O + e → *NH +OH ) on Cu Ni surface. (c) The volcano-
2
2
2
3
30 70
-
-2
type relationship between experimental overpotentials of NO RR at 5 mA cm in 10 mM KNO and
3
3
-
adsorption energies of *NO on all CuNi alloys. Red, pink, blue, grey and orange spheres correspond to
3
oxygen, hydrogen, nitrogen, nickel and copper atoms, respectively.
ACS Paragon Plus Environment
