Deep oxidative desulfurization of dibenzothiophene in simulated oil and real diesel using heteropolyanion-substituted hydrotalcite-like compounds as catalysts

Article abstract of DOI:10.3390/molecules181113691

Three heteropolyanion substituted hydrotalcite-like compounds (HPA-HTLcs) including Mg9Al3(OH)24[PW12O40](MgAl-PW12), Mg9Al3(OH)24[PMo12O40] (MgAl-PMo12) and Mg12Al4(OH)32[SiW12O40] (MgAl-SiW12), were synthesized, characterized and used as catalysts for the oxidative desulfurization of simulated oil (dibenzothiophene, DBT, in n-octane). MgAl-PMo12 was identified as an effective catalyst for the oxidative removal of DBT under very mild conditions of atmospheric pressure and 60 °C in a biphasic system using hydrogen peroxide as oxidant and acetonitrile as extractant. The conversion of DBT was nearly 100%. As a result, because of the influence of the electron density and the space steric hindrance, the oxidation reactivity of the different sulfur compounds in simulated oil followed the order DBT > 4,6- dimethyldibenzothiophene (4,6-DMDBT) > benzothiophene (BT) > thiophene (TH). When the reaction is finished, the catalysts can be recovered from the acetonitrile phase by filtration. The recovered MgAl-PMo12 retains nearly the same catalytic activity as the fresh material. Moreover, MgAl-PMo12 was found to exhibit an ideal catalytic activity in the oxidative desulfurization of real diesel resulting in a total remaining sulfur content of 9.12 ppm(w).

Full text of DOI:10.3390/molecules181113691

Molecules 2013, 18, 13691-13704; doi:10.3390/molecules181113691
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Deep Oxidative Desulfurization of Dibenzothiophene in
Simulated Oil and Real Diesel Using Heteropolyanion-Substituted
Hydrotalcite-Like Compounds as Catalysts
1
,2
1,
Fengli Yu and Rui Wang *
1
School of Environmental Science and Engineering, Shandong University, Jinan 250100, China;
E-Mail: yufengli123@126.com
2
College of Resource & Environment Engineering, Jilin Institute of Chemical Technology,
Jilin 132022, China
*
Author to whom correspondence should be addressed; E-Mail: ree_wong@hotmail.com;
Tel.: +86-531-8836-6367; Fax: +86-531-8836-4513.
Received: 18 September 2013; in revised form: 29 October 2013 / Accepted: 31 October 2013 /
Published: 5 November 2013
Abstract: Three heteropolyanion substituted hydrotalcite-like compounds (HPA-HTLcs)
including Mg
9
Al
3
(OH)24[PW12
9 3
O40](MgAl-PW12), Mg Al (OH)24[PMo12O40] (MgAl-PMo12)
and Mg12Al
4
(OH)32[SiW12
O40] (MgAl-SiW12), were synthesized, characterized and used
as catalysts for the oxidative desulfurization of simulated oil (dibenzothiophene, DBT, in
n-octane). MgAl-PMo12 was identified as an effective catalyst for the oxidative removal of
DBT under very mild conditions of atmospheric pressure and 60 °C in a biphasic system
using hydrogen peroxide as oxidant and acetonitrile as extractant. The conversion of DBT
was nearly 100%. As a result, because of the influence of the electron density and the
space steric hindrance, the oxidation reactivity of the different sulfur compounds in
simulated oil followed the order DBT > 4,6-dimethyldibenzothiophene (4,6-DMDBT) >
benzothiophene (BT) > thiophene (TH). When the reaction is finished, the catalysts can be
recovered from the acetonitrile phase by filtration. The recovered MgAl-PMo retains
12
nearly the same catalytic activity as the fresh material. Moreover, MgAl-PMo12 was found to
exhibit an ideal catalytic activity in the oxidative desulfurization of real diesel resulting in
a total remaining sulfur content of 9.12 ppm(w).
Keywords: oxidative desulfurization; heteropolyanion; hydrotalcite-like compounds;
hydrogen peroxide

Molecules 2013, 18
. Introduction
The combustion of sulfur contained in fuels produces sulfur dioxide, which is liable to be converted
13692
1
into sulfate aerosols and lead to a series of air pollution events, including acid rain [1]. Human
exposure to sulfur dioxide in the ambient air has been related with increased incidence of respiratory
system diseases, irritation of the eyes, nose, and throat, and even lung cancer [2,3]. Moreover, the
catalysts applied in motor vehicle exhaust gas treatment systems, are always poisoned by SO and
2
hence the emissions of nitrogen oxides (NO ) and total suspended solids (TSP) increase, so it is a
x
major cause of urban environmental problems. Therefore, the specifications for sulfur in diesel have
undergone dramatic revisions in many countries. Since 2006, almost all of the petroleum-based diesel
fuel available in North America and Europe is an ultra-low sulfur diesel ULSD with substantially
lowered sulfur content of 15 ppm. On 1 June 2006, refiners and importers in the United States were
required to ensure that at least 80 percent of the volume of the highway diesel fuel they produce or
imported was ULSD. In fact, diesel fuel classified as ULSD has been sold on all highways since 1
December 2010. Since 2012, as a further requirement, marine and locomotive diesel fuel must meet
the ULSD level [4].
At present, numerous desulfurization methods have been developed. Among them
hydrodesulfurization (HDS) has been widely applied to the field of petroleum fuel production around
the world for a long time. HDS has shortcomings such as lower desulfurization efficiency, strict
reaction conditions and so on, which leads to higher manufacturing costs and higher price of the
resulting fuel, therefore, the search for new desulfurization technologies which offer higher efficiency
and lower manufacturing costs has become a hot research topic in this field. Oxidative desulfurization
(
ODS) has the advantages of milder reaction conditions, higher efficiency and easier operation, lower
investment, lower operating cost and energy efficient use compared with HDS. ODS methods include
two steps: oxidation and extraction/adsorption. Firstly, sulfur compounds are oxidized by an oxidant,
2 2 2 3
next the products are separated from the oil through extraction or adsorption. H O as well as O , O ,
K
2
FeO , and nitrogen oxides can be used as oxidants in ODS [5–20]. Lu et al. [19] found that sulfur
4
compounds in fuels can be selectively converted into SO by mixing the fuel with a small amount of air
2
at around 300 °C and ambient pressure in a continuous-flow reactor packed with catalysts such as
Pt/CeO
2
, Cu/CeO
2
, and CuO/ZnO/Al
2
O . Lu et al. [20] synthesized a series of CuZnAl oxide-composite
3
catalysts via decomposition of CuZnAl hydrotalcite-like compounds (HTLcs: Cu 37%, Zn 15%,
Al 48% mol) at various temperatures and examined their use during the course of aerobic oxidative
desulfurization (AODS) of gasoline-range organosulfur compounds in iso-octane. They showed that
the catalytically relevant properties of HTLcs-derived CuZnAl catalysts and their performance in AODS
reactions can be significantly controlled by the HTLcs decomposition temperatures. Song et al. [6] found
that the oxidation in the presence of molecular oxygen with Fe (III) salts was able to oxidate
thiophenic compounds in the fuel. The oxidation reactivity of the sulfur compounds follow the
order 2-methylbenzothiophene > 5-methylbenzothiophene > benzothiophene >> dibenzothiophene.
2 2
Dehkordi et al. [7] studied the process of desulfurization of non-hydrotreated kerosene with H O as
oxidant and acetic acid as catalyst and investigated the influences of various operating parameters,
including acid to sulfur molar ratio, reaction temperature, and oxidant to sulfur molar ratio on the
course of sulfur removal from kerosene. The results showed that the maximum sulfur removal in the

Molecules 2013, 18
13693
oxidative desulfurization system was 83.3% under the optimal experimental conditions. H O has been
2
2
2
used as an ideal and clean oxidant for its less corrosiveness, sole coproduct (H O) and no pollution,
which make H the best oxidant. In our work, we used H as oxidant. Recently, many researchers
2
O
2
2 2
O
have applied polyoxometalates as catalyst in ODS [8–13,16,17]. Yazu et al. [8] studied an oxidative
organic liquid-liquid two-phase desulfurization method with phosphotungstic acid as catalyst, H O as
2
2
oxidant and acetonitrile as the extraction agent. Phosphotungstic acid exhibited high removal of
sulfur compounds from diesel with a sulfur removal rate of 96.36%. Li et al. [21] synthesized four
surfactant-type polyoxometalate-based ionic liquids (SPILs), which have been investigated for their
oxidative desulfurization properties. SPILs were very promising for the desulfurization of DBT in a
model oil using H O as the oxidant. Supported mechanism and kinetics studies on the catalytic
2
2
8 17 3 3 3 4 2 2 4
activity of SPIL [(n-C H ) NCH ] {PO [MoO(O ) ] } revealed that the oxidative desulfurization of
organosulfur compounds presented pseudo first-order kinetics. Then, they synthesized a series of
POM-based hybrid materials: phosphotungstic acid-supported ceria (HPW-CeO ) [22]. The catalyst
2
2 2
was very efficient on the removal of DBT using H O as the oxidant under mild reaction conditions,
and could reach a sulfur removal of 99.4%. In our previous research, H PW O , Cs H PW O ,
3
12 40
2.5 0.5
12 40
H
3
PWMo11
O
40, H
3
PW
40 was applied to the oxidative removal of thiophene, where it showed the more efficiency
and easier recovery compared with the five heteropolyacids. H PW Mo 40 was dissolved in
acetonitrile after the reaction, and then the acetonitrile was separated at 85 °C by distillation.
3 9 3 6 6
Mo O40, H PW Mo O40 were synthesized and applied to ODS as catalysts [10,11].
3 6 6
H PW Mo O
3
6
6
O
H
3
3
PW
6
6
Mo
Mo
6
6
O
40, sulfone and H
40 was observed in the reactor. After filtration, the K
PW Mo 40 was obtained through ionic exchange with H-type cation
2
O were left in the reactor. In addition, by adding KCl, a precipitate of
K
PW
O
3
PW Mo 40 was dissolved in
6
6
O
deionized water at 70 °C and H
3
6
6
O
exchange resin. However, this process is too complex to be used to industrial applications. We can get
good desulfurization efficiency with a single heteropolyacid as catalyst. The heteropolyacid is
dissolved in an extractant as a homogeneous catalyst which could not be separated directly after ODS
reaction, and hence cannot be used widely in industry. Our works have focused on looking for a kind
of catalyst which is not soluble in the oil phase or acetonitrile phase. In our group, a new multi-walled
carbon nanotube (MWNT)-supported catalyst (Cs2.5
H0.5PW12
O40/MWNT) has been developed for
ODS [12]. Through our experiments [12], we showed that Cs2.5
H0.5PW12O40/MWNT was an effective
catalyst for ultra-low sulfur diesel production by ODS. When the reaction was finished,
Cs H PW O /MWNT can be recovered from the acetonitrile phase by simple filtration.
2
.5 0.5
12 40
In this paper, we report on the preparation of some heteropolyanion substituted hydrotalcite-like
compounds (HPA-HTLcs), including Mg Al 40](MgAl-PW12), Mg Al
40](MgAl-SiW12), which were then used as
9
3
(OH)24[PW12
O
9
3
(OH)24
[PMo12
O40](MgAl-PMo12) and Mg12Al
4
(OH)32[SiW12
O
catalysts for the oxidative removal of sulfur compounds from simulated oil and diesel in an
oil/acetonitrile biphasic system.

Molecules 2013, 18
13694
2
. Results and Discussion
2.1. Characterization of the Catalysts
Figure 1 shows the FTIR spectra of Mg Al(OH) CO (MgAl-CO ), MgAl-PW , MgAl-SiW and
3
8
3
3
12
12
−
1
MgAl-PMo . The band around 1,374 cm is considered as the characteristic vibration band which is
12
2
−
generated by the antisymmetric stretching vibration of the split peaks of CO
3
. After the ion exchange
−1
reaction, this band of 1,374 cm is reduced gradually until it disappears, which showed that the
anion in MgAl-CO has been completely replaced by the heteropolyanion in MgAl-SiW (a) or
3
12
−1
MgAl-PMo12 (d). There was a MgAl-PW12 (b) peak at 1,374 cm . This means that the
2
−
heteropolyanion cannot completely replace CO
3
in that process. Meanwhile, it shows that four
characteristic bands between 1,100 and 700 cm were observed in Figure 1 for each catalyst. The key
FTIR bands of HPA-HTLcs are the X-O , M=O , M-O -M and M-O -M ones shown in Table 1,
−
1
a
d
b
c
respectively. The results indicate that all of the catalysts maintain their Keggin structures [23,24].
Figure 1. FTIR spectra of samples: (a) MgAl-SiW ; (b) MgAl-PW ; (c) MgAl-CO ;
1
2
12
3
(
d) MgAl-PMo12.
−1
Table 1. IR spectra band of HPA-HTLcs (cm ).
Sample
X-O
a
M=O
956
d
M-O
b
-M
c
M-O -M
MgAl-PW12
MgAl-PMo12
MgAl-SiW12
1,073
1,069
1,072
888
872
902
808
778
811
959
961

Molecules 2013, 18
.2. Comparison of the Catalytic Activity of Different HPA-HTLcs
DBT was the hardest to remove sulfur containing compounds in diesel in the primary HDS, so in
13695
2
this paper, DBT was chosen as the typical sulfur component for the study of ODS. DBT was dissolved
in n-octane to prepare a simulated oil with a sulfur concentration of 500 ppm(w). The oxidative
desulfurization reaction conditions are as follows: temperature 60 °C, O/S molar ratio 20, the amount
of catalyst was 1% (w) of n-octane. Under the experimental conditions, the DBT is directly converted
into the corresponding DBT sulfone [9–12].
From Table 2, the order of catalytic activity is MgAl-PMo > MgAl-PW > MgAl-SiW . This
1
2
12
12
shows that MgAl-PMo12 has the best catalytic activity, and the DBT conversion reached almost 100%.
Obviously, the catalytic activity of MgAl-PMo and MgAl-PW were higher than that of MgAl-SiW .
12
12
12
This fact suggested that phosphorus as central atom had higher catalytic activity than silicon. The
catalytic activity of MgAl-PMo12 was higher than that of MgAl-PW12, because of the different activity
of the coordinated atoms, meaning that the activity of molybdenum as a coordinated atom is higher
than that of tungsten.
Table 2. Investigation of desulfurization catalyzed by different catalysts.
Entry
Catalyst
DBT conversion (%)
1
2
3
MgAl-PW12
MgAl-PMo12
MgAl-SiW12
80.46
100
76.76
2
.3. Oxidative Desulfurization of Simulated Oil with MgAl-PMo as Catalyst
According to the foregoing results, MgAl-PMo12 was chosen for further experiments on the effects
2 2
of several operational factors, including the pre-reaction time of H O and the catalyst, O/S molar
ratio, temperature, and the dosage of catalyst.
2

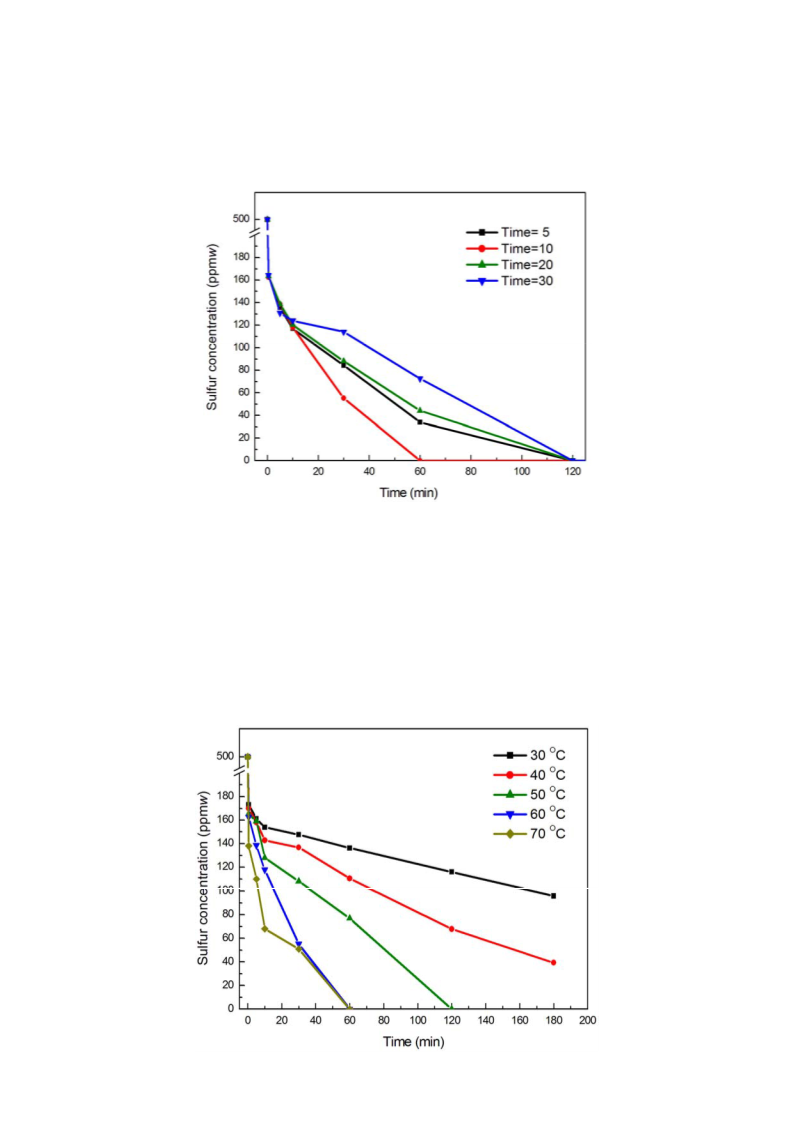

.3.1. Effect of the Hydrogen Peroxide Pre-Reaction Time and the Catalyst
In experiments, at first the MgAl-PMo12 catalyst was mixed with 30% aqueous peroxide in a 5 mL
test tube. A few minutes later, the mixture was added into the reaction kettle in which the simulated oil
and acetonitrile were added. The influence of the pre-reaction time on the DBT conversion was given
in Figure 2. With a pre-reaction time from 5 min to 10 min, the conversion of DBT increased. The
reaction of H O and catalyst was not complete because of the short pre-reaction time, which resulted
2
2
in the low conversion rate in the first stage.
After 60 min, the DBT removal rate was observed to increase from 93.79% to 99.03% as the
pre-reaction time was increased from 5 min to 10 min. However, when the pre-reaction time was more
than 10 min, the conversion of DBT decreased because of the decomposition of H
decomposition of H is mainly due to the long pre-reaction time, and the metal ion also has an
increased influence on this decomposition. As a whole, the best pre-reaction time can be considered as
0 min.
2 2
O . The
2 2
O
1

Molecules 2013, 18
13696
Figure 2. The effect of the pre-reaction time of H O and MgAl-PMo . Experimental
2
2
12
conditions: temperature 60 °C; O/S molar ratio 20; the amount of catalyst used was 1%
the mass of n-octane; and DBT (S: 500 ppm(w) in n-octane).
2
.3.2. Effect of Temperature on ODS of Simulated Oil
Acetonitrile was used as the extraction solvent in the reaction system. The maximum temperature
was 70 °C due to the 81.1 °C boiling point of acetonitrile. The DBT oxidation results with different
reaction temperatures under the same conditions are shown in Figure 3.
Figure 3. The effect of different temperatures on ODS of simulated oil. Experimental
conditions: pre-reaction time 10 min; O/S molar ratio 20; the amount of catalyst used was
1
% the mass of n-octane; and DBT (S: 500 ppm(w) in n-octane).

Molecules 2013, 18
13697
This data shows that the rate of reaction obviously increases when the temperature is increased. As
the temperature increased from 30 °C to 70 °C, the sulfur content of the simulated oil decreased from
1
47.64 ppm(w) to 50.88 ppm(w) after 30 min of reaction. At 30 °C and 40 °C, the desulfurization
efficiency was 80.82% and 92.13% after 180 min, and the sulfur content in the n-octane was
5.89 ppm(w) and 39.37 ppm(w), respectively. When the temperature went from 50 °C to 70 °C, the
9
desulfurization efficiency was nearly 100% after 120 min of reaction. Consequently, the optimum
temperature can be determined as 60 °C.
2
.3.3. Effect of O/S Molar Ratio 20 on ODS of Simulated Oil
The results in Figure 4 showed that the sulfur content conversion was different at different O/S
molar ratios. The conversion increased with a high quantity of H O . The DBT conversion increased
2
2
from 76.07% to 89.01% when the molar ratio of O/S increased from 10 to 25 after reaction for 30 min.
When the O/S molar ratio exceeded 10, the DBT conversion was nearly 100% after 180 min. The two
DBT conversion rate curves almost coincided with the little change in the sulfur concentration
when the molar ratio of O/S was 20 or 25 in Figure 3. This showed that the dosage of H O was
2
2
2 2
excessive at O/S 25. Considering the cost of H O in the actual reaction, the molar ratio of O/S 20 was
considered proper.
Figure 4. The effect of different O/S molar ratio on ODS of simulated oil. Experimental
conditions: pre-reaction time 10 min; temperature 60 °C; the amount of catalyst used was
1
% the mass of n-octane; and DBT (S: 500 ppm(w) in n-octane).
2
.3.4. Effect of Different Amounts of Catalyst
The influence on the dosage of catalysts on the sulfur removal is given in Figure 5. As the dosage of
catalysts increased, the conversion increased. This is due to the increased amount of catalyst in the
acetonitrile, which increased the amount of catalytic intermediates produced by the reaction of H
2
O
2

Molecules 2013, 18
13698
and catalyst and increased the catalyst activity, which favors the oxidation of DBT. As the dosage of
catalyst increased from 0.25% (w) to 1% (w), the sulfur content conversion increased, as shown in
Figure 5. When the dosage of catalyst increased to 2%(w) there is no change in the desulfurization
efficiency. From the results, the optimum amount of catalyst can thus be determined as 1% (w) of n-octane.
Figure 5. Effect of different amounts of catalyst on ODS of simulated oil. Experimental
conditions: temperature 60 °C; O/S molar ratio 20; pre-reaction time 10 min; and DBT
(
S: 500 ppm(w) in n-octane).
2
.4. The Recycle of the MgAl-PMo12 Catalyst
After the reaction, the catalyst was precipitated in the reactor, washed with acetonitrile, and filtered.
Then, it was dried overnight in an air oven at 80 °C. Under similar conditions, after the 5th recovery of
MgAl-PW , the DBT conversion was nearly 99.82% after 120 min, which was quite close to the result
1
2
obtained with fresh catalyst. The average recovery rate of MgAl-PW12 was 89.38%.
2
.5. Catalyst Effect of Different Sulfur Compounds
Under the same conditions, the desulfurization efficiency of different sulfur compounds is shown in
Figure 6. It was clear that the conversion rate of DBT in simulated oil could reach nearly 100%
after 120 min. Thus, the catalytic activity of the different sulfur compounds was in the order of
DBT > 4,6-dimethyldibenzothiophene (4,6-DMDBT) > benzothiophene (BT) > thiophene (TH). The
electron densities on the sulfur atoms of 4,6-DMDBT, DBT, BT and TH were 5.760, 5.758, 5.739 and
5
.696, respectively [25]. When the electron density on a sulfur atom was higher, the catalytic activity
was higher [22]. The electron density of the sulfur atom in TH is the lowest, which led to the lowest
catalytic activity towards TH, but it was different in the order of DBT and 4,6-DMDBT. In fact, the
spatial steric hindrance is another important factor in oxidative desulfurization [22]. The new bonds

Molecules 2013, 18
13699
between oxygen and sulfur atoms would be hindered by the alkyl groups of the 4 and 6 position in
4
4
,6-DMDBT during oxidative desulfurization, therefore, the activity of DBT was higher than that of
,6-DMDBT in ODS.
Figure 6. Catalyst effect of different sulfur compounds under the same conditions.
Experimental condition: temperature 60 °C; O/S molar ratio 20; pre-reaction time 10 min;
the amount of catalyst used was 1% the mass of n-octane; and different sulfur compound
(
S: 500 ppm(w)) in n-octane.
2
.6. The Effect of Sulfur Removal in Diesel Oil
The optimum experiment conditions were 60 °C, O/S mole ratio 20, catalyst 1% (w), pre-reaction
time 10 min, and a 1:1 volume ratio of acetonitrile and diesel. After reaction for 180 min, the sulfur
compounds in diesel decreased from 493 ppm(w) to 107 ppm(w), and the sulfur removal rate was
7
8.30%. When double the amount ao fresh acetonitrile to diesel was used in the ODS, the sulfur
concentration further decreased to 34.8 ppm(w). After oxidative desulfurization, diesel was extracted
with another amount of fresh solvent, and then washed by distilled water, after which the sulfur
concentration in diesel was 9.12 ppm(w).
2
.7. The Mechanism of the ODS Process
Because hydrogen peroxide can be dissolved in acetonitrile, additional hydrogen peroxide as an
oxidant was put into acetonitrile, and DBT transferred from n-octane to acetonitrile. DBT was oxidized
to DBT sulfone. The polarity of the DBT sulfone is higher than that of DBT, and hence the former
remained in the acetonitrile phase. With the aid of GC-MS, the product of DBT oxidation by H
the acetonitrile phase after 120 min was confirmed to consist only of the corresponding sulfone species
Figure 7). Hence, the overall reaction equation can be expressed as shown in Scheme 1.
2 2
O in
(

Molecules 2013, 18
13700

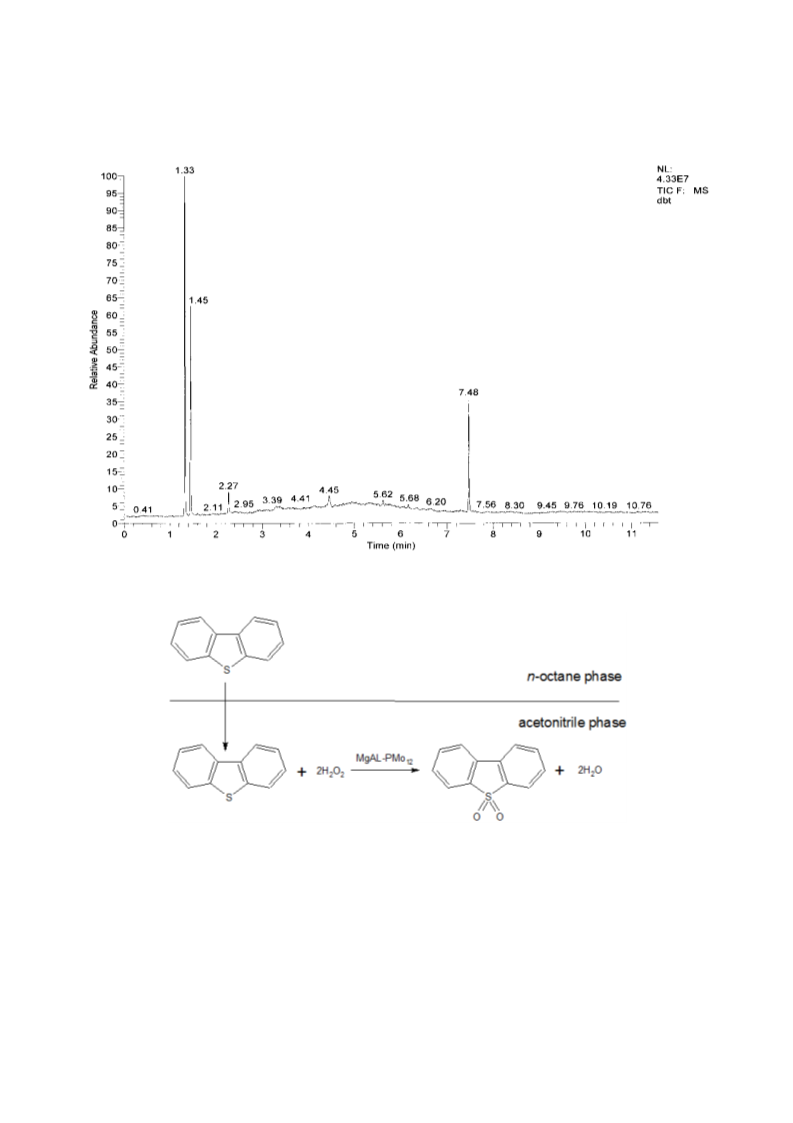

Figure 7. GC-MS analysis for sulfur compounds of acetonitrile after ODS. Retention
times: acetonitrile, 1.33 min; n-octane, 1.45 min; DBT, 5.62 min; DBT sulfone, 7.48 min.
Scheme 1. The DBT desulfurization process.
3. Experimental
3
.1. Catalyst Preparation
The HPA-HTLcs were synthesized using ion-exchange to intercalate heteropolyanions into the
layers of hydrotalcite-like compounds (HTLcs) as described in the literature [16]. MgAl-CO
prepared by a sequential precipitation technique—the precipitants (2.0 M NaOH, 1.0 M Na CO
metal nitrate solutions (6.0 M Mg(NO ) , 3.0 M Al(NO ) ) were added to distilled water drop by drop
3
was
2
3
) and
3
2
3 2
under vigorous stirring, then heated to 40 °C, and then titrated with pH 10 of the solution at a rate of
one drop per second. Normally, this took nearly one and a half hours. The slurry was aged at 65 °C for

Molecules 2013, 18
13701
1
8 h, pump filtered, and washed with distilled water until the filtered liquid was neutral. Next, the
pressed cake was dried overnight in an air oven at 80 °C.
MgAl-CO prepared by the above-mentioned method was dispersed in distilled water, until fully
3
swollen. An excess amount of heteropolyanions was slowly added to the solution, while dilute nitric
acid was used to maintain 2 < pH < 4. Ion exchange occurred in the reaction mixture that was
maintained at 65 °C for about 10 h, pump filtered, and washed with distilled water until the filtered
liquid was neutral. Finally, the sample was dried overnight in an air oven at 80 °C.
3.2. Catalyst Characterization
The infrared spectra (IR) of all the catalysts were recorded on an Avatar 370 spectrometer
(
Thermo Electron Corporation, Madison, WI, USA).
3
.3. Oxidative Desulfurization of Simulated Fuel Oil
Simulated oil was prepared by dissolving DBT, TH, BT and 4,6-DMDBT in n-octane to a sulfur
concentration of 500 ppm(w). At first, the catalyst was dissolved in 30% aqueous peroxide for 10 min
the H O and catalyst pre-reaction time). In a typical experimental setup, simulated oil (60 mL),
(
2
2
2 2
acetonitrile (60 mL), an amount of H O based on the desired O/S molar ratio and an amount of
catalyst as a percent of the mass of n-octane, were placed in a reaction kettle and stirred at 60 °C under
the atmospheric pressure. Lastly, the catalyst and 30% aqueous peroxide were added to the reaction
kettle. DBT content in n-octane phase before and after reaction were analysed by GC-FID (Shandong
Lunan Ruihong Chemical Engineering Instruments Co., Ltd, Tengzhou, China) using a capillary
column (DB-1, 30 m × 0.32 nm, 1.0 μm film thickness). The temperatures for the GC-FID tests were
set as 334 °C for both injector and the detector, and 280 °C for the oven. The concentration of DBT
was quantified by the external standard method. The content of other sulfur compounds in the n-octane
phase was determined by a WK-2E micro-Coulomb instrument (Jiangsu Jiangfen Instruments Co., Ltd,
Jiangyan, China). The temperatures for the total sulfur tests were set at 700 °C for the stable chamber,
8
50 °C for combustor, and 650 °C for injector. The sulfur concentration of sample was determined by
the sulfur standard sample. The product derived from DBT oxidation by H was analysed using
2
O
2
an Agilent HP-6890N/MS-5793 GC-/MS analyser (Agilent Technologies, Palo Alto, CA, USA). The
GC-MS conditions were as follows: injector 290 °C; split ratio 50; column DB-1 MS; oven
temperature program, 150 °C for 1 min, 20 °C/min to 280 °C, and hold for 30 min.
3
.4. Oxidative Desulfurization of Diesel
Oxidative desulfurization of diesel (sulfur 493 ppm(w)) was conducted under the same typical
experimental conditions as the oxidation of the simulated fuel oil using MgAl-PMo12 as catalyst.
The catalyst was 1% (w) of the diesel oil, the amount of H corresponded to an O/S mole ratio of 20,
2
O
2
and a constant temperature of 60 °C was used. After the reaction, the kettle was cooled down to room
temperature. The oil phase was separated and washed with deionized water. The total amount of sulfur
concentration in the diesel was measured using a WK-2E micro-Coulomb instrument. The

Molecules 2013, 18
13702
temperatures for the total sulfur tests were set at 700 °C for the stable chamber, 850 °C for combustor, and
650 °C for injector. The sulfur concentration of the sample was determined using a sulfur standard sample.
4
. Conclusions
In summary, heteropolyanion substituted hydrotalcite-like compounds were synthesized by an
ion-exchange method. It was shown that the catalytic activity of MgAl-PMo and MgAl-PW was
1
2
12
better than that of MgAl-SiW12, due to the central atom of phosphorus in HPA-HTLcs being better
than silicon. Then, the coordinated molybdenum atoms were another important factor. MgAl-PMo12
showed the best catalytic activity, and the sulfur removal from the simulated oil can reach 100% in
1
20 min. The most optimum experimental condition was suggested to be temperature 60 °C, O/S mole
ratio 20, amount of catalyst used 1% of the mass of n-octane, and pre-reaction time 10 min. Moreover,
the catalyst can be reclaimed by filtration and reused like fresh one. Under the above conditions,
the oxidative reactivity of different sulfur compounds decreased according to the order
DBT > 4,6-DMDBT > BT > TH. Under the optimum experimental conditions, the sulfur content in
diesel decreased from 493 ppm(w) to 9.12 ppm(w). In a word, this study clearly shows that
HPA-HTLcs are an effective catalyst for ODS and they seem to be a promising alternative for sulfur
removal in the petroleum industry.
