Implementation of a Hamiliton-Receptor-Based
Hydrogen-Bonding Motif toward a New Electron
Donor-Acceptor Prototype: Electron versus Energy Transfer
Florian Wessendorf,† Jan-Frederik Gnichwitz,† Ginka H. Sarova,‡ Kristine Hager,†
Uwe Hartnagel,† Dirk M. Guldi,*,‡ and Andreas Hirsch*,†
Contribution from the Institute of Organic Chemistry and Interdisciplinary Center for Molecular
Materials (ICMM), Friedrich-Alexander UniVersita¨t Erlangen-Nu¨rnberg, Henkestrasse 42, 91054
Erlangen, Germany, and Institute of Physical Chemistry and Interdisciplinary Center for
Molecular Materials (ICMM), Friedrich-Alexander UniVersita¨t Erlangen-Nu¨rnberg,
Egerlandstrasse 3, 91058 Erlangen, Germany
Received August 7, 2007; E-mail: dirk.guldi@chemie.uni-erlangen.de
Abstract: A new modular concept for the self-assembly of electron donor-acceptor complexes is presented
that ensures (i) fine-tuning the strength of the complexation, (ii) controlling the electronic coupling to impact
electron and energy transfer processes, and (iii) high solubility of the corresponding hybrid architectures.
This task has been realized through developing a series of porphyrin-fullerene donor-acceptor systems
held together by a Hamilton-receptor-based hydrogen-bonding motif. In this context, novel libraries of C60
monoadducts (1) containing cyanuric acid side chains and of tetraphenylporphyrin derivatives (2) involving
the complementary Hamilton-receptor unit were synthesized. The association constants of the corresponding
1:1 complexes (1‚2) connected by six hydrogen bonds were determined complementary by NMR and
fluorescence assays. Their strength, which was found to be in the range between 3.7 × 103 and 7.9 × 105
M-1, depends on the nature of the spacers, namely, hexylene versus propylene chains. Finally, transient
absorption studies revealed photoinduced electron transfer from ZnP to C60 in the corresponding 1‚2
complexes, which generate radical ion pair states that are persistent well beyond the ns time scale. In the
case of the analogous SnP complexes, energy instead of electron transfer was observed. This is due to
the shift of oxidation potential caused by presence of Sn in the oxidation state of +4.
molecular scale.2 Nature has long used these interactions to
create a formidable array of structures, where a great level of
Introduction
The transport of energy and electrons within nanoscale-
ordered materials is critical to the realization of systems for
artificial photosynthesis as well as engineering molecular
electronics and optoelectronics.1 Studying multifunctional fullerene
nanostructuresstheir design, synthesis, characterization, and
performancesmandates a careful control over composition,
interchromophore separation/angular relationship, overall dy-
namical and stimulus-induced reorganization, and electronic
coupling. The overall goal is to achieve control over both the
organization of the assemblies and their physical and chemical
properties (i.e., electronic structures, etc.) and, thereby, enhance
desired functionalities, through simple external parameters or
variables, with the intent of creating new tailored materials.
Among the tools exploitable for the creation of new assemblies
are organization principles, such as biomimetic methodologies,
that help regulate size, shape, and function down to the
control over the organization and an increased flexibility in
replacing individual building blocks have been realized.
Nanohybrid systems that combine the favorable features of,
for example, fullerenes and porphyrins as electron acceptors
and electron donors, respectively, have received considerably
interest.3 As a consequence, new materials with a wide range
of unique and spectacular physicochemical properties have
resulted in noteworthy advances in the areas of light-induced
electron-transfer chemistry and solar energy conversion. It is
mainly the small reorganization energy, which fullerenes exhibit
in electron-transfer reactions, that is accountable for a note-
worthy breakthrough.4 In particular, ultrafast charge separation
together with very slow charge recombination features lead to
unprecedented long-lived radical ion pair states formed in high
quantum yields. This aspect is crucial toward the use of solar
† Institute of Organic Chemistry and Interdisciplinary Center for Mo-
lecular Materials (ICMM).
(2) (a) McDermott, G.; Priece, S. M.; Freer, A. A.; Hawthornthwaite-Lawless,
A. M.; Papiz, M. Z.; Cogdell, R. J.; Isaaacs, N. W. Nature 1995, 374,
517-521. (b) Barber, J. Nature 1988, 333, 114-114. (c) Balzani, V., de
Cola, L., Eds. Supramololcular Chemistry; NATO ASI Series; Kluwer
Academic Publishers: Dordrech, The Netherlands, 1992. (d) Steed, J. W.;
Atwood, J. Supramol. Chem. Wiley: Chichester, U.K., 2000. (e) Balzani,
V.; Venturini, M.; Credi, A. Molecular DeVices and Machines; Wiley-
VCH: Weinheim, Germany, 2003. (f) Ozin, G. A.; Arsenault, A. C.
Nanochemistry; RSC Publishing: Cambridge, U.K., 2005.
‡ Institute of Physical Chemistry and Interdisciplinary Center for Mo-
lecular Materials (ICMM).
(1) For a recent status report, see: Adams, D. M.; Brus, L.; Chidsey, C. E. D.;
Creager, S.; Creutz, C.; Kagan, C. R.; Kamat, P. V.; Lieberman, M.;
Lindsay, S.; Marcus, R. A.; Metzger, R. M.; Michel-Beyerle, M. E.; Miller,
J. R.; Newton, M. D.; Rolison, D. R.; Sankey, O.; Schanze, K. S.; Yardley,
J.; Zhu, X. J. Phys. Chem. B 2003, 107, 6668.
9
10.1021/ja075751g CCC: $37.00 © 2007 American Chemical Society
J. AM. CHEM. SOC. 2007, 129, 16057-16071
16057

A R T I C L E S
Wessendorf et al.
energy conversion as a clean, abundant, and economical energy
source.
To this end, most electron donor-acceptor systems are based
on covalently linking, at least, two building blocks. Important
is that the bridges between the donor and acceptor govern the
donor-acceptor distance, spatial orientation, and flexibility.
Much less is, however, known about noncovalent fullerene
electron donor-acceptor nanohybrids and the function of the
intervening spacers.5 In a recent example, which was built on
noncovalent electrostatic interactions, where oppositely charged
fullerenes and porphyrins/cytochrome c interact tightly with each
other, sufficiently strong electronic couplings powered an
intrahybrid charge separation.6 This approach turned out to be
especially successful for constructing photovoltaic devices that
perform efficiently on the basis of photoinduced electron transfer
between the hierarchically ordered building blocks.7
There is little, if any, doubt that the most potent supramo-
lecular binding motif is, nevertheless, hydrogen bonding. Despite
its tremendous potential for the realization of highly directional
self-assembly, only a few examples of fullerene-porphyrin
donor-acceptor nanohybrids have been constructed in this way
so far.8
Figure 1. Schematic representation of the complementary hydrogen-
bonding motif of a cyanuric acid derivative and a Hamilton receptor.
association constants Kass. that range in apolar solvents (i.e.,
dichloromethane and toluene) between 103 and 106 M-1. Besides
dendritic achiral and chiral building blocks such as depsipeptide
dendrons, we have also tested chromophoric components to self-
assemble into novel dendrimeric architectures, namely, fullere-
neated cyanuric acid end-caps and Hamilton-receptor substituted
porphyrin cores. Important is that, in these architectures, the
fullerene and porphyrin building blocks were integrated sepa-
rately and just served as assembly determining building blocks
or as sensors for chirality transfer.
A significant set back is the poor solubility of the Hamilton-
receptor/cyanuric acid motif caused by inter- and intramolecular
aggregation,9 which is quite cumbersome for supramolecular
complexation experiments. To overcome this deficiency, we
have developed in the current work for the first time highly
soluble supramolecular porphyrin/fullerene dyads. Thereby the
association constants of these complexes could be determined
even in apolar solvents like toluene.
The strategy toward hydrogen-bonded electron donor-
acceptor nanohybrids developed in the current contribution is
sketched in Figure 2. In particular, fullerene 1 is a monoma-
lonate, where one branch carries a cyanuric acid moiety. The
corresponding linkers are either propylene or hexylene chains.
The second malonate branch, on the other hand, contains a
variety of dendritic termini that assist in guaranteeing high
solubility in solvents that do not compete with hydrogen bonding
(i.e., chloroform and dichloromethane). At the end of the

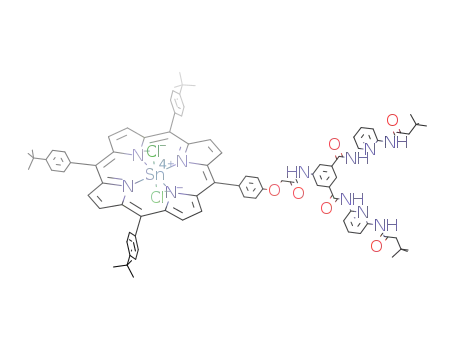

porphyrins (2), one of the four phenyl rings bears the Hamilton-
