Highly cooperative ion-pair recognition of potassium cyanide using a heteroditopic ferrocene-based crown ether-trifluoroacetylcarboxanilide receptor

Article abstract of DOI:10.1039/b715633b

A heteroditopic receptor having crown ether and trifluoroacetylcarboxanilide groups selectively recognizes both potassium and cyanide ions in acetonitrile with an association constant of as high as K _a = 1.9 × 10⁷ M^-1 through a highly cooperative ion-pair interaction, resulting in two orders of magnitude enhancement in the binding affinity. The Royal Society of Chemistry.

Full text of DOI:10.1039/b715633b

View Article Online / Journal Homepage / Table of Contents for this issue
COMMUNICATION
www.rsc.org/chemcomm | ChemComm
Highly cooperative ion-pair recognition of potassium cyanide using a
heteroditopic ferrocene-based crown ether–trifluoroacetylcarboxanilide
receptor{
Hidekazu Miyaji,* Dae-Sik Kim, Byoung-Yong Chang, Eunju Park, Su-Moon Park* and Kyo Han Ahn*
Received (in Cambridge, UK) 10th October 2007, Accepted 23rd November 2007
First published as an Advance Article on the web 11th December 2007
DOI: 10.1039/b715633b
Ferrocene was chosen as a spacer as well as an electroactive
label. In addition, the cyclopentadienyl (Cp) units in the ferrocene
can rotate like a ball-bearing and thus can readily adjust the two
binding sites to a specific substrate in such a way to form an ion-
pair complex.3c 18-Crown-6-ethers are well known ionophores for
metal cations, particularly K+.6
A heteroditopic receptor having crown ether and trifluoroace-
tylcarboxanilide groups selectively recognizes both potassium
and cyanide ions in acetonitrile with an association constant of
as high as Ka = 1.9 6 107 M21 through a highly cooperative
ion-pair interaction, resulting in two orders of magnitude
enhancement in the binding affinity.

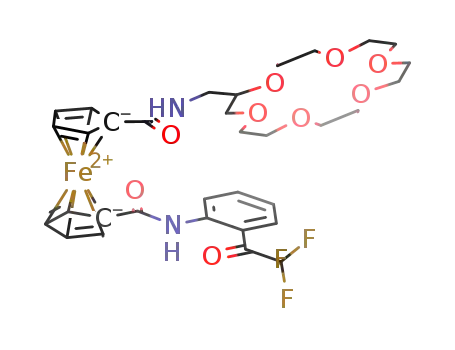

Heteroditopic receptor 1 was synthesized from 1,19-bis(chloro-
carbonyl)ferrocene by stepwise amidation reactions.7 Thus,
1,19-bis(chlorocarbonyl)ferrocene was treated with an equimolar
amount of o-trifluoroacetylaniline to give the corresponding
monochlorocarbonyl compound, which was separated by SiO2
column chromatography and subsequently treated with an
equimolar amount of 2-(aminomethyl)-18-crown-6 to afford the
heteroditopic receptor 1 in a 73% isolated yield (see ESI{).
Monotopic receptor 24c was used as a reference compound.
Selective recognition and sensing of specific analytes have attracted
much attention among scientists studying supramolecular sys-
tems.1 A number of artificial receptors have been developed for the
recognition and sensing of cations or anions; however, the
recognition/sensing of ion-pairs by synthetic receptors remain a
less explored area. For the recognition/sensing of ion-pairs,
heteroditopic receptors having both cation and anion binding
sites have been studied.2,3 When an electrostatic interaction
between a ‘‘bound’’ cation and an anion is possible, a positive
cooperative binding may result, leading to an increase in the
binding affinity. To maximize the cooperative binding, a fine
tuning of the receptor structure is required in such a way to
accommodate a specific ion-pair species. With a few exceptions,
however, weaker or sometimes even negative cooperative effects
result where such a geometrical optimization is not fulfilled.2
Recently we have developed a novel anion recognition motif that
recognizes anions through the formation of reversible covalent
adducts.4,5 o-Trifluoroacetylcarboxanilide (TFACA) and its ana-
logues thus developed efficiently recognize4a and sense4b anions
such as cyanide and carboxylates. To develop this promising
recognition motif into guest-specific receptors and sensors, we have
been studying homoditopic4c and heteroditopic (hybrid) receptors
based on the TFACA binding motif. We reasoned that a highly
cooperative binding might be realized with a heteroditopic receptor
composed of TFACA as the anion recognition motif because the
resulting alkoxide adduct may interact with a bound cation
through the electrostatic interaction. Herein, we wish to report
such a heteroditopic receptor molecule that shows a very strong
and highly positive cooperative binding toward potassium cyanide.
In addition, thermodynamic parameters obtained enabled us to
delineate distinct ion-pair binding processes involved.
We investigated the binding properties of receptor 1 toward
cyanide anion (Bu4N+ salt) and potassium cation (PF6 salt) by
2
1
using H and 19F NMR spectroscopy in acetonitrile-d3 at 298 K.
Upon addition of a sub-equimolar amount of the cyanide anion,
two sets of peaks appeared including that of receptor 1 itself.
When an equimolar amount of cyanide was added, the receptor
peaks disappeared and only the other set of peaks assignable to
those of cyanide adduct was observed (Fig. 1). For example, the
protons of trifluoroacetophenone moiety of 1, appearing at 8.57,
7.94, 7.76 and 7.28 ppm, were completely changed to 8.56, 7.50,
7.28 and 6.99 ppm, upon addition of an equivalent of cyanide
(Fig. 1(b)). Interestingly, the amide NH proton at the crown ether-
side, initially appeared at 6.7 ppm, shifted to 9.2 ppm, indicating
that it is involved in H-bonding, plausibly with the anionic adduct.
A molecular model suggested that such an H-bonding is
geometrically feasible. Also, the other amide NH proton adjacent
to the trifluoroacetophenone moiety disappeared, probably owing
to its acidic nature. A 19F NMR spectrum taken for receptor 1
only showed single peak at 4.8 ppm, which shifted to 25.7 ppm
upon addition of an equivalent of cyanide. Both peaks were
Department of Chemistry and Center for Integrated Molecular Systems,
POSTECH, San 31, Hyoja-dong, Pohang, 790-784, Republic of Korea.
E-mail: ahn@postech.ac.kr; Fax: (+82) 54 279 3399;
Tel: (+82) 54 279 2105
{ Electronic supplementary information (ESI) available: Procedures for
the synthesis of receptors 1 and 2, binding analysis (ITC, NMR), and
cyclic voltammetry data. See DOI: 10.1039/b715633b
This journal is ß The Royal Society of Chemistry 2008
Chem. Commun., 2008, 753–755 | 753

View Article Online
Table 1 Thermodynamic data for the ion/ion-pair complexation by 1
and 2, determined by ITC analysisa
c
c
d
Entry Receptor
Substrateb DHu
2TDSu Kass
ne
1
2
3
1
1
CN2
K+
212.5
5.2 1.9 6 105
0.94
0.57
26.4 21.1 2.5 6 105
29.1 20.3 6.5 6 106
92.4 297.3 4.4 6 104
292.3 82.1 1.9 6 107
1 + K+
(1 : 1 mixture)
CN2
f
4
1 + CN2
(1 : 1 mixture)
K+
25.0
2.8 4.2 6 105
0.87
5
6
7
2
2
CN2
K+
213.8
—
29.9
210.3
6.3 2.2 6 105
1.04
g
—
—
2 + K+
(1 : 1 mixture)
CN2
2.3 3.0 6 105
3.8 4.7 6 104
f
Fig. 1 Changes in the 1H NMR (300 MHz, left) and 19F NMR spectra
(right) of heteroditopic receptor 1 (1.0 mM) upon the addition of
Bu4N+CN2 and K+PF62: (a) no added substrate, (b) 1.0 equiv. of
27.5 212.5 3.8 6 103
8
2 + CN2
(1 : 1 mixture)
1
K+
—
—
Weak binding —
Bu4N+CN2, (c) 1.0 equiv. of Bu4N+CN2 and 1.0 equiv. of K+PF6 in
2
9
10
AcO2
AcO2
216.1
210.8
9.6 5.4 6 104
1.03
0.84
0.09
acetonitrile-d3 at 298 K (the signals at 4.10 and 1.60 ppm in the 19F NMR
1 + K+
3.7 1.3 6 105
spectrum are due to PF62).
(1 : 1 mixture)
2140.0 133.3 4.1 6 104
a
b
2
Determined in CH3CN at 303 K. As Bu4N+ or PF6 salt.
c
d
e
f
Binding stoichiometry. Sequential binding.
kcal mol21
Not detected.
.
M21
.
observed when sub-equimolar amounts of the cyanide were added.
These results indicate that the cyanide adduct exists as the sole
species after the equivalent point.
g
second step was accompanied by a large unfavorable enthalpy
change (DH = 92.4 kcal mol21) and a large favorable entropy
change (TDS = 297.3 kcal mol21, T = 303 K), while the third
process showed an opposite trend, showing a large favorable
enthalpy change (DH = 292.3 kcal mol21) and a large unfavorable
entropy change (TDS = 82.1 kcal mol21, T = 303 K). The
association constants obtained for the three binding processes are
K1 = 6.5 6 106, K2 = 4.4 6 104, and K3 = 1.9 6 107 M21. The
largest value, K3, is presumably responsible for the ion-pairing
process. From the sequential binding process, we can infer the
contribution of the ion-pairing to the overall binding affinity. A
tentative mechanism for the sequential binding mode is suggested
(Fig. 2) (see also ESI{).
Next, one equivalent of the potassium ion was added to the
equimolar mixture of receptor 1 and the cyanide ion (Fig. 1(c)).
Binding of the potassium ion onto the crown-ether ring was best
indicated by a change in the chemical shift of the methine proton
of the crown-ether ring, from 3.89 to 3.95 ppm. A similar change
was observed in the crown-ether part when only potassium ion, no
cyanide, was added to a solution of receptor 1. The signal of the
amide NH proton at the crown-ether side slightly shifted from 9.15
to 9.32 ppm. Also, one of the Cp protons, appearing at 4.84 ppm
became broad. These NMR changes may be explained by the
conformational restriction due to cooperative ion-pair interactions.
A
19F NMR spectrum taken for the mixture showed a slight
downfield shift from 25.66 to 25.56 ppm (Fig. 1(c)). The 1H and
19F NMR spectroscopic observations are consistent with the fact
that receptor 1 forms a complex with both cyanide and potassium
ions.
Thus, if we compare the association constant for the cyanide
addition to 1 (entry 1, 1 A I) with that of the presumed third
The binding properties of receptor 1 toward CN2 and K+ were
further studied by isothermal titration calorimetry (ITC).8 In order
to investigate the ion-paring effect, an equimolar mixture of 1 and
K+ was also titrated with CN2. Table 1 summarizes association
constants,{ enthalpy and entropy changes, and binding stoichio-
metry obtained from the ITC analysis. The data shows that 1
strongly binds CN2 (Kass = 1.9 6 105 M21) in acetonitrile. A 1 : 1
binding mode between 1 and CN2 is again supported by the n
value, the binding stoichiometry, which is close to unity (entry 1).5a
The monotopic receptor 2 shows a similar binding affinity toward
CN2 (entry 5), which indicates that the presence of crown-ether
moiety in 1 has little effect on the adduct formation between the
TFACA moiety and CN2. Receptor 1 also strongly binds the K+
(Kass = 2.5 6 105 M21) similar to the case of CN2; however, in
this case the n value is close to 0.5, suggesting that a 2 : 1 complex
preferably forms between 1 and K+§ (entry 2). 1H NMR titration
of receptor 1 with the K+ also showed a saturation behavior after
addition of 0.5 equivalents of the cation (see ESI{). When a pre-
formed equimolar mixture of 1 and K+ was titrated with CN2,
interestingly the data analysis suggested a sequential binding mode
that involves three binding steps with distinct thermodynamic
parameters (entry 3). Among the three binding processes, the
Fig. 2 Suggested binding modes based on the ITC data. The numerical
values are the association constants with unit M21 (those in parentheses
are estimated values). For a detailed explanation, see the ESI.{
754 | Chem. Commun., 2008, 753–755
This journal is ß The Royal Society of Chemistry 2008

View Article Online
Also, receptor 1 can be used as a ‘‘probe’’ for the detection of
anions simply by 19F NMR spectroscopy. For example, receptor 1
of which CF3 originally appears at +4.80 ppm provides different
chemical shifts toward anions such as CN2 (25.56 ppm) and
AcO2 (29.28 ppm) in CD3CN containing H2O, from 1% up to
50% (see ESI{).
In conclusion, we have achieved highly cooperative ion-pair
recognition with a heteroditopic receptor 1 that is conformation-
ally flexible. The NMR and ITC studies elucidated distinctive
binding modes and large positive cooperative ion-pairing interac-
tions between receptor 1 and potassium cyanide. The cooperative
binding led to reversible redox potential shifts. Receptor 1 can also
be used to detect potassium cyanide in aqueous media simply by
19F NMR spectroscopy.
Fig. 3 (a) 1H and (b) 19F NMR spectra, taken for a mixture of receptor
1 (1.0 mM) and KCN (excess) in 1% D2O–CD3CN (note that the amide
NH protons are missing because of deuterium exchange).
process in entry 3 (IV A V; K3), we can obtain a 100-times
difference in the association constants (DDG y 2.9 kcal mol21),
which amounts to the ion-pair contribution. Such a large positive
cooperative effect is comparable to that achieved only with the
cyclic receptor of Smith and co-workers.2e Also, the formation
constant for mono-potassium intermediate IV from 1 can be
estimated to be 4.2 6 103 M21 if we subtract the ion-pair
contribution from the potassium-binding process I A V (Fig. 2).
Titration of the potassium complex of monotopic receptor 2
with CN2 also gave a three-step binding mode (entry 7), showing
little ion-pair interaction as expected. The binding modes may
involve (1) ionic interaction between K+ and CN2, (2) the
formation of alkoxide adduct by cyanide addition (3) ionic
interaction between the alkoxide adduct with K+. Finally, it is
worthy of mention that titration of the potassium complex of 1
with acetate ion (entry 10) gave a smaller increase in the
association constant compared to the case between 1 and acetate
(entry 9), which should be due to a reduced ion-pair interaction: In
this case, also, not a simple binding, but a two-site binding mode
was best fit the binding isotherms. Such a complex binding mode is
probably due to the sandwich-type potassium complex, 12?K+.
This work was supported by grants from the Center for
Integrated Molecular Systems (R11-2000-070-070010), Korea
Health Industry Development Institute (A05-0426-B20616-05N1-
00010A), and Korea Research Foundation Grant (MOEHRD,
Basic Research Promotion Fund: KRF-2005-070-C00078).
Notes and references
{ The association constants were obtained by using a curve-fitting program
supplied with an ITC instrument from MicroCal, Inc.
§ The branched nature of the crown-ether moiety seems to be relevant for
the formation of unusual sandwich-type complex.
1 Comprehensive Supramolecular Chemistry, ed. J. L. Atwood, J. E. D.
Davies, D. D. MacNicol, F. Vo¨gtle and K. S. SuslickPergamon, Oxford,
1996.
2 For a review on ditopic receptors, see: (a) G. J. Kirkovits, J. A. Shriver,
P. A. Gale and J. L. Sessler, J. Inclusion Phenom. Macrocycl. Chem.,
2001, 41, 69. For articles of ion-pair recognitions, see: (b) J. Scheerder,
J. P. M. van Duynhoven, J. F. J. Engbersen and D. N. Reinhoudt,
Angew. Chem., Int. Ed. Engl., 1996, 35, 1090; (c) T. Tozawa, Y. Misawa,
S. Tokita and Y. Kubo, Tetrahedron Lett., 2000, 41, 5219; (d) R. Shukla,
T. Kida and B. D. Smith, Org. Lett., 2000, 2, 3099; (e) J. M. Mahoney,
A. M. Beatty and B. D. Smith, J. Am. Chem. Soc., 2001, 123, 5847; (f)
L. H. Uppadine, J. E. Redman, S. W. Dent, M. G. B. Drew and
P. D. Beer, Inorg. Chem., 2001, 40, 2860; (g) J. M. Mahoney, J. P. Davis,
A. M. Beatty and B. D. Smith, J. Org. Chem., 2003, 68, 9819; (h)
P. R. A. Webber and P. D. Beer, Dalton Trans., 2003, 2249; (i)
J. M. Mahoney, K. A. Stucker, H. Jiang, I. Carmichael, N. R. Brinkmann,
A. M. Beatty, B. C. Noll and B. D. Smith, J. Am. Chem. Soc., 2005, 127,
2922.
2
When Na+ (PF6 salt) was used instead of K+, we observed
little enhancement in the binding affinity between 1 and CN2. This
is due to the smaller size of Na+ compared to that of K+, not
fitting well in the cavity of crown-ether, and thus a reduced or
negligible cooperative interaction results.
3 For articles of ion-pair sensing, see: (a) P. D. Beer and S. W. Dent, Chem.
Commun., 1998, 825; (b) Y.-H. Kim and J.-I. Hong, Chem. Commun.,
2002, 512; (c) H. Miyaji, S. R. Collinson, I. Prokes and J. H. R. Tucker,
Chem. Commun., 2003, 64; (d) A. P. de Silva, G. D. McClean and
S. Pagliari, Chem. Commun., 2003, 2010; (e) S. J. M. Koskela, T. M. Fyles
and T. D. James, Chem. Commun., 2005, 945; (f) F. Oton, A. Tarraga,
M. D. Velasco and P. Molina, Chem. Commun., 2005, 1159.
4 (a) Y. K. Kim, Y.-H. Lee, H.-Y. Lee, M.-K. Kim, G. S. Cha and
K. H. Ahn, Org. Lett., 2003, 5, 4003; (b) Y. M. Chung, B. Raman,
D.-S. Kim and K. H. Ahn, Chem. Commun., 2006, 186; (c) D.-S. Kim,
H. Miyaji, B.-Y. Chang, S.-M. Park and K. H. Ahn, Chem. Commun.,
2006, 3314.
Another evidence of the ion-pairing was obtained from
electrochemical behavior of receptor 1. Cyclic voltammograms
2
were obtained by sequential addition of K+ (as PF6 salt) and
CN2 (as Bu4N+ salt) to 1 (1.0 mM, in CH3CN) (see ESI{). The
formal oxidation potential of 1 [Eu9 = +0.95 V (vs. Ag/AgCl)]
showed a positive shift (+14 mV) upon addition of one equivalent
of K+, which was reversed upon addition of one equivalent of
CN2, from +14 mV to +3 mV. The CV data again demonstrates
the ion-paring effect.
5 For previous trifluoroacetophenone-based ionophores, see: (a)
M. E. Meyerhoff, E. Pretsch, D. H. Welti and W. Simon, Anal.
Chem., 1987, 59, 144; (b) G. J. Mohr, F. Lehmann, U. W. Grummt and
W. E. Spichiger-Keller, Anal. Chim. Acta, 1997, 344, 215; (c) H. J. Lee,
I. J. Yoon, C. L. Yoo, H.-J. Pyun, G. S. Cha and H. Nam, Anal. Chem.,
2000, 72, 4694; (d) Y. K. Kim, J. Ha, G. S. Cha and K. H. Ahn, Bull.
Korean Chem. Soc., 2002, 23, 1420.
6 Crown Compounds: Toward Future Applications, ed. S. R. Cooper, VCH,
Weinheim, 1992.
7 H. Miyaji, G. Gasser, S. J. Green, Y. Molard, S. M. Strawbridge and
J. H. R. Tucker, Chem. Commun., 2005, 5355.
8 F. P. Schmidtchen, Org. Lett., 2002, 4, 431.
Because our receptor 1 can recognize both potassium and
cyanide ions very strongly, we have examined whether it can
recognize KCN salt by NMR spectroscopy. An aqueous solution
of KCN (5 mL in D2O) was added to a solution of receptor 1
(495 mL) in CD3CN, which results in a solution of 1% D2O in
1
CD3CN. The H and 19F NMR spectra (Fig. 3) taken for the
mixture showed very similar spectra to that shown in Fig. 1(c).
Thus, the direct recognition of potassium cyanide in aqueous
media is also possible with receptor 1.
This journal is ß The Royal Society of Chemistry 2008
Chem. Commun., 2008, 753–755 | 755
