Acyl group migration and cleavage in selectively protected β-D-galactopyranosides as studied by NMR spectroscopy and kinetic calculations

Article abstract of DOI:10.1021/ja801177s

The migration of acetyl, pivaloyl, and benzoyl protective groups and their relative stabilities at variable pH for a series of β-D-galactopyranoses were studied by NMR spectroscopy. The clockwise and counterclockwise migration rates for the different este

Full text of DOI:10.1021/ja801177s

Published on Web 06/11/2008
Acyl Group Migration and Cleavage in Selectively Protected
ꢀ-D-Galactopyranosides as Studied by NMR Spectroscopy and
Kinetic Calculations
Mattias U. Roslund,*,† Olli Aitio,‡ Johan Wa¨rnå,# Hannu Maaheimo,§
Dmitry Yu. Murzin,# and Reko Leino*,†
Laboratory of Organic Chemistry and Laboratory of Industrial Chemistry, Åbo Akademi
UniVersity, FI-20500 Åbo, Finland, Program in Structural Biology and Biophysics, Institute of
Biotechnology, UniVersity of Helsinki, FI-00014 Helsinki, Finland, and VTT Technical Research
Centre of Finland, FI-00014 Helsinki, Finland
Received February 16, 2008; E-mail: mattias_roslund@yahoo.com; reko.leino@abo.fi
Abstract: The migration of acetyl, pivaloyl, and benzoyl protective groups and their relative stabilities at
variable pH for a series of ꢀ-D-galactopyranoses were studied by NMR spectroscopy. The clockwise and
counterclockwise migration rates for the different ester groups were accurately determined by use of a
kinetic model. The results presented provide new insights into the acid and base stabilities of commonly
used ester protecting groups and the phenomenon of acyl group migration and may prove useful in the
planning of synthesis strategies.
in the hexose series.6 Undesired migration may severly limit
the types of reactions that can be applied to partially acylated
Introduction
Protective groups play a central role in carbohydrate chemistry
in controlling the reactivity of both glycosyl donors and
acceptors, as well as in the control of regio- and stereoselec-
tivities and decomposition of target molecules and reactants.1
The strategies for the syntheses of partially protected mono-
and oligosaccharides commonly involve the use of orthogonal
protecting groups that should be selectively removed under the
desired reaction conditions. Various esters are commonly used
as protecting groups in carbohydrate syntheses.1a,2 It is well-
known that such groups may, in polyhydroxylic compounds,
be subject to undesired migration and cleavage. Acetyl group
migration was first described by Emil Fischer3 and the intramo-
lecular nature of the phenomenon was confirmed by a radioac-
tive labeling study by Doerschuk.4 Intermolecular rearrangement
for ester groups has likewise been proposed.5
sugars without inducing decomposition. Notably, intramolecular
migration has also been successfully utilized in syntheses and
improvement of yields in peptide chemistry and in carbohydrate
chemistry.7 Anticlockwise migration has been observed for
methyl 6-bromo-2,6-dideoxy-4-O-benzoyl-R-D-ribo-hexopyra-
noside8 and 5-O-acetyl-1,4-anhydro-6-thio-D-glucitol.9 Migration
under acidic conditions has also been reported,7b while being
disputed by some investigators.10
Generally, the migration of acyl groups is considered ir-
reversible11 and a large part of the earlier investigations have
dealt with acetyl group migration in partially acetylated sialic
acid derivatives12 and migration in acyl ꢀ-D-glucopyranosidu-
ronic acid derivatives.13 Mechanistically, a cyclic orthoester-
type intermediate has been suggested. Acyl groups with strongly
electron-attracting R-groups are reported to exist as cyclic
An acyl group may migrate to a neighboring OH under acidic
and neutral, but especially under basic conditions. Such migra-
tion has been reported to take place at all positions except C6
(6) (a) Bonner, W. A. J. Org. Chem. 1959, 24, 1388–1390. (b) Garegg,
P. J. Ark. Kemi 1964, 23, 255–268. (c) Fink, A. L.; Hay, G. W. Can.
J. Chem. 1969, 47, 845–852. (d) Binkley, R. W. Modern carbohydrate
chemistry. Marcel Dekker, Inc.: New York 1988, p 143. (e) Kurahashi,
T.; Mizutani, T.; Yoshida, J.-i J. Chem. Soc., Perkin Trans. 1 1999,
465–473.
† Laboratory of Organic Chemistry, Åbo Akademi University.
‡ University of Helsinki.
# Laboratory of Industrial Chemistry, Åbo Akademi University.
§ VTT Technical Research Centre of Finland.
(7) (a) Sohma, Y.; Sasaki, M.; Hayashi, Y.; Kimura, T.; Kiso, Y. Chem.
Commun. 2004, 124–125. (b) Horrobin, T.; Tran, C. H.; Crout, D.
J. Chem. Soc., Perkin Trans. 1 1998, 1069–1080. (c) Finan, P. A.;
Warren, W. D. J. Chem. Soc. 1962, 4214–4216.
(1) (a) Khan, S. H.; O’Neill, R. A. Modern Methods in Carbohydrate
Synthesis; Harwood Academic Publishers: Amsterdam, 1996. (b)
Hanessian, S. PreparatiVe Carbohydrate Chemistry; Marcel Dekker
Inc.: New York, 1997. (c) Bashkin, J. K. Chem. ReV. 2000, 100, 4265–
4712; Ed. Special Issue. (d) Levy, D. E.; Fu¨gedi, P. The Organic
Chemistry of Sugars; CRC Press: Boca Raton, 2006.
(2) (a) Greene, T. W.; Wuts, P. G. M. ProtectiVe Groups in Organic
Synthesis, 3rd ed.; John Wiley & Sons Inc.: New York, 1999. (b)
Jarowicki, K.; Kocienski, P. J. J. Chem. Soc., Perkin Trans. 1 1999,
1589–1615. (c) Jarowicki, K.; Kocienski, P. J. J. Chem. Soc., Perkin
Trans. 1 2000, 2495–2527. (d) Kocienski, P. J. Protecting Groups,
3rd ed.; Georg Thieme Verlag: Stuttgart, Germany, 2005.
(3) Fischer, E. Ber. Dtsch. Chem. Ges. 1920, 53, 1621–1633.
(4) Doerschuk, A. P. J. Am. Chem. Soc. 1952, 74, 4202–4203.
(5) Kro¨ger, L.; Thiem, J. Carbohydr. Res. 2007, 342, 467–481.
(8) Yasumori, T.; Sato, K.; Hashimoto Yoshimura, H. J. Bull. Chem. Soc.
Jpn. 1984, 57, 2538–2542.
(9) Schulze, O.; Bruns, S.; Voss, J.; Adiwidjaja, G. Carbohydr. Res. 2000,
329, 781–790.
(10) (a) Deferrari, J. O.; Gros, E. G.; Mastronardi, I. O. Carbohydr. Res.
1967, 4, 432–434. (b) Dick, W. E.; Baker, B. G.; Hodge, J. E.
Carbohydr. Res. 1968, 6, 52–62.
(11) Albert, R.; Dax, K.; Stu¨tz, A. E.; Weidmann, H. J. Carbohydr. Chem.
1983, 2, 279–292.
(12) (a) Reinhard, B.; Faillard, H. Liebigs. Ann. Chem. 1994, 193–203.
(b) Kamerling, J. P.; Schauer, R.; Shukla, A. K.; Stoll, S.; van Halbeek,
H.; Vliegenthart, J. F. G. Eur. J. Biochem. 1987, 162, 601–607.
9
10.1021/ja801177s CCC: $40.75
2008 American Chemical Society
J. AM. CHEM. SOC. 2008, 130, 8769–8772 8769

A R T I C L E S
Roslund et al.
Scheme 1

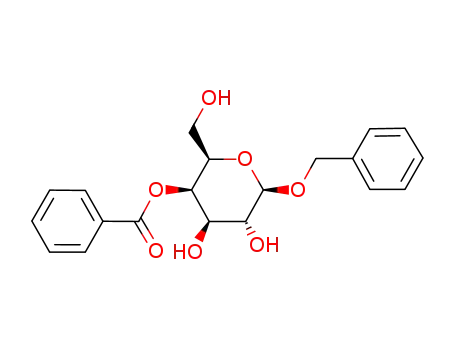

Figure 1. Compounds investigated in the migration studies.
