Computational Design and Elaboration of a de Novo
Heterotetrameric r-Helical Protein That Selectively Binds an
Emissive Abiological (Porphinato)zinc Chromophore
H. Christopher Fry,† Andreas Lehmann,†,¶ Jeffery G. Saven,*,†
William F. DeGrado,*,†,‡ and Michael J. Therien*,§
Department of Chemistry, UniVersity of PennsylVania, Philadelphia, PennsylVania 19104-6323,
Department of Biochemistry and Molecular Biophysics, Johnson Foundation, School of
Medicine, UniVersity of PennsylVania, Philadelphia, PennsylVania 19104-6059, and Department
of Chemistry, Duke UniVersity, Durham, North Carolina 27708-0354
Received September 11, 2009; E-mail: saven@sas.upenn.edu; wdegrado@mail.med.upenn.edu;
michael.therien@duke.edu
Abstract: The first example of a computationally de novo designed protein that binds an emissive abiological
chromohore is presented, in which a sophisticated level of cofactor discrimination is pre-engineered. This
heterotetrameric, C2-symmetric bundle, AHis:BThr, uniquely binds (5,15-di[(4-carboxymethyleneoxy)phe-
nyl]porphinato)zinc [(DPP)Zn] via histidine coordination and complementary noncovalent interactions. The
A2B2 heterotetrameric protein reflects ligand-directed elements of both positive and negative design, including
hydrogen bonds to second-shell ligands. Experimental support for the appropriate formulation of [(DPP)Zn:
AHis:BThr]2 is provided by UV/visible and circular dichroism spectroscopies, size exclusion chromatography,
and analytical ultracentrifugation. Time-resolved transient absorption and fluorescence spectroscopic data
reveal classic excited-state singlet and triplet PZn photophysics for the AHis:BThr:(DPP)Zn protein (kfluorescence
) 4 × 108 s-1; τtriplet ) 5 ms). The A2B2 apoprotein has immeasurably low binding affinities for related
[porphinato]metal chromophores that include a (DPP)Fe(III) cofactor and the zinc metal ion hemin derivative
[(PPIX)Zn], underscoring the exquisite active-site binding discrimination realized in this computationally
designed protein. Importantly, elements of design in the AHis:BThr protein ensure that interactions within
the tetra-R-helical bundle are such that only the heterotetramer is stable in solution; corresponding
homomeric bundles present unfavorable ligand-binding environments and thus preclude protein structural
rearrangements that could lead to binding of (porphinato)iron cofactors.
Introduction
to craft tetra-R-helical peptides that bind abiological (porphi-
nato)iron (PFe) cofactors,10-12 elaborating entirely new met-
The design and synthesis of de noVo proteins that bind
abiological cofactors provide a general strategy to interrogate
important protein structure-function relationships1-5 and build
proteins that possess functions not seen in nature. Although de
noVo designed proteins capable of binding hemin [(PPIX)Fe]
have been realized,6-9 such systems typically mimic the
structures, functions and spectral features of naturally occurring
hemoproteins. While advances in protein design have been used
alloprotein functions requires the ability to engineer proteins
that uniquely accommodate targeted ligand frameworks as well
as specific metal ions. Designed protein complexes containing
abiological Zn-porphyrin cofactors are of particular interest due
to the fact that electron and energy transfer reactions can be
activated by pulsed laser excitation of such chromophores,13-17
(9) Ghirlanda, G.; Osyczka, A.; Liu, W. X.; Antolovich, M.; Smith, K. M.;
Dutton, P. L.; Wand, A. J.; DeGrado, W. F. J. Am. Chem. Soc. 2004,
126, 8141–8147.
† Department of Chemistry, University of Pennsylvania.
‡ Department of Biochemistry and Molecular Biophysics, Johnson
Foundation, School of Medicine, University of Pennsylvania.
§ Department of Chemistry, Duke University.
(10) Cochran, F. V.; Wu, S. P.; Wang, W.; Nanda, V.; Saven, J. G.; Therien,
M. J.; DeGrado, W. F. J. Am. Chem. Soc. 2005, 127, 1346–1347.
(11) Bender, G. M.; Lehmann, A.; Zou, H.; Cheng, H.; Fry, H. C.; Engel,
D.; Therien, M. J.; Blasie, J. K.; Roder, H.; Saven, J. G.; DeGrado,
W. F. J. Am. Chem. Soc. 2007, 129, 10732–10740.
¶ Present address: Fox Chase Cancer Center, Philadelphia, PA 19111-
2434.
(1) Koder, R. L.; Dutton, P. L. Dalton Trans. 2006, 3045–3051.
(2) Case, M. A.; McLendon, G. L. Acc. Chem. Res. 2004, 37, 754–762.
(3) Calhoun, J. R.; Kono, H.; Lahr, S.; Wang, W.; DeGrado, W. F.; Saven,
J. G. J. Mol. Biol. 2003, 334, 1101–1115.
(12) McAllister, K. A.; Zou, H. L.; Cochran, F. V.; Bender, G. M.; Senes,
A.; Fry, H. C.; Nanda, V.; Keenan, P. A.; Lear, J. D.; Saven, J. G.;
Therien, M. J.; Blasie, J. K.; DeGrado, W. F. J. Am. Chem. Soc. 2008,
130, 11921–11927.
(4) Sharp, R. E.; Moser, C. C.; Rabanal, F.; Dutton, P. L. Proc. Natl.
Acad. Sci. U.S.A. 1998, 95, 10465–10470.
(13) Wasielewski, M. R. Chem. ReV. 1992, 92, 435–461.
(14) Hoffman, B. M.; Natan, M. J.; Nocek, J. M.; Wallin, S. A. Struct.
Bonding (Berlin) 1991, 75, 85–108.
(5) Wei, Y. N.; Hecht, M. H. Protein Eng. Des. Sel. 2004, 17, 67–75.
(6) Reedy, C. J.; Gibney, B. R. Chem. ReV. 2004, 104, 617–649.
(7) Zhuang, J. Y.; Amoroso, J. H.; Kinloch, R.; Dawson, J. H.; Baldwin,
M. J.; Gibney, B. R. Inorg. Chem. 2004, 43, 8218–8220.
(8) Rosenblatt, M. M.; Wang, J. Y.; Suslick, K. S. Proc. Natl. Acad. Sci.
U.S.A. 2003, 100, 13140–13145.
(15) Hoffman, B. M.; Celis, L. M.; Cull, D. A.; Patel, A. D.; Seifert, J. L.;
Wheeler, K. E.; Wang, J. Y.; Yao, J.; Kurnikov, I. V.; Nocek, J. M.
Proc. Natl. Acad. Sci. U.S.A. 2005, 102, 3564–3569.
(16) Winkler, J. R.; Gray, H. B. Chem. ReV. 1992, 92, 369–379.
9
10.1021/ja907407m  2010 American Chemical Society
J. AM. CHEM. SOC. 2010, 132, 3997–4005 3997

A R T I C L E S
Fry et al.
and the fact that these moieties are key components in systems
exhibiting a variety of novel nonlinear optical and photophysical
properties.18-23 Herein, a helical bundle protein that selectively
encapsulates an emissive zinc porphyrin chromophore is com-
putationally designed and experimentally characterized.
and related proteins.37-42 Complete control and creation of a
protein environment that is complementary to an abiological
cofactor, however, might best be accomplished through auto-
mated de noVo design. Such approaches explicitly consider the
atomic details of the backbone structure as well side chain-side
chain and side chain-cofactor packing.
(Porphinato)zinc (PZn) chromophores have been utilized to
provide fundamental insights into electron and energy transfer
reactions13,16 and develop high performance electronic and
optical materials.18-23 Synthetic multiporphyrin arrays13,24-27
yield supramolecular architectures inspired in part by the
naturally occurring multiporphyrin array found in the light-
harvesting complex of photosystem II.28-30 While PZn may be
dispersed in polymer-based systems, controlling the cofactor’s
orientation and local environment can be difficult or limited.20,31,32
Though subtle, the folding and self-assembly properties of
proteins can be leveraged to arrive at well-defined local
environments for porphyrin-based cofactors. Bundles of helical
peptides can encapsulate and coordinate natural and abiotic Zn
porphyrins.33,34 Inspection of fiducial structures have guided the
design of such systems, where Zn is coordinated with appropri-
ate side-chain ligands (e.g., histidine) and hydrophobic residues
are patterned so as to stabilize a helical bundle. In addition,
such designed R-helical proteins can be displayed in oriented
molecular arrays at interfaces.34-36 Many of these systems
examined thus far have fluctuating tertiary structures, however,
and likely do not have the geometric complementarity and highly
structured physicochemical protein-porphyrin interactions ob-
served in natural proteins.33,35 Alternatively, non-natural (por-
phinato)metal derivatives have been incorporated into myoglobin
The de noVo design of soluble, proteins selective for PZn is
complicated by the preference of zinc porphyrins for a five-
coordinate environment.43-45 In contrast, the symmetry in six-
coordinate Fe3+ ligation can be leveraged in the design of
proteins that encapsulate iron porphyrins.10-12 Such preferred
local asymmetry in the metal coordination of PZn suggests use
of helical bundles having reduced symmetry, e.g., heterotet-
rameric bundles.46,47 Along these lines, heterotetramers have
been designed that present a dinuclear metal ion site48,49
including an A2B2 protein.50 Many previous bundle proteins
resulted from coarse-grained design approaches, including the
manipulation of complementary solvent-exposed electrostatic
interactions and empirical matching of interior hydrophobic side
chains.50 Heterotetrameric systems of this type have not been
identified for the much larger PZn cofactors.
Computational design methods provide powerful tools for
engineering structure and sequence.3,10-12,51-55 Herein, these
methods are applied to address specific protein-protein and
protein-PZn interactions in an atomically detailed manner.
Elements of both positive and negative design are used to arrive
at a de noVo heterotetrameric, R-helical peptide bundle that
selectively incorporates an abiotic PZn choromophore that can
be electronically excited to produce a long-lived fluorescent
state. We exploit the rigidity of tetra-R-helical peptides to

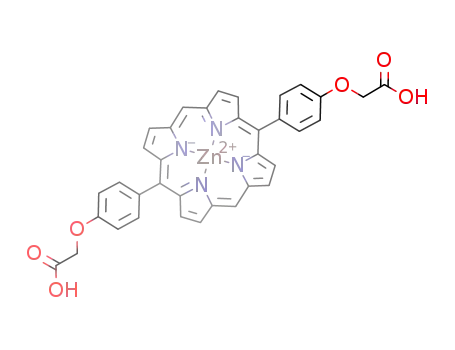

organize a (5,15-diarylporphinato)Zn cofactor [(DPP)Zn] at
