Molecules 2015, 20, 2081-2099; doi:10.3390/molecules20022081
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Evaluation of the Radiolabeled Boronic Acid-Based FAP
Inhibitor MIP-1232 for Atherosclerotic Plaque Imaging
Romana Meletta 1, Adrienne Müller Herde 1, Aristeidis Chiotellis 1, Malsor Isa 1, Zoran Rancic 2,
Nicole Borel 3, Simon M. Ametamey 1, Stefanie D. Krämer 1,* and Roger Schibli 1,4
1
Department of Chemistry and Applied Bioscience of ETH Zurich, Center for Radiopharmaceutical
Sciences ETH-PSI-USZ, Vladimir-Prelog-Weg 4, 8093 Zurich, Switzerland;
E-Mails: romana.meletta@pharma.ethz.ch (R.M.); adrienne.herde@pharma.ethz.ch (A.M.H.);
aristeidis.chiotellis@pharma.ethz.ch (A.C.); isam@student.ethz.ch (M.I.);
simon.ametamey@pharma.ethz.ch (S.M.A.); roger.schibli@pharma.ethz.ch (R.S.)
2
Division of Cardiovascular Surgery, University Hospital Zurich, Rämistrasse 100, 8091 Zurich,
Switzerland; E-Mail: zoran.rancic@usz.ch
3
Institute for Veterinary Pathology, Vetsuisse Faculty, University of Zurich, Winterthurerstrasse 268,
8057 Zurich, Switzerland; E-Mail: n.borel@access.uzh.ch
4
Center for Radiopharmaceutical Sciences ETH-PSI-USZ, Paul Scherrer Institute,
5232 Villigen PSI, Switzerland
* Author to whom correspondence should be addressed; E-Mail: stefanie.kraemer@pharma.ethz.ch;
Tel.: +41-44-633-74-03.
Academic Editor: Derek J. McPhee
Received: 4 December 2014 / Accepted: 20 January 2015 / Published: 27 January 2015
Abstract: Research towards the non-invasive imaging of atherosclerotic plaques is of high
clinical priority as early recognition of vulnerable plaques may reduce the incidence of
cardiovascular events. The fibroblast activation protein alpha (FAP) was recently proposed
as inflammation-induced protease involved in the process of plaque vulnerability. In this
study, FAP mRNA and protein levels were investigated by quantitative polymerase chain
reaction and immunohistochemistry, respectively, in human endarterectomized carotid
plaques. A published boronic-acid based FAP inhibitor, MIP-1232, was synthetized and
radiolabeled with iodine-125. The potential of this radiotracer to image plaques was
evaluated by in vitro autoradiography with human carotid plaques. Specificity was assessed
with a xenograft with high and one with low FAP level, grown in mice. Target expression
analyses revealed a moderately higher protein level in atherosclerotic plaques than normal

Molecules 2015, 20
arteries correlating with plaque vulnerability. No difference in expression was determined
2082
on mRNA level. The radiotracer was successfully produced and accumulated strongly in the
FAP-positive SK-Mel-187 melanoma xenograft in vitro while accumulation was negligible
in an NCI-H69 xenograft with low FAP levels. Binding of the tracer to endarterectomized
tissue was similar in plaques and normal arteries, hampering its use for atherosclerosis imaging.
Keywords: atherosclerosis; fibroblast activation protein; carotid artery plaque;
boronic acid-based inhibitor
1. Introduction
The concept of plaque vulnerability has changed the understanding of the pathogenesis of
atherosclerosis and has led to novel perspectives for diagnostic and therapeutic interventions. The
development of diagnostic methods to assess plaque vulnerability is considered an urgent priority in
clinical and basic research [1]. The assessment of plaque vulnerability in patients at risk for
cardiovascular disease would allow an adequate pharmacological and/or surgical treatment already in
the asymptomatic stage and, therefore, reduce atherosclerosis-associated disability and mortality.
Molecular imaging with suitable tracers has the potential to non-invasively identify molecular processes
providing functional information about disease progression. In the asymptomatic stage, functional
imaging may thus provide more specific information on plaque vulnerability than morphology-based
imaging modalities [2]. Several imaging targets and the respective tracers are under investigation with
the goal to image plaque vulnerability. The most prominent tracer is [18F]fluorodeoxyglucose, which
accumulates in cells with high glucose consumption, including activated macrophages. However, the
unspecific mechanisms of accumulation and the high uptake in myocardium limit its applicability [3].
Nowadays, plaque progression is regarded as a dynamic and complex process with stabilizing and
destabilizing components involved. If destabilizing plaque components prevail over stabilizing factors
an atherosclerotic plaque may eventually rupture leading to often severe or even fatal complications.
Stabilizing components include an intact and thick fibrous cap that is formed by smooth muscle cells
(SMCs) embedded in an extracellular matrix rich in collagen. On the contrary, plaque vulnerability is
related to a thinning of the fibrous cap facilitated by the gradual loss of SMCs and the degradation of the
collagen-rich fibrous cap [4]. The digestion of the extracellular matrix is caused by proteases in the
atheromata which include matrix metalloproteinases (MMPs), cathepsins S/K and as recently proposed
the fibroblast activation protein alpha (FAP, seprase) [5–8]. FAP is a type II membrane-bound serine
protease belonging to the subfamily dipeptidyl peptidase IV N-terminal (DPP IV, S9B) within the prolyl
oligopeptidase family (POP, S9) [9–11]. In contrast to other members of the DPP IV subfamily, FAP
displays endo- besides exopeptidase activity [12]. FAP is capable of cleaving peptide bonds between
proline and another amino acid [12]. FAP has gelatinase activity and is involved in the further digestion
of degradation products of type I collagen [13–16]. The endo- and exopeptidase enzymatic activity
requires homodimerization and glycosylation of the protease [10,14,17].
FAP was initially identified as a pivotal component of the tumor microenvironment expressed by
reactive stromal fibroblasts in over 90% of common human epithelial carcinomas and may serve as a

Molecules 2015, 20
2083
therapy target in oncology [18–20]. Furthermore, an association of FAP expression with inflammatory
processes was described [18] and in line with this finding is emerging data by Brokopp et al. indicating
an involvement of FAP in the pathogenesis of atherosclerosis [7]. In detail, Brokopp et al. showed that
FAP is expressed by SMCs in human aortic plaques and confirmed its involvement in type I collagen
degradation in aortic fibrous caps. Moreover, an association between tumor necrosis factor alpha (TNFα)
secretion by macrophages with FAP expression in cultured human aortic SMCs and additionally a
positive correlation of FAP-expressing SMCs with the macrophage burden in human aortic plaques was
described [7]. The extent of FAP expression at different stages in atherosclerotic plaque progression was
evaluated and revealed an increased FAP expression in advanced aortic plaques and in thin-cap versus
thick-cap coronary atheromata by immunohistochemistry and immunofluorescence [7]. These findings
indicate that FAP expression is related to plaque vulnerability with FAP representing an
inflammation-induced protease in atherosclerosis. In this respect, FAP could serve as a promising target
for non-invasive atherosclerotic plaque imaging.
The goal of this study was to evaluate FAP as a target for atherosclerosis imaging with a small
molecule. Imaging FAP density requires a FAP-selective ligand with high binding affinity. Several
research groups have pursued to design small inhibitors with high specificity and selectivity towards
individual serine proteases in the POP family. To selectively target FAP over other peptidases, its dual
enzymatic activity as endo- and exopeptidase has to be considered. Identifying inhibitors with high
selectivity for FAP over other DPPs and the most closely related prolyl endopeptidase PREP is
challenging due to the 48% amino acid sequence identity of FAP and DPP-4, analogous substrate
preferences and the ubiquitous expression of many proteases of the POP family [9,11]. Most FAP
inhibitors share the pyrrolidine-2-boronic acid moiety as a common structural motif. The first boronic
acid inhibitor reaching phase II clinical trials in the field of cancer treatment was ValboroPro (talabostat,
PT-100), however due to missing selectivity clinical evaluation was terminated [21–23]. ValboroPro
displayed IC50 values in the nanomolar range to several prolyl peptidases [24]. The introduction of a
blocked N terminus in the dipeptidyl boronic acid structure led to novel inhibitors that were evaluated
regarding binding affinity and selectivity [25–29] with the advantage of impeded intra-molecular
cyclization reactions mediated by the electrophilic boron and an increased selectivity over DPPs that
lack endopeptidase activity [30].
Marquis et al. presented a para-iodine substituted benzamido-glycine-boronoproline analog,
MIP-1232, with an IC50 of 0.6 nM as determined in an enzyme inhibition assay with human recombinant
FAP [29]. MIP-1232 was 32-fold more potent in inhibiting FAP than PREP. The corresponding Kd value
of [123I]MIP-1232 in stably FAP-transfected human embryonic kidney cells (HEK-293) was 30 nM and
different FAP-positive cell lines showed a markedly reduced enzymatic activity under MIP-1232
treatment compared to baseline conditions [29,31]. The high binding affinity to FAP and the selectivity
profile in combination with the possibility to radioiodinate MIP-1232 without altering its structure make
this compound a promising molecule to assess the potential of FAP as an imaging target for the staging
of plaque vulnerability and to detect FAP-positive tumors that may respond to FAP-targeted therapy. In
this study, we investigated FAP expression in human carotid specimens by quantitative polymerase chain
reaction (qPCR) and immunohistochemistry (IHC). Furthermore, we synthesized MIP-1232 and
subsequently radiolabeled this compound with iodine-125. Its accumulation in human atherosclerotic
plaques was evaluated in vitro by autoradiography.

Molecules 2015, 20
2084
A FAP-positive SK-Mel-187 melanoma xenograft and an NCI-H69 xenograft with low FAP levels,
both grown in mice, were used as controls.
2. Results and Discussion
2.1. Gene Expression Analysis of FAP and SMA in Human Carotid Plaques
Quantitative expression analysis of FAP and alpha smooth muscle cell actin (SMA) by qPCR was
performed with β-actin as reference gene (Figure 1). For FAP, a similar average gene expression was
determined in normal arteries, stable plaques and vulnerable plaques (Figure 1A). The average SMA
gene expression was not significantly different comparing vulnerable and stable plaques (Figure 1B).
No significant correlation between the SMA and FAP gene expression in human endarterectomized
plaques was observed (Figure 1C).
Figure 1. Relative mRNA expression levels of FAP (A) and SMA (B) in normal arteries
(n = 2), stable plaques (n = 11) and vulnerable plaques (n = 9). For both proteins no
significant difference was detected between stable and vulnerable plaques. (C) Comparison
of the relative mRNA expression levels of FAP and SMA. mRNA expression was quantified
by qPCR, shown are averages of three independent analyses. Lines indicate mean values. The
square bracket indicates an outlier that was excluded from statistical analyses.
2.2. Immunohistochemical Staining of Human Carotid Plaques for FAP and SMA
The expression of FAP and SMA was further investigated by immunohistochemistry in consecutive
sections of human atherosclerotic plaques (Figure 2). Normal arteries were FAP negative. In plaques, a
focal FAP expression in macrophages and giant cells located in the superficial regions of the fibrous cap
was observed with the most pronounced focal signals in vulnerable plaques (Figures 2C2,D1,D2). SMA
was strongly expressed in the tunica media in all three classification categories with the highest
expression in the vasa vasorum of normal arteries (Figure 2A1). The distribution pattern of SMA within
atherosclerotic plaques was generally focal with major clusters in the cap or shoulder region.

Molecules 2015, 20
2085
Figure 2. Hematoxylin/eosin (HE; A–C) and immunohistochemical (A–D) staining for FAP
and SMA of representative 2 μm paraffin-embedded sections of a normal artery (A), a stable
plaque (B) and vulnerable plaques (C,D). Boxed higher-magnification images show a small
blood vessel (normal artery A1), regions in the fibrous cap (stable B1, B2 and vulnerable
plaque C1) and FAP-positive macrophages (C2, arrows). (D) High magnification images
show FAP-positive giant cells (D1, arrowheads) and macrophages (D1, D2, arrows) in a
vulnerable plaque. The endarterectomized plaques are composed of tunica intima and part
of the media. Lu: lumen. Scale bar, low magnification 2000 μm; A1, B1, B2, C1, 200 μm;
C2, D1, D2, 50 μm.

Molecules 2015, 20
2086
No distinct co-localization of the two expression markers was found in all examined carotid plaques
(Figure 2B1,B2).

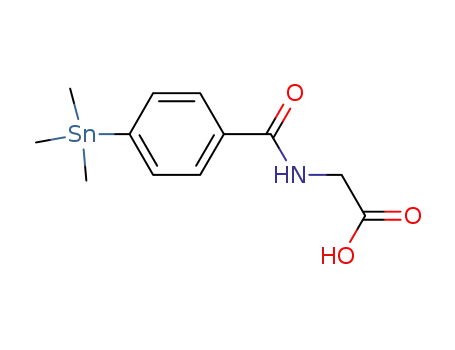

2.3. Chemistry and Radiochemistry
Reference compound and precursor were synthesized from commercially available 4-iodobenzoic
acid and glycine ethyl ester hydrochloride, as shown in Scheme 1. The synthetic scheme followed was
the one reported by Zimmerman et al. [31] with some distinct modifications. For the reference
compound, glycine ethyl ester was efficiently coupled to 4-iodobenzoic acid with HBTU as the coupling
agent to afford compound 1 in 79% yield. The ethylester was then cleaved under basic conditions
(aq. KOH/MeOH) to give the free acid 2 in moderate yield (55%) [32]. Reaction of compound 2 with
(R)-boroPro-(+)-pinanediol·HCl using the EDC/HOBt coupling system afforded dipeptide 3 in excellent
yield (93%).
I
COOEt
H2N
COOH
+
I
Sn
O
O
H
N
H
N
N
N
a
O
O
HO
O
B
B
H
OH
O
4
I
6
H
N
COOEt
d
O
1
f
b
I
O
H
N
N
I
Sn
c
e
O
H
N
H
N
COOH
O
B
H
COOH
O
O
O
3
2
5
Notes: Reagents and conditions: (a) HBTU, DIPEA, DMF, rt, 3 h, 79%; (b) KOH, MeOH/H2O, rt, 1 h, 55%;
(c) EDC, HOBt, (R)-BoroPro-(+)-pinanediol·HCl, DCM, 0 °C to rt, 16 h, 93%; (d) NH4OAc, NaIO4,
acetone, rt, 17 h, 45%; (e) hexamethylditin, Pd(PPh3)2Cl2, dioxane, rt, 3 h, 81%; (f) EDC, HOBt,
(R)-BoroPro-(+)-pinanediol·HCl, DCM, 0 °C to rt, 16 h, 59%.
Scheme 1. Synthesis of reference compound 4 and corresponding precursor 6.
Deprotection of the boronic ester to the free boronic acid, proved challenging. The proposed
transesterfication method [31] with phenylboronic acid was not efficient in our hands. Apart from
solubility problems the reaction was sluggish producing many byproducts. Thus, an alternative method
was applied, which involved oxidative cleavage of the pinanediol protecting group using sodium
metaperiodate [33]. This procedure was more compatible with our substrate, yielding cleanly and

Molecules 2015, 20
2087
relatively fast a new more polar product as revealed by HPLC monitoring. After workup, the crude was
purified with preparative RP-HPLC to provide 4 in moderate yield (45%).
For the synthesis of the precursor, a similar procedure was followed. Stannylation of the iodinated
compound 2 was achieved by reacting it with hexamethylditin and Pd(PPh3)2Cl2 in refluxing dioxane,
which yielded compound 5 in a good yield (81%). 5 was then coupled to the boronic ester
(R)-boroPro-(+)-pinanediol with EDC/HOBt in DCM and the crude was purified with RP-HPLC to
provide the precursor 6 in satisfactory yield (59%).
[125I]MIP-1232 was produced in a one-step reaction by electrophilic radioiodination of the
corresponding trimethylstannyl precursor (Scheme 2). The procedure was performed according to
Zimmerman et al. [31] with some modifications since the order of addition of the reagents critically
affected the outcome of the reaction. The experimental protocol was optimized so as to yield a reliable
and robust radiolabeling procedure. Briefly, precursor 6 was incubated with Na[125I] under oxidative
conditions to achieve electrophilic radioiodination and simultaneously cleaving the boronic acid
protecting group. After quenching with Na2S2O3, the reaction mixture was purified by analytical HPLC
to yield [125I]MIP-1232 in 10%–12% radiochemical yield (decay-corrected; n = 3) and radiochemical
purity ≥ 90%.
Sn
O
H
N
125I
O
H
N
N
a
N
O
O
B
H
O
HO
B
O
OH
125I]MIP-1232
6
[
Note: Reagents and conditions: Na[125I], H2O2, H2SO4, CH3COOH, MeCN, rt, 10 min then Na2S2O3.
Scheme 2. Radioiodination scheme of precursor 6 to [125I]MIP-1232.
The stability in acetonitrile/water/TFA (as eluted from the HPLC column) was investigated by HPLC
with reference compound 4. The compound was stable with >96% intact compound present after 110 h
storage. [125I]MIP-1232 was stored under identical conditions and all experiments were performed
within this time period after purification.
2.4. In Vitro Autoradiography
Radiotracer binding was evaluated by in vitro autoradiography with human carotid plaques and
xenograft tissue, as shown in Figure 3. [125I]MIP-1232 binding was higher in atherosclerotic plaques
than normal arteries. Vulnerable plaques showed a slightly higher radioactivity signal integrated over
the tissue slice than stable plaques. However, after correction for the size of the tissue samples, average
total binding was similar for the three categories (Figure 3A,B). Radiotracer binding was reduced under
blockade conditions with an excess of unlabeled MIP-1232 indicating displaceable (specific) binding of
[125I]MIP-1232 (Figure 3A). No significant difference was detected comparing the specific binding of
the three groups (Figure 3B). In a proof-of-principle study, target specificity of [125I]MIP-1232 was

Molecules 2015, 20
2088
evaluated in an autoradiography assay with xenograft tissue (Figure 3C). FAP-positive SK-Mel-187
melanoma xenografts [34] displayed a markedly higher radioactivity signal than NCI-H69 lung small
cell carcinoma xenografts and radiotracer binding was blocked completely by excess of MIP-1232 in
both xenografts. IHC experiments confirmed high FAP levels in the SK-Mel-187 xenograft and low
levels in the NCI-H69 xenograft (Figure 3C).
Figure 3. (A) In vitro autoradiogram of representative sections of human carotid plaques
under baseline ([125I]MIP-1232) and blockade condition ([125I]MIP-1232 with excess unlabeled
MIP-1232). Hematoxylin/eosin (HE) staining below represents plaque morphology. Scale bar
3 mm. (B) Quantified total and specific binding of [125I]MIP-1232 to normal arteries (n = 5),
stable plaques (n = 16) and vulnerable plaques (n = 15) determined by autoradiography and
corrected for tissue size. No significant intergroup differences were determined. Lines
indicate mean values, diamonds indicate the specimens shown in A. (C) In vitro
autoradiography with xenografts under baseline and blockade conditions. IHC staining for
FAP of the SK-Mel-187 and the NCI-H69 xenograft (20 µm cryosections). Scale bar 3 mm
for autoradiography; 50 µm for IHC images. Color scales for minimal to maximal binding.
2.5. Discussion
Recent studies suggest that inflammation-related processes provide promising targets for the
non-invasive imaging of plaque vulnerability [35–37]. We lately identified the co-stimulatory molecule
CD80 involved in T cell activation as a promising imaging target since its expression is increased in
vulnerable plaques. A radiolabeled specific inhibitor accumulated in human vulnerable plaques in vitro [38].
Moreover, we evaluated an F-18 labeled folate derivative targeting activated macrophages that

Molecules 2015, 20
2089
accumulated stronger in atherosclerotic plaques than normal arteries [39]. Brokopp et al. presented
another inflammation-related target, FAP, that displayed increased levels in advanced plaques indicating
an association with the process of plaque destabilization [7]. The mechanistic role of FAP in
atherosclerosis remains vague. Collagen, thereof 70% collagen type I, is a primary component of the
extracellular matrix in atherosclerotic plaques [40]. Synergistically with matrix metalloproteinases, FAP
is capable of degrading type I collagen and these proteases therefore have a destabilizing effect on
atherosclerotic plaques [15]. The involvement of serine proteases, in particular of the DPP IV subfamily,
in atherosclerosis and its clinical adverse events certainly warrants further investigations.
In this study, we analyzed plaque specimens obtained from the carotid artery that showed similar FAP
mRNA levels as normal artery segments, independent of plaque vulnerability. In agreement with
Brokopp et al., FAP protein levels as determined by IHC correlated with plaque progression, with the
highest focal staining in vulnerable plaques. The discrepancy between mRNA and protein levels could
indicate lower degradation of FAP in vulnerable than stable plaques, in line with differences in protease
and protease inhibitor levels in the two lesion types [8]. Overall, the difference in FAP expression
between normal arteries and plaques was modest in our study. In contrast to the publication of
Brokopp et al., we found FAP protein in macrophages and giant cells within the plaque and found no
co-localization with SMCs. However, we want to point out that we evaluated artery segments of a
different location and used different tissue preparations than Brokopp and colleagues. The localization
of FAP in macrophages in our study is in agreement with recent reports showing FAP expression in M2
macrophages [41,42].
The FAP inhibitor MIP-1232 was successfully synthesized and radiolabeled with iodine-125, a
long-lived gamma ray-emitting nuclide. The synthesis and radiolabeling were accomplished in reasonable
yields and purity. In a proof-of-principle study with a FAP-positive SK-Mel-187 xenograft [34], a high
and displaceable binding of the radiotracer was observed, whereas binding to the NCI-H69 xenograft with
low FAP levels was negligible. This indicates binding of [125I]MIP-1232 to FAP-positive tissue in vitro.
The potential of this radiotracer for atherosclerotic plaque imaging was investigated by in vitro
autoradiography with human carotid plaques. Here, we found a pronounced binding to carotid plaques,
however with no difference in average specific binding between stable and vulnerable plaques and
between plaques and normal arteries, after correction for the size of the tissue samples. However, 3 of
the 16 stable and 4 of the 15 vulnerable plaques showed several-fold higher specific accumulation than
normal arteries. Only a prospective study would show whether this is of clinical relevance.
Based on our data we cannot conclude on the selectivity of [125I]MIP-1232 for FAP. In the absence
of a known selective inhibitor, we investigated specificity by blocking with the unlabeled compound
itself. The relatively high amount of remaining radiotracer after blocking must, therefore, accumulate
with low affinity. Lipophilicity is most probably not involved as clogP of MIP-1232 is about 0.5. The
non-specific accumulation may result from interactions with highly abundant hydrolases or other
proteins with affinities in the high micromolar range, considering that our blocker concentration was
100 µM. Specificity analysis of MIP-1232 was performed exclusively with FAP and PREP [29]. A
conclusive evaluation of the binding affinity to dipeptidyl peptidases such as DPP-2, DPP-4, DPP-8 and
DPP-9 would be required, irrespective of the fact that DPPs display in general low affinities for N
blocked peptides [43,44]. As [125I]MIP-1232 did not selectively accumulate in the atherosclerotic tissue
and as its low FAP/PREP affinity ratio is already known we did not further investigate its selectivity

Molecules 2015, 20
2090
profile. For future studies more selective inhibitors are needed to reduce non-specific tissue
accumulation. To overcome limitations in specificity, novel lead structures and the use of antibodies and
fusion proteins was proposed to minimize off-target effects [24,34,44].
Our findings with the tumor xenografts are of interest in oncology [34,45,46]. Although FAP as a
target may be of little relevance for tumor imaging in general considering the high diagnostic value of
[18F]fluorodeoxyglucose; FAP imaging with a selective ligand would enable the identification of
FAP-positive tumors sensitive to a FAP-targeted radiotherapy with existing antibodies [34].
3. Experimental Section
3.1. Patient Characteristics and Human Carotid Tissue Banking
Human atherosclerotic plaque tissues were excised during carotid endarterectomy (CEA) surgery at
the University Hospital Zurich using the bifurcation advancement technique [47]. The atherosclerotic
material was removed from the common, external and internal carotid artery. Before surgery, written
informed consent was obtained from all patients. A total of 25 patients were included in this study with
an average age of 73.1 years (73.1 ± 6.6 y) at surgery and 84% of them male. After CEA, the tissue was
transferred to RNAlater® solution (Sigma, St. Louis, MO, USA) and stored at −80 °C until further use.
Excised material was classified into the categories “normal artery”, “stable plaque” and “vulnerable
plaque” based on a macroscopic visual inspection and a histological examination. The histological
analysis was performed with standard staining methods (e.g., hematoxylin and eosin) and according to the
classification system of the American Heart Association as previously described [38,48]. Plaques were
classified as stable if there was a lipid core separated to the blood stream by an intact fibrous cap with a
representative cap thickness >500 μm and a minimum cap thickness >200 μm [49]. Vulnerable plaques
were lesions with a large necrotic core, a thin or ruptured fibrous cap, high infiltration of inflammatory
cells and neovascularization. The microscopic characterization of all plaques used in this study was in
agreement with the macroscopic evaluation. In total 7 normal arteries, 25 stable plaques and 23
vulnerable plaques were used for gene expression analysis (normal n = 2, stable n = 11, vulnerable
n = 9), immunohistochemistry (normal n = 1, stable n = 4, vulnerable n = 4) and autoradiography (normal
n = 5, stable n = 16, vulnerable n = 15), respectively. Classified normal arteries were redundant segments
from the A. iliaca or A. thyroidea. Note the limited availability of normal arteries.
3.2. RNA Isolation, Reverse-Transcription and Real-Time Polymerase Chain Reaction
Total RNA was isolated from human atherosclerotic plaque segments according to the protocol of the
Isol-RNA Lysis reagent (5 PRIME, Gaithersburg, MD, USA) using a TissueLyser bead-mill system
(Qiagen, Hilden, Germany). cDNA was generated by the QuantiTect Reverse Transcription Kit (Qiagen,
Hilden, Germany). Used primers were custom-made oligonucleotides from Microsynth (Balgach,
Switzerland): human actin β (ACTB) (forward 5'-CATGTACGTTGCTATCCAGGC-3', reverse
5'-CTCCTTAATGTCACGCACGAT-3', NM_001101), human fibroblast activation protein alpha (FAP)
(forward 5'-TGAA CGAGTATGTTTGCAGTGG-3', reverse 5'-GGTCTTTGGACAATCCCATGT-3',
NM_004460)
and
human
alpha
smooth
muscle
cell
actin
(SMA)
(forward
5'-GCTGGCATCCATGAAACCAC-3', reverse 5'-TGCCCCCTGATAGGACATTG-3', NM_001613).

Molecules 2015, 20
2091
Quantitative polymerase chain reaction (qPCR) was performed with the DyNAmoTM Flash SYBR®
Green PCR System (Applied Biosystems, Foster City, CA, USA) using a AB7900 HT Fast Real-Time
PCR System (Applied Biosystems). Quantification was performed by the 2−∆∆Ct quantification method
with β-actin as a reference gene [50]. All reactions were conducted in duplicates in three independent
experiments. Specificity of the amplification products was assured by dissociation analysis. SMA is
specifically expressed in SMCs of different origin.
3.3. Histology and Immunohistochemistry
Plaques were paraffin-embedded and serial sections of 2 μm were prepared for further histological
and immunohistochemical investigations. Hematoxylin and eosin (HE) staining was performed
according to routine procedure to classify plaques into the categories “stable” and “vulnerable”. For
immunohistochemistry, primary antibodies for FAP (anti-FAP, 1:50, rabbit, polyclonal antibody
directed against the Fibroblast activation protein, NB100-91763, Novus Biologicals (Littleton, CO,
USA) and SMA (anti-SMA, 1:400, mouse, monoclonal antibody directed against anti-human alpha smooth
muscle actin, M0851, Dako, Baar, ZG, Switzerland) were used. Antigen retrieval for the anti-FAP
antibody was performed using acid buffer (pH 6.0), whereas no antigen retrieval was performed for the
anti-SMA antibody. The detection system included the OmniUltraMab Kit (Roche, Rotkreuz, ZG,
Switzerland) for the anti-FAP antibody on the Discovery XT instrument (Roche) and the Dako RealKit
(Dako) for the anti-SMA antibody on the immunostainer (Dako). FAP IHC staining of a SK-Mel-187
and a NCI-H69 xenograft was performed with 20 µm frozen sections according to the above specified
procedure without antigen retrieval. Sections were scanned by a slide scanner (Pannoramic 250, 3D Histech,
Sysmex, Horgen, Switzerland). HE and IHC staining were analyzed by a pathologist (N.B.).
3.4. Chemicals and Reagents
All reagents and starting materials were purchased from commercial suppliers and used without
further purification. All solvents used for reactions were obtained as anhydrous grade (puriss., dried over
molecular sieves, H2O <0.005%) from Acros Organics (Geel, Belgium) and were used without further
purification unless otherwise stated. Solvents for extractions, column chromatography and thin layer
chromatography (TLC) were purchased as commercial grade. All non-aqueous reactions were performed
under an argon atmosphere using flame-dried glassware and standard syringe/septa techniques. In
general, reactions were magnetically stirred and monitored by TLC performed on Merck (Merck
Millipore, Schaffhausen, Switzerland) TLC glass sheets (silica gel 60 F254). Spots were visualized with
UV light (λ = 254 nm) or through staining with anisaldehyde solution or basic aq. KMnO4 solution and
subsequent heating. Chromatographic purification of products was performed using silica gel 60 for
preparative column chromatography (particle size 40–63 µm, Fluka, Buchs, Switzerland). Reactions at
0 °C were carried out in an ice/water bath. Nuclear magnetic resonance (NMR) spectra were recorded
in CDCl3, CD3OD or DMSO-d6 on an AV-400 spectrometer (Bruker, Billerica, MA, USA) at room
temperature. The measured chemical shifts are reported in δ (ppm) and the residual signal of the solvent
1
13
1
was used as the internal standard (CDCl3 H: δ = 7.26 ppm, C: δ = 77.0 ppm; CD3OD H: δ = 3.31
ppm, 13C: δ = 49.15 ppm; DMSO-d6 H: δ = 2.50 ppm, 13C: δ = 39.51 ppm). All 13C-NMR spectra were
1
measured with complete proton decoupling. Data of NMR spectra are reported as follows: s = singlet,

Molecules 2015, 20
2092
d = doublet, t = triplet, q = quartet, m = multiplet, dd = doublet of doublets, dt = doublet of triplets,
br = broad signal. The coupling constant J is reported in Hertz (Hz). Electrospray (ES) mass spectra
(HRMS) were obtained with a Bruker’s maXis (ESI-Qq-TOF-MS) spectrometer. Analytical HPLC was
performed with a reverse phase column (Ultimate® XB-C18 column 4.5 × 250 mm, 5 µm) with the
following solvent system: water/0.1% TFA (solvent A), acetonitrile (solvent B); 0–30 min: 25% B
(system 1) or 0–30 min: 75% B (system 2). The flow rate was 1 mL/min and UV detection at 254 nm.
Preparative HPLC was performed with a reverse phase preparative column (Ultimate® XB-C18 column
21.2 × 150 mm, 5 µm) using the above mentioned isocratic conditions for analytical HPLC at a flow of
20 mL/min and UV detection at 254 nm.
In vitro stability evaluation of the reference compound (4) in formulation (30% acetonitrile, 70%
water/0.1% TFA) was performed with a reverse phase column (LUNA® Phenomenex C18
4.5 × 250 mm, 5 µm). The following solvent system was applied: water/0.1% TFA (solvent A),
acetonitrile (solvent B); flow 1 mL/min; 0–13 min: 30% B, 13–18 min: 30%–80% B, 18–36 min: 80%
B, 36–38 min: 80%–30% B, 38–40 min: 30% B; UV = 254 nm. Stability was assessed up to 110 h.
Purification and analytics of the radiolabeled material was performed on a Merck Hitachi D-6000
system (Merck Hitachi, San Jose, CA, USA) equipped with multi-UV-wavelength and Raytest Gabi Star
detectors and HSM software. A reverse phase column was used (LUNA® Phenomenex C18 4.5 × 250 mm,
5 µm) according to the above specified solvent system and conditions for the stability evaluation.
3.5. Chemistry
Ethyl 2-(4-iodobenzamido)acetate (1). To a solution of 4-iodobenzoic acid (1.5 g, 6.05 mmol) and
N,N-diisopropylethylamine (2.1 mL, 12.1 mmol) in DMF (23.6 mL), O-(Benzotriazol-1-y)-N,N,N',N'-
tetramethyluronium hexafluorophosphate (2.75 g, 7.26 mmol) was added portionwise at room
temperature. After stirring for 15 min, a solution of glycine ethyl ester hydrochloride (0.748 g,
7.26 mmol) and N,N-diisopropylethylamine (2.1 mL, 12.1 mmol) in DMF (10 mL) was added dropwise
and the reaction mixture was stirred for 3 h. The mixture was then diluted with ethyl acetate and washed
successively with 0.5 M HCl, 5% NaHCO3, H2O and brine. The organic layer was dried over MgSO4
and concentrated in vacuo. After evaporating, the residue was purified by flash column chromatography
on silica gel (hexane/AcOEt 7:3) to afford compound (1) (1.59 g, 79%) as light yellow solid. NMR data
1
were in accordance with previously published data [32]. Rf: 0.24 (hexane/EtOAc 7:3). H-NMR
(400 Hz, CDCl3): δ = 7.82–7.77 (m, 2H), 7.56–7.50 (m, 2H), 6.68 (br, 1H), 4.26 (q, J = 7.2 Hz, 2H),
4.21 (d, J = 4.9 Hz, 2H), 1.31 (t, J = 7.2 Hz, 3H).
2-(4-Iodobenzamido)acetic acid (2). To a solution of ethyl 2-(4-iodobenzamido)acetate (1.4 g, 4.2 mmol)
in MeOH (35 mL) and H2O (35 mL), KOH (707 mg, 12.61 mmol) was added with continuous stirring
and was kept for 1 h at room temperature, at which point TLC confirmed the complete consumption of
the starting material (1). The reaction was then diluted with H2O (42 mL) and the pH of the solution was
adjusted to 2 with HCl 1 M. The precipitate was filtered off and washed with cold H2O. The compound
was dried under high vacuum over P2O5 for 3 h to afford (2) as a white solid (707 mg, 55%). Rf: 0.48
(DCM/MeOH/AcOH 9:1:0.02). 1H-NMR (400 Hz, DMSO): δ = 8.88 (t, J = 5.6 Hz, 1H), 7.89–7.85 (m,

Molecules 2015, 20
2093
2H), 7.67–7.62 (m, 2H), 3.89 (d, J = 5.6 Hz, 2H). 13C-NMR (100 Hz, DMSO): δ = 171.2, 165.7, 137.2,
133.3, 129.2, 99.1, 41.3.
4-Iodo-N-(2-oxo-2-((R)-2-((3aS,4S,6S,7aR)-3a,5,5-trimethylhexahydro-4,6-methanobenzo[d][1,3,2]-
dioxaborol-2-yl)pyrrolidin-1-yl)ethyl)benzamide (3). To an ice-cooled solution of 2-(4-iodo-
benzamido)acetic acid (300 mg, 0.983 mmol) in DCM (5.6 mL), hydroxybenzotriazole (151 mg,
0.98 mmol) was added, followed by 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide hydrochloride
(EDCI) (245 mg, 1.28 mmol) and the resulting mixture was stirred at room temperature for 30 min.
N-Methylmorpholine (0.2 mL, 1.967 mmol) and (R)-boroPro-(+)-pinanediol·HCl (245 mg, 0.98 mmol)
were then added and stirring was continued for 16 h. The reaction mixture was diluted with DCM,
washed successively with 1 M KHSO4, 10% Na2CO3, H2O and brine. The organic layer was dried over
MgSO4, filtered and concentrated in vacuo. After evaporating, the residue was purified by passing
quickly through a short plug of silica gel, eluting with EtOAc, to afford compound 3 (489 mg, 93%). Rf:
0.52 (hexane/EtOAc 3:7). 1H-NMR (400 Hz, CDCl3): δ = 7.82–7.77 (m, 2H), 7.59–7.53 (m, 2H), 6.65
(br, 1H), 4.33 (br, 1H), 4.15 (d, J = 3.8 Hz, 2H), 3.51–3.41 (m, 2H), 3.24–3.17 (m, 1H), 2.39–2.30 (m,
1H), 2.22–1.96 (m, 5H), 1.94–1.78 (m, 4H), 1,46 (s, 3H), 1.29 (br, 3H), 0.84 (s, 3H). 13C-NMR (100 Hz,
CDCl3): δ = 166.5, 166.1, 137.9, 133.7, 128.9, 128.5, 98.8, 86.4, 78.1, 51.5, 45.9, 42.5, 39.7, 38.5, 35.7,
28.7, 27.6, 27.3, 27.2, 26.5, 24.3. ESI-QTOF MS (DCM/MeOH) m/z calculated for C23H31BIN2O4
[M+H]+ 537.1420, measured 537.1414.
(R)-(1-((4-Iodobenzoyl)glycyl)pyrrolidin-2-yl)boronic acid (4). To a stirred solution of 3 (150 mg,
0.28 mmol) in acetone (7.4 mL) was added 0.1 M NH4OAc (6 mL, 0.60 mmol) and NaIO4 (189 mg,
0.88 mmol). The mixture was stirred at room temperature for 17 h, the acetone was removed in vacuo
and the aqueous phase was turned basic with 2 M NaOH (9 mL), washed with DCM and acidified
cautiously to pH 2 with 2M HCl. The acidic solution was extracted with DCM (4x), dried over MgSO4,
filtered and evaporated to dryness. The crude was purified with preparative HPLC using system 1 to
afford compound 4 (45 mg, 45%). Rf: 0.19 (EtOAc). 1H-NMR (400 Hz, MeOD): δ = 7.88–7.83 (m, 2H),
7.65–7.59 (m, 2H), 4.42–4.08 (m, 2H), 3.69–3.48 (m, 2H), 3.15–3.07 (m, 1H), 2.22–1.86 (m, 4H),
1.76–1.63 (m, 2H). 13C-NMR (100 Hz, MeOD): δ = 139.1, 130.3, 129.5, 47.0, 46.8, 43.1, 41.9, 36.5, 28.8,
27.6, 21.9. HRMS m/z calculated for C14H17BIN2O3 [M+H+−H2O+CH2] 399.0377, measured 399.0365.
2-(4-(Trimethylstannyl)benzamido)acetic acid (5). To a solution of 2-(4-iodobenzamido)acetic acid
(331 mg, 1.085 mmol) in dry dioxane (6.7 mL), hexamethylditin (0.4 mL, 1.93 mmol) was added,
followed by Pd(PPh3)2Cl2 (43.5 mg, 0.062 mmol) and the reaction mixture was heated under reflux
for 3 h. After this time, the mixture was filtered through a pad Celite and the solvent was removed
under reduced pressure. The crude was purified by flash column chromatography on silica gel
(hexane/EtOAc/AcOH 60:40:0.4) to afford 5 (301 mg, 81%) as a clear colorless oil [18]. Rf: 0.21
(hexane/EtOAc/AcOH 60:40:0.4). 1H-NMR (400 Hz, MeOD): δ = 7.81–7.77 (m, 2H), 7.61–7.57 (m, 2H),
4.01 (s, 2H), 0.37–0.21 (br, 9H). 13C-NMR (100 Hz, MeOD): δ = 172.4, 170.1, 148.5, 136.5, 134.6, 127.2,
43.0, −2.2. MALDI MS (3-HPA) m/z calculated for C12H18NO3Sn [M+H]+ 344.0305, measured 344.0304.
N-(2-Oxo-2-((R)-2-((3aS,4S,6S,7aR)-3a,5,5-trimethylhexahydro-4,6-methanobenzo[d][1,3,2]dioxabo-
rol-2-yl)pyrrolidin-1-yl)ethyl)-4-(trimethylstannyl)benzamide (6). To an ice-cooled solution of

Molecules 2015, 20
2094
2-(4-(trimethylstannyl)benzamido)acetic acid (220 mg, 0.643 mmol) in DCM (3.7 mL),
hydroxybenzotriazole (99 mg, 0.64 mmol) was added followed by EDCI (160 mg, 0.84 mmol) with
continous stirring and was kept for 30 min at room temperature. N-Methylmorpholine (0.15 mL,
1.287 mmol) and (R)-boroPro-(+)-pinanediol·HCl (160 mg, 0.64 mmol) were then added and the
reaction mixture was stirred for 16 h. The reaction mixture was diluted with DCM and washed with 1 M
KHSO4, 10% Na2CO3, H2O and brine. The organic layer was dried over MgSO4, filtered and
concentrated in vacuo. The crude was purified with preparative HPLC using system 2 to afford
1
compound (6) (216 mg, 59%) as a white solid. Rf: 0.56 (AcOEt). H-NMR (400 Hz, CDCl3):
δ = 7.80–7.76 (m, 2H), 7.58–7.54 (m, 2H), 6.64 (br, 1H), 4.33 (br, 1H), 4.18 (d, J = 3.5 Hz, 2H),
3.54–3.41 (m, 2H), 3.24–3.18 (m, 1H), 2.37–2.29 (m, 1H), 2.22–2.08 (m, 5H), 1.94–1.77 (m, 4H), 1,46
(s, 3H), 1.29 (s, 3H), 0.85 (s, 3H), 0.39–0.23 (s, 9H). 13C-NMR (100 Hz, CDCl3): δ =167.5, 166.4, 136.2,
132.3, 128.6, 126.5, 98.7, 86.4, 78.1, 51.5, 45.9, 42.5, 39.8, 38.5, 35.7, 28.6, 27.6, 27.4, 27.2, 26.5, 24.3,
−9.3. ESI-QTOF MS m/z calculated for C26H40BN2O4Sn [M+H]+ 575.2106, measured 575.2102.
3.6. Radiochemistry
MeCN (500 µL), 50% H2SO4 (50 µL) and freshly prepared oxidant (100 µL, 4% CH3COOH and
6.7% H2O2) were added to a sealed reaction vial. Na[125I] (1.3–34.6 MBq, Perkin Elmer, Waltham, MA,
USA) was diluted with water (ad 50 µL) and added simultaneously with the precursor (100 μL, 1 mg/mL
in MeCN) to the reaction mixture. The mixture was incubated for 10 min at room temperature with
intermittent shaking. After this time, the reaction was quenched by the addition of 0.1 M Na2S2O3
(200 µL). The product was purified by analytical RP-HPLC. The purified product was obtained in 30%
acetonitrile and 70% water/0.1% TFA and was stored at 4 °C until in vitro experimentation. Product
identification was confirmed by co-injection of the reference 4. Radiochemical purity was determined
by analytical HPLC.
3.7. In Vitro Autoradiography
For in vitro autoradiography, cryosections and paraffin-embedded sections of human atherosclerotic
plaques (20 µm and 5 μm, respectively) and paraffin-embedded sections (5 μm) of a FAP-positive
melanoma xenograft (human skin melanoma cell line SK-Mel-187) and a human lung small cell
carcinoma cell line NCI-H69 xenograft were used. A SK-Mel-187 xenograft was kindly provided by
Dr. E. Fischer (Paul Scherrer Institut, Villigen, Switzerland). Cryosections were thawed and dried at
room temperature for 30 min and all sections were subsequently incubated in HEPES buffer (50 mM
HEPES, 5 mM MgCl2, 125 mM CaCl2, 0.1% BSA, pH 7.4) for 15 min on ice. The slices were incubated
with [125I]MIP-1232 solution (2.95 nM in HEPES buffer, 0.1% BSA) or for blockade conditions with
[125I]MIP-1232 solution containing additionally 100 µM unlabeled MIP-1232 for 60 min at room
temperature in a humidified chamber. After incubation, the slices were washed in HEPES buffer
supplemented with 0.1% BSA (5 min), three times in HEPES buffer (3 min each) and distilled water
(1 min) on ice. For quantification of the radiotracer signal a calibration curve of a serial dilution of the
tracer solution on Whatman filter paper (Whatman, Bottmingen, Switzerland) was used. Dried slides
and the filter papers were exposed to a BAS-MS 2025 phosphor imaging plate (Fuji Film, Dielsdorf,
Switzerland) for 19 h. The plate was scanned in a BAS-5000 bio-imaging analyzer (Fuji Film). Data

Molecules 2015, 20
2095
analysis and quantification was performed with the AIDA 4.5 software (Raytest, Sprockhövel,
Germany). Background values were subtracted from sample values and it was assured that all samples
were within the linear range of the calibration curve. The spatially integrated signal intensities were
divided by the plaque size to correct for heterogeneity in tissue size. Displaceable binding was calculated
by subtraction of the radioactivity signal under blockade conditions from the baseline signal.
3.8. Statistical Analysis
Differences in mean values were evaluated by an unpaired two-tailed student’s t-test (GraphPad Prism
6.0 software, GraphPad, La Jolla, CA, USA). A p-value < 0.05 was considered significant.
4. Conclusions
Target expression analysis by IHC revealed moderately higher levels of FAP in plaques than normal
arteries. The radiolabeled boronic acid-based inhibitor, [125I]MIP-1232, was successfully produced. The
radiotracer displayed displaceable binding to FAP-positive xenografts in vitro and accumulation in
human carotid plaques in vitro. However, binding was similar in plaques and normal arteries and was
independent of plaque vulnerability. Targeting FAP by [125I]MIP-1232 may, therefore, be of low relevance
for atherosclerosis imaging. The high binding of [125I]MIP-1232 to a FAP-positive SK-Mel-187
xenograft but low binding to a xenograft with low FAP levels is promising towards the imaging of FAP
to support FAP-targeted therapy in oncology.
Acknowledgments
This work was financially supported by the Clinical Research Priority Program (CRPP) of the
University of Zurich on Molecular Imaging (MINZ). The authors are grateful to Linjing Mu,
Thomas Betzel, Cindy Fischer, Martin Badertscher, Martin Béhé, Sabina Wunderlin and Alain Blanc for
discussions and technical support. We thank the group of Philipp A. Kaufmann for coordinating the
human plaque collection process at the University Hospital Zurich. The authors acknowledge support of
the Scientific Center for Optical and Electron Microscopy (ScopeM) of the ETH Zurich.
Author Contributions
R.M. planned and coordinated the study, established and performed radiolabeling, qPCR and
autoradiography, analyzed the data and wrote the manuscript; A.M.H. supervised the study,
experimental planning and data interpretation, contributed to and supervised the manuscript writing;
A.C. supervised organic synthesis, contributed to manuscript writing; M.I. performed organic synthesis
of precursor and reference compound and qPCR experiments, assisted in establishing the radiolabeling;
N.B. supervised and analyzed the immunohistochemistry experiments; Z.R. was responsible for
collection of human carotid material at the University Hospital Zurich and was involved in project
planning and plaque characterization; S.M.A. was involved in the discussion of the results and revision
of the manuscript; S.D.K. contributed to the supervision and planning of the experiments and revised the
manuscript; R.S. initiated the project and was involved in the discussion of the results and revision of
the manuscript.

Molecules 2015, 20
2096
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Ylä-Herttuala, S.; Bentzon, J.F.; Daemen, M.; Falk, E.; Garcia-Garcia, H.M.; Herrmann, J.; Hoefer, I.;
Jukema, J.W.; Krams, R.; Kwak, B.R.; et al. Stabilisation of atherosclerotic plaques. Position paper
of the european society of cardiology (ESC) working group on atherosclerosis and vascular biology.
Thromb. Haemost. 2011, 106, 1–19.
2. Camici, P.G.; Rimoldi, O.E.; Gaemperli, O.; Libby, P. Non-invasive anatomic and functional
imaging of vascular inflammation and unstable plaque. Eur. Heart J. 2012, 33, 1309–1317.
3. Rosenbaum, D.; Millon, A.; Fayad, Z.A. Molecular imaging in atherosclerosis: FDG PET.
Curr. Atheroscler. Rep. 2012, 14, 429–437.
4. Van der Wal, A.C.; Becker, A.E.; van der Loos, C.M.; Das, P.K. Site of intimal rupture or erosion
of thrombosed coronary atherosclerotic plaques is characterized by an inflammatory process
irrespective of the dominant plaque morphology. Circulation 1994, 89, 36–44.
5. Galis, Z.S.; Khatri, J.J. Matrix metalloproteinases in vascular remodeling and atherogenesis: The
good, the bad, and the ugly. Circ. Res. 2002, 90, 251–262.
6. Lutgens, S.P.; Cleutjens, K.B.; Daemen, M.J.; Heeneman, S. Cathepsin cysteine proteases in
cardiovascular disease. FASEB J. 2007, 21, 3029–3041.
7. Brokopp, C.E.; Schoenauer, R.; Richards, P.; Bauer, S.; Lohmann, C.; Emmert, M.Y.; Weber, B.;
Winnik, S.; Aikawa, E.; Graves, K.; et al. Fibroblast activation protein is induced by inflammation
and degrades type i collagen in thin-cap fibroatheromata. Eur Heart J. 2011, 32, 2713–2722.
8. Müller, A.; Krämer, S.D.; Meletta, R.; Beck, K.; Selivanova, S.V.; Rancic, Z.; Kaufmann, P.A.;
Vos, B.; Meding, J.; Stellfeld, T.; et al. Gene expression levels of matrix metalloproteinases in
human atherosclerotic plaques and evaluation of radiolabeled inhibitors as imaging agents for
plaque vulnerability. Nucl. Med. Biol. 2014, 41, 562–569.
9. Scanlan, M.J.; Raj, B.K.; Calvo, B.; Garin-Chesa, P.; Sanz-Moncasi, M.P.; Healey, J.H.; Old, L.J.;
Rettig, W.J. Molecular cloning of fibroblast activation protein alpha, a member of the serine
protease family selectively expressed in stromal fibroblasts of epithelial cancers. Proc. Natl. Acad.
Sci. USA 1994, 91, 5657–5661.
10. Pineiro-Sanchez, M.L.; Goldstein, L.A.; Dodt, J.; Howard, L.; Yeh, Y.; Tran, H.; Argraves, W.S.;
Chen, W.T. Identification of the 170-kda melanoma membrane-bound gelatinase (seprase) as a
serine integral membrane protease. J. Biol. Chem. 1997, 272, 7595–7601.
11. Goldstein, L.A.; Ghersi, G.; Pineiro-Sanchez, M.L.; Salamone, M.; Yeh, Y.; Flessate, D.; Chen, W.T.
Molecular cloning of seprase: A serine integral membrane protease from human melanoma.
Biochim. Biophys. Acta 1997, 1361, 11–19.
12. Edosada, C.Y.; Quan, C.; Tran, T.; Pham, V.; Wiesmann, C.; Fairbrother, W.; Wolf, B.B.
Peptide substrate profiling defines fibroblast activation protein as an endopeptidase of strict
gly(2)-pro(1)-cleaving specificity. FEBS Lett. 2006, 580, 1581–1586.

Molecules 2015, 20
2097
13. Levy, M.T.; McCaughan, G.W.; Abbott, C.A.; Park, J.E.; Cunningham, A.M.; Müller, E.;
Rettig, W.J.; Gorrell, M.D. Fibroblast activation protein: A cell surface dipeptidyl peptidase and
gelatinase expressed by stellate cells at the tissue remodelling interface in human cirrhosis.
Hepatology 1999, 29, 1768–1778.
14. Park, J.E.; Lenter, M.C.; Zimmermann, R.N.; Garin-Chesa, P.; Old, L.J.; Rettig, W.J. Fibroblast
activation protein, a dual specificity serine protease expressed in reactive human tumor stromal
fibroblasts. J. Biol. Chem. 1999, 274, 36505–36512.
15. Christiansen, V.J.; Jackson, K.W.; Lee, K.N.; McKee, P.A. Effect of fibroblast activation protein
and alpha2-antiplasmin cleaving enzyme on collagen types i, iii, and iv. Arch. Biochem. Biophys.
2007, 457, 177–186.
16. Ghersi, G.; Dong, H.; Goldstein, L.A.; Yeh, Y.; Hakkinen, L.; Larjava, H.S.; Chen, W.T. Regulation
of fibroblast migration on collagenous matrix by a cell surface peptidase complex. J. Biol. Chem.
2002, 277, 29231–29241.
17. Sun, S.; Albright, C.F.; Fish, B.H.; George, H.J.; Selling, B.H.; Hollis, G.F.; Wynn, R. Expression,
purification, and kinetic characterization of full-length human fibroblast activation protein.
Protein Expr. Purif. 2002, 24, 274–281.
18. Garin-Chesa, P.; Old, L.J.; Rettig, W.J. Cell surface glycoprotein of reactive stromal fibroblasts as
a potential antibody target in human epithelial cancers. Proc. Natl. Acad. Sci. USA 1990, 87,
7235–7239.
19. Cheng, J.D.; Dunbrack, R.L., Jr.; Valianou, M.; Rogatko, A.; Alpaugh, R.K.; Weiner, L.M.
Promotion of tumor growth by murine fibroblast activation protein, a serine protease, in an animal
model. Cancer Res. 2002, 62, 4767–4772.
20. Huber, M.A.; Kraut, N.; Park, J.E.; Schubert, R.D.; Rettig, W.J.; Peter, R.U.; Garin-Chesa, P.
Fibroblast activation protein: Differential expression and serine protease activity in reactive stromal
fibroblasts of melanocytic skin tumors. J. Investig. Dermatol. 2003, 120, 182–188.
21. Eager, R.M.; Cunningham, C.C.; Senzer, N.; Richards, D.A.; Raju, R.N.; Jones, B.; Uprichard, M.;
Nemunaitis, J. Phase II trial of talabostat and docetaxel in advanced non-small cell lung cancer.
Clin. Oncol. (R. Coll. Radiol.) 2009, 21, 464–472.
22. Eager, R.M.; Cunningham, C.C.; Senzer, N.N.; Stephenson, J., Jr.; Anthony, S.P.; O’Day, S.J.;
Frenette, G.; Pavlick, A.C.; Jones, B.; Uprichard, M.; et al. Phase II assessment of talabostat and
cisplatin in second-line stage IV melanoma. BMC Cancer 2009, 9, doi:10.1186/1471-2407-9-263.
23. Narra, K.; Mullins, S.R.; Lee, H.O.; Strzemkowski-Brun, B.; Magalong, K.; Christiansen, V.J.;
McKee, P.A.; Egleston, B.; Cohen, S.J.; Weiner, L.M.; et al. Phase ii trial of single agent
val-boropro (talabostat) inhibiting fibroblast activation protein in patients with metastatic colorectal
cancer. Cancer Biol. Ther. 2007, 6, 1691–1699.
24. Jansen, K.; Heirbaut, L.; Cheng, J.D.; Joossens, J.; Ryabtsova, O.; Cos, P.; Maes, L.; Lambeir, A.M.;
de Meester, I.; Augustyns, K.; et al. Selective inhibitors of fibroblast activation protein (fap) with a
(4-quinolinoyl)-glycyl-2-cyanopyrrolidine scaffold. ACS Med. Chem. Lett. 2013, 4, 491–496.
25. Hu, Y.; Ma, L.; Wu, M.; Wong, M.S.; Li, B.; Corral, S.; Yu, Z.; Nomanbhoy, T.; Alemayehu, S.;
Fuller, S.R.; et al. Synthesis and structure-activity relationship of N-alkyl gly-boro-pro inhibitors of
dpp4, fap, and dpp7. Bioorganic Med. Chem. Lett. 2005, 15, 4239–4242.

Molecules 2015, 20
2098
26. Tran, T.; Quan, C.; Edosada, C.Y.; Mayeda, M.; Wiesmann, C.; Sutherlin, D.; Wolf, B.B. Synthesis
and structure-activity relationship of N -acyl-gly-, N-acyl-sar- and N-blocked-boropro inhibitors of
FAP, DPP4, and POP. Bioorganic Med. Chem. Lett. 2007, 17, 1438–1442.
27. Edosada, C.Y.; Quan, C.; Wiesmann, C.; Tran, T.; Sutherlin, D.; Reynolds, M.; Elliott, J.M.; Raab, H.;
Fairbrother, W.; Wolf, B.B. Selective inhibition of fibroblast activation protein protease based on
dipeptide substrate specificity. J. Biol. Chem. 2006, 281, 7437–7444.
28. Poplawski, S.E.; Lai, J.H.; Li, Y.; Jin, Z.; Liu, Y.; Wu, W.; Wu, Y.; Zhou, Y.; Sudmeier, J.L.;
Sanford, D.G.; et al. Identification of selective and potent inhibitors of fibroblast activation protein
and prolyl oligopeptidase. J. Med. Chem. 2013, 56, 3467–3477.
29. Marquis, J.; Wang, J.; Maresca, K.; Hillier, S.; Zimmermann, C.; Joyal, J.; Babich, J. Targeting
tumor microenvironment with radiolabeled inhibitors of seprase (FAPa). In Proceedings of
the 100th Annual Meeting of the American Association for Cancer Research, Denver, CO, USA,
18–22 April 2009; AACR: Philadelphia, PA, USA, 2009; Abstract number: 4467.
30. Milo, L.J., Jr.; Lai, J.H.; Wu, W.; Liu, Y.; Maw, H.; Li, Y.; Jin, Z.; Shu, Y.; Poplawski, S.E.;
Wu, Y.; et al. Chemical and biological evaluation of dipeptidyl boronic acid proteasome inhibitors
for use in prodrugs and pro-soft drugs targeting solid tumors. J. Med. Chem. 2011, 54, 4365–4377.
31. Zimmerman, C.; Babich, J.W.; Joyal, J.; Marquis, J.; Wang, J. Selective Seprase Inhibitors. Patent
US 2010/0098633 A1, 22 April 2010.
32. Wilbur, D.S.; Chyan, M.K.; Hamlin, D.K.; Kegley, B.B.; Risler, R.; Pathare, P.M.; Quinn, J.;
Vessella, R.L.; Foulon, C.; Zalutsky, M.; et al. Reagents for astatination of biomolecules:
Comparison of the in vivo distribution and stability of some radioiodinated/astatinated benzamidyl
and nido-carboranyl compounds. Bioconjugate Chem. 2004, 15, 203–223.
33. Coutts, S.J.; Adams, J.; Krolikowski, D.; Snow, R.J. Two efficient methods for the cleavage of
pinanediol boronate esters yielding the free boronic acids. Tetrahedron Lett. 1994, 35, 5109–5112.
34. Fischer, E.; Chaitanya, K.; Wuest, T.; Wadle, A.; Scott, A.M.; van den Broek, M.; Schibli, R.;
Bauer, S.; Renner, C. Radioimmunotherapy of fibroblast activation protein positive tumors by
rapidly internalizing antibodies. Clin. Cancer Res. 2012, 18, 6208–6218.
35. Vogl, T.; Eisenblatter, M.; Voller, T.; Zenker, S.; Hermann, S.; van Lent, P.; Faust, A.; Geyer, C.;
Petersen, B.; Roebrock, K.; et al. Alarmin s100a8/s100a9 as a biomarker for molecular imaging of
local inflammatory activity. Nat. Commun. 2014, 5, doi:10.1038/ncomms5593.
36. Dimastromatteo, J.; Broisat, A.; Perret, P.; Ahmadi, M.; Boturyn, D.; Dumy, P.; Fagret, D.;
Riou, L.M.; Ghezzi, C. In vivo molecular imaging of atherosclerotic lesions in apoe-/- mice using
vcam-1-specific, 99mtc-labeled peptidic sequences. J. Nucl. Med. 2013, 54, 1442–1449.
37. Gaemperli, O.; Shalhoub, J.; Owen, D.R.; Lamare, F.; Johansson, S.; Fouladi, N.; Davies, A.H.;
Rimoldi, O.E.; Camici, P.G. Imaging intraplaque inflammation in carotid atherosclerosis with
11C-PK11195 positron emission tomography/computed tomography. Eur. Heart J. 2012, 33,
1902–1910.
38. Müller, A.; Mu, L.; Meletta, R.; Beck, K.; Rancic, Z.; Drandarov, K.; Kaufmann, P.A.;
Ametamey, S.M.; Schibli, R.; Borel, N.; et al. Towards non-invasive imaging of vulnerable
atherosclerotic plaques by targeting co-stimulatory molecules. Int. J. Cardiol. 2014, 174, 503–515.

Molecules 2015, 20
2099
39. Müller, A.; Beck, K.; Rancic, Z.; Müller, C.; Fischer, C.R.; Betzel, T.; Kaufmann, P.A.; Schibli, R.;
Krämer, S.D.; Ametamey, S.M. Imaging atherosclerotic plaque inflammation via folate receptor
targeting using a novel 18F-folate radiotracer. Mol. Imaging 2014, 13, 1–11.
40. Katsuda, S.; Kaji, T. Atherosclerosis and extracellular matrix. J. Atheroscler. Thromb. 2003, 10,
267–274.
41. Herrera, M.; Herrera, A.; Dominguez, G.; Silva, J.; Garcia, V.; Garcia, J.M.; Gomez, I.; Soldevilla, B.;
Munoz, C.; Provencio, M.; et al. Cancer-associated fibroblast and m2 macrophage markers together
predict outcome in colorectal cancer patients. Cancer Sci. 2013, 104, 437–444.
42. Arnold, J.N.; Magiera, L.; Kraman, M.; Fearon, D.T. Tumoral immune suppression by macrophages
expressing fibroblast activation protein-alpha and heme oxygenase-1. Cancer Immunol. Res. 2014,
2, 121–126.
43. Aertgeerts, K.; Levin, I.; Shi, L.; Snell, G.P.; Jennings, A.; Prasad, G.S.; Zhang, Y.; Kraus, M.L.;
Salakian, S.; Sridhar, V.; et al. Structural and kinetic analysis of the substrate specificity of human
fibroblast activation protein alpha. J. Biol. Chem. 2005, 280, 19441–19444.
44. Jansen, K.; Heirbaut, L.; Verkerk, R.; Cheng, J.D.; Joossens, J.; Cos, P.; Maes, L.; Lambeir, A.M.;
De Meester, I.; Augustyns, K.; et al. Extended structure-activity relationship and pharmacokinetic
investigation of (4-quinolinoyl)glycyl-2-cyanopyrrolidine inhibitors of fibroblast activation protein
(fap). J. Med. Chem. 2014, 57, 3053–3074.
45. Henry, L.R.; Lee, H.O.; Lee, J.S.; Klein-Szanto, A.; Watts, P.; Ross, E.A.; Chen, W.T.; Cheng, J.D.
Clinical implications of fibroblast activation protein in patients with colon cancer. Clin. Cancer Res.
2007, 13, 1736–1741.
46. Liu, R.; Li, H.; Liu, L.; Yu, J.; Ren, X. Fibroblast activation protein: A potential therapeutic target
in cancer. Cancer Biol. Ther. 2012, 13, 123–129.
47. Nett, P.C.; Zund, G.; Pretre, R.; Niederhouser, U.; Vogt, P.R.; Turina, M. A 20-year follow-up of
internal carotid artery endarterectomy with bifurcation advancement. Thorac. Cardiovasc. Surg.
2000, 48, 279–284.
48. Stary, H.C.; Chandler, A.B.; Dinsmore, R.E.; Fuster, V.; Glagov, S.; Insull, W., Jr.; Rosenfeld, M.E.;
Schwartz, C.J.; Wagner, W.D.; Wissler, R.W. A definition of advanced types of atherosclerotic
lesions and a histological classification of atherosclerosis. A report from the committee on vascular
lesions of the council on arteriosclerosis, american heart association. Arterioscler. Thromb.
Vasc. Biol. 1995, 15, 1512–1531.
49. Redgrave, J.N.; Gallagher, P.; Lovett, J.K.; Rothwell, P.M. Critical cap thickness and rupture in
symptomatic carotid plaques: The oxford plaque study. Stroke 2008, 39, 1722–1729.
50. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative
pcr and the 2(-delta delta c(t)) method. Methods 2001, 25, 402–408.
Sample Availability: Samples of the compounds are not available from the authors.
© 2015 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
