Synthesis of fused thiopyranthione and thiophene derivatives from 4,5-dihydro-3-thiophene(and-3-furan)-carbonitriles having an active methylene group AT C-2 position

Article abstract of DOI:10.3987/COM-09-11894

A versatile strategy is described for the synthesis of new fused thiopyranthione and thiophene derivatives. The reaction of heterocyclic α,β-unsaturated nitriles 3a-c, 4a-d, 5a-c, and 6a-d, which were prepared from tetrahydro-2-oxo-3-thiophene- and -3-furan-carbonitriles 1a-c and/or 2a-d and alkylidene phosphoranes such as(triphenylphosphoranylidene)acetonitrile and methyl (triphenylphosphoranylidene)acetate through Wittig reaction, with carbon disulfide in the presence of sodium hydride in THF gave the corresponding 6-thioxothieno[3,2-c]thiopyran and 6-thioxothiopyrano[4,3-b]furan derivatives 7a-c, 8a-d, 9a-c, and 10a-d. On the other hand, treatment of compounds 3a-c, 5a-c, and 6a-d with sulfur powder in the presence of triethylamine in methanol caused Gewald reaction to provide the corresponding thieno[3,4-b]thiophene and -furan derivatives 11a-c, 12a-c, and 13a-d.

Full text of DOI:10.3987/COM-09-11894

HETEROCYCLES, Vol. 81, No. 3, 2010
675
HETEROCYCLES, Vol. 81, No. 3, 2010, pp. 675 - 688. © The Japan Institute of Heterocyclic Chemistry
Received, 24th December, 2009, Accepted, 26th January, 2010, Published online, 28th January, 2010
DOI: 10.3987/COM-09-11894
SYNTHESIS OF FUSED THIOPYRANTHIONE AND THIOPHENE
DERIVATIVES FROM 4,5-DIHYDRO-3-THIOPHENE(AND -3-FURAN)-
CARBONITRILES HAVING AN ACTIVE METHYLENE GROUP
AT C-2 POSITION
Hiroshi Maruoka,* Fumi Okabe, Keishi Yamasaki, Eiichi Masumoto,
Toshihiro Fujioka, and Kenji Yamagata
Faculty of Pharmaceutical Sciences, Fukuoka University, 8−19−1 Nanakuma,
Jonan−ku, Fukuoka 814−0180, Japan
E-mail: maruoka@fukuoka-u.ac.jp
Abstract – A versatile strategy is described for the synthesis of new fused
thiopyranthione and thiophene derivatives. The reaction of heterocyclic
α,β-unsaturated nitriles 3a−c, 4a−d, 5a−c, and 6a−d, which were prepared from
tetrahydro-2-oxo-3-thiophene- and -3-furan-carbonitriles 1a−c and/or 2a−d and
alkylidene phosphoranes such as (triphenylphosphoranylidene)acetonitrile and
methyl (triphenylphosphoranylidene)acetate through Wittig reaction, with carbon
disulfide in the presence of sodium hydride in THF gave the corresponding
6-thioxothieno[3,2-c]thiopyran and 6-thioxothiopyrano[4,3-b]furan derivatives
7a−c, 8a−d, 9a−c, and 10a−d. On the other hand, treatment of compounds 3a−c,
5a−c, and 6a−d with sulfur powder in the presence of triethylamine in methanol
caused Gewald reaction to provide the corresponding thieno[3,4-b]thiophene and
-furan derivatives 11a−c, 12a−c, and 13a−d.
INTRODUCTION
Heterocycles and heterobicycles form, by far, the largest of the classical divisions of organic chemistry.1−6
Moreover, they are of immense importance not only biologically and industrially but also to the
functioning of any developed human society as well. The majority of pharmaceutical products that mimic
natural products with biological activity are heterocycles. Therefore, researchers are on a continuous
pursuit to design and produce better pharmaceuticals, pesticides, insecticides, rodenticides, and weed
killers by natural models. It is easy to understand why both the development of new methods and the

676
HETEROCYCLES, Vol. 81, No. 3, 2010
strategic development of known methods for the synthesis of heterocyclic compounds continue to drive
the field of synthetic organic chemistry. Organic chemists have been engaged in extensive efforts to
produce these heterocyclic compounds by developing new and efficient synthetic transformations.
Among them, cyclocondensation reactions are of the most attractive methodologies for synthesizing
heterocyclic compounds, and the need for improved cyclocondensation reactions is evident.
In the course of our studies on heterocyclic β-enaminonitriles,7−11 we became interested in the
development of the methods for the synthesis of heterobicycles such as thieno[3,2-c]thiopyrans,12,13
thiopyrano[4,3-b]furans,14 thieno[3,4-b]thiophenes,15−17 and thieno[3,4-b]furans. The synthesis of these
compounds has been rarely described in the literature. Therefore, there is a need for synthetic methods
suitable for their analogues. As part of our current studies on the development of new routes in
heterocyclic synthesis, we herein describe an efficient procedure for the synthesis of fused
thiopyranthione and thiophene derivatives 7−13 from the reactions of heterocyclic α,β-unsaturated
nitriles 3−6 as one of versatile starting materials and carbon disulfide and/or sulfur powder in the
presence of sodium hydride or triethylamine.
RESULTS AND DISCUSSION
Initially, we examined Wittig reaction of tetrahydro-2-oxo-3-thiophene- and -3-furan-carbonitriles 1a−c
and 2a−d with alkylidene phosphoranes (Scheme 1). Compounds 1a−c and 2a−d were easily prepared by
treatment of 2-amino-4,5-dihydro-3-thiophene- and -3-furan-carbonitriles with hydrochloric acid
according to our previous procedure.18−21 Furthermore, we have also shown Wittig reaction of compounds
1a and 2a with (triphenylphosphoranylidene)acetonitrile (entries 1 and 4 in Table 1).22 Thus, the starting
materials, heterocyclic α,β-unsaturated nitriles 3a−c, 4a−d, 5a−c, and 6a−d were synthesized by Wittig
reaction of compounds 1a−c and 2a−d with (triphenylphosphoranylidene)acetonitrile and/or methyl
(triphenylphosphoranylidene)acetate in refluxing toluene with 55−98% isolated yields (Scheme 1 and
Table 1). Elemental analyses, MS spectra, 1H and 13C NMR spectra of compounds 3−6 are consistent with
the assigned structures (see experimental section).
R1
R1
R1
CN
CN
CN
Ph3P CH EWG
toluene
EWG
EWG
R2
1a−c, 2a−d
R2
R2
3a−c, 4a−d, 5a−c, 6a−d
a: R1 = H, R2 = H b: R1 = Ph, R2 = H c: R1 = H, R2 = Me d: R1 = H, R2 = Ph
1,3,5: X = S 2,4,6: X = O 3,4: EWG = CN 5,6: EWG = CO2Me
O
X
X
X
Scheme 1

HETEROCYCLES, Vol. 81, No. 3, 2010
677
Table 1. Wittig reaction of compounds 1a−c and 2a−d with alkylidene phosphoranes
Entry
1
Substrate
1a ref.18,19
1b ref.19
1c ref.19
2a ref.18,19
2b ref.20
2c ref.21
2d ref.20
1a
X
S
R1
H
R2
H
EWG
CN
Product
3a ref.22
3b
Yield (%)
93
2
S
Ph
H
H
CN
96
3
S
Me
H
CN
3c
4a ref.22
98
4
O
O
O
O
S
H
CN
84
5
Ph
H
H
CN
4b
69
6
Me
Ph
H
CN
4c
97
7
H
CN
4d
74
8
H
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
5a
65
9
1b
S
Ph
H
H
5b
88
10
11
12
13
14
1c
S
Me
H
5c
94
2a
O
O
O
O
H
6a
55
2b
Ph
H
H
6b
77
2c
Me
Ph
6c
83
2d
H
6d
88

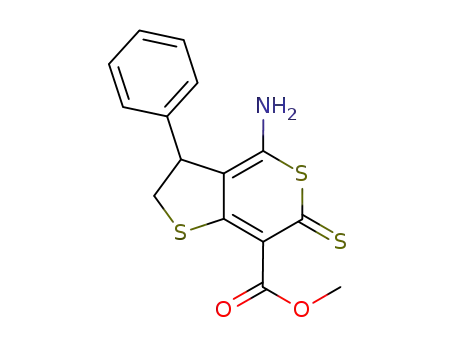

In the next step, we tried to construct fused thiopyranthiones 7−10 from compounds 3−6 and carbon
disulfide23−25 (Scheme 2). To optimize the yield of 7−10, we carried out several experiments on 3−6,
testing different reaction conditions, e.g. solvent, time, and substrate/base molar ratio. Solvent effects
were observed with THF giving the highest yield of fused thiopyranthiones, while other solvents such as
CH2Cl2, hexane, and toluene gave very low yields of fused thiopyranthiones. The results are summarized
in Table 2. As a consequence, the reaction of heterocyclic α,β-unsaturated nitriles 3a−c, 4a−d, 5a−c, and
6a−d with carbon disulfide in the presence of sodium hydride in THF at room temperature for 4 h led to
the corresponding 6-thioxothieno[3,2-c]thiopyran and 6-thioxothiopyrano[4,3-b]furan derivatives 7a−c,
8a−d, 9a−c, and 10a−d in 24−72% yields. These products 7−10 gave satisfactory elemental analyses and
1
spectroscopic data (IR, H NMR, 13C NMR, and MS) consistent with their assigned structures (see
experimental section). For example, the IR spectra of 7−10 display bands in the range of 3430−3130 cm-1
due to a primary amino group. The 1H NMR spectra of 7−10 exhibit a D2O exchangeable signal near δ 6.0
13
attributable to the primary amino protons. The C NMR spectra of 7−10 show a signal near δ 180.5 due
to the thiocarbonyl carbon. The formation of the fused thiopyranthiones 7−10 could be explained by
possible mechanism presented in Scheme 2. It is conceivable that the initial event is the formation of the
1:1 adducts A from compounds 3−6 and carbon disulfide, which underwent intramolecular cyclization to
result in the formation of 7−10.

678
HETEROCYCLES, Vol. 81, No. 3, 2010
NH2
N
N
S
R1
R1
R1
S
S
CS2, NaH
THF
R2
R2
R2
X
X
S
X
S
S
EWG
EWG
EWG
A
7a−c, 8a−d, 9a−c, 10a−d
R1 R2
R1
CN
3−13
X
EWG
a
b
c
H
H
EWG
R2
Ph H
3,5,7,9,11,12
4,6,8,10,13
3,4,7,8,11 CN
S
X
H
H
Me
Ph
5,6,9,10,12,13 CO2Me
O
3a−c, 4a−d, 5a−c, 6a−d
d
N
R1
R1
R1
NH2
N
S
S, Et3N
MeOH
R2
R2
R2
S
S
X
X
X
EWG
EWG
EWG
B
11a−c, 12a−c, 13a−d
Scheme 2
Table 2. Synthesis of fused thiopyranthione derivatives 7−10 according to Scheme 2
Entry
1
Substrate
3a
X
S
R1
H
R2
H
EWG
CN
Product
7a
Yield (%)
66
2
3b
S
Ph
H
H
CN
7b
40
3
3c
S
Me
H
CN
7c
24
4
4a
O
O
O
O
S
H
CN
8a
47
5
4b
Ph
H
H
CN
8b
66
6
4c
Me
Ph
H
CN
8c
65
7
4d
H
CN
8d
60
8
5a
H
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
9a
53
9
5b
S
Ph
H
H
9b
53
10
11
12
13
14
5c
S
Me
H
9c
45
6a
O
O
O
O
H
10a
10b
10c
10d
72
6b
Ph
H
H
52
6c
Me
Ph
38
6d
H
37
Finally, we also attempted Gewald reaction26,27 of compounds 3, 5 and 6 with sulfur powder (Scheme 2).
Having optimized the Gewald reaction parameters, we then examined several reaction conditions. The
best results are shown in Table 3. Indeed, when a mixture of 3a−c, 5a−c, or 6a−d and sulfur powder in
the presence of triethylamine in methanol was stirred at room temperature for 24 h, the corresponding
thieno[3,4-b]thiophene and thieno[3,4-b]furan derivatives 11a−c, 12a−c, and 13a−d were obtained in
moderate yields. In this case, the reaction of 4a−d with sulfur powder failed to give the expected

HETEROCYCLES, Vol. 81, No. 3, 2010
679
thieno[3,4-b]furans and the reaction was not clean. The reason for this change of behavior is not very
clear at present. The structures of compounds 11−13 were deduced from their elemental analyses, MS, IR,
1H NMR, and 13C NMR spectra (see experimental section). The IR spectra of 11−13 display bands in the
1
range of 3470−3170 cm-1 due to a primary amino group. The H NMR spectra of 11−13 exhibit a D2O
exchangeable signal near δ 6.5 attributable to the primary amino protons. A plausible mechanism for the
formation of the fused thiophenes 11−13 is shown in Scheme 2. Compounds 3, 5 and 6 would be thiolated
at the methylene carbon by sulfur, followed by ring closure to afford 11−13.
Table 3. Synthesis of fused thiophene derivatives 11−13 according to Scheme 2
Entry
Substrate
3a
X
S
R1
H
R2
H
EWG
Product
11a
Yield (%)
1
2
CN
51
43
71
90
64
31
55
29
21
66
3b
S
Ph
H
H
CN
11b
11c
3
3c
S
Me
H
CN
4
5a
S
H
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
CO2Me
12a
5
5b
S
Ph
H
H
12b
12c
6
5c
S
Me
H
7
6a
O
O
O
O
H
13a
8
6b
Ph
H
H
13b
13c
9
6c
Me
Ph
10
6d
H
13d
In conclusion, we have developed a simple and efficient method for the synthesis of
6-thioxothieno[3,2-c]thiopyran, 6-thioxothiopyrano[4,3-b]furan, thieno[3,4-b]thiophene, and
thieno[3,4-b]furan derivatives 7−13 by the reactions of heterocyclic α,β-unsaturated nitriles 3−6 as one of
versatile starting materials with carbon disulfide and/or sulfur powder in the presence of sodium hydride
or triethylamine. This methodology offers significant advantages with regard to the simplicity of
operation. Functionalized fused thiopyranthione and thiophene derivatives are important synthons in
organic synthesis and for the preparation of biologically active compounds with interest in medicinal
chemistry.
EXPERIMENTAL
All melting points are uncorrected. The IR spectra were recorded on a JASCO FT/IR-4100 spectrometer.
The 1H and 13C NMR spectra were measured with a JEOL JNM-A500 spectrometer at 500.00 and 125.65
1
13
MHz, respectively. The H and C chemical sifts (δ) are reported in parts per million (ppm) relative to
TMS as internal standard. Positive FAB MS spectra were obtained on a JEOL JMS-700T spectrometer.
Elemental analyses were performed on YANACO MT-6 CHN analyzer. The starting compounds,
heterocyclic α,β-unsaturated nitriles 3−6, were prepared in this laboratory according to the procedure for

680
HETEROCYCLES, Vol. 81, No. 3, 2010
the preparation of 3a and 4a reported in literature.22
General procedure for the preparation of heterocyclic α,β-unsaturated nitriles 3−6 from 1 and/or 2
and alkylidene phosphoranes.
A mixture of 1a−c and/or 2a−d (20 mmol) and (triphenylphosphoranylidene)acetonitrile (7.83 g, 26
mmol) or methyl (triphenylphosphoranylidene)acetate (7.36 g, 22 mmol) in toluene (20 mL) was refluxed
for 8 h. After removal of the solvent in vacuo, Et2O (40 mL) was added to the residue. The solid was
removed by filtration and washed with Et2O. The combined filtrates were concentrated in vacuo. The
residue was purified by column chromatography on silica gel with CH2Cl2 as the eluent to afford 3a−c,
4a−d, 5a−c, and 6a−d.
3-Cyano-4,5-dihydro-4-phenyl-2-thiopheneacetonitrile (3b)
Colorless prisms (4.33 g, 96%), mp 68−69 °C (Et2O); IR (KBr): 2253, 2207 (CN) cm-1; 1H NMR (CDCl3):
δ 3.45 (dd, J = 7.6, 11.7 Hz, 1H, 5-H), 3.66−3.76 (m, 2H, CH2CN), 3.88 (dd, J = 9.9, 11.7 Hz, 1H, 5-H),
4.49−4.54 (m, 1H, 4-H), 7.27−7.43 (m, 5H, aryl H); 13C NMR (CDCl3): δ 19.7 (CH2CN), 40.9 (C-5), 54.9
(C-4), 108.8 (C-3), 113.9 (CH2CN), 114.0 (CN), 127.1, 128.5, 129.4, 138.8 (C aryl), 152.2 (C-2); MS:
m/z 227 [M+H]+. Anal. Calcd for C13H10N2S: C, 69.00; H, 4.45; N, 12.38. Found: C, 69.04; H, 4.56; N,
12.34.
3-Cyano-4,5-dihydro-5-methyl-2-thiopheneacetonitrile (3c)
1
Red oil (3.21 g, 98%); IR (neat): 2256, 2210 (CN) cm-1; H NMR (CDCl3): δ 1.46 (d, J = 6.7 Hz, 3H,
CH3), 2.74 (tdd, J = 1.4, 6.1, 15.9 Hz, 1H, 4-H), 3.23 (tdd, J = 1.7, 8.9, 15.9 Hz, 1H, 4-H), 3.58−3.68 (m,
2H, CH2CN), 4.01−4.09 (m, 1H, 5-H); 13C NMR (CDCl3): δ 19.5 (CH2CN), 22.0 (CH3), 44.4 (C-4), 45.8
(C-5), 102.7 (C-3), 114.0 (CH2CN), 114.3 (CN), 151.2 (C-2); MS: m/z 165 [M+H]+. Anal. Calcd for
C8H8N2S: C, 58.51; H, 4.91; N, 17.06. Found: C, 58.37; H, 4.97; N, 16.90.
3-Cyano-4,5-dihydro-4-phenyl-2-furanacetonitrile (4b)
Red oil (2.91 g, 69%); IR (neat): 2265, 2214 (CN) cm-1; 1H NMR (CDCl3): δ 3.55−3.64 (m, 2H, CH2CN),
4.40−4.44 (m, 1H, 4-H), 4.53−4.57 (m, 1H, 5-H), 4.95−5.00 (m, 1H, 5-H), 7.20−7.43 (m, 5H, aryl H); 13C
NMR (CDCl3): δ 17.4 (CH2CN), 49.0 (C-4), 80.4 (C-5), 91.6 (C-3), 112.6 (CH2CN), 113.8 (CN), 127.1,
128.4, 129.4, 138.9 (C aryl), 161.4 (C-2); MS: m/z 211 [M+H]+. Anal. Calcd for C13H10N2O: C, 74.27; H,
4.79; N, 13.32. Found: C, 74.30; H, 4.94; N, 13.05.
3-Cyano-4,5-dihydro-5-methyl-2-furanacetonitrile (4c)
1
Red oil (2.88 g, 97%); IR (neat): 2263, 2214 (CN) cm-1; H NMR (CDCl3): δ 1.39 (d, J = 6.1 Hz, 3H,
CH3), 2.46−2.52 (m, 1H, 4-H), 2.99−3.05 (m, 1H, 4-H), 3.41−3.42 (m, 2H, CH2CN), 4.92−4.98 (m, 1H,
5-H); 13C NMR (CDCl3): δ 17.3 (CH2CN), 21.4 (CH3), 37.3 (C-4), 82.2 (C-5), 85.1 (C-3), 112.7 (CH2CN),
114.6 (CN), 160.4 (C-2); MS: m/z 149 [M+H]+. Anal. Calcd for C8H8N2O: C, 64.85; H, 5.44; N, 18.91.
Found: C, 64.73; H, 5.51; N, 18.64.

HETEROCYCLES, Vol. 81, No. 3, 2010
681
3-Cyano-4,5-dihydro-5-phenyl-2-furanacetonitrile (4d)
1
Red oil (3.12 g, 74%); IR (neat): 2261, 2215 (CN) cm-1; H NMR (CDCl3): δ 2.89−2.95 (m, 1H, 4-H),
3.28−3.35 (m, 1H, 4-H), 3.49−3.51 (m, 2H, CH2CN), 5.74−5.78 (m, 1H, 5-H), 7.17−7.37 (m, 5H, aryl H);
13C NMR (CDCl3): δ 17.3 (CH2CN), 38.2 (C-4), 85.6 (C-3), 86.1 (C-5), 112.6 (CH2CN), 114.1 (CN),
125.6, 129.05, 129.13, 138.8 (C aryl), 160.4 (C-2); MS: m/z 211 [M+H]+. Anal. Calcd for C13H10N2O: C,
74.27; H, 4.79; N, 13.32. Found: C, 74.38; H, 4.96; N, 13.12.
Methyl 3-cyano-4,5-dihydro-2-thiopheneacetate (5a)
1
Pale yellow oil (2.37 g, 65%); IR (neat): 2207 (CN), 1743 (C=O) cm-1; H NMR (CDCl3): δ 3.06 (tt, J =
1.4, 8.9 Hz, 2H, 4-H), 3.39 (t, J = 8.9 Hz, 2H, 5-H), 3.58 (t, J = 1.4 Hz, 2H, CH2CO2Me), 3.75 (s, 3H,
13
CO2Me); C NMR (CDCl3): δ 32.9 (C-5), 35.9 (CH2CO2Me), 36.4 (C-4), 52.5 (CO2Me), 103.3 (C-3),
115.2 (CN), 156.1 (C-2), 168.0 (C=O); MS: m/z 184 [M+H]+. Anal. Calcd for C8H9NO2S: C, 52.44; H,
4.95; N, 7.64. Found: C, 52.53; H, 5.01; N, 7.74.
Methyl 3-cyano-4,5-dihydro-4-phenyl-2-thiopheneacetate (5b)
1
Colorless prisms (4.55 g, 88%), mp 79−80 °C (Et2O); IR (KBr): 2207 (CN), 1737 (C=O) cm-1; H NMR
(CDCl3): δ 3.35 (dd, J = 7.0, 11.6 Hz, 1H, 5-H), 3.62−3.71 (m, 2H, CH2CO2Me), 3.78 (s, 3H, CO2Me),
13
3.82 (dd, J = 10.1, 11.6 Hz, 1H, 5-H), 4.45−4.50 (m, 1H, 4-H), 7.29−7.40 (m, 5H, aryl H); C NMR
(CDCl3): δ 36.1 (CH2CO2Me), 41.0 (C-5), 52.6 (CO2Me), 54.6 (C-4), 108.0 (C-3), 115.1 (CN), 127.2,
128.2, 129.2, 139.6 (C aryl), 156.5 (C-2), 168.0 (C=O); MS: m/z 260 [M+H]+. Anal. Calcd for
C14H13NO2S: C, 64.84; H, 5.05; N, 5.40. Found: C, 64.92; H, 5.11; N, 5.38.
Methyl 3-cyano-4,5-dihydro-5-methyl-2-thiopheneacetate (5c)
1
Yellow oil (3.72 g, 94%); IR (neat): 2206 (CN), 1744 (C=O) cm-1; H NMR (CDCl3): δ 1.42 (d, J = 6.7
Hz, 3H, CH3), 2.70 (tdd, J = 1.2, 5.8, 15.6 Hz, 1H, 4-H), 3.18 (tdd, J = 1.4, 8.5, 15.6 Hz, 1H, 4-H),
3.56−3.58 (m, 2H, CH2CO2Me), 3.75 (s, 3H, CO2Me), 3.89−3.99 (m, 1H, 5-H); 13C NMR (CDCl3): δ 22.0
(CH3), 36.1 (CH2CO2Me), 44.2 (C-4), 45.4 (C-5), 52.5 (CO2Me), 101.8 (C-3), 115.4 (CN), 155.3 (C-2),
168.1 (C=O); MS: m/z 198 [M+H]+. Anal. Calcd for C9H11NO2S: C, 54.80; H, 5.62; N, 7.10. Found: C,
54.86; H, 5.52; N, 7.01.
Methyl 3-cyano-4,5-dihydro-2-furanacetate (6a)
1
Colorless oil (1.85 g, 55%); IR (neat): 2211 (CN), 1746 (C=O) cm-1; H NMR (CDCl3): δ 2.92−2.98 (m,
13
2H, 4-H), 3.42−3.43 (m, 2H, CH2CO2Me), 3.75 (s, 3H, CO2Me), 4.55−4.60 (m, 2H, 5-H); C NMR
(CDCl3): δ 30.3 (C-4), 33.5 (CH2CO2Me), 52.6 (CO2Me), 72.2 (C-5), 85.3 (C-3), 115.7 (CN), 166.3 (C-2),
167.1 (C=O); MS: m/z 168 [M+H]+. Anal. Calcd for C8H9NO3: C, 57.48; H, 5.43; N, 8.38. Found: C,
57.50; H, 5.31; N, 8.40.
Methyl 3-cyano-4,5-dihydro-4-phenyl-2-furanacetate (6b)
1
Colorless prisms (3.74 g, 77%), mp 46−47 °C (Et2O); IR (KBr): 2212 (CN), 1739 (C=O) cm-1; H NMR

682
HETEROCYCLES, Vol. 81, No. 3, 2010
(CDCl3): δ 3.48−3.58 (m, 2H, CH2CO2Me), 3.78 (s, 3H, CO2Me), 4.37 (dd, J = 6.4, 10.5 Hz, 1H, 4-H),
4.46 (dd, J = 6.4, 9.4 Hz, 1H, 5-H), 4.90 (dd, J = 9.4, 10.5 Hz, 1H, 5-H), 7.24−7.27 (m, 2H, aryl H),
13
7.28−7.32 (m, 1H, aryl H), 7.35−7.39 (m, 2H, aryl H); C NMR (CDCl3): δ 33.7 (CH2CO2Me), 48.9
(C-4), 52.7 (CO2Me), 80.1 (C-5), 91.0 (C-3), 115.1 (CN), 127.2, 128.0, 129.2, 140.0 (C aryl), 166.5 (C-2),
167.1 (C=O); MS: m/z 244 [M+H]+. Anal. Calcd for C14H13NO3: C, 69.12; H, 5.39; N, 5.76. Found: C,
69.21; H, 5.47; N, 5.77.
Methyl 3-cyano-4,5-dihydro-5-methyl-2-furanacetate (6c)
1
Pale yellow oil (3.02 g, 83%); IR (neat): 2210 (CN), 1747 (C=O) cm-1; H NMR (CDCl3): δ 1.41 (d, J =
6.1 Hz, 3H, CH3), 2.49−2.55 (m, 1H, 4-H), 3.02−3.09 (m, 1H, 4-H), 3.40 (dd, J = 1.2, 2.1 Hz, 2H,
13
CH2CO2Me), 3.75 (s, 3H, CO2Me), 4.91−4.97 (m, 1H, 5-H); C NMR (CDCl3): δ 21.4 (CH3), 33.7
(CH2CO2Me), 37.2 (C-4), 52.5 (CO2Me), 81.3 (C-5), 84.3 (C-3), 115.9 (CN), 165.4 (C-2), 167.2 (C=O);
MS: m/z 182 [M+H]+. Anal. Calcd for C9H11NO3•0.1H2O: C, 59.07; H, 6.17; N, 7.65. Found: C, 59.20; H,
6.04; N, 7.64.
Methyl 3-cyano-4,5-dihydro-5-phenyl-2-furanacetate (6d)
Pale yellow oil (4.28 g, 88%); IR (neat): 2211 (CN), 1747 (C=O) cm-1; 1H NMR (CDCl3): δ 2.91−2.96 (m,
1H, 4-H), 3.33−3.40 (m, 1H, 4-H), 3.46−3.55 (m, 2H, CH2CO2Me), 3.76 (s, 3H, CO2Me), 5.73−5.78 (m,
1H, 5-H), 7.32−7.42 (m, 5H, aryl H); 13C NMR (CDCl3): δ 33.7 (CH2CO2Me), 38.4 (C-4), 52.6 (CO2Me),
84.7 (C-3), 85.5 (C-5), 115.5 (CN), 125.7, 128.8, 128.9, 139.9 (C aryl), 165.5 (C-2), 167.1 (C=O); MS:
m/z 244 [M+H]+. Anal. Calcd for C14H13NO3: C, 69.12; H, 5.39; N, 5.76. Found: C, 69.09; H, 5.45; N,
5.77.
General procedure for the preparation of fused thiopyranthiones 7−10 from 3−6 and carbon
disulfide in the presence of sodium hydride.
To an ice-cooled and stirred solution of 3a−c, 4a−d, 5a−c, and 6a−d (5 mmol) in THF (5 mL) was added
60% NaH (0.20 g, 5 mmol). The stirring was continued at rt until evolution of gas ceased. To the obtained
mixture was added carbon disulfide (0.42 g, 5.5 mmol) with stirring and then the mixture was stirred at rt
for 4 h. The reaction mixture was neutralized with acetic acid (0.30 g, 5 mmol) with stirring and
ice-cooling. After removal of the solvent in vacuo, cold water was added to the residue. Further
processing of the resulting mixture is described in the following paragraphs.
(A) The precipitate was isolated by filtration, washed with water, dried, and recrystallized from an
appropriate solvent to give 7a−c, 8a−d, 9a, and 10a.
(B) The resulting mixture was extracted with CH2Cl2. The extract was dried over anhydrous sodium
sulfate and concentrated in vacuo. The residue was purified by column chromatography on alumina with
CH2Cl2-acetone (4:1) as the eluent to afford 9b−c and 10b−d.
4-Amino-2,3-dihydro-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carbonitrile (7a)

HETEROCYCLES, Vol. 81, No. 3, 2010
683
Pale yellow prisms (0.75 g, 66%), mp >300 °C (DMSO/H2O); IR (KBr): 3427, 3311, 3207, 3140 (NH),
2200 (CN) cm-1; 1H NMR (DMSO-d6): δ 3.17 (t, J = 8.4 Hz, 2H, 3-H), 3.53 (t, J = 8.4 Hz, 2H, 2-H), 8.77
13
(br s, 2H, NH2); C NMR (DMSO-d6): δ 31.9 (C-2), 33.4 (C-3), 101.0 (C-7), 113.3 (C-3a), 116.7 (CN),
161.6 (C-4), 167.8 (C-7a), 187.2 (C=S); MS: m/z 227 [M+H]+. Anal. Calcd for C8H6N2S3: C, 42.45; H,
2.67; N, 12.38. Found: C, 42.36; H, 2.82; N, 12.14.
4-Amino-2,3-dihydro-3-phenyl-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carbonitrile (7b)
Orange prisms (0.60 g, 40%), mp 237−238 °C (acetone/petroleum ether); IR (KBr): 3384, 3292, 3184
1
(NH), 2210 (CN) cm-1; H NMR (DMSO-d6): δ 3.26 (dd, J = 0.9, 11.6 Hz, 1H, 2-H), 4.09 (dd, J = 8.4,
11.6 Hz, 1H, 2-H), 4.89−4.92 (m, 1H, 3-H), 7.21−7.24 (m, 2H, aryl H), 7.26−7.31 (m, 1H, aryl H),
13
7.33−7.37 (m, 2H, aryl H), 8.65 (br s, 2H, NH2); C NMR (DMSO-d6): δ 41.7 (C-2), 49.1 (C-3), 101.2
(C-7), 115.1 (C-3a), 116.6 (CN), 126.8, 127.3, 128.6, 139.5 (C aryl), 162.4 (C-4), 168.6 (C-7a), 187.8
(C=S); MS: m/z 303 [M+H]+. Anal. Calcd for C14H10N2S3: C, 55.60; H, 3.33; N, 9.26. Found: C, 55.51; H,
3.52; N, 9.02.
4-Amino-2,3-dihydro-2-methyl-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carbonitrile (7c)
Yellow prisms (0.29 g, 24%), mp 280 °C (dec.) (acetone); IR (KBr): 3378, 3303, 3161 (NH), 2212 (CN)
1
cm-1; H NMR (DMSO-d6): δ 1.42 (d, J = 6.7 Hz, 3H, CH3), 2.86 (dd, J = 5.6, 15.4 Hz, 1H, 3-H),
13
3.28−3.34 (m, 1H, 3-H), 4.13−4.21 (m, 1H, 2-H), 8.78 (br s, 2H, NH2); C NMR (DMSO-d6): δ 22.2
(CH3), 41.1 (C-3), 44.5 (C-2), 101.0 (C-7), 112.2 (C-3a), 116.6 (CN), 162.0 (C-4), 166.7 (C-7a), 187.1
(C=S); MS: m/z 241 [M+H]+. Anal. Calcd for C9H8N2S3 · 0.1 H2O: C, 44.64; H, 3.41; N, 11.57. Found: C,
44.48; H, 3.44; N, 11.41.
4-Amino-2,3-dihydro-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carbonitrile (8a)
Pale yellow prisms (0.50 g, 47%), mp 276 °C (dec.) (DMSO/H2O); IR (KBr): 3386, 3277, 3177 (NH),
2213 (CN) cm-1; 1H NMR (DMSO-d6): δ 2.98 (t, J = 8.9 Hz, 2H, 3-H), 4.83 (t, J = 8.9 Hz, 2H, 2-H), 8.67
13
(br s, 2H, NH2); C NMR (DMSO-d6): δ 26.8 (C-3), 74.8 (C-2), 94.1 (C-7), 102.4 (C-3a), 114.5 (CN),
163.1 (C-4), 173.6 (C-7a), 190.3 (C=S); MS: m/z 211 [M+H]+. Anal. Calcd for C8H6N2OS2·0.2H2O: C,
44.93; H, 3.02; N, 13.10. Found: C, 44.97; H, 2.97; N, 13.06.
4-Amino-2,3-dihydro-3-phenyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carbonitrile (8b)
Pale yellow needles (0.95 g, 66%), mp 230−231 °C (acetone/petroleum ether); IR (KBr): 3418, 3294,
3183 (NH), 2222 (CN) cm-1; 1H NMR (DMSO-d6): δ 4.63 (dd, J = 3.1, 9.0 Hz, 1H, 3-H), 4.66 (dd, J = 3.1,
9.0 Hz, 1H, 2-H), 5.12 (t, J = 9.0 Hz, 1H, 2-H), 7.20−7.24 (m, 2H, aryl H), 7.26−7.30 (m, 1H, aryl H),
13
7.33−7.37 (m, 2H, aryl H), 8.49 (br s, 2H, NH2); C NMR (DMSO-d6): δ 44.0 (C-3), 82.5 (C-2), 94.1
(C-7), 105.3 (C-3a), 114.4 (CN), 126.9, 127.3, 128.7, 140.2 (C aryl), 163.9 (C-4), 173.6 (C-7a), 191.0
(C=S); MS: m/z 287 [M+H]+. Anal. Calcd for C14H10N2OS2: C, 58.72; H, 3.52; N, 9.78. Found: C, 58.59;
H, 3.62; N, 9.71.

684
HETEROCYCLES, Vol. 81, No. 3, 2010
4-Amino-2,3-dihydro-2-methyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carbonitrile (8c)
Pale yellow needles (0.73 g, 65%), mp 286 °C (dec.) (acetone/petroleum ether); IR (KBr): 3306, 3172
(NH), 2222 (CN) cm-1; 1H NMR (DMSO-d6): δ 1.47 (d, J = 6.4 Hz, 3H, CH3), 2.56 (dd, J = 7.2, 14.9 Hz,
13
1H, 3-H), 3.51 (dd, J = 9.2, 14.9 Hz, 1H, 3-H), 5.23−5.30 (m, 1H, 2-H), 8.64 (br s, 2H, NH2); C NMR
(DMSO-d6): δ 21.2 (CH3), 33.7 (C-3), 84.3 (C-2), 94.0 (C-7), 102.1 (C-3a), 114.6 (CN), 163.2 (C-4),
172.7 (C-7a), 190.3 (C=S); MS: m/z 225 [M+H]+. Anal. Calcd for C9H8N2OS2: C, 48.19; H, 3.59; N,
12.49. Found: C, 48.24; H, 3.63; N, 12.23.
4-Amino-2,3-dihydro-2-phenyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carbonitrile (8d)
Pale yellow prisms (0.86 g, 60%), mp 264 °C (dec.) (acetone/petroleum ether); IR (KBr): 3340, 3263,
1
3142 (NH), 2216 (CN) cm-1; H NMR (DMSO-d6): δ 2.94 (dd, J = 7.5, 15.2 Hz, 1H, 3-H), 3.50 (dd, J =
9.7, 15.2 Hz, 1H, 3-H), 6.17 (dd, J = 7.5, 9.7 Hz, 1H, 2-H), 7.39−7.48 (m, 5H, aryl H), 8.76 (br s, 2H,
NH2); 13C NMR (DMSO-d6): δ 34.8 (C-3), 87.4 (C-2), 93.8 (C-7), 101.6 (C-3a), 114.5 (CN), 126.2, 128.8,
128.9, 139.2 (C aryl), 163.3 (C-4), 172.4 (C-7a), 190.6 (C=S); MS: m/z 287 [M+H]+. Anal. Calcd for
C14H10N2OS2: C, 58.72; H, 3.52; N, 9.78. Found: C, 58.62; H, 3.71; N, 9.59.
Methyl 4-amino-2,3-dihydro-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carboxylate (9a)
Pale yellow prisms (0.69 g, 53%), mp 214 °C (dec.) (acetone); IR (KBr): 3392, 3302, 3188 (NH), 1697
(C=O) cm-1; 1H NMR (DMSO-d6): δ 3.08 (t, J = 8.1 Hz, 2H, 3-H), 3.38 (t, J = 8.1 Hz, 2H, 2-H), 3.70 (s,
3H, CO2Me), 8.21 (br s, 2H, NH2); 13C NMR (DMSO-d6): δ 31.7 (C-2), 32.6 (C-3), 51.8 (CO2Me), 112.3
(C-3a), 123.6 (C-7), 160.7 (C-4), 162.5 (C-7a), 166.9 (C=O), 181.9 (C=S); MS: m/z 260 [M+H]+. Anal.
Calcd for C9H9NO2S3: C, 41.68; H, 3.50; N, 5.40. Found: C, 41.70; H, 3.57; N, 5.21.
Methyl 4-amino-2,3-dihydro-3-phenyl-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carboxylate (9b)
Yellow prisms (0.89 g, 53%), mp 194 °C (dec.) (acetone/petroleum ether); IR (KBr): 3400, 3308, 3205
1
(NH), 1717 (C=O) cm-1; H NMR (DMSO-d6): δ 3.15 (dd, J = 1.2, 11.5 Hz, 1H, 2-H), 3.72 (s, 3H,
CO2Me), 3.93 (dd, J = 8.2, 11.5 Hz, 1H, 2-H), 4.82−4.84 (m, 1H, 3-H), 7.20−7.23 (m, 2H, aryl H),
7.25−7.29 (m, 1H, aryl H), 7.33−7.37 (m, 2H, aryl H), 8.09 (br s, 2H, NH2); 13C NMR (DMSO-d6): δ 41.2
(C-2), 48.2 (C-3), 51.9 (CO2Me), 114.2 (C-3a), 123.6 (C-7), 126.8, 127.2, 128.4, 139.9 (C aryl), 161.6
(C-4), 163.1 (C-7a), 166.9 (C=O), 182.8 (C=S); MS: m/z 336 [M+H]+. Anal. Calcd for C15H13NO2S3: C,
53.70; H, 3.91; N, 4.18. Found: C, 53.84; H, 3.96; N, 4.14.
Methyl 4-amino-2,3-dihydro-2-methyl-6-thioxo-6H-thieno[3,2-c]thiopyran-7-carboxylate (9c)
Yellow prisms (0.61 g, 45%), mp 169 °C (dec.) (acetone/petroleum ether); IR (KBr): 3342, 3287, 3145
(NH), 1714 (C=O) cm-1; 1H NMR (DMSO-d6): δ 1.36 (d, J = 6.7 Hz, 3H, CH3), 2.78 (dd, J = 6.0, 15.4 Hz,
1H, 3-H), 3.23 (dd, J = 8.1, 15.4 Hz, 1H, 3-H), 3.69 (s, 3H, CO2Me), 3.99−4.06 (m, 1H, 2-H), 8.20 (br s,
2H, NH2); 13C NMR (DMSO-d6): δ 21.9 (CH3), 40.4 (C-3), 43.9 (C-2), 51.9 (CO2Me), 111.4 (C-3a), 123.6
(C-7), 161.2 (C-4), 161.6 (C-7a), 166.9 (C=O), 181.8 (C=S); MS: m/z 274 [M+H]+. Anal. Calcd for

HETEROCYCLES, Vol. 81, No. 3, 2010
685
C10H11NO2S3: C, 43.93; H, 4.06; N, 5.12. Found: C, 43.99; H, 4.10; N, 5.08.
Methyl 4-amino-2,3-dihydro-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carboxylate (10a)
Colorless plates (0.88 g, 72%), mp 190 °C (dec.) (methanol); IR (KBr): 3379, 3303, 3184 (NH), 1698
1
(C=O) cm-1; H NMR (DMSO-d6): δ 2.93 (t, J = 8.7 Hz, 2H, 3-H), 3.68 (s, 3H, CO2Me), 4.71 (t, J = 8.7
Hz, 2H, 2-H), 8.17 (br s, 2H, NH2); 13C NMR (DMSO-d6): δ 26.4 (C-3), 51.9 (CO2Me), 73.8 (C-2), 101.7
(C-3a), 116.0 (C-7), 162.5 (C-4), 165.1 (C=O), 169.5 (C-7a), 184.2 (C=S); MS: m/z 244 [M+H]+. Anal.
Calcd for C9H9NO3S2: C, 44.43; H, 3.73; N, 5.76. Found: C, 44.42; H, 3.76; N, 5.67.
Methyl 4-amino-2,3-dihydro-3-phenyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carboxylate (10b)
Pale yellow prisms (0.82 g, 52%), mp 208 °C (dec.) (acetone/petroleum ether); IR (KBr): 3366, 3280,
3140 (NH), 1719 (C=O) cm-1; 1H NMR (DMSO-d6): δ 3.71 (s, 3H, CO2Me), 4.50 (dd, J = 2.9, 9.1 Hz, 1H,
2-H), 4.61 (dd, J = 2.9, 9.1 Hz, 1H, 3-H), 4.99 (t, J = 9.1 Hz, 1H, 2-H), 7.17−7.20 (m, 2H, aryl H),
7.25−7.29 (m, 1H, aryl H), 7.33−7.37 (m, 2H, aryl H), 7.99 (br s, 2H, NH2); 13C NMR (DMSO-d6): δ 43.6
(C-3), 52.0 (CO2Me), 81.6 (C-2), 104.7 (C-3a), 116.0 (C-7), 126.8, 127.1, 128.7, 140.6 (C aryl), 163.3
(C-4), 165.0 (C=O), 169.4 (C-7a), 185.1 (C=S); MS: m/z 320 [M+H]+. Anal. Calcd for C15H13NO3S2: C,
56.41; H, 4.10; N, 4.39. Found: C, 56.38; H, 4.10; N, 4.35.
Methyl 4-amino-2,3-dihydro-2-methyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carboxylate (10c)
Pale yellow prisms (0.49 g, 38%), mp 182 °C (dec.) (acetone/petroleum ether); IR (KBr): 3330, 3303,
1
3167 (NH), 1699 (C=O) cm-1; H NMR (DMSO-d6): δ 1.39 (d, J = 6.1 Hz, 3H, CH3), 2.51 (dd, J = 7.0,
15.0 Hz, 1H, 3-H), 3.10 (dd, J = 8.9, 15.0 Hz, 1H, 3-H), 3.68 (s, 3H, CO2Me), 5.08−5.16 (m, 1H, 2-H),
13
8.13 (br s, 2H, NH2); C NMR (DMSO-d6): δ 21.3 (CH3), 33.4 (C-3), 51.9 (CO2Me), 83.0 (C-2), 101.4
(C-3a), 116.0 (C-7), 162.5 (C-4), 165.1 (C=O), 168.6 (C-7a), 184.1 (C=S); MS: m/z 258 [M+H]+. Anal.
Calcd for C10H11NO3S2: C, 46.67; H, 4.31; N, 5.44. Found: C, 46.71; H, 4.32; N, 5.39.
Methyl 4-amino-2,3-dihydro-2-phenyl-6-thioxo-6H-thiopyrano[4,3-b]furan-7-carboxylate (10d)
Pale yellow needles (0.59 g, 37%), mp 199 °C (dec.) (acetone/petroleum ether); IR (KBr): 3315, 3138
1
(NH), 1706 (C=O) cm-1; H NMR (DMSO-d6): δ 2.87 (dd, J = 6.8, 15.3 Hz, 1H, 3-H), 3.46 (dd, J = 9.5,
15.3 Hz, 1H, 3-H), 3.68 (s, 3H, CO2Me), 6.06 (dd, J = 6.8, 9.5 Hz, 1H, 2-H), 7.34−7.45 (m, 5H, aryl H),
8.24 (br s, 2H, NH2); 13C NMR (DMSO-d6): δ 34.7 (C-3), 52.0 (CO2Me), 86.0 (C-2), 100.7 (C-3a), 115.8
(C-7), 125.6, 128.5, 128.7, 140.0 (C aryl), 162.7 (C-4), 165.1 (C=O), 168.5 (C-7a), 184.6 (C=S); MS: m/z
320 [M+H]+. Anal. Calcd for C15H13NO3S2: C, 56.41; H, 4.10; N, 4.39. Found: C, 56.32; H, 4.08; N, 4.33.
General procedure for the preparation of fused thiophenes 11−13 from 3, 5 and/or 6 and sulfur
powder in the presence of triethylamine.
A mixture of 3a−c, 5a−c, and/or 6a−d (5 mmol), sulfur powder (0.16 g, 5 mmol), and triethylamine (1.45
g, 14.3 mmol) in MeOH (5 mL) was stirred at rt for 24 h. After removal of the solvent in vacuo, the
residue was purified by column chromatography on silica gel with CH2Cl2 as the eluent to yield 11a−c,

686
HETEROCYCLES, Vol. 81, No. 3, 2010
12a−c, and 13a−d.
4-Amino-2,3-dihydrothieno[3,4-b]thiophene-6-carbonitrile (11a)
Pale yellow columns (1.32 g, 51%), mp 125−126 °C (Et2O); IR (KBr): 3338, 3295, 3198 (NH), 2194
(CN) cm-1; 1H NMR (DMSO-d6): δ 2.81 (t, J = 7.5 Hz, 2H, 3-H), 3.79 (t, J = 7.5 Hz, 2H, 2-H), 6.68 (br s,
13
2H, NH2); C NMR (DMSO-d6): δ 27.3 (C-3), 40.6 (C-2), 73.1 (C-6), 115.9 (CN), 120.4 (C-3a), 150.5
(C-4), 155.1 (C-6a); MS: m/z 183 [M+H]+. Anal. Calcd for C7H6N2S2: C, 46.13; H, 3.32; N, 15.37. Found:
C, 46.06; H, 3.38; N, 15.31.
4-Amino-2,3-dihydro-3-phenylthieno[3,4-b]thiophene-6-carbonitrile (11b)
Colorless prisms (0.55 g, 43%), mp 137−138 °C (Et2O/petroleum ether); IR (KBr): 3399, 3325, 3220
1
(NH), 2189 (CN) cm-1; H NMR (DMSO-d6): δ 3.54 (dd, J = 2.4, 11.3 Hz, 1H, 2-H), 4.37 (dd, J = 7.9,
11.3 Hz, 1H, 2-H), 4.47 (dd, J = 2.4, 7.9 Hz, 1H, 3-H), 6.53 (br s, 2H, NH2), 7.20−7.26 (m, 3H, aryl H),
7.30−7.34 (m, 2H, aryl H); 13C NMR (DMSO-d6): δ 44.1 (C-3), 49.4 (C-2), 73.3 (C-6), 115.8 (CN), 122.1
(C-3a), 126.8, 127.0, 128.3, 141.2 (C aryl), 151.8 (C-4), 155.1 (C-6a); MS: m/z 259 [M+H]+. Anal. Calcd
for C13H10N2S2: C, 60.43; H, 3.90; N, 10.84. Found: C, 60.55; H, 4.02; N, 10.80.
4-Amino-2,3-dihydro-2-methylthieno[3,4-b]thiophene-6-carbonitrile (11c)
Colorless prisms (0.70 g, 71%), mp 69−71 °C (Et2O/petroleum ether); IR (KBr): 3307, 3187 (NH), 2198
1
(CN) cm-1; H NMR (DMSO-d6): δ 1.44 (d, J = 6.7 Hz, 3H, CH3), 2.48 (dd, J = 6.4, 15.0 Hz, 1H, 3-H),
2.99 (dd, J = 7.5, 15.0 Hz, 1H, 3-H), 4.44−4.51 (m, 1H, 2-H), 6.67 (br s, 2H, NH2); 13C NMR (DMSO-d6):
δ 22.4 (CH3), 35.7 (C-3), 54.1 (C-2), 73.3 (C-6), 115.9 (CN), 119.2 (C-3a), 150.9 (C-4), 154.2 (C-6a);
MS: m/z 197 [M+H]+. Anal. Calcd for C8H8N2S2: C, 48.95; H, 4.11; N, 14.27. Found: C, 49.03; H, 4.11; N,
14.20.
Methyl 4-amino-2,3-dihydrothieno[3,4-b]thiophene-6-carboxylate (12a)
Colorless columns (0.97 g, 90%), mp 130−131 °C (acetone/petroleum ether); IR (KBr): 3423, 3321, 3204
(NH), 1651 (C=O) cm-1; 1H NMR (DMSO-d6): δ 2.76 (t, J = 7.8 Hz, 2H, 3-H), 3.63 (s, 3H, CO2Me), 3.64
13
(t, J = 7.8 Hz, 2H, 2-H), 6.46 (br s, 2H, NH2); C NMR (DMSO-d6): δ 26.5 (C-3), 39.1 (C-2), 50.8
(CO2Me), 96.5 (C-6), 120.9 (C-3a), 150.5 (C-4), 152.5 (C-6a), 161.9 (C=O); MS: m/z 216 [M+H]+. Anal.
Calcd for C8H9NO2S2: C, 44.63; H, 4.21; N, 6.51. Found: C, 44.52; H, 4.20; N, 6.48.
Methyl 4-amino-2,3-dihydro-3-phenylthieno[3,4-b]thiophene-6-carboxylate (12b)
Colorless prisms (0.93 g, 64%), mp 151−152 °C (acetone/petroleum ether); IR (KBr): 3443, 3327, 3208
1
(NH), 1656 (C=O) cm-1; H NMR (DMSO-d6): δ 3.41 (dd, J = 2.6, 11.4 Hz, 1H, 2-H), 3.65 (s, 3H,
CO2Me), 4.23 (dd, J = 8.2, 11.4 Hz, 1H, 2-H), 4.42 (dd, J = 2.6, 8.2 Hz, 1H, 3-H), 6.28 (br s, 2H, NH2),
13
7.20−7.24 (m, 3H, aryl H), 7.28−7.32 (m, 2H, aryl H); C NMR (DMSO-d6): δ 43.5 (C-3), 48.2 (C-2),
50.9 (CO2Me), 96.5 (C-6), 123.0 (C-3a), 126.6, 127.0, 128.3, 142.0 (C aryl), 151.8 (C-4), 152.4 (C-6a),
161.9 (C=O); MS: m/z 292 [M+H]+. Anal. Calcd for C14H13NO2S2: C, 57.71; H, 4.50; N, 4.81. Found: C,

HETEROCYCLES, Vol. 81, No. 3, 2010
687
57.94; H, 4.55; N, 4.77.
Methyl 4-amino-2,3-dihydro-2-methylthieno[3,4-b]thiophene-6-carboxylate (12c)
Colorless needles (0.35 g, 31%), mp 117−119 °C (acetone/petroleum ether); IR (KBr): 3448, 3313, 3204
(NH), 1671 (C=O) cm-1; 1H NMR (DMSO-d6): δ 1.40 (d, J = 6.7 Hz, 3H, CH3), 2.41 (dd, J = 6.4, 15.0 Hz,
1H, 3-H), 2.95 (dd, J = 7.6, 15.0 Hz, 1H, 3-H), 3.62 (s, 3H, CO2Me), 4.26−4.34 (m, 1H, 2-H), 6.44 (br s,
13
2H, NH2); C NMR (DMSO-d6): δ 22.7 (CH3), 35.1 (C-3), 50.8 (CO2Me), 51.9 (C-2), 96.6 (C-6), 119.8
(C-3a), 150.9 (C-4), 151.6 (C-6a), 161.8 (C=O); MS: m/z 230 [M+H]+. Anal. Calcd for C9H11NO2S2: C,
47.14; H, 4.83; N, 6.11. Found: C, 47.40; H, 4.90; N, 6.06.
Methyl 4-amino-2,3-dihydrothieno[3,4-b]furan-6-carboxylate (13a)
Colorless prisms (0.55 g, 55%), mp 173−174 °C (acetone/petroleum ether); IR (KBr): 3425, 3380 3323,
3206 (NH), 1660 (C=O) cm-1; 1H NMR (DMSO-d6): δ 2.75 (t, J = 8.2 Hz, 2H, 3-H), 3.57 (s, 3H, CO2Me),
13
4.89 (t, J = 8.2 Hz, 2H, 2-H), 6.54 (br s, 2H, NH2); C NMR (DMSO-d6): δ 24.6 (C-3), 50.3 (CO2Me),
80.2 (C-2), 82.4 (C-6), 108.9 (C-3a), 149.8 (C-4), 161.1 (C=O), 165.9 (C-6a); MS: m/z 200 [M+H]+. Anal.
Calcd for C8H9NO3S: C, 48.23; H, 4.55; N, 7.03. Found: C, 48.27; H, 4.53; N, 7.01.
Methyl 4-amino-2,3-dihydro-3-phenylthieno[3,4-b]furan-6-carboxylate (13b)
Colorless needles (0.40 g, 29%), mp 152−154 °C (acetone/petroleum ether); IR (KBr): 3470, 3288, 3177
(NH), 1653 (C=O) cm-1; 1H NMR (DMSO-d6): δ 3.60 (s, 3H, CO2Me), 4.37 (dd, J = 3.7, 8.6 Hz, 1H, 3-H),
4.65 (dd, J = 3.7, 8.6 Hz, 1H, 2-H), 5.24 (t, J = 8.6 Hz, 1H, 2-H), 6.45 (br s, 2H, NH2), 7.17−7.20 (m, 2H,
aryl H), 7.21−7.25 (m, 1H, aryl H), 7.30−7.35 (m, 2H, aryl H); 13C NMR (DMSO-d6): δ 42.7 (C-3), 50.4
(CO2Me), 82.5 (C-6), 87.9 (C-2), 111.6 (C-3a), 126.6, 126.9, 128.5, 141.8 (C aryl), 150.9 (C-4), 161.1
(C=O), 165.5 (C-6a); MS: m/z 276 [M+H]+. Anal. Calcd for C14H13NO3S: C, 61.07; H, 4.76; N, 5.09.
Found: C, 61.18; H, 4.71; N, 5.09.
Methyl 4-amino-2,3-dihydro-2-methylthieno[3,4-b]furan-6-carboxylate (13c)
Colorless needles (0.27 g, 21%), mp 156−157 °C (acetone/petroleum ether); IR (KBr): 3432, 3330, 3216
(NH), 1658 (C=O) cm-1; 1H NMR (DMSO-d6): δ 1.41 (d, J = 6.4 Hz, 3H, CH3), 2.34 (dd, J = 7.2, 14.5 Hz,
1H, 3-H), 2.90 (dd, J = 8.4, 14.5 Hz, 1H, 3-H), 3.57 (s, 3H, CO2Me), 5.24−5.32 (m, 1H, 2-H), 6.51 (br s,
13
2H, NH2); C NMR (DMSO-d6): δ 21.9 (CH3), 32.2 (C-3), 50.3 (CO2Me), 82.4 (C-6), 89.6 (C-2), 108.5
(C-3a), 149.9 (C-4), 161.1 (C=O), 165.1 (C-6a); MS: m/z 214 [M+H]+. Anal. Calcd for C9H11NO3S: C,
50.69; H, 5.20; N, 6.57. Found: C, 50.69; H, 5.13; N, 6.52.
Methyl 4-amino-2,3-dihydro-2-phenylthieno[3,4-b]furan-6-carboxylate (13d)
Colorless prisms (0.91 g, 66%), mp 181−182 °C (acetone/petroleum ether); IR (KBr): 3453, 3330, 3206
1
(NH), 1663 (C=O) cm-1; H NMR (DMSO-d6): δ 2.69 (dd, J = 7.0, 14.6 Hz, 1H, 3-H), 3.25 (dd, J = 8.9,
14.6 Hz, 1H, 3-H), 3.58 (s, 3H, CO2Me), 6.18 (dd, J = 7.0, 8.9 Hz, 1H, 2-H), 6.61 (br s, 2H, NH2),
13
7.33−7.43 (m, 5H, aryl H); C NMR (DMSO-d6): δ 33.3 (C-3), 50.4 (CO2Me), 82.6 (C-6), 93.0 (C-2),

688
HETEROCYCLES, Vol. 81, No. 3, 2010
107.9 (C-3a), 125.8, 128.2, 128.5, 141.1 (C aryl), 150.1 (C-4), 161.1 (C=O), 164.8 (C-6a); MS: m/z 276
[M+H]+. Anal. Calcd for C14H13NO3S: C, 61.07; H, 4.76; N, 5.09. Found: C, 61.29; H, 4.77; N, 5.01.
REFERENCES
1. G. P. Ellis, ‘Synthesis of Fused Heterocycles,’ John Wiley & Sons, Chichester, 1987.
2. G. P. Ellis, ‘Synthesis of Fused Heterocycles Part 2,’ John Wiley & Sons, Chichester, 1992.
3. L. A. Paquette, ‘Organic Reactions,’ Vol. 49, John Wiley & Sons, Canada, 1997.
4. I. Nakamura and Y. Yamamoto, Chem. Rev., 2004, 104, 2127.
5. C. Shishoo, S. Ananthan, V. Bhadti, G. Ullas, M. Chhabria, J. Bariwal, L. V. G. Nargund, and K.
Jain, Heterocycles, 2009, 78, 1627.
6. M. M. Heravi and S. Sadjadi, Tetrahedron, 2009, 65, 7761.
7. H. Maruoka, K. Yamagata, and M. Yamazaki, J. Heterocycl. Chem., 2001, 38, 269.
8. H. Maruoka, M. Yamazaki, and Y. Tomioka, J. Heterocycl. Chem., 2004, 41, 641.
9. H. Maruoka, K. Yamagata, F. Okabe, and Y. Tomioka, J. Heterocycl. Chem., 2005, 42, 717.
10. H. Maruoka, F. Okabe, and K. Yamagata, J. Heterocycl. Chem., 2008, 45, 541.
11. H. Maruoka, F. Okabe, E. Masumoto, T. Fujioka, and K. Yamagata, Heterocycles, 2010, 80, 637.
12. P. Cagniant and D. Cagniant, Bull. Soc. Chim. Fr., 1967, 2597.
13. D. Cagniant, P. Cagniant, and G. Merle, Bull. Soc. Chim. Fr., 1968, 3828.
14. M. Dolci and R. Fochi, J. Heterocycl. Chem., 1976, 13, 365.
15. H. Wynberg and D. J. Zwanenburg, Tetrahedron Lett., 1967, 761.
16. G. Buemi, Bull. Chem. Soc. Jpn., 1989, 62, 1262.
17. D. W. Hawkins, B. Iddon, D. S. Longthorne, and P. J. Rosyk, J. Chem. Soc., Perkin Trans. 1, 1994,
2735.
18. S. Morgenlie, Acta Chem. Scand., 1970, 24, 365.
19. H. Maruoka, K. Yamagata, and M. Yamazaki, Heterocycles, 1990, 31, 2011.
20. K. Yamagata, F. Okabe, M. Yamazaki, and Y. Tagawa, Monatsh. Chem., 2002, 133, 643.
21. S. A. Glickman and A. C. Cope, J. Am. Chem. Soc., 1945, 67, 1012.
22. K. Yamagata, Y. Hashimoto, and M. Yamazaki, Liebigs Ann. Chem., 1994, 791.
23. I. Yavari, S. Seyfi, Z. Hossaini, M. Sabbaghan, and F. Shirgahi-Talari, Monatsh. Chem., 2008, 139,
1479.
24. F. Liang, J. Tan, C. Piao, and Q. Liu, Synthesis, 2008, 3579.
25. K. Kobayashi, T. Komatsu, and H. Konishi, Heterocycles, 2009, 78, 2559.
26. K. Gewald, E. Schinke, and H, Böttcher, Chem. Ber., 1966, 99, 94.
27. R. W. Sabnis, D. W. Rangnekar, and N. D. Sonawane, J. Heterocycl. Chem., 1999, 36, 333.
