Synthesis of (±)-heliannuol D based on platinum catalyzed regioselective addition of arylboronic acids to allenes

Article abstract of DOI:10.3987/COM-09-S(S)75

An alternative total synthesis of (±)-heliannuol D has been achieved in 13 steps and 6.9% overall yield from the arylboronic acid 9. The synthesis applies the previously developed regiocontrolled addition of arylboronic acids to alienes using a platinum catalyst to install the C5 carbon chain on the aryl ring.

Full text of DOI:10.3987/COM-09-S(S)75

HETEROCYCLES, Vol. 80, No. 2, 2010
1003
HETEROCYCLES, Vol. 80, No. 2, 2010, pp. 1003 - 1012. © The Japan Institute of Heterocyclic Chemistry
Received, 27th July, 2009, Accepted, 31st August, 2009, Published online, 2nd September, 2009
DOI: 10.3987/COM-09-S(S)75
SYNTHESIS OF (±)-HELIANNUOL D BASED ON PLATINUM
CATALYZED REGIOSELECTIVE ADDITION OF ARYLBORONIC
ACIDS TO ALLENES†
Mayu Osaka, Makoto Kanematsu, Masahiro Yoshida, and Kozo Shishido*
Graduate School of Pharmaceutical Sciences, The University of Tokushima,
1-78-1 Sho-machi, Tokushima 770-8505, Japan
E-mail: shishido@ph.tokushima-u.ac.jp
Abstract – An alternative total synthesis of (±)-heliannuol Dꢀhas been achieved
in 13 steps and 6.9% overall yield from the arylboronic acid 9. The synthesis
applies the previously developed regiocontrolled addition of arylboronic acids to
allenes using a platinum catalyst to install the C5 carbon chain on the aryl ring.
INTRODUCTION
In our previous paper, we reported the regiocontrolled addition of arylboronic acids 1 to allenes 2 using
the platinum catalyst 3 leading to the formation of exo-olefinic products 4 with high yields and
regioselectivity (>20:1).1 The procedure would be useful for the synthesis of natural products with a
tertiary stereogenic center at the benzylic position by hydrogenation of the products. (Scheme 1)
2+
H
Ph3P
Ph3P
O
O
H
PPh3
PPh3
–
[BF4
]
2
Pt
Pt
R
B(OH)2
OMe
3 (5 mol%)
•
R
+
OMe
4
exo/endo = >20:1
KOH, dioxane/H2O (20/1)
100 °C
1
2
Scheme 1. Regiocontrolled addition of arylboronic acids to allenes using platinum catalyst
† This paper is dedicated to Dr. Akira Suzuki on the occasion of his 80th birthday.

1004
HETEROCYCLES, Vol. 80, No. 2, 2010
RESULTS AND DISCUSSION
During the course of our projects directed towards an efficient synthesis of allelochemicals for the
development of a new type of environmentally benign herbicides,2 we planned to apply this cross
coupling reaction to the synthesis of heliannuol type sesquiterpenoids isolated from the aqueous extracts
of fresh sunflower leaves (Helianthus annuus var. SH-222).3 As a target allelochemical, we chose
heliannuol D (5),3b which has a unique carbon skeleton made up of an oxygen-containing
seven-membered heterocycle fused to the aryl ring and two stereogenic centers whose absolute
configurations were determined to be C-7R and C-10R, respectively, by our enantioselective total
synthesis of (–)-5.4a Because of the intriguing structural features and the allelopathic activity of 5, three
enantioselective total syntheses4 and six racemic syntheses5 have been reported so far. Herein we report a
new approach to the total synthesis of (±)-heliannuol D using the cross coupling methodology for the
application to the allelochemical synthesis. Approaching the synthesis from a retrosynthetic perspective,
we envisioned the following scheme: (±)-5 would be derived from the phenolic epoxide 6 employing the
intramolecular etherification we previously developed. The epoxide 6 would be prepared via
curcuhydroquinone 7,6 which can be made by catalytic hydrogenation followed by demethylation of 8.
The exo-olefinic compound 8 could in turn be synthesized by the platinum catalyzed cross coupling
reaction of the boronic acid 9 with the allene 10. (Scheme 2)
Pt catalyzed coupling
HO
7
HO
Me
MOMO
Me
O
10
Me
O
OH
OH
epoxide opening with phenoxide
6
OH
curcuhydroquinone 7
heliannuol D 5
MeO
Me
B(OH)2
OMe
OBn
MeO
Me
Pt (cat.)
•
OBn
+
OMe
8
10
9
Scheme 2. Retrosynthetic Analysis
Treatment of a mixture of the boronic acid 97 and the allene 108 with a catalytic amount of the platinum
complex, [Pt2(OH)2(Ph3P)4][BF4]2 (3),1 and KOH in dioxane/H2O (20/1) at 100 °C for 0.5 h furnished in
77% yield the coupled product 8, which was subjected to catalytic hydrogenation to give the alcohol 11.9
Swern oxidation and Julia-Kocienski olefination of the aldehyde with the sulfone 1210 in the presence of
LHMDS provided the alkene 134a in good overall yield. Oxidation of 13 with ceric ammonium nitrate
(CAN) in aqueous THF followed by immediate reduction of the resulting quinone with Na2S2O4 provided
(±)-curcuhydroquinone (7),6 which was treated with TBSCl, imidazole and 4-DMAP to give the bis-TBS

HETEROCYCLES, Vol. 80, No. 2, 2010
1005
ether 144a in 57% yield for the 3 steps. Desilylation of 14 with K2CO3 in MeOH furnished a separable
mixture of the mono-TBS ethers 15 (the desired), 16 (the undesired but which can be recycled11) and the
recovered 14 in 60%, 17% and 12% yield, respectively. The desired 15 was converted to the

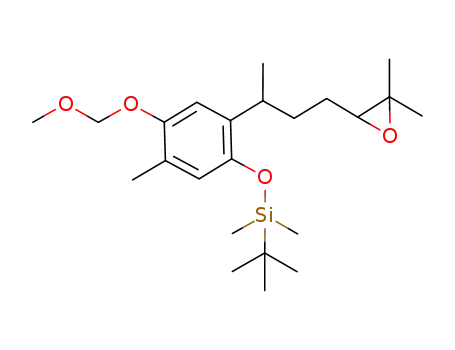

methoxymethyl (MOM) ether 17, which was oxidized with mCPBA to give the epoxide 184a as an
inseparable 1:1 mixture of diastereomers. (Scheme 3)
1) (COCl)2, DMSO, Et3N, CH2Cl2
–78 °C~0 °C, 15 min
[Pt2(OH)2(Ph3P)4][BF4]2
(5 mol%), KOH
OH
MeO
Me
H2, Pd-C, EtOH
rt, 12 h, 88%
9 + 10
8
O
O
dioxane/H2O (20/1)
100 °C, 0.5 h, 77%
OMe
11
N
S
LHMDS, THF
–78 °C~rt, 10 min
88% (2 steps)
2)
N
iPr
N
NPh
12
TBSCl, imidazole
4-DMAP, CH2Cl2
rt, 0.5 h
1) K2CO3, MeOH, rt
4 h, 60%
1) CAN, THF, H2O
0 °C, 5 min
RO
14
7
2) MOMCl, iPr2NEt, CH2Cl2
rt, 9 h, 97%
2) Na2S2O4, THF
rt, 3 h
57% (3 steps)
Me
OR
13: R=Me
14: R=TBS
mCPBA, NaHCO3
CH2Cl2, 0 °C~rt, 0.5 h
R1O
Me
MOMO
O
78%, dr=1:1
OR2
Me
OTBS
18
15: R1=H, R2=TBS
16: R1=TBS, R2=H
17: R1=MOM, R2=TBS
Scheme 3. Synthesis of (±)-curcuhydroquinone and the epoxide
Deprotection of the TBS ether in 18 was realized by treatment with CsF in DMF at 0 °C to give a
chromatographically separable mixture of the phenolic epoxides 64a and 19 in 45% and 47% yield,
respectively. Finally, 6 was treated with 5% aqueous NaOH to produce the 7-membered cyclized product
20, which was hydrolyzed with 6N HCl (aq.) to give (±)-heliannuol D (5) quantitatively. The
spectroscopic properties of the synthesized compound 5 were completely identical with those for the
natural product.3-5 Similarly, 19 was transformed to (±)-10-epi-heliannuol D (22)5a,c in 69% yield for the 2
steps. (Scheme 4)
RO
MOMO
Me
O
O
O
1) NaOH (5% aq.), rt, 31 h
2) 6N HCl (aq.), THF, rt, 2 h
OH
Me
OH
20: R=MOM
5: R=H
6
CsF, DMF
18
quant. for 5 (2 steps)
69% for 22 (2 steps)
0 °C ~ rt, 15 min
MOMO
Me
RO
45% for 6
47% for 19
10
OH
Me
O
19
OH
21: R=MOM
22: R=H
Scheme 4. Syntheses of (±)-heliannuol D and (±)-10-epi-heliannuol D

1006
HETEROCYCLES, Vol. 80, No. 2, 2010
In conclusion, an alternative total synthesis of (±)-heliannuol D (5) has been achieved in 13 steps and
6.9% overall yield from the arylboronic acid 9. This synthesis highlights the utility of the regiocontrolled
addition of arylboronic acids to allenes using platinum catalyst developed in our laboratories. The
synthetic route developed here is efficient and flexible for obtaining a variety of derivatives (e.g.
10-epi-heliannuol D), which can be supplied for evaluation of the allelopathic activity.
EXPERIMENTAL
Solvents were dried and distilled according to standard protocols. The phrase ‘residue upon workup’
refers to the residue obtained when the organic layer was separated and dried over anhydrous MgSO4 and
the solvent was evaporated under reduced pressure.
1-{5-(Benzyloxy)pent-1-en-2-yl}-2,5-dimethoxy-4-methylbenzene (8)
To a stirred solution of 5-benzyloxy-1,2-pentadiene 108 (222 mg, 1.28 mmol) in 1,4-dioxane (12.3 mL)
and H2O (0.61 mL) were added 2,5-dimethoxy-4-methylphenylboronic acid 97 (500 mg, 2.55 mmol),
[Pt2(OH)2(PPh3)4][BF4]2 (3)1 (105 mg, 0.064 mmol) and KOH (358 mg, 0.37 mmol) at rt, and stirring was
continued at 100 °C for 0.5 h. The reaction mixture was diluted with minimum amount of AcOEt and
dried over MgSO4. After filtration through a pad of silica gel, the residue upon workup was
chromatographed on silica gel with hexane-AcOEt (97:3, v/v) as eluent to give 8 (320 mg, 77%, exo:endo
= >20:1) as a colorless oil. IR (neat): 2935, 2852, 1503, 1465, 1396, 1211, 1104, 1045, 901, 737, 698
cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 1.70 (quint., J = 6.8 Hz, 2H), 2.21 (s, 3H), 2.57 (t, J = 7.6 Hz, 2H),
3.47 (t, J = 6.4 Hz, 2H), 3.74 (s, 3H), 3.76 (s, 3H), 4.47 (s, 2H), 5.02 (s, 1H), 5.13 (s, 1H), 6.61 (s, 1H),
6.68 (s, 1H), 7.26-7.33 (m, 5H); 13C-NMR (100 MHz, CDCl3) ꢀ 16.1 (CH3), 28.2 (CH2), 32.9 (CH2), 55.9
(CH3), 56.2 (CH3), 70.0 (CH2), 72.7 (CH2), 112.6 (CH), 114.0 (CH2), 114.4 (CH), 126.1 (Cq), 127.4 (CH),
127.5 (CH), 128.2 (CH), 129.7 (Cq), 138.7 (Cq), 148.5 (Cq), 150.1 (Cq), 151.5 (Cq); HRMS (ESI) m/z
calcd for C21H26O3Na [M++Na+] 349.1780, found 349.1780.
4-(2,5-Dimethoxy-4-methylphenyl)pentan-1-ol (11)9
To a stirred suspension of Pd-C (79.4 mg, 25 wt%) in EtOH (2.3 mL) was added ether 8 (317 mg, 0.97
mmol) at rt, and stirring was continued for 12 h at the same temperature under 5 atm of hydrogen gas.
The resulting solution was filtered and the solvent was evaporated to give a residue, which was
chromatographed on silica gel with hexane-AcOEt (75:25, v/v) as eluent to give the alcohol 11 (203 mg,
1
88%) as a colorless oil. IR (neat): 3363, 2937, 1505, 1464, 1398, 1209, 1046 cm-1; H-NMR (400 MHz,
CDCl3) ꢀ 1.21 (d, J = 6.8 Hz, 3H), 1.44 (s, 1H, OH, D2O exchangeable), 1.44-1.65 (m, 2H), 2.20 (s, 3H),
3.17 (sext., J = 6.8 Hz, 1H), 3.61 (t, J = 6.4 Hz, 2H), 3.76 (s, 3H), 3.79 (s, 3H), 6.67 (s, 1H), 6.68 (s, 1H);

HETEROCYCLES, Vol. 80, No. 2, 2010
1007
13C-NMR (100 MHz, CDCl3) ꢀ 16.0 (CH3), 21.0 (CH3), 30.7 (CH2), 31.5 (CH), 33.4 (CH2), 56.1 (CH3),
56.3 (CH3), 62.9 (CH2), 109.6 (CH), 114.3 (CH), 124.3 (Cq), 133.5 (Cq), 150.6 (Cq), 151.9 (Cq); HRMS
(ESI) m/z calcd for C12H14ONa [M++Na+] 261.1467, found 261.1467.
1-(1,5-Dimethylhex-4-enyl)-2,5-dimethoxy-4-methylbenzene (13)4a
To a solution of oxalyl chloride (1.63 mL, 18.7 mmol) in CH2Cl2 (17.6 mL) was added DMSO (1.8 mL,
23 mmol) in CH2Cl2 (8.8 mL) at –78 °C. A solution of 11 (1.78 g, 7.5 mmol) in CH2Cl2 (17.6 mL) was
added dropwise, and after 30 min, Et3N (8.14 mL, 58.4 mmol) was added. After being stirred for 10 min
at –78 °C, the reaction mixture was allowed to warm to 0 °C over 15 min and the reaction mixture was
diluted with water and concentrated in vacuo. The residue was extracted with Et2O and the combined
extracts were washed with brine. The residue upon workup was the corresponding aldehyde, a colorless
10
oil, which was used to the next reaction without further purification. To a solution of sulfone 12 (4.3 g,
17 mmol) in THF (100 mL) at –78 °C was added dropwise LHMDS (1.6 M in THF, 10.8 mL, 17 mmol).
The yellow solution was stirred at –78 °C for 30 min and the solution was added in one portion with a
precooled syringe to a solution of the crude aldehyde in THF (100 mL) at –78 °C. The reaction mixture
was stirred at –78 °C for 3 h, then the mixture was slowly warmed to rt and stirred for 10 min. The
reaction mixture was quenched with H2O and concentrated in vacuo. The residue was extracted with Et2O
and the extracts were washed with brine. The residue upon workup was chromatographed on silica gel
with hexane-AcOEt (95:5, v/v) as eluent to give 13 (1.73 g, 88% for the 2 steps) as a colorless oil. IR
(neat): 2927, 2852, 1504, 1465, 1398, 1208, 1049 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 1.18 (d, J = 7.2 Hz,
3H), 1.54 (s, 3H), 1.48-1.67 (m, 2H), 1.67 (s, 3H), 1.92 (dt, J = 16.6 Hz and 8.4 Hz, 2H), 2.20 (s, 3H),
13
3.14 (sext., J = 7.6 Hz, 1H), 3.76 (s, 3H), 3.78 (s, 3H), 5.12 (t, J = 7.2 Hz, 1H), 6.67 (s, 2H); C-NMR
(100 MHz, CDCl3) ꢀ 16.0 (CH3), 17.5 (CH3), 21.2 (CH3), 25.6 (CH3), 26.3 (CH2), 31.9 (CH), 37.3 (CH2),
55.9 (CH3), 56.2 (CH3), 109.7 (CH), 114.2 (CH), 124.1 (Cq), 124.8 (CH), 130.9 (Cq), 133.9 (Cq), 150.8
(Cq), 151.9 (Cq); HRMS (ESI) m/z calcd for C17H26O2Na [M++Na+] 285.1831, found 285.1839.
1,4-Bis-(tert-butyldimethylsiloxy)-2-(1,5-dimethylhex-4-enyl)-5-methylbenzene (14)4a
To a solution of 13 (31.7 mg, 0.121 mmol) in THF (1.12 mL) and H2O (0.38 mL) was added CAN (159
mg, 0.29 mmol) at 0 °C. After being stirred at the same temperature for 5 min, the reaction mixture was
diluted with H2O and extracted with Et2O. The combined extracts were washed with brine and the residue
upon workup was curcuquinone,6 a yellow oil, which was used to the next reaction without further
purification. To a solution of curcuquinone in THF (0.6 mL) was added and Na2S2O4 (63.5 mg, 0.36
mmol) in H2O at 0 °C. After being stirred at rt for 3 h, the reaction mixture was quenched with saturated
aqueous NH4Cl and extracted with Et2O. The extracts were washed with brine and the residue upon

1008
HETEROCYCLES, Vol. 80, No. 2, 2010
workup was curcuhydroquinone 76, a yellow oil, which was used to the next reaction without further
purification. To a solution of curcuhydroquinone, imidazole (29.6 mg, 0.435 mmol) and TBSCl (40.1 mg,
0.27 mmol) in CH2Cl2 (0.6 mL) was added 4-DMAP (1.5 mg, 12.1 mmol) at 0 °C. After being stirred for
0.5 h at rt, the reaction mixture was quenched with water and extracted with CH2Cl2. The extracts were
washed with brine and the residue upon workup was chromatographed on silica gel with hexane-AcOEt
(95:5, v/v) as eluent to give 14 (31.9 mg, 57% for the 3 steps) as a colorless oil. IR (neat): 2958, 2930,
2859, 1499, 1472, 1463, 1399, 1255, 1203 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 0.16-0.19 (m, 12H), 1.00
(s, 18H), 1.11 (d, J = 6.8 Hz, 3H), 1.46-1.53 (m. 5H), 1.66 (s, 3H), 1.88-1.96 (m, 2H), 2.11 (s, 3H), 3.10
(sext., J = 7.2 Hz, 1H), 5.09 (t, J = 6.4 Hz, 1H), 6.53 (s, 1H), 6.55 (s, 1H); 13C-NMR (100 MHz, CDCl3) ꢀ
-4.3 (CH3), -4.1 (CH3), 16.6 (CH3), 17.6 (CH3), 18.2 (Cq), 18.2 (Cq), 21.3 (CH3), 25.7 (CH3), 25.8 (CH3),
26.1 (CH2), 30.8 (CH), 37.4 (CH2), 116.8 (CH), 120.6 (CH), 124.8 (CH), 125.8 (Cq), 131.1 (Cq), 135.7
(Cq), 146.6 (Cq), 147.8 (Cq); HRMS (ESI) m/z calcd for C29H58O2NaSi2 [M++Na+] 517.3873, found
517.3872.
4-(tert-Butyldimethylsiloxy)-5-(1,5-dimethylhex-4-enyl)-2-methylphenol
4-(tert-Butyldimethylsiloxy)-2-(1,5-dimethylhex-4-enyl)-5-methylphenol (16)
(15)
and
To a solution of 14 (40.7 mg, 87.9 μmol) in MeOH (2.9 mL) was added K2CO3 (36.5 mg, 0.26 mmol) at
rt. After being stirred for 4 h, the reaction mixture was quenched with waterand extracted with AcOEt.
The extracts were washed with brine and the residue upon workup was chromatographed on silica gel
with CHCl3 as eluent to give the recovered 14 (9.2 mg, 22%), compound 16 (5.3 mg, 17%) as a colorless
oil, and compound 15 (18.5 mg, 60%) as a colorless oil.
1
Compound 16: IR (neat): 3414, 2958, 2928, 2857, 1510, 1412, 1256, 1195 cm-1; H-NMR (400 MHz,
CDCl3) d 0.17 (s, 6H), 1.01 (s, 9H), 1.19 (d, J = 6.8 Hz, 3H), 1.53 (s, 3H), 1.53-1.60 (m. 2H), 1.68 (s, 3H),
1.93 (q, J = 7.2 Hz, 2H), 2.12 (s, 3H), 2.92 (sext., J = 7.2 Hz, 1H), 4.31 (s, 1H, OH, D2O exchangeable),
5.11 (t, J = 7.2 Hz, 1H), 6.55 (s, 2H); 13C-NMR (100 MHz, CDCl3) d -4.2 (CH3), -4.2 (CH3), 16.4 (CH3),
17.7 (CH3), 18.2 (Cq), 21.2 (CH3), 25.7 (CH3), 25.8 (CH3), 26.0 (CH2), 31.4 (CH), 37.4 (CH2), 117.0
(CH), 117.8 (CH), 124.6 (CH), 126.6 (Cq), 130.8 (Cq), 132.0 (Cq), 146.8 (Cq), 147.7 (Cq); HRMS (ESI)
m/z calcd for C21H37O2Si [M++H+] 349.2563, found 349.2559.
1
Compound 15: IR (neat): 3353, 2958, 2928, 2858, 1503, 1462, 1408, 1196 cm-1; H-NMR (400 MHz,
CDCl3) ꢀ 0.19 (s, 3H), 0.20 (s, 3H), 1.00 (s, 9H), 1.12 (d, J = 6.8 Hz, 3H), 1.47-1.60 (m. 2H), 1.54 (s, 3H),
1.66 (s, 3H), 1.86-2.00 (m, 2H), 2.16 (s, 3H), 3.10 (sext., J = 6.8 Hz, 1H), 4.26 (s, 1H, OH, D2O
13
exchangeable), 5.09 (tt, J = 7.2 Hz and 1.2 Hz, 1H), 6.53 (s, 1H), 6.58 (s, 1H); C-NMR (100 MHz,
CDCl3) ꢀ -4.2 (CH3), -4.1 (CH3), 15.6 (CH3), 17.6 (CH3), 18.2 (Cq), 21.2 (CH3), 25.7 (CH3), 25.8 (CH3),
26.1 (CH2), 30.9 (CH), 37.4 (CH2), 113.3 (CH), 120.6 (CH), 121.0 (Cq), 124.7 (CH), 131.1 (Cq), 136.6

HETEROCYCLES, Vol. 80, No. 2, 2010
1009
(Cq), 146.4 (Cq), 147.8 (Cq); HRMS (ESI) m/z calcd for C21H37O2Si [M++H+] 349.2563, found 349.2560.
1,4-Bis-(tert-butyldimethylsiloxy)-2-(1,5-dimethylhex-4-enyl)-5-methylbenzene (14)4a
To a solution of 16 (5.1 mg, 14.63 μmol) and TBSCl (3.3 mg, 21.95 μmol) in CH2Cl2 (0.1 mL) was added
4-DMAP (0.2 mg, 1.46 μmol) at rt. After being stirred for 10 min, the reaction mixture was quenched
with water and extracted with CH2Cl2. The extracts were washed with brine and the residue upon workup
was chromatographed on silica gel with hexane-AcOEt (98:2, v/v) as eluent to give the olefin 14 (5.9 mg,
87%) as a colorless oil.
6-(2-tert-Butyldimethylsiloxy-5-methoxymethoxy-4-methylphenyl)-2-methyl-2-heptene (17)
i
To a solution of 15 (57.9 mg, 0.17 mmol) in CH2Cl2 (1.0 mL) was added Pr2NEt (0.35 mL, 1.99 mmol)
and methoxymethyl chloride (0.13 mL, 1.66 mmol) at rt. The reaction mixture was stirred for 9 h at the
same temperature, then quenched with water and extracted with Et2O. The extracts were washed with
brine and the residue upon workup was chromatographed on silica gel with hexane-AcOEt (92.5:7.5, v/v)
as eluent to give the MOM ether 17 (63.1 mg, 97%) as a colorless oil. IR (neat): 2957, 2928, 2857, 1501,
1391, 1255, 1215, 1193, 1151 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 0.20 (s, 3H), 0.21 (s, 3H), 1.01 (s, 9H),
1.13 (d, J = 6.8 Hz, 3H), 1.48-1.60 (m, 2H), 1.54 (s, 3H), 1.66 (s, 3H), 1.93 (quint., J = 7.2 Hz, 2H),
2.17 (s, 3H), 3.11 (sext., J = 6.8 Hz, 1H), 3.50 (s, 3H), 5.08-5.12 (m, 1H), 5.10 (s, 2H), 6.55 (s, 1H), 6.82
13
(s, 1H); C-NMR (100 MHz, CDCl3) ꢀ -4.2 (CH3), -4.1 (CH3), 16.0 (CH3), 17.6 (CH3), 18.2 (Cq), 21.2
(CH3), 25.7 (CH3), 25.8 (CH3), 26.2 (CH2), 31.2 (CH), 37.2 (CH2), 56.0 (CH3), 95.8 (CH2), 113.7 (CH),
120.5 (CH), 124.8 (CH), 125.2 (Cq), 131.1 (Cq), 136.0 (Cq), 147.4 (Cq), 149.9 (Cq); HRMS (ESI) m/z
calcd for C23H41O3Si [M++H+] 393.2825, found 393.2823.
6-(2-tert-Butyldimethylsiloxy-5-methoxymethoxy-4-methylphenyl)-2-methyl-2,3-epoxyheptane (18)4a
To a mixture of 17 (19.9 mg, 50.7 μmol) and sodium bicarbonate (21.3 mg, 0.25 mmol) in CH2Cl2 (0.5
mL) was added mCPBA (20.2 mg, 76.0 μmol) at 0 °C. After being stirred at rt for 0.5 h, the reaction
mixture was quenched with saturated aqueous NaHCO3 and concentrated in vacuo. The residue was
extracted with CH2Cl2, the extracts were washed with brine and the residue upon workup was
chromatographed on silica gel with hexane-AcOEt (90:10, v/v) as eluent to give a 1:1 diastereomeric
mixture of 18 (16.2 mg, 78%) as a colorless oil. IR (neat): 2958, 2930, 2859, 1503, 1391, 1255, 1215,
1194, 1151 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 0.19-0.21 (m, 6H), 1.00 (s, 4.5H), 1.00 (s, 4.5H), 1.17 (d,
J = 6.8 Hz, 3H), 1.19 (s, 3H), 1.25 (s, 1.5H), 1.26 (s, 1.5H), 1.35-1.73 (m, 4H), 2.17 (s, 3H), 2.65-2.71 (m,
1H), 3.16 (sext., J = 6.4 Hz, 1H), 3.49 (s, 1.5 H), 3.50 (s, 1.5H), 5.08-5.12 (m, 2H), 6.56 (s, 1H), 6.82 (s,
0.5H), 6.83 (s, 0.5H); 13C-NMR (100 MHz, CDCl3) ꢀ -4.2 (CH3), -4.0 (CH3), 16.1 (CH3), 18.3 (Cq), 18.6

1010
HETEROCYCLES, Vol. 80, No. 2, 2010
(CH3), 21.1 (CH3), 21.4 (CH3), 24.9 (CH3), 25.9 (CH3), 27.0 (CH2), 27.4 (CH2), 31.5 (CH), 31.7 (CH),
33.7 (CH2), 34.1 (CH2), 56.0 (CH3), 58.2 (Cq), 64.3 (CH), 64.6 (CH), 95.7 (CH2), 113.5 (CH), 113.6 (CH),
120.6 (CH), 120.7 (CH), 125.5 (Cq), 135.2 (Cq), 147.4 (Cq), 150.0 (Cq); HRMS (ESI) m/z calcd for
C23H40O4NaSi [M++Na+] 431.2594, found 431.2596.
6-(2-Hydroxy-5-methoxymethoxy-4-methylphenyl)-2-methyl-2,3-epoxyheptane
3-epi-6-(2-hydroxy-5-methoxymethoxy-4-methylphenyl)-2-methyl-2,3-epoxyheptane (19)
(6)4a
and
To a mixture of CsF (6.8 mg, 0.04 mmol) in DMF (0.62 mL) was added 18 (15.3 mg, 37.4 mmol) in
DMF (0.62 mL) at 0 °C. The reaction mixture was stirred at rt for 15 min, then quenched with water and
extracted with Et2O. The extracts were washed with brine and the residue upon workup was
chromatographed on silica gel with hexane-AcOEt (90:10, v/v) as eluent to give 19 (5.2 mg, 47%) as a
colorless oil and 6 (4.9 mg, 45%) as a colorless oil.
1
Compound 19: IR (neat): 3379, 2960, 2927, 1514, 1455, 1399, 1191, 1150 cm-1; H-NMR (400 MHz,
CDCl3) ꢀ 1.06-1.17 (m, 1H), 1.21 (s, 3H), 1.25 (d, 6.8 Hz, 3H), 1.33 (s, 3H), 1.67-1.76 (m, 2H), 1.80-1.87
(m, 1H), 2.17 (s, 3H), 2.85 (dd, J = 9.2 Hz and 1.6 Hz, 1H), 3.14-3.18 (m, 1H), 3.50 (s, 3H), 5.08-5.11 (m,
2H), 6.61 (s, 1H, OH, D2O exchangeable), 6.66 (s, 1H), 6.80 (s, 1H); 13C-NMR (100 MHz, CDCl3) ꢀ 15.9
(CH3), 18.4 (CH3), 22.4 (CH3), 24.7 (CH3), 25.9 (CH2), 30.5 (CH), 36.4 (CH2), 56.0 (CH3), 58.9 (Cq),
66.2 (CH), 95.9 (CH2), 113.3 (CH), 119.3 (CH), 126.4 (Cq), 130.5 (Cq), 148.3 (Cq), 149.9 (Cq); HRMS
(ESI) m/z calcd for C17H27O4 [M++H+] 295.1909, found 295.1913.
Compound 6: IR (neat): 3375, 2960, 1456, 1191, 1149, 1058 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 1.21 (s,
3H), 1.24 (d, J = 7.2 Hz, 3H), 1.28 (s, 3H), 1.44-1.69 (m, 3H), 1.77-1.86 (m, 1H), 2.17 (s, 3H), 2.72 (t, J
= 6.4 Hz, 1H), 3.07 (sext., J = 6.8 Hz, 1H), 3.50 (s, 3H), 4.58 (s, 1H, OH, D2O exchangeable), 5.10 (s,
13
2H), 6.56 (s, 1H), 6.83 (s, 1H); C-NMR (100 MHz, CDCl3) ꢀ 15.8 (CH3), 18.6 (CH3), 20.8 (CH3), 24.8
(CH3), 26.7 (CH2), 32.0 (CH), 33.6 (CH2), 56.0 (CH3), 58.8 (Cq), 64.6 (CH), 95.9 (CH2), 114.2 (CH),
117.8 (CH), 126.1 (Cq), 130.9 (Cq), 147.9 (Cq), 149.6 (Cq); HRMS (ESI) m/z calcd for C17H27O4
[M++H+] 295.1909, found 295.1911.
(±)-Heliannuol D (5)5
A solution of 6 (10.1 mg, 34 μmol) in 5% aqueous NaOH (1.1 mL) was stirred at rt for 31 h. The reaction
mixture was diluted with CHCl3, acidified with 1% aqueous HCl (pH<7) and extracted with CHCl3. The
extracts were washed with brine and the residue upon workup was the alcohol 20, a colorless oil, which
was used to the next reaction without further purification. To a solution of the crude 20 in THF (0.1 mL)
was added 6 N HCl aq. (0.1 mL). After being stirred at rt for 2 h, the mixture was extracted with Et2O.
The extracts were washed with brine and the residue upon workup was chromatographed on silica gel

HETEROCYCLES, Vol. 80, No. 2, 2010
1011
with hexane-AcOEt (70:30, v/v) as eluent to give the (ꢀ)-heliannuol D 5 (8.7 mg, quant. for 2 steps) as a
colorless crystalline solid. mp 157-158 °C (lit.,5a,c 161-162 °C); IR (KBr): 3362, 2931, 2360, 1508, 1456,
1
1417, 1375, 1192, 1065 cm-1; H-NMR (400 MHz, CDCl3) ꢀ 1.27-1.29 (m, 9H), 1.72-2.05 (m, 4H), 2.16
(s, 3H), 2.66 (s, 1H, OH, D2O exchangeable), 2.88-2.91 (m, 1H), 3.30 (dd, J = 11.2 Hz and 1.2 Hz, 1H),
13
4.54 (s, 1H, OH, D2O exchangeable), 6.54 (s, 1H), 6.73 (s, 1H); C-NMR (100 MHz, CDCl3) ꢀ 15.3
(CH3), 18.6 (CH3), 24.5 (CH3), 25.6 (CH2), 26.1 (CH3), 31.8 (CH2), 38.5 (CH), 72.6 (Cq), 90.5 (CH),
115.8 (CH), 122.1 (Cq), 123.5 (CH), 138.2 (Cq), 149.6 (Cq), 151.7 (Cq); HRMS (ESI) m/z calcd for
C15H23O3 [M++H+] 251.1647, found 251.1643.
(±)-10-epi-Heliannuol D (22)5a,c
According to the same procedure as for the preparation of 5, 22 was obtained from 19 as a colorless
crystalline solid in 69% yield for the 2 steps. mp 155-157 °C (lit.,5c 158-159 °C); IR (KBr): 3262, 2973,
1506, 1456, 1374, 1187, 1152, 1062 cm-1; 1H-NMR (400 MHz, CDCl3) ꢀ 1.27 (s, 3H), 1.28 (s, 3H), 1.30
(d, J = 7.2 Hz, 3H), 1.87-1.93 (m, 3H), 2.18 (s, 3H), 2.63 (s, 1H, OH, D2O exchangeable), 3.02 (quint., J
= 8.0 Hz, 1H), 3.24 (dd, J = 10.0 Hz and 3.2 Hz, 1H), 4.62 (s, 1H, OH, D2O exchangeable), 6.61 (s, 1H),
6.76 (s, 1H); 13C-NMR (100 MHz, CDCl3) ꢀ 15.3 (CH3), 20.2 (CH3), 24.4 (CH3), 26.3 (CH3), 30.9 (CH2),
34.3 (CH), 65.9 (CH2), 72.5 (Cq), 89.7 (CH), 112.7 (CH), 121.5 (Cq), 122.8 (CH), 138.5 (Cq), 149.8 (Cq),
152.6 (Cq); HRMS (ESI) m/z calcd for C15H23O3 [M++H+] 251.1647, found 251.1645.
ACKNOWLEDGEMENTS
This work was supported financially by the Program for the Promotion of Basic and Applied Research for
Innovations in the Bio-oriented Industry (BRAIN).
REFERENCES AND NOTES
1. M. Yoshida, K. Matsuda, Y. Shoji, T. Gotou, M. Ihara, and K. Shishido, Org. Lett., 2008, 10, 5183.
2. For our recent synthetic studies on allelochemicals, see, T. Kamei, T. Takahashi, M. Yoshida, and K.
Shishido, Heterocycles, 2009, 78, 1439; F. A. Macías, D. Chinchilla, J. M. G. Molinilo, F. R.
Fronczek, and K. Shishido, Tetrahedron, 2008, 64, 5502; K. Ohtsuki, K. Matsuo, T. Yoshikawa, C.
Moriya, K. Tomita-Yokotani, K. Shishido, and M. Shindo, Org. Lett., 2008, 10, 1247; H. Yokoe, H.
Sasaki, T. Yoshimura, M. Shindo, M. Yoshida, and K. Shishido, Org. Lett., 2007, 9, 969. For
reviews, see, T. Kamei, S. Morimoto, and K. Shishido, J. Synth. Org. Chem., Japan, 2006, 64, 1021;
K. Shishido, Heterocycles, 2009, 78, 873.
3. (a) F. A. Macías, R. M. Varela, A. Torres, J. M. G. Molinillo, and F. R. Fronczek, Tetrahedron Lett.,
1993, 34, 1999; (b) F. A. Macías, J. M. G. Molinillo, R. M. Varela, A. Torres, and F. R. Fronczek, J.

1012
HETEROCYCLES, Vol. 80, No. 2, 2010
Org. Chem., 1994, 59, 8261.
4. (a) K. Takabatake, I. Nishi, M. Shindo, and K. Shishido, J. Chem. Soc., Perkin Trans. 1, 2000, 1807;
(b) H. Kishuku, T. Yoshimura, M. Shindo, and K. Shishido, Heterocycles, 2003, 61, 125; (c) J.
Zhang, X. Wang, W. Wang, W. Quan, X. She, and X. Pan, Tetrahedron, 2007, 63, 6990.
5. (a) J. R. Vyvyan and R. E. Looper, Tetrahedron Lett., 2000, 41, 1151; (b) K. Tuhina, D. R.
Bhowmik, and R. V. Benkateswaran, Chem. Commun., 2002, 634; (c) F. A. Macias, D. Chinchilla, J.
M. G. Molinillo, D. Marin, R. M. Varela, and A. Torres, Tetrahedron, 2003, 59, 1679; (d) F. Doi, T.
Ohta, T. Ogamino, T. Sugai, K. Higashinakasu, K. Yamada, H. Shigemori, K. Hasegawa, and S.
Nishiyama, Phytochemistry, 2004, 65, 1405; (e) S. K. Sabui and R. V. Benkateswaran, Tetrahedron
Lett., 2004, 45, 983; (f) S. K. Sabui and R. V. Benkateswaran, Tetrahedron Lett., 2004, 45, 2047.
6. T. Yoshimura, H. Kishuku, T. Kamei, K. Takabatake, M. Shindo, and K. Shishido, ARKIVOC, 2003,
8, 232.
7. P. Debroy, S. V. Lindeman, and R. Rathore, Org. Lett., 2007, 9, 4091.
8. D. Hideura, H. Urabe, and F. Sato, Chem. Commun., 1998, 271.
9. M. Ono, Y. Yamamoto, R. Todoroki, and H. Akita, Heterocycles, 1994, 37, 181.
10. C. Meyers and E. M. Carreira, Angew. Chem. Int. Ed., 2003, 42, 694.
11. The undesired isomer 16 was converted to 14 in 87% yield upon treatment with TBSCl, imidazole
and 4-DMAP in CH2Cl2 at rt.
