Novel trimethyl lock based enzyme switch for the self-assembly and
disassembly of gold nanoparticlesw
Rongrong Liu,a Junxin Aw,a Weiling Teo,a Parasuraman Padmanabhanb and
Bengang Xing*a
Received (in Montpellier, France) 20th December 2009, Accepted 25th January 2010
First published as an Advance Article on the web 12th February 2010
DOI: 10.1039/b9nj00776h
A novel trimethyl lock based dual enzyme-responsive gold
nanoparticles (AuNPs) conjugate was developed to control the
self-assembly and disassembly of AuNPs in one population of
nanoparticles, which can be easily monitored by naked eye,
simple spectrophotometer and surface enhanced Raman scatter-
ing (SERS) measurements.
to release the peptide linker upon the esterase treatment,
leading to the self-assembly of AuNPs; (2). A protease active
section to cleave the peptide and induce further AuNPs
disassembly (Scheme 2). Both esterase and protease are known
to be abundant in nature and are essential for many important
biological processes,6 and they are also involved in various
disease states such as HIV, cancer, Alzheimer’s and heart
diseases.7 Based on the specific enzymatic hydrolysis, both
the self-assembly and disassembly of AuNPs can be achieved
in the same nanoparticles system and this sequential two-step
process will be easily monitored by naked eye, simple spectro-
photometer and surface enhanced Raman scattering (SERS)
measurements.
The programmed self-assembly of gold nanoparticles (AuNPs)
with controlled surface chemistry has attracted considerable
attention for their potential applications in drug delivery and
medical diagnosis.1 A number of specific biomolecular recog-
nition motifs such as complementary oligonucleotide hybridi-
zation, biotin-avidin binding and enzymatic catalytic reactions
have been extensively exploited for the control of AuNPs
assembly, which provide a simple and specific sensing platform
for the systematic identification of a variety of molecular
analytes including DNAs,2 bacterial toxins,3 proteins and
enzymes4 by performing colorimetric or surface enhanced
Raman scattering (SERS) measurements. However, most of
the molecular recognitions were mainly based on one-step
AuNPs aggregation or dispersion and these assembly or
disassembly processes were usually achieved in a separate
population of gold nanoparticles. A few recognition processes
with various degrees of continuous two-step self-assembly of
AuNPs have been reported, in which the triggered changes in
their assembled states were driven by a physical or chemical
perturbation such as pH,5a–c temperature,5d light,5e concentra-
tion of inorganic/organic molecules,5f–h or fuelling oligo-
nucleotides.5i–l However, the development of AuNPs
network where the self-assembly and disassembly are asso-
ciated with multiple enzyme stimuli within one population of
nanoparticles has not been well-exploited yet.
To demonstrate the proof of concept, we designed the self-
assembled functionalized AuNPs network based on dual

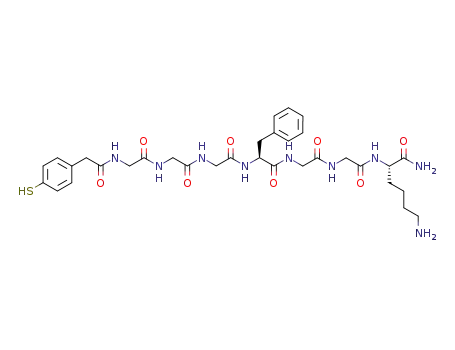

enzyme reactions. As shown in Scheme 2, a flexible 4-mercapto-
phenylacetic acid modified thermolysin cleavable peptide
(SH–Ph–CH2–Gly–Gly–GlykPhe–Gly–Gly–Lys(NH2)–CO–
NH2) was connected to the carboxyl on the acetylated
o-hydroxyphenolpropionic acids derivatives (See the ESIw),
which are well known as ‘‘trimethyl lock’’ commonly used in
‘‘prodrug’’ development and fluorescent imaging,8 to afford
the thiol ester and amide bond at each end of the peptide
sequence. The advantage of introducing ‘‘trimethyl lock’’ in
this investigation is to achieve the effective esterase hydrolysis
for the further release of the peptide linker based on lactoniza-
tion reaction, and also to significantly minimize the self-
aggregation of AuNPs caused by enzyme substrate itself as
reported in previous study.4d Typically, the ‘‘trimethyl lock’’
peptide substrate (8.5 mM) was firstly incubated with esterase
(1.25 mg mLÀ1) in monodispersed bis (p-sulfonatophenyl)
phenylphosphane stabilized AuNPs suspension (pH 7.4) for
2 h. The enzyme hydrolysis catalyzed by esterase resulted in
the cleavage of the thiolester bond and removal of acetyl
group from the ‘‘trimethyl lock’’ peptide substrate. Unmask-
ing of phenolic oxygen would facilitate the lactone formation
In this study, we present a novel ‘‘trimethyl lock’’ based dual
enzyme-responsive AuNPs conjugate which can be utilized to
control the self-assembly and disassembly of AuNPs in the
same population of nanoparticles (Scheme 1). The enzyme-
responsive AuNPs conjugate in our design consists of two
sections: (1). A unique ‘‘trimethyl lock’’ lactonization section
a Division of Chemistry & Biological Chemistry, School of Physical &
Mathematical Sciences, Nanyang Technological University, 637371,
Singapore. E-mail: Bengang@ntu.edu.sg; Tel: +65-63168758
b Translational Molecular Imaging Group (TMIG), Singapore
Bio-Imaging Consortium (SBIC), A*Star, Singapore
w Electronic supplementary information (ESI) available: Synthesis
of ‘‘trimethyl lock’’ peptide conjugates and their characterizations.
RP-HPLC analysis of enzymatic hydrolysis and transmission electron
microscope (TEM) images. See DOI: 10.1039/b9nj00776h
Scheme 1 Schematic illustration for the self-assembly and disassembly
of based on the dual enzyme reactions.
ꢀc
This journal is The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2010
594 | New J. Chem., 2010, 34, 594–598

View Article Online
Fig. 1 Color image (a) and UV/Vis spectrum (b) for the self-assembly
and disassembly of AuNPs induced by the enzyme reactions. State 1:
AuNPs with ‘‘trimethyl lock’’ peptide substrate (8.5 mM) only; State 2:
AuNPs with esterase (1.25 mg mLÀ1) treated substrate (8.5 mM); State 3:
Aggregated AuNPs in state 2 treated with thermolysin (60 mg mLÀ1).
peptide substrate towards enzyme cleavage and the continuous
AuNPs color change in one population of nanoparticles was
from the specific enzyme recognitions. This process can be
influenced by the concentration of trimethyl lock peptide
substrate (see the ESIw).
Scheme 2 Mechanism illustrating the self-assembly and disassembly
of AuNPs by ‘‘trimethyl lock’’ peptide substrate, catalyzed by esterase
and protease enzymes.
Further evidence of the AuNPs self-assembly and disassem-
bly based on the dual enzyme reactions was obtained from
dynamic light scattering (DLS). As shown in Fig. 3, the
‘‘trimethyl lock’’ peptide substrate itself was unable to induce
the assembly of the AuNPs and the hydrodynamic size of the
monodispersed AuNPs was determined to be 9.6 nm
(Fig. 3(a)). Upon the esterase treatment, the specific lactoniza-
tion of the ‘‘trimethyl lock’’ triggered the release of thiol and
amino groups at each end of the peptide, which initiated the
distinctive self-assembly of AuNPs. The nanoparticles
with concomitant release of peptide moiety previously attached
to the carboxyl groups. The free thiol and positively charged
amino group at each end of released peptide initiated the
formation of aggregated AuNPs clusters through Au–S bond
and electrostatic interactions with the functional groups on the
surface of bis (p-sulfonatophenyl) phenylphosphane stabilized
AuNPs,9 thus resulting in the significant color change from
red to blue. Meanwhile, both an increased absorption band
at 600 nm and a decreased absorption at 520 nm were
observed in the UV-Vis spectrum (Fig. 1, state 2). As a control,
the incubation of AuNPs with only intact ‘‘trimethyl lock’’
peptide substrate could not induce any further color change
and spectral shifts (Fig. 1, state 1), indicating the substrate was
stable and the self-assembly of AuNPs was mainly from
the esterase reaction. The state of AuNPs was observed to
be highly aggregated with higher concentration of esterase
and the absorbance reached a plateau when the enzyme
concentration was higher than 1 mg mLÀ1 (Fig. 2(a)). The
minimum concentration of esterase that could induce the
AuNPs self-assembly was found to be 18.5 ng mLÀ1. In order
to examine whether the second enzyme could disassemble
the aggregated AuNPs, the aggregated AuNPs were further
treated with protease thermolysin (60 mg mLÀ1) at 37 1C for
4 h. The amide bond between Gly and Phe in the peptide
sequence which was connecting to the AuNPs would be
selectively recognized and cleaved. The AuNPs aggregation
was interrupted and the disassembly of AuNPs resulted in the
color change from blue to red and the maximum plasmon
resonance peak shifted back from 600 nm to 520 nm (Fig. 1,
state 3). The results demonstrated that addition of thermolysin
could induce the redispersion of aggregated AuNPs in the
solution. This disassembled process could be easily achieved with
the thermolysin enzyme concentration as low as 34.1 ng mLÀ1
.
Fig. 2 (a) Esterase concentration versus absorbance at 600 nm of
AuNPs aggregation after addition of esterase treated ‘‘trimethyl lock’’
conjugate. (b) Thermolysin concentration versus absorbance at 520 nm
of AuNPs redispersion upon hydrolysis of peptide linker.
The hydrolysis of ‘‘trimethyl lock’’ peptide substrate catalyzed
by esterase or thermolysin was monitored by RP-HPLC
(see the ESIw). All the results confirmed the active site of
ꢀc
This journal is The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2010
New J. Chem., 2010, 34, 594–598 | 595

View Article Online
aggregated into larger clusters with the hydrodynamic dia-
meter increasing to 153.2 nm (Fig. 3(b)). Following the addi-
tion of thermolysin into the assembled AuNPs for 4 h, DLS
showed a population of well-dispersed AuNPs with the aver-
age size reducing to 14.6 nm, indicating the disassembly of
AuNPs based on the protease cleavage. Compared to the
monodispersed AuNPs, the slight size increasing in the dis-
assembled particles revealed the presence of cleaved peptide
fragment on the surface of redispersed AuNPs (Fig. 3(c)).
Transmission electron microscope (TEM) measurements were
also performed to determine the different self-assembly and
disassembly states of AuNPs (See the ESIw). The data revealed
the dual enzymatic reactions were crucial for the continuous
assembly and disassembly of AuNPs, which is consistent with
the results in DLS and previous measurements.
Fig. 4 Raman spectra of (a) 10À1 M dipotassium bis (p-sulfonato-
phenyl) phenylphosphine dihydrate solution; (b) AuNPs stabilized
with dipotassium bis (p-sulfonatophenyl) phenylphosphane; (c) Stabi-
lized AuNPs with esterase treated substrate and (d) Aggregated
AuNPs treated with thermolysin, Laser wavelength: 633 nm.
It has been well known that resonant surface plasmon
excitation of the free electrons in metal nanostructures can
enhance localized electromagnetic fields around the surface.
This enhancement effect becomes particularly strong in the
interstitial spaces of aggregated nanoparticles, which is very
suitable as platform for surface enhanced Raman scattering
(SERS) studies.2b,c In order to monitor the self-assembly and
disassembly processes of AuNPs induced by the multiple
enzyme interactions, the SERS enhancement measurements
were performed directly by using stabilizer, dipotassium bis
(p-sulfonatophenyl) phenylphosphine dihydrate as molecular
reporter. As depicted in Fig. 4(b), the stabilized AuNPs with-
out esterase treatment did not have plasmonic coupling and
SERS signals from these dispersed particles were very weak.
However, intense signals were detected from AuNPs aggrega-
tion upon the addition of ‘‘trimethyl lock’’ peptide conjugate
treated with esterase (Fig. 4(c)). The observed SERS signals
included the n (CH) at 765 cmÀ1, d (CH) at 1098 cmÀ1, and
n (CC) at 1603 cmÀ1 which were in accordance with char-
acteristic bands of stabilizer in aqueous solution (Fig. 4(a)).10
After further treatment with thermolysin, the peptide sequence
in the aggregate was cleaved and the aggregated AuNPs went
back to the dispersed state and no SERS signals could be
observed as shown in Fig. 4(d).
In conclusion, we have demonstrated a unique design for the
control of self-assembly and disassembly of AuNPs on the
basis of dual enzyme reactions in one population of nano-
particles. This process is illustrated by a series of enzymatic
reactions in which randomly dispersed AuNPs are first con-
verted into an aggregated structure, and subsequently to a
redispersed state upon different enzyme treatments. Based on
the consecutive color change from red to blue and finally to
red again, visualization of the self-assembly and disassembly
of AuNPs in the same nanoparticles system can be observed
by the naked eye, simple spectrotrophometer and surface
enhanced Raman scattering (SERS) measurements. With
more sophisticated design of the substrate or peptide sequence,
this strategy could also be readily extended to other enzymatic
systems. This sequential two-step assembly and disassembly
process initiated by specific enzyme reactions can help us to
understand the mechanisms of biomolecular recognitions. It
may also have the potential to serve as a valuable platform for
multiple enzyme detection and drug screening in biological
studies or clinical settings.
Fig. 3 The hydrodynamic size and size distribution of AuNPs. (a),
AuNPs with ‘‘trimethyl lock’’ peptide conjugate (8.5 mM); (b), AuNPs
with esterase (1.25 mg mLÀ1) treated ‘‘trimethyl lock’’ peptide con-
jugate (8.5 mM); (c), Aggregated AuNPs with thermolysin treatment
(60 mg mLÀ1).
The authors gratefully acknowledge the start-up, URC
(RG56/06), A*Star BMRC (07/1/22/19/534) and SEP
(RG139/06) grants in Nanyang Technological University,
Singapore.
ꢀc
This journal is The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2010
596 | New J. Chem., 2010, 34, 594–598

View Article Online
0.90 NA microscope objective. Raman signals were collected
and focused into a 400 mm optical fibre (Ocean Optics, Inc.)
which delivered the signals to a single-stage monochromator
(DoongWo, Inc.). Spectrum acquisition was started and an
integration time is 40 s for all SERS measurements.
Experimental
Synthesis of ‘‘trimethyl lock’’ peptide substrate
To a stirred suspension of acetylated ‘‘trimethyl lock’’ com-
pound (15.6 mg, 0.06 mmol) in 200 mL anhydrous dichloro-
methane, thionyl chloride (43 mL, 0.59 mmol) was added
dropwise at 0 1C (ice bath). After addition, the reaction
mixture was allowed to warm to room temperature and stirred
for 18 h. The solvent was evaporated in vacuum to give the oil
product without purification. Then, the purified thermolysin
cleavable peptide (SH–Ph–CH2–Gly–Gly–Gly–Phe–Gly–Gly–
Lys(NH2)–CO–NH2) (8.6 mg, 0.012 mmol) and triethylamine
(13 mL, 0.093 mmol) in 150 mL anhydrous DMF were added
into the oil product under nitrogen atmosphere and the
reaction mixture was stirred for 12 h. After removing DMF,
the crude product was purified by reversed-phase semi-
preparative HPLC with 20%–80% water–acetonitrile gradient
system containing 0.1% TFA to give the final product 7.4 mg
(yield 53.1%). ESI-MS Found [M + H+]: 1220.63, [M +
Na+]: 1242.85; calculated 1219.6.
References
1 (a) D. Peer, J. M. Karp, S. Hong, O. C. Farokhzad and
R. Margalit R. Langer, Nat. Nanotechnol., 2007, 2, 751;
(b) A. C. Templeton, M. P. Wuelfing and R. W. Murray,
Acc. Chem. Res., 2000, 33, 27; (c) Y. C. Cao, R. Jin and
C. A. Mirkin, Science, 2002, 297, 1536; (d) E. Katz and
I. Willner, Angew. Chem., Int. Ed., 2004, 43, 6042;
(e) X. H. Huang, P. K. Jain, I. H. El-Sayed and M. A. El-Sayed,
Nanomedicine, 2007, 2, 681; (f) H. W. Gu, P. L. Ho, E. Tong,
L. Wang and B. Xu, Nano Lett., 2003, 3, 1261.
2 (a) C. M. Niemeyer, Angew. Chem., Int. Ed., 2001, 40, 4128;
(b) X. M. Qian, X. Zhou and S. M. Nie, J. Am. Chem. Soc.,
2008, 130, 14934; (c) Y. Lu, J. Liu and J. Liu, Acc. Chem. Res.,
2007, 40, 315; (d) J. W. Liu, Z. H. Cao and Y. Lu, Chem. Rev.,
2009, 109, 1948; (e) X. Xue, F. Wang and X. G. Liu, J. Am. Chem.
Soc., 2008, 130, 3244; (f) S. P. Song, Z. Q. Liang, J. Zhang,
L. H. Wang, G. X. Li and C. H. Fan, Angew. Chem., Int. Ed.,
2009, 48, 8670; (g) C. D. Medley, J. E. Smith, Z. W. Tang,
Y. R. Wu, S. Bamrungsap and W. H. Tan, Anal. Chem., 2008,
80, 1067.
Colorimetric assay for enzyme hydrolysis of ‘‘trimethyl lock’’
substrate
3 C. L. Schofield, R. A. Field and D. A. Russell, Anal. Chem., 2007,
79, 1356.
4 (a) S. Chah, M. R. Hammond and R. N. Zare, Chem. Biol., 2005,
To the solution of 0.4 mL of monodispersed dipotassium bis
(p-sulfonatophenyl) phenylphosphane stabilized AuNPs
(10 nm) (See the ESIw),9 the peptide substrate and esterase
in 0.05 mL of PBS buffer (pH 7.4) were added to afford their
final concentrations of 8.5 mM and 1.25 mg mLÀ1, respectively.
The mixture was incubated at 37 1C for enzyme hydrolysis 2 h.
Gold nanoparticles were induced to highly aggregated clusters
which displayed purple-blue color and surface plasmon reso-
nance shifts from 520 nm to 600 nm. Then, the aggregated
gold nanoparticles were further incubated with thermolysin
(60 mg mlÀ1) for 4 h, the aggregated gold clusters were driven
disassembly, which displayed red color and surface plasmon
resonance shifts back from 600 nm to 520 nm again. This self-
assembly and disassembly process were monitored by naked
eyes and UV-Vis spectrotrophometer.
12, 323; (b) J. M. de la Fuente and S. Penades, Biochim. Biophys.
´
Acta, Gen. Subj., 2006, 1760, 636; (c) Z. Wang, R. Levy,
D. G. Fernig and M. Brust, J. Am. Chem. Soc., 2006, 128, 2214;
(d) C. Guarise, L. Pasquato, V. De. Filippis and P. Scrimin, Proc.
Natl. Acad. Sci. U. S. A., 2006, 103, 3978; (e) A. Laromaine,
L. Koh, M. Murugesan, R. V. Ulijn and M. M. Stevens, J. Am.
Chem. Soc., 2007, 129, 4156; (f) Y. D. Choi, N. H. Ho and
C. H. Tung, Angew. Chem., Int. Ed., 2007, 46, 707; (g) J. Oishi,
Y. Asami, T. Mori, J. H. Kang, M. Tanabe, T. Niidome and
Y. Katayama, ChemBioChem, 2007, 8, 875; (h) R. R. Liu, R. Liew,
J. Zhou and B. G. Xing, Angew. Chem., Int. Ed., 2007, 46, 8799;
(i) T. T. Jiang, R. R. Liu, X. F. Huang, H. J. Feng, W. L. Teo and
B. G. Xing, Chem. Commun., 2009, 1972; (j) M. Wang, X. G. Gu,
G. X. Zhang, D. Q. Zhang and D. B. Zhu, Langmuir, 2009, 25,
2504; (k) Y. L. Wang, D. Li, W. Ren, Z. J. Liu, S. J. Dong and
E. K. Wang, Chem. Commun., 2008, 2520.
5 (a) Y. H. Jung, K. B. Lee, Y. G. Kim and I. S. Choi, Angew. Chem.,
Int. Ed., 2006, 45, 5960; (b) Y. Chen and C. D. Mao, Small, 2008, 4,
2191; (c) J. Sharma, R. Chhabra, H. Yan and Y. Liu, Chem.
Commun., 2007, 477; (d) C. A. Mirkin, R. L. Letsinger,
R. C. Mucic and J. J. Storhoff, Nature, 1996, 382, 607;
(e) H. C. Huang, P. Koria, S. M. Parker, L. Selby, Z. Megeed
and K. Rege, Langmuir, 2008, 24, 14139; (f) S. Si, M. Raula,
T. K. Paira and T. K. Mandal, ChemPhysChem, 2008, 9, 1578;
(g) C. Guarise, L. Pasquato and P. Scrimin, Langmuir, 2005, 21,
5537; (h) H. Otsuka, Y. Akiyama, Y. Nagasaki and K. Kataoka,
J. Am. Chem. Soc., 2001, 123, 8226; (i) P. Hazarika, B. Ceyhan and
C. M. Niemeyer, Angew. Chem., Int. Ed., 2004, 43, 6469;
(j) I. S. Lim, U. Chandrachud, L. Y. Wang, S. Gal and
C. J. Zhong, Anal. Chem., 2008, 80, 6038; (k) A. G. Kanaras,
Z. X. Wang, A. D. Bates, R. Cosstick and M. Brust, Angew.
Chem., Int. Ed., 2003, 42, 191; (l) T. Peng, C. Dohno and
K. Nakatani, ChemBioChem, 2007, 8, 483.
6 (a) B. F. Cravatt and E. Sorensen, Curr. Opin. Chem. Biol., 2000, 4,
663; (b) F. Lecaille, J. Kaleta and D. Bromme, Chem. Rev., 2002,
102, 4459.
7 S. Darvesh, D. A. Hopkins and C. Geula, Nat. Rev. Neurosci.,
2003, 4, 131.
8 (a) M. G. Nicolaou, C. S. Yuan and R. T. Borchardt, J. Org.
Chem., 1996, 61, 8636; (b) R. B. Greenwald, Y. H. Choe,
C. D. Conover, K. Shum, D. Wu and M. Royzen, J. Med. Chem.,
2000, 43, 475; (c) K. Achilles, Arch. Pharm., 2001, 334, 209;
Dynamic light scattering (DLS) measurements for AuNPs
Dynamic light scattering (DLS) measurements were per-
formed using a 90 Plus particle size analyzer (Brookhaven
Instruments Corporation). The DLS instrument was operated
at 25 1C, 90 degree detector angle with an incident laser
wavelength of 660 nm. Size and size distribution of gold
nanoparticles were determined in solution. All the samples
were measured for 3 min, and the reported values are the
average of five repeated consecutive measurements.
Surface enhanced Raman Scattering (SERS) measurements
Dipotassium bis (p-sulfonatophenyl) phenylphosphane stabi-
lized gold nanoparticles solution dropped on glass slides
(approximately 10 mL) was used for SERS measurement.
The spectra were excited using 3.5 mW of power at He–Ne
633 nm laser. The laser beam was then focused onto
the sample via a dichroic mirror and through an Olympus
ꢀc
This journal is The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2010
New J. Chem., 2010, 34, 594–598 | 597

View Article Online
(d) S. S. Chandran, K. A. Dickson and R. T. Rains, J. Am. Chem.
Soc., 2005, 127, 1652; (e) R. W. Watkins, L. D. Lavis, V. M. Kung,
G. V. Los and R. T. Raines, Org. Biomol. Chem., 2009, 7, 3969;
(f) B. Wang, S. Gangwar, G. M. Pauletti, T. J. Siahaan and
R. T. Borchardt, J. Org. Chem., 1997, 62, 1363;
(g) K. L. Amsberry, A. E. Gerstenberger and R. T. Borchardt,
Pharm. Res., 1991, 8, 455.
9 C. J. Loweth, W. B. Caldwell, X. Peng, A. P. Alivisatos and
P. G. Schultz, Angew. Chem., Int. Ed., 1999, 38, 1808.
10 F. Zimmermann and A. Wokaun, Mol. Phys., 1991, 73, 959.
ꢀc
This journal is The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2010
598 | New J. Chem., 2010, 34, 594–598
