Microwave-assisted synthesis and antibacterial activity of some pyrazol-1-ylquinoxalin- 2(1H)-one derivatives

Article abstract of DOI:10.1007/s10593-010-0435-z

3-Hydrazinoquinoxalin-2(1H)-one was prepared from quinoxaline-2,3-dione and subsequently used for the synthesis of some potentially biologically active 3-(pyrazol-1-yl)quinoxalin-2(1H)-one derivatives. While 3-(3,5-dimethylpyrazol- 1-yl)quinoxalin-2(1H)-one showed a comparative effect with streptomycin, 3-(5-oxo-3-phenyl-4,5-di- hydropyrazol-1-yl)quinoxalin-2(1H)-one was found to be the most active with an MIC value of 7.8 μg/ml.

Full text of DOI:10.1007/s10593-010-0435-z

Chemistry of Heterocyclic Compounds, Vol. 45, No. 11, 2009
MICROWAVE-ASSISTED SYNTHESIS
AND ANTIBACTERIAL ACTIVITY OF
SOME PYRAZOL-1-YLQUINOXALIN-
2(1H)-ONE DERIVATIVES
Olayinka O1. Ajani1*, Craig A1. Obafemi2, Chinwe O. Ikpo1,
Kehinde O.1 Ogunniran1, and Obinna C. Nwinyi3
3-Hydrazinoquinoxalin-2(1H)-one was prepared from quinoxaline-2,3-dione and subsequently used for
the synthesis of some potentially biologically active 3-(pyrazol-1-yl)quinoxalin-2(1H)-one derivatives.
While 3-(3,5-dimethylpyrazol-1-yl)quinoxalin-2(1H)-one showed
a
comparative effect with

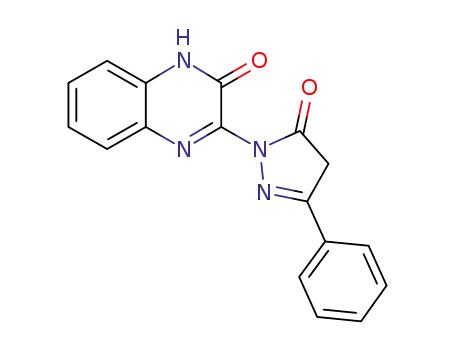

streptomycin, 3-(5-oxo-3-phenyl-4,5-di- hydropyrazol-1-yl)quinoxalin-2(1H)-one was found to be the
most active with an MIC value of 7.8 µg/ml.
Keywords: 3-hydrazinoquinoxalin-2(1H)-one, imines, Gram-positive bacteria.
Over the years it has been established that quinoxalines are, in general, relatively easy to prepare [1-3],
and many derivatives have been synthesized with the aim of obtaining biologically active materials [4, 5]. Some
quinoxaline and quinoxalinone derivatives have been reported to show antimicrobial [6, 7], antiinflammatory
[8], antifungal [9], anticancer [10], antiviral [11], antimalarial [12], anticonvulsant [13], antidepressant [14],
antitubercular [15], antibacterial [16], and antithrombotic [17] activities.
Thermal and chemically stable polyquinoxalines (PQs) find potential applications as films, coating
adhesives [18], ultrafiltering materials, and composite matrices that demand stability in harsh environment [19].
In a similar manner the synthesis of novel pyrazole derivatives [20] and evaluation of their chemical behaviors
have gained more importance in recent decades for biological [21–23], medicinal [24], and agricultural [25]
purposes. Although numerous methods are available for construction of pyrazoles [26, 27], only little attention
has been given to the pyrazolysis of quinoxalinone derivatives [28]. For instance, 1,3-dipolar cycloadditions of
azomethine imines, available by acid catalyzed treatment of 3-pyrazolidinone with acetone and butyraldehyde,
respectively, were studied [29]. The photoluminescence and electroluminescence of some new 1H-pyrazolo-
_______
* To whom correspondence should be addressed, e-mail: wajanfresh@yahoo.com.
1Chemistry Department, College of Science and Technology, Covenant University, Canaanland, Km 10, Idiroko
Road, P.M.B. 1023, Ota, Ogun State, Nigeria.
2Department of Chemistry, Faculty of Science, Obafemi Awolowo University, Ile-ife, Osun State, Nigeria.
3Department of Biological Sciences, College of Science and Technology, Covenant University, Canaanland,
Km 10, Idiroko Road, P.M.B. 1023, Ota, Ogun State, Nigeria.
__________________________________________________________________________________________
Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 11, pp. 1703-1713, November, 2009.
Original article received April 17, 2009.
1370
0009-3122/09/4511-1370©2009 Springer Science+Business Media, Inc.

[3,4-b]quinoxaline derivatives have been investigated [30], while the biological properties of such moieties have
been understudied [31]. From this point of view it is of great interest to synthesize some pyrazolylquinoxalinone
derivatives with the aim of investigating their antibacterial properties.
3-Hydrazinoquinoxalin-2(1H)-one (2) was prepared from hydrazinolysis of 1,2,3,4-tetrahydroquinoxaline-
2,3-dione (1), which existed as a keto-enol tautomer (Scheme 1). The starting material 1 was prepared by the
modified Obafemi and Pfleiderer procedure [32]. To a heated (100oC) solution of oxalic acid dihydrate in water,
acidified o-phenylenediamine was added cautiously with vigorous stirring at 100oC for 20 min. The resulting
mixture was cooled and then filtered off. The crude solid obtained was purified by crystallization from water to
afford colorless needles of compound 1. 3-Hydrazinoquinoxalin-2(1H)-one 2 underwent condensation reaction with
various β-diketones to afford (3,5-disubstituted pyrazol-1-yl)quinoxalin-2(1H)-one derivatives 3–7 in excellent
yields (Scheme 1). For instance, the reaction of compound 2 with 2-thenoyltrifluoroacetone gave 97% of
2-trifluoromethyl-substituted pyrazole 7 as a single product. This is because the carbonyl next to CF3 is more
reactive than the carbonyl next to thiophene due to the high electron withdrawing ability of the trifluoromethyl side
chain. Therefore, the nucleophilic attack by NH2 of hydrazine was initiated first on the carbonyl next to CF3.
Furthermore, condensation of compound 2 with α-keto esters followed by thermal cyclization of the
reaction intermediate in the presence of ethanol solvent gave the target structure of (3-alkyl(aryl)-5-oxo-4,5-di-
hydropyrazol-1-yl)quinoxalin-2(1H)-one derivatives 8, 9. The carbonyl of ketone is attacked first since it is
more reactive than the carbonyl of ester. Finally, upon treatment of compound 2 with ethyl cyanoacetate the
main product obtained was 3-(3-amino-5-oxo-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one (10) in moderate
yield (Scheme). Melting points of all compounds were on the high side (177 to > 360°C) as a result of the
presence of amide bonds and the probable existence of intramolecular hydrogen bonding.
Scheme 1
H
N
H
N
NH2
NH2
O
O
N
N
OH
OH
O
i
ii
N
H
N
NHNH2
1
1
2
keto–enol tautomerism
H
H
N
N
O
O
R1
iv iii
O
2
N
N
N
N
N
N
3–7
8–10
R
R
i: oxalic acid/HCl/H2O; ii: H2NNH2⋅H2O; iii: pentane- or hexane-, or heptane-2,4-dione,
or heptane-3,5-dione, or 2-thenoyltrifluoroacetone; iv: ethyl acetoacetate or ethyl benzoylacetate,
or ethyl cyanoacetate; 3 R = R1 = Me, 4 R = Me, R1 = Et; 5 R = Me, R1 = Pr;
6 R = R1 = Et; 7 R = CF3, R1 = Th; 8 R = Me, 9 R = Ph, 10 R = NH2
The IR spectra of compounds 1–10 showed absorption bands due to the stretching vibrations of N–H, C=O,
C=C, and C=N at 3470-3132, 1705-1648, 1620-1600, and 1580-1509 cm–1, respectively. The IR spectrum of
compound 9 showed a broad band at 3302 cm–1 due to the stretching vibration of N–H, while its two carbonyl
stretching vibration appeared at 1703 and 1648 cm–1, respectively. The IR absorption band at 1600 cm–1 depicted
the presence of aromatic C=C, while C=N band was observed at 1509 cm–1. The UV-visible spectrum of compound
9 gave rise to the wavelength (λmax) at 208 and 352 nm, while a shoulder was observed at 244 nm. The wavelength
at 208 nm is a result of π→π* transition of the phenyl ring, while 352 nm is a result of contribution from the
pyrazolyl ring. The electronic transition in the UV-visible spectra gave rise to the wavelength
1371

1372

(λmax) ranging from 205 to 372 nm. Bathochromic shift was observed in compounds 3-10 compared with the
precursor 2. This might be as a result of extensive conjugation of π-electrons from the pyrazolyl ring and the
σ-donating character of alkyl groups experienced in the former. The chemical shifts and multiplicity patterns in the
1
NMR spectra correlated well with the proposed structures. For instance, the H NMR of compound 9 showed a
broad singlet corresponding to the resonance of N–H of amide at δ 8.00 ppm, and it was exchangeable with D2O.
The multiplet at δ 7.52-7.94 ppm confirmed the presence of five aromatic protons of phenyl attached to the
azomethine carbon in position 3 of the pyrazolyl ring, while the multiplet at δ 7.08-8.27 ppm indicated the presence
of four aromatic protons of the benzo-fused part of the quinoxaline nucleus of compound 9. The position of the
pyrazole double bond was confirmed to be between nitrogen and carbon as a result of a singlet at δ 2.20 ppm,
which was due to the presence of two methylene protons (pyrazole CH2). The 13C NMR of compound 9 revealed 17
carbon atoms with two C=O having the highest signals at 165.0 and 158.0 ppm, while 14 sp2-hybridized carbon
atoms appeared at 157.6-115.2 ppm. The one CH2 carbon atom appeared to have the least signal at δ 35.1 ppm.
In addition, the mass spectrum of compound 9 showed a molecular ion peak at m/z 304 [M+] with a
relative intensity of 54.3%, its mass spectrum was also characterized by the occurrence of a base peak at m/z 227
[M+–77(Ph.)], which was the result of loss of the phenyl radical. Out of the three pyrazolone derivatives 8-10
only compound 9 had the highest steric effect due to the presence of a bulky substituent, which is a weakly
activating group in the C-3 position of pyrazolone ring, while compounds 8 and 10 had a low to moderate steric
interaction due to the presence of smaller groups (CH3 and NH2).
Ten compounds 1-10 were screened in vitro for possible antibacterial activities using the agar well
diffusion method [33], while the minimum inhibitory concentration test was carried out using the Russell and
Furr method [34]. The sensitivity testing (inhibition zones, mm) of the compounds and streptomycin (a reference
clinical antibiotic) in DMSO (solvent) at 1000 µg/ml against nine Gram-positive and five Gram-negative
bacterial strains is reported in Table 1. The results indicated that starting materials 1-2 and the reaction products
3-10 as well as streptomycin showed a broad spectrum against the bacterial strains.
Compound 3 has been synthesized before by the conventional heating method [35]; however, a
microwave-assisted approach (MWI) has not been used for compound 3 to the best of our knowledge; also, its
antibacterial activity has not been investigated. Escherichia coli and Klebsiella pneumoniae developed
a resistance against streptomycin, whereas all the compounds were active on these two bacteria. Most of the
compounds were not active on Corynebacterium pyogenes, Bacillus polymyxa, and Pseudomonas fluorescens,
whereas streptomycin was active on them.
Considering the pyrazolyl derivatives 3-7, compound 3 with a lower steric hindrance due to the presence of
a smaller side chain (CH3) was observed to have a larger inhibition zone and a lower MIC value of 7.8 µg/ml as
compared to compounds 4-7. So, it was discovered that the occurrence of steric hindrance created by the
substituents on the pyrazolyl ring might have a probable effect on the biological activity of such moieties. On the
other hand, considering the pyrazolone ring of compounds 8-10, only compound 9 experienced extensive
conjugation due to the presence of the phenyl group in C-3 position. Thus, compound 9 had better activity as
compared to compounds 8 and 10. In fact, compound 9 was the most active on the Bacillus species at on MIC value
of 7.8 µg/ml except for Bacillus anthracis, where the inhibition was at a concentration of 15.6 µg/ml.
Based on the size of inhibition zones and the resistance degree observed, the minimum inhibitory
concentration (MIC) test was selectively carried out on five Gram-positive and five Gram-negative bacterial
isolates (Table 2). The MIC of compounds 1, 2 varied between 7.8 and 500 µg/ml, it was between 7.8 and
250 µg/ml for compounds 3, 8, 10, and between 15.6 and 250.0 µg/ml for compounds 4-6. Finally, compounds
7, 9 inhibited the bacterial growth at MIC between 7.8 and 62.5 µg/ml. Overall result indicated that out of all the
compounds prepared, compound 9 had the highest activity at 7.8 µg/ml, while compounds 1, 3 appeared to
compete favorably with streptomycin at 15.6 and 7.8 µg/ml on both the Gram-positive and Gram-negative
bacteria. In particular, the π−π interaction experienced in the phenyl side chain in compound 9 might also be a
contributing factor to the reasonably high activity observed in compound 9.
1373

In summary, we constructed a workable pathway and synthesized a series of (3,5-alkyl(aryl)pyrazol-
1-yl)quinoxalin-2(1H)-ones 3–7, 3-alkyl(aryl)-5-oxo-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one 8, 9, and
3-(3-amino-5-oxo-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one 10, which were structurally confirmed by IR,
1
UV, H NMR, 13C NMR, and MS spectral analyses and evaluated for antibacterial activity by the growth
inhibition of some gram-positive and gram-negative bacterial strains. By visualizing the antimicrobial data it
could be observed that some of the compounds possess a significant activity. In fact, the results show that the
compounds exhibited a high potency as antibacterial agents. The most active compound was 3-(5-oxo-3-phenyl-
4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one (9) with an MIC value of 7.8 µg/ml. Thus, the pyrazol-
1-ylquinoxalin-2(1H)-one derivatives synthesized as well as the starting material, be promising for further
activity optimization studies.
EXPERIMENTAL
Melting points were determined with an open capillary tube on a Gallenkamp (variable heater) melting
point apparatus and were uncorrected. IR spectra were recorded as KBr pellets on a Buck spectrometer, while
1
UV-visible spectra were recorded on a Unicam spectrophotometer using methanol solvent. H and 13C NMR
were run on a Bruker AC-50 and JEOL-JNM-GX 400-MHz spectrometer in MeOH-d4 (compounds 2-9) and
DMSO-d6 (compound 10) (δ in ppm relative to Me4Si). Mass spectra were registered on a Finnigan MAT 312
machine. All compounds were routinely checked by TLC on silica gel G plates using the CHCl3:MeOH (9:1,
v/v) solvent system and the developed plates were visualized by UV light. The elemental analyses (C, H, N) of
compounds were performed using a Carlo Erba-1108 elemental analyzer. The solvents used were of reagent
grade and, when necessary, were purified and dried by standard methods. The microwave-assisted syntheses
were carried out in a domestic oven, Midea PJ21B-A 400W.
1,2,3,4-Tetrahydroquinoxaline-2,3-dione (1). To a heated (to 100°C) and stirred solution of oxalic
acid dihydrate (30.0 g, 238.0 mmol) in water (200 ml), concentrated HCl (45 ml) was added, followed by
o-phenylenediamine (22.0 g, 204.0 mmol), with continuous stirring at 100°C for 20 min. The resulting mixture
was cooled by addition of crushed ice (100 g) to give silvery white needles, which were collected by filtration,
washed with water, and oven dried to afford compound 1 (32.3 g, 98.0%) as colorless needles; mp > 340°C
(EtOH) (Lit. mp > 340°C [32, 36]). Other physical and spectroscopic data were identical to those of the
authentic sample.
3-Hydrazinoquinoxalin-2(1H)-one (2). To a mixture of compound 1 (20.1 g, 124.0 mmol) and
hydrazine hydrate (100.0 ml, 2.2 mol), water (50 ml) was added. and the resulting mixture was refluxed for 3 h.
The mixture was allowed to cool and the precipitate formed was filtered off and recrystallized from ethanol to
give compound 2 (19.8 g, 90%) as a yellow solid; mp > 360°C. IR spectrum, νmax, cm–1: 3412 (N−H), 3280
(N−H), 3175 (N−H), 1679 (C=O), 1620 (C=C). UV spectrum, λmax (log εmax): 216 (4.34), 247 (3.75 s), 327 (3.61
1
s). H NMR spectrum, δ, ppm: 5.81 (2H, br. s, NH2, D2O exchangeable); 7.09–8.26 (4H, m, H Ar); 8.14 (1H, s,
NH, D2O exchangeable); 12.55 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 158.0 (C=O),
157.6, 142.7, 131.7, 129.1, 125.9, 123.5, 115.2. Mass spectrum, m/z (Irel, %): 176 [M+] (55.5), 161 (92.3), 146
(85.5), 118 (100), 106 (80.1), 78 (40.5). Found, %: C 54.52; H 4.57; N 31.83. C8H8N4O. Calculated, %: C 54.55;
H 4.55; N 31.82.
3,5-Disubstituted pyrazolyl Derivatives 3-7 (General Method). To a solution of compound 2 (1.0 g,
5.7 mmol) in β-diketone (5.7 mmol), ethanol (10 ml) was added, and the mixture was irradiated in a domestic
microwave oven (MW) at an emitted power of 400 W for the appropriate period. The clear solution formed was
left to stand at room temperature to crystallize. The solid crude product was recrystallized from the appropriate
solvent to afford 3,5-disubstituted (pyrazol-1-yl)quinoxalin-2(1H)-one.
1374

3-(3,5-Dimethylpyrazol-1-yl)quinoxalin-2(1H)-one (3). Reagents: compound 2 (1.0 g, 5.7 mmol),
acetyl acetone (1.0 ml, 5.7 mmol), ethanol (10 ml). Conditions: 3 min, 400 W, MWI. Purification:
recrystallization. Yield (1.3 g, 99.0%) as a brown solid; mp 177–179°C (EtOH). IR spectrum, νmax, cm–1: 3436
(N–H), 1679 (C=O), 1618 (C=C). UV spectrum, λmax (log εmax): 208 (4.28), 239 (3.97 s), 325 (3.66 s), 352
(3.73). 1H NMR spectrum, δ, ppm: 2.30 (3H, s, CH3); 2.48 (3H, s, CH3); 6.18 (1H, s, –CH=); 7.09–8.27 (4H, m,
H Ar); 8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 157.6 (C=O), 152.3, 149.4, 143.2,
142.7, 131.7, 129.1, 125.9, 123.5, 115.2, 110.2, 13.5 (CH3), 13.2 (CH3). Mass spectrum, m/z (Irel, %): 240 [M+]
(100), 226 (68.3), 212 (70.5), 146 (88.3), 106 (45.1), 78 (55.0). Found, %: C 65.02; H 5.01; N 23.36.
C13H12N4O. Calculated, %: C 65.00; H 5.00; N 23.33.
3-(5-Ethyl-3-methylpyrazol-1-yl)quinoxalin-2(1H)-one (4). Reagents: Compound 2 (1.0 g, 5.7 mmol),
hexane-2,4-dione (0.7 ml, 5.7 mmol), ethanol (10 ml). Conditions: 5 min, 400 W, MWI. Purification:
recrystallization. Yield 1.35 g (93.1%) as a colorless solid; mp 183–185°C (EtOH). IR spectrum, νmax, cm–1:
3430 (N–H), 1675 (C=O), 1620 (C=C). UV spectrum, λmax (log εmax): 210 (4.12), 240 (3.95 s), 330 (3.85 s), 350
1
(3.51). H NMR spectrum, δ, ppm (J, Hz): 1.25 (3H, t, J = 7.2, CH3); 2.30 (3H, s, CH3); 3.07 (2H, q, J = 7.2,
CH2); 6.20 (1H, s, –CH=); 7.08–8.27 (4H, m, H Ar); 8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ,
ppm: 157.6 (C=O), 152.3, 149.4, 144.5, 142.7, 131.7, 129.1, 125.9, 123.5, 115.2, 104.9, 20.8 (CH2), 13.2 (CH3),
12.7 (CH3). Mass spectrum, m/z (Irel, %): 254 [M+] (89.1), 224 (66.3), 110 (100), 66 (57.5). Found, %: C 66.09;
H 5.48; N 22.00. C14H14N4O. Calculated, %: C 66.14; H 5.51; N 22.05.
3-(3-Methyl-5-propylpyrazol-1-yl)quinoxalin-2(1H)-one (5). Reagents: Compound 2 (1.0 g, 5.7 mmol),
heptane-2,4-dione (0.8 ml, 5.7 mmol), ethanol (10 ml). Conditions: 5 min, 400 W, MWI. Purification:
recrystallization. Yield 1.38 g (90.2%) as a colourless solid; mp 204–205°C (EtOH). IR spectrum, νmax, cm–1:
3433 (N–H), 1685 (C=O), 1615 (C=C), 1579 (C=N). UV spectrum, λmax (log εmax): 208 (4.05), 244 (3.88), 338
1
(3.63 s), 370 (4.13). H NMR spectrum, δ, ppm (J, Hz): 0.90 (3H, t, J = 7.3, CH3); 1.65 (2H, sextet, J = 7.3,
CH2); 2.30 (3H, s, CH3); 2.44 (2H, t, J = 7.3, CH2); 6.19 (1H, s, –CH=); 7.09–8.27 (4H, m, H Ar); 8.00 (1H, s,
NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 157.6 (C=O), 152.3, 149.4, 144.5, 142.7, 131.7, 129.1,
125.9, 123.5, 115.3, 104.9, 31.1, 22.6, 13.7 (CH3), 13.2 (CH3). Mass spectrum, m/z (Irel, %): 268 [M+] (70.1),
240 (65.2), 146 (85.3), 124 (52.1), 118 (100), 96 (92.3). Found, %: C 67.18; H 5.99; N 20.87. C15H16N4O.
Calculated, %: C 67.16; H 5.97; N 20.90.
3-(3,5-Diethylpyrazol-1-yl)quinoxalin-2(1H)-one (6). Reagents: Compound 2 (1.0 g, 5.7 mmol),
heptane-3,5-dione (0.8 ml, 5.7 mmol), ethanol (10 ml). Conditions: 5 min, 400 W, MWI. Purification:
recrystallization. Yield 1.41 g (92.2%) as a colorless solid: mp 192–193°C (EtOH/DMF). IR spectrum, νmax
,
cm-1: 3430 (N–H), 1690 (C=O), 1605 (C=C). UV spectrum, λmax (log εmax): 209 (4.05), 245 (3.91), 372 (3.61).
1H NMR spectrum, δ, ppm (J, Hz): 1.25 (6H, t, J = 7.2, 2CH3); 3.07 (4H, q, J = 7.2, 2CH2); 6.22 (1H, s, –CH=);
7.10–8.28 (4H, m, H Ar); 8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 157.6 (C=O),
149.4, 146.8, 144.5, 142.7, 131.7, 129.1, 125.9, 123.5, 115.2, 104.9, 20.8 (CH2), 19.5 (CH2), 13.2 (CH3), 12.7
(CH3). Mass spectrum, m/z (Irel, %): 268 [M+] (72.5), 240 (57.4), 212 (68.2), 146 (80.8). Found, %: C 67.13;
H 5.92; N 20.92. C15H16N4O. Calculated, %: C 67.16; H 5.97; N 20.90.
3-[5-Thien-2-yl-3-(trifluoromethyl)pyrazol-1-yl]quinoxalin-2(1H)-one (7). Reagents: Compound 2
(1.0 g, 5.7 mmol), 2-thenoyltrifluoroacetone (1.3 g, 5.7 mmol), 30 ml of DMF–ethanol, 1:5. Conditions: 2 min,
400 W, MWI. Purification: recrystallization. Yield 2.0 g (97.0%) as an orange solid; mp 328–330oC (EtOH).
IR spectrum, νmax, cm–1: 3241 (N–H), 1675 (C=O), 1620 (C=C), 1575 (C=N). UV spectrum, λmax (log εmax): 205
1
(3.38), 225 (3.00), 237 (2.51), 273 (3.10), 298 (3.70). H NMR spectrum, δ, ppm: 6.02 (1H, s, pyrazol –CH=);
7.69–7.17 (3H, m, H Th); 7.09–8.27 (4H, m, H Ar); 8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ,
ppm: 157.6 (C=O), 149.4, 142.7, 139.9, 136.4, 131.7, 131.2, 129.1, 128.6, 128.0, 127.6, 125.9, 123.5, 121.4,
115.2, 105.9. Mass spectrum, m/z (Irel, %): 362 [M+] (68.3), 294 (100), 280 (31.5), 212 (70.4), 146 (85.1).
Found, %: C 53.06; H 2.50; N 15.49. C16H9F3N4OS. Calculated, %: C 53.04; H 2.49; N 15.47.
1375

3-(5-Oxo-3-R-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-ones 8, 9 (General Method). To anhydrous
compound 2 (1.0 g, 5.7 mmol) a homogeneous mixture of β-keto ester (28.5 mmol) and ethanol (20 ml) was
added dropwise at room temperature. The mixture was irradiated in a microwave oven at 15-s interval for the
appropriate period to give a clear solution, which was left to stand at room temperature. The solid crude product
was recrystallized from the appropriate solvent to afford compounds 8, 9.
3-(3-Methyl-5-oxo-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one (8). Reagents: Compound 2 (1.0 g,
5.7 mmol), ethyl acetoacetate (3.6 ml, 28.5 mmol), ethanol (20 ml). Conditions: 3 min, 400 W, MWI.
Purification: recrystallization. Yield 1.3 g (94.2%) as a yellow solid; mp 316–318oC (EtOH). IR spectrum, νmax
,
cm–1: 3448 (N–H), 1705 (C=O), 1667 (C=O), 1610 (C=C). UV spectrum, λmax (log εmax): 220 (3.13), 305 (5.10),
320 (5.43 s). 1H NMR spectrum, δ, ppm: 1.94 (3H, s, CH3); 2.20 (2H, s, CH2 pyrazol); 7.09–8.29 (4H, m, H Ar);
8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 165.0 (C=O), 159.5 (C=O), 158.2, 157.3,
142.4, 131.8, 129.0, 125.8, 123.6, 115.1, 43.2, 16.4 (CH3). Mass spectrum, m/z (Irel, %): 242 [M+] (54.3), 228
(83.4), 214 (100), 200 (75.4), 146 (86.1), 106 (24.5). Found, %: C 59.52; H 4.14; N 23.16. C12H10N4O2.
Calculated, %: C 59.50; H 4.13; N 23.14.
3-(5-Oxo-3-phenyl-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one (9). Reagents: Compound 2 (1.0 g,
5.7 mmol), ethyl benzoylacetate (4.9 ml, 28.3 mmol), ethanol (20 ml). Conditions: 2 min, 400 W, MWI.
Purification: recrystallization. Yield 1.7 g (99.0%) as a yellow solid; mp 287–288oC (EtOH). IR spectrum, νmax
,
cm–1: 3302 (NH), 1703 (C=O), 1648 (C=O), 1600 (C=C), 1509 (C=N). UV spectrum, λmax (log εmax): 208 (4.29),
1
244 (4.09 s), 352 (3.76). H NMR spectrum, δ, ppm: 2.20 (2H, s, CH2 pyrazol); 7.09–8.27 (4H, m, H Ar);
7.52-7.94 (5H, m, H Ar); 8.00 (1H, s, NH, D2O exchangeable). 13C NMR spectrum, δ, ppm: 165.0 (C=O), 158.0
(C=O), 157.6, 155.6, 142.7, 134.0, 131.7, 131.0, 129.1, 128.8, 128.2, 125.9, 123.5, 115.2, 35.1 (CH2).
Mass spectrum, m/z (Irel, %): 304 [M+] (54.3), 227 (100). Found, %: C 67.09; H 3.94; N 18.40. C17H12N4O2.
Calculated, %: C 67.11; H 3.95; N 18.42.
3-(3-Amino-5-oxo-4,5-dihydropyrazol-1-yl)quinoxalin-2(1H)-one (10). To anhydrous compound 2
(1.0 g, 5.7 mmol) dissolved in ethyl cyanoacetate (0.6 ml, 5.7 mmol) ethanol (30 ml) was added in an open
beaker and the mixture was swirled thoroughly, then irradiated in a microwave oven at 15-s interval for 3 min to
give a clear solution, which was left to stand at room temperature. The solid crude product obtained was
recrystallized from ethanol to afford compound 10 (0.7 g, 50.0 %) as an orange solid; mp 335–338oC. IR
spectrum, νmax, cm–1: 3470 (NH), 3448–3132 (NH), 1667 (C=O), 1605 (C=C), 1580 (C=N). UV spectrum, λmax
1
(log εmax): 216 (6.37), 304 (5.82), 330 (5.68 s), 336 (5.32), 348 (5.39). H NMR spectrum, δ, ppm: 2.20 (2H, s,
CH2 pyrazol); 7.12–8.29 (4H, m, H Ar); 8.00 (1H, s, NH, D2O exchangeable); 8.51 (2H, s, NH2, D2O
exchangeable). 13C NMR spectrum, δ, ppm: 165.1 (C=O), 160.1 (C=O), 158.2, 157.8, 142.9, 132.1, 129.3, 125.9,
123.7, 115.0, 71.8. Mass spectrum, m/z (Irel, %): 243 [M+] (75). Found, %: C 54.33; H 3.72; N 28.83. C11H9N5O2.
Calculated, %: C 54.32; H 3.70; N 28.81.
Antibacterial activity assays
Most of the organisms used were standard bacteria of the National Collection for Industrial Bacteria
(NCIB), while a few others were locally isolated organisms (LIO). The Gram-positive bacteria were Bacillus
cereus (NCIB 6349), Bacillus stearothermophilus (NCIB 8222), Bacillus subtilis (NCIB 3610), Bacillus
anthracis (LIO), Bacillus polymyxa (LIO), Corynebacterium pyogenes (LIO), Streptococcus faecalis
(NCIB775), Staphylococcus aureus (NCIB 8588), and Clostridium sporogenes (LIO), while the Gram-negative
ones were Escherichia coli (NCIB 86), Pseudomonas fluorescens (NCIB 3756), Klebsiella pneumoniae (NCIB
418), Shigella dysenteriae (LIO), and Pseudomonas aeruginosa (NCIB 950).
All the synthesized compounds 1–10 and streptomycin were screened for antibacterial activity on nine
Gram-positive and five Gram-negative bacterial strains using the agar well diffusion method [33].
1376

With the aid of a sterile 1-ml pipette, about 0.2 ml of the broth culture of the test organism was added to
an 18-ml sterile molten diagnostic sensitivity test agar (Biotech, Ltd.), which was already cooled down to 45oC.
This was well mixed and poured into previously sterilized Petri dishes, which were properly labelled according
to the test organisms. The medium was then allowed to set. With the aid of a sterile cork borer the required
number of holes was bored into the medium. The wells were made of about 5 mm to the edge of the plate. The
wells were then filled up aseptically with the solution of the compound in DMSO using Pasteur pipettes.
Streptomycin was used as a standard antibacterial agent at a concentration of 1000 µg/ml. The plates were
allowed to stand for about 1 h on the bench for proper diffusion of the antibacterial agents into the medium and
then incubated uprightly at 37oC for 24 h. Care was taken not to stockpile the plates. Clear inhibition zones, mm,
indicated the relative susceptibility of the bacteria to compounds 1-10 and streptomycin standard.
The minimum inhibitory concentration (MIC) test was detected using the method of Russell and Furr
[34]. Based on the level of resistance of some organisms and large inhibition zones experienced in others, MIC
test was selectively done for five Gram-positive and five Gram-negative bacterial strains. Different concentrations
(7.8 and 1000.0 µg/ml) of the compounds and standards were prepared using a twofold dilution, which was
prepared in a sterile plate with a sterile pipette and then mixed with 18 ml of molten nutrient agar. This was then
allowed to set. The surface of the nutrient agar plate was allowed to dry before streaking with overnight broth
cultures of the bacterial strains. The plates were then labelled accordingly and incubated at 37oC for up to 72 h.
They were subsequently examined for the presence or absence of growth. The lowest concentration preventing
bacteria growth was taken as the MIC of the compounds. This procedure was likewise repeated for
streptomycin.
REFERENCES
1.
2.
3.
L. Zhenjiang, L. Weisi, S. Yingjie, and H. He, O. Pingkai, J. Heterocycl. Chem., 45, 285 (2008).
C. A. Obafemi, G. Olayiwola, and F. O. Taiwo, African J. Biotech., 6, 777 (2007).
G. S. Welmaker, J. A. Nelson, J. E. Sabalski, A. L. Sabb, J. R. Potoski, D. Graziano, M. Kagan,
J. Coupet, J. Dunlop, H. Mazandarani, S. Rosenzweig-Lipson, S. Sukoff, and Y. Zhang, Bioorg. Med.
Chem. Lett., 10, 1991 (2000).
4.
5.
6.
M. A. J. Al-Mossawi, A. A. Salem, M. Salam, and A. Arani, Environ. Int., 5, 141 (1981).
H. M. Refaat, A. A. Moneer, and O. M. Khalil, Arch. Pharm. Res., 27, 1093 (2004).
M. M. Ali, M. M. F. Ismail, M. S. A. El-Gaby, M. A. Zahran, and Y. A. Ammar, Molecules, 5, 864
(2000).
7.
8.
C. A. Obafemi and D. A. Akinpelu, Phosphorus, Sulfur, Silicon, Relat. Elem., 180, 1795 (2005).
Ch. Sridevi, K. Balaji, A. Naidu, S. Kavimani, D. Vankappayya, R. Suthakaran, and S. Parimala, Int.
J. Pharmatech. Res., 1, 816 (2009).
9.
10.
11.
12.
A. Carta, P. Sanna, U. D. Gherardini, and S. Zanetti, Farmaco, 56, 933 (2001).
P. Sanna, A. Carta, M. Loriga, S. Zanetti, and L. Sechi, Farmaco, 54, 161 (1999).
M. A. H. Hamida, Carbohydr. Res., 338, 2301 (2003).
J. B. Rangisetty, C. N. V. H. B. Gupta, A. L. Prasad, P. Srinivas, N. Sridhar, P. Parimoo, and
A. Veeranjaneyulu, J. Pharm. Pharmacol., 53, 1409 (2001).
13.
14.
M. Kodama, N. Yamada, K. Sato, Y. Kitamura, F. Koyama, T. Sato, K. Morimoto, and S. Kuroda, Eur.
J. Pharmacol., 374, 11 (1999).
R. Sarge, H. R. Howard, R. G. Browne, L. A. Lebel, P. A. Seymour, and B. K. Kve, J. Med. Chem., 33,
2240 (1990).
15.
16.
A. Jaso, B. Zarranz, I. Aldana, and A. Mongye, Eur. J. Med. Chem., 38, 791 (2003).
M. M. Badran, K. A. M. Abouzid, and M. H. M. Hussein, Arch. Pharm. Res., 26, 107 (2003).
1377

17.
U. J. Ries, H. W. Priekpe, N. H. Havel, S. Haandschuh, G. Mihm, J. M. Stassen, W. Wienen, and
H. Nar, Bioorg. Med. Chem. Lett., 13, 2297 (2003).
18.
19.
L. Fengcai, W. Baigeng, and C. Jinbao, Polym. Sci. Tech., 26, 261 (1984).
J. P. Critchley, (editor), Polymers: thermally stable quinoxaline polymers, in: Encycopedia of Physical
Science and Technology, 3rd ed., Acad. Press, 2002, p. 775.
20.
21.
A. F. R. Sherif, A. S. Manal, and A. E.-D. Maha, Eur. J. Med. Chem., 38, 959 (2003).
A. B. Adnan, M. A. A. Hayam, S. A. G. Yasser, E.-D. A. B. Alan, and B. Azza, Eur. J. Med. Chem., 43,
456 (2008).
22.
23.
W. W. Wagnat and A. L. Nadia, J. Chilean Chem. Soc., 52, 1145 (2007).
D. Zainaba, L. Meryem, S. Abdelfatah, B. Abdelmejid, H. Mohammed, K. Said, and B. Mohammed,
Arch. Pharm., 339, 291 (2006).
24.
I. Bouabdallah, L. A. M’Barek, A. Zyad, A. Ramdani, I. Zidane, and A. Melhaoui, Nat. Prod. Res., 20,
1024 (2006).
25.
26.
27.
A. Şener, E. Akbas, and M. K. Şener, Turkey J. Chem., 28, 271 (2004).
H. E. El Sayed, F. A. Kamal, A.-E. Salah, and B. Razika, J. Carbohydr. Chem., 26, 1 (2007).
Q. Jairo, C. Debora, I. Braulio, A. Rodrigo, C. Silvia, N. Manuel, and C. Justo, J. Heterocycl. Chem., 45,
155 (2008).
28.
29.
30.
X. Deng and N. S. Mani, Org. Lett., 8, 3505 (2006).
L. Pezdirc, V. Groselj, A. Meden, B. Stanovnik, and J. Svete, J. Heterocycl. Chem., 45, 181 (2008).
P. Wang, Z. Xie, Z. Hong, J. Tang, O. Wong, C.-S. Lee, N. Wong, and S. Lee, J. Mat. Chem., 13, 1894
(2003).
31.
S. M. Allin, W. R. Bowman, M. R. J. Elsegood, V. Mckee, R. Karim, and S. S. Rahman, Tetrahedron,
61, 2689 (2005).
32.
33.
C. A. Obafemi and W. Pfleiderer, Helv. Chim. Acta., 77, 1549 (1994).
L. P. Carrod and F. D. Grady, Antibiotics and Chemotherapy, 3rd ed., Churchill Livingstone,
Edinburgh, 1972, p. 477.
34.
35.
A. D. Russell and J. R. Furr, J. Appl. Bacteriol., 43, 253 (1977).
N. Rashed, A. M. El Massry, E.-S. H. El Ashry, A. Amer, and H. Zimmer, J. Heterocycl. Chem., 27, 691
(1990).
36.
G. W. H. Cheeseman and M. Rafiq, J. Chem. Soc., C, 452 (1971).
1378
