A 2-step synthesis of Combretastatin A-4 and derivatives as potent tubulin assembly inhibitors

Article abstract of DOI:10.1016/j.bmc.2020.115684

A series of combretastatin derivatives were designed and synthesised by a two-step stereoselective synthesis by use of Wittig olefination followed by Suzuki cross-coupling. Interestingly, all new compounds (2a-2i) showed potent cell-based antiproliferative activities in nanomolar concentrations. Among the compounds, 2a, 2b and 2e were the most active across three cancer cell lines. In addition, these compounds inhibited the polymerisation of tubulin in vitro more efficiently than CA-4. They caused cell cycle arrest in G₂/M phase further confirming their ability to inhibit tubulin polymerisation.

Full text of DOI:10.1016/j.bmc.2020.115684

Journal Pre-proofs
A 2-step synthesis of Combretastatin A-4 and derivatives as potent tubulin as‐
sembly inhibitors
Natalie G. Barnes, Anthony W. Parker, Amjed A. Ahmed Malullah, Patricia
A. Ragazzon, John A. Hadfield
PII:
DOI:
Reference:
S0968-0896(20)30514-9
https://doi.org/10.1016/j.bmc.2020.115684
BMC 115684
To appear in:
Bioorganic & Medicinal Chemistry
Received Date:
Revised Date:
Accepted Date:
15 June 2020
22 July 2020
28 July 2020
Please cite this article as: Barnes, N.G., Parker, A.W., Ahmed Malullah, A.A., Ragazzon, P.A., Hadfield, J.A., A
2-step synthesis of Combretastatin A-4 and derivatives as potent tubulin assembly inhibitors, Bioorganic &
Medicinal Chemistry (2020), doi: https://doi.org/10.1016/j.bmc.2020.115684
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition of a cover
page and metadata, and formatting for readability, but it is not yet the definitive version of record. This version
will undergo additional copyediting, typesetting and review before it is published in its final form, but we are
providing this version to give early visibility of the article. Please note that, during the production process, errors
may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.
© 2020 Published by Elsevier Ltd.

A 2-step synthesis of Combretastatin A-4 and derivatives as potent
tubulin assembly inhibitors
Natalie G. Barnes,a,b Anthony W. Parker,c Amjed A. Ahmed Malullah,a,d Patricia A. Ragazzona,e and John A.
Hadfield*a
aBiomedical Research Centre, Kidscan Laboratories, School of Science. Engineering and Environment,
University of Salford, Salford,UK; bDepartment of Chemistry, University College London, London, UK; cCentral
Laser Facility, Research Complex at Harwell, Rutherford Appleton Laboratory, STFC, Chilton, Oxfordshire
d
e
OX11 0QX, UK; Chemistry Department, Science College, University of Basrah, Iraq; School of Pharmacy,
Keele University, Newcastle, UK
Abstract
A series of combretastatin derivatives were designed and synthesised by a two-step stereoselective
synthesis by use of Wittig olefination followed by Suzuki cross-coupling. Interestingly, all new
compounds (2a-2i) showed potent cell-based antiproliferative activities in nanomolar concentrations.
Among the compounds, 2a, 2b and 2e were the most active across three cancer cell lines. In addition,
these compounds inhibited the polymerisation of tubulin in vitro more efficiently than CA-4. They
caused cell cycle arrest in G2/M phase further confirming their ability to inhibit tubulin polymerisation.
1. Introduction
Microtubules are critical for cellular functions such as mitosis and cell structure. Mitosis is a key
stage of cell division in which chromosomes are separated producing genetically identical daughter
cells; the mitotic spindle is the cytoskeletal structure of cells that forms to separate these daughter cells.
Interference with microtubule formation hinders the formation of this mitotic spindle required for cell
division leading to mitotic arrest and eventual apoptosis (cell death). A number of microtubule targeting
agents have been clinically successful in the treatment of cancer, making microtubules a significant
target for anticancer drugs.1–4 Microtubule agents either inhibit or accelerate microtubule formation
causing disruption to the formation of the mitotic spindle. A number of both natural and synthetic
compounds target microtubule polymerisation with most of the antimitotic agents in use today being
plant derivatives.5,6 Taxoids bind to tubulin, stabilizing the microtubules by accelerating
polymerisation. Taxol (or paclitaxel) is routinely used in the treatment of a number of cancers including
7
ovarian, breast, lung and pancreatic cancer.
Vinca alkaloids and colchicine (1) induce
depolymerisation of microtubules. Vinca alkaloids are used in clinical practice to treat solid tumours
mainly of the lung, testicle and breast. A number of natural ligands bind to the colchicine binding site

of tubulin including combretastatin A-4 (CA-4, 2),8 and podophyllotoxin (3)9 (figure 1). These agents
comprise cis-locked aryl groups one of which is 3,4,5-trimethoxyphenyl.
Figure 1. Structure of natural ligands that bind at the colchicine site of tubulin.
Tumour vasculature is a known therapeutic target for cancer treatment. A number of preclinical
in vivo investigations and clinical trials have evaluated the toxicity of vascular disrupting agents
(VDAs).10–12 However in several cases, VDAs have been shown to cause detrimental effects to the
cardiovascular system due to long term dosing.13 Recently, VDAs have been investigated to overcome
these effects as a glutamic acid conjugate14 and to induce the aggregation of gold nanoparticles.15
Combretastatins are a group of natural products isolated from the bark of the South African
willow Combretum caffrum.16 Combretastatins are of increasing interest due to their simple structures
and easy synthesis.17 The most active combretastatin known to date CA-4 (2) binds to the colchicine
site of tubulin, disrupting microtubule polymerisation and eventually induces apoptosis.18–20 CA-4
disrupts endothelial cell structure in tumour capillaries, limiting blood flow and causing cell death21–23
and so can be classed as a VDA. CA-4 is a poorly water-soluble compound and so a number of water-
soluble prodrugs have been developed including combretastatin A4 disodium phosphate (CA4-4P)
which is converted into Z-CA4 by cellular phosphatases in the body.24 Preclinical and clinical trials of
the water soluble phosphate prodrug CA4-P identified resistance at the tumour periphery;25–30 to
overcome this combretastatins have been investigated as a combination therapy to complement
traditional anticancer approaches.23,31–38 Limited advancement of these combination trials could be
attributed to cardiovascular adverse events of CA4P.39 More recently, combretastatin A-1 diphosphate
(OXi4503) has been in clinical trials for patients with relapsed or refractory acute myeloid leukemia40
or myelodysplastic syndromes.41 Combretastatins are also being investigated for photodynamic therapy
as a means to overcome the acute toxic effects of the cis-isomers and provide a more targeted treatment
through photoactivated isomerisation of the non toxic trans-form.42,43
Combretastatins continue to be compounds of interest with an increasing number of structurally
modified combretastatin derivatives synthesized to exploit their properties for targeted therapeutic
applications as VDAs. Modifications of combretastatins tended to retain the more cytotoxic cis-
conformation which included restriction of the cis- configuration by replacement of the olefinic bond
with heterocyclic rings such as imidazole 44, pyrazole 45, triazole 46 etc. There are a number of studies
involving both modification on the olefinic bond and aromatic rings of CA-4.47–49 Modifications to the
A-50 and B-51,52 rings have also been investigated to try and improve activity and solubility.
Synthetic routes for cis-stilbenes include the Wittig reaction,53 alkyne hydroboration,54
selective reduction of alkynes using a Lindlar catalyst,55 Perkin condensation,56 Kumada-Corriu
cross-coupling57, Negishi coupling58 and Ramberg–Bäcklund reaction.59 A very useful reaction
for the stereoselective synthesis of cis-stilbenes is the Suzuki cross-coupling. The Suzuki cross-

coupling reaction has a broad application in the formation of carbon-carbon bonds owing to the
mild reaction conditions and broad functional group toleration.60
2. Results and Discussion
2.1 Chemistry results
Our designed combretastatin derivatives possess a 3,4,5-trimethoxyphenyl A-ring and electron
withdrawing groups at the 2- and 4- position of the B-ring (table 1). There are several syntheses of
combretastatins in the literature.53–60 Most of these methods failed to provide the required
combretastatin derivatives, however a Suzuki cross coupling method proved successful.
The general synthetic route for combretastatin derivatives 2a-m is illustrated in Scheme 1.
3,4,5-Trimethoxy-β-iodostyrene (6) was readily prepared using Stork-Zhao olefination methodology61
from iodomethylenetriphenylphosphonium iodide (4) (1.3 equivalents) and 3,4,5-
trimethoxybenzaldehyde (5) in the presence of NaHMDS (1.3 equivalents) in 72% yield. Z-
Combretastatins were synthesised following the Suzuki-coupling of this Z-iodostyrene compound with
appropriately substituted aryl boronic acids (Scheme 1).
Scheme 1. Synthesis of target compounds 2a-m Reagents and conditions: (a) NaHMDS, THF, -20 to -78 °C, 2 h; (b)
arylboronic acids or pinacol esters, Pd(PPh3)4, DME, Na2CO3, 80 °C, 20 h.
To further investigate the scope of this method and to extend the compound library, we
synthesised 3-hydroxy substituted combretastatins. The boronic acids required for this synthesis were
not commercially available. Although boronic acids react more efficiently, we chose to synthesise the
corresponding boronic pinacol esters as they are easier to isolate and purify.62 The boronic pinacol

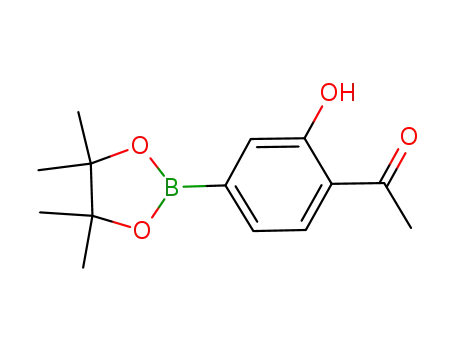

esters were synthesised by Miyaura borylation;63 bis(pinacolato)diboron (B2pin2) was reacted with aryl
halides in the presence of a palladium catalyst and potassium acetate. Z-Combretastatins were then
synthesised as described above from 6 and appropriately substituted pinacol esters. We synthesised a
small library of both known and unknown compounds with a variety of substituents including CHO
(2a), CN (2h), NO2 (2j, 2k) and 3,4,5-trimethoxy (2l) in order to show the broad functional group
1
13
toleration of this method (table 1). Novel synthesised compounds were characterised by H and C
NMR as well as High Resolution Mass Spectrometry.
Application of this 2-step method to the synthesis of combretastatin A-4 gave an overall yield
of 56% following purification by column chromatography and recrystallisation from methanol (scheme
2). This was a huge improvement to the previously reported Suzuki cross-coupling synthesis.

Gaukroger et al reported a 5-step process with an overall yield of 16%.63 Further to this, we avoided
the use of highly toxic carbon tetrabromide and tin. Malysheva and co-workers reported a 2-step
synthesis of combretastatin derivatives by Negishi cross-coupling of 6 with overall yields of 25-45%.58
Negishi coupling however requires phenol protection; they synthesised combretastatin A-4 in 39%
overall yield. Our method provides a higher yielding synthesis of combretastatin derivatives without
the need to protect functional groups.
Scheme 2. New synthesis of Combretastatin A-4
2.2 Biological results
2.2.1 Antiproliferative activities of compounds 2a-2i
We determined the cytotoxicity of these new analogues across three human cancer cell lines
(table 1). The half-maximal inhibitory concentration (IC50)for all new compounds (2a−2i) tested against
HepG2 hepatic carcinoma, HCT-116 colon cancer and HeLa human epithelial cervical cancer cells is
shown in Table 1. We chose cell lines previously used for CA-4;64–67 CA-4 was used as a control to
compare the potency of the synthesized combretastatin analogues.
As shown in table 1 most of the combretastatin derivatives show antiproliferative activity in
the micromolar range, although not as active as CA-4. The most active compounds were 2b (HeLa,
HCT-116) and 2e (HepG2) with IC50 values of less than 100 nanomolar.
Generally, the presence of an electron withdrawing carbonyl group in the 4-position of the B-
ring provided potent anti-proliferative activities. Based on the binding determined for CA-4,68 it can be
presumed this is due to hydrophobic interactions in the colchicine binding site of tubulin at the 4-
position of these derivatives. Further to this, compounds lacking a 4-substitution pattern or with a nitrile
group (2h, 2i) showed limited cytotoxicity. 3-Hydroxy substitution was not essential for anti-
proliferative activity but increased the activity when combined with a 4-carbonyl substitution (2b).
Table 1. Structures of synthesised compounds 2a-m and antiproliferative activities of compounds 2a-i against
human cancer cell lines in vitro
Comp.
R1
R2
R3
In vitro cytotoxicity (IC ± SD, μM)
50
HepG2
HeLa
HCT-116
H
H
H
CHO
CHO
2a
2b
0.25 ± 0.05
0.23 ± 0.05
0.28 ± 0.06
0.07 ± 0.01
0.27 ± 0.15
0.09 ± 0.03
OH

CHO
H
OMe
H
2c
0.14 ± 0.03
1.06 ± 0.38
0.06 ± 0.03
0.37 ± 0.09
0.46 ± 0.12
0.96 ± 0.35
0.53 ± 0.24
n.d
0.15 ± 0.03
1.21 ± 0.31
0.14 ± 0.02
0.34 ± 0.10
0.14 ± 0.08
0.46 ± 0.10
0.58 ± 0.13
n.d
0.14 ± 0.09
2.61 ± 1.51
0.25 ± 0.12
0.35 ± 0.23
0.45 ± 0.12
1.42 ± 0.40
0.79 ± 0.21
n.d
CHO
H
2d
2e
H
H
C(=O)Me
C(=O)Me
H
H
OH
H
2f
C(=O)Me
2g
2h
2i
H
H
CN
H
OH
H
CN
H
NO2
H
2j
NO2
OMe
H
H
2k
2l
n.d
n.d
n.d
n.d
n.d
n.d
n.d
n.d
n.d
OMe
H
OMe
H
2m
CA-4
H
OH
OMe
0.006 ± 0.001
0.007 ± 0.002
0.010 ± 0.003
IC50 was determined after 72 h of drug exposure. Each experiment was carried out in triplicate at least two times. SD represents
standard deviation.
2.2.2 Effect on microtubules
CA-4 is a microtubule-destabilising agent that binds with tubulin at the same site as that of
colchicine.69,70 Combretastatins are known to depolymerize cellular microtubules. The inhibition of
tubulin polymerisation by the combretastatin derivatives was tested using bovine brain tubulin.
We analyzed the effect of compounds 2a-2i on the assembly kinetics of tubulin in vitro using a
fluorescence-based assay. Combretastatins 2a, 2b and 2e inhibited tubulin polymerisation almost
completely at 1 µM (Figure 2a); interestingly, these compounds were also the most cytotoxic.
Compounds 2c, 2f and 2h slowed the rate of tubulin polymerisation with maximum polymerisation
below that of untreated tubulin (figure 2b). These compounds showed a similar trend in cytotoxicity;
they effected cell proliferation but were not as potent as 2a, 2b and 2e. Although compounds 2d, 2g and
2i didn’t inhibit the final proportion of tubulin polymerised at a concentration of 1 µM (figure 2c), these
compounds appeared to slow down the rate of tubulin polymerisation.
Compounds 2d and 2g displayed tubulin polymerisation curves comparable to that of untreated
tubulin with a clear growth phase. The rate of tubulin polymerisation was estimated by fitting the early
times of the curve to a pseudo-first order rate equation (table 2). Values for compound 2i were not
determined as the one–phase association was ambiguous. The rate constant (k) of microtubule
formation under normal conditions was 0.0208 min-1 with a half-life of 33 min. Incubation with
compounds 2d and 2g decreased the rate of microtubule formation with k values of 0.0116 min-1, 0.0123
min-1 respectively. The half-life of tubulin formation also increased upon treatment with compounds 2d
and 2g confirming that although the final volume of microtubules did not appear to be inhibited, these
compounds slowed down the rate of tubulin polymerisation (k) and thus expected to disrupt the cell
signalling pathways, as demonstrated by the cell toxicity results, Table 1.17
An IC50 of the tubulin polymerisation was determined from the Vmax of the polymerisation
curves at varying concentrations for 2a, 2b and 2e (Figure 2d). These combretastatin derivatives had
IC50 values of 0.39, 0.32 and 0.28 μM respectively. This is almost a 10-fold increase in inhibition of
tubulin polymerisation than that of colchicine (2.68 μM).71 Further to this, CA-4 is reported as one of
the most potent tubulin polymerisation inhibitors with IC50 values reported to range from 0.53 to 2.4
M.71–74 The inhibition of tubulin polymerisation correlated with the cytotoxicity towards cancer cell
lines suggesting the main mode of action of these combretastatin derivatives is the inhibition of tubulin
polymerisation.73–76

Figure 2. Combretastatin derivatives (1 M) inhibited the assembly of tubulin in vitro. Normal tubulin
polymerisation is shown as the control. Paclitaxel (3 M) and CA-4 (1 M) were used as positive controls and
experiments were repeated three times. Data is shown for one of these repeats. (a) Compounds 2a, 2b, 2e; (b) 2c,
2f, 2h; (c) 2d, 2g, 2i; (d) example of dose curves for compound 2a 1 µM, 0.5 µM, 0.1 µM.
Table 2. Rate (k) and half-life (t1/2) of tubulin polymerisation after treatment with compounds 2d and 2g
Conditions
No drug control
2d (1 μM)
k (min-1)
0.0208
0.0116
0.0123
t1/2 (min)
33
59
56
2g (1 μM)
2.2.3 Effect on Cell Cycle Arrest
During mitosis, the microtubule is critical for the separation of chromosomes. Exposure to
microtubule targeting agents leads to damaged mitotic spindles resulting in mitotic arrest and
subsequent apoptosis; it is widely accepted that the G2/M cell cycle arrest is strongly associated with
inhibition of tubulin polymerisation.77–79 To investigate the effect of the combretastatin derivatives on
cell cycle arrest, flow cytometry was used to analyse the cell cycle distribution of HepG2 cells following
treatment with compounds 2a, 2b and 2e at 1 M. Untreated cells showed a fairly even spread across
the growth stages; the percentage of cells in the G0/G1 and G2/M phase were 45.6 % and 44.8%
respectively (table 3). After treatment with 2a, 2b and 2e, the percentage of cells in the G2/M phase
drastically increased to 91.6%, 94.6% and 94.7% respectively.
After incubation for 48 hours with 2a, the percentage of apoptotic cells (sub-G1) increased
(43.3%) and the percentage of G2/M arrested cells decreased (46.7%). The increased sub-G1 population,
suggested extensive DNA fragmentation indicating apoptosis as a direct result of mitotic arrest.80 We

observed a similar trend for compounds 2b and 2e after 48 hours; the percentage of apoptotic cells
increased to 43.3% and 43.5% respectively. This cell cycle arrest in the G2/M phase and subsequently
sub-G1 suggests compounds 2a, 2b and 2e inhibit tubulin polymerisation causing a mitotic block that
leads to apoptosis.
Table 3. Effect of compounds 2a, 2b and 2e on the cell cycle in HepG2 cells
2a
2b
2e
No drug control
24 h
3.3
3.5
1.6
91.6
48 h
44.2
5.6
24 h
1.2
48 h
43.3
21.5
4.1
24 h
2.7
1.6
1.0
94.7
48 h
43.5
11.4
4.1
24 h
1.2
48 h
5.9
Sub G1
G0/G1
S
2.8
45.6
8.4
56.2
12.5
25.4
3.5
1.3
G2/M
46.7
94.6
31.1
41.0
44.8
Number of cells arrested in each stage of the cell cycle are expressed as a percentage (%).
3. Conclusion
In conclusion, a series of combretastatin analogues were synthesised using a new two-step
reaction by use of a Wittig olefination followed by the Suzuki cross-coupling. Fourteen compounds
were synthesised using this new route including the biologically active CA-4 in a 56% overall yield.
This two-step synthesis is an improved synthesis of CA-4 which allowed for a library of combretastatins
with B-ring modifications to be synthesised.
New compounds (2a-2i) exhibited antiproliferative activities in nanomolar concentrations. 4-
Formyl-3',4',5'-trimethoxy-(Z)-stilbene (2a), 4-formyl-3-hydroxy-3',4',5'-trimethoxy-(Z)-stilbene (2b)
and 4-Acetyl-3',4',5'-trimethoxy-(Z)-stilbene (2e) were the most potent across all three cell lines. Like
CA-4, compounds 2a, 2b and 2e inhibited the rate and extent of an in vitro assembly of purified tubulin
with IC50s of 0.39, 0.32 and 0.28 μM respectively. Additionally, compounds 2a, 2b and 2e appear to
cause a mitotic block and eventual apoptosis in HepG2 cells, further confirming their ability to inhibit
tubulin polymerisation.

4. Experimental
4.1 Chemistry
General Considerations
All reactants and reagents were obtained from the commercial source and used without further
purification. The NMR spectra were recorded on a Bruker Avance DPX 400 MHz spectrometer in
CDCl3 unless stated otherwise using TMS as an internal standard. J values are given in Hz. HRMS
(ESI) were recorded with Bruker−Maxis mass spectrometers. The purity of synthesized compounds was
analyzed by HPLC (Shimadzu LC-6AD system), Phenomenex RP-C18 column (250 mm × 4.60 mm),
particle size 5 μm, flow rate 1 mL/min, using water−acetonitrile. Purity of tested compounds was >95%.
Z-3,4,5-Trimethoxy-β-iodostyrene (6) 58
A suspension of iodomethylenetriphenylphosphonium iodide (3.53 g, 6.67 mmol, 1.3 eq) in anhydrous
THF (30 ml) was cooled to -20 °C and sodium bis(trimethylsilyl)amide in THF (3.33 ml of a 2 M
solution, 1.3 eq) was added dropwise. The resulting mixture was stirred at -20 °C for 15 min, then
cooled to -78 °C and 3,4,5-trimethoxybenzaldehyde (1 g, 1.45 mmol, 1 eq) in THF (10 ml) was added
over 1 h with good stirring. The reaction was stirred for a further 2 h, quenched with saturated aq.
NH4Cl (10 ml) and extracted with diethyl ether (3 x 10 ml). The combined organic layers were filtered
to remove triphenylphosphine oxide, dried over MgSO4 and concentrated in vacuo. The residue was
purified by flash chromatography on silica gel (hexane/EtOAc, 4:1) to give 6 (1.2 g, 72%) as a yellow
oil. 1H δ ppm: 7.20 (d, J = 8.6 Hz, 2h), 6.91 (s, 2H), 6.48 (d, J = 8.6 Hz, 2h), 3.86 (s, 6H), 3.85 (s, 3H).
General synthesis of boronic pinacol esters81
Into a thick walled screw top flask containing a solution of appropriately substituted aryl halide (2.49
mmol, 1 eq) in dry 1,4-dioxane (10 ml) were added bis(pinacolato)diboron (0.632 g, 2.49 mmol, 1 eq)
[1,1'-Bis(diphenylphosphino)ferrocene]palladium(II) dichloride (0.03 eq) and potassium acetate (3 eq).
The flask was cooled to 0 °C under argon for 30 min. The reaction mixture was gradually warmed to
room temperature, and stirred at 80 °C for 16 h. After cooling to room temperature, the solvent was
evaporated to dryness under reduced pressure. The residue was dissolved in n-hexane, and the solution
was washed with H2O, brine and dried (MgSO4), further purification was by recrystallization from
hexane.
2-Hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (7a)81
From 4-bromosalicylaldehyde (0.500 g, 2.49 mmol, 1 eq). 7a was isolated as a white solid (0.482 g,
1.94 mmol, 78%). 1H δ: 1.28 (12 H, s, 4 x CH3), 7.35 (2 H, m), 7.48 (1 H, d, J = 8.16), 9.86 (1 H, s,
CHO), 10.76 (1 H, s, OH).
2-Hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)acetophenone (7b)
From 1-(4-bromo-2-hydroxyphenyl)ethanone (0.535 g, 2.49 mmol, 1 eq) 7b was isolated as a white
solid (0.451 g, 1.72 mmol, 69%). 1H δ: 1.28 (12 H, s, 4 x CH3), 2.58 (3 H, s, CH3), 7.22 (1 H, dd, J =
7.87, 0.97, para to OH), 7.35 (1 H, d, J = 0.97, ortho to OH), 7.64 (1 H, d, J = 7.87, meta to OH), 11.99
(1 H, s, OH); 13C δ: 24.9 (4 C, CH3), 26.9 (1 C, CH3), 84.3 (2 C, C-O), 114.5 (1 C, C-COCH3), 119.9
(1 C, Ar C), 124.6 (1 C, Ar C), 124.8 (1 C, C-B), 129.6 (1 C, Ar C), 158.8 (1 C, C-OH), 201.2 (1 C,
C=O)

2-Hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzonitrile (7c)
From 4-bromo-2-hydroxybenzonitrile (0.493 g, 2.49 mmol, 1 eq). 7c was isolated as a white
solid (0.464 g, 1.89 mmol, 76%).1H δ: 1.27 (12 H, s, 4 x CH3), 7.14 (1 H, dd, J = 7.71, 1.28,
para to OH), 7.35 (1 H, d, J = 1.28, ortho to OH), 7.36 (1 H, d, J = 7.71, meta to OH), 10.49
13
(1 H, s, OH); C δ: 24.9 (4 C, CH3), 84.5 (2 C, C-O), 94.6 (1 C, C-CN), 105.2 ( 1 C, C-B),
116.4 (1 C, CN), 120.1 (1 C Ar C), 127.9 (1 C, Ar C), 132.8 (1 C, Ar C), 158.2 (1 C, Ar C-
OH).
Synthesis of Combretastatin A-4 and analogues (2a-i)
General synthesis of combretastatins
3,4,5-Trimethoxy-β-iodostyrene (0.22 g, 0.68 mmol, 1 eq) and tetrakis (triphenylphosphine)
palladium(0) (0.04 g, 0.034 mmol, 5 mol %) were stirred in 1,2-dimethoxyethane (50 ml) under argon
for 20 min. Aryl boronic acid (or ester) (1.02 mmol, 1.5 eq) (for 1 0.168 g, 2a 0.150 g, 2b 0.248 g, 2c
0.180 g, 2d 0.150 g, 2e 0.164 g, 2f 0.262 g, 2g 0.164 g, 2h 0.147 g, 2i 0.245 g, 2j 0.167 g, 2k 0.167
g, 2l 0.212 g, 2m 0.122 g) and aqueous sodium carbonate (1 ml of a 2 M solution, 3 eq) were added and
the mixture heated at reflux for 20 h. The reaction mixture was allowed to cool to room temperature,
passed through a plug of celite and the DME was removed in vacuo. DCM (20 ml) was added and
washed with saturated brine, water, dried (MgSO4), and concentrated in vacuo. The residue was purified
by flash column chromatography on silica gel (petroleum ether/EtOAc 10:1) and recrystallised from
methanol.
Combretastatin A-4 (1)53
From 3-methoxy-4-hydroxyphenyl boronic acid (0.168 g, 1 mmol, 1.5 eq). Following purification 1
was isolated as a white solid (0.168 g, 78%); Mp 117-118 (lit. mp42 116-118). 1H δ: 3.70 (6 H, s, 2 x
OMe), 3.85, 3.87 (6 H, 2 s, 2 x OMe), 5.55 (1 H, s, OH), 6.43, 6.49 (2 H, 2 d, J = 12.2 Hz, olefinic Hs),
6.67 (2 H, s, ArH ortho to OMe), 6.85 (1 H, d, J = 8 Hz, ArH meta to OH), 6.80 (1 H, dd, J = 8, 2 Hz,
ArH para to OH), 6.93 (1 H, d, J = 2 Hz, ArH ortho to OH).
4-Formyl-3',4',5'-trimethoxy-(Z)-stilbene (2a)82
From 4-formylphenyl boronic acid (0.15 g, 1 mmol, 1.5 eq). Following purification 2a was isolated as
yellow crystals (0.171 g, 84%); Mp 98-100C; 1H δ: 3.57 (3 H, s, 4’-OMe), 3.70 (6 H, s, 3’,5’-OMe),
6.37 (2 H, s, 2’,6’-CH), 6.51 (1 H, d, J = 12.3, olefinic CH), 6.58 (1 H, d, J = 12.3, olefinic CH), 7.37
(2 H, d, J = 8.2, 2, 6-CH), 7.69 (2 H, d, J = 8.2, 3, 5-CH), 9.08 (1 H, s, CHO). 13C (100 MHz)  55.9,
(2 x OCH3), 60.9 (OCH3), 106.1 (2,6-C), 125.5 (2’,6’-C), 128.6, 129.6 (2 x olefinic CH), 130.1 (3’,5’-
C), 131.8 (1-C), 135.0 (4’-C), 137.7 (1’-C), 140.0 (4-C), 153.0 (3,5-C), 191.5 (CHO). HRMS calcd for
C18H19O4 [M+H+]: 299.1278; found: 299.1278.
4-Formyl-3-hydroxy-3',4',5'-trimethoxy-(Z)-stilbene (2b)
From 2-hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (0.248 g, 1.00 mmol).
Following purification 2b was isolated as a pale yellow solid (0.113 g, 54%); Mp 89 °C. 1H : 3.71 (3
H, s, OCH3), 3.87 (6 H, s, 2 x OCH3) , 6.50 (2 H, s, Ar H), 6.51 (1 H, d, J = 12.3, CH), 6.53 (1 H, d, J
= 12.3, CH), 6.68 (1 H, dd, J = 7.7, 1.8, para to OH), 6.69 (1 H, d, J = 1.8, ortho to OH), 7.43 (1 H,
d, J = 7.7, meta to OH), 9.83 (1 H, s, CHO), 11.06 (1 H, s, OH).13C (100 MHz) δ 56.2 (2 C, 2 x OCH3),

61.0 (1 C, OCH3), 104.2 (1 C, o-OH), 106.2 (2 C, o-C-OCH3), 114.8 (1 C, C-CHO), 126.6 ( 1 C, o-
CHO), 128.3 (1 C, p-OH) 131.6 (1 C, ArC), 132.0 (2 C, CH), 138.9 (1 C, C-O CH3), 153.0 (2 C, C-O
CH3), 153.5 (1 C, C-OH), 195.7 (1 C, C=O). HRMS calcd for C18H19O5 315.1230, found 315.1227.
2-Formyl-3',4,4',5'-tetramethoxy-(Z)-stilbene (2c)
From 2-formylphenyl boronic acid (0.18 g, 1 mmol, 1.5 eq). Following purification 2c was isolated as
a pale yellow solid (0.176 g, 79%); Mp 88-91 C; 1H : 3.60 (3 H, s, 4’-OMe), 3.82 (6 H, s, 3’,5’-OMe),
3.88 (3 H, s, 4-OMe), 6.31 (2 H, s, 2’,6’-CH), 6.72 (1 H, d, J = 12.2, olefinic CH), 6.88 (1 H, d, J =
12.2, olefinic CH), 7.13 (1 H, dd, J = 2.9, 8.6, 5-CH), 7.28 (1 H, d, J = 8.6, 6-CH), 7.43 (1 H, d, J = 2.9,
13
3-CH), 10.25 (1 H, s, CHO). C (100 MHz)  55.6, 55.8 (4, 4’-OMe), 60.9 (3’,5’-OMe), 106.4 (2,6-
C), 110.9 (3’-C), 114.6 (5’-C), 121.7 (6’-C), 125.2, 131.3 (2 x olefinic Cs), 131.9 (1-C), 133.3 (2’-C),
134.2 (2’-C), 134.4 (1’-C), 139.4 (4-C), 152.9 (3,5-Cs), 159.1 (4’-C), 191.7 (CHO). HRMS calcd for
C19H21O5 [M+H+]: 329.1384; found: 329.1385.
2-Formyl-3',4',5'-trimethoxy-(Z)-stilbene (2d)
From 2-formylphenyl boronic acid (0.15 g, 1 mmol, 1.5 eq). Following purification 2d was isolated as
1
a yellow solid (0.162 g, 80%); Mp 91-93 C; H : 3.48 (3 H, s, 4’-OMe), 3.71 (6 H, s, 3’,5’-OMe),
6.15 (2 H, s, 1’,6’-CHs), 6.66 (1 H, d, J = 12.5, olefinic CH), 6.86 (1 H, d, J = 12.5, olefinic CH), 7.27
(1 H, d, J = 7.5, 4-CH), 7,34 (1 H t, J = 7.5, 6-CH), 7.47 (1 H, m, 5-CH), 7.85 (1 H, d, J = 7.5, 3-CH).
13C (100 MHz)  56.2 (2 x OCH3), 60.9 (OCH3), 104.1 (2,6-Cs), 125.8 (6’-C), 127.2, 127.7 (2 x olefinic
CH), 128.9 (3’-C), 130.6 (4’-C), 131.1 (5’-C), 133.3 (1-C), 134.0 (1’-C), 137.6 (2’-C), 141.5 (4-C),
153.5 (3,5-Cs), 192.0 (CHO). HRMS calcd for C18H19O4 [M+H+]: 299.1278; found: 299.1278.
4-Acetyl-3',4',5'-trimethoxy-(Z)-stilbene (2e)
From 4-acetylphenylboronic acid (0.164 g, 1 mmol, 1.5 eq). Following purification 2e was isolated as
a white solid (0.157 g, 74%); Mp 79-81 C; 1H : 2.51 (3 H, s, OCMe), 3.59 (6 H, s, 3’,5’-OMes), 3.77
(3 H, s, 4’-OMe), 6.38 (2 H, s, 2’,6’-CH), 6.51 (1 H, d, J = 12.3, olefinic CH), 6.57 (1 H, d, J = 12.3,
olefinic CH), 7.31 (2 H, d, J = 8.1, 2, 6-CH), 7.78 (2 H, d, J = 8.2, 3,5-CH); 13C (100 MHz)  26.4 (4’-
OCMe), 55.9 (3’,5’-OMes), 61.0 (4-OMe), 106.1 (2,6-C), 128.3 (olefinic C), 128.4 (2’,6’-C),, 128.8
(olefinic C), 129.1 (3’,5’-C), 132.3 (1-C), 137.4 (4’-C), 139.5 (4-C), 143.5 (1’-C), 153.0 (3,5-C), 193.5
(CHO). HRMS calcd for C19H21O4 [M+H+]: 313.1431; found: 313.1434.
4-Acetyl-3-hydroxy-3',4',5'-trimethoxy-(Z)-stilbene (2f)
From and 2-hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)acetophenone (0.262 g, 1.00
mmol). Following purification 2f was isolated as a pale yellow solid (0.122 g, 56%). Mp 73 °C. 1H :
2.62 (3 H, CH3), 3.72 (6 H, s, 2 x OCH3), 3.87 (3 H, s, OCH3) , 6.51 (2 H, s, Ar H), 6.52 (1 H, d, J =
12.5, CH), 6.66 (1 H, d, J = 12.5, CH), 6.83 (1 H, dd, J = 8.2, 1.6, para to OH), 6.97 (1 H, d, J = 1.6,
ortho to OH), 7.60 (1 H, d, J = 8.2, meta to OH), 12.27 (1 H, s, OH). 13C (100 MHz)  26.6 (1 C, CH3),
56.0 (2 C, 2 x OCH3), 61.0 (1 C, OCH3), 106.2 (2 C, o-C-OCH3), 118.3 (C-COCH3), 128.5 (1 C, o-
COCH3), 130.3 (1 C, p-OH), 131.8 (1 C, ArC), 132.9 (1 C, Ar C), 146.0 (1 C, C-OCH3), 153.0 (2 C, C-
O CH3), 162.4 (1 C, C-OH), 203.8 (1 C, C=O). HRMS calcd for C19H21O5 [M+H]: 329.1384; found:
329.1385.

2-Acetyl-3',4',5'-trimethoxy-(Z)-stilbene (2g)
From 5-[(Z)-2-bromovinyl]-1,2,3-trimethoxybenzene (0.164 g, 1 mmol, 1.5 eq).) and 2-
acetylphenylboronic acid (0.169 g, 1.03 mmol). Following purification 2g was isolated as a yellow
solid (0.182 g, 0.58 mmol, 85%).1H : 2.56 (3 H, s, CH3), 3.60 (6 H, s, 2 x OCH3), 3.82 (3 H, s, OCH3),
6.28 (2 H, s, Ar H), 6.56 (1 H, d, J = 12.3, CH), 6.92 (1 H, d, J = 12.3, CH), 7.33 (2 H, d, J = 7.4,
Ar H) 7.36 (t, J= 1.58, 8.99, 1 H, Ar H), 7.79 (d, J=7,4 , 1 H, Ar H); 13C (100 MHz)  29.5 (CH3), 55.7
(2 C, OCH3), 60.9 (OCH3), 106.4 (olefinic C), 126.7 (Ar C), 127.7 (Ar C), 129.1 (olefinic C), 129.9
(olefinic C), 130.0 (Ar C), 131.2 (Ar C), 131.6 (Ar C), 132.0 (Ar C), 137.2 (Ar C), 138.0 (Ar C). 152.7
(olefinic C), 200.7 (carbonyl C). HRMS calcd for C19H21O4 [M+H]: 313.1431, found: 313.1434
4-Cyano-3',4',5'-trimethoxy-(Z)-stilbene (2h)
From 4-cyanophenylboronic acid (0.147 g, 1 mmol, 1.5 eq). Following purification 2h was isolated as
a white solid (0.156 g, 78%); Mp 89-91 C. 1H : 3.60 (s, 6 H), 3.78 (s, 3 H), 6.33 (s, 2 H), 6.47 (d, J =
13
12.2, 1 H), 6.60 (d, J = 12.2, 1 H), 7.31 (d, J = 8.4, 2 H), 7,47 (d, J = 8.4, 2 H). C (100 MHz) 55.9
(3’,5’ OMe), 61.0 (4’-OMe), 106. 0 (2’, 6’-C), 110.5 (1-C), 118.9 (1’-C), 128.0, 129.7 (2 x olefinic C),
131.5 (CN), 132.4 (2, 6-C), 133.10 (3,5-C), 137.8 (4’-C), 142.3 (aromatic 4-C), 153.1 (3’, 5’-C). HRMS
calcd for C18H18NO3 [M+H+]: 296.1287; found: 296.1281.
4-Cyano-3-hydroxy-3',4',5'-trimethoxy-(Z)-stilbene (2i)
From 2-hydroxy-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzonitrile (0.245 g, 2.00 mmol.
Following purification, 2i was isolated as a dark yellow solid (0.100 g, 48%). Mp 95 °C. 1H : 3.70 (6
H, s, 2 x OCH3), 3.85 (3 H, s, OCH3) , 6.45 (2 H, s, Ar H), 6.48 (1 H, d, J = 12.2, CH), 6.63 (1 H, d, J
= 12.2, CH), 6.88 (1 H, dd, J = 9.0, 1.2, para to OH), 6.98 (1 H, d, J = 1.2, ortho to OH), 7.39 (1 H,
d, J = 9.0, meta to OH). 13C (100 MHz)  55.9 (2 C, 2 x OCH3), 61.2 (1 C, OCH3),99.8 (1 C, C-CN),
106.0 (2 C, o-C-OCH3), 121.4 (CN), 128.1 (1 C, o-COCH3), 1331.5 (1 C, p-OH), 132.8 (1 C, ArC),
132.9 (1 C, Ar C), 143.9 (1 C, C-OCH3), 153.1 (2 C, C-O CH3), 159.4 (1 C, C-OH). HRMS calcd for
C18H16NO4 3[M-H]:10.33, found 310.00.
4-Nitro-3',4',5'-trimethoxy-(Z)-stilbene (2j)83
From 4-nitrophenyl boronic acid (0.167 g, 1 mmol, 1.5 eq). Following purification 2j was isolated as a
1
yellow solid (0.167 g, 78%); Mp 142-143 C. (Lit. Mp 210-212 C). H : 3.70 (6 H, s, 3’,5’-OMe),
3.88 (3 H, s, 4-OMe), 6.51 (1 H, d, J = 12.0, olefinic H), 6.25 (1 H, d, J = 12.0, olefinic H), 6.45 (2 H,
s, 2’, 6’-CHs), 7.48 (2 H, d, J = 8.1, 2,6-CHs), 8.15 (2 H, d, J = 8.1, 3,5-CHs).
2-Nitro-3',4',5'-trimethoxy-(Z)-stilbene (2k)84
From 2-nitrophenyl boronic acid (0.167 g, 1 mmol, 1.5 eq). Following purification 2k was isolated as
a yellow solid (0.158 g, 74%); Mp 126-129 C. 1H : 3.60 (6 H, s, 3’, 5’-OMe), 3.82 (3 H, s, 4’-OMe),
6.38 (2 H, s, 2’,6’-CHs), 6.69 (d, J = 12.1, olefinic H), 6.90 (d, J = 12.1, olefinic H), 7.38 (1 H, d, J =
8.2, 3-CH), 7.42 (1 H, m, 4-CH), 7.48 (1 H, m, 5-CH), 8.10 (1.0, d, J = 8.2, 6-CH).

3,3',4,4',5,5'-Hexamethoxy-(Z)-stilbene (2l)85
From 3,4,5-trimethoxyphenyl boronic acid (0.212 g, 1 mmol, 1.5 eq). Following purification 2l was
isolated as a white solid (0.181 g, 0.5 mmol, 74%); Mp 173-175 C. (Lit. Mp 173C). 1H : 3.72 (12 H,
s, 3,3’,5,5’-OMe), 3.85 (6 H, s, 4,4’-OMe), 6.52 (2 H, s, 2 x olefinic Hs) 2 H), 6.53 (4 H, s, 2,2’,6,6’-
CHs)).
3,4,5-Trimethoxy-(Z)-stilbene (2m)86
From phenylboronic acid (0.122 g, 1 mmol, 1.5 eq). Following purification 2m was isolated as a yellow
1
solid (0.149 g, 81%); Mp 105-107 C. (Lit. mp 106-8 C. H : 3.69 (3 H, s, 4-OMe), 3.85 (6 H, s, 3,5-
OMes), 6.47 (2 H, s, 2,6-Hs), 6.54 (1 H, d, J = 12.2, olefinic H), 6.62 (1 H, d, J = 12.2, olefinic H), 7.22
- 7.32(5 H, m, 2’,3’,4’,5,,6’-Hs).
4.2 Biology
4.2.1 Cell culture.
HepG2, HeLa and HCT-116 cells were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM)
supplemented with FCS (10 %), penicillin (100 units/ml), streptomycin (100 μg/ml) and L-glutamine
(2 mM). Cell lines were cultured at 37 °C in a humidified incubator with 5% carbon dioxide.
4.2.2 Cell-Based Screening Assay. Synthesized combretastatin analogues, (2a-2i) and CA-4 used in
the study were dissolved in 100% cell culture grade DMSO. The compounds were serially diluted in
DMEM to maintain the final concentration of DMSO as <0.1% for testing on cancer cell lines. A
concentration of 50 μM of synthesized combretastatin analogues (2a-2i) and CA-4 were initially used
for screening the potency of compounds in cell lines.
4.2.3 Half-Maximal Inhibition of Tumour Cell Growth by Combretastatin Analogues. HepG2,
5
HeLa and HCT-116 cells (1 × 10 cells/mL) were seeded in 96-well plates and incubated for 24 h for
attachment. The cells were then incubated with different concentrations of synthesized combretastatin
analogues and incubated for 24 h. Following incubation, MTT solution (50 μl; 3 mg/ml in PBS) was
added to each well and incubated for a further 3 h. The half-maximal inhibitory concentration (IC50) for
the respective compounds were determined using a known method. In short, formazan crystals were
dissolved in DMSO (100 μl) and optical densities of the wells were read on a
spectrophotometer platereader (Multiskan Ascent, Thermo Labsystems) at 540 nm with 690
nm as a background reading.The no drug control sample was normalised to 100 % cell growth
(no inhibition of cell growth). CA-4 was used as a control for comparing the potencies of the
synthesized combretastatin analogues. Data was analysed using GraphPad. 6 sets of experiments were
performed.
4.2.4 Assembly Kinetics of Tubulin in vitro. A fluorescence-based tubulin polymerisation assay was
performed according to the manufacturer’s protocol (cat # BK011P, Cytoskeleton, Inc.). Tubulin (10
mg ml-1) was resuspended in a premixed buffer containing PIPES, EGTA, MgCl2 and fluorescent
reporter (243 l), glycerol buffer (112 l) and GTP (100 mM, 4.4 l). The tubulin reaction mix (50 l)
was added to 1 M of test compounds and subsequently the assembly kinetics of tubulin was monitored

using excitation wavelength 355 nm at 37 C using Spectramax M2. CA4 and paclitaxel were tested as
controls and three independent experiments were performed for each compound.
4.2.5 Cell Cycle Analysis by Flow Cytometry. HepG2 cells were incubated in the absence and
presence of compounds 2a, 2b, 2e and CA-4 for 24 h or 48 h. Subsequently, the cells were fixed with
70% ethanol. The fixed cells were then incubated with RNase (50 μl; 100 μg/ml in PBS) and propidium
iodide (300 μl; 50 μg/ml in PBS) for 1 h. Flow cytometry analysis was performed using BD FACSVerse
flow cytometer.
Acknowledgements
We thank Roger Bisby for his help with the tubulin assay, his last experiment with Tony at RAL! Kirit
Amin (Salford Analytical Services) for technical assistance. We thank the EPSRC UK National Mass
Spectrometry Service at Swansea University for mass spectrometry services.
5. References
(1)
Jordan, A.; Hadfield, J. A.; Lawrence, N. J.; McGown, A. T. Tubulin as a Target for
Anticancer Drugs: Agents Which Interact with the Mitotic Spindle. Med. Res. Rev. 1998, 18
(4), 259–296.
(2)
(3)
(4)
Hadfield, J. a; Ducki, S.; Hirst, N.; McGown, A. T. Tubulin and Microtubules as Targets for
Anticancer Drugs. Prog. Cell Cycle Res. 2003, 5, 309–325.
Jordan, M. A.; Wilson, L. Microtubules as a Target for Anticancer Drugs. Nat. Rev. Cancer
2004, 4 (4), 253–265. https://doi.org/10.1038/nrc1317.
Mukhtar, E.; Adhami, V. M.; Mukhtar, H. Targeting Microtubules by Natural Agents for
Cancer Therapy. Molecular Cancer Therapeutics. 2014, 13 (2), 275–284.
https://doi.org/10.1158/1535-7163.MCT-13-0791.
(5)
(6)
Lin, C. M.; Ho, H. H.; Pettit, G. R.; Hamel, E. Antimitotic Natural Products Combretastatin A-
4 and Combretastatin A-2: Studies on the Mechanism of Their Inhibition of the Binding of
Colchicine to Tubulin. Biochemistry 1989, 28 (17), 6984–6991.
https://doi.org/10.1021/bi00443a031.
Uppalapati, M.; Huang, Y.; Aravamuthan, V.; Jackson, T. N.; Hancock, W. O. Integrative
Biology ‘“ Artificial Mitotic Spindle ”’ Generated by Dielectrophoresis and Protein
Micropatterning Supports Bidirectional Transport of Kinesin-Coated Beadsw. 2011, 57–64.
https://doi.org/10.1039/c0ib00065e.
(7)
(8)
(9)
Weaver, B. A. How Taxol/Paclitaxel Kills Cancer Cells. Mol. Biol. Cell 2014, 25 (18), 2677–
2681. https://doi.org/10.1091/mbc.E14-04-0916.
Nam, N.-H. Combretastatin A-4 Analogues as Antimitotic Antitumor Agents. Curr. Med.
Chem. 2003, 10 (17), 1697–1722.
Liu, Y. Q.; Tian, J.; Qian, K.; Zhao, X. B.; Morris-Natschke, S. L.; Yang, L.; Nan, X.; Tian,
X.; Lee, K. H. Recent Progress on C-4-Modified Podophyllotoxin Analogs as Potent
Antitumor Agents. Med. Res. Rev. 2015, 35 (1), 1–62. https://doi.org/10.1002/med.21319.
(10) Sessa, C.; Lorusso, P.; Tolcher, A.; Farace, F.; Lassau, N.; Delmonte, A.; Braghetti, A.;
Bahleda, R.; Cohen, P.; Hospitel, M.; et al. Phase I Safety, Pharmacokinetic and
Pharmacodynamic Evaluation of the Vascular Disrupting Agent Ombrabulin (AVE8062) in
Patients with Advanced Solid Tumors. Clin. Cancer Res. 2013, 19 (17), 4832–4842.
https://doi.org/10.1158/1078-0432.CCR-13-0427.
(11) Ho, Y. J.; Wang, T. C.; Fan, C. H.; Yeh, C. K. Current Progress in Antivascular Tumor
Therapy. Drug Discovery Today, 2017, 22 (10), 1503–1515.
https://doi.org/10.1016/j.drudis.2017.06.001.
(12) Nishio, M.; Satouchi, M.; Horiike, A.; Horio, Y.; Sunaga, Y.; Ecstein-Fraisse, E.; Hida, T.
Phase 1 Study of Ombrabulin in Combination with Docetaxel and Cisplatin in Japanese

Patients with Advanced Solid Tumors. JJCO Japanese J. Clin. Oncol. Japanese J. Clin.
Oncol. 2018, 48 (4), 322–328. https://doi.org/10.1093/jjco/hyy026.
(13) Gill, J. H.; Rockley, K. L.; De Santis, C.; Mohamed, A. K. Vascular Disrupting Agents in
Cancer Treatment: Cardiovascular Toxicity and Implications for Co-Administration with
Other Cancer Chemotherapeutics. Pharmacology and Therapeutics, 2019, 202,18–31.
https://doi.org/10.1016/j.pharmthera.2019.06.001.
(14) Qin, H.; Yu, H.; Sheng, J.; Zhang, D.; Shen, N.; Liu, L.; Tang, Z.; Chen, X. PI3Kgamma
Inhibitor Attenuates Immunosuppressive Effect of Poly(L‐ Glutamic Acid)‐ Combretastatin
A4 Conjugate in Metastatic Breast Cancer. Adv. Sci. 2019, 6 (12), 1900327.
https://doi.org/10.1002/advs.201900327.
(15) Hong, S.; Zheng, D. W.; Zhang, C.; Huang, Q. X.; Cheng, S. X.; Zhang, X. Z. Vascular
Disrupting Agent Induced Aggregation of Gold Nanoparticles for Photothermally Enhanced
Tumor Vascular Disruption. Sci. Adv. 2020, 6 (23), 1-12.
https://doi.org/10.1126/sciadv.abb0020.
(16) Pettit, G. R.; Cragg, G. M.; Herald, D. L.; Schmidt, J. M.; Lohavanijaya, P. Isolation and
Structure of Combretastatin. Can. J. Chem. 1982, 60 (11), 1374–1376.
https://doi.org/10.1139/v82-202.
(17) Nasir, S.; Bukhari, A.; Kumar, G. B.; Revankar, H. M.; Qin, H.-L. Development of
Combretastatins as Potent Tubulin Polymerization Inhibitors. 2017, 72, 130-147.
https://doi.org/10.1016/j.bioorg.2017.04.007.
(18) Ley, C. D.; Horsman, M. R.; Kristjansen, P. E. G. Early Effects of Combretastatin-A4
Disodium Phosphate on Tumor Perfusion and Interstitial Fluid Pressure. Neoplasia 2007, 9
(2), 108–112. https://doi.org/10.1593/NEO.06733.
(19) Ahmed, B.; Van Eijk, L. I.; Bouma-ter Steege, J. C.; Van Der Schaft, D. W.; Van Esch, A. M.;
Joosten-achjanie, S. R.; Lambin, P.; Landuyt, W.; Griffioen, A. W. Vascular Targeting
Effect of Combretastatin A-4 phosphate Dominates the Inherent Angiogenesis
Inhibitory Activity, Int. J. Cancer, 2003, 105 (1), 20-25.
https://doi.org/10.1002/ijc.11010.
(20) Böhle, A. S.; Leuschner, I.; Kalthoff, H.; Henne-Bruns, D. Combretastatin A-4 Prodrug: A
Potent Inhibitor of Malignant Hemangioendothelioma Cell Proliferation. Int. J. Cancer 2000,
87 (6), 838–843. https://doi.org/10.1002/1097-0215(20000915)87:6<838::AID-
IJC13>3.0.CO;2-7.
(21) Jain, R. K.; Carmeliet, P. F. Vessels of Death or Life. Scientific American. 2001, pp 38–45.
(22) Patterson, D. M.; Rustin, G. J. S. Vascular Damaging Agents. Clin. Oncol. 2007, 19 (6), 443-
456. https://doi.org/10.1016/j.clon.2007.03.014.
(23) Chaplin, D. J.; Horsman, M. R.; Siemann, D. W. Current Development Status of Small-
Molecule Vascular Disrupting Agents. Curr. Opin. Investig. Drugs 2006, 7 (6), 522–528.
(24) Hadimani, M. B.; Hua, J.; Jonklaas, M. D.; Kessler, R. J.; Sheng, Y.; Olivares, A.; Tanpure, R.
P.; Weiser, A.; Zhang, J.; Edvardsen, K.; et al. Synthesis, in Vitro, and in Vivo Evaluation of
Phosphate Ester Derivatives of Combretastatin A-4. Bioorganic Med. Chem. Lett. 2003, 13
(9), 1505–1508. https://doi.org/10.1016/S0960-894X(03)00206-3.
(25) Nathan, P.; Zweifel, M.; Padhani, A. R.; Koh, D.-M.; Ng, M.; Collins, D. J.; Harris, A.;
Carden, C.; Smythe, J.; Fisher, N.; et al. Phase I Trial of Combretastatin A4 Phosphate (CA4P)
in Combination with Bevacizumab in Patients with Advanced Cancer. Clin. Cancer Res. 2012,
18 (12), 3428–3439. https://doi.org/10.1158/1078-0432.CCR-11-3376.
(26) Griggs, J.; Metcalfe, J. C.; Hesketh, R. Targeting Tumour Vasculatureꢀ: The Development of
Combretastatin A4. Lancet 2001, 2, 0–5.
(27) Griggs, J.; Hesketh, R.; Smith, G. A.; Brindle, K. M.; Metcalfe, J. C.; Thomas, G. A.;
Williams, E. D. Combretastatin-A4 Disrupts Neovascular Development in Non-Neoplastic
Tissue. Br. J. Cancer 2001, 84, 832–835.
(28) Grosios, K.; Holwell, S. E.; McGown, A. T.; Pettit, G. R.; Bibby, M. C. In Vivo and in Vitro
Evaluation of Combretastatin A-4 and Its Sodium Phosphate Prodrug. Br. J. Cancer 1999, 81,
1318–1327.
(29) Patterson, D. M.; Rustin, G. J. S. Vascular Damaging Agents. Clin. Oncol. (R. Coll. Radiol).

2007, 19 (6), 443–456. https://doi.org/10.1016/j.clon.2007.03.014.
(30) Cancer Research UK. A trial looking at immunotherapy and combretastatin for advanced
bowel and pancreatic cancer (A5B7-CA4P; PH1/092).
(31) Chaplin, D. J.; Hill, S. a. The Development of Combretastatin A4 Phosphate as a Vascular
Targeting Agent. Int. J. Radiat. Oncol. Biol. Phys. 2002, 54 (5), 1491–1496.
https://doi.org/10.1016/S0360-3016(02)03924-X.
(32) Grosios, K.; Loadman, P. M.; Swaine, D. J.; Pettit, G. R.; Bibby, M. C. Combination
Chemotherapy with Combretastatin A-4 Phosphate and 5-Fluorouracil in an Experimental
Murine Colon Adenocarcinoma. Anticancer Res. 2000, 20 (1A), 229–233.
(33) Siemann, D. W.; Mercer, E.; Lepler, S.; Rojiani, A. M. Vascular Targeting Agents Enhance
Chemotherapeutic Agent Activities in Solid Tumor Therapy. Int. J. cancer 2002, 99 (1), 1–6.
(34) Morinaga, Y.; Suga, Y.; Ehara, S.; Harada, K.; Nihei, Y.; Suzuki, M. Combination Effect of
AC-7700, a Novel Combretastatin A-4 Derivative, and Cisplatin against Murine and Human
Tumors in Vivo. Cancer Sci. 2003, 94 (2), 200–204. https://doi.org/10.1111/j.1349-
7006.2003.tb01419.x.
(35) Yeung, S.-C. J.; She, M.; Yang, H.; Pan, J.; Sun, L.; Chaplin, D. Combination Chemotherapy
Including Combretastatin A4 Phosphate and Paclitaxel Is Effective against Anaplastic Thyroid
Cancer in a Nude Mouse Xenograft Model. J. Clin. Endocrinol. Metab. 2007, 92 (8), 2902–
2909. https://doi.org/10.1210/jc.2007-0027.
(36) Horsman, M. R.; Murata, R.; Breidahl, T.; Nielsen, F. U.; Maxwell, R. J.; Stødkiled-Jørgensen,
H.; Overgaard, J. Combretastatins Novel Vascular Targeting Drugs for Improving Anti-Cancer
Therapy. Combretastatins and Conventional Therapy. Adv. Exp. Med. Biol. 2000, 476, 311–
323.
(37) Horsman, M. R.; Murata, R. Combination of Vascular Targeting Agents with Thermal or
Radiation Therapy. Int. J. Radiat. Oncol. 2002, 54 (5), 1518–1523.
https://doi.org/10.1016/S0360-3016(02)03926-3.
(38) Zweifel, M.; Jayson, G. C.; Reed, N. S.; Osborne, R.; Hassan, B.; Ledermann, J.; Shreeves, G.;
Poupard, L.; Lu, S.; Balkissoon, J.; et al. Carboplatin , and Paclitaxel in Patients with
Platinum-Resistant Ovarian Cancer. 2011. https://doi.org/10.1093/annonc/mdq708.
(39) Grisham, R.; Ky, B.; Tewari, K. S.; Chaplin, D. J.; Walker, J. Clinical Trial Experience with
CA4P Anticancer Therapy: Focus on Efficacy, Cardiovascular Adverse Events, and
Hypertension Management. Gynecol. Oncol. Res. Pract. 2018, 5 (1).
https://doi.org/10.1186/s40661-017-0058-5.
(40) Uckun, F. M.; Cogle, C. R.; Lin, T. L.; Qazi, S.; Trieu, V. N.; Schiller, G.; Watts, J. M. A
Phase 1B Clinical Study of Combretastatin A1 Diphosphate (OXI4503) and Cytarabine (ARA-
C) in Combination (OXA) for Patients with Relapsed or Refractory Acute Myeloid Leukemia.
Cancers (Basel). 2020, 12 (1), 11. https://doi.org/10.3390/cancers12010074.
(41) Cogle, C. R.; Collins, B.; Turner, D.; Pettiford, L. C.; Bossé, R.; Hawkins, K. E.; Beachamp,
Z.; Wise, E.; Cline, C.; May, W. S.; et al. Safety, Feasibility and Preliminary Efficacy of
Single Agent Combretastatin A1 Diphosphate (OXi4503) in Patients with Relapsed or
Refractory Acute Myeloid Leukemia or Myelodysplastic Syndromes. Br. J. Haematol. 2020,
189 (5), e211–e213. https://doi.org/10.1111/bjh.16629.
(42) Scherer, K. M.; Bisby, R. H.; Botchway, S. W.; Hadfield, J. A.; Parker, A. W. Anticancer
Phototherapy Using Activation of E -Combretastatins by Two-Photon–Induced Isomerization.
J. Biomed. Opt. 2014, 20 (5), 051004. https://doi.org/10.1117/1.jbo.20.5.051004.
(43) M. Scherer, K.; H. Bisby, R.; W. Botchway, S.; W. Parker, A. New Approaches to
Photodynamic Therapy from Types I, II and III to Type IV Using One or More Photons.
Anticancer. Agents Med. Chem. 2017, 17 (2), 171–189.
https://doi.org/10.2174/1871520616666160513131723.
(44) Romagnoli, R.; Baraldi, P. G.; Prencipe, F.; Oliva, P.; Baraldi, S.; Tabrizi, M. A.; Lopez-Cara,
L. C.; Ferla, S.; Brancale, A.; Hamel, E.; et al. Design and Synthesis of Potent in Vitro and in
Vivo Anticancer Agents Based on 1-(3′,4′,5′-Trimethoxyphenyl)-2-Aryl-1H-Imidazole. Sci.
Rep. 2016, 6 (1), 26602. https://doi.org/10.1038/srep26602.
(45) Brown, A. W.; Fisher, M.; Tozer, G. M.; Kanthou, C.; Harrity, J. P. A. Sydnone Cycloaddition
Route to Pyrazole-Based Analogs of Combretastatin A4. J. Med. Chem. 2016, 59 (20), 9473–

9488. https://doi.org/10.1021/acs.jmedchem.6b01128.
(46) Madadi, N. R.; Penthala, N. R.; Howk, K.; Ketkar, A.; Eoff, R. L.; Borrelli, M. J.; Crooks, P.
A. Synthesis and Biological Evaluation of Novel 4,5-Disubstituted 2H-1,2,3-Triazoles as Cis-
Constrained Analogues of Combretastatin A-4. Eur. J. Med. Chem. 2015, 103, 123–132.
https://doi.org/10.1016/j.ejmech.2015.08.041.
(47) Ashraf, M.; Shaik, T. B.; Malik, M. S.; Syed, R.; Mallipeddi, P. L.; Vardhan, M. V. P. S. V.;
Kamal, A. Design and Synthesis of Cis-Restricted Benzimidazole and Benzothiazole Mimics
of Combretastatin A-4 as Antimitotic Agents with Apoptosis Inducing Ability. Bioorg. Med.
Chem. Lett. 2016, 26 (18), 4527–4535. https://doi.org/10.1016/J.BMCL.2016.06.044.
(48) Kamal, A.; Shaik, A. B.; Polepalli, S.; Kumar, G. B.; Reddy, V. S.; Mahesh, R.; Garimella, S.;
Jain, N. Synthesis of Arylpyrazole Linked Benzimidazole Conjugates as Potential Microtubule
Disruptors. Bioorg. Med. Chem. 2015, 23 (5), 1082–1095.
https://doi.org/10.1016/j.bmc.2015.01.004.
(49) Mahal, K.; Biersack, B.; Schruefer, S.; Resch, M.; Ficner, R.; Schobert, R.; Mueller, T.
Combretastatin A-4 Derived 5-(1-Methyl-4-Phenyl-Imidazol-5-Yl)Indoles with Superior
Cytotoxic and Anti-Vascular Effects on Chemoresistant Cancer Cells and Tumors. Eur. J.
Med. Chem. 2016, 118, 9–20. https://doi.org/10.1016/j.ejmech.2016.04.045.
(50) Simoni, D.; Romagnoli, R.; Baruchello, R.; Rondanin, R.; Grisolia, G.; Eleopra, M.; Rizzi, M.;
Tolomeo, M.; Giannini, G.; Alloatti, D.; et al. Novel A-Ring and B-Ring Modified
Combretastatin A-4 (CA-4) Analogues Endowed with Interesting Cytotoxic Activity. J. Med.
Chem. 2008, 51 (19), 6211-6215. https://doi.org/10.1021/jm8005004.
(51) Kamal, A.; Shaik, B.; Nayak, V. L.; Nagaraju, B.; Kapure, J. S.; Shaheer Malik, M.; Shaik, T.
B.; Prasad, B. Synthesis and Biological Evaluation of 1,2,3-Triazole Linked
Aminocombretastatin Conjugates as Mitochondrial Mediated Apoptosis Inducers. Bioorg.
Med. Chem. 2014, 22 (19), 5155–5167. https://doi.org/10.1016/j.bmc.2014.08.008.
(52) Gerova, M. S.; Stateva, S. R.; Radonova, E. M.; Kalenderska, R. B.; Rusew, R. I.; Nikolova,
R. P.; Chanev, C. D.; Shivachev, B. L.; Apostolova, M. D.; Petrov, O. I. Combretastatin A-4
Analogues with Benzoxazolone Scaffold: Synthesis, Structure and Biological Activity. Eur. J.
Med. Chem. 2016, 120, 121-133. https://doi.org/10.1016/j.ejmech.2016.05.012.
(53) Petit, G. R.; Singh, S. B.; Boyd, M. R.; Hamel, E.; Pettit, R. K.; Schmidt, J. M.; Hogan, F.
Antineoplastic Agents. 291. Isolation and Synthesis of Combretastatins A-4, A-5, and A-6. J.
Med. Chem. 1995, 38, 1666–1672.
(54) Lawrence, N. J.; Ghani, F. A.; Hepworth, L. A.; Hadfield, J. A.; McGown, A. T.; Pritchard, R.
G. The Synthesis of (E) and (Z)-Combretastatins A-4 and a Phenanthrene from Combretum
Caffrum. Synthesis (Stuttg). 1999, 9, 1656–1660.
(55) Fürstner, A.; Nikolakis, K. Ethynylation of Aryl Halides by a Modified Suzuki Reaction.
Application to the Syntheses of Combretastatin A-4, A-5, and Lunularic Acid. Liebigs Ann.
1996, 12, 2107–2113. https://doi.org/10.1002/jlac.199619961224.
(56) Gaukroger, K.; Hadfield, J. A.; Hepworth, L. A.; Lawrence, N. J.; McGown, A. T. Novel
Syntheses of Cis and Trans Isomers of Combretastatin A-4. J. Org. Chem. 2001, 66, 8135–
8138.
(57) Camacho-Dávila, A. A. Kumada–Corriu Cross Coupling Route to the Anti-Cancer Agent
Combretastatin A-4. Synth. Commun. 2008, 38 (21), 3823–3833.
https://doi.org/10.1080/00397910802238692.
(58) Malysheva, Y. B.; Combes, S.; Fedorov, A. Y.; Knochel, P.; Gavryushin, A. E. New Method
of Synthesis and Biological Evaluation of Some Combretastatin A-4 Analogues. Synlett 2012,
23 (08), 1205–1208. https://doi.org/10.1055/s-0031-1290899.
(59) Robinson, J. E.; Taylor, R. J. K. A Ramberg-Bäcklund Route to the Stilbenoid Anti-Cancer
Agents Combretastatin A-4 and DMU-212. Chem. Commun. (Camb). 2007, No. 16, 1617–
1619. https://doi.org/10.1039/b702411h.
(60) Ishiyama, T.; Murata, M.; Miyaura, N. Palladium(0)-Catalyzed Cross-Coupling Reaction of
Alkoxydiboron with Haloarenes: A Direct Procedure for Arylboronic Esters. J. Org. Chem.
1995, 60 (23), 7508–7510. https://doi.org/10.1021/jo00128a024.
(61) Stork, G.; Zhao, K. A Stereoselective Synthesis of (Z)-1-Iodo-1-Alkenes. Tetrahedron Lett.
1989, 30 (17), 2173–2174. https://doi.org/10.1016/S0040-4039(00)99640-0.

(62) Lennox, A. J. J.; Lloyd-Jones, G. C. Selection of Boron Reagents for Suzuki–Miyaura
Coupling. Chem. Soc. Rev. 2014, 43 (1), 412–443. https://doi.org/10.1039/C3CS60197H.
(63) Ishiyama, T.; Murata, M.; Miyaura, N. Palladium (0)-Catalyzed Cross-Coupling Reaction of
Alkoxydiboron with Haloarenes: A Direct Procedure for Arylboronic Esters. J Org Chem
1995, 60 (23), 7508–7510. https://doi.org/10.1021/jo00128a024.
(64) Qi, Z.-Y.; Hao, S.-Y.; Tian, H.-Z.; Bian, H.-L.; Hui, L.; Chen, S.-W. Synthesis and Biological
Evaluation of 1-(Benzofuran-3-Yl)-4-(3,4,5-Trimethoxyphenyl)-1H-1,2,3-Triazole Derivatives
as Tubulin Polymerization Inhibitors. 2019. https://doi.org/10.1016/j.bioorg.2019.103392.
(65) Quan, Y. P.; Cheng, L. P.; Wang, T. C.; Pang, W.; Wu, F. H.; Huang, J. W. Molecular
Modeling Study, Synthesis and Biological Evaluation of Combretastatin A-4 Analogues as
Anticancer Agents and Tubulin Inhibitors. Medchemcomm 2018, 9 (2), 316–327.
https://doi.org/10.1039/c7md00416h.
(66) Assali, M.; Kittana, N.; Qasem, S. A.; Adas, R.; Saleh, D.; Arar, A.; Zohud, O. Combretastatin
A4-Camptothecin Micelles as Combination Therapy for Effective Anticancer Activity. RSC
Adv. 2019, 9 (2), 1055–1061. https://doi.org/10.1039/C8RA08794F.
(67) Shen, Y. N.; Lin, L.; Qiu, H. Y.; Zou, W. Y.; Qian, Y.; Zhu, H. L. The Design, Synthesis, in
Vitro Biological Evaluation and Molecular Modeling of Novel Benzenesulfonate Derivatives
Bearing Chalcone Moieties as Potent Anti-Microtubulin Polymerization Agents. RSC Adv.
2015, 5 (30), 23767–23777. https://doi.org/10.1039/c4ra12108b.
(68) Gaspari, R.; Prota, A. E.; Bargsten, K.; Cavalli, A.; Steinmetz, M. O. Structural Basis of Cis-
and Trans-Combretastatin Binding to Tubulin. Chem, 2017, 2 (1), 102-113.
https://doi.org/10.1016/j.chempr.2016.12.005.
(69) Pettit, G. R.; Singh, S. B.; Hamel, E.; Lin, C. M.; Alberts, D. S.; Garcia-Kendall, D. Isolation
and Structure of the Strong Cell Growth and Tubulin Inhibitor Combretastatin A-4.
Experientia 1989, 45 (2), 209–211.
(70) Pettit, G. R.; Temple, C.; Narayanan, V. L.; Varma, R.; Simpson, M. J.; Boyd, M. R.; Rener,
G. A.; Bansal, N. Antineoplastic Agents 322. Synthesis of Combretastatin A-4 Prodrugs.
Anticancer. Drug Des. 1995, 10 (4), 299–309.
(71) Lu, Y.; Chen, J.; Xiao, M.; Li, W.; Miller, D. D. An Overview of Tubulin Inhibitors That
Interact with the Colchicine Binding Site. Pharm. Res. 2012, 29 (11), 2943–2971.
https://doi.org/10.1007/s11095-012-0828-z.
(72) Wang, T. C.; Cheng, L. P.; Huang, X. Y.; Zhao, L.; Pang, W. Identification of Potential
Tubulin Polymerization Inhibitors by 3D-QSAR, Molecular Docking and Molecular
Dynamics. RSC Adv. 2017, 7 (61), 38479–38489. https://doi.org/10.1039/C7RA04314G.
(73) Sriram, M.; Hall, J. J.; Grohmann, N. C.; Strecker, T. E.; Wootton, T.; Franken, A.; Trawick,
M. L.; Pinney, K. G. Design, Synthesis and Biological Evaluation of Dihydronaphthalene and
Benzosuberene Analogs of the Combretastatins as Inhibitors of Tubulin Polymerization in
Cancer Chemotherapy. Bioorg. Med. Chem. 2008, 16 (17), 8161–8171.
https://doi.org/10.1016/j.bmc.2008.07.050.
(74) Wu, M.; Sun, Q.; Yang, C.; Chen, D.; Ding, J.; Chen, Y.; Lin, L.; Xie, Y. Synthesis and
Activity of Combretastatin A-4 Analogues: 1,2,3-Thiadiazoles as Potent Antitumor Agents.
Bioorg. Med. Chem. Lett. 2007, 17 (4), 869–873. https://doi.org/10.1016/j.bmcl.2006.11.060.
(75) Mangiatordi, G. F.; Trisciuzzi, D.; Alberga, D.; Denora, N.; Iacobazzi, R. M.; Gadaleta, D.;
Catto, M.; Nicolotti, O. Novel Chemotypes Targeting Tubulin at the Colchicine Binding Site
and Unbiasing P-Glycoprotein. Eur. J. Med. Chem. 2017, 139, 792–803.
https://doi.org/10.1016/j.ejmech.2017.07.037.
(76) Mikstacka, R.; Stefański, T.; Rózański, J. Tubulin-Interactive Stilbene Derivatives as
Anticancer Agents. Cell. Mol. Biol. Lett. 2013, 18 (3), 368–397.
https://doi.org/10.2478/s11658-013-0094-z.
(77) Kanthou, C.; Greco, O.; Stratford, A.; Cook, I.; Knight, R.; Benzakour, O.; Tozer, G. The
Tubulin-Binding Agent Combretastatin A-4-Phosphate Arrests Endothelial Cells in Mitosis
and Induces Mitotic Cell Death. Am. J. Pathol. 2004, 165 (4), 1401–1411.
https://doi.org/10.1016/S0002-9440(10)63398-6.
(78) Wang, L. G.; Liu, X. M.; Kreis, W.; Budman, D. R. The Effect of Antimicrotubule Agents on
Signal Transduction Pathways of Apoptosis: A Review. Cancer Chemother. Pharmacol. 1999,

44 (5), 355–361. https://doi.org/10.1007/s002800050989.
(79) Zhu, M.-L.; Horbinski, C. M.; Garzotto, M.; Qian, D. Z.; Beer, T. M.; Kyprianou, N. Tubulin-
Targeting Chemotherapy Impairs Androgen Receptor Activity in Prostate Cancer. Cancer Res.
2010, 70 (20), 7992–8002. https://doi.org/10.1158/0008-5472.CAN-10-0585.
(80) Gerova, M. S.; Stateva, S. R.; Radonova, E. M.; Kalenderska, R. B.; Rusew, R. I.; Nikolova,
R. P.; Chanev, C. D.; Shivachev, B. L.; Apostolova, M. D.; Petrov, O. I. Combretastatin A-4
Analogues with Benzoxazolone Scaffold: Synthesis, Structure and Biological Activity. Eur. J.
Med. Chem. 2016, 120, 121–133. https://doi.org/10.1016/j.ejmech.2016.05.012.
(81) Mamiya, F.; Ousaka, N.; Yashima, E. Remote Control of the Planar Chirality in Peptide-
Bound Metallomacrocycles and Dynamic-to-Static Planar Chirality Control Triggered by
Solvent-Induced 3 10 -to-α-Helix Transitions. Angew. Chemie Int. Ed. 2015, 54 (48), 14442–
14446. https://doi.org/10.1002/anie.201507918.
(82) Luo, Z.; Guo, Q.; Liu, X.; Ye, X.; Hongru, L.; Gao, F. Novel Two-Photon Singlet Oxygen
Photosensitizers: Experimental and Theoretical Studies of Numbers of Bromine Atoms Effect.
Curr. Org. Chem. 2013, 17 (3), 1–13.
(83) Cushman, M.; Nagarathnam, D.; Gopal, D.; Chakraborti, A. K.; Lin, C. M.; Hamel, E.
Synthesis and Evaluation of Stilbene and Dihydrostilbene Derivatives as Potential Anticancer
Agents That Inhibit Tubulin Polymerization. J. Med. Chem. 1991, 34 (8), 2579–2588.
(84) Motoshima, K.; Ishikawa, M.; Hashimoto, Y.; Sugita, K. Inhibition of Restriction Enzymes
EcoRI, BamHI and HindIII by Phenethylphenylphthalimides Derived from Thalidomide.
Chem. Pharm. Bull. 2011, 59 (7), 880–884. https://doi.org/10.1248/cpb.59.880.
(85) Fischer, F.; Schmutzler, F.; Haak, E. Kondensation von Verbindungen Des Vollacetal-Typs
Mit C-H aciden Verbindungen I. Kondensation vonꢀBromacetaldehyddiathylacetal Mit
Phenolathern Und von Benzaldehyd-Bisaminalen Des Piperidins Und Morpholins Mit
Ketonen. J. Prakt. Chemie 1964, 24 (3–4), 216–225.
https://doi.org/10.1002/prac.19640240313.
(86) Liu, Y. Q.; Li, X. J.; Zhao, C. Y.; Lu, Y.; Li, W. Q.; Liu, Z. L.; Feng, G.; Yang, L. Synthesis
and Insect Antifeedant Activity of Stilbene Derivatives against Brontispa Longissima Larvae.
Med. Chem. Res. 2013, 22 (5), 2196–2206. https://doi.org/10.1007/s00044-012-0212-x.

Graphical abstract

The authors declare that they have no known competing financial interests or personal
relationships that could have appeared to influence the work reported in this paper.
