A practical solution-phase synthesis of an antagonistic peptide
of TNF-a based on hydrophobic tag strategyw
Gegen Tana,a Shingo Kitada,a Shuji Fujita,b Yohei Okada,a Shokaku Kima and
Kazuhiro Chiba*a
Received 6th August 2010, Accepted 7th September 2010
DOI: 10.1039/c0cc03090b
A simple acid-resistant hydrophobic tag, which can be removed
rapidly in a single-step procedure after overall peptide synthesis,
has been developed to accomplish practical solution-phase synthesis
of a 15-mer antagonistic peptide of TNF-a (A-TNF-a). Hydro-
phobically tagged peptides can be separated as precipitates at
each step by addition of a polar organic solvent.
intramolecular cyclized by-product, takes place immediately
under the basic conditions required for N-terminal Fmoc
group deprotection (Scheme 2). This troublesome process
can be prevented under acidic conditions because the nucleo-
philicity of the N-terminus should be significantly decreased
by protonation. Therefore, an acid-resistant hydrophobic tag
would allow for the use of both Boc- and Fmoc-chemistry,
extending the potential uses of hydrophobic tag-based peptide
synthesis. We herein describe the development of a new
hydrophobic tag for peptide synthesis that can be applied in
both Boc- and Fmoc-chemistry. Furthermore, hydrophobically
tagged peptides can be effectively separated as precipitates by
addition of a polar organic solvent. The tag can also be removed
in a single step procedure after overall peptide synthesis
(Scheme 3). We chose a peptide possessing a C-terminal prolyl
residue, i.e., antagonist of tumor necrosis factor-a28 (A-TNF-a),
as the model compound to demonstrate our strategy.
Since the pioneering work of Merrifield, peptide synthesis
based on solid-phase techniques has been established to realize
a practical synthesis for both naturally occurring and artificial
peptides, and has also become essential for automated synthesis
and combinatorial chemistry.1–12 The great advantage of solid-
phase synthesis is the facile separation processes, requiring only
filtration. In this context, a wide variety of effective protection/
deprotection methods were developed to elaborate target
sequences. Alternatively, tag-assisted solution-phase synthesis
has also been demonstrated to be an efficient approach,
especially for multi-step reactions.13–21 In this case, high
reaction rate and rapid reaction monitoring are both attained.
The integration of solid-phase separation and solution-phase
synthesis should facilitate highly practical peptide synthesis.
Previously, we developed a solution-phase reaction system
based on a simple hydrophobic tag, 3,4,5-trioctadecyloxy-
benzyl alcohol (HO-TAGa) 1, that could easily be used in
multi-step reactions (Scheme 1).22–27 In particular, 1 can serve
as an effective protecting group for the peptide C-terminus and
as a phase-tag that can selectively be separated from surplus
reagents, including amino acids (AAs) and condensing agents,
in polar reaction solutions. However, C-terminal benzyl
esters are often hydrolyzed under acidic conditions. Thus,
Boc-chemistry could not be applied to this system. This drawback
is crucial when proline is placed at the C-terminus (or next to
the C-terminus), because the formation of diketopiperazines, an
The present work began with the preparation of 2,4-di-
docosyloxybenzyl alcohol (HO-TAGb) 2 and 3,5-didocosyloxy-
benzyl alcohol (HO-TAGc) 3. To evaluate the stability of the
hydrophobic tags 1–3 against the acidic conditions used for
N-terminal Boc group deprotection, N-Boc-leucine was then
introduced to 1–3 using diisopropylcarbodiimide (DIC) in the
presence of a catalytic amount of dimethylaminopyridine
(DMAP) to form hydrophobically tagged N-Boc-leucines
(N-Boc-Leu-O-TAGa–c) 4–6 quantitatively (Scheme 4). When
Scheme 2 Formation of diketopiperazines from N-Fmoc-AA-Pro-O-
TAGa under basic conditions required for N-terminal Fmoc group
deprotection.
Scheme 1 Structures of hydrophobic tags (HO-TAGa–c) 1–3 used in
this study.
a Laboratory of Bio-organic Chemistry,
Tokyo University of Agriculture and Technology,
3-5-8 Saiwai-cho, Fuchu, Tokyo 183-8509, Japan.
E-mail: chiba@cc.tuat.ac.jp; Fax: (+81)-42-360-7167;
Tel: (+81)-42-367-5667
b JITSUBO Co. Ltd., 2-24-16 Naka-cho, Koganei, Tokyo 184-0012,
Japan
w Electronic supplementary information (ESI) available: Experimental
details. See DOI: 10.1039/c0cc03090b
Scheme 3 General concept of the hydrophobic tag strategy.
Chem. Commun., 2010, 46, 8219–8221 8219
c
This journal is The Royal Society of Chemistry 2010

View Article Online
Scheme 5 N-Boc group deprotection of N-Boc-Arg(Mts)-Pro-O-
TAGc (12).
Scheme 4 Evaluation of the stability of HO-TAGa–c (1–3) against
amount of deprotected product 13 with excellent purity
(Scheme 5). Cleavage of the C-terminal benzyl ester of 12 was
not observed, while no deprotected product 13 was obtained
through N-terminal Fmoc group deprotection of hydro-
phobically tagged N-Fmoc-peptide [N-Fmoc-Arg(Mts)-Pro-
O-TAGc] 14 under basic conditions, and only 3 was recovered
as a precipitate (Scheme 6 and Fig. S4 in supporting information).
Based on these results, repeated peptide elongation with
N-Fmoc-AAs [except the last, N-Boc-Asp(tBu)-OH], deprotec-
tion in solution-phase, and separation by precipitation were
performed using HBTU and HOBt in the presence of DIPEA
to afford hydrophobically tagged N-Boc-A-TNF-a (N-Fmoc-
A-TNF-a-O-TAGc) 15 in 81% isolated yield over 25 steps
(Scheme 7). Finally, deprotection of compound 15 was
achieved under two different types of acidic conditions to give
deprotected compound, A-TNF-a, 16 in 86% isolated yield in
two steps with excellent purity (Scheme 8 and Fig. S6 in
supporting information).
the acidic conditions used for N-terminal Boc group deprotection.
4–6 were subjected to N-terminal Boc group deprotection
conditions, 6 afforded deprotected product 9 quantitatively,
whereas deprotected products 7 and 8 were not obtained.
Hydrolyzed leucine S1 was recovered from the reaction
mixture, along with decomposition products of 1, by acid
treatment of 4 (Scheme S1 in supporting information). On the
other hand, acid treatment of 5 resulted in the quantitative
formation of red-colored resorcinarene S2 (Scheme S2 in
supporting information). These results indicated that the
C-terminal benzyl esters of 4 and 5 were hydrolyzed under
the acidic conditions required for N-terminal Boc group
deprotection, affording the corresponding benzyl cations
stabilized by ortho- and/or para-alkoxy groups, which then
decomposed and cyclized. Meanwhile, hydrolysis of the
C-terminal benzyl ester of 6 was not observed even when 6
was stirred for 3 days under acidic conditions required for
N-terminal Boc group deprotection, clearly suggesting
that 3 functioned as an acid-resistant hydrophobic tag that will
enable the incorporation of Boc-chemistry. It should also be
emphasized that quantitative amounts of both 6 (Fig. S1 in
supporting information) and 9 (Fig. S2 in supporting information)
could be isolated with excellent purities by addition of acetonitrile.
With the acid-resistant hydrophobic tag 3 in hand, we then
turned our attention to the synthesis of A-TNF-a. Initially,
N-Fmoc-proline was introduced to 3 using DIC in the
presence of a catalytic amount of DMAP. After the comple-
tion of the reaction, an excess amount of acetonitrile was
added to the reaction mixture to precipitate hydrophobically
tagged N-Fmoc-proline (N-Fmoc-Pro-O-TAGc) 10 quanti-
tatively (Scheme S3 and Fig. S3 in supporting information).
Compound 10 was then stirred under basic conditions
consisting of 1,3-diazabicyclo[5.4.0]undec-7-ene (DBU) and
piperidine to deprotect the N-terminal Fmoc group, which
was then precipitated by the addition of acetonitrile to give a
quantitative amount of deprotected product 11 (Scheme S4 in
supporting information). Through careful examination, the
Mts group was found to be a suitable protective group for the
arginine side chain. Thus, N-Boc-Arg(Mts)-OH was introduced
to 11 to give hydrophobically tagged N-Boc-dipeptide
[N-Boc-Arg(Mts)-Pro-O-TAGc] 12 quantitatively as a precipitate
by the addition of an excess amount of acetonitrile (Scheme S5
and Fig. S3 in supporting information). It was also found that
the use of O-benzotriazole-N,N,N0,N0-tetramethyluronium
hexafluorophosphate (HBTU) and 1-hydroxy-1H-benzotriazole
(HOBt) in the presence of N,N-diisopropylethylamine (DIPEA)
was more effective after the second introduction of an amino
acid. Compound 12 was then stirred under acidic conditions to
deprotect the N-terminal Boc group, which was then precipi-
tated by the addition of acetonitrile to give a quantitative
In conclusion, we have successfully developed a simple
acid-resistant hydrophobic tag, which can rapidly be removed
in a single step procedure after overall peptide synthesis, to
accomplish practical solution-phase synthesis of A-TNF-a.
This strategy could effectively incorporate both Boc- and
Fmoc-chemistry and the products could readily be separated
as precipitates at each step by addition of a polar organic
solvent, which allows for elaboration of target sequences in
peptide synthesis.
Scheme 6 Basic deprotection of N-Fmoc-Arg(Mts)-Pro-O-TAGb
(14).

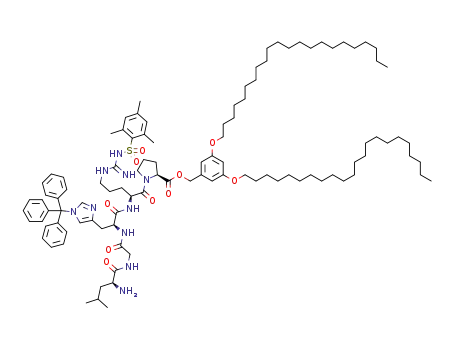

Scheme 7 Synthesis of N-Boc-A-TNF-a-O-TAGc (15).
Scheme 8 Acidic deprotection of N-Boc-A-TNF-a-O-TAGc (16).
c
8220 Chem. Commun., 2010, 46, 8219–8221
This journal is The Royal Society of Chemistry 2010

View Article Online
14 D. J. Gravert and K. D. Janda, Chem. Rev., 1997, 97,
489–510.
Notes and references
1 F. Mende, M. Beisswenger and O. Seitz, J. Am. Chem. Soc., 2010,
132, 11110–11118.
15 J.-A. Ahn, Jr., P. Wentworth and K. D. Janda, Chem. Commun.,
2003, 480–481.
2 A. C. Ross, H. Liu, V. R. Pattabiraman and J. C. Vederas, J. Am.
Chem. Soc., 2010, 132, 462–463.
16 D. E. Bergbreiter, J. Tian and C. Hongfa, Chem. Rev., 2009, 109,
530–582.
3 A. G. Jamieson, N. Boutard, K. Beauregard, M. S. Bodas, H. Ong,
C. Quiniou, S. Chemtob and W. D. Lubell, J. Am. Chem. Soc.,
2009, 131, 7917–7927.
4 W. M. Kok, D. B. Scanlon, J. A. Karas, L. A. Miles, D. J. Tew,
M. W. Parker, K. J. Barnham and C. A. Hutton, Chem. Commun.,
2009, 6228–6230.
17 K. Chanda, J. Kuo, C.-H. Chen and C.-M. Sun, J. Comb. Chem.,
2009, 11, 252–260.
18 Z. Liu, Y. Huang, W. Zhang, L. Ma, J. Li, X. Wang, J. Li and
J. Shen, J. Comb. Chem., 2008, 10, 632–636.
19 R. Ojeda, J.-L. de Paz and M. Martın-Lomas, Chem. Commun.,
2003, 2486–2487.
5 A. Bunschoten, J. A. W. Kruijtzer, J. H. Ippel, C. J. C. de Haas,
J. A. G. van Strijp, J. Kemmink and R. M. J. Liskamp, Chem.
Commun., 2009, 2999–3001.
6 A. Bianco, Chem. Commun., 2005, 3174–3176.
7 A. P. Tofteng, K. K. Sørensen, K. W. Conde-Frieboes,
T. Hoeg-Jensen and K. J. Jensen, Angew. Chem., Int. Ed., 2009,
48, 7411–7414.
8 A. M. Ali and S. D. Taylor, Angew. Chem., Int. Ed., 2009, 48,
2024–2026.
9 V. R. Pattabiraman, S. M. K. McKinnie and J. C. Vederas, Angew.
Chem., Int. Ed., 2008, 47, 9472–9475.
10 S. Kamioka, S. Shimazu, T. Doi and T. Takahashi, J. Comb.
Chem., 2008, 10, 681–690.
11 T. Doi, Y. Hoshina, H. Mogi, Y. Yamada and T. Takahashi,
J. Comb. Chem., 2006, 8, 571–582.
12 K. Nagai, T. Doi, T. Sekiguchi, I. Namatame, T. Sunazuka,
20 H. Guo, X. Shi, Z. Qiao, S. Hou and M. Wang, Chem. Commun.,
2002, 118–119.
21 M. Fumoto, H. Hinou, T. Matsushita, M. Kurogochi,
T. Ohta, T. Ito, K. Yamada, A. Takimoto, H. Kondo, T. Inazu
and S. Nishimura, Angew. Chem., Int. Ed., 2005, 44,
2534–2537.
22 K. Chiba, Y. Kono, S. Kim, K. Nishimoto, Y. Kitano and
M. Tada, Chem. Commun., 2002, 1766–1767.
23 K. Hayashi, S. Kim, Y. Kono, M. Tamura and K. Chiba,
Tetrahedron Lett., 2005, 47, 171–174.
24 S. Kim, K. Yamamoto, K. Hayashi and K. Chiba, Tetrahedron,
2008, 64, 2855–2863.
25 S. Kim, A. Tsuruyama, A. Ohmori and K. Chiba, Chem.
Commun., 2008, 1816–1818.
26 K. Chiba, M. Sugihara, K. Yoshida, Y. Mikami and S. Kim,
Tetrahedron, 2009, 65, 8014–8020.
27 M. Iijima, Y. Mikami, T. Yoshioka, S. Kim, H. Kamiya and
K. Chiba, Langmuir, 2009, 25, 11043–11047.
28 C. L. Chirinos-Rojas, M. W. Steward and C. D. Partidos,
J. Immunol., 1998, 161, 5621–5626.
¯
H. Tomoda, S. Omura and T. Takahashi, J. Comb. Chem., 2006,
8, 103–109.
13 T. J. Dickerson, N. N. Reed and K. D. Janda, Chem. Rev., 2002,
102, 3325–3344.
c
This journal is The Royal Society of Chemistry 2010
Chem. Commun., 2010, 46, 8219–8221 8221
