The Journal of Organic Chemistry
ARTICLE

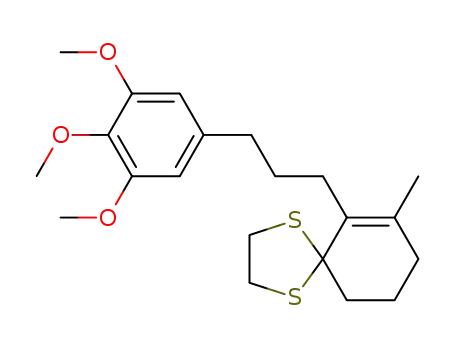

7-Methyl-6-[3-(3,4,5-trimethoxyphenyl)propyl]-1,4-dithiaspiro[4.5]dec-
6-ene (4j). Obtained as a colorless oil (57 mg, 48%). Rf = 0.33 (cyclohexane/
EtOAc 90:10); 1H NMR (400 MHz, CDCl3) δ 6.44 (s, 2H), 3.84 (s, 6H),
3.81 (s, 3H), 3.14 (m, 4H), 2.57 (t, J = 7.6 Hz, 2H), 2.15 (m, 4H), 1.85 (m,
4H), 1.71 (m, 2H), 1.62 ppm (s, 3H); 13C NMR (100 MHz, CDCl3) δ
138.4, 136.0, 133.8, 131.3, 105.6, 72.1, 60.6, 56.1, 44.3, 40.1, 36.8, 32.0, 31.7,
30.7, 22.5, 20.8 ppm; IR (neat) ν 2954, 2916, 2855, 1483, 1446, 1410, 1303,
1227, 1041, 912, 826, 740, 652 cmꢀ1; HRMS (ESI, m/z) calcd for
C21H30O3S2 [M þ H]þ 395.1715, found 395.1713.
(()-11b0-Methyl-20,30,4a0,50,60,11b0-hexahydro-10H-spiro[1,3-dithio-
lane-2,40-phenanthro[2,3-d][1,3]dioxole] ((()-5d). Obtained as a col-
1
orless oil (99 mg, 68%). Rf = 0.86 (cyclohexane/EtOAc 90:10); H
NMR (400 MHz, CDCl3) δ 6.74 (s, 1H), 6.50 (s, 1H), 5.87 (s, 2H), 3.10
(m, 5H), 2.83 (m, 2H), 2.27 (m, 2H), 2.14 (d, J = 11.2 Hz, 1H), 2.02 (dd,
J1 = 2.0 Hz, J2 = 11.6 Hz, 1H), 1.87 (m, 3H), 1.62 (m, 1H), 1.23 ppm (s,
3H); 13C NMR (100 MHz, CDCl3) δ 145.9, 145.4, 141.4, 128.4, 108.6,
104.7, 100.7, 72.9, 51.6, 46.7, 40.7, 39.7, 38.4, 38.3, 30.5, 24.8, 22.0, 21.5
ppm; IR (neat) ν 2925, 1501, 1481, 1435, 1374, 1237, 1201, 1098, 1038,
936, 909, 876, 854, 844 cmꢀ1; HRMS (ESI, m/z) calcd for C18H22O2S2
[M þ H]þ 335.1139, found 335.1134.
2-Isopropyl-6-[2-(8-methyl-1,5-dithiaspiro[5.5]undec-7-en-7-yl)-
ethyl]phenyl Methyl Ether (22). 1,3-Propanedithiol (30 μL, 0.384 mmol,
1.1 equiv), and In(OTf)3 (20.0 mg, 0.0349 mmol, 0.1 equiv) were added
successively to a solution of the corresponding R,β-unsaturated ketone 6
(100 mg, 0.349 mmol, 1.0 equiv) in DCM (2 mL), and the reaction mixture
was stirred for 24 h. Then, additional 1,3-propanedithiol (30 μL, 0.384
mmol, 1.1 equiv) and In(OTf)3 (20.0 mg, 0.0349 mmol, 0.1 equiv) were
added. After 6 h of stirring and dilution with DCM (10 mL) and water
(20 mL), the aqueous phase was extracted by DCM (2 ꢁ 10 mL). The
combined organic extracts were washed with brine, dried over sodium
sulfate, and evaporated. The residue was purified by flash chromatography
on a silica gel column (eluent: cyclohexane/EtOAc 95:5) to give 22 as a
colorless oil (79 mg, 60%). Rf = 0.70 (cyclohexane/EtOAc 95:5); 1H NMR
(400 MHz, CDCl3) δ7.21 (dd, J1 = 2.0 Hz, J2 = 7.2 Hz, 1H), 7.11 (dd, J1 =
2.0 Hz, J2 = 7.2 Hz, 1H), 7.05 (t, J = 7.2 Hz, 1H), 3.80 (s, 3H), 3.31 (hept.,
J = 6.8 Hz, 1H), 3.04 (td, J1 = 2.8 Hz, J2 = 12.4 Hz, 2H), 2.85 (m, 2H), 2.61
(m, 5H), 2.42 (m, 2H), 2.05 (t, J = 6.4 Hz, 3H), 1.81 (s, 3H), 1.75 (m, 2H),
1.23 ppm (d, J = 6.8 Hz, 6H); 13C NMR (100 MHz, CDCl3) δ155.6, 141.8,
136.6, 135.8, 131.4, 127.6, 124.4, 62.1, 56.6, 36.6, 32.5, 31.4, 31.3, 26.9, 26.4,
25.1, 24.2, 20.7, 19.9 ppm; IR (neat) ν 2958, 2934, 2863, 1498, 1462, 1403,
1327, 1277, 1032, 916, 804, 732, 651 cmꢀ1; HRMS (ESI, m/z) calcd for
C22H32OS2 [M þ NH4]þ 394.2245, found 394.2242.
(()-70-Bromo-4a0-methyl-30,40,4a0,90,100,10a0-hexahydro-20H-spiro-
[1,3-dithiolane-2,10-phenanthrene] ((()-5e). Obtained in 41% yield
(106 mg) after a slow atmospheric pressure column chromatography on
1
silica. H NMR (400 MHz, CDCl3) δ 7.09 (m, 3H), 3.21 (m, 4H),
3.10 (m, 1H), 2.84 (m, 2H), 2.50 (m, 1H), 2.22 (m, 3H), 1.87 (m, 4H),
1.23 ppm (s, 3H); 13C NMR (75 MHz, CDCl3) δ 147.4, 137.9, 131.9,
128.9, 126.6, 119.4, 72.8, 51.2, 46.7, 40.8, 39.6, 38.5, 37.9, 30.1, 24.9,
21.9, 21.2 ppm; HRMS (ESI, m/z) calcd for C17H21BrS2 [M þ H]þ
369.0346, found 369.0344.
(()-3,30,4a0,70-Tetramethyl-30,40,4a0,90,100,10a0-hexahydro-20H-spiro-
[1,3-dithiolane-2,10-phenanthrene] ((()-5f). Obtained in 43.3 mg
(94%) as an inseparable mixture with 2-alkenyl-1,3-dithiolane 4f in a
1:1.6 ratio. 1H NMR (400 MHz, CDCl3) δ 7.17 (d, J = 8.0 Hz, 2H), 7.06
(m, 3H), 7.00 (m, 2H), 3.22 (m, 7H), 3.09 (m, 2H), 2.87 (m, 4H), 2.53
(m, 3H), 2.34 (m, 5H), 2.29 (s, 2H), 2.28 (s, 1H), 1.85 (s, 2H), 1.78 (s,
3H), 1.44 (d, J = 2.0 Hz, 1H), 1.38 (s, 3H), 1.33 (s, 3H), 1.01 (s, 6H),
0.99 ppm (s, 3H); 13C NMR (100 MHz, CDCl3) δ 147.0, 134.9, 134.3,
129.9, 126.6, 124.8, 72.0, 57.3, 51.5, 51.1, 41.8, 39.4, 37.9, 36.5, 32.8,
30.3, 29.1, 26.6, 21.3, 20.9 ppm.
9a0-Methyl-50,5a0,70,80,90,9a0-hexahydro-40H-spiro[1,3-dithiolane-
2,60-naphtho[1,2-b]thiophene] ((()-5g). Obtained as a pale yellow
solid (93 mg, 59%). Rf = 0.92 (cyclohexane/EtOAc 60:40); mp
97ꢀ98 °C; 1H NMR (400 MHz, CDCl3) δ 7.08 (d, J = 5.2 Hz, 1H),
6.68 (d, J = 5.2 Hz, 1H), 3.29 (m, 2H), 3.10 (m, 2H), 2.81 (m, 1H), 2.61
(m, 1H), 2.22 (m, 3H), 2.04 (m, 1H), 1.79 (m, 3H), 1.61 (m, 2H), 1.59
ppm (s, 3H); 13C NMR (100 MHz, CDCl3) δ 134.8, 127.4, 127.3, 122.2,
74.0, 52.5, 39.7, 39.2, 38.4, 37.0, 32.5, 25.5, 22.2 ppm; IR (neat) ν 2925,
2859, 1458, 1378, 1327, 1276, 1231, 1042, 913, 867, 848 cmꢀ1; HRMS
(ESI, m/z) calcd for C15H20S3 [M þ H]þ 297.0805, found 297.0800.
4a0-Methyl-30,40,4a0,70,80,8a0-hexahydro-20H-spiro[1,3-dithiolane-
2,10-naphthalene] ((()-5h) and 4a0-Methyl-30,40,4a0,50,80,8a0-hexahy-
dro-20H-spiro[1,3-dithiolane-2,10-naphthalene] ((()-5h0). Obtained
in 125 mg (44%) in a 3:1 ratio (()-5h:(()-5 h0. 1H NMR (400
MHz, CDCl3) δ 5.66 (m, 0.75H), 5.48 (m, 0.75H), 5.42 (m, 0.25H),
5.33 (td, J1 = 2.0 Hz, J2 = 9.6 Hz, 0.25H), 3.06 (m, 4H), 2.12 (m, 2H),
1.86 (m, 3H), 1.70 (m, 2H), 1.46 (m, 3H), 1.16 (m, 2H), 1.03 (s, 0.8H),
0.95 ppm (s, 2.4H); 13C NMR (100 MHz, CDCl3) δ 139.5, 126.6, 124.2,
123.9, 72.4, 52.0, 49.3, 47.5, 47.3, 44.5, 41.0, 40.9, 40.6, 40.2, 38.8, 38.4,
38.0, 37.5, 34.7, 30.4, 27.0, 25.9, 21.6, 20.9, 18.9 ppm; HRMS (ESI, m/z)
calcd for C13H20S2 [M þ H]þ 241.1085, found 241.1080.
General Procedure for the Synthesis of trans-Decalins.
Fresh TMSOTf (0.243 mmol, 1.1 equiv) was added to a solution of
1,3-dithiolane 4bꢀj or 1,3-dithiane 22 (0.221 mmol, 1.0 equiv) in
1,2-dichloroethane (7 mL), and the reaction mixture was stirred 16 h at
room temperature. Then, after addition of water (20 mL), the aqueous
phase was extracted by DCM (3 ꢁ 10 mL). The combined organic
extracts were washed with brine, dried over sodium sulfate, and
evaporated. The residue was purified by flash chromatography on a
silica gel column (eluent: cyclohexane/EtOAc 95:5) to give the trans-
decalins (()-5b-j and 23.
(()-4a0,70-Dimethyl-30,40,4a0,90,100,10a0-hexahydro-20H-spiro[1,3-
dithiolane-2,10-phenanthrene] ((()-5b). Obtained as a colorless oil
(201 mg, 83%). Rf = 0.83 (cyclohexane/EtOAc 80:20); 1H NMR (400
MHz, CDCl3) δ 7.15 (d, J = 8.0 Hz, 1H), 6.96 (d, J = 8.0 Hz, 1H), 6.91
(s, 1H), 3.07 (m, 6H), 2.91 (m, 2H), 2.26 (m, 7H), 2.07 (dd, J1 = 2.0 Hz,
J2 = 12.0 Hz, 1H), 1.89 (q, J = 12.4 Hz, 2H), 1.27 ppm (s, 3H); 13C NMR
(100 MHz, CDCl3) δ 145.4, 135.2, 135.0, 129.8, 126.7, 124.5, 73.0, 51.5,
46.8, 40.7, 39.4, 38.4, 38.0, 30.2, 25.0, 22.0, 21.5, 20.9 ppm; IR (neat) ν
2918, 2859, 1497, 1450, 1433, 1375, 1276, 1066, 813, 778, 733,
565 cmꢀ1; HRMS (ESI, m/z) calcd for C18H24S2 [M þ H]þ 305.1398,
found 305.1394.
70-Isopropyl-4a0-methyl-30,40,4a0,90,100,10a0-hexahydro-20H-spiro-
[1,3-dithiane-2,10-phenanthren]-80-yl Methyl Ether ((()-23. Obtained
in 37 mg (47%) as an inseparable mixture with 2-alkenyl-1,3-dithiane 22 in a
(()-70-Methoxy-4a0-methyl-30,40,4a0,90,100,10a0-hexahydro-20H-
spiro[1,3-dithiolane-2,10-phenanthrene] ((()-5c). Obtained as a color-
less oil (182 mg, 82%). Rf = 0.88 (cyclohexane/EtOAc 90:10); 1H NMR
(400 MHz, CDCl3) δ 7.15 (d, J = 8.8 Hz, 1H), 6.70 (dd, J1 = 2.8 Hz, J2 =
8.8 Hz, 1H), 6.59 (d, J = 2.4 Hz, 1H), 3.77 (s, 3H), 3.11 (m, 5H), 2.91
(m, 2H), 2.24 (m, 4H), 2.05 (dd, J1 = 1.6 Hz, J2 = 12.0 Hz, 1H), 1.88 (m,
3H), 1.24 ppm (s, 3H); 13C NMR (100 MHz, CDCl3) δ 157.3, 140.8,
136.7, 125.7, 113.4, 112.1, 72.9, 55.2, 51.6, 46.8, 40.7, 39.1, 38.5, 38.2,
30.6, 25.0, 22.0, 21.5 ppm; IR (neat) ν 2927, 2833, 1607, 1498, 1464,
1435, 1279, 1257, 1241, 1153, 1038, 852 cmꢀ1; HRMS (ESI, m/z) calcd
for C18H24OS2 [M þ H]þ 321.1347, found 321.1348.
1
1:1 ratio. Rf = 0.70 (cyclohexane/EtOAc 95:5); H NMR (400 MHz,
CDCl3) δ 6.98 (m, 5H), 3.92 (s, 3H), 3.80 (s, 3H), 3.17 (m, 3H), 3.03 (m,
4H), 2.61 (m, 12H), 2.42 (m, 2H), 1.96 (m, 6H), 1.82 (s, 3H), 1.37 (s, 3H),
1.23 (d, J= 7.2 Hz, 6H), 1.20 ppm (d, J= 7.2 Hz, 6H); 13C NMR (100 MHz,
CDCl3) δ 155.1, 148.1, 138.4, 128.5, 123.9, 120.2, 60.6, 52.0, 39.1, 38.9, 38.6,
27.1, 26.9, 26.8, 26.2, 25.9, 25.6, 24.9, 24.1, 24.0, 20.4, 19.9 ppm.
Computational Details. All calculations were performed using
the B3LYP functional31 as implemented in the Gaussian03 software
package.32 Geometries were optimized with the 6-311þG(d) basis set
for S and Si and the 6-31G(d,p) basis set for the other atoms, and
3283
dx.doi.org/10.1021/jo2001116 |J. Org. Chem. 2011, 76, 3274–3285
