Synthesis of a dimeric monosaccharide lipid A mimic and its synergistic
effect on the immunostimulatory activity of lipopolysaccharide
Jordan D. Lewicky a, Marina Ulanova b, Zi-Hua Jiang a,
⇑
a Department of Chemistry, Lakehead University, 955 Oliver Road, Thunder Bay, Ontario, Canada P7B 5E1
b Medical Sciences Division, Northern Ontario School of Medicine, 955 Oliver Road, Thunder Bay, Ontario, Canada P7B 5E1
a r t i c l e i n f o
a b s t r a c t
Article history:
Bacterial endotoxin lipopolysaccharide (LPS) is a potent immune stimulant, with the recognition of LPS
and its active principal lipid A mediated by the Toll-like receptor 4 (TLR4)/MD-2 receptor complex.
Due to the broad downstream implications of TLR4-mediated signalling, TLR4 ligands show great poten-
tial for immunotherapeutic manipulations. In this paper a dimeric monosaccharide lipid A mimic (3) has
been designed as a potential TLR4 ligand. The chemical synthesis and the preliminary biological studies
are described. Compound 3 shows a significant synergistic effect on LPS-induced ICAM-1 expression in
human monocytic THP-1 cells.
Received 14 March 2011
Received in revised form 29 April 2011
Accepted 15 May 2011
Available online 26 May 2011
Keywords:
Lipid A mimic
Toll-like receptor 4
Synthesis
Ó 2011 Elsevier Ltd. All rights reserved.
ICAM-1 expression
Synergistic effect
1. Introduction
chain is exposed to the surface of MD-2, forming a hydrophobic
interaction with the conserved phenylalanines of TLR4.
Lipopolysaccharide (LPS) is a component of the outer mem-
brane of Gram-negative bacteria, and is perhaps the most effective
trigger of the innate immune response.1 The active principal
responsible for most of the biological activities of LPS lies in the
terminal lipophilic moiety of the molecule, known as lipid A.2,3
The core structure of lipid A is conserved regardless of bacterial
Immediately distal to TLR4 activation are two intracellular signal-
ing cascades, each dependent on different adaptor proteins. A
MyD88-dependent pathway leads to the production of inflamma-
tory cytokines such as tumor necrosis factor-
a (TNF-a),
interleukin-1 (IL-1) and IL-6, whereas a TRIF-dependent pathway
results in interferon-b (IFN-b) and nitric oxide production.15,16
Given its broad downstream implications, the TLR4 signaling
pathway has attracted considerable attention for potential immu-
notherapeutic manipulation both in terms of vaccine adju-
vants,17,19 as well as anti-sepsis treatments.8,18 Due to the
potential toxicity of the TLR4 induced inflammatory response, a
great deal of work has focused on the structure–activity profile
of lipid A molecules in order to harness potential beneficial immu-
nostimulatory properties from those pro-inflammatory character-
istics.8,19 For example, the removal of the anomeric phosphoryl
group of lipid A could significantly reduce its toxicity while still
retaining its immunostimulatory activity,20 as exemplified by the
recently approved vaccine adjuvant MPLÒ which is a monophos-
phoryl lipid A product derived from bacterial LPS.21 On the other
hand, the removal of some fatty acyl chains can also dramatically
affect the activity profile of lipid A molecules. The lipid A derivative
OM-174 (Chart 1), isolated from partially degraded E. coli LPS, car-
ries three fatty acyl chains and is an effective immunoadjuvant
with potent antitumor activity and very low toxicity.22,23 Previ-
ously, we have reported the synthesis of several lipid A-based
molecules as inmunostimulatory vaccine adjuvants.24–26 Herein,
we report a dimeric monosaccharide framework42 (2 and 3, Chart
species, and consists of a b-(1?6) glycosidically linked di-D-gluco-
samine backbone bisphosphorylated at the 1-O- and 40-O-posi-
tion,4,5 for example, Escherichia coli lipid A (1, Chart 1). This
disaccharide core is acylated by up to seven lipid chains through
both ester and amide linkages, with differences in the number,
length, and composition of said chains accounting for the highly
variable in vitro and in vivo host responses observed among differ-
ent bacterial species.6–8
Toll-like receptor 4 (TLR4) has been identified as the receptor of
bacterial LPS and lipid A,9 with significant effort having gone into
the precise delineation of the molecular events occurring upon its
activation. TLR4 is expressed on the cell surface as a stable complex
with obligate accessory protein MD-2.10–12 Recently, the crystal
structures of TLR4/MD-2 complexes with bound agonist LPS and
antagonist lipid IVa, the biosynthetic precursor of E. coli lipid A with
four acyl chains, have been resolved by Park et al.13 and Ohto et
al.,14 respectively. Five of the six lipid chains of LPS are buried deep
inside the large hydrophobic pocket in MD-2 and the remaining
⇑
Corresponding author. Tel.: +1 807 766 7171; fax: +1 807 346 7775.
E-mail address: zjiang@lakeheadu.ca (Z.-H. Jiang).
0008-6215/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.
doi:10.1016/j.carres.2011.05.018

1706
J. D. Lewicky et al. / Carbohydrate Research 346 (2011) 1705–1713
OH
OH
O
O
P
O
P
OH
O
O
O
O
HO
RO
HO
O
OH
O
OR
HO
P
O
R1O
O
O
RO
OH
O
HO
HO
NH
NH
O
P
NH
O
NH
O
O
O
OH
O
O
O
OH
O
O
HO
O
O
1 R = (R)-3-hydroxytetradecanoyl
R1 = (R)-3-tetradecanoyloxytetradecanoyl
2 R = (R)-3-hydroxytetradecanoyl
3 R = H
OM-174 R = R1 = H
Chart 1. Structures of E. coli lipid A (1), OM-174 and the dimeric monosaccharide lipid A mimics 2 and 3.
1) as an alternative to the archetypical disaccharide framework of
lipid A molecules. Hexa-acylated analog (2) has been designed to
mimic E. coli lipid A (1),4,5 while the tetra-acylated analog (3)
resembles those lipid A structures with fewer acyl chains, such
as lipid IVa27 and OM-174.22 The chemical synthesis and prelimin-
ary biological investigation of the dimeric monosaccharide lipid A
mimic 3 is described in this paper.
a two step procedure in which isomerization of the allyl double
bond is first brought about using the iridium complex, [bis(meth-
yldiphenylphosphine)](1,5-cyclooctadiene) iridium(I) (hexafluoro-
phosphate),34 followed by the hydrolysis of the isomerized moiety
in the presence of N-bromosuccinimide (NBS). Finally, trichloro-

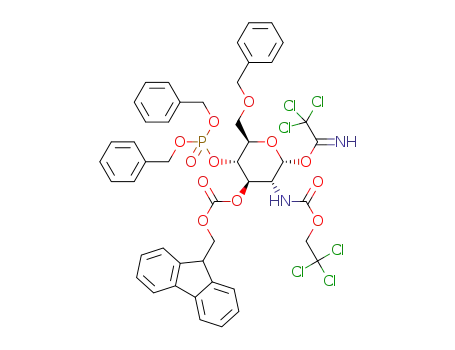

acetimidate glycosyl donor 9 was obtained as a single
