Cyclic comonomers for the synthesis of carboxylic acid and amine functionalized poly(L-lactic acid)

Article abstract of DOI:10.3390/molecules20034764

Degradable aliphatic polyesters such as poly(lactic acid) are widely used in biomedical applications, however, they lack functional moieties along the polymer backbone that are amenable for functionalization reactions or could be the basis for interactions with biological systems. Here we present a straightforward route for the synthesis of functional α-ω epoxyesters as comonomers for lactide polymerization. Salient features of these highly functionalized epoxides are versatility in functionality and a short synthetic route of less than four steps. The α-ω epoxyesters presented serve as a means to introduce carboxylic acid and amine functional groups into poly(lactic acid) polymers via ring-opening copolymerization.

Full text of DOI:10.3390/molecules20034764

Molecules 2015, 20, 4764-4779; doi:10.3390/molecules20034764
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Cyclic Comonomers for the Synthesis of Carboxylic Acid and
Amine Functionalized Poly(L-Lactic Acid)
Markus Heiny 1 and V. Prasad Shastri 1,2,
*
1
Institute for Macromolecular Chemistry, University of Freiburg, Stefan-Meier Str. 31,
Freiburg 79104, Germany; E-Mail: markus.heiny@makro.uni-freiburg.de
BIOSS Centre for Biological Signalling Studies, University of Freiburg, Schänzlestr. 18,
Freiburg 79104, Germany
2
* Author to whom correspondence should be addressed; E-Mail: prasad.shastri@gmail.com;
Tel.: +49-761-203-6268; Fax: +49-761-203-6306.
Academic Editor: Atsushi Sudo
Received: 15 January 2015 / Accepted: 2 March 2015 / Published: 16 March 2015
Abstract: Degradable aliphatic polyesters such as poly(lactic acid) are widely used in
biomedical applications, however, they lack functional moieties along the polymer
backbone that are amenable for functionalization reactions or could be the basis for
interactions with biological systems. Here we present a straightforward route for the
synthesis of functional α-ω epoxyesters as comonomers for lactide polymerization. Salient
features of these highly functionalized epoxides are versatility in functionality and a short
synthetic route of less than four steps. The α-ω epoxyesters presented serve as a means to
introduce carboxylic acid and amine functional groups into poly(lactic acid) polymers
via ring-opening copolymerization.
Keywords: poly(lactic acid); copolymerization; α,ω-epoxyesters; carboxylic acid; amine
1. Introduction
Over the last few decades, biocompatible polymers have become firmly established in the
biomedical sciences due to their wide range of applications such as micro- and nanoparticulate drug
delivery systems [1,2], scaffolds for tissue engineering [3–5] and coating applications [6,7].
Furthermore, the shift from biostable to biodegradable polymers, in medical as well as packaging and
“green” applications [8], has led to a surge in research on certain polymer classes with poly(α-hydroxy

Molecules 2015, 20
4765
acids) (PHAs) being prominent examples. Poly(lactic acid) (PLA) as the most important of the PHAs
is derived from 100% renewable resources and has emerged as early as the 1970s as a material for
degradable surgical sutures [9]. Since then it has been extensively explored for further uses in the
medical arena such as drug delivery systems [10–12] and orthopaedic devices [13], often as one
component in copolymers, e.g., with poly(ethylene glycol) [14] or poly(glycolic acid) [15], another
important representative of the PHA class.
However, PLA and the other PHAs in equal measure are unsuitable for applications in which the
presentation of biological motifs is a key requirement in assuring the desired cell responses [16]. They
suffer from the absence of any functional moieties along the polyester backbone that are amenable for
a functionalization of the materials in order to exploit a wider array of applications depending on those
kinds of interactions between the materials and biological systems. Thus the functionalization of PLA
is an active area of research and numerous routes have been developed to achieve this goal [17].
Among those are the usage of functional initiators, resulting in chain-end functionalized polymers [18],
and post-polymerization procedures such as hydrolysis and aminolysis reactions [19,20]. Whereas in
the former method the extent of functionalization is limited to a single moiety at the chain end, the
latter suffers, in many cases, from severe polymer-chain degradation in the course of the reaction.
Therefore, copolymerization of lactide (LA) with functional monomers represents a more suitable
approach for the introduction of functional groups into the polymer backbone. In this context, the work
of Vert on the copolymerization of LA with functional lactones [21] has set in motion the employment
of various (protected) functional cyclic compounds in ring-opening polymerizations (ROPs) with LA.
Examples are early works on functional glycolides [22], the synthesis and application of
functional lactides [23] as well as functional esteramides (depsipeptides) [24]. Major drawbacks of
many of these approaches are the complicated and often low-yielding synthetic routes towards the
functional comonomers.
To address this constraint, we have developed a versatile approach towards the functionalization of
polyesters employing functional α,ω-epoxyesters [25]. The epoxy moiety in these compounds can
undergo ring-opening in the presence of organometallic catalysts such as tin(II) ethylhexanoate and
they are therefore well suited as comonomers in the ROP with LA. The main advantage, however, is
the straightforwardness with which the epoxyesters can be functionalized prior to the ROP. It is
possible to introduce a wide array of functional groups, encompassing groups that are amenable to
post-polymerization reactions, via an easy esterification reaction.
In this work, we present the synthesis of α,ω-epoxyesters functionalized with protected carboxylic
acid and amine groups for the ROP with LA and investigate their potential for the incorporation of
these valuable functionalities into PLA polymers.
2. Results and Discussion
2.1. Monomer Synthesis
Functional α,ω-epoxyesters monomers that could be applied as comonomers in the ROP of LA were
prepared in straightforward two- and three-step syntheses. In detail, MPA was reacted with benzyl
alcohol in an esterification reaction using DCC and catalytic amounts of DMAP, followed by an

Molecules 2015, 20
4766

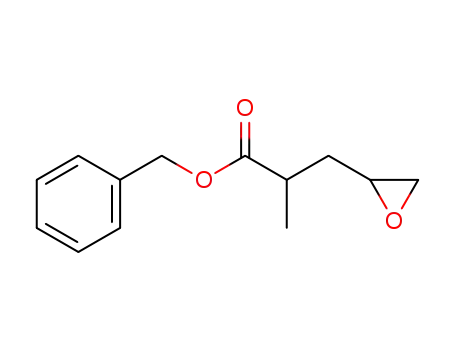

Oxone epoxidation to yield benzyl 2-methyl-3-(oxiran-2-yl)propanoate (Bn-MPO). 2-((tert-butoxy-
carbonyl)(methyl)amino)ethyl 2-methyl-3-(oxiran-2-yl)propanoate (BocN-MPO), the comonomer for
the introduction of protected amine functionalities, was synthesized in an analog fashion with the
difference of an additional step to generate the BOC-protected 2-(methylamino)ethanol (Scheme 1).
Scheme 1. Syntheses of functional α,ω-epoxyesters from MPA.
The esterifications were achieved under mild conditions at low temperatures in quantitative yields
1
and high purities as confirmed by H-NMR spectroscopy (Figures 1 and 2) and elemental analysis.
Trace amounts of DCU byproduct were removed after the epoxidation step by flash chromatography.
The conversions to the epoxides using Oxone in acetone/H2O proceeded with yields around 50% in
both cases with the possibility to fully recover the unreacted alkene reagents Bn-MP and BocN-MP by
flash chromatography. The conditions of the epoxidation reactions with temperatures below 5 °C and
buffered pH between 7.2 and 7.5 were sufficiently mild to preserve the previously formed ester bond.
Figure 1. 1H-NMR spectra of Bn-MP (top) and Bn-MPO (bottom).

Molecules 2015, 20
4767
Figure 2. 1H-NMR spectra of BocN-MP (top) and BocN-MPO (bottom).
2.2. Copolymerizations of Bn-MPO and BocN-MPO with LA
The copolymerization reactions of the comonomers with LA were optimized with regards to
molecular weight and polydispersity as well as the efficiency of the comonomer incorporation. For that
purpose, ring-opening copolymerizations of the two monomers with LA were carried out, applying
SnOct2 with BnOH as co-initiator in bulk reactions (Scheme 2).
90 °C in bulk
Scheme 2. General scheme for the syntheses of PLAs functionalized with Bn-MPO and BocN-MPO.
Polymerization conditions were chosen as to yield polymers with number average molecular
weights (Mn) of around 10,000 g·mol−1. This molecular weight range has been proven suitable for the
generation of nanoparticles via the nanoprecipitation method [26,27], an application that might prove
highly interesting for the presented copolymers. Monomer molar ratios in the polymerization feeds
were varied from 5% to 30%. Previous findings have indicated that for the polymerization of
α,ω-epoxyesters with cyclic lactones (namely ε-caprolactone) and the aforementioned initiating
system, reaction temperatures of 90 °C are favourable for obtaining polymers with expected molecular
weights and molecular weight distributions [28]. It was found that for the system described here,
polymerization temperatures of 90 °C using SnOct2 and BnOH amounts of 0.7 mol % and 1.4 mol %,
respectively, were optimal to yield copolymers with Mn in the range of the value aimed at (Figure 3).

Molecules 2015, 20
4768
The PDI of the obtained polymers was slightly higher with increased comonomer feed yet was with
values between 1.3 and 1.6 for all comonomer feeds within the expected range of ring-opening
polymerizations applying tin compounds as the initiating system [29]. This signifies that all polymers
exhibit a relatively narrow weight distribution without the occurrence of lower molecular weight
species. The involvement of the ester side groups in transesterification reactions possibly leading to
branching of the copolymers cannot be excluded. However, considering the low polymerization
temperature of 90 °C and the moderate reaction time of 12 h, these effects are believed to be of only
minor significance as has been investigated for the applied catalyst SnOct2 [30].
Figure 3. Mn (columns) and PDI (squares and circles) of synthesized copolymers
dependent on comonomer feed.
One has to note, however, that in the case of the BocN-MPO comonomer Mn was distinctly
decreased with increased comonomer feed in the polymerization mixture. Increasing the comonomer
feed from 5% to 20% resulted in a reduction of the molecular weight by half. The polymerization
product obtained with a BocN-MPO feed of 30% was an oily substance showing values of Mn below
1000 g·mol−1. In contrast to that, Bn-MPO incorporation only affected the molecular weight notably at
high comonomer feeds of 30%. This is contrary to our previous findings on copolymerization of
α,ω-epoxyester with LA and ε-caprolactone in which it was found that the epoxide comonomers had a
severe impact on the molecular weight of the copolymers [28,31]. The observed differences in the
extent how the introduction of the two comonomers affects the molecular weight may be due to
various reasons such as monomer stability or the occurrence of side reactions. A possible explanation
could be the presence of considerable amounts of aromatic moieties in the polymerization mixture due
to the benzyl ester protecting group of the Bn-MPO comonomer. It has been shown that the presence
of compounds such as styrene or α-methylstyrene in polymerization procedures of LA with SnOct2 can
lead to a suppression of transesterification reactions due to interactions of the aromatic compounds
with the metal center of the catalyst [32]. The absence of intramolecular transesterification reactions

Molecules 2015, 20
4769
(back-biting) that lead, especially at high temperatures and long reaction times, to a decrease in
molecular weight of the formed polymers, could be the reason for the observed differences in
molecular weight evolution of the two copolymers. As to why for a Bn-MPO feed ratio of 30% a
pronounced drop in Mn was observed is not readily explained and might be due to an increased extent
of unfavorable side reactions at high comonomer feed ratios.
2.3. Incorporation of Comonomers
The comonomers Bn-MPO and BocN-MPO were examined for their potential to be incorporated
into the polylactide backbone. Copolymerization reactions were carried out using varied comonomer
feeds from 5% to 30%. The extent of comonomer incorporation into the polymer backbone was
estimated by 1H-NMR.
In the case of poly(LA-co-Bn-MPO) the intensity of the aromatic signals at δ = 7.35 ppm resulting
from the introduced benzyl ester groups relative to the LA methine signal (δ = 5.17) was employed to
determine the amount of incorporation. In the same way the relative intensity of the signal of the BOC
protection group at δ = 1.45 ppm served as means of quantifying the incorporation of BocN-MPO.
1H-NMR spectra of copolymers (as well as deprotected copolymers) are shown in Figures 4 and 5.
Figure 4. 1H-NMR spectra of poly(LA-co-Bn-MPO) (above) and the respective
deprotected copolymer (below) with the signal used to estimate comonomer incorporation
highlighted in red.
1
Figure 5. H-NMR spectra of poly(LA-co-BocN-MPO) (above) and the respective
deprotected copolymer (below) with the signal used to estimate comonomer incorporation
highlighted in red.

Molecules 2015, 20
4770
Incorporation efficiencies as a function of comonomer feed are depicted in Figure 6. Maximum
incorporation of 25% was achieved for the Bn-MPO comonomer by employing a comonomer feed of
30%. For poly(LA-co-BocN-MPO), a comonomer feed of 20% led to a maximum incorporation
of 15%.
Figure 6. Incorporation efficiency of Bn-MPO and BocN-MPO into copolymers with LA.
2.4. Deprotection of Copolymers
Charged or chargeable functional groups along the backbone of a polymer represent an interesting
way to customize this material’s properties such as hydrophilicity/phobicity of polymeric surfaces or
the surface charge of polymeric nanoparticles. The polymers presented here are amenable to
deprotection reactions yielding PLA with pendant carboxylic acid and amine groups. Cleavage of the
benzyl ester protecting groups (poly(LA-co-Bn-MPO)) was carried out by hydrogenation applying
palladium catalysis. Deprotection of the amine groups in poly(LA-co-BocN-MPO) could be achieved
using the strong acid TFA under water-free conditions. Advancement of the deprotection reactions was
1
evaluated via H-NMR spectroscopy by examining the disappearance of the peaks allocated to the
protecting groups (cf. Figures 4 and 5). Complete removal of the benzyl ester groups was achieved
after 48 h whereas the BOC-groups were cleaved after 1.5 h.
In the former case no degradation of the polymer chain was observed, with hydrogenation being a
very mild deprotection reaction. The slightly lower Mn of around 5% its initial value was, within the
range of inaccuracies, attributed to the loss of the protecting groups. However, treatment with TFA led
to a decrease in Mn of the copolymers of around 50%. Losses of molecular weight in this magnitude
will under certain circumstances be unacceptable. Yet, though meticulously executed under water free
conditions, the effect of the strong acid on the polymer chains could not be eliminated. Therefore,
alternative protecting groups such as the carboxybenzyl (Cbz) group that can be cleaved under milder
conditions are called for and are currently under investigation in our group.

Molecules 2015, 20
4771
2.5. Thermal Properties of Copolymers
In order to determine whether the incorporation of the comonomers has an effect on material
properties directly influencing the stability and shelf life of the copolymers, thermal behavior of the
materials was investigated. Thermogravimetric measurements revealed decomposition temperatures
(Td) of the copolymers between 240 °C and 260 °C, whereas a pure PLLA synthesized under analog
conditions and with comparable molecular weight decomposed around 255 °C. The only minor
differences in the values of Td indicated that the incorporation of Bn-MPO and BocN-MPO did not
lead to an impaired thermal stability as compared to the homopolymer.
DSC measurements were carried out to yield information on glass transition temperatures (Tg) of
the copolymers (cf. Table 1). The poly(LA-co-BnMPO) materials exhibited glass transition temperatures
ranging from 7 to −11 °C, depending on the amount of incorporated comonomer. The copolymers
derived from BocMAE-MPO showed values of Tg in the range of 15 to 23 °C. In both cases this was a
distinct decrease when compared to the Tg of pure PLA with similar Mn which was 54 °C. This
behavior is supposed to result from the presence of pendant groups, leading to a plasticizer effect by
increasing the interchain distances. Evolution of the Tg with increasing incorporation of comonomers
is as expected for poly(LA-co-BnMPO), showing a decrease with increasing number of pendant
groups. Interestingly, the poly(LA-co-BocN-MPO) materials showed the opposite trend of a rise in Tg
with increasing comonomer incoroporation despite the degression in molecular weight. Removal of the
protecting groups led to slight elevations in the glass transition temperatures of approximately 10 °C
for all copolymers. The reduction in the size of the pendant groups might be the explanation for this
observation. Furthermore, the absence of a second transition temperature in the case of all copolymers
strongly suggests a random incorporation of the copolymers into the polymer backbone resulting in no
significant blockiness. This observation is consistent with previous findings on the reactivity of a
similar copolymerization system [28]. Exemplary DSC curves for copolymers and deprotected
copolymers are shown in Figures 7 and 8.
Table 1. Thermal properties of synthesized (co)polymers.
Mn
g·mol−1
9500
8500
9000
10,000
3500
9500
8000
5000
Comonomer Incorp.
Td
Tg
Tg, after deprotection
[%]
-
[°C] [°C]
[°C]
-
14
13
5
PLA
252
251
252
241
240
262
257
254
54
7
4
−9
−11
15
22
23
7.5
8.6
14.1
25.9
7.7
9.9
15.7
poly(LA-co-Bn-MPO)
0
23
31
31
poly(LA-co-BocN-MPO)

Molecules 2015, 20
4772
Figure 7. DSC curves for poly(LA-co-Bn-MPO) and deprotected poly(LA-co-Bn-MPO)
with a comonomer incorporation of 14.1%.
Figure 8. DSC curves for poly(LA-co-BocN-MPO) and deprotected poly(LA-co-BocN-MPO)
with a comonomer incorporation of 9.9%.
All values of Tg observed for the copolymers were below physiological temperature which might
prove valuable for conceivable applications of the materials such as soft nanoparticular formulations
with a tunable particle-cell membrane interaction for transcellular delivery of active agents due to
changes in material viscosity (and particle shape) [33].

Molecules 2015, 20
4773
3. Experimental Section
3.1. Materials
(3S)-cis-3,6-Dimethyl-1,4-dioxane-2,5-dione (L-lactide, 98%) was purchased from Sigma-Aldrich
(St. Louis, MO, USA) and recrystallized from freshly distilled ethyl acetate (>99.5%, Roth, Karlsruhe,
Germany) prior to use. Dichloromethane (p.a., Sigma-Aldrich) and trifluoroacetic acid (99%, Sigma-
Aldrich) were distilled from P2O5 (puriss., Sigma-Aldrich) to eliminate water. 2-(Methylamino)ethanol
(≥98%), 2-methyl-4-pentenoic acid (≥98%), acetone (p.a.), benzyl alcohol (≥99%), di-tert-butyl
dicarbonate (97%), ethanol (p.a.), Oxone®, palladium on carbon (puriss., 10% Pd base), sodium
phosphate dibasic dehydrate (p.a.) and tin(II) 2-ethylhexanoate (95%) were purchased from Sigma-Aldrich
and used as received. 4-(dimethylamino)pyridine (≥99%) and N,N′-dicyclohexylcarbodiimide (DCC)
(≥99%) were from Fluka Analytical (Buchs, Switzerland) and used without further treatment. Further
products were chloroform-d (99.8% D, Deutero GmbH, Kastellaun, Germany), diethyl ether (≥99.7%,
VWR International GmbH, Darmstadt, Germany), isohexanes (Ölfabrik Lahr, Lahr, Germany),
Na2SO4 (p.a., AppliChem GmbH, Darmstadt, Germany) and silica gel (40–63 μm, Merck KGaA,
Darmstadt, Germany) (all used as received).
3.2. Synthetic Procedures
3.2.1. Synthesis of Benzyl 2-methylpent-4-enoate (Bn-MP)
DCC (36.2 g, 175 mmol, 1.00 eq.) was dissolved in dichloromethane (300 mL) and cooled to 0 °C.
4-(Dimethylamino)pyridine (DMAP, 1.20 g, 9.82 mmol, 6 mol %), solutions of benzyl alcohol (22.7 g,
210 mmol, 1.20 eq.) in dichloromethane (30 mL) and 2-methyl-4-pentenoic acid (20.0 g, 175 mmol,
1.00 eq.) in dichloromethane (30 mL) were added. The reaction mixture was stirred at 0 °C for 3 h and
at room temperature for an additional 12 h. The precipitate was filtered off and washed with
dichloromethane (2 × 30 mL). Evaporation of the solvent in vacuo afforded the title compound as a
light yellow oil (35.4 g, 173 mmol, 99%). 1H-NMR (300 MHz, CDCl3, 300K): δ (ppm) = 1.18 (d, 3H,
CH3), 2.32 (dddd, 2H, CH2CHCH2CH), 2.59 (tq, 1H, CH2CHCH3), 5.04 (m, 2H, CH2CHCH2), 5.12 (s,
2H, OCH2Ph), 5.74 (ddt, 1H, CH2CHCH2), 7.35 (m, 5H, arom. H).
3.2.2. Synthesis of Benzyl 2-methyl-3-(oxiran-2-yl)propanoate) (Bn-MPO)
Bn-MP (39.30 g, 192.4 mmol, 1.00 eq.) was dissolved in acetone (450 mL) and an aqueous sodium
phosphate buffer solution (450 mL, 0.2 mol·L-1, pH = 7.0) was added. An aqueous solution of Oxone
(133.4 g, 432.9 mmol, 2.25 eq., in deion. H2O, 500 mL, pH = 7) was added dropwise over a period of
2 h at 0 °C while maintaining the pH of the reaction mixture in the range of 7.25–7.50 via addition of
aqueous NaOH-solution (2 M). After completed addition of Oxone, the pH was controlled until no
further decrease was observed. The mixture was allowed to warm to room temperature and stirring was
continued for 12 h. The precipitated salts were filtered off and acetone was removed from the filtrate
under reduced pressure followed by extraction of the resulting aqueous phase with dichloromethane
(8 × 35 mL). The combined organic phases were washed with brine (2 × 30 mL), dried over Na2SO4
and the solvent was removed in vacuo. Column chromatography (ethyl acetate and isohexanes as eluent)

Molecules 2015, 20
4774
afforded Bn-MPO as a pale yellow oil (21.70 g, 98.5 mmol, 51%). Unconverted Bn-MP could be
1
re-isolated. H-NMR (300 MHz, CDCl3, 300 K): δ (ppm) = 1.27 (dd, 3H, CH3), 1.81 (m, 2H,
CH2(O)CHCH2CH), 2.44 (m, 1H, CH2(O)CHCH3), 2.72 (m, 2H, CH2(O)CH), 2.94 (m, 1H, CH2(O)CH),
5.14 (s, 2H, OCH2Ph), 7.35 (m, 5H, arom. H). EA: C 70.87% (70.98%), H 7.44% (7.32%).
3.2.3. Synthesis of tert-Butyl (2-hydroxyethyl)(methyl)carbamate (BocN)
A solution of 2-(methylamino)ethanol (9.01 g, 120 mmol, 1.20 eq.) in dichloromethane (50 mL)
was cooled to 0 °C followed by dropwise addition of a solution of di-tert-butyl dicarbonate (21.83 g,
100.00 mmol, 1.00 eq.) in dichloromethane (40 mL) over a period of 1 h. The reaction mixture was
stirred overnight at room temperature. After removal of the solvent under reduced pressure, brine
(35 mL) was added and the resulting aqueous phase was extracted with ethyl acetate (5 × 30 mL). The
collected organic layers were washed with brine (2 × 30 mL) and dried over MgSO4. Removal of the
solvent under reduced pressure afforded BocN-MP as a pale yellow oil (17.00 g, 97.02 mmol, 97%).
1H-NMR (300 MHz, CDCl3, 300 K): δ (ppm) = 1.45 (s, 9H, C(CH3)3), 2.91 (s, 3H, NCH3), 3.38
(t, 2H, HOCH2CH2N), 3.73 (t, 2H, HOCH2CH2N).
3.2.4. Synthesis of 2-((tert-Butoxycarbonyl)(methyl)amino)ethyl 2-methylpent-4-enoate (BocN-MP)
DCC (20.0 g, 97.0 mmol, 1.00 eq.) was dissolved in dichloromethane (250 mL) and cooled to 0 °C.
DMAP (0.7 g, 5.7 mmol, 6 mol %), solutions of BocN (17.0 g, 97.0 mmol, 1.00 eq.) in dichloromethane
(30 mL) and 2-methyl-4-pentenoic acid (11.1 g, 97.0 mmol, 1.00 eq.) in dichloromethane (30 mL)
were added. The reaction mixture was stirred at 0 °C for 3 h and at room temperature for an additional
12 h. The precipitate was filtered off and washed with dichloromethane (3 × 30 mL). Evaporation of
1
the solvent in vacuo afforded BocN-MP as a pale yellow oil (25.3 g, 93.2 mmol, 96%). H-NMR
(300 MHz, CDCl3, 300 K): δ (ppm) = 1.16 (d, 3H, CHCH3), 1.46 (s, 9H, C(CH3)3), 2.31 (dddd, 2H,
CH2CHCH2CH), 2.52 (tq, 1H, CH2CHCH3), 2.90 (s, 3H, NCH3), 3.46 (br s, 2H, C(O)OCH2CH2N),
4.17 (br s, 2H, C(O)OCH2CH2N), 5.05 (m, 2H, CH2CHCH2), 5.74 (ddt, 1H, CH2CHCH2).
3.2.5. Synthesis of 2-((tert-Butoxycarbonyl)(methyl)amino)ethyl 2-methyl-3-(oxiran-2-yl)propanoate
(BocN-MPO)
BocN-MP (25.0 g, 92.1 mmol, 1.00 eq.) was dissolved in acetone (450 mL) and an aqueous sodium
phosphate buffer solution (450 mL, 0.2 mol·L−1, pH = 7.0) was added. An aqueous solution of Oxone
(63.80 g, 207.6 mmol, 2.25 eq., in deion. H2O, 500 mL, pH = 7) was added dropwise over a period of
2 h at 0 °C while maintaining the pH of the reaction mixture in the range of 7.25–7.50 via addition of
aqueous NaOH-solution (2M). After completed addition of Oxone, the pH was controlled until no
further decrease was observed. The mixture was allowed to warm to room temperature and stirring was
continued for 12 h. The precipitated salts were filtered off and acetone was removed from the filtrate
under reduced pressure followed by extraction of the resulting aqueous phase with dichloromethane
(8 × 35 mL). The combined organic phases were washed with brine (2 × 30 mL), dried over Na2SO4
and the solvent was removed in vacuo. Column chromatography (ethyl acetate and isohexanes as
eluent) afforded Bn-MPO as a pale yellow oil (12.7 g, 44.1 mmol, 51%). Unconverted BocN-MP

Molecules 2015, 20
4775
1
could be re-isolated. H-NMR (300 MHz, CDCl3, 300 K): δ (ppm) = 1.25 (dd, 3H, CHCH3), 1.45 (s,
9H, C(CH3)3), 1.78 (m, 2H, CH2CHCH2CH), 2.46 (m, 1H, CH2CHCH3), 2.72 (m, 2H, CH2(O)CH),
2.91 (s, 3H, NCH3), 2.95 (m, 1H, CH2(O)CH), 3.47 (br s, 2H, C(O)OCH2CH2N), 4.20 (br s, 2H,
C(O)OCH2CH2N). EA: C 58.43% (58.52%), H 8.91% (8.77%), N 4.77% (4.87%).
3.2.6. Copolymerization of L-Lactide with Bn-MPO and BocN-MPO
In a typical procedure, a total amount 30 mmol of pre-dried monomers (L-lactide with BnMPO or
BocN-MPO) were added in the calculated ratio to a dry round bottom flask equipped with a magnetic
stir bar and a rubber septum. After flushing with argon, the initiating mixture consisting of tin(II)
2-ethylhexanoate (0.7 mol %) and benzyl alcohol (1.4 mol %) in a small amount of DCM was added.
The reaction mixture was placed in an oil bath at 90 °C to start the polymerization which was pursued
for 12 h. The polymerization was terminated with ethanol by adding 1.0 mL of a 1:1(v/v)-mixture of
DCM and ethanol. The resulting polymer was diluted with 5.0 mL of DCM, precipitated in ice-cold
Et2O and dried in vacuo at room temperature to constant weight.
3.2.7. Deprotection of Poly(LA-co-Bn-MPO)
In a round bottom flask equipped with a magnetic stir bar and a rubber septum, the polymer was
dissolved in a 3:2 (v/v)-mixture of THF and MeOH. After addition of Pd/C (5 wt %, 10 wt % loading),
the suspension was purged with hydrogen. The reaction mixture was vigorously stirred at room
temperature under hydrogen pressure for 48 h. After filtration the deprotected polymer was obtained
by precipitation in ice-cold Et2O and vacuum-dried at room temperature to constant weight.
3.2.8. Deprotection of Poly(LA-co-BocN-MPO)
In a dried round bottom flask equipped with a magnetic stir bar and a rubber septum the polymer
was dissolved in dry DCM and an excess of TFA was added to the solution. After stirring in an Argon
atmosphere at room temperature for 1.5 h, the deprotected polymer was obtained by precipitation in
ice-cold Et2O and vacuum-dried at room temperature to constant weight.
3.3. Methods
3.3.1. Proton Nuclear Magnetic Resonance Spectroscopy (NMR)
Samples were measured on an ARX 300 MHz spectrometer (Bruker Corporation, Billerica, MA,
USA) at 25 °C using CDCl3 as a solvent. Chemical shift in ppm was referred to the residual solvent
peak (δ = 7.26 for CHCl3). Data analysis was carried out using TopSpin 3.0 software (Bruker).
3.3.2. Gel Permeation Chromatography (GPC)
Analyses of molecular weight and polydispersity of the synthesized polymers were carried out
applying a 1200 Series GPC-SEC analysis system consisting of pump G1310A, RI detector G1362A,
and auto-sampler G1329A (Agilent Technologies, Santa Clara, CA, USA) which was equipped with
SDVB columns (5 μm, 100 Å, 1000 Å, 10,000 Å) (PSS Polymer Standards Service GmbH, Mainz,

Molecules 2015, 20
4776
Germany). Samples were prepared at a concentration of 4 mg·mL−1 in THF, filtered (0.45 μm filter)
and eluted using THF at a flow rate of 1 mL·min−1 at 30 °C. Calibration was done using polystyrene
EasiVial PS-H Tri-Pack with a nominal range of 162–6,000,000 g·mol−1 (Agilent Technologies).
Elugrams were analyzed using WinGPC Unity, Build 5403 (Polymer Standard Solutions) according to
the manufacturer’s guidelines and ISO 13885.
3.3.3. Differential Scanning Calorimetry (DSC)
Thermal transitions were determined on a Pyris 1 differential scanning calorimeter (Perkin Elmer,
Waltham, MA, USA). Polymer samples (approx. 15 mg) were sealed in aluminum pans and measured
under a nitrogen atmosphere. Indium and cyclohexene were used for temperature calibration. Samples
were subjected to a heat-cool-heat cycle ranging from −50 °C to 120 °C with a heating/cooling rate of
10 °C·min−1. Second heating cycle was used for data interpretation with Pyris Manager version
8.0.0.0172 (Perkin Elmer).
3.3.4. Elemental Analysis
Elemental analyses were carried out on a VarioEL (Elementaranalysensysteme GmbH, Hanau,
Germany) equipped with a thermal conductivity detector.
4. Conclusions
We have presented the synthesis of novel functional α,ω-epoxyesters as monomers for
copolymerizations with cyclic lactones. With these monomers it was possible to obtain functionalized PLA
with protected carboxylic acid and amine groups. Poly(LA-co-Bn-MPO) and poly(LA-co-BocN-MPO)
copolymers with functionalizations up to 25% and 15%, respectively, could be synthesized, however,
especially in the case of poly(LA-co-BocN-MPO) at the expense of molecular weights of the
copolymers. Deprotection of the introduced functional groups yielded PLA copolymers with pendant
carboxylic acid and amine groups that might prove valuable for applications as nanoparticulate
delivery systems with hypothesized adaptable surface properties resulting from the introduction of
functional groups with a potential for interaction and reactions with biologically active compounds.
Future work will concentrate on overcoming the aspect of unsatisfactory molecular weights obtained at
higher feed/incorporation and on exploiting the potential of these copolymers as materials for
nanoparticle synthesis and coating applications.
Acknowledgments
The authors thank Vincent Ahmadi for his assistance. This work was funded by the Excellence
Initiative of the German Federal and State Governments (Grant EXC 294, Centre for Biological
Signalling Studies), and the University of Freiburg.
Author Contributions
M.H. and V.P.S. designed research; M.H. performed research; M.H. and V.P.S. wrote the paper.

Molecules 2015, 20
4777
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Anderson, J.M.; Shive, M.S. Biodegradation and biocompatibility of PLA and PLGA microspheres.
Adv. Drug Deliv. Rev. 2012, 64, 72–82.
2. Nicolas, J.; Mura, S.; Brambilla, D.; Mackiewicz, N.; Couvreur, P. Design, functionalization
strategies and biomedical applications of targeted biodegradable/biocompatible polymer-based
nanocarriers for drug delivery. Chem. Soc. Rev. 2013, 42, 1147–1235.
3. Armentano, I.; Dottori, M.; Fortunati, E.; Mattioli, S.; Kenny, J.M. Biodegradable polymer matrix
nanocomposites for tissue engineering: A review. Polym. Degrad. Stab. 2010, 95, 2126–2146.
4. Agrawal, C.M.; Ray, R.B. Biodegradable polymeric scaffolds for musculoskeletal tissue engineering.
J. Biomed. Mater. Res. 2001, 55, 141–150.
5. Shoichet, M.S. Polymer scaffolds for biomaterials applications. Macromolecules 2010, 43, 581–591.
6. Gulati, K.; Ramakrishnan, S.; Aw, M.S.; Atkins, G.J.; Findlay, D.M.; Losic, D. Biocompatible
polymer coating of titania nanotube arrays for improved drug elution and osteoblast adhesion.
Acta Biomater. 2012, 8, 449–456.
7. Chen, H.; Yuan, L.; Song, W.; Wu, Z.; Li, D. Biocompatible polymer materials: Role of
protein-surface interactions. Prog. Polym. Sci. 2008, 33, 1059–1087.
8. Ikada, Y.; Tsuji, H. Biodegradable polyesters for medical and ecological applications.
Macromol. Rapid Commun. 2000, 21, 117–132.
9. Cutright, D.E.; Hunsuck, E.E. The repair of fractures of the orbital floor using biodegradable
polylactic acid. Oral Surg. Oral Med. Oral Pathol. 1972, 33, 28–34.
10. Fredenberg, S.; Wahlgren, M.; Reslow, M.; Axelsson, A. The mechanisms of drug release in
poly(lactic-co-glycolic acid)-based drug delivery systems—A review. Int. J. Pharm. 2011, 415,
34–52.
11. Wang, J.; Xu, W.; Ding, J.; Lu, S.; Wang, X.; Wang, C.; Chen, X. Cholesterol-enhanced
polylactide-based stereocomplex micelle for effective delivery of doxorubicin. Materials 2015, 8,
216–230.
12. Farokhzad, O.C.; Jon, S.; Khademhosseini, A.; Tran, T.-N.T.; Lavan, D.A.; Langer, R.
Nanoparticle-aptamer bioconjugates: A new approach for targeting prostate cancer cells. Cancer Res.
2004, 64, 7668–7672.
13. Athanasiou, K.A.; Agrawal, C.M.; Barber, F.A.; Burkhart, S.S. Orthopaedic applications for
PLA-PGA biodegradable polymers. Arthroscopy 1998, 14, 726–737.
14. Thieme, M.; Agarwal, S.; Wendorff, J.H.; Greiner, A. Electrospinning and cutting of ultrafine
bioerodible poly(lactide-co-ethylene oxide) tri- and multiblock copolymer fibers for inhalation
applications. Polym. Adv. Technol. 2011, 22, 1335–1344.
15. Guimarães, P.P.G.; Oliveira, S.R.; de Castro Rodrigues, G.; Gontijo, S.M.L.; Lula, I.S.; Cortés, M.E.;
Denadai, Â.M.L.; Sinisterra, R.D. Development of sulfadiazine-decorated PLGA nanoparticles
loaded with 5-fluorouracil and cell viability. Molecules 2015, 20, 879–899.

Molecules 2015, 20
4778
16. Punet, X.; Mauchauffé, R.; Giannotti, M.I.; Rodríguez-Cabello, J.C.; Sanz, F.; Engel, E.;
Mateos-Timoneda, M.A.; Planell, J.A. Enhanced cell-material interactions through the
biofunctionalization of polymeric surfaces with engineered peptides. Biomacromolecules 2013,
14, 2690–2702.
17. Heiny, M.; Wurth, J.J.; Shastri, V.P. Progress in functionalized biodegradable polyesters. In
Natural and Synthetic Biomedical Polymers; Kumbar, S., Laurencin, C., Deng, M., Eds.; Elsevier:
Amsterdam, The Netherlands, 2014; pp. 167–180.
18. Makiguchi, K.; Kikuchi, S.; Satoh, T.; Kakuchi, T. Synthesis of block and end-functionalized
polyesters by triflimide-catalyzed ring-opening polymerization of ε-caprolactone, 1,5-dioxepan-2-one,
and rac-lactide. J. Polym. Sci. Part A: Polym. Chem. 2013, 51, 2455–2463.
19. Yang, J.; Wan, Y.; Tu, C.; Cai, Q.; Bei, J.; Wang, S. Enhancing the cell affinity of macroporous
poly(L-lactide) cell scaffold by a convenient surface modification method. Polym. Int. 2003, 52,
1892–1899.
20. Kim, T.G.; Park, T.G. Biodegradable polymer nanocylinders fabricated by transverse fragmentation
of electrospun nanofibers through aminolysis. Macromol. Rapid Commun. 2008, 29, 1231–1236.
21. Vert, M. Biomedical polymers from chiral lactides and functional lactones: Properties and
applications. Makromol. Chem. Macromol. Symp. 1986, 6, 109–122.
22. Kimura, Y.; Shirotani, K.; Yamane, H.; Kitao, T. Ring-opening polymerization of
3(S)-[(benzyloxycarbonyl)methyl]-1,4-dioxane-2,5-dione: A new route to a poly(α-hydroxy acid)
with pendant carboxyl groups. Macromolecules 1988, 21, 3338–3340.
23. Gerhardt, W.W.; Noga, D.E.; Hardcastle, K.I.; García, A.J.; Collard, D.M.; Weck, M. Functional
lactide monomers: Methodology and polymerization. Biomacromolecules 2006, 7, 1735–1742.
24. Feng, Y.; Lu, J.; Behl, M.; Lendlein, A. Progress in depsipeptide-based biomaterials.
Macromol. Biosci. 2010, 10, 1008–1021.
25. Shastri, V.P. Biodegradable Polymers from Derivatized Ring-Opened Epoxides. U.S. Patent
6730772, 4 May 2004.
26. Sussman, E.M.; Clarke, M.B.; Shastri, V.P. Single-step process to produce surface-functionalized
polymeric nanoparticles. Langmuir 2007, 23, 12275–12279.
27. Schneider, J.; Jallouk, A.P.; Vasquez, D.; Thomann, R.; Forget, A.; Pino, C.J.; Shastri, V.P.
Surface functionality as a means to impact polymer nanoparticle size and structure. Langmuir
2013, 29, 4092–4095.
28. Wurth, J.J.; Shastri, V.P. Synthesis and characterization of functionalized poly(ɛ-caprolactone).
J. Polym. Sci. Part A: Polym. Chem. 2013, 51, 3375–3382.
29. Dechy-Cabaret, O.; Martin-Vaca, B.; Bourissou, D. Controlled ring-opening polymerization of
lactide and glycolide. Chem. Rev. 2004, 104, 6147–6176.
30. Schwach, G.; Coudane, J.; Engel, R.; Vert, M. Stannous octoate-versus zinc-initiated polymerization
of racemic lactide. Polym. Bull. 1994, 32, 617–623.
31. Teske, N.S.; Voigt, J.; Shastri, V.P. Clickable degradable aliphatic polyesters via copolymerization
with alkyne epoxy esters: Synthesis and post functionalization with organic dyes. J. Am. Chem. Soc.
2014, 136, 10527–10533.

Molecules 2015, 20
4779
32. Lipik, V.T.; Abadie, M.J.M. Synthesis of block copolymers of varying architecture through
suppression of transesterification during coordinated anionic ring opening polymerization.
Int. J. Biomater. 2012, 2012, doi:10.1155/2012/390947.
33. Yoo, J.-W.; Mitragotri, S. Polymer particles that switch shape in response to a stimulus. Proc. Natl.
Acad. Sci. USA 2010, 107, 11205–11210.
Sample Availability: Samples of the compounds are not available.
© 2015 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
