A P4 chain and cage from silylene-activated white phosphorus

Article abstract of DOI:10.1002/anie.201105610

An acyclic P₄ chain supported by a silicon-substituted amidinato ligand was formed from the reaction of PhC(NtBu)₂SiN(TMS) ₂ with P₄ (TMS=Me₃Si). This is the first example of an acyclic Si-P chain tha

Full text of DOI:10.1002/anie.201105610

Communications
DOI: 10.1002/anie.201105610
P4 Activation
A P4 Chain and Cage from Silylene-Activated White Phosphorus**
Shabana Khan, Reent Michel, Sakya S. Sen, Herbert W. Roesky,* and Dietmar Stalke*
Dedicated to Professor Philip P. Power
Transition-metal-mediated degradation of white phosphorus
has been extensively studied,[1] and it has attracted consid-
erable interest owing to its demand in industrial applications
for a more facile production of organophosphorus derivatives.
Recently in a seminal review,[2] Power pointed out that main-
group elements in lower oxidation states exhibit an amazing
resemblance to transition metals in many ways, for example
their ability to activate small molecules, such as dihydro-
gen.[3–6] In fact, Bertrand et al. mentioned that cyclic alkyl
amino carbene (CAAC) can activate NH3,[7] which is a much
more difficult task for transition metals.[8] The carbene
footsteps were immediately followed by its heavier conge-
ners: silylene, germylene, and stannylene, which all display
the activation of NH3 under ambient condition.[9–11] Another
remarkable breakthrough in this field is the fragmentation of
Scheme 1. Examples of P4 activation by compounds with low-valent
silicon.
P4 by a N-heterocyclic carbene (NHC) and related carbene
ligands.[12–14] Among these, the most intriguing example was
the activation of P4 by a bulky rigid CAAC and the isolation
of the resulting acyclic P4 chain.[13]
zwitterionic Si2P2 ring (D) by P4 activation with silicon(II)
chloride [PhC(NtBu)2SiCl] and bis(silylene) [(PhC-
(NtBu)2Si)2].[20] The latter, compound D, was also isolated
by Driess et al. by treating [PhC(NtBu)2SiP(SiMe3)2] with
Ph3PCl2.[21]
In a surprisingly short period of time, the activation of
phosphorus by subvalent Group 14 elements has flowered
into an engaging, intriguing, and emerging area of chemis-
try.[22,23] Nevertheless, a neutral acyclic P4 chain stabilized by
an N-heterocyclic silylene is still elusive. Herein, we present

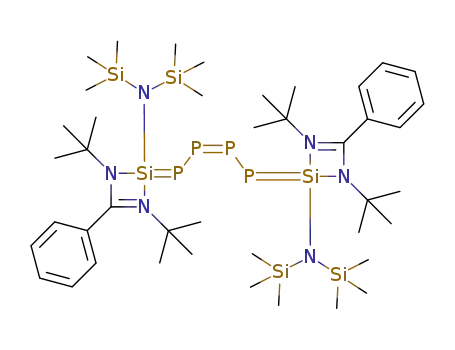

the synthesis of a neutral acyclic P4 chain stabilized by the
recently isolated silicon(II) bis(trimethylsilyl)amide [PhC-
(NtBu)2SiN(SiMe3)2] (1).[24]
Addition of toluene to the mixture of 1 and P4 at À108C in
a 2:1 molar ratio immediately gave rise to a dark bluish-green
solution that turned purple after stirring for 30 minutes at
room temperature. The solution was concentrated and kept at
À308C to afford 2 in a 50% yield as purple-colored,
extremely air- and moisture-sensitive crystals (Scheme 2).
Compound 2 is stable in solution at À308C for a long time, but
decomposes rapidly (within a few minutes) after separation of
crystallized material from the supernatant mother liquor and
subsequent drying. The constitution of 2 was unequivocally
Owing to the similar properties between N-heterocyclic
carbene and silylene (both having a singlet ground state[15,16]
and a lone pair of electrons on the low-valent carbon and
silicon atom), it is expected that subvalent silicon compounds
can also activate P4; however, only four examples of P4
activation by compounds with low-valent silicon have been
reported to date (Scheme 1). West et al. described the
isolation of 1,3-diphospha-2,4-disilabicyclo[1.1.0]butane
(A),[17] which was later structurally characterized.[18] Driess
et al. described the activation of P4 by a N-heterocyclic
=
À
=
silylene
[{RNC( CH2) CH C(Me)NR}Si]
(R = 2,6-
iPr2C6H3) to afford bicyclotetraphosphine derivatives B and
C.[19] Very recently, we isolated a novel four-membered
[*] Dr. S. Khan, R. Michel, Dr. S. S. Sen, Prof. Dr. H. W. Roesky,
Prof. Dr. D. Stalke
Institut fꢀr Anorganische Chemie, Georg-August-Universitꢁt
Tammannstrasse 4, 37077 Gçttingen (Germany)
E-mail: hroesky@gwdg.de
dstalke@chemie.uni-goettingen.de
Homepage: http://www.roesky.chemie.uni-goettingen.de
http://www.stalke.chemie.uni-goettingen.de
[**] H.W.R. thanks the Deutsche Forschungsgemeinschaft (DFG RO
224/55-3) for support. S.K. is indebted to the DAAD for a research
fellowship. D.S. is grateful for funding from the DFG Priority
Programme 1178, the DNRF-funded Center for Materials Crystal-
lography (CMC) for support, and the Land Niedersachsen for
providing a fellowship in the Catalysis for Sustainable Synthesis
(CaSuS) Ph.D. program.
Supporting information for this article, including experimental
details, is available on the WWW under http://dx.doi.org/10.1002/
anie.201105610.
Scheme 2. Synthesis of 2.
11786
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2011, 50, 11786 –11789

2 shows an AA’XX’ system with two multiplets at d =
À77.19 ppm and + 381.72 ppm (JA,A’ = 346.14, JA,X = 295.77,
J
X,X’ = 184.18, and JA,X’ = 50.36 Hz), which can be assigned to
=
=
P of Si P and P P, respectively. In the EI-MS spectrum, the
most abundant peak with the highest relative intensity at m/
z 900.5 was observed for the fragment after the probable
elimination of a P2 unit.
The N(SiMe3)2-substituted disilene [(Me3Si)2N(h1-
1
=
Me5C5)Si Si(h -Me5C5)N(SiMe3)2] (3) was first reported by
Jutzi et al. in 2004,[36] which was later shown to exist in
equilibrium with the corresponding silylene in solution.[37]
Very recently, we have successfully synthesized 3 in 68%
yield by treating [(h1-Me5C5)SiHCl2] with KN(SiMe3)2.[38] This
high-yield access of 3 and its ability to exist in equilibrium
with the corresponding silylene prompted us to investigate its
reactivity with P4. It can be used as a source for two-
coordinate silylene [(Me5C5)SiN(SiMe3)2] and can be com-
pared with the reactivity of three-coordinate silylene 1.
Unlike 1, the reaction of 3 with P4 in a 1:1 molar ratio in
toluene at ambient temperature under stirring for 12 h yields
Figure 1. Molecular structure of 2·2C7H8. Ellipsoids are set at 50%
probability; hydrogen atoms and the two toluene molecules are
omitted for clarity. Atom P1 is part of a disordered moiety with the
highest site occupation factor. Atom P2#1 (and those shown to the
left of P2#1; #1=x, Ày+0.5, z) are symmetry-generated by a mirror
À
plane lying between and perpendicular to P2 P2#1. Selected bond
an extraordinary Si P cage (4; Scheme 3). The 1H NMR
distances [ꢂ] and angles [8]: P2–P2#1 2.0559(7), P1–P2 2.1317(14),
Si1–P1 2.1602(12), N1–Si1 1.8316(12), N2–Si1 1.8339(13), Si1–N3
1.7264(12); N1-Si1-P1 116.57(9), N2-Si1-P1 117.82(10), N3-Si1-P1
116.56(6), P2-P1-Si1 94.22(5), P2#1-P2-P1 106.93(3).
À
characterized by cryogenic single-crystal X-ray diffraction
studies.[25–27] Figure 1 depicts the molecular view of 2, which
crystallizes in the orthorhombic space group Pnma. The
molecular structure shows the presence of the Z-diphosphene
isomer (with a dihedral angle of 08) and benzamidinato-
stabilized phosphasilene substituents, whereas the reported
CAAC-supported acyclic P4 is an E isomer (major prod-
Scheme 3. Synthesis of 4.
spectrum exhibits a broad resonance for thirty protons of the
methyl groups attached to the two five-membered rings (d =
1.73–1.86 ppm). Two resonances at d = 0.41 and 0.49 ppm
correspond to protons of two different SiMe3 groups. The 29Si
NMR spectrum of 4 in C6D6 shows four resonances (d =
À78.9, 0.2, 5.8, and 8.1 ppm) for four different silicon atoms.
A quartet at d = À78.9 ppm (1J(29Si-31P) = 48.20 Hz) appears
for silicon attached to three phosphorus atoms, while the
silicon attached to two phosphorus atoms has a broad triplet
at d = 0.2 ppm (1J(29Si-31P) = 42.86 Hz).[19] The remaining two
resonances result from the silicon atoms of the SiMe3 groups.
As shown by 31P NMR spectroscopy, 4 exhibits four chemi-
cally different phosphorus atoms (A, B, X, Y) giving rise of
the resonance signals as a doublet of doublets of doublets at
uct).[13] AC2 axis passes through the middle of the central P P
=
double bond of 2. The main structure consists of two Si atoms
and four P atoms, which together form a neutral acyclic Si2P4
= À = À =
(Si P P P P Si) chain with 6p electrons contained in a
diphosphene and two phosphasilene units. The two Si atoms
are four-coordinate each and display a distorted tetrahedral
geometry by coordination with two N atoms from the
amidinato ligand. The remaining two sites of the tetrahedron
are occupied by the N(SiMe3)2 moiety and P atom each. The
À
central P2 P2#1 bond length is 2.0559(7) ꢀ, which falls in the
À
range of a typical double bond, while the P1 P2 distance
[28–30]
À
(2.1317(14) ꢀ) is halfway between a P P single (2.21 ꢀ)
and double bond[31,32] (1.954 to 2.044 ꢀ) and corresponds well
with the reported value (2.083(4) ꢀ) for a CAAC-stabilized
d = 257.6, 128.4, 114.2, and À141.8 ppm (JA,B = 30.9, JA,X
=
acyclic P4 unit.[13] Moreover, the Si1 P1 bond in
2
10.2, A,Y = 78.6, B,X = 126.6, B,Y = 110.2, and JX,Y
J
J
J
=
À
=
(2.1602(12) ꢀ) is longer than the Si P double bond
156.5 Hz), respectively. The composition of 4 is further
supported by EI mass spectrometry (molecular ion m/z
770), which clearly indicates the formation of a 1:1 complex of
3 with P4.
Figure 2 shows a molecule of 4. Compound 4 crystallizes
in the triclinic space group P1.
structure confirms the triply opened P4 tetrahedron, in
which one P3 face is capped, and one opened edge is bridged
by a silicon atom each, and a Cp* group has migrated from Si4
to one of the adjacent phosphorus atoms (P4) under simulta-
neous formation of a new Si P bond. Both silicon atoms (Si4
and Si7) are four-coordinate and have a distorted tetrahedral
(2.09 ꢀ),[33,34] but significantly shorter than the reported Si
À
P single bond (2.25 ꢀ)[35] and is in good accordance with the
bond lengths of the recently reported CPSi2 and P2Si2
cycles.[20] From the X-ray structural data it is clear that each
[25–27]
¯
= À
SiP2 (Si P P) moiety shows a delocalized electron density.
The X-ray crystal
Compound 2 was also characterized by multinuclear
NMR spectroscopy, EI-MS spectrometry, and elemental
1
analysis. In the H NMR spectrum, tBu protons give rise to
a singlet at d = 1.29 ppm, which confirms the presence of only
one isomer. Two resonances appear at d = 0.46 and 0.77 ppm
that are assigned to SiMe3 protons. The 31P NMR spectrum of
À
Angew. Chem. Int. Ed. 2011, 50, 11786 –11789
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.angewandte.org 11787

Communications
reaction of the abovementioned silylenes with P4 confirms the
significant role of the substituents to yield the final products.
À
Such Si P compounds can be used as electron-rich chelating
ligands for transition metals and may find application in
metal-mediated catalytic process.[39–41] Furthermore, 2 and 4
may have commercial application as precursors for semi-
conducting materials.[42,43]
Received: August 8, 2011
Revised: August 24, 2011
Published online: October 11, 2011
Keywords: P4 activation · phosphorus · silicon · silylenes ·
.
solid-state structures
Figure 2. Molecular structure of 4. Ellipsoids are set at 50% proba-
bility; hydrogen atoms are omitted for clarity. Selected bond distances
[ꢂ] and angles [8]: P1–P3 2.2747(7), P2–P3 2.2831(8), P3–P4 2.2457(7),
P1–Si4 2.2829(8), P1–Si7 2.2979(6), P2–Si4 2.2868(6), P2–Si7
2.2922(8), P4–Si4 2.2600(7), P4–C1 1.9133(15), Si7–N2 1.7450(13),
Si4–N1 1.7300(13); P3-P1-Si4 69.98(2), P3-P1-Si7 77.09(3), Si4-P1-Si7
85.78(3), P3-P2-Si4 69.76(2), P3-P2-Si7 77.09(3), Si4-P2-Si7 85.82(3),
P4-P3-P1 86.44(3), P4-P3-P2 97.19(3), P1-P3-P2 86.98(3), P3-P4-Si4
70.91(2), C1-P4-P3 110.69(5), C1-P4-Si4 113.30(5), P4-Si4-P1 85.89(3),
P4-Si4-P2 96.65(2), P1-Si4-P2 86.69(3), P1-Si7-P2 86.22(3).
[1] For recent reviews, see: a) M. Peruzzini, L. Gonsalvi, A.
Romerosa, Chem. Soc. Rev. 2005, 34, 1038 – 1047; b) C. C.
Cummins, Angew. Chem. 2006, 118, 876 – 884; Angew. Chem.
Int. Ed. 2006, 45, 862 – 870; c) B. M. Cossairt, N. A. Piro, C. C.
Cummins, Chem. Rev. 2010, 110, 4164 – 4177; d) M. Caporali, L.
Gonsalvi, A. Rossin, M. Peruzzini, Chem. Rev. 2010, 110, 4178 –
4235, and references therein.
[2] P. P. Power, Nature 2010, 463, 171 – 177.
[3] G. H. Spikes, J. C. Fettinger, P. P. Power, J. Am. Chem. Soc. 2005,
127, 12232 – 12233.
[4] Y. Peng, M. Brynda, B. D. Ellis, J. C. Fettinger, E. Rivard, P. P.
Power, Chem. Commun. 2008, 6042 – 6044.
[5] G. C. Welch, R. R. San Juan, J. D. Masuda, D. W. Stephan,
Science 2006, 314, 1124 – 1128.
[6] Z. Zhu, X. Wang, Y. Peng, H. Lei, J. C. Fettinger, E. Rivard, P. P.
Power, Angew. Chem. 2009, 121, 2065 – 2068; Angew. Chem. Int.
Ed. 2009, 48, 2031 – 2034.
[7] G. D. Frey, B. Lavallo, B. Donnadieu, W. W. Schoeller, G.
Bertrand, Science 2007, 316, 439 – 441.
[8] a) Z. Zhao, A. S. Goldman, J. F. Hartwig, Science 2005, 307,
1080 – 1082; b) Y. Nakajima, H. Kameo, H. Suzuki, Angew.
Chem. 2006, 118, 964 – 966; Angew. Chem. Int. Ed. 2006, 45, 950 –
952.
[9] A. Jana, C. Schulzke, H. W. Roesky, J. Am. Chem. Soc. 2009, 131,
4600 – 4601.
[10] A. Jana, I. Objartel, H. W. Roesky, D. Stalke, Inorg. Chem. 2009,
48, 798 – 800.
[11] Y. Peng, B. D. Ellis, X. Wang, P. P. Power, J. Am. Chem. Soc.
2008, 130, 12268 – 12269.
[12] O. Back, G. Kuchenbeiser, B. Donnadieu, G. Bertrand, Angew.
Chem. 2009, 121, 5638 – 5641; Angew. Chem. Int. Ed. 2009, 48,
5530 – 5533.
[13] J. D. Masuda, W. W. Schoeller, B. Donnadieu, G. Bertrand,
Angew. Chem. 2007, 119, 7182 – 7185; Angew. Chem. Int. Ed.
2007, 46, 7052 – 7055.
[14] J. D. Masuda, W. W. Schoeller, B. Donnadieu, G. Bertrand, J.
Am. Chem. Soc. 2007, 129, 14180 – 14181.
[15] C. Boehme, G. Frenking, J. Am. Chem. Soc. 1996, 118, 2039 –
2046.
[16] A. J. Arduengo III, H. Bock, H. Chen, M. Denk, D. A. Dixon,
J. C. Green, W. A. Herrmann, N. L. Jones, M. Wagner, R. West,
J. Am. Chem. Soc. 1994, 116, 6641 – 6649.
[17] M. Driess, A. D. Fanta, D. Powell, R. West, Angew. Chem. 1989,
101, 1087 – 1088; Angew. Chem. Int. Ed. Engl. 1989, 28, 1038 –
1040.
[18] M. Driess, H. Pritzkow, M. Reisgys, Chem. Ber. 1991, 124, 1923 –
1929.
[19] Y. Xiong, S. Yao, M. Brym, M. Driess, Angew. Chem. 2007, 119,
4595 – 4597; Angew. Chem. Int. Ed. 2007, 46, 4511 – 4513.
geometry. The bridging atom Si4 is furthermore attached to
À
one nitrogen atom of the N(SiMe3)2 substituent. All Si P
bonds are comparable and consistent with previously
[35]
À
reported Si P single bonds. Atom Si7 is attached to two
phosphorus atoms (P1 and P2), one N(SiMe3)2 group, and one
Cp* group. The central four-membered Si4-P2-Si7-P1 ring is
nonplanar, with a dihedral angle between two Si-P-P planes of
138.28. A trigonal bipyramidal structure is shown by P1, P2,
P3, P4, and Si4 atoms of the central core if we assume that
three phosphorus atoms (P1, P2, P4) occupy equatorial
positions while axial positions are attributed to Si4 and P3
with distances of 1.315 and 1.299 ꢀ, respectively, from the
center. All of the phosphorus atoms are three-coordinate with
distorted tetrahedral geometry (considering the lone pair of
electrons on phosphorus atoms). P3 is attached to P1, P2, and
À
À
À
P4 with bonds P1 P3, P2 P3, and P3 P4 of 2.2747(5),
2.2831(8), and 2.2457(7) ꢀ, respectively, which are very
À
similar to those of B and slightly longer than the mean P P
single-bond length found in C (2.23 ꢀ)[19] and the P4
tetrahedron (2.21(2) ꢀ). The two Cp* rings attached to P4
and Si7 are nearly perpendicular to each other with an angle
of 82.558 between the planes of two Cp* rings, while
N(SiMe3)2 groups attached to Si4 and Si7 face in the opposite
direction to each other.
In summary, we have demonstrated the reactions of
1
=
[PhC(NtBu)2SiN(SiMe3)2] and E-[(Me3Si)2N(h -Me5C5)Si Si-
(h1-Me5C5)N(SiMe3)2] with P4, which yielded an unusual
À
acyclic P4 chain 2 and silicon–phosphorus cage 4 by P4 and Si
C activation through insertion of two molecules of the
corresponding silylene into the P4 tetrahedron. We chose E-
1
1
=
[(Me3Si)2N(h -Me5C5)Si Si(h -Me5C5)N(SiMe3)2] as a source
for {Cp*SiN(SiMe3)2} and compared the reactivity pattern of
both the N(SiMe3)2-substituted silylenes for the activation of
P4. The formation of two different kinds of products from the
11788 www.angewandte.org
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2011, 50, 11786 –11789

[20] S. S. Sen, S. Khan, H. W. Roesky, D. Kratzert, K. Meindl, J.
Henn, D. Stalke, J.-P. Demers, A. Lange, Angew. Chem. 2011,
123, 2370 – 2373; Angew. Chem. Int. Ed. 2011, 50, 2322 – 2325.
[21] S. Inoue, W. Wang, C. Prꢁsang, M. Asay, E. Irran, M. Driess, J.
Am. Chem. Soc. 2011, 133, 2868 – 2871.
[33] a) M. Driess, H. Pritzkow, S. Rell, U. Winkler, Organometallics
1996, 15, 1845 – 1855; b) M. Driess, Adv. Organomet. Chem.
1996, 39, 193 – 229.
[34] H. R. G. Bender, E. Niecke, M. Nieger, J. Am. Chem. Soc. 1993,
115, 3314 – 3315.
[22] M. Scheer, C. Balꢂzs, A. Seitz, Chem. Rev. 2010, 110, 4236 – 4256.
[23] N. A. Giffin, J. D. Masuda, Coord. Chem. Rev. 2011, 255, 1342 –
1359.
[24] S. S. Sen, J. Hey, R. Herbst-Irmer, H. W. Roesky, D. Stalke, J.
Am. Chem. Soc. 2011, 133, 12311 – 12316.
[35] a) “Grçsse und Gestalt von Molekꢃlen”: P. Rademacher in
Strukturen organischer Molekꢀle. Physikalische Organische
Chemie (Eds.: M. Klessinger), Verlag Chemie, Weinheim,
1987, p. 55; b) P. Pyykkç, M. Atsumi, Chem. Eur. J. 2009, 15,
12770 – 12779.
[25] a) T. Kottke, D. Stalke, J. Appl. Crystallogr. 1993, 26, 615 – 619;
b) G. M. Sheldrick, Acta Crystallogr. Sect. A 2008, 64, 112 – 122.
CCDC 835940 (2) and CCDC 835941 (4) contain the supple-
mentary crystallographic data for this paper. These data can be
obtained free of charge from The Cambridge Crystallographic
Data Centre via www.ccdc.cam.ac.uk/data_request/cif.
[26] D. Stalke, Chem. Soc. Rev. 1998, 27, 171 – 178.
[36] P. Jutzi, A. Mix, B. Rummel, W. W. Schoeller, B. Neumann, H.-G.
Stammler, Science 2004, 305, 849 – 851.
[37] P. Jutzi, A. Mix, B. Neumann, B. Rummel, W. W. Schoeller, H.-G.
Stammler, A. B. Rozhenko, J. Am. Chem. Soc. 2009, 131, 12137 –
12143.
[38] S. Khan, S. S. Sen, H. W. Roesky, D. Kratzert, R. Michel, D.
Stalke, Inorg. Chem. 2010, 49, 9689 – 9693.
[27] T. Schulz, K. Meindl, D. Leusser, D. Stern, J. Graf, C.
Michaelsen, M. Ruf, G. M. Sheldrick, D. Stalke, J. Appl.
Crystallogr. 2009, 42, 885 – 891.
[28] D. E. C. Corbridge, E. J. Lowe, Nature 1952, 170, 629.
[29] J. J. Daly, J. Chem. Soc. 1964, 6147 – 6166.
[39] R. H. Crabtree, Angew. Chem. 1993, 105, 828 – 845; Angew.
Chem. Int. Ed. Engl. 1993, 32, 789 – 805.
[40] S. Yao, Y. Xiong, C. Milsmann, E. Bill, S. Pfirrmann, C. Limberg,
M. Driess, Chem. Eur. J. 2010, 16, 436 – 439.
[41] Y. Xiong, S. Yao, E. Bill, M. Driess, Inorg. Chem. 2009, 48, 7522 –
7524.
[30] J. J. Daly, J. Chem. Soc. 1965, 4789 – 4799.
[31] M. Yoshifuji, I. Shima, N. Inamoto, K. Hirotsu, T. Higuchi, J.
Am. Chem. Soc. 1981, 103, 4587 – 4589.
[42] C. Perrier, H. Vincent, P. Chaudouꢄt, B. Chenevier, R. Madar,
Mater. Res. Bull. 1995, 30, 357 – 364.
[32] T. Lꢃbben, H. W. Roesky, H. Gornitzka, A. Steiner, D. Stalke,
Eur. J. Solid State Inorg. Chem. 1995, 32, 121 – 130.
[43] A. Correia, B. Pichaud, A. Lhorte, J. B. Quoirin, J. Appl. Phys.
1996, 79, 2145 – 2147.
Angew. Chem. Int. Ed. 2011, 50, 11786 –11789
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.angewandte.org 11789
