Efficient synthesis of 3-hydroxymethylated cis- and trans-cyclobutane
b-amino acids using an intramolecular photocycloaddition strategy
a
Aurelie Mondiere , Runhui Peng , Roland Remuson , David J. Aitken
a
a,
a,b,
*
*
´
`
a Laboratoire SEESIB (UMR 6504dCNRS), De´partement de Chimie, Universite´ Blaise PascaldClermont-Ferrand II,
24 avenue des Landais, 63177 Aubie`re cedex, France
b Laboratoire de Synthe`se Organique et Me´thodologie, ICMMO (UMR 8182dCNRS), Baˆt. 420, Universite´ Paris-Sud 11,
15 rue Georges Clemenceau, 91405 Orsay cedex, France
Received 14 September 2007; received in revised form 22 October 2007; accepted 1 November 2007
Available online 7 November 2007
Dedicated to Professor Csaba Szantay on the occasion of his 80th birthday
Abstract
Uracil bearing a tethered allyl alcohol appendage at N1 undergoes a [2þ2] photocycloaddition reaction to provide a single tricyclic adduct in
high yield. This compound is transformed in one step into a cis-cyclobutane b-amino acid bearing a 3-hydroxymethyl group. Through appro-
priate functionalization and epimerization, the trans isomer is obtained therefrom in only three further steps.
Ó 2007 Elsevier Ltd. All rights reserved.
1. Introduction
ring substituentsdshould clearly play a significant role in
this field, but until now very little study has been made of
these carbocycles.9,10 This can be partly explained by the pau-
city of convenient synthetic methods giving access to these
building blocks. Only a few synthetic strategies for the prepa-
ration of ACBAs have been disclosed. Kennewell et al.11
showed that meso-1,2-cyclobutanedicarboxylic acid deriva-
tives could be desymmetrized with one of the functions being
transformed into an amine, thus providing access to racemic
b-Amino acids, and the various peptide structures which in-
clude them, often possess interesting structural and biological
properties which are complementary to those of their more
abundant a-amino acid congeners.1 The controlled preparation
of b-amino acids is therefore of considerable importance for
synthetic chemists.2 Since a significant part of the interest
in these compounds derives from their ability to adopt and
impose marked conformational preferences, there has been a
particular focus on alicyclic b-amino acids and peptide deriva-
tives thereof.3,4 Thus, synthetic efforts have been devoted to
derivatives of cyclohexane,5 cyclopentane,6 and cyclopropane7
b-amino acids, although a number of more elaborate carbo-
cyclic scaffolds have also been studied.8
cis-ACBA. Two enantioselective versions of this approach
12
~
have been described, by the groups of Ortuno et al. and
Bolm et al.13 Until very recently, only racemic syntheses of
trans-ACBA had been described, via analogous desymmetri-
zation of the racemic trans-diacid.11,14
Ring-substituted ACBAs are rare, and the available syn-
thetic methods lack selectivity and/or generality. ACBAs
bearing simple hydrocarbon moieties (alkyl, phenyl, and meth-
ylene) at the C3 and/or C4 position have been described,6c,15
while a novel acyl nitrene insertion reaction has provided
an isolated entry to 3-hydroxy-ACBAs.16 In earlier work,
Brannock et al.17 prepared a series of N,N-dialkylated 3,3-
dialkyl-ACBA esters via a thermal [2þ2] cycloaddition
Cyclobutane b-amino acidsdmore formally, 2-amino-1-
cyclobutanecarboxylic acids (ACBAs) optionally bearing
* Corresponding authors.
E-mail addresses: roland.remuson@univ-bpclermont.fr (R. Remuson),
david.aitken@u-psud.fr (D.J. Aitken).
0040-4020/$ - see front matter Ó 2007 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tet.2007.11.021

A. Mondie`re et al. / Tetrahedron 64 (2008) 1088e1093
1089
between enamines and acrylates, although these reactions re-
quired harsh conditions and were bereft of stereoselectivity.
This approach for the construction of ACBAs has been adap-
ted to give related derivatives, usually under milder con-
ditions.18 Interestingly, fully functionalized derivatives of
4-hydroxymethylated cis- and trans-ACBA have been
prepared via photopyridones.19
We recently demonstrated the utility of a [2þ2] photocy-
cloaddition reaction between uracil and ethylene as a rapid
and simple entry to cis-ACBA.20 Use of a chiral uracil deriva-
tive provided access to enantiomerically pure materials,21 and
these were epimerized in a five-step procedure to establish the
first access to trans-ACBA in enantiomerically pure form.21a
In an extension of this photochemical approach, using a
series of 5- or 6-substituted uracils, the corresponding 1- and
2-substituted cis-ACBAs were prepared,22 including the
1-hydroxymethylated compound.
We wished to further extend this methodology to the prep-
aration of the hitherto unknown 3-hydroxymethyl-ACBA. The
particular interest of the primary alcohol substituent lies in its
wide potential for grafting of (or transformation into) other
side chain entities. In intermolecular [2þ2] photocycloaddi-
tions with unsymmetrical partners, the possibility of the for-
mation of regioisomers and stereoisomers arises, and in
many cases product mixtures are formed.23 An intramolecular
process is generally much more selective, and indeed a few ex-
amples have been described, which involve uracil dervatives.24
In consequence, we decided to investigate the reactivity of
a uracil bearing a cleavable tether at N1, which would deliver
the equivalent of allyl alcohol in an intramolecular fashion
(Fig. 1).

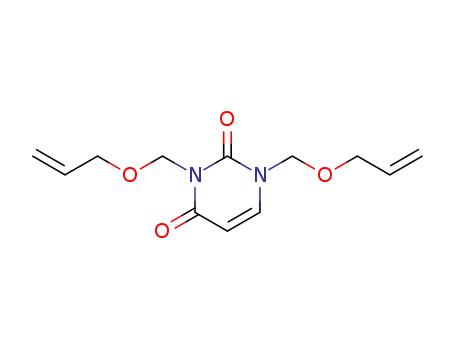

N1,N3-dialkylated material 2 was the only by-product, and
was easily separated by filtration.
O
O
N
O
NH
N
O
a
NH
N
O
O
89%
N
H
O
O
O
10%
1
2
+
b
89%
H
H
O
COOH
O
H
H
c
NH
H
4
N
NH2
77%
H
N
O
O
O
d
3
H
100%
COOH
NH2
HO
5
H
H
Scheme 1. Reagents and conditions: (a) CH2]CHCH2OCH2Cl, BSA, CsI,
CH2Cl2 rt, 4 h. (b) hn, acetone, Pyrex, rt, 4 h. (c) 0.5 M NaOH, rt, 18 h. (d)
1 M NaOH, 80 ꢀC, 10 h, then 1 M HCl.
Compound 1 was subjected to [2þ2] photocycloaddition
reaction conditions (Scheme 1). A solution of 1 in acetone
was irradiated with a 400 W medium-pressure Hg vapor
lamp fitted with a Pyrex filter under argon for 4 h. In these
conditions, the tricyclic cyclobutane adduct 3 was obtained
as a single product in 89% isolated yield.28 In alternative reac-
tion conditions, using a quartz reaction vessel and acetonitrile
as the solvent, 3 was produced along with several by-products
and its isolated yield was lower (66%). The structure of com-
pound 3 was determined by 1D and 2D NMR experiments.
The relative stereochemistry was attributed by comparison of
NMR spectral data with those of related compounds24a and
supported by NOE observations. An all-cis configuration
was thus assigned for 3, which had therefore been formed
with complete regio- and stereo-chemical selectivities.
O
OH
COOH
NH2
HO
[2+2]
NH
+
intermolecular reaction:
lacks selectivity
N
H
O
probable mixture
of isomers
O
N
COOH
[2+2]
NH
Next, the controlled degradation of the heterocyclic rings
was undertaken. It was hoped that subjecting 3 to acidic con-
ditions would induce oxazine ring opening via an intermediate
N-acyl iminium, which might then be hydrolyzed.29 In the
event, treatment of 3 with TFA or HCl yielded only unreacted
starting material. Other attempts to open the oxazine ring of 3
NH2
O
intramolecular reaction:
more likelihood of regio-
and stereo-control
HO
3-hydroxymethyl-ACBA
O
cleavable
tether
Figure 1. Retrosynthetic analysis.
31
using TMSI30or BBr3 also failed.
2. Results and discussion
We therefore turned our attention to the dihydrouracil ring.
Our recent work on cyclobutane dihydrouracil adducts had
shown that treatment with NaOH in mild conditions can effect
selective N3eC4 bond cleavage to provide the corresponding
cyclobutane b-urea acids.20e22 Indeed, overnight treatment of
3 with 0.5 M NaOH (6 equiv) at room temperature furnished
compound 4 in 77% yield (Scheme 1). Previously, it had
been noted that in more strongly basic conditions, dihydrour-
acils can be converted directly into b-amino acids.32 This ap-
peared a more attractive prospect, since we felt that removal of
2.1. Preparation of the cis-cyclobutane b-amino acid
We selected to study 1-(allyloxymethyl)uracil 1. This com-
pound, first described by Ozerov et al.,25 was conveniently
prepared by selective N1-alkylation of uracil using chloro-
methyl allyl ether26 in the presence of cesium iodide and
N,O-bistrimethylsilylacetamide (BSA) in an adaptation of
Pederson’s procedure27 (Scheme 1). A small amount of the

1090
