Studies on 3-oxoalkanenitriles: Novel rearrangement reactions observed in studies of the chemistry of 3-heteroaroyl-3-oxoalkanenitriles as novel routes to 2-dialkylaminopyridines

Article abstract of DOI:10.3390/molecules17010897

3-Aroyl and 3-heteroaroyl substituted 3-oxoalkanenitriles were synthesized by the reactions of activated aromatic and hetero-aromatic substances with cyanoacetic acid in the presence of acetic anhydride. As part of studies focusing on the preparation of c

Full text of DOI:10.3390/molecules17010897

Molecules 2012, 17, 897-909; doi:10.3390/molecules17010897
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Studies on 3-Oxoalkanenitriles: Novel Rearrangement Reactions
Observed in Studies of the Chemistry of 3-Heteroaroyl-3-
Oxoalkanenitriles as Novel Routes to 2-Dialkylaminopyridines
Hamad M. Al-Matar 1,*, Khaled D. Khalil 1,2, Mona F. Al-Kanderi 1 and Mohamed H. Elnagdi 1
1
Chemistry Department, Faculty of Science, University of Kuwait, P.O. Box 5969, Safat 13060,
Kuwait
2
Chemistry Department, Faculty of Science, Cairo University, Giza 12613, Egypt
* Author to whom correspondence should be addressed; E-Mail: h.almatar@ku.edu.kw.
Received: 1 December 2011; in revised form: 16 January 2012 / Accepted: 16 January 2012 /
Published: 18 January 2012
Abstract: 3-Aroyl and 3-heteroaroyl substituted 3-oxoalkanenitriles were synthesized
by the reactions of activated aromatic and hetero-aromatic substances with cyanoacetic
acid in the presence of acetic anhydride. As part of studies focusing on the
preparation of cyanoacetyl-1-N-methylbenzimidazole, we observed that reaction of
N-methyl-benzimidazole with the cyanoanhydride formed by condensation of cyanoacetic
acid with acetic anhydride, leads to the formation of 2-(1,3-diacetyl-2,3-dihydro-1H-
benzo[d]-imidazol-2-yl)acetonitrile (5), whose structure was confirmed by X-ray
crystallographic analysis. 3-Oxoalkanenitriles 3a,b were observed to undergo condensation
reactions with dimethylformamide dimethyl acetal (DMFDMA) to afford the corresponding
enamino-nitriles, which react with malononitrile to give 2-dialkylaminopyridines through
a pathway involving a new, unexpected rearrangement process. Reactions of
3-oxoalkanenitriles with ethyl acetoacetate were found to afford 2-oxopyran-3-carbonitriles,
also occurring via this unexpected rearrangement process. Mechanisms to account for
both rearrangement reactions are suggested. In addition, reactions of 3-oxoalkanenitriles
with acetylacetone in acetic acid in the presence of ammonium acetate result in the
formation of pyridine-3-carbonitriles. Finally, upon heating in the presence of zeolite
3-oxoalkanenitriles 3b,c self-trimerized to produce the corresponding aniline derivatives 23b,c.
Keywords: cyanoacetylation; dialkylaminopyridine; NOE experiments; 3-Oxoalkanenitrile;
X-ray; zeolite

Molecules 2012, 17
898
1. Introduction
In several previous studies, we have explored the chemistry and synthesis of 3-oxoalkanenitriles [1–5].
A somewhat recent approach to these targets via reaction of electron rich aromatic indoles and pyrroles
with cyanoacetic anhydride, first reported by Slatt et al. [6], has attracted plenty of attention [7,8]. As
part of this effort, we recently developed routes for the preparation of 3-aroyl and heteroaroyl
substituted 3-oxoalkanenitriles that rely on the use of reactions of electron rich aromatic compounds
with cyanoacetic acid promoted by acetic anhydride, either in the presence or absence of catalysts.
Because this chemistry enables easy access to this class of compounds, these observations have
promoted renewed interest in this area. Earlier [7–10], we described several novel routes for the
synthesis of pyrans and pyridines that begin with 3-oxoalkanenitriles. The current effort has focused on
the chemical reactivity and preparation of 3-substituted 3-oxoalkanenitriles and has shown that these
substances can be readily generated through a novel cyanoacetylation route described below.
2. Results and Discussion
In a previous study, we explored potential routes for the preparation of derivatives of the
heteroaromatic substituted oxoalkanenitrile 3, starting with electron rich aromatic compounds 1. The
current efforts were targeted at exploring the potential use of a new rearrangement reaction we
observed very recently. We noted that reactions of pyrazolone 1a and aniline derivative 1b with the
cyanoanhydride 2, generated by condensation of cyanoacetic acid with acetic anhydride, result in
the formation of the corresponding heteroaroyl and aryl substituted 3-oxoalkanenitriles 3a and 3b
in excellent yields (Scheme 1). The structure of 3a was assigned by using X-ray crystallographic
analysis (Figure 1) (CCDC 2011) [11].
In contrast, N-methylimidazole 1c failed to react with 2 under conditions identical to those used in
the synthesis of 3a and 3b. However these substances do react when InCl3 is present in the mixture to
afford a product resulting from monocyanoacetylation of 1c. Preliminary inspection of the analytical
data for this product suggested that it could be either one of the regioisomeric products 3c and 4. The
results of NOE difference experiments, and in particular the fact that irradiation of methyl protons at
2.4 ppm enhanced the intensities of the imidazole CH protons at 7.29 and 8.19 ppm and vice versa,
revealed a close spacial proximity of the N-methyl group and imidazole ring CH and suggested that the
structure of the product is best represented by 1c (Scheme 1).
Interestingly, reaction of N-methylbenzamidazole 1d with cyanoanhydride 2 results in the
formation of an unexpected product with a molecular formula of C13H13N3O2 in 50% yield (Scheme 1).
X-ray crystallographic analysis (Figure 2) was used to unambiguously assign the structure of this
substance as the unusual bis-acetylbenzimidazolidine 5 (CCDC 2011) [12]. It is believed that 5 is
produced via the mechanistic route displayed in Scheme 2, involving intermediates 6–8.

Molecules 2012, 17
899
Scheme 1. Cyanoacetylation of some π-excessive systems.
O
O
NC
O
N
N
Ph
Ph
Me
N
Me
N
3a
Me
Me
1a
Me
Me
N
Me
Me
N
O
O
3b
CN
N
O
CN
1b
Me
O
O
2
NC
3c
N
N
Me
N
1c
Me
N
4
NC
N
Me
O
Me
O
O
N
N
N
H
5
CN
N
Me
1d
Me
Figure 1. An ORTEP plot of the X-ray crystal structure of 3a.

Molecules 2012, 17
900
Figure 2. An ORTEP plot of the X-ray crystal structure of 5.
Scheme 2. Suggested mechanism for formation of 5.
O
Ac
Me
CN
N
X-
N+
Ac2O
1d
O
O
N
N
O
Me
Me
6
Me
7
- CO2
Me
O
Ac
CN
N
N
CN
N
N
H
Ac
Me
Me
X
O
5
8

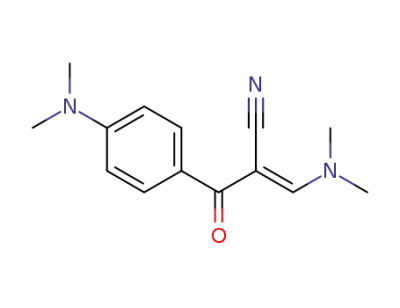

The heteroaroyl and aryl substituted 3-oxoalkanenitriles 3a and 3b were observed to undergo
condensation reactions with dimethylformamide dimethylacetal (DMFDMA) to yield the
corresponding enaminonitriles 9a,b (Scheme 3). The products have trans-stereochemistry, as indicated
by the results of NOE difference experiments that show the close spacial proximity of their respective
olefinic methine protons and the methyl protons in 9a and aryl protons in 9b.
Further studies demonstrated that the enaminonitriles 9a and 9b react with malononitrile in refluxing
ethanol containing piperidine to yield the corresponding dialkylaminopyridine-3,5-dicarbonitriles 13a
and 13b (cf. Scheme 3).

Molecules 2012, 17
Scheme 3. Formation of dialkylaminopyridine derivatives 13a and 13b.
901
CN
O
NC
R
CN
H
O
CN
DMFDMA
CN
CN
R
R
CN
- HNMe2
O
3a,b
NMe2
9a,b
10a,b
H
CN
CN
NC
R
CN
NC
R
Dimroth
NC
C
NH
O
O
N
N
O
R
H
A
11
12
+HNMe2
+HNMe2
CN
CN
R
NC
N
NMe2
CN
R
O
HN
NMe2
B
13a,b
O
CN
CN
Me2N
R
O
NH2
R
NMe2
CN
14a,b
15
It is believed that in these processes malononitrile adds to the enaminonitriles to yield intermediate
Michael adducts 10a,b that readily cyclize to generate pyranimine 12, which undergo a Dimroth
rearrangement to give pyridone A. The latter undergoes ring opening to afford intermediate B that then
reacts with dimethylamine to yield the observed pyridines 13a and 13b. Although to our knowledge a
rearrangement reaction of this type has not yet been reported, it involves a sequence of events that
parallel those involved in the formation of dieneamide 15 in the reaction of 14 with malononitrile,
described earlier by Al-Mousawi [13] and Khalil [14] (Scheme 3). We reported in a recent related
work the X-ray crystal structure of 2-(1-methyl-1H-pyrrol-2-yl)-6-(piperidin-1-yl)pyridine-3,5-
dicarbonitrile, that was prepared by reaction of enaminonitrile of 2-cyanoacetyl-1-methylpyrrole with
malononitrile in presence of piperidine, with leaving no doubt about its structure [9].

Molecules 2012, 17
Scheme 4. Formation of pyridinecarbonitrile 18a and 18b and pyranonecarbonitrile 20a
902
and 20b.
CN
H3C
O
O
O
O
CH3
R
H3C
OEt
H3C
CH3
CH3
NC
3a,b
O
EtOH/Piperidene
NH4OAc
AcOH
O
O
O
R
16
OEt
18
NH3, H2O
CH3
R
O
CH3
EtO
CN
NC
R
O
CN
19
R
CH3
N
CH3
17a,b
O
R
CH3
CN
O
O
21
O
20a,b
Additional studies revealed that heteroaroyl and aryl substituted 3-oxoalkanenitriles 3a and 3b
condense with acetylacetone in acetic acid in the presence of ammonium acetate to yield the
dimethylpyridine derivatives 17a and 17b (Scheme 4). These oxoalkanenitriles also react with ethyl
acetoacetate via water and ethanol elimination. Although it seemed reasonable that the products
formed in these processes would be the pyranones 21 that would result from a bimolecular
condensation that generates 18 (Scheme 4), nevertheless, taking into consideration the possibility that a
skeletal rearrangement similar to one observed in our recent studies [9] could take place in this
process, detailed NMR experiments were performed. Evidence supporting 20a and 20b as the
structures of these products came from the results of NOE difference experiments, in which irradiation
of the pyran ring CH protons at 5.9 ppm enhanced the intensities of the methyl proton resonances at
1.54 ppm. A plausible pathway for the formation of 20a and 20b from respective reactions of the
heteroaroyl and aryl substituted 3-oxoalkanenitriles 3a and 3b involves initial production of
intermediate 18 that then undergoes a documented [15–17] 1,3-cyano shift to yield 19. Cyclization of
19 then yields 20a and 20b.
Further efforts showed that 3-oxoalkanenitriles 3b,c can be utilized as precursors for quinolinones.
By employing a modification of the self-condensation reaction conditions reported earlier by
Elnagdi et al. [18] (Scheme 5) and Breil et al. [19], heating 3b and 3c over activated zeolite was found
to lead to formation of the corresponding arenes 23b and 23c via a route possiblly involving the
intermediacy of 22.

Molecules 2012, 17
Scheme 5. Self-condensation (trimerization) reaction of oxoalkanenitriles 3b and 3c.
903
NH2
O
O
CN
CN
R
R
O
R
R
Zeolite
Reflux
Pyridine
Reflux
CN
R
R
R
CN
CN
CN
3b,c
22
23b,c
Finally, we observed that the aniline derivatives 23c (Scheme 6) readily participate in
condensation reactions with ethyl cyanoacetate in ethanolic piperidine to yield the corresponding
quinolinones 24 (Scheme 6).
Scheme 6. Synthesis of quinolinone derivative 24.
3. Experimental
3.1. General
Melting points were recorded on Gallenkamp apparatus and are reported uncorrected. Infrared
spectra (KBr) were determined on a Perkin-Elmer 2000 FT-IR system. NMR measurements were
1
13
determined using a Bruker DPX spectrometer, at 600 MHz for H-NMR and 125 MHz for C-NMR,
in DMSO-d6 as solvent and using TMS as internal standard. Mass spectra were measured on MS 30
and MS 9 (AEI) spectrometers, with EI 70 eV. All fine chemicals and organic solvents were purchased
from Aldrich Chemicals and used without any further purification. Also, zeolite (CAS Number:
1318-02-1) was purchased from Aldrich Chemicals. Elemental analyses were measured on a LECO
CHNS-932 Elemental Analyzer. Copies of original data can be provided on request.
3.2. Synthesis of Acetic 2-Cyanoacetic Anhydride (2)
A mixture of acetic anhydride (1.02 g, 10.0 mmol) and (0.85 g, 10.0 mmol) of cyanoacetic acid in
dry dioxane (15 mL) was stirred at reflux for 15 min. The formed mixture was filtered and the filtrate
was used after cooling as the cyanoacetylating agent 2 for reactions of aromatic substrates in the
presence of a catalytic amount (10% wt.) of InCl3 as a Lewis acid.

Molecules 2012, 17
904
3.3. Cyanoacetylation Reactions of 1a–d with Acetic 2-Cyanoacetic Anhydride (2)
A mixture of pre-prepared acetic 2-cyanoacetic anhydride (2, 1.27 g, 10.0 mmol), the starting aromatic
or heteroaromatic compound (10.0 mmol), and indium trichloride (0.12 g, 10% wt.) in case of
1-methylimidazole (1c) and 1-methylbenzimidazole (1d), in dry dioxane (15 mL) was stirred at reflux for
1 h. The reaction mixture was then poured into water. The formed solid product was then collected by
filtration, washed with water and crystallized from ethanol. Cyanoacetylation of benzimidazole 1d afforded
one isolable products 5 as the major product. The product was isolated by column chromatography using
ethyl acetate-n-hexane (1:3) as eluent and its structure confirmed by X-ray determination.
3-(1,5-Dimethyl-3-oxo-2-phenyl-2,3-dihydro-1H-pyrazol-4-yl)-3-oxopropanenitrile
(3a).
Yellow
1
crystals (85%, m.p. 156 °C); IR (KBr): υ = 2187 (CN), 1705, 1685 (two C = O) cm−1, H-NMR:
13
δ = 2.62 (s, 3H, CH3), 3.36 (s, 3H, CH3), 4.32 (s, 2H, CH2), 7.36–7.59 (m, 5H, phenyl); C NMR:
δ = 30.5 (CH3), 33.4 (CH3), 38.8 (CH2), 116.2 (CN), 101.8, 127.5, 128.9, 129.4, 133.2, 153.9
(aromatic carbons), 162.7 (amide C=O), 182.4 (ketonic C=O); MS, m/z (%), 255.1 (M+, 43), 215.1
(100%). Anal. Calcd. for C14H13N3O2: C, 65.87; H, 5.13; N, 16.46. Found: C, 65.79; H, 5.02; N, 16.34.
3-(4-(Dimethylamino)phenyl)-3-oxopropanenitrile (3b). Dark brown solid (90%, m.p. 164 °C); IR
1
(KBr): υ = 2182 (CN), 1700 (C = O) cm−1, H-NMR: δ = 3.03 (s, 6H, two CH3), 4.55 (s, 2H, CH2),
7.21 (d, 2H, J = 8 Hz, benzene), 7.75 (d, 2H, J = 8 Hz, benzene); 13C-NMR: δ = 29.8 (Two CH3), 39.5
(CH2), 110.6, 115.9 (CN), 129.4, 130.5, 153.8 (aromatic carbons), 186.2 (C=O); MS, m/z (%), 188.1
(M+, 43), 148.1 (100%). Anal. Calcd. for C11H12N2O: C, 70.19; H, 6.43; N, 14.88. Found: C, 70.04;
H, 6.28; N, 14.59.
3-(1-Methyl-1H-imidazol-4-yl)-3-oxo-propionitrile (3c). Brown solid (65%); IR (KBr): υ = 2180 (CN),
1
1704 (C = O) cm−1, H-NMR: δ = 2.46 (s, 3H, CH3), 4.27 (s, 2H, CH2), 7.29 (s, 1H, C-4 imidazole),
13
8.19 (s, 1H, C-2 imidazole); C-NMR: δ = 33.7 (CH2), 35.4 (CH3), 116.7 (CN), 109.6, 127.6, 133.3
(imidazole carbons), 183.3 (C=O); MS, m/z (%), 149.1 (M+, 43), 109.1 (100%). Anal. Calcd. for
C7H7N3O: C, 56.37; H, 4.73; N, 28.17. Found: C, 56.11; H, 4.65; N, 27.76.
(1,3-Diacetyl-2,3-dihydro-1H-benzoimidazol-2-yl)-acetonitrile (5). Brown solid (50%); IR (KBr):
1
υ = 2188 (CN), 1664, 1660 (C = O) cm−1, H-NMR (DMSO-d6): δ = 2.71 (s, 6H, two CH3), 4.13 (s,
2H, CH2), 4.89 (s, 1H, C-2 imidazole), 7.11–7.64 (m, 4H, benzene ring); 13C-NMR (DMSO-d6):
δ = 30.9 (CH2), 34.6 (2 × CH3), 38.1 (CH imidazole), 117.2 (CN), 122.6, 126.3, 136.0 (benzene
carbons), 168.8 (two C=O); MS, m/z (%), 243.1 (M+, 18), 157.1 (100%). Anal. Calcd. for C13H13N3O2:
C, 64.19; H, 5.39; N, 17.27. Found: C, 64.13; H, 5.35; N, 17.02.
3.4. Reaction of Cyanoacetyl Derivatives 3a,b with DMFDMA
A mixture of 3a or 3b (10 mmol) and (DMFDMA) (15 mmol) was dissolved in dry xylene (50 mL)
and the reaction mixture was refluxed while the reaction was followed to completion by TLC, using
ethyl acetate-n-hexane (1:3) as eluent. The reaction mixture was concentrated under reduced pressure,
cooled and the solid product, so formed, was then filtered and recrystallized from ethanol.

Molecules 2012, 17
905
2-(1,5-Dimethyl-3-oxo-2-phenyl-2,3-dihydro-1H-pyrazole-4-carbonyl)-3-(dimethylamino)acrylonitrile (9a).
Yellow solid (65%, m.p. 149 °C); IR (KBr): υ = 2180 (CN), 1690, 1682 (two C = O) cm−1; 1H-NMR:
δ = 1.84 (s, 3H, CH3), 1.98 (s, 3H, CH3), 2.62 (s, 6H, two CH3), 6.83–7.42 (m, 5H, phenyl), 7.86 (s,
1H, enamine); 13C-NMR: δ = 31.8 (CH3), 32.1(CH3), 33.6 (Two CH3), 116.7 (CN), 96.0, 112.6, 122.4,
124.1, 127.9, 130.9, 136.5, 144.3 (aromatic carbons), 159.2 (amide C=O), 176.8 (ketonic C=O); MS,
m/z (%), 310.1 (M+, 16), 215.1 (100). Anal. Calcd. for C17H18N4O2: C, 65.79; H, 5.85; N, 18.05.
Found: C, 65.71; H, 5.62; N, 17.84.
3-(Dimethylamino)-2-(4-(dimethylamino)benzoyl)acrylonitrile (9b). Brown solid (60%, m.p. 206 °C);
1
IR (KBr): υ = 2173 (CN), 1695 (C = O) cm−1; H-NMR: δ = 2.78 (s, 6H, two CH3), 2.90 (s, 6H, two
CH3), 7.18 (d, 2H, J = 8 Hz, phenyl), 7.72 (d, 2H, J = 8 Hz, phenyl), 8.28 (s, 1H, enamine); 13C-NMR:
δ = 31.7 (CH3), 34.0 (CH3), 37.6 (Two CH3), 116.3 (CN), 119.1, 126.0, 129.1, 131.2, 139.5, 144.3
(aromatic carbons), 183.2 (ketonic C=O); MS, m/z (%), 243.1 (M+, 16), 148.1 (100). Anal. Calcd. for
C14H17N3O: C, 69.11; H, 7.04; N, 17.27. Found: C, 69.06; H, 6.99; N, 17.21.
3.5. Reaction of 9a,b with Malononitrile
A mixture of 9a or 9b (10 mmol) and malononitrile (0.66 g, 10 mmol) was dissolved in absolute
ethanol (30 mL) and the reaction mixture was refluxed for 6 h, then concentrated under reduced
pressure, cooled and the solid product, so formed, was then filtered and recrystallized from ethanol.
2-(1,5-Dimethyl-3-oxo-2-phenyl-2,3-dihydro-1H-pyrazol-4-yl)-6-(dimethylamino)pyridine-3,5-
dicarbonitrile (13a). Yellow solid (60%, m.p. 172 °C); IR (KBr): υ = 2185, 2175 (two CN), 1665
(C=O) cm−1; 1H-NMR: δ = 2.45 (s, 3H, CH3), 2.61 (s, 3H, CH3), 2.84 (s, 6H, two CH3), 7.10–7.51 (m,
13
5H, phenyl), 8.48 (s, 1H, pyridine); C-NMR: δ = 29.7 (two CH3), 32.4 (two CH3), 116.4 (two CN),
94.5, 104.5, 126.9, 131.1, 135.2, 141.6, 143.1, 159.5, 162.6 (aromatic carbons), 169.8 (C=O); MS, m/z
(%), 358.1 (M+, 16), 177.1 (100). Anal. Calcd. for C20H18N6O: C, 67.02; H, 5.06; N, 23.45. Found:
C, 66.95; H, 4.98; N, 23.36.
2-(Dimethylamino)-6-(4-(dimethylamino)phenyl)pyridine-3,5-dicarbonitrile (13b). Dark brown solid
(65%, m.p. 137 °C); IR (KBr): υ = 2190, 2182 (CN) cm−1; 1H-NMR: δ = 2.28 (s, 6H, two CH3), 2.98 (s,
6H, CH3), 2.90 (s, 6H, two CH3), 7.04 (d, 2H, J = 8 Hz, phenyl), 7.76 (d, 2H, J = 8 Hz, phenyl), 8.78 (s,
13
1H, pyridine); C-NMR: δ = 30.6 (2 × CH3), 32.4 (2 × CH3), 117.1, 117.6 (2 × CN), 122.2, 124.6,
129.6, 135.2, 137.7, 148.4, 149.7, 152.4, 168.3 (aromatic carbons); MS, m/z (%), 291.2 (M+, 16), 120.1
(100). Anal. Calcd. for C17H17N5: C, 70.08; H, 5.88; N, 24.04. Found: C, 69.94; H, 5.81; N, 23.93.
3.6. Reaction of 3a,b with Acetylacetone
A mixture of 3a or 3b (10 mmol), ammonium acetate (1.54 g, 20 mmol), and acetylacetone (1.00 g,
10 mmol) was dissolved in glacial acetic acid (20 mL) and the reaction mixture was refluxed for 24 h,
then poured over an ice-water mixture and the solid product, so formed, was then filtered and
recrystallized from ethanol.

Molecules 2012, 17
906
2-(1,5-Dimethyl-3-oxo-2-phenyl-2,3-dihydro-1H-pyrazol-4-yl)-4,6-dimethylnicotinonitrile (17a).
Yellow solid (68%, m.p. 163 °C); IR (KBr): υ = 2181 (CN), 1660 (C=O) cm−1; 1H-NMR: δ = 2.87 (s,
13
6H, two CH3), 3.15 (s, 6H, two CH3), 6.88–7.29 (m, 5H, phenyl), 8.24 (s, 1H, pyridine); C-NMR:
δ = 35.8 (CH3), 37.2 (CH3), 47.1 (CH3), 117.1 (CN), 122.7, 128.9, 131.6, 132.3, 134.6, 150.2, 153.9,
155.0, 157.6 (aromatic carbons), 163.0 (C=O); MS, m/z (%), 318.1 (M+, 16), 215.1 (100). Anal. Calcd.
for C19H18N4O: C, 71.68; H, 5.70; N, 17.60. Found: C, 71.54; H, 5.59; N, 17.28.
2-(4-(Dimethylamino)phenyl)-4,6-dimethylnicotinonitrile (17b). Dark brown solid (55%, m.p. 119 °C);
1
IR (KBr): υ = 2176 (CN) cm−1; H-NMR: δ = 1.56 (s, 6H, two CH3), 2.12 (s, 3H, CH3), 2.28 (s, 3H,
CH3), 6.73 (d, 2H, J = 8 Hz, phenyl), 7.84 (d, 2H, J = 8 Hz, phenyl), 8.34 (s, 1H, pyridine); 13C-NMR:
δ = 34.7 (two CH3), 39.1 (CH3), 116.3 (CN), 104.6, 111.8, 121.7, 125.2, 131.6, 139.1, 146.7, 148.0,
158.2 (aromatic carbons); MS, m/z (%), 251.2 (M+, 16), 120.1 (100). Anal. Calcd. for C16H17N3:
C, 76.46; H, 6.82; N, 16.72. Found: C, 76.13; H, 6.69; N, 16.52.
3.7. Reaction of 3a,b with Ethyl Acetoacetate
A mixture of 3a or 3b (10 mmol) and ethyl acetoacetate (1.30 g, 10 mmol) was dissolved in
absolute ethanol (20 mL) in the presence of few drops of piperidine as catalyst. The reaction mixture
was refluxed for 8 h, then concentrated under reduced pressure and the solid product, so formed, was
then filtered and recrystallized from ethanol.
6-(2,3-Dimethyl-5-oxo-1-phenyl-2,5-dihydro-1H-pyrazol-4-yl)-4-methyl-2-oxo-2H-pyran-3-carbonitrile (20a).
1
Yellow solid (58%, m.p. 141 °C); IR (KBr): υ = 2215 (CN), 1718, 1668 (C = O) cm−1; H-NMR:
δ = 1.54 (s, 6H, two CH3), 2.51 (s, 6H, 2 × CH3), 5.98 (s, 1H, pyran), 6.74–7.77 (m, 5H, phenyl);
13C-NMR: δ = 34.1 (CH3), 35.2 (CH3), 116.2 (CN), 87.5, 104.5, 112.8, 115.1 (pyran), 125.9, 131.4,
135.2, 142.9, 150.2, 154.5 (aromatic carbons) 159.5 (C=O, antipyrine), 162.6 (C=O, pyran); MS, m/z
(%), 321.1 (M+, 16), 215.1 (100). Anal. Calcd. for C18H15N3O3: C, 67.28; H, 4.71; N, 13.08. Found:
C, 67.13; H, 4.66; N, 12.91.
6-(4-(Dimethylamino)phenyl)-4-methyl-2-oxo-2H-pyran-3-carbonitrile (20b). Brown solid (50%, m.p.
157 °C); IR (KBr): υ = 2185 (CN) cm−1; 1H-NMR: δ = 2.66 (s, 6H, two CH3), 3.37 (s, 3H, CH3), 5.97
13
(s, 1H, pyran), 6.52 (d, 2H, J = 8 Hz, phenyl), 7.01 (d, 2H, J = 8 Hz, phenyl); C-NMR: δ = 28.5
(2 × CH3), 33.4 (CH3), 117.1 (CN), 99.8, 103.6, 111.7, 115.5, 128.8, 134.2, 147.2, 149.9 (aromatic
carbons), 162.4 (C=O); MS, m/z (%), 254.1 (M+, 16), 120.1 (100). Anal. Calcd. for C15H14N2O2:
C, 70.85; H, 5.55; N, 11.02. Found: C, 70.59; H, 5.32; N, 10.87.
3.8. Trimerization of 3-Oxoalkanenitriles 3b,c
The proper 3-oxoalkanenitrile (3b or 3c, 10 mmol) was refluxed for 8 h in pyridine (20 mL). The
reaction mixture was poured over HCl/H2O to neutralize the pyridine. The crude solid product was
filtered and dried. The product 22 was dissolved in dry dioxane (15 mL) and refluxed again in the
presence of a catalytic amount of zeolite (0.2 g, 20% wt.) for 12 h. The crude product was filtered,
purified by DMF-EtOH to yield 23.

Molecules 2012, 17
907
4-Amino-2,6-bis(4-(dimethylamino)phenyl)-5-(4-(dimethylamino)phenyl-4-carbonyl)-isophthalonitrile (23b).
Dark brown solid (60%); IR (KBr): υ = 3350, 3330 (broad band, NH2), 2196, 2185 (CN), 1690 (C=O)
1
cm−1; H-NMR: δ = 2.23 (s, 12H, CH3), 2.37 (s, 3H, CH3), 3.14 (s, 3H, two CH3), 6.24 (s, 2H, NH2),
6.84–7.61 (m, 12H, phenyl rings aromatic H); 13C-NMR: δ = 32.7, 35.1, 38.3 (six CH3), 116.3, 116.5
(2 × CN), 102.9, 110.2, 119.9, 122.0, 122.8, 127.2, 128.6, 135.0, 140.9, 146.2, 149.1, 151.2, 162.7,
164.3 (aromatic carbons), 181.2 (C=O); MS, m/z (%), 411.1 (M+, 18), 330.1 (100). Anal. Calcd. for
C33H32N6O: C, 74.98; H, 6.10; N, 15.90. Found: C, 74.82; H, 5.93; N, 15.78.
4-Amino-2,6-bis(1-methyl-1H-imidazol-4-yl)-5-(1-methyl-1H-imidazole-4-carbonyl)isophthalonitrile (23c).
Pale brown solid (51%); IR (KBr): υ = 3340, 3320 (broad band, NH2), 2187, 2176 (CN), 1658 (C=O)
1
cm−1, H-NMR: δ = 2.91 (s, 3H, CH3), 3.24 (s, 6H, 2 × CH3), 5.81 (s, 2H, NH2), 7.41–7.90 (m, 6H,
13
aromatic H, imidazole); C-NMR: δ = 33.7, 33.9 (three CH3), 116.8, 117.5 (2 × CN), 91.3, 104.2,
123.8, 124.1, 128.3, 133.0, 141.3, 145.9, 148.7, 148.9, 163.9, 167.5 (aromatic carbons), 183.7 (C=O);
MS, m/z (%), 411.1 (M+, 18), 330.1 (100). Anal. Calcd. for C21H17N9O: C, 61.31; H, 4.16; N, 30.64.
Found: C, 61.14; H, 4.08; N, 30.39.
3.9. Condensation Reaction of 23c with Ethyl Cyanoacetate
A mixture of 23c (10.0 mmol) and ethyl cyanoacetate (1.13 g, 10 mmol) in absolute ethanol (25 mL)
containing a catalytic amount of piperidine was stirred at reflux for 24 h. The reaction mixture
was cooled and the product was collected by filtration, and crystallized from ethanol to afford
4,5,7-tris(1-methyl-1H-imidazol-4-yl)-2-oxo-1,2-dihydroquinoline-3,6,8-tricarbonitrile (24). Dark brown
solid (40%); IR (KBr): υ = 3335 (NH), 2181, 2198 (CN), 1656 (C=O) cm−1, 1H-NMR: δ = 2.89 (s, 6H,
13
2 × CH3), 3.13 (s, 3H, CH3), 7.13–7.78 (m, 6H, aromatic H, pyrrole), 8.22 (s, 2H, NH); C-NMR:
δ = 31.1, 38.2 (three CH3), 116.9, 117.4 (2 × CN), 87.3, 105.4, 113.4, 115.0, 120.8, 123.2, 125.9,
128.5, 133.7, 136.2, 139.4, 141.6 (aromatic carbons), 164.1 (C=O); MS, m/z (%), 459.8 (M+, 18), 81.1
(100%). Anal. Calcd. for C24H16N10O: C, 62.60; H, 3.50; N, 30.42. Found: C, 62.58; H, 3.48; N, 30.37.
4. Conclusions
Several novel rearrangement reactions have been observed and plausible mechanisms for these
processes presented. Investigations of the scope and limitations of these reactions are underway.
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/17/1/897/s1.
Acknowledgements
Financial support of this work derived from the University of Kuwait through a research grant
(SC01/08). Use of the facilities of Analab/SAF by research grant (GC01/01), (GC01/03) and (GS03/01)
is gratefully acknowledged. Partial financial support by college of graduate studies at Kuwait University
for Mona F. Al-Kanderi is highly appreciated.

Molecules 2012, 17
908
References and Notes
1. Elnagdi, M.H.; Elmoghayar, M.R.; Elgemeie, G.E.H. The chemistry of 3-oxoalkanenitriles.
Synthesis 1984, 1984, 1–26.
2. Elnagdi, M.H.; Fleita, D.H.; Elmoghayer, M.R.H. Reactions with β-cyanoethylhydrazine—II:
Synthesis of some 4,5,6,7-tetrahydropyrazolo[1,5-a]pyrimidine derivatives. Tetrahedron 1975,
31, 63–67.
3. El-Dusouqui, O.M.E.; Abdelkhalik, M.M.; Al-Awadi, N.A.; Dib, H.H.; George, B.J.; Elnagdi, M.H.
Chemistry of 2-arylhydrazonals: Utility of substituted 2-arylhydrazono-3-oxoalkanals as precursors
for 3-oxoalkanenitriles, 3-aminoisoxazole, and 1,2,3- and 1,2,4-triazoles. J. Chem. Res. 2006,
291–298.
4. Khalil, K.D.; Al-Matar, H.M.; Al-Dorri, D.M.; Elnagdi, M.H. Studies with enaminones and
enaminonitriles: Synthesis of 3-aroyl- and 3-heteroaroylpyrazolo[1,5-a]pyrimidines. Tetrahedron
2009, 65, 9421–9427.
5. Al-Matar, M.H.; Khalil, K.D.; Adam, A.Y.; Elnagdi, M.H. Green one pot solvent-free synthesis of
pyrano[2,3-c]pyrazoles and pyrazolo[1,5-a]pyrimidines. Molecules 2010, 15, 6619–6629.
6. Slätt, J.; Romero, I.; Bergman, J. Cyanoacetylation of indoles, pyrroles and aromatic amines with
the combination cyanoacetic acid and acetic anhydride. Synthesis 2004, 2760–2765.
7. Ibrahim, H.M.; Makhseed, S.; Abdel-Motaleb, R.M.; Makhloof, A.A.; Elnagdi, M.H. Utility of
cyanoacetamides as precursors to pyrazolo[3,4-d]pyrimidin-4-ones, 2-aryl-6-substituted 1,2,3-
triazolo[4,5-d]pyrimidines and pyrazolo[1,5-a]pyrimidin-3-carboxamides. Heterocycles 2007, 71,
1951–1966.
8. Bahbehani, H.; Ibrahim, H.M.; Makhseed, S. Studies with 3-oxoalkanonitriles: Reactivity of
3-oxo-(1-methylindoloyl)propanenitrile. Heterocycles 2009, 78, 3081–3090.
9. Al-Matar, H.M.; Adam, A.Y.; Khalil, K.D.; Elnagdi, M.H. Studies with 3-oxoalkanenitriles:
Novel rearrangements observed while exploring the utility of 2-cyanoacetyl-1-methylpyrrole as a
precursor to pyrrole substituted heterocyclic compounds. ARKIVOC 2011, in press.
10. Alnajjar, A.; Abdelkhalik, M.M.; Al-Enezi, A.; Elnagdi, M.H. Enaminones as building blocks in
heterocyclic syntheses: Reinvestigating the product structures of enaminones with malononitrile.
A novel route to 6-substituted-3-oxo-2,3-dihydropyridazine-4-carboxylic acids. Molecules 2009,
14, 68–77.
11. Cambridge Crystallographic Data Centre. Available online: www.ccdc.cam.ac.uk (Accessed on 9
May 2010). (CCDC 824676 contains the supplementary crystallographic data for compound 1a in
this paper. This data can be obtained free of charge from the Cambridge Crystallographic Data
Center).
12. Cambridge Crystallographic Data Centre. Available online: www.ccdc.cam.ac.uk (Accessed on 9
May 2010). (CCDC 824679 contains the supplementary crystallographic data for compound 5 in
this paper. This data can be obtained free of charge from the Cambridge Crystallographic Data
Center).
13. Al-Mousawi, S.M.; Moustafa, M.S.; Abdelkhalik, M.M.; Elnagdi, M.H. Enaminones as building
blocks in organic syntheses: On the reaction of 3-dimethylamino-2-propenones with malononitrile.
ARKIVOC 2009, 2009, 1–10.

Molecules 2012, 17
909
14. Khalil, K.D.; Al-Matar, H.M.; Elnagdi, M.H. Chitosan as an eco-friendly heterogeneous catalyst
for Michael type addition reactions. A simple and efficient route to pyridones and phthalazines.
Eur. J. Chem. 2010, 1, 252–258.
15. Bury, A.; Bougeard, P.; Corker, S.J.; Johnson, M.D.; Perlmann, M. Aromatic substitution in the
gas phase: Alkylation of arenes by C4H9+ ions from the protection of C4 alkenes and
cycloalkanes with gaseous Bronsted acids. J. Chem. Soc. Perkin Trans. 2: Phys. Org. Chem.
(1972–1999). 1982, 11, 1367–1372.
16. Saito, I.; Shimozono, K.; Matsuura, T. Photoinduced reactions. 115. A novel photoaddition of
6-cyanouracils to alkenes and alkynes involving migration of a cyano group. J. Am. Chem. Soc.
1980, 102, 3948–3950.
17. Okamoto, Y.; Zama, Y.; Itoh, T.; Aotsuka, T.; Kurasawa, Y.; Takagi, K. Ring transformation
of 4-amino-1H-1,5-benzodiazepine-3-carbonitrile with active methylene compounds. A novel
1,3-migration of a cyano group in 1-amino-1-(2-amino-anilino)-2,4-dicyano4-ethoxycarbonylbuta-
1,3-diene. J. Chem. Res. 1990, 5, 136–137.
18. Al-Awadi, N.A.; Abdelkhalik, M.M.; Abdelhamid, I.A.; Elnagdi, M.H. Pyroletic methods in
organic synthesis: Novel routes for the synthesis of 3-oxoalkanenitriles, 2-acyl anilines, and
2-aroyl anilines. Synlett 2007, 19, 2979–2982.
19. Breil, D.; Rybak, A.; Kronbach, C.; Unverferth, K. Substituted 2-aminothiopen-derivatives:
A potential new class of GluR6-antagonists. Eur. J. Med. Chem. 2010, 45, 69–77.
Sample Availability: Samples of the compounds 1a–c, 5, 9a,b, 13a,b, 20a,b are available from the authors.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativeco mmons.org/licenses/by/3.0/).
