5600
N. T. Tzvetkov, C. E. Müller / Tetrahedron Letters 53 (2012) 5597–5601
7. For general review for the Fischer indole-type cyclization, see: Humphrey, G.
R.; Kuethe, J. T. Chem. Rev. 2006, 106, 2875–2911.
6-azaindole derivatives, the reductive cyclization. Thus, solvent,
reaction time, and the amount of reagents were varied (Table 1).
In general, fast reactions and highest yields of 4a (96%), 5a (78%),
and 4b (65%) were obtained when the reduction was performed
in AcOH:water (3:1) in the presence of a large excess of zinc dust
(20.0 equiv) followed by ring closure in 25% aqueous ammonia at
room temperature (method 1).23,24 A similarly high yield of 4a
(94%) was obtained when the reduction was performed with palla-
dium as a catalyst in ethanol in a Parr hydrogenation apparatus at
40 psi and subsequent treatment of the diamino intermediate with
18% aqueous hydrochloric acid (method 2).25 However, the reduc-
tive cyclization took longer requiring a reaction time of up to 18 h.
No significant improvement was observed for the preparation of 4b
and 5a (32% and 20% determined yields) when using method 2.
In conclusion, the preparation of drug-like 5-amino- and 7-ami-
no-6-azaoxindole derivatives, substituted at the 1- and 3-position,
has been efficiently achieved. For this purpose, we applied a con-
vergent synthetic concept starting from the commercially available
2-amino-4-chloropyridine (3) without the necessity for protection
of the amino group. The reaction sequence involves reductive cycli-
zation as a key step affording the 6-azaoxindoles 4a/5a and 4b/5b
in a regioselective manner. The synthetic procedure was optimized
for several steps. Our results demonstrate that the described proce-
dures are suitable for the preparation of compound libraries that
can be used for drug screening and drug development.
8. For the Madelung-type cyclization, see: Hands, D.; Bishop, B.; Cameron, M.;
Edwards, J. S.; Conttrell, I. F.; Wright, S. H. B. A. Synthesis 1996, 877–882.
9. For the Reissert-type procedure, see: (a) Yakhontov, L. N.; Azimov, V. A.; Lapan,
E. I. Tetrahedron Lett. 1969, 24, 1909–1912; (b) Fischer, M. H.; Matzuk, A. R. J.
Heterocycl. Chem. 1969, 6, 775–776; (c) Dodd, R. H.; Ouannes, C.; Robert-Gero,
M.; Potier, P. J. Med. Chem. 1989, 32, 1272–1276; (d) Dodd, R. H.; Doisy, X.;
Potier, P.; Potier, M.-C.; Rossier, J. Heterocycles 1989, 28, 1101–1113; (e) Curtis,
N. R.; Kulagowski, J. J.; Leeson, P. D.; Ridgill, M. P.; Emms, F.; Freedman, S. B.;
Patel, S.; Patel, Sm. Bioorg. Med. Chem. Lett. 1999, 9, 585–588.
10. For the Batcho-Leimgruber synthesis, see: (a) Battersby, A. R.; McDonald, E.;
Wurziger, H. K. W.; James, K. J. J. Chem. Soc., Chem. Commun. 1975, 493–494; (b)
Mahadevan, I.; Rasmussen, M. J. Heterocycl. Chem. 1992, 29, 359–367.
11. For the Lorenz-type cyclization, see: Lorenz, R. R.; Tullar, B. F.; Koelsch, C. F.;
Archer, S. J. Org. Chem. 1965, 30, 2531–2533.
12. For the Bartoli sequence, see: Zhang, Z.; Yang, Z.; Meanwell, N. A.; Kadow, J. F.;
Wang, T. J. Org. Chem. 2002, 67, 2345–2347.
13. (a) Park, S. S.; Choi, J.-K.; Yum, E. K. Tetrahedron Lett. 1998, 39, 627–630; (b) Xu,
L.; Lewis, I. R.; Davidsen, S. K.; Summers, J. B. Tetrahedron Lett. 1998, 39, 5159–
5162; (c) Ujjainwalla, F.; Warner, D. Tetrahedron Lett. 1998, 39, 5355–5358; (d)
McLaughlin, M.; Palucki, M.; Davies, I. W. Org. Lett. 2006, 8, 3307–3310; (e)
Fang, Y.-Q.; Yuen, J.; Lantens, M. J. Org. Chem. 2007, 72, 5152–5160.
14. Prokopov, A. A.; Yakhontov, L. N. Pharm. Chem. J. 1994, 28, 471–506.
15. Müller, C. E.; Jacobson, K. A. Biochim. Biophys. Acta 1808, 2011, 1290–1308.
16. Müller, C. E.; Scior, T. Pharm. Acta Helv. 1993, 68, 77–111.
17. Noble, M. E. M.; Endicott, J. A.; Johnson, L. N. Science 2004, 303, 1800–1805.
18. Deville-Bonne, D.; El Amri, C.; Meyer, P.; Chen, Y.; Agrofoglio, L. A.; Janin, J.
Antiviral Res. 2010, 86, 101–120.
19. Zimmermann, H. Prog. Neurobiol. 1996, 49, 589–618.
20. (a) Prokopov, A. A.; Yakhontov, L. N. Khim. Geterotsikl. Soedin. 1978, 12, 1224–
1227; (b) Daisley, R. W.; Hanbali, J. R. Synth. Commun. 1981, 11, 743–749; (c)
Andreassen, E. J.; Bakke, J. M. J. Heterocycl. Chem. 2006, 43, 49–54; (d) Jiang, J.
Z.; Koehl, J. R.; Mehdi, S.; Moorcraft, N. D.; Musick, K. Y.; Weintraub, P. M.;
Eastwood, P. R. Pat. Appl. US2005/0054631 A1.; (e) Pitts, W. J.; Kempson, J.;
Guo, J.; Das, J.; Langevire, C. M.; Spergel, S. H.; Watterson, S. P. PCT Int. Appl.
WO2006/122137 A1.
Acknowledgments
Annette Reiner, Marion Schneider, and Sabine Terhart-Krabbe
are gratefully acknowledged for skillful technical assistance. We
are grateful to the German Federal Ministry of Education and Re-
search (BMBF) and UCB Pharma for financial support (BIOPHARMA
Neuroallianz project).
21. (a) De Roos, K. B.; Salemink, C. A. Rec. Trav. Chim. Des Pays. Bas 1969, 88, 1263–
1274; (b) Deady, L. W.; Korytsky, O. L.; Rowe, J. E. Aust. J. Chem. 1982, 35, 2025–
2034.
22. Optimization of the 2-nitraminopyridine rearrangement was achieved by
stirring of the nitramine intermediate over night at À5 °C followed by
neutralization of the reaction mixture with 25% aqueous ammonia solution.
23. The product ratio of the regioisomeric mixture 8:9 was determined by LC/ESI-
MS analysis. The 3- and 5-nitro isomers 8 and 9 were separated by column
chromatogryphy on silica gel following by recrystallization from
dichloromethane:petroleum ether (1:1, 100 mL per 1.0 g of product), giving
41% and 30% yield, respectively.
Supplementary data
Supplementary data (all synthetic procedures and analytical
data of compounds 4a, 5a, and 10–13) associated with this article
24. Representative procedure for reductive cyclization of 8 and 9 (Table 1, method
1):

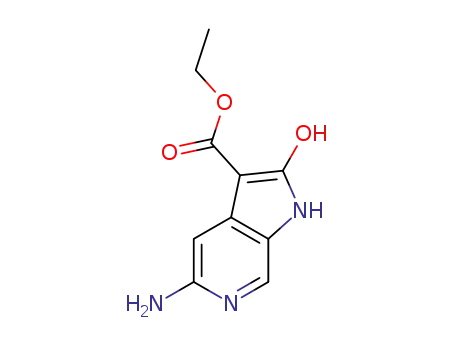

(a) Ethyl 5-amino-2-hydroxy-1H-pyrrolo[2,3-c]pyridine-3-carboxylate (4a): To a
stirred solution of diethyl 2-(2-amino-5-nitropyridin-4-yl)malonate (11,
180 mg, 0.61 mmol) in AcOH:water (36 mL, 3:1) was added to zinc dust in
small portions (800 mg, 12.2 mmol). The mixture was stirred at rt for 30 min
and filtered under reduced pressure to remove the zinc dust. The residue was
diluted with water (2 mL) and treated with 25% aqueous ammonia (10 mL).
The resulting mixture was stirred at rt for 10 min and extracted with n-butanol
(3 Â 10 mL). The combined organic layer was dried over Na2SO4, filtered, and
evaporated to dryness under reduced pressure. The residue was re-crystallized
from ethyl acetate:petroleum ether and/or methanol (3:1, 15 mL) to yield
129 mg (96%) of the product as a white solid. Mp 328–330 °C (dec.); 1H NMR
(500 MHz, DMSO-d6) d [ppm]: 1.27 (t, J = 7.25 Hz, 3H, OCH2CH3), 4.10 (q,
J = 7.25 Hz, 2H, OCH2CH3), 4.65 (s-broad, 2H, NH2), 6.43 (s, 1H), 7.23 (s, 1H),
7.30 (d, J = 6.30 Hz, 1H), 9.13 (s, 1H, OH), 11.1 (s, 1H, NH); 13C NMR (125 MHz,
DMSO-d6) d [ppm]: 15.2 (OCH2CH3), 56.9 (OCH2CH3), 95.9, 112.9, 114.1, 123.9,
137.1, 152.8, 159.7, 166.9 (O@COEt); LC/ESI-MS m/z: negative mode 220
([MÀH]À), positive mode 222 ([M+H]+). Purity (HPLC-UV 328 nm): 97.6%.
(b) Ethyl 7-amino-2-hydroxy-1H-pyrrolo[2,3-c]pyridine-3-carboxylate (5a): To a
stirred solution of diethyl 2-(2-amino-3-nitropyridin-4-yl)malonate (10,
300 mg, 1.01 mmol) in AcOH: water (60 mL, 3:1) was added to zinc dust in
small portions (1.32 g, 20.2 mmol). The mixture was stirred at rt for 15 min
and filtered under reduced pressure to remove the zinc dust. The residue was
diluted with water (3 mL) and treated with 25% aqueous ammonia (14 mL).
The resulting mixture was stirred at rt for 5 min and extracted with n-butanol
(3 Â 10 mL). The combined organic layer was dried over Na2SO4, filtered, and
evaporated to dryness under reduced pressure. The residue was re-crystallized
from petroleum ether:dichloromethane:methanol (10:5:1, 16 mL) to yield
174 mg (78%) of the product as a white solid. Mp 302–303 °C (dec.); 1H NMR
(500 MHz, DMSO-d6) d [ppm]: 1.25 (t, J = 6.94 Hz, 3H, OCH2CH3), 4.13 (q,
J = 6.63 Hz, 2H, OCH2CH3), 6.84 (s-broad, 2H, NH2), 7.01 (d, J = 8.10 Hz, 1H),
7.05 (d, J = 5.99 Hz, 1H), 7.30 (d, J = 6.30 Hz, 1H), 10.2 (s, 1H, OH), 11.6 (s, 1H,
NH); 13C NMR (125 MHz, DMSO-d6) d [ppm]: 14.9 (OCH2CH3), 57.5 (OCH2CH3),
87.7, 104.5, 110.0, 126.0, 135.7, 137.9, 164.9, 166.5 (O@COEt); LC/ESI-MS m/z:
negative mode 220 ([MÀH]À), positive mode 222 ([M+H]+). Purity (HPLC-UV
342 nm): 98.6%.
References and notes
1. (a) Shin-Ya, K.; Kim, J.-S.; Furihata, K.; Hayakawa, Y.; Seto, H. Asian J. Nat. Prod.
Res. 2000, 2, 121–132; (b) Gribble, G. W. J. Chem. Soc., Perkin Trans. 1 2000,
1045–1075; (c) Desarbre, E.; Coudret, S.; Meheust, C.; Mérour, J.-Y. Tetrahedron
1997, 53, 3637–3648; (d) Meigh, J.-P.; Álvarez, M.; Joule, J. A. J. Chem. Soc.,
Perkin Trans. 1 2001, 2012–2021; (e) Clark, B. A. J.; El-Bakoush, M. M. S.; Parrick,
J. J. Chem. Soc., Perkin Trans. 1 1974, 1531–1536.
2. (a) Sundberg, R. J. In Comprehensive Heterocyclic Chemistry; Katritzki, A. R., Rees,
C. W., Eds.; Pergamon: Oxford, 1984; Vol. 4, pp 313–376; (b) Willette, R. E. Adv.
Heterocycl. Chem. 1968, 9, 27–105.
3. (a) Wang, T.; Zhang, Z.; Wallace, O. B.; Deshpande, M.; Fang, H.; Yang, Z.;
Zadjura, L. M.; Tweedie, D. L.; Huang, S.; Zhao, F.; Ranadive, S.; Robinson, B. S.;
Gong, Y.-F.; Ricarrdi, K.; Spicer, T. P.; Deminie, C.; Rose, R.; Wang, H.-G. H.; Blair,
W. S.; Shi, P.-Y.; Lin, P.-F.; Colonno, R. J.; Meanwell, N. A. J. Med. Chem. 2003, 46,
4236–4239; (b) DeClercq, E. J. Med. Chem. 2005, 48, 1297–1313; (c) Yeng, K.-S.;
Farkas, M.; Kadow, J. F.; Meanwell, N. A.; Taylor, M.; Johnston, D.; Coulter, T. S.;
Wright, J. J. K. PCT Int. Appl. WO2005/004801 A3.; (d) Lomberget, T.; Radix, S.;
Barret, R. Synlett 2005, 13, 2080–2082.
4. (a) Hanna, G. J.; Lalezari, J.; Hellinger, J. A.; Wohl, D. A.; Nettles, R.; Person, A.;
Krystal, M.; Lin, P.; Colonno, R.; Grasela, D. M. Antimicrob. Agents Chemother.
2011, 55, 722–728; (b) Zhou, N.; Nowicka-Sans, B.; Zhang, S.; Fan, L.; Fang, J.;
Fang, H.; Gong, Y.-F.; Eggers, B.; Langley, D. R.; Wang, T.; Kadow, J.; Grasela, D.;
Hanna, G. J.; Alexander, L.; Colonno, R.; Krystal, M.; Lin, P.-F. Antimicrob. Agents
Chemother. 2011, 55, 729–737.
5. Jeanty, M.; Blu, J.; Suzenet, F.; Guillaumet, G. Org. Lett. 2009, 11, 5142–5145.
6. For general reviews of syntheses of azaindoles see (a) Song, J. J.; Reeves, J. T.;
Gallou, F.; Tan, Z.; Yee, N. K.; Senanayake, C. H. Chem. Soc. Rev. 2007, 36, 1120–
1132; (b) Popowycz, F.; Mérour, J.-Y.; Joseph, B. Tetrahedron 2007, 63, 8689–
8707; (c) Popowycz, F.; Routier, S.; Joseph, B.; Mérour, J.-Y. Tetrahedron 2007,
63, 1031–1064.
25. Krapcho, A. P. Synthesis 1982, 805–822.
