In silico screening and in vitro activity measurement of javamide analogues as potential p38 MAPK inhibitors

Article abstract of DOI:10.3390/ijms18122704

p38 Mitogen-activated protein kinase (p38 MAPK) is a protein kinase critically involved in the progress of inflammation/stress-associated diseases. Our data suggested that javamide analogues may contain strong anti-inflammation activities, but there is little information about their effects on p38 MAPK. Therefore, in this paper, the effects of thirty javamide analogues on p38 MAPK were investigated using in silico screening and in vitro p38 MAPK assay methods. The javamide analogues were synthesized and their chemical structures were confirmed using nuclear magnetic resonance (NMR) spectroscopic methods. Then, the javamide analogues were screened using an in silico modeling program. The screened analogues demonstrated a wide range of binding energy (ΔE; -20 to -39) and several analogues with ΔE; -34 to -39 showed strong binding affinity to p38 MAPK. In vitro p38 MAPK assay, the kinase was significantly inhibited by the analogues with great binding energy (ΔE; -34 to -39) and in silico scores (Avg. score; -27.5 to -29.3). Furthermore, the comparative analysis of both assays showed a positive correlation between the in silico scores and p38 MAPK inhibition. In fact, the javamide analogues with top five in silico scores (Avg. score; -27.5 to -29.3) were found to inhibit p38 MAPK by 27-31% (p < 0.05) better than those with less scores (ΔE < -27.0). Especially, javamide-II-O-ethyl ester with relatively high in silico score (Avg. score; -29.2) inhibited p38 MAPK (IC₅₀ = 9.9 μM) a little better than its methyl ester with best in silico score (Avg. score; -29.3). To support the ability to inhibit p38 MAPK, the treatment of javamide-II-ethyl and -methyl esters could suppress the production of IL-8 and MCP-1 protein significantly by 22-73% (p < 0.05) in the differentiated THP-1 cells, and the inhibition was slightly stronger by the ethyl ester than the methyl ester. Altogether, this study suggests that javamide-II-O-ethyl ester may be a most potent p38 MAPK inhibitor among the tested compounds and the combining in silico and in vitro assay approach may be a useful and efficient solution as a functional screening approach in searching new lead compounds for targeted molecules.

Full text of DOI:10.3390/ijms18122704

International Journal of
Molecular Sciences
Article
In Silico Screening and In Vitro Activity
Measurement of Javamide Analogues as
Potential p38 MAPK Inhibitors
ID
Jae B. Park
Diet, Genomics, and Immunology Laboratory, Bldg. 307C, Rm. 131, BHNRC, ARS, USDA,
Beltsville, MD 20705, USA; jae.park@ars.usda.gov; Tel.: +1-301-504-8365; Fax: +1-301-504-9062
Received: 26 October 2017; Accepted: 8 December 2017; Published: 13 December 2017
Abstract: p38 Mitogen-activated protein kinase (p38 MAPK) is a protein kinase critically involved
in the progress of inflammation/stress-associated diseases. Our data suggested that javamide
analogues may contain strong anti-inflammation activities, but there is little information about
their effects on p38 MAPK. Therefore, in this paper, the effects of thirty javamide analogues on
p38 MAPK were investigated using in silico screening and in vitro p38 MAPK assay methods.
The javamide analogues were synthesized and their chemical structures were confirmed using nuclear
magnetic resonance (NMR) spectroscopic methods. Then, the javamide analogues were screened
using an in silico modeling program. The screened analogues demonstrated a wide range of binding
energy (
to p38 MAPK
with great binding energy (
∆
E;
−
20 to
In vitro p38 MAPK assay, the kinase was significantly inhibited by the analogues
E; 34 to 39) and in silico scores (Avg. score; 27.5 to 29.3).
−
39) and several analogues with
∆
E;
−
34 to
−
39 showed strong binding affinity
.
∆
−
−
−
−
Furthermore, the comparative analysis of both assays showed a positive correlation between the
in silico scores and p38 MAPK inhibition. In fact, the javamide analogues with top five in silico
scores (Avg. score; −27.5 to −29.3) were found to inhibit p38 MAPK by 27–31% (p < 0.05) better than
those with less scores (
silico score (Avg. score;
ester with best in silico score (Avg. score;
∆
−
E <
29.2) inhibited p38 MAPK (IC50 = 9.9
29.3). To support the ability to inhibit p38 MAPK,
−
27.0). Especially, javamide-II-O-ethyl ester with relatively high in
µM) a little better than its methyl
−
the treatment of javamide-II-ethyl and -methyl esters could suppress the production of IL-8 and
MCP-1 protein significantly by 22–73% (p < 0.05) in the differentiated THP-1 cells, and the inhibition
was slightly stronger by the ethyl ester than the methyl ester. Altogether, this study suggests that
javamide-II-O-ethyl ester may be a most potent p38 MAPK inhibitor among the tested compounds
and the combining in silico and in vitro assay approach may be a useful and efficient solution as a
functional screening approach in searching new lead compounds for targeted molecules.
Keywords: in silico screening; javamide analogues; p38 MAPK inhibitors
1. Introduction
In silico screening (a computer-aided virtual screening) is one of useful and alternative approaches
complementing/substituting conventional high throughput screening which is often expensive and
time-consuming. Because in silico screening can identify new inhibitors for targeted molecules
quickly and effectively, it has emerged as a more suitable screening method in finding candidate
compounds than traditional high throughput screening. In fact, in silico screening method has been
successfully utilized in finding biologically active compounds against targeted molecules such as
Sirt, histone deacetylase, protein kinases, and viral proteases [1–5]. In utilization, in silico screening
can be performed in two different way; a ligand-based design (LBD) or structure-based design (SBD)
approach. The former uses criteria from chemicals properties of known active ligands, meanwhile the
Int. J. Mol. Sci. 2017, 18, 2704; doi:10.3390/ijms18122704
www.mdpi.com/journal/ijms

Int. J. Mol. Sci. 2017, 18, 2704
2 of 19
latter utilizes criteria from the 3D structure properties of targeted proteins [5–10]. Therefore, the SBD
approach is preferable to the LBD approach when the molecular structure of a targeted protein is
available. In the SBD approach, two standard operations are performed; “docking” and “scoring”.
Typically, the first is performed by docking a collection of candidate compounds into active sites
of a targeted protein and determining their optimal orientations by conformational, translational,
and rotational movement in the active sites. Subsequent scoring derived from the docking is utilized
to assess the correct binding mode of the complexes with candidate compounds, enabling to rank
candidate compounds by binding energy (
compounds [9,10].
∆E), which allows identification and prioritization of lead
p38 MAPK is a mitogen-activated protein kinase responsive to inflammation/stress stimuli
such as cytokines, stress, ultraviolet irradiation, heat shock, and osmotic shock. There are four
isoforms of p38 MAPK, p38
SAPK4). Among them, p38
of several inflammatory cytokines such as TNF-
α
(MAPK14), -
is a relatively well-studied kinase deeply involved in the biosynthesis
and IL-1 . Because p38 is profoundly involved
β (MAPK11), -γ (MAPK12 or ERK6) and -∆ (MAPK13 or
α
α
β
α
in multiple signaling processes activated during inflammation, this kinase is considered as a key
target molecule for regulating inflammatory cytokine production. For this reason, p38 inhibitors have
been sought after for years as potential therapeutic agents for treating inflammatory diseases [11
In fact, some p38 inhibitors have been demonstrated to inhibit the production of several inflammatory
cytokines/chemokines such as interleukin (IL)-1, IL-8, TNF- and MCP-1, thereby providing protective
effects on chronic inflammatory diseases including arthrosclerosis and cardiovascular disease [11 15].
–13].
α
–
However, the majority of p38 inhibitors have not been successful due to high toxicity and poor
selectivity [15]. Therefore, there is still on-going effort for finding p38 inhibitors with less side
effects and great selectivity [14,15]. Interestingly, our data suggest that one of javamide-II analogues
(javamide-II-O-methyl ester) can inhibit p38 MAPK better than javamide-II in the cells [16], suggesting
the likelihood that the ester forms may inhibit p38 MAPK stronger than the parent compounds.
Therefore, in this paper, javamide analogues were synthesized and their potential effects on p38 MAPK
inhibition were investigated using in silico modeling, in vitro p38 MAPK assay and a cell culture model.
2. Results
2.1. Chemical Synthesis and NMR Analysis of Javamide Analogues
Javamide analogues (Figure 1) were synthesized as described in “Materials and Methods”.
The final products were purified by high-performance liquid chromatography (HPLC) (Waters, Milford,
MA, USA) and analyzed by Nuclear magnetic resonance (NMR) as described previously [16–18].

Int. J. Mol. Sci. 2017, 18, 2704
3 of 19

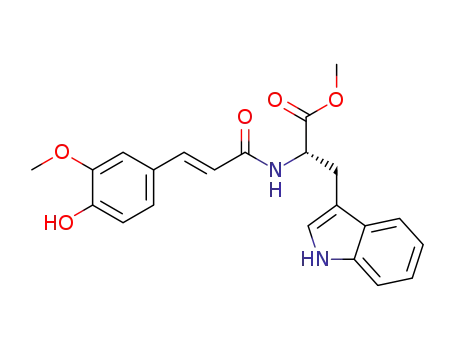

Figure 1. Chemical structures of javamide analogues. The chemical synthesis was performed as
described in “Materials and Methods”. M, E and P represent methyl, ethyl and propanyl, respectively.
The chemical structures were verified using nuclear magnetic resonance (NMR) spectroscopic method.
1
Javamide-0. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.62 (1H, d,
J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz
H-15), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d,
J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 12.89 (1H, br s
OH-a0), 10.79 (1H, br s, NH- ); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20),
), 8.38 (1H, br s, NH-
,
,
β
α
166.8 (C, C-9), 141.7 (C, C-7), 136.4 (C, C-14), 128.5 (C, C-1/5), 135.2 (C, C-6), 128.6 (C, C-2/4), 127.9
(C, C-3), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18),
111.5 (C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11).

Int. J. Mol. Sci. 2017, 18, 2704
4 of 19
Javamide-0-methyl. NMR data: 1H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18),
7.62 (1H, d, J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz,
H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11),
β), 8.38 (1H, br s, NH-α
12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH- ), 3.66 (1H, s, CH3-1); 13C-NMR
(d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 141.7 (C, C-7), 136.4 (C, C-14), 128.5 (C, C-1/5),
135.2 (C, C-6), 128.6 (C, C-2/4), 127.9 (C, C-3), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7
(C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.5 (C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11),
51.9 (C, C-CH3-1).
1
Javamide-0-ethyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
1H, d, J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46
1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 12.89 (1H, br s
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.62
(
(
,
OH-a ), 10.79 (1H, br s, NH-β), 8.38 (1H, br s, NH-α
), 4.07 (1H, s, CH3-1), 1.21 (1H, s, CH3-2); 13C-NMR
0
(d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 141.7 (C, C-7), 136.4 (C, C-14), 128.5 (C, C-1/5),
135.2 (C, C-6), 128.6 (C, C-2/4), 127.9 (C, C-3), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7
(C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.5 (C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11),
61.3 (C, C-CH3-1), 14.1 (C, C-CH3-2).
1
Javamide-0-propanyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.62
(1H, d, J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46
(
1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 12.89 (1H, br s
OH-a0), 10.79 (1H, br s, NH-
), 8.38 (1H, br s, NH- ), 4.06 (1H, s, CH3-1), 1.73 (1H, s, CH3-2), 1.01
1H, s, CH3-3); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 141.7 (C, C-7), 136.4
C, C-14), 128.5 (C, C-1/5), 135.2 (C, C-6), 128.6 (C, C-2/4), 127.9 (C, C-3), 127.4 (C, C-19), 124.0 (C, C-8),
,
β
α
(
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.5 (C, C-15), 109.3 (C, C-12), 60.3
(C, C-10), 28.2 (C, C-11), 66.2 (C, C-CH3-1), 21.9 (C, C-CH3-2), 10.3 (C, C-CH3-3), 14.1 (C, C-CH3-2).
1
Javamide-I. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.45 (1H, d,
J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s, H-13),
7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4), 6.46 (1H, d,
J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.68 (1H, br s, OH-a),
12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH- ); 13C-NMR (d6-DMSO, 100 MHz)
β), 8.38 (1H, br s, NH-α
174.7 (C, C-20), 166.8 (C, C-9), 157.5 (C, C-3), 141.7 (C, C-7), 136.4 (C, C-14), 130.6 (C, C-1), 130.6 (C, C-5),
127.9 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8
(C, C-18), 115.7 (C, C-2), 115.7 (C, C-4), 111.5 (C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11).
1
Javamide-I-methyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.45
(1H, d, J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s,
H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4), 6.46
(1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0. 6.9 Hz, H-11), 9.68 (1H, br s
OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
), 8.38 (1H, br s, NH- ), 3.66 (1H, s, CH3-1);
13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 157.5 (C, C-3), 141.7 (C, C-7), 136.4
C, C-14), 130.6 (C, C-1), 130.6 (C, C-5), 127.9 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13),
,
β
α
(
121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 115.7 (C, C-2), 115.7 (C, C-4), 111.5 (C, C-15), 109.3
(C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 51.9 (C, C-CH3-1).

Int. J. Mol. Sci. 2017, 18, 2704
5 of 19
1
Javamide-I-ethyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.45
(
1H, d, J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s,
H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4), 6.46
(1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.68 (1H, br s
OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
), 8.38 (1H, br s, NH- ), 4.07 (1H, s, CH3-1), 1.21
(1H, s, CH3-2); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 157.5 (C, C-3), 141.7
C, C-7), 136.4 (C, C-14), 130.6 (C, C-1), 130.6 (C, C-5), 127.9 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8),
,
β
α
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 115.7 (C, C-2), 115.7 (C, C-4), 111.5
(C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 61.3 (C, C-CH3-1), 14.1 (C, C-CH3-2).
1
Javamide-I-propanyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.45
(1H, d, J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s,
H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4),
6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.68
(1H, br s, OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
β), 8.38 (1H, br s, NH-α), 4.06 (1H, s,
CH3-1), 1.73 (1H, s, CH3-2), 1.01 (1H, s, CH3-3); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8
(C, C-9), 157.5 (C, C-3), 141.7 (C, C-7), 136.4 (C, C-14), 130.6 (C, C-1), 130.6 (C, C-5), 127.9 (C, C-6), 127.4
(C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 115.7 (C, C-2),
115.7 (C, C-4), 111.5 (C, C-15), 109.3 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 66.2 (C, C-CH3-1), 21.9
(C, C-CH3-2), 10.3 (C, C-CH3-3).
1
Javamide-II. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 7.06
1H, s, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz
H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.48
(1H, br s, OH-a, b), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH- ); 13C-NMR
), 8.38 (1H, br s, NH-
(
,
β
α
(d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 146.5 (C, C-3), 145.9 (C, C-4), 141.7 (C, C-7), 136.4
(C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16),
119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 109.7 (C, C-12), 60.3
(C, C-10), 28.2 (C, C-11).
1
Javamide-II-methyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
7.06 (1H, s, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz,
H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11),
9.48 (1H, br s, OH-a, b), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
β
), 8.38 (1H, br s, NH-
(1H, s, CH3-1); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 146.5 (C, C-3), 145.9
C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1),
α), 3.66
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1
(C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 51.9 (C, C-CH3-1).
1
Javamide-II-ethyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
7.06 (1H, s, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz,
H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11),
9.48 (1H, br s, OH-a, b), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
(
(
β
), 8.38 (1H, br s, NH-
1H, s, CH3-1), 1.21 (1H, s, CH3-2); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 146.5
C, C-3), 145.9 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2
α), 4.07
(C, C-1), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5),
111.1 (C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 61.3 (C, C-CH3-1), 14.1 (C, C-CH3-2).

Int. J. Mol. Sci. 2017, 18, 2704
6 of 19
1
Javamide-II-propanyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
7.06 (1H, s, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz,
H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.48
(1H, br s, OH-a, b), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
β), 8.38 (1H, br s, NH-α), 4.06 (1H, s,
CH3-1), 1.73 (1H, s, CH3-2), 1.01 (1H, s, CH3-3); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8
(C, C-9), 146.5 (C, C-3), 145.9 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19),
124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2
(C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 66.2 (C, C-CH3-1),
21.9 (C, C-CH3-2), 10.3 (C, C-CH3-3).
1
Javamide-III. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 7.11
(1H, d, J = 15.6 Hz, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79 (1H, dd, J = 8.2,
1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz,
H-11), 9.48 (1H, br s, OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
β
), 8.38 (1H, br s, NH-
(1H, s, O-CH3); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 147.9 (C, C-3), 149.1
C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1),
α), 3.83
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1
(C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 56.1 (C, -CH3-O-b).
1
Javamide-III-methyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
7.11 (1H, d, J = 15.6 Hz, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79 (1H, dd
J = 8.2, 1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0,
6.9 Hz, H-11), 9.48 (1H, br s, OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
), 8.38 (1H, br s,
NH-
), 3.83 (1H, s, OCH3-b), 3.66 (1H, s, CH3-1); 13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8
,
β
α
(C, C-9), 147.9 (C, C-3), 149.1 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19),
124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2
(C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11), 56.1 (C, -CH3-O-b),
51.9 (C, C-CH3-1).
1
Javamide-III-ethyl. NMR data: H-NMR (d6-DMSO, 400 MHz) δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
7.11 (1H, d, J = 15.6 Hz, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79 (1H, dd,
J = 8.2, 1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0
6.9 Hz, H-11), 9.48 (1H, br s, OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH-
), 8.38 (1H, br s,
NH-
), 3.83 (1H, s, OCH3-b), 4.07 (1H, s, CH3-1), 1.21 (1H, s, CH3-2); 13C-NMR (d6-DMSO, 100 MHz)
,
β
α
174.7 (C, C-20), 166.8 (C, C-9), 147.9 (C, C-3), 149.1 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6),
127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8
(C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 109.7 (C, C-12), 60.3 (C, C-10), 28.2 (C, C-11),
56.1 (C, -CH3-O-b), 61.3 (C, C-CH3-1), 14.1 (C, C-CH3-2).
1
Javamide-III-propanyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18),
7.33 (1H, d, J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz
,
H-16), 7.11 (1H, d, J = 15.6 Hz, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79
(
1H, dd, J = 8.2, 1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.72 (1H, t, J = 7.3 Hz, H-10), 3.24 (1H, dt
,
,
0
J = 6.0, 6.9 Hz, H-11), 9.48 (1H, br s, OH-a), 12.89 (1H, br s, OH-a ), 10.79 (1H, br s, NH-
β), 8.38 (1H, br s
NH-α
), 3.83 (1H, s, OCH3-b), 4.06 (1H, s, CH3-1), 1.73 (1H, s, CH3-2), 1.01 (1H, s, CH3-3); 13C-NMR
(d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 147.9 (C, C-3), 149.1 (C, C-4), 141.7 (C, C-7), 136.4
(C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16),

Int. J. Mol. Sci. 2017, 18, 2704
7 of 19
119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 109.7 (C, C-12), 60.3
(C, C-10), 28.2 (C, C-11), 56.1 (C, -CH3-O-b), 66.2 (C, C-CH3-1), 21.9 (C, C-CH3-2), 10.3 (C, C-CH3-3).
1
Javamide-IV. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.74
(1H, s, H-1/5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.68 (1H, t, J = 7.3 Hz, H-10),
0
3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 8.73 (1H, br s, OH-a), 12.89 (1H, br s, OH-a ), 10.79 (1H, br s, NH-
β),
8.38 (1H, br s, NH-α
), 3.83 (1H, s, O-CH3-b, c); 13C-NMR (d6-DMSO, 100 MHz) 171.5 (C, C-20), 166.8
(C, C-9), 148.1 (C, C-2/4), 141.7 (C, C-7), 136.6 (C, C-3), 136.4 (C, C-14), 130.6 (C, C-6), 127.4 (C, C-19),
124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.1 (C, C-15), 109.7
(C, C-12), 107.2 (C, C-1/5), 59.1 (C, C-10), 28.2 (C, C-11), 56.1 (C, O-CH3-b, c).
1
Javamide-IV-methyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18),
7.33 (1H, d, J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz,
H-16), 6.74 (1H, s, H-1/5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.68 (1H, t,
J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 8.73 (1H, br s, OH-a), 12.89 (1H, br s, OH-a0),
10.79 (1H, br s, NH-β), 8.38 (1H, br s, NH-α
), 3.83 (1H, s, O-CH3-b, c), 3.66 (1H, s, CH3-1); 13C-NMR
(d6-DMSO, 100 MHz) 171.5 (C, C-20), 166.8 (C, C-9), 148.1 (C, C-2/4), 141.7 (C, C-7), 136.6 (C, C-3),
136.4 (C, C-14), 130.6 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8
(C, C-17), 118.8 (C, C-18), 111.1 (C, C-15), 109.7 (C, C-12), 107.2 (C, C-1/5), 59.1 (C, C-10), 28.2 (C, C-11),
56.1 (C, O-CH3-b, c), 51.9 (C, C-CH3-1).
1
Javamide-IV-ethyl. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
(1H, d, J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz,
H-16), 6.74 (1H, s, H-1/5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.68 (1H, t,
0
J = 7.3 Hz, H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 8.73 (1H, br s, OH-a), 12.89 (1H, br s, OH-a ), 10.79
(
1H, br s, NH-
13C-NMR (d6-DMSO, 100 MHz) 171.5 (C, C-20), 166.8 (C, C-9), 148.1 (C, C-2/4), 141.7 (C, C-7), 136.6
C, C-3), 136.4 (C, C-14), 130.6 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16),
β), 8.38 (1H, br s, NH-α), 3.83 (1H, s, O-CH3-b, c), 4.07 (1H, s, CH3-1), 1.21 (1H, s, CH3-2);
(
119.8 (C, C-17), 118.8 (C, C-18), 111.1 (C, C-15), 109.7 (C, C-12), 107.2 (C, C-1/5), 59.1 (C, C-10), 28.2
(C, C-11), 56.1 (C, O-CH3-b, c), 61.3 (C, C-CH3-1), 14.1 (C, C-CH3-2).
Javamide-IV-propanyl. NMR data: 1H-NMR (d6-DMSO, 400 MHz)
(1H, d, J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16),
6.74 (1H, s, H-1/5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 4.68 (1H, t, J = 7.3 Hz
H-10), 3.24 (1H, dt, J = 6.0, 6.9 Hz, H-11), 8.73 (1H, br s, OH-a), 12.89 (1H, br s, OH-a0), 10.79 (1H, br s,
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33
,
NH-β), 8.38 (1H, br s, NH-α), 3.83 (1H, s, O-CH3-b, c), 4.06 (1H, s, CH3-1), 1.73 (1H, s, CH3-2), 1.01
(1H, s, CH3-3); 13C-NMR (d6-DMSO, 100 MHz) 171.5 (C, C-20), 166.8 (C, C-9), 148.1 (C, C-2/4), 141.7
(C, C-7), 136.6 (C, C-3), 136.4 (C, C-14), 130.6 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13),
121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.1 (C, C-15), 109.7 (C, C-12), 107.2 (C, C-1/5), 59.1
(C, C-10), 28.2 (C, C-11), 56.1 (C, O-CH3-b, c), 66.2 (C, C-CH3-1), 21.9 (C, C-CH3-2), 10.3 (C, C-CH3-3).
1
Safflomide-0. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.62 (1H, d
,
J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46
(
1H, d
NH- ), 8.41 (1H, br s, NH-
C, C-14), 128.5 (C, C-1/5), 135.2 (C, C-6), 128.6 (C, C-2/4), 127.9 (C, C-3), 127.4 (C, C-19), 124.0 (C, C-8),
,
J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 10.79 (1H, br s
,
β
α
); 13C-NMR (d6-DMSO, 100 MHz) 166.8 (C, C-9), 141.7 (C, C-7), 136.4
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.5 (C, C-15), 113.0 (C, C-12), 41.7
(C, C-10), 25.5 (C, C-11).

Int. J. Mol. Sci. 2017, 18, 2704
8 of 19
1
Safflomide-I. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
7.58 (1H, d, J = 8.2 Hz, H-18), 7.45 (1H, d,
J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.20 (1H, s, H-13),
7.06 (1H, t, J = 7.3 Hz, H-16), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4), 6.46 (1H, d,
J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.68 (1H, br s, OH-a),
12.89 (1H, br s, OH-a0), 10.79 (1H, br s, NH- ); 13C-NMR (d6-DMSO, 100 MHz)
β), 8.41 (1H, br s, NH-α
166.8 (C, C-9), 157.5 (C, C-3), 141.7 (C, C-7), 136.4 (C, C-14), 130.6 (C, C-1), 130.6 (C, C-5), 127.9 (C, C-6),
127.4 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 115.7
(C, C-2), 115.7 (C, C-4), 111.5 (C, C-15), 113.0 (C, C-12), 41.7 (C, C-10), 25.5 (C, C-11).
1
Safflomide-II. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 7.06
(1H, s, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz, H-1),
6.46 (1H, d, J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.48
(
1H, br s, OH-a, b), 10.79 (1H, br s, NH-β), 8.41 (1H, br s, NH-α
); 13C-NMR (d6-DMSO, 100 MHz) 166.8
(C, C-9), 146.5 (C, C-3), 145.9 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19),
124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2
(C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 113.0 (C, C-12), 41.7 (C, C-10), 25.5 (C, C-11).
1
Safflomide-III. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.33 (1H, d,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz, H-16), 7.11
(1H, d, J = 15.6 Hz, H-5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79 (1H, dd,
J = 8.2
6.9 Hz, H-11), 9.48 (1H, br s, OH-a), 10.79 (1H, br s, NH-
13C-NMR (d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 147.9 (C, C-3), 149.1 (C, C-4), 141.7
C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13),
,
1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0,
β
), 8.41 (1H, br s, NH- ), 3.83 (1H, s, O-CH3);
α
(
121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 111.1 (C, C-15), 113.0
(C, C-12), 41.7 (C, C-10), 25.5 (C, C-11), 56.1 (C, -CH3-O-b).
1
Safflomide-IV. NMR data: NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18),
7.33 (1H, d, J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.20 (1H, s, H-13), 7.06 (1H, t, J = 7.3 Hz
H-16), 6.74 (1H, s, H-1/5), 6.98 (1H, t, J = 7.3 Hz, H-17), 6.46 (1H, d, J = 15.6 Hz, H-8), 3.49 (1H, t,
J = 7.3 Hz, H-10), 2.864 (1H, dt, J = 6.0, 6.9 Hz, H-11), 8.73 (1H, br s, OH-a), 10.79 (1H, br s, NH- ),
8.38 (1H, br s, NH-
), 3.83 (1H, s, OH-b, c); 13C-NMR (d6-DMSO, 100 MHz) 166.8 (C, C-9), 148.1
C, C-2/4), 141.7 (C, C-7), 136.6 (C, C-3), 136.4 (C, C-14), 130.6 (C, C-6), 127.4 (C, C-19), 124.0 (C, C-8),
,
β
α
(
123.0 (C, C-13), 121.7 (C, C-16), 119.8 (C, C-17), 118.8 (C, C-18), 111.1 (C, C-15), 107.2 (C, C-1/5), 113.0
(C, C-12), 41.7 (C, C-10), 25.5 (C, C-11), 56.1 (C, O-CH3-b, c).
Serotomide-0. NMR data: 1H-NMR (d6-DMSO, 400 MHz)
1H, d J = 8.2 Hz, H-1/H-5), 7.38 (1H, t, J = 7.3 Hz, H-2/4), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.05 (1H, d
J = 7.8 Hz, H-15), 7.77 (1H, s, H-13), 6.64 (1H, t, J = 7.3 Hz, H-16), 6.46 (1H, d, J = 15.6 Hz, H-8), 3.49
δ 6.94 (1H, d, J = 8.2 Hz, H-18), 7.62
(
,
,
(
1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 10.79 (1H, br s, NH-β), 8.41 (1H, br s, NH-α),
10.07 (1H, s, indol-OH); 13C-NMR (d6-DMSO, 100 MHz) 166.8 (C, C-9), 141.7 (C, C-7), 131.9 (C, C-14),
128.5 (C, C-1/5), 135.2 (C, C-6), 128.6 (C, C-2/4), 127.9 (C, C-3), 128.8 (C, C-19), 124.0 (C, C-8), 123.0
(C, C-13), 112.7 (C, C-16), 152.4 (C, C-17), 103.6 (C, C-18), 112.5 (C, C-15), 113.0 (C, C-12), 41.7 (C, C-10),
25.5 (C, C-11).
1
Serotomide-I. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 7.58 (1H, d, J = 8.2 Hz, H-18), 7.45 (1H, d,
J = 8.2 Hz, H-1/H-5), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.33 (1H, d, J = 7.8 Hz, H-15), 7.77 (1H, s, H-13),
6.64 (1H, t, J = 7.3 Hz, H-16), 6.59 (1H, d, J = 8.2 Hz, H-2/H-4), 6.46 (1H, d, J = 15.6 Hz, H-8), 3.49 (1H, t,
0
J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.68 (1H, br s, OH-a), 12.89 (1H, br s, OH-a ), 10.79
(1H, br s, NH-
(C, C-9), 157.5 (C, C-3), 141.7 (C, C-7), 131.9 (C, C-14), 130.6 (C, C-1), 130.6 (C, C-5), 127.9 (C, C-6), 128.8
β), 8.41 (1H, br s, NH-α
), 10.07 (1H, s, indol-OH); 13C-NMR (d6-DMSO, 100 MHz) 166.8

Int. J. Mol. Sci. 2017, 18, 2704
9 of 19
(C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 112.7 (C, C-16), 152.4 (C, C-17), 103.6 (C, C-18), 115.7 (C, C-2),
115.7 (C, C-4), 112.5 (C, C-15), 113.0 (C, C-12), 41.7 (C, C-10), 25.5 (C, C-11).
1
Serotomide-II. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ 6.94 (1H, d, J = 8.2 Hz, H-18), 7.05 (1H, d,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.77 (1H, s, H-13), 6.64 (1H, t, J = 7.3 Hz, H-16), 7.06
1H, s, H-5), 6.82 (1H, d, J = 8.7 Hz, H-2), 6.67 (1H, dd, J = 8.2, 1.4 Hz, H-1), 6.46 (1H, d, J = 15.6 Hz,
H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.48 (1H, br s, OH-a, b), 10.79
1H, br s, NH- ), 8.41 (1H, br s, NH-
), 10.07 (1H, s, indol-OH); 13C-NMR (d6-DMSO, 100 MHz) 166.8
(
(
β
α
(C, C-9), 146.5 (C, C-3), 145.9 (C, C-4), 141.7 (C, C-7), 136.4 (C, C-14), 128.0 (C, C-6), 128.8 (C, C-19),
124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 112.7 (C, C-16), 152.4 (C, C-17), 103.6 (C, C-18), 117.2
(C, C-2), 115.2 (C, C-5), 112.5 (C, C-15), 113.0 (C, C-12), 41.7 (C, C-10), 25.5 (C, C-11).
1
Serotomide-III. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
6.94 (1H, d, J = 8.2 Hz, H-18), 7.05 (1H, d
,
J = 7.8 Hz, H-15), 7.32 (1H, d, J = 15.6 Hz, H-7), 7.77 (1H, s, H-13), 6.64 (1H, t, J = 7.3 Hz, H-16), 7.11
(1H, d, J = 15.6 Hz, H-5), 6.89 (1H, d, J = 8.7 Hz, H-2), 6.79 (1H, dd, J = 8.2, 1.4 Hz, H-1), 6.46 (1H, d
,
J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.86 (1H, dt, J = 6.0, 6.9 Hz, H-11), 9.48 (1H, br s, OH-a),
10.79 (1H, br s, NH-β), 8.41 (1H, br s, NH-α
), 3.83 (1H, s, O-CH3), 10.07 (1H, s, indol-OH); 13C-NMR
(d6-DMSO, 100 MHz) 174.7 (C, C-20), 166.8 (C, C-9), 147.9 (C, C-3), 149.1 (C, C-4), 141.7 (C, C-7), 136.4
(C, C-14), 128.0 (C, C-6), 128.8 (C, C-19), 124.0 (C, C-8), 123.2 (C, C-1), 123.0 (C, C-13), 112.7 (C, C-16),
152.4 (C, C-17), 103.6 (C, C-18), 117.2 (C, C-2), 115.2 (C, C-5), 112.5 (C, C-15), 113.0 (C, C-12), 41.7
(C, C-10), 25.5 (C, C-11), 56.1 (C, -CH3-O-b).
1
Serotomide-IV. NMR data: H-NMR (d6-DMSO, 400 MHz)
δ
6.94 (1H, d, J = 8.2 Hz, H-18), 7.05 (1H, d
,
J = 7.8 Hz, H-15), 7.37 (1H, d, J = 15.6 Hz, H-7), 7.77 (1H, s, H-13), 6.64 (1H, t, J = 7.3 Hz, H-16), 6.74
(1H, s, H-1/5), 6.46 (1H, d, J = 15.6 Hz, H-8), 3.49 (1H, t, J = 7.3 Hz, H-10), 2.864 (1H, dt, J = 6.0, 6.9 Hz,
H-11), 8.73 (1H, br s, OH-a), 10.79 (1H, br s, NH-β), 8.38 (1H, br s, NH-α), 3.83 (1H, s, OH-b, c), 10.07
(1H, s, indol-OH); 13C-NMR (d6-DMSO, 100 MHz) 166.8 (C, C-9), 148.1 (C, C-2/4), 141.7 (C, C-7), 136.6
(C, C-3), 131.9 (C, C-14), 130.6 (C, C-6), 128.8 (C, C-19), 124.0 (C, C-8), 123.0 (C, C-13), 112.5 (C, C-16),
152.4 (C, C-17), 103.6 (C, C-18), 112.5 (C, C-15), 107.2 (C, C-1/5), 113.0 (C, C-12), 41.7 (C, C-10), 25.5
(C, C-11), 56.1 (C, O-CH3-b, c).
2.2. In Silico Screening
In silico screening was performed based on structure-based design (SBD) approach using an
algorithm-based docking program ICM-pro as described in “Materials and Methods”. The docking
experiments were performed using thirty javamide analogues on the experimental co-crystallized
p38 MAP kinase complexes (14 complexes) and the resulting lowest energy and other scoring values
were compared (Table 1). For predicting potential active sites, most probable binding site and sub
binding sites for javamide analogues were calculated using ICM-pro as described in its manual.
ICM-pro predicts potential binding pockets in terms of calculated descriptors (geometrical and
physicochemical properties). In general, candidate compounds form favorable interactions with
the binding site with largest interacting cavity, so active pocket #1 can be designated as a most potential
binding pocket for tested compounds. After finding a most potential binding pocket for tested
compounds, the p38 MAPK complex was divided into ligand and protein, and javamide analogues
were individually docked into the potential binding pocket of each p38 MAPK complex. For this
study, javamide analogues were divided into seven groups; javamide-0/-I/-II/-III/-IV, safflomide
and serotomide, and the each group has several derivatives as shown in Figure 1. Each derivative
in the seven groups was placed in the most favorite pocket and their binding energy was calculated.
The scores and ∆E values of the first two derivatives (javamide-0 and javamide-0-methyl) were shown
in Table 1. Similarly, the rest of javamide analogues was analyzed to provide their scores and ∆E values
(Table 2). The order of the best scores was Javamide-II-methyl > Javamide-II-ethyl > Javamide-II
> Safflomide-II > Javamide-I (Table 2 and Figure 2). As noticed, three highest scores were from

Int. J. Mol. Sci. 2017, 18, 2704
10 of 19
javamide-II analogues, suggesting the chemical structure of javamide-II may be preferably accessible
to the tested pocket of p38 MAPK complexes.
Table 1. p38 Mitogen-activated protein kinase (p38 MAPK) docking scores of javamide-0 and its methyl
ester. Docking scores and energy values of p30 MAPK complexes (protein data bank (PDB)) were
obtained using a docking program ICM-pro as described in “Materials and Methods”. Average data
represents the means ± S.D. (n = 14).
Javamide-0
∆E (Kcal/mol)
Javamide-0-Methyl
Score ∆E (Kcal/mol)
p38 (PDB_ID)
Score
3HV5
1W83
1W84
2PUU
3BV2
3GC9
3GCU
3D7Z
3DS6
3QUD
3L8S
−39.2
−31.7
−28.4
−25.9
−27.8
−32.6
−36.7
−29.7
−31.2
−18.4
−27.2
−26.1
−27.9
−28.7
−47.1
−39.4
−37.5
−35.4
−38.3
−39.1
−46.6
−38.8
−44.2
−29.4
−39.7
−38.2
−37.4
−36.7
−34.4
−24.7
−22.3
−21.5
−5.9
−42.3
−37.1
−32.1
−29.5
−12.2
−36.3
−35.5
−17.0
−32.9
−27.6
−30.2
−30.5
−25.1
−34.5
−24.1
−24.3
−16.0
−21.8
−16.0
−19.3
−17.0
−16.0
−25.3
4R3C
4KIP
4DLI
Average
−20.5 ± 5.1
−24.9 ± 6.2
−18.1 ± 2.7
−24.2 ± 6.7
Figure 2. In silico score profiling. 0, I, II, III, and IV axis represented each chemical group and O, M, E, P,
Sa, and Sr axis represented parent compounds, methyl, ethyl, propanyl esters, safflomides, serotomides.

Int. J. Mol. Sci. 2017, 18, 2704
11 of 19
Table 2. Docking scores and energy values of javamide analogues were obtained using a docking
program ICM-pro as described in “Materials and Methods”. The asterisks (*) represent the best five
inhibition with their ranking.
Groups
Javamide Analogues
Avg. Score
Avg. ∆E
Javamide-0
−20.5 ± 5.1
−18.1 ± 2.7
−19.4 ± 4.5
−20.1 ± 2.6
−24.9 ± 6.2
−24.2 ± 6.7
−21.5 ± 2.3
−20.8 ± 2.7
−34.4 ± 6.1
−35.2 ± 2.1
−30.1 ± 4.8
−30.4 ± 2.5
−39.0 ± 7.8
−39.1 ± 4.5
−39.0 ± 8.7
−36.9 ± 9.8
−34.6 ± 7.1
−33.2 ± 8.1
−30.0 ± 4.6
−27.0 ± 6.7
Javamide-0-methyl
Javamide-0-ethyl
Javamide-0-propanyl
Javamide-0
Javamide-I
−27.5 ± 2.4 *5
−27.0 ± 4.3
−26.1 ± 2.3
−20.3 ± 2.1
Javamide-I-methyl
Javamide-I-ethyl
Javamide-I-propanyl
Javamide-I
Javamide-II
Javamide-III
Javamide-IV
Javamide-II
−29.1 ± 7.9 *3
−29.3 ± 4.9 *1
−29.2 ± 5.8 *2
−27.9 ± 8.9
−26.0 ± 2.7
−22.9 ± 3.4
−23.6 ± 5.1
−20.9 ± 7.5
−23.1 ± 2.4
−20.9 ± 4.5
−19.6 ± 2.6
−20.1 ± 2.6
Javamide-II-methyl
Javamide-II-ethyl
Javamide-II-propanyl
Javamide-III
Javamide-III-methyl
Javamide-III-ethyl
Javamide-III-propanyl
Javamide-IV
−28.4 ± 3.4
−27.9 ± 5.1
−25.0 ± 2.8
−25.1 ± 2.7
Javamide-IV-methyl
Javamide-IV-ethyl
Javamide-IV-propanyl
Safflomide-0
Safflomide-I
Safflomide-II
Safflomide-III
Safflomide-IV
−20.1 ± 2.6
−27.1 ± 4.7
−28.3 ± 4.9 *4
−25.5 ± 4.5
−22.9 ± 5.1
−20.1 ± 2.6
−25.6 ± 7.1
−27.4 ± 7.9
−23.9 ± 5.1
−20.1 ± 3.7
−20.8 ± 2.7
−33.8 ± 4.8
−35.2 ± 6.5
−31.5 ± 5.6
−30.5 ± 9.1
−20.8 ± 2.7
−30.4 ± 5.8
−33.6 ± 4.1
−31.1 ± 1.6
−29.6 ± 2.7
Safflomide
Serotomide
Serotomide-0
Serotomide-I
Serotomide-II
Serotomide-III
Serotomide-IV
2.3. The Comparison of In Silico Screening of Javamide-II-Methyl Ester and SB 202190
Since javamide-II-methyl was found with the best score, the analogue was comparatively analyzed
with a p38 inhibitor (SB 202190). The binding energy (
∆E) of javamide-II-methyl and SB 202190 were
−
39.1 4.5 and 28.3 6.4, respectively, showing that the analogues may bind to the putative pocket
±
−
±
stronger than SB 202190 (Table 3). Also, the data of molecular docking of javamide-II-methyl showed
two potential hydrogen bonds which are missing in that of SB 202190, meanwhile javamide-II-ethyl
(the second best score) maintained the two hydrogen bonds (Figure 3). Altogether, the docking data
showed that javamide-II-methyl and -ethyl could have lower energy and scoring values than SB 202190,
suggesting that the analogues may inhibit p38 MAPK better than SB 202190.

Int. J. Mol. Sci. 2017, 18, 2704
12 of 19
Table 3. p38 MAPK docking scores of javamide-I-methyl and SB202190. Docking scores and energy
values were obtained using a docking program ICM-pro as described in “Materials and Methods”.
Average data represents the means ± S.D. (n = 14).
Javamide-II-Methyl Ester
SB202190
∆E (Kcal/mol)
p38 (PDB_ID)
Score
∆E (Kcal/mol)
Score
3HV5
1W83
1W84
2PUU
3BV2
3GC9
3GCU
3D7Z
3DS6
3QUD
3L8S
−39.2
−31.7
−28.4
−25.9
−27.8
−32.6
−36.7
−29.7
−31.2
−18.4
−27.2
−26.1
−27.9
−28.7
−47.1
−39.4
−37.5
−35.4
−38.3
−39.1
−46.6
−38.8
−44.2
−29.4
−39.7
−38.2
−37.4
−36.7
−30.1
−21.2
−19.6
−22.1
−10.3
−22.3
−21.5
−17.1
−18.8
−17.0
−15.6
−18.1
−17.2
−21.4
−40.1
−35.2
−28.1
−27.1
−13.1
−33.4
−31.8
−19.8
−28.4
−26.8
−27.5
−28.5
−26.5
−31.1
4R3C
4KIP
4DLI
−29.3 ± 4.9 (a)
−39.1 ± 4.5 (b)
Average
−19.4 ± 4.4
−28.3 ± 6.4
p < 0.05 javamide-I-methyl vs. SB202190 Score (paired t-test); (b) p < 0.05 javamide-I-methyl vs. SB202190
∆E
(a)
(paired t-test).
Figure 3. The docking of SB202190, javamide-II-methyl ester and javamide-II-ethyl ester. SB202190
) javamide-I-methyl ester ( ) and ethyl ester ( ) to p38 complex (3HV5) was presented with two
(
A
B
C
potential hydrogen bonds denoted by two green dots (E71) and (D168).
2.4. p38 MAPK Inhibition Assay
As discussed previously, the p38 MAPK pathway is deeply involved in the production of
inflammatory chemokines such as TNF-
isoforms ( ), p38 is believed to be critically involved in cytokine production and inflammatory
process [19]. Therefore, the effects of javamide analogues on p38 were investigated using the
CMGC-1 kinase selectivity profiling system (Promega, Madison, WI, USA) as described in “Materials
and Methods”. As shown in Table 4, some analogues were able to inhibit p38 to great extents;
α, IL-8, RANTES, and MCP-1 [19,20]. Among p38 MAPK
α
,
β,
γ
,
∆
α
α
α
the decreasing order of the inhibition was javamide-II-ethyl > javamide-II-methyl > javamide-II
> safflomide-II > javamide-III. Surprisingly, the data showed that three analogues out of the five
analogues with best docking scores were found to inhibit p38
top three chemicals were javamide-II analogues. Since javamide-II-ethyl was the best inhibitor
in vitro p38 MAPK assay, the IC50 for p38 was determined at the concentrations between 0–50 µM
The inhibition was nearly complete at the concentrations higher than 50 M, and the IC50 value
for p38 was found to be 9.9 M (Figure 4). The data suggest that javamide-II-ethyl may be
α significantly (31–33%) and all
α
.
µ
α
µ
a potent p38 MAPK inhibitor affecting downstream molecules involved in imitation/progression
of inflammation.

Int. J. Mol. Sci. 2017, 18, 2704
13 of 19
Table 4. Inhibition of p38 MAP kinase by javamide analogues. The inhibition of p38 by the analogues
was determined at the concentrations of 5 M. Data points are shown as the means S.D. (n = 4).
The asterisks (*) represent the top five inhibition with their ranking.
µ
±
Concentrations Javamide Analogues
Javamide-0
p38 Inhibition (%)
−20.5 ± 5.1
−18.1 ± 2.7
−19.4 ± 4.5
−20.1 ± 2.6
Javamide-0-methyl
Javamide-0-ethyl
Javamide-0
Javamide-0-propanyl
Javamide-I
−27.5 ± 2.4
−27.0 ± 4.3
−25.1 ± 2.3
−20.3 ± 2.1
Javamide-I-methyl
Javamide-I
Javamide-I-ethyl
Javamide-I-propanyl
Javamide-II
−31.5 ± 7.9 *3
−31.7 ± 4.9 *2
−33.9 ± 5.8 *1
−27.9 ± 8.9
Javamide-II-methyl
Javamide-II
Javamide-II-ethyl
Javamide-II-propanyl
Javamide-III
−28.0 ± 2.7 *5
−22.9 ± 3.4
−23.6 ± 5.1
−20.9 ± 7.5
Javamide-III-methyl
Javamide-III
Javamide-III-ethyl
Javamide-III-propanyl
Javamide-IV
−23.1 ± 2.4
−20.9 ± 4.5
−19.6 ± 2.6
−20.1 ± 2.6
Javamide-IV-methyl
Javamide-IV
Javamide-IV-ethyl
Javamide-IV-propanyl
Safflomide-0
Safflomide-I
Safflomide-II
Safflomide-III
Safflomide-IV
−20.1 ± 2.6
−27.1 ± 4.7
−28.3 ± 4.9 *4
−25.5 ± 4.5
−22.9 ± 5.1
Safflomide
Serotomide-0
Serotomide-I
Serotomide-II
Serotomide-III
Serotomide-IV
−20.1 ± 2.6
−25.6 ± 7.1
−27.4 ± 7.9
−23.9 ± 5.1
−20.1 ± 3.7
Serotomide
Figure 4. The inhibition of p38
ester was determined at the concentrations of 0, 2, 10, 20, 30, 40 and 50
the means S.D. (n = 4). The p value was calculated using one-way ANOVA with the Bonferroni’s
method, and the asterisks (*) represent significant differences (p < 0.05) from the vehicle control.
α
and determination of IC50. The inhibition of p38
α by javamide-II-ethyl
µM. Data points are shown as
±

Int. J. Mol. Sci. 2017, 18, 2704
14 of 19
2.5. The Comparison of In Silico Screening with In Vitro p38 MAPK Inhibition
Because some analogues with best docking scores were also found to have strong p38 MAPK
inhibition activity, the data of in silico screening and in vitro p38 MAPK inhibition were compared.
As shown in Table 5, top three javamide analogues were selected from both experiments, exhibiting a
low range of binding score (
there is a slight difference in efficacy sequence. Nonetheless, the data showed a positive correlation
between in silico modeling scores and p38 inhibition.
∆
E =
−
39.0 to
−
39.1) as well as inhibiting p38 MAPK strongly, although
Table 5. p38 inhibition, docking scores and energy values. Docking scores, energy values and p38
inhibition of javamide analogues from both in silico and in vitro experiments were presented with their
rankings with the asterisks (*).
Javamide Analogues
p38 Inhibition (%)
Avg. Score
Avg. ∆E
−33.9 ± 5.8 *1
−31.7 ± 4.9 *2
−31.5 ± 7.9 *3
−28.3 ± 4.9 *4
−28.0 ± 2.7 *5
−27.5 ± 2.4
−
−
−
−
29.2
29.3
29.1
28.3
±
±
±
±
5.8 *2
4.9 *1
7.9 *3
4.9 *4
Javamide-II-ethyl
Javamide-II-methyl
Javamide-II
−39.0 ± 8.7
−39.1 ± 4.5
−39.0 ± 7.8
−35.2 ± 6.5
−34.6 ± 7.1
−34.4 ± 6.1
Safflomide-II
Javamide-III
Javamide-I
−26.0 ± 2.7
−
27.5
±
2.4 *5
2.6. Cytotoxicity Assay
As mentioned previously, one of major concerns related to p38 inhibitors is high toxicity [13
,
15].
Therefore, a cytotoxicity assay was performed to determine whether javamide-II-methyl and -ethyl
esters with two best scores are cytotoxic to THP-1 cells at the concentrations used in this experiment.
At the concentrations between 0–40 µM, the both compounds were considered not cytotoxic (Figure 5).
Figure 5. Effects of javamide-II-methyl and -ethyl esters on cell death. The THP-1 cells (1 × 106 cells/well
)
plated in 12-well plates were treated with 0, 10, 20, 30 and 40
analyzed as described previously [16].
µM of both esters for 18 h. Cell death was
2.7. Effect of Javamide-II-Methyl and -Ethyl Esters on IL-8 and MCP-1 Expression in Differentiated THP-1 Cells
Because javamide-II-methyl and -ethyl esters were two best score and non-cytotoxic compounds
and because IL-8 and MCP-1 productions were reported to be regulated by p38 MAPK [19,20], potential
effects of the two esters on IL-8 and MCP-1 expression were investigated as physiological outcomes
of p38 inhibition. As expected, the treatment of javamide-II-methyl and -ethyl esters significantly
inhibited the production of IL-8 and MCP-1 protein by 22–73% (p < 0.05) in the differentiated THP-1

Int. J. Mol. Sci. 2017, 18, 2704
15 of 19
cells (Figure 6). In fact, javamide-II-ethyl ester was slightly better than its methyl ester in suppressing
the production of the two cytokines in the differentiated THP-1 cells (Figure 6). These data clearly
showed that the javamide analogues with the two best in silico score and in vitro p38 MAP kinase
inhibition activities could suppress the production of IL-8 and MCP-1 protein significantly (Figure 6),
demonstrating that in silico screening method may be a useful tool in finding candidate inhibitors
for p38 MAPK as a first round screening method. In summary, the data from this study suggest that
combining in silico and in vitro assay approach may be a useful and effective method in finding new
lead compounds for targeted molecules.
Figure 6. Effects of javamide-II-methyl and -ethyl esters on IL-8 and MCP-1 expression in differentiated
THP-1 cells. The samples of IL-8 (
treated with both esters (0, 20, 40 M) followed by treatment with lipopolysaccharide (LPS; 0.1
for 18 h as described in “Materials and Methods”. Data points represent the means S.D. (n = 5).
s method, and the asterisks (*)
A) and MCP-1 (
B
) were prepared using differentiated THP-1 cells
µ
µg/mL)
±
The p value was calculated using one-way ANOVA with the Bonferroni
indicate significant differences (p < 0.05) compared to control.
'
3. Discussion
Several studies suggest that p38 MAPK can play a significant role in regulating inflammatory
cytokines (e.g., IL-1 , IL-8, MCP-1 and TNF- ) and the inhibition of p38 MAPK may be a promising means
for suppressing inflammatory cytokines [19 21 23]. Therefore, a significant number of p38 inhibitors
have been developed and characterized for last ten years. However, only a small number of p38
β
α
,
–
inhibitors have advanced into clinical phase II studies, due to high toxicity and poor selectivity [13,20]
Therefore, there is still continuing effort to find p38 inhibitors with great efficacy but less toxicity.
Recently, virtual screening methods attracted a lot of interest from scientific community, because
they provide a rapid and rational approach in finding candidate compounds for targeted molecules.
Virtual screening (VS) is to use a high-performance computing method to analyze large databases of
potential chemical compounds and to identify possible therapeutic candidates. Particularly, when the
molecular structure of the targeted protein is available, the SBD approach is preferable to the LBD
.
approach [9,10]. Therefore, in this paper, potential effects of javamide-I/-II found in coffee were
investigated with twenty eight analogues related to p38 MAPK inhibition using in silico modeling
program based on SBD approach, because several crystal structures of p38 MAPK are available
and because p38 MAPK is relatively well-characterized at the functional, molecular and structural
levels. The data from this study clearly showed that javamide analogues demonstrated a range
of binding score (Avg. score = −18.1 to −29.3) and some analogues particularly belonging to the
group of javamide-II could bind strongly to p38 MAPK. Furthermore, the top three compounds
(javamide-II, -methyl and -ethyl ester) to inhibit p38 MAPK most were also found to have high in
silico scores. For comparing with p38 inhibitor, the docking data showed that the sum of
javamide-II-methyl ester (top score E = 39.1) was lower than that of the p38 inhibitor SB202190
∆E = −28.3), suggesting that javamide-II-methyl ester may bind to the putative binding site better than
∆E value of
;
∆
−
(

Int. J. Mol. Sci. 2017, 18, 2704
16 of 19
SB202190. As shown in Figure 2, the conformation of the putative binding site was more accessible to
javamide-II-methyl and -ethyl esters in the tested p38 enzyme complex (3HV5) than SB202190, because
the esters have a less bulky structure than SB202190. Consequently, the proposed two hydrogen
bonds (E71) and (D168) in Figure 2 was not found to be formed with SB202190 due to its structural
conformation. Furthermore, the data also suggest that javamide-II analogues (-methyl and -ethyl
esters) may inhibit p38 MAPK greater than other analogues. In fact, the javamide-II analogues with the
three best in silico scores (Avg. score ≥ −29.1) were found to inhibit p38 MAP kinase stronger (31–33%)
than those with less scores (Avg. score <
modeling scores and the p38 MAPK inhibition among most of tested javamide analogues, especially
−
29.0), demonstrating a positive correlation between the
the analogues with top three scores. Particularly, javamide-II-O-ethyl ester with relatively high in silico
score (∆E = −39.0) could inhibit p38 MAPK (IC50 of 9.9
µM) better than the methyl ester with best in
silico score ( E = 39.1; IC50 of 12 M). Nonetheless, two best-scored analogues (javamide-II-methyl
∆
−
µ
and javamide-II-ethyl) could inhibit p38 MAPK greatly (Table 5) as well as suppress the production of
cytokines (IL-8 and MCP-1) significantly as physiological outcomes of the kinase inhibition (Figure 6).
Usually, natural compounds often lack efficacy and specificity which are commonly acclaimed by
synthetic compounds. However, this study showed that simple esterification of natural compound
javamide-II may improve efficacy comparable to synthetic compounds. However, it is known that
esters are often labile in the physiological conditions due to the presence of esterase. Therefore, we
investigated the stability of javamide-II-methyl and -ethyl esters in tested experimental conditions,
but we could not detect the metabolites of the methyl or ethyl esters significantly for 5 h in the
conditions, although some increased levels of javamide-II were observed as a metabolite of the methyl
and ethyl esters after 24 h. All together, this study clearly demonstrated an outstanding usability
of the combining in silico and in vitro assay approach. Especially, this combined approach may be
useful in finding bioactive phytochemicals for targeted molecules, because biological activities of many
phytochemicals are still unknown.
4. Materials and Methods
4.1. Materials
Tryptophan, tryptamine, serotonin, cinnamic acid, coumaric acid, caffeic acid, ferulic acid,
sinpaic acid, dichloromethane, and other chemicals, were purchased from Sigma Chemical Co.
(St. Louis, MO, USA).
4.2. Methods
4.2.1. Chemical Synthesis and NMR Analysis
Thirty javamide analogues were synthesized using a method previously described [16–18].
Briefly, each phenylpropenoic acid (cinnamic, coumaric, caffeic, ferulic, sinpaic acids) was
dissolved in dimethyl sulfoxide (DMSO) and converted to the symmetrical anhydride with
1,3-diisopropylcarbodiimide (DIC). Tryptophan esters were added to the reaction mixture, and the
reaction mixture was incubated at room temperatures with a gentle stirring for 12 h. For ester forms,
tryptophan was first esterified with corresponding alcohols (methanol, ethanol, propanol) and added to
the reaction mixture. The synthesized products were recovered and purified by HPLC (Waters, Milford
,
MA, USA), as described previously [18]. The chemical structures were verified using HPLC and NMR
spectroscopic methods. For NMR experiments, the sample was prepared by dissolving javamide-I
(
20 mg) in d6-DMSO (0.75 mL). 1H and 13C spectra were acquired at ambient temperature on the JEOL
BCX-400 NMR spectrometer operating 400 MHz for 1H and 100 MHz for 13C. Chemical shifts were
referenced to DMSO (2.50 ppm for 1H, 39.5 ppm for 13C).

Int. J. Mol. Sci. 2017, 18, 2704
17 of 19
4.2.2. Molecular Docking
Molecular docking was performed using an algorithm-based docking program ICM-pro (MolSoft,
San Diego, CA, USA). The docking program has capability of finding available p38 MAPK protein
complexes and storing all necessary information for molecular docking. The pocket analysis of
p38 MAP kinase complexes was first conducted for structure optimization, quality assessment and
visualization. After that, the built-in 3D database protocol was used to create compound databases
for easier screening. The compound database was built based on ICM-pro algorithms, which create
compact, indexed compound databases for in silico screening. The generated structure-based model
was employed to screen the compound databases using the screen library protocol in ICM-pro.
The proposed binding of javamide analogues to the active pocket of each p38 MAPK complexe was
determined as the best ranked scoring function, representing the conformational structures with the
most favorable binding energy (∆E). The data of binding energies and score was used to calculate the
binding affinity of all docked compounds.
4.2.3. p38 MAPK Assays
Measurements of p38 MAPK activity were performed with the kinase selectivity profiling system
CMGC-1 (Promega, Madison, WI, USA). This assay system kit is designed to screen potential inhibitors
for p38 MAPK and other kinases in the CMGC Kinase Family. This kit utilizes a non-isotopic, sensitive,
and specific method to measure the activities of p38 MAPK. Briefly, kinase working stock, ATP,
and substrate working stock solutions were prepared by adding 2.5X kinase buffer to the kinase strips
and 100
and 2 L substrate solution were added to the wells. After that, the reaction was incubated for 60 min
and ADP-Glo Kinase Assay (Promega, Madison, WI, USA) was performed using a luminometer
µM ATP to the substrate strips, respectively. Then, 2 µL kinase solution, 1 µL tested compounds,
µ
™
according to manufacturer’s protocol. The percent activity of p38 MAPK activity was calculated in the
presence of inhibitors, inhibition curves were fit to a sigmoidal dose-response (variable slope) equation,
and IC50 values were calculated using SigmaPlot 11.0 software (Chicago, IL, USA).
4.2.4. Cell Culture
THP-1 cells were purchased from the ATCC (Manassas, VA, USA). Cells were grown in RPMI
1640 medium with L-glutamine containing 10% fetal bovine serum (FBS), 100 units/mL penicillin,
and 100 units/mL streptomycin. THP-1 cells were maintained at 37 ◦C in a humidified atmosphere
of 5% CO2. THP-1 cells were induced to differentiate into macrophages by incubation with
Phorbol-12-Myristate-13-Acetate (PMA; 25 ng/mL) for 48 h. The differentiated cells were treated with
analogues followed by LPS treatment (0.1
µg/mL) and incubated for times specified at each experiment.
4.2.5. Determination of IL-8 and MCP-1
IL-8 and MCP-1 levels in the media of the differentiated THP-1 cells treated with
javamide-II-methyl and -ethyl esters (0, 20, 40 M) followed by LPS treatment (0.1 g/mL) for
µ
µ
18 h were determined using the Human Quantikine IL-8 and MCP-1 Elisa kits from R&D systems
(Minneapolis, MN, USA) according to the manufacturer’s protocol.
4.3. Statistical Analysis
Treatment effects on the parameters measured were compared by analyzing the means for
differences using One-way ANOVA followed by Bonferroni’s test. Differences were considered
to be significant when p < 0.05. Data points represent the mean ± S.D. of three or more samples.

Int. J. Mol. Sci. 2017, 18, 2704
18 of 19
Acknowledgments: This study was funded by The United States Department of Agriculture (USDA project
number 1235-51000-054-00D). There is nothing to disclose about financial, consulting, and personal matters related
to this paper.
Conflicts of Interest: The author declares no conflict of interest.
References
1.
Haga, J.H.; Ichikawa, K.; Date, S. Virtual screening techniques and current computational infrastructures.
Curr. Pharm. Des. 2016, 22, 3576–3584. [CrossRef] [PubMed]
2.
Vrontaki, E.; Melagraki, G.; Voskou, S.; Phylactides, M.S.; Mavromoustakos, T.; Kleanthous, M.; Afantitis, A.
Development of a predictive pharmacophore model and a 3D-QSAR study for an in silico screening of new
potent Bcr-Abl kinase inhibitors. Mini-Rev. Med. Chem. 2017, 17, 188–204. [CrossRef] [PubMed]
Patil, V.M.; Masand, N.; Gupta, S.P. GENIUS in silico screening technology for HCV drug discovery.
Curr. Drug Discov. Technol. 2016, 13, 189–198. [CrossRef] [PubMed]
Yanuar, A.; Azminah, E.Y.; Andika, E.Y.; Erlina, L.; Syahdi, R.R. In silico approach to finding new active
compounds from histone deacetylase (HDAC) family. Curr. Pharm. Des. 2016, 22, 3488–3497. [CrossRef]
[PubMed]
3.
4.
5.
6.
7.
8.
9.
Cozza, G. The development of CK2 inhibitors: From traditional pharmacology to in silico rational drug
design. Pharmaceuticals 2017, 10, 26. [CrossRef] [PubMed]
Chaudhari, R.; Tan, Z.; Huang, B.; Zhang, S. Computational polypharmacology: A new paradigm for drug
discovery. Expert Opin. Drug Discov. 2017, 12, 279–291. [CrossRef] [PubMed]
Leelananda, S.P.; Lindert, S. Computational methods in drug discovery. Beilstein J. Org. Chem. 2016, 12,
2694–2718. [CrossRef] [PubMed]
Kumar, A.; Zhang, K.Y. Hierarchical virtual screening approaches in small molecule drug discovery. Methods
2015, 71, 26–37. [CrossRef] [PubMed]
Lavecchia, A.; di Giovanni, C. Virtual screening strategies in drug discovery: A critical review. Curr. Med. Chem.
2013, 20, 2839–2860. [CrossRef] [PubMed]
10. Melagraki, G.; Afantitis, A. Ligand and structure based virtual screening strategies for hit-finding and
optimization of hepatitis C virus (HCV) inhibitors. Curr. Med. Chem. 2011, 18, 2612–2619. [CrossRef]
[PubMed]
11. Schieven, G.L. The biology of p38 kinase: A central role in inflammation. Curr. Top. Med. Chem. 2005, 5,
921–928. [CrossRef] [PubMed]
12. Loesch, M.; Chen, G. The p38 MAPK stress pathway as a tumor suppressor or more? Front. Biosci. 2008, 13,
3581–3593. [CrossRef] [PubMed]
13. Dominguez, C.; Powers, D.A.; Tamayo, N. p38 MAP kinase inhibitors: Many are made, but few are chosen.
Curr. Opin. Drug Discov. Dev. 2005, 8, 421–430.
14. Kong, T.T.; Zhang, C.M.; Liu, Z.P. Recent developments of p38α MAP kinase inhibitors as antiinflammatory
agents based on the imidazole scaffolds. Curr. Med. Chem. 2013, 20, 1997–2016. [CrossRef] [PubMed]
15. Karcher, S.C.; Laufer, S.A. Successful structure-based design of recent p38 MAP kinase inhibitors. Curr. Top.
Med. Chem. 2009, 9, 655–676. [CrossRef] [PubMed]
16. Park, J.B.; Wang, T.T.Y. Methyl (E)-(3-(3,4-dihydroxyphenyl)acryloyl) tryptophanate can suppress MCP-1
expression by inhibiting p38 MAP kinase and NF-
κB in LPS-stimulated differentiated THP-1 cells.
Eur. J. Pharmacol. 2017, 810, 149–155. [CrossRef] [PubMed]
17. Park, J.B. Javamide-I-O-methyl ester increases p53 acetylation and induces cell death via activating caspase
3/7 in monocytic THP-1 cells. Phytomedicine 2016, 23, 1647–1652. [CrossRef] [PubMed]
18. Park, J.B. Finding potent Sirt inhibitor in coffee: Isolation, confirmation and synthesis of javamide-II
(N-caffeoyltryptophan) as Sirt1/2 inhibitor. PLoS ONE 2016, 11, e0150392. [CrossRef] [PubMed]
19. Saklatvala, J. The p38 MAP kinase pathway as a therapeutic target in inflammatory disease. Curr. Opin. Pharmacol.
2004, 4, 372–377. [CrossRef] [PubMed]
20. Dambach, D.M. Potential adverse effects associated with inhibition of p38α/β MAP kinases. Curr. Top.
Med. Chem. 2005, 5, 929–939. [CrossRef] [PubMed]
21. Lee, J.C.; Kassis, S.; Kumar, S.; Badger, A.; Adams, J.L. p38 mitogen-activated protein kinase
inhibitors—Mechanisms and therapeutic potentials. Pharmacol. Ther. 1999, 82, 389–397. [CrossRef]

Int. J. Mol. Sci. 2017, 18, 2704
19 of 19
22. Sheryanna, A.; Bhangal, G.; McDaid, J.; Smith, J.; Manning, A.; Foxwell, B.M.; Feldmann, M.; Cook, H.T.;
Pusey, C.D.; Tam, F.W. Inhibition of p38 mitogen-activated protein kinase is effective in the treatment of
experimental crescentic glomerulonephritis and suppresses monocyte chemoattractant protein-1 but not
IL-1β or IL-6. J. Am. Soc. Nephrol. 2007, 18, 1167–1179. [CrossRef] [PubMed]
23. Zarubin, T.; Han, J. Activation and signaling of the p38 MAP kinase pathway. Cell Res. 2005, 15, 11–18.
[CrossRef] [PubMed]
©
2017 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
