Z. Lin et al. / Catalysis Communications 35 (2013) 1–5
O
80%. The filtrate was concentrated under vacuum, and the formed
R3
dimethyl acetal was hydrolyzed by stirring the crude product mixture
in TFA/H2O/CHCl3 (1:1:2) for 2 h at 25 °C, followed by neutralization
with saturated aqueous NaHCO3, extraction with Et2O and purification
by silica gel chromatography (n-hexane/EtOAc, 100:1, v/v) to give the
Diels–Alder adducts 6 and 7 (0.174 g, 88%), in which the endo/exo
ratio was determined by 1H NMR. All the Diels–Alder adducts in the
paper are known compounds that exhibited spectroscopic data identi-
cal to those reported in the literature [19,31].
N
a: R1=R2=R3=Me;
b: R1=R2=Me, R3=n-Bu;
c: R1=H, R2=C(CH3), R3=Me.
R2
HN
R1
1

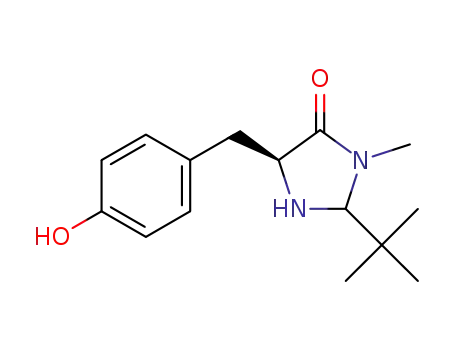

Fig. 1. Structure of chiral imidazolidin-4-one 1.
2.4. General procedure for determination of enantioselectivity of the
2.2. General procedure for preparation of the tetraarylphosphonium
Diels–Alder products
supported chiral imidazolidin-4-ones 5a–c
Sodium borohydride (80 mg, 2.1 mmol) was added to a stirred solu-
tion of endo/exo mixtures of aldehydes 6 and 7 (48 mg, 0.7 mmol) in
methanol (5.0 mL) at 0 °C. After the solution was stirred at 25 °C for
2 h, the reaction was quenched by the addition of aqueous ammonium
chloride. The product was extracted with CH2Cl2 and the combined
organic layer was washed with water and brine, dried over MgSO4
and concentrated to give a mixture of the endo-and exo-alcohols
which were analyzed by HPLC using Daicel Chiralcel OJ-RH column
(CH3CN/H2O: 40/60, flow rate 0.6 mL/min, λ=225 nm; for the exo
isomer: TR1 =22.59 min (minor), TR2 =26.40 min (major); for the
endo isomer: TR1 =29.06 min (major), TR2 =32.05 min (minor)).
To a stirred solution of the Diels–Alder adduct (204 mg, 1.5 mmol)
derived from crotonaldehyde and cyclopentadiene (Entry 1 in Table 3)
in ethanol (10 mL) at room temperature, 2,4-dinitrophenylhydrazine
(296 mg, 1.5 mmol) was added, and the resulting orange solution was
stirred at room temperature for 30 min. The crude reaction mixture
was poured into water (10 mL) and the aqueous phase was extracted
with ether (4×10 mL). The organic solution was washed with brine
(20 mL), dried over MgSO4 and concentrated to give the corresponding
N,N-diphenylhydrazone that could be analyzed directly by HPLC using
Daicel Chiralcel OD-H column ((hexane/2-propanol:: 95/5, flow rate
1.0 mL/min, λ=254 nm; for the endo isomer: TR1 =14.07 min (minor),
To a solution of compound 4 (0.514 g, 1.0 mmol) and imidazolidin-
4-one 2a (0.351 g, 1.5 mmol) in CH2Cl2 (10 mL), PPh3 (0.393 g,
1.5 mmol) was added at 0 °C. After stirring for 15 min, the slurry
was treated dropwise with DEAD (0.3 mL, 1.5 mmol) in CH2Cl2
(10 mL). Within 15 h of stirring at 0 °C, the reaction mixture was
concentrated in vacuum to about 5 mL, then the residue was slowly
poured in Et2O (30 mL). The precipitate was filtered on Celite and
washed with 20 mL of diethyl ether, the residue was purified by
flash chromatography (CH2Cl2/MeOH, 50:1) to obtain 5a (0.651 g,
89%). IR (NaCl): υ 3418, 2972, 1683, 1109, 838 (PF6) cm−1 1H NMR
;
(600 MHz, CDCl3): δ 7.88–7.84 (m, 3H, ArH), 7.83–7.82 (m, 2H, ArH),
7.76–7.73 (m, 6H, ArH), 7.63–7.60 (m, 8H, ArH), 7.17 (d, J=7.8 Hz,
2H, ArH), 6.92 (d, J=7.8 Hz, 2H, ArH), 5.21 (s, 2H, CH2O), 3.75 (t, J=
5.4 Hz, 1H, COCH), 3.08 (dd, J=4.8, 14.4 Hz, 1H, PhCH), 2.96 (dd, J=
6.6, 14.4 Hz, 1H, PhCH), 2.74 (s, 3H, NCH3), 1.26 (s, 3H, CCH3), 1.19 (s,
3H, CCH3); 13C NMR (150 MHz, CDCl3): δ 173.10, 156.95, 146.09,
135.58, 134.47, 134.40, 134.25, 134.18, 130.57, 128.84, 117.77, 117.18,
114.98, 68.50, 59.22, 59.18, 36.37, 27.13, 25.03.
2.3. General procedure for the Diels–Alder reaction
To a solution of 5a (0.073 g, 0.1 mmol) in CH3OH/H2O (2 mL, 95:5,
v/v), 0.1 M HCl (1.0 mL, 0.1 mmol) was added, and the mixture was
stirred for 5 min at 25 °C. Freshly distilled cinnamaldehyde (0.13 mL,
1.0 mmol) and cyclopentadiene (0.33 mL, 4.0 mmol) were added
respectively, and the resulting mixture was stirred at 25 °C for
24–48 h. MgSO4 was then added, after 2 h the mixture was filtered,
and the organic solvent evaporated under vacuum. The residue was
dissolved in the minimum amount of CH2Cl2 (5 mL) and then poured
in Et2O (30 mL). The precipitate was filtered, washed with Et2O
(5 mL) and dried under vacuum to afford the tetraarylphosphonium
supported catalyst. Average recovery of the catalyst ranged from 70 to
TR2 =18.17 min (major); for the exo isomer: TR1 =21.19 min (major),
TR2 =30.07 min (minor)).
3. Results and discussion
3.1. Preparation of catalysts 5a–c
The synthesis for the tetraarylphosphonium supported chiral
imidazolidin-4-ones 5a–c is shown in Scheme 1. Starting from
L-tyrosine methyl ester hydrochloride, imidazolidin-4-ones 2a–c
O
O
1) R3NH2, EtOH,
R3
OMe
30 oC
N
HO
HO
a: R1=R2=R3=Me; 65%.
NH2HCl 2) R1COR2, PTSA,
MeOH, 60 oC
R2
b: R1=R2=Me, R3=n-Bu; 62%.
HN
R1
c: R1=H, R2=C(CH3), R3=Me. 63%.
2
OH
OH
OH
PPh3, NiBr2
Ph3P+
KPF6
Ph3P+
Br
Br-
MeCN, 25 oC, 99%
-
(CH2OH)2, 180 oC, 91%
PF6
3
4
O
R3
R2
2, DEAD, Ph3P
a: R1=R2=R3=Me; 89%.
Ph3P+
N
O
CH2Cl2, 0 oC
b: R1=R2=Me, R3=n-Bu; 85%.
-
HN
c: R1=H, R2=C(CH3), R3=Me. 82%.
PF6
R1
5
Scheme 1. Synthesis of the tetraarylphosphonium supported chiral imidazolidin-4- ones 5a–c.
