Metalated nitriles: N- and C-coordination preferences
of Li, Mg, and Cu cations†
Cite this: Chem. Commun., 2013,
49, 4700
Matthew Purzycki,a Wang Liu,a Goran Hilmersson*b and Fraser F. Fleming*a
¨
Received 6th March 2013,
Accepted 4th April 2013
DOI: 10.1039/c3cc41703d
www.rsc.org/chemcomm
13C NMR analyses of a series of metalated arylacetonitriles and
cyclohexanecarbonitriles with the synthetically relevant metals Li,
Mg, and Cu identifies the influence of the carbon scaffold and the
nature of the metal on the preference for N- or C-metalation.
Metalated nitriles are chemical chameleons whose precise structural
identity depends upon the solvent, the carbon scaffold, the tem-
perature, and the metal.1 In general, electropositive metals, and
transition metals in high oxidation states, coordinate to metalated
nitriles through the electron-rich nitrile nitrogen whereas less
electropositive metals, and transition metals in low oxidation states,
preferentially coordinate to the nucleophilic carbon.2 Solid-state
structures of metalated nitriles containing transition metals are
roughly equally partitioned into N- and C-coordinated structures.2
Often the ligand dictates the metal coordination site as illustrated in
the ruthenium N- and C-phenylsulfonylacetonitriles 1 and 2 that can
be equilibrated upon heating (Fig. 1).3
Despite the seminal position of lithiated and magnesiated nitriles
in alkylations,1c,d significantly less structural information is available
than for comparable structures with transition metal cations.
Pioneering crystallographic4 and solution NMR analyses5 of
lithiated phenylacetonitrile identify the dimeric,6 N-lithiated struc-
ture 35 as the predominant structure in solution and in the solid
state (Fig. 1).7 Only in lithiated cyclopropanecarbonitriles such as 48
or in the presence of proximal, strong donor ligands9 are lithiated
nitriles coaxed into coordinating with the nucleophilic carbon.10
13C NMR provides an excellent method of determining the
metal coordination in metalated nitriles because the chemical
shift of the nitrile carbon is sensitive to the local environment.11
The 13C NMR signal for the nitrile carbon of N-metalated nitriles
containing a transition metal counter ion,2 resonates between
d = 140–157 whereas the corresponding C-metalated nitriles2
resonate between d = 115–138. The chemical shift ranges of the
ruthenium-complexed phenylsulfonylacetonitriles 1 and 2 are
Fig. 1 Comparison of N- and C-metalated nitrile structures.
illustrative (Fig. 1). Collectively, the chemical shift ranges for
N- and C-metalated nitriles provide diagnostic signals for identi-
fying the location of the metal in solution without the challenge
of crystallizing air and moisture sensitive organometallics.
Fewer 13C NMR chemical shifts are available for metalated
nitriles having Li, Mg, Zn, and Cu counter ions.5 For N-lithiated
phenylacetonitrile (3), the 13C NMR resonances of the nitrile carbon
vary modestly from d = 146.2 to 152.7 depending on the solvent.12 In
contrast, the chemical shifts of the nitrile carbon in the equilibrat-
ing lithiated acetonitriles 5 and 6 (À100 1C, Et2O) are d 155.3 for the
N-lithiated nitrile 5 and d 148.5 for the C-lithiated nitrile 6 (Fig. 1).9b
Solution and solid state structures of two zincated acetonitriles
show coordination of the metal to the nucleophilic carbon (Fig. 2). A
crystallographically determined structure of the zincated acetonitrile
7a bearing a pyrazolylborate ligand crystallizes with zinc bound to
the nucleophilic carbon.13 In solution, the parent C-zincated aceto-
a Department of Chemistry, Duquesne University, 600 Forbes Ave, Pittsburgh, USA
15282-1530. E-mail: flemingf@duq.edu; Fax: +1 412 396 5683; Tel: +1 412 396 6031
b
¨
¨
Department of Chemistry, Goteborg University, Goteborg, Sweden S-412 96.
E-mail: hilmers@chem.gu.se; Tel: +46 (0)31 786 90 22
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c3cc41703d nitrile 7b exhibits a 13C NMR chemical shift of d 131.8 for the nitrile
c
4700 Chem. Commun., 2013, 49, 4700--4702
This journal is The Royal Society of Chemistry 2013

View Article Online
Communication
ChemComm
Fig. 2 13C NMR of metalated nitriles containing Zn, Cu, and Mg.
Fig. 4 13C NMR Shifts of metalated 2-(2-methoxyphenyl)acetonitrile.
carbon (Fig. 2).14 The metal coordination site of cuprated nitriles is
less secure. The solution NMR of the C-cuprated nitrile 8 exhibits a
resonance for the nitrile carbon that lies toward the upper chemical
shift limit for C-metalated nitriles, at d 137.8.15
nucleophilic carbon 13C resonance for 12 was assigned to the
signal at d = 26.1 ppm in THF (and d = 25.9 in Et2O) through a
strong, single bond correlation with the signal for the methine
hydrogen at d = 2.86 ppm. In THF and Et2O the 6Li NMR shows a
single resonance consistent with formation of a symmetrical N-
lithiated dimer.
Structural analyses of magnesiated nitriles are lacking.16 A rare
exception is the magnesiated alkenenitrile 917 which exhibits a
13C NMR resonance for the nitrile carbon at d 129.6. In contrast
to the C-magnesiated nitrile 9, diphenylacetonitrile affords a
magnesiated nitrile whose infra-red signals are consistent with
an N-magnesiated nitrile structure.16 The ambiguity surrounding
the location of magnesium in magnesiated nitriles is compounded
by reactivity trends that correlate with C-magnesiation18 and a
configurationally labile C–Mg bond.19 The dearth of structural
information for metalated nitriles, and the structural ambiguity
of magnesiated nitriles, stimulated an NMR investigation into a
series of lithiated, magnesiated, and cuprated nitriles.
Deprotonating 2-(2-methoxyphenyl)acetonitrile with i-PrMgCl
affords 13 that has a 13C NMR signal for the nitrile carbon at
d 147.6 (Fig. 4). The 13C NMR chemical shifts of the magnesiated
nitrile 13 closely correlate with the analogous signals for the
magnesiated nitrile 10 and the lithiated nitriles 11 and 12.
Collectively the 13C chemical shift similarities between 10–13 imply
that the nitrile is N-metalated in each case. Extensive attempts to
crystallize 13 provided low quality crystals whose X-ray crystallo-
graphic structure was consistent with the N-magnesiated structure
13 but the R value was unable to be refined below 15%.20
Although the presence of the 2-methoxy group in 12 and 13
was insufficient to promote C-metalation, less electropositive
metals may prefer C-metalation. Consequently, the cuprated
nitrile 14 was prepared by adding CuI to the lithiated nitrile
12.21 Cuprated nitrile 14 has a diagnostic nitrile carbon reso-
nance at d 131.2 (Fig. 4), similar to that of the C-cuprated nitrile
8 and distinctly different from the N-lithiated nitriles 11 and 12,
and the N-magnesiated nitriles 10 and 13.22
Collectively, the metalations are consistent with lithiated and
magnesiated arylacetonitriles favoring N-metalated structures
whereas the less electropositive copper favors a C-cuprated nitrile.
Although magnesiated arylacetonitriles favor coordination of mag-
nesium to the nitrile nitrogen, the stereodivergent alkylations18
and cyclizations1a of some magnesiated and lithiated alkylnitriles
suggest that the preference for C- or N-metalation may be strongly
influenced by the carbon scaffold.
Cyclohexanecarbonitrile was chosen as a representative alkyl-
nitrile to investigate the influence of the carbon skeleton on the
coordination preferences of metalated nitriles because alkylations18
and cyclizations1a implicating C-metalated nitriles have featured in
mechanistic analyses of conformationally constrained, 6-membered
carbonitriles.19 As a point of reference, cyclohexanecarbonitrile was
deprotonated with LDA (1.1 equiv.) to afford the N-lithiated nitrile 15
(Fig. 5). Although the upfield signals of the ring carbons were
obscured by signals from other components, a broad signal for
the nitrile carbon was observed at d 163.6.23 The nitrile carbon
resonance is further upfield than the arylacetonitriles 11 and 12,
consistent with the influence of the aromatic system,24 and is similar
in frequency to the signal for lithiated acetonitrile in THF, d 157.3.10
Access to the corresponding magnesiated and cuprated nitriles
employed a facile bromine–metal exchange with 1-bromocyclo-
hexanecarbonitrile.25 Halogen–metal exchange methods carry the
Metalated arylacetonitriles are attractive for NMR analyses
because the highly acidic methylene protons are readily depro-
tonated by a range of bases.1 Phenylacetonitrile was readily
deprotonated by i-PrMgCl in THF to afford the corresponding
magnesiated nitrile 10. Spectra obtained at À20 1C show one
aliphatic resonance at d = 31.3 ppm and five resonances between
d = 113–148 ppm (Fig. 3). Comparing the 13C NMR chemical
shifts of 10 with those of N-lithiated phenylacetonitrile 1112
indicate a close structural correspondence consistent with 10
having magnesium coordinated to the nitrile nitrogen (Fig. 1).
Donor groups adjacent to the nitrile in lithiated alkylnitriles9 can
override the normal preference for lithium to coordinate to the
nitrile nitrogen to favour C-lithiated structures. If the coordination
of magnesium to the nitrile nitrogen in magnesiated phenylaceto-
nitrile and diphenylacetonitrile is weak, then C-magnesiated nitriles
might be accessed with an appropriately positioned chelating group.
2-(2-Methoxyphenyl)acetonitrile was selected for deprotonation to
determine whether an adjacent methoxy group could redirect the
preference of magnesium to coordinate to carbon instead of nitrogen.
As a point of reference, the lithiated nitrile was first generated from
2-(2-methoxyphenyl)acetonitrile (Fig. 4). Adding BuLi to a À78 1C,
THF solution of 2-(2-methoxyphenyl)acetonitrile readily afforded
the lithiated nitrile 12 which gave a resonance for the nitrile carbon
at d 142.1. In the 1H NMR, the methine proton at d 2.86 experiences
an upfield shift of d 0.84 which parallels a similar d 0.85 upfield
shift on deprotonating acetonitrile.6 An analogous deprotonation
in Et2O generates a signal for the nitrile carbon at d 151.9,
suggesting a tighter CN–Li association than in THF. The
Fig. 3 13C NMR shift comparison of metalated phenylacetonitrile.
c
This journal is The Royal Society of Chemistry 2013
Chem. Commun., 2013, 49, 4700--4702 4701

View Article Online
ChemComm
Communication
Financial support for this research from NSF (CHE 1111406,
0904393 and CHE 0614785 for NMR facilities) and the Swedish
research council (GH) are gratefully acknowledged.
Notes and references
Fig. 5 13C NMR chemical shifts of metalated cyclohexanecarbonitriles.
1 (a) F. F. Fleming and S. Gudipati, Eur. J. Org. Chem., 2008, 5365–5374;
(b) F. F. Fleming and Z. Zhang, Tetrahedron, 2005, 61, 747–789; (c) F. F.
Fleming and B. C. Shook, Tetrahedron, 2002, 58, 1–23; (d) S. Arseniyadis,
K. S. Kyler and D. S. Watt, Org. React., 1984, 31, 1–364.
advantage of accessing metalated nitriles in the absence of a
conjugate acid that might function as a ligand. Although i-PrMgCl
is typically employed in the exchange, the i-PrBr complicates NMR
analyses requiring long acquisition times at ambient temperatures
because competitive alkylation occurs. Consequently the magne-
siated nitrile 16 was prepared by treating a d8-THF solution of
bromocyclohexanecarbonitrile25 with MesMgBr (1.2 equiv.). Sub-
tracting the signals for MesBr identifies the nitrile carbon chemical
shift at d 126.6 (Fig. 5), a similar chemical shift to that of the
C-magnesiated alkenenitrile 9 (Fig. 2). Surprisingly, the chemical
shift of the nitrile carbon changes only modestly on addition of
two equivalents of DME (dCN 126.7), TMEDA (dCN 126.7), or DMPU
(dCN 126.6). The preference of the magnesium to coordinate to
carbon in the cyclohexylcarbonitrile 16 is consistent with the
greater covalency of the C–Mg bond compared to the C–Li bond.26

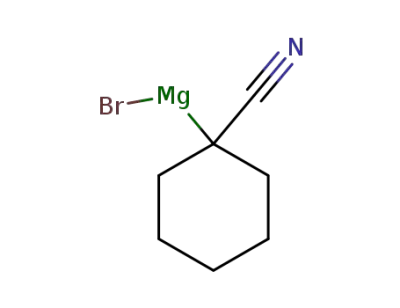

The preference of copper to form the C-cuprated arylaceto-
nitrile 14 suggested forming the corresponding C-cuprated cyclo-
hexylcarbonitrile to provide a direct comparison with the lithiated
and magnesiated nitriles 15 and 16, respectively. Access to the
cuprated nitrile 17 was achieved through a bromine–copper
exchange between 1-bromocyclohexanecarbonitrile and Me2CuLi
(1.2 equiv.).25 The cuprated nitrile 17 exhibits a chemical shift for
the nitrile carbon at d 123.5 in a 2 : 1 THF : Et2O mixture (Fig. 5).
Performing the exchange in pure Et2O shifts the nitrile carbon
resonance of the cuprated nitrile to d 125.1. The 13C nitrile carbon
resonance of 17, in THF and Et2O, lies in the mid-range of the
chemical shifts of neutral, quaternary cyclohexanecarbonitriles.11
As further support for the structure of 17, propargyl bromide was
added to the solution employed for the NMR analysis (eqn (1)).
Alkylation with propargyl bromide smoothly formed the allene 18
which provides a signature of a C-cuprated nitrile.25
2 See listing in ESI†.
3 T. Naota, A. Tannna and S.-I. Murahashi, Chem. Commun., 2001, 63–64;
M. Kujime, S. Hikichi and M. Akita, Organometallics, 2001, 20, 4049–4060.
4 G. Boche, Angew. Chem., Int. Ed. Engl., 1989, 28, 277–297; W. Zarges,
M. Marsch, K. Harms and G. Boche, Angew. Chem., Int. Ed. Engl., 1989,
28, 1392–1394; G. Boche, M. Marsch and K. Harms, Angew. Chem.,
Int. Ed. Engl., 1986, 25, 373–374.
5 P. R. Carlier and C. W.-S. Lo, J. Am. Chem. Soc., 2000, 122, 12819–12823;
P. R. Carlier, B. L. Lucht and D. B. Collum, J. Am. Chem. Soc., 1994, 116,
11602–11603.
6 Vapor pressure measurements similarly support a dimeric structure:
R. Das and C. A. Wilkie, J. Am. Chem. Soc., 1972, 94, 4555–4557.
7 I. Langlotz, M. Marsch, K. Harms and G. Boche, Z. Kristallogr., 1999,
214, 509–510; E. Iravani and B. Neumu¨ller, Organometallics, 2003,
¨
¨
22, 4129–4135; H. J. Bestmann, T. Roder, M. Bremer and D. Low,
Chem. Ber., 1991, 124, 199–202; D. Enders, J. Kirchoff, P. Gerdes,
D. Mannes, G. Raabe, J. Runsink, G. Boche, M. Marsch, H. Ahlbrecht
and H. Sommer, Eur. J. Org. Chem., 1998, 63–72.
8 G. Boche, K. Harms and M. Marsch, J. Am. Chem. Soc., 1988, 110,
6925–6926.
9 (a) M. Sasaki, T. Takegawa, H. Ikemoto, M. Kawahata, K. Yamaguchi and
K. Takeda, Chem. Commun., 2012, 48, 2897–2899; (b) R. Sott, J. Granander
and G. Hilmersson, J. Am. Chem. Soc., 2004, 126, 6798–6805.
10 R. Sott, J. Granander and G. Hilmersson, Chem.–Eur. J., 2002, 8, 2081–2087.
11 F. F. Fleming and G. Wei, J. Org. Chem., 2009, 74, 3551–3553.
12 d = 146.2 in d8-THF P. J. Crowley, M. R. Leach, O. Meth-Cohn and
B. J. Wakefield, Tetrahedron Lett., 1986, 27, 2909–2912; d = 147.0 in
d8-toluene containing two equivalents of THF, d = 149.7 in a 1 : 1 mixture
of d8-toluene: d8-THF, and d = 152.7 in d8-toluene with one equivalent of
TMEDA. Paul Carlier, personal communication. For reference, the sp
carbon of ketenimines resonate at d = 185–195: J. Firl, W. Runge,
W. Hartmann and H.-P. Utikal, Chem. Lett., 1975, 51–54.
13 H. Brombacher and H. Vahrenkamp, Inorg. Chem., 2004, 43, 6054–6060.
14 F. Orsini, Synthesis, 1985, 500–503.
15 G. La Monica, M. A. Angaroni and G. A. Ardizzoia, J. Organomet.
Chem., 1988, 348, 279–284.
16 C. Grison, Preparation and reactivity of magnesium enolates, In The Chemistry
of Organomagnesium Compounds, ed. Z. Rappoport and I. Marek, John
Wiley & Sons, 2008, ch. 11, pp. 437–509. For the 1H NMR of a magnesiated
diphenylacetonitrile see: I. L. Fedushkin, A. G. Morozov, O. V. Rassadin
and G. K. Fukin, Chem.–Eur. J., 2005, 11, 5749–5757.
17 J. Thibonnet, V. A. Vu, L. Berillon and P. Knochel, Tetrahedron, 2002,
58, 4787–4799; J. Thibonnet and P. Knochel, Tetrahedron Lett., 2000,
41, 3319–3322. For comparison, the chemical shift of the nitrile
carbon in trans-cinnamonitrile is d 118.2.
(1)
18 R. J. Mycka, W. T. Eckenhoff, O. W. Steward, N. Z. Barefoot and F. F.
Fleming, Tetrahedron, 2013, 69, 366–376; F. F. Fleming, Z. Zhang, G. Wei
and O. W. Steward, J. Org. Chem., 2006, 71, 1430–1435; F. F. Fleming,
Z. Zhang, G. Wei and O. W. Steward, Org. Lett., 2005, 7, 447–449.
19 F. F. Fleming, S. Gudipati, Z. Zhang, W. Liu and O. W. Steward,
J. Org. Chem., 2005, 70, 3845–3849.
Metalated nitriles are complex organometallics whose precise
structural identity intimately depends on the nature of the cation
and the nature of the substituents on the nucleophilic carbon. Solvent
effects appear to play a lesser role in determining the structure of
metalated nitriles. NMR analyses of metalated arylacetonitriles and
20 Crystallographic data is provided in the ESI†.
metalated cyclohexanecarbonitriles demonstrate that Lewis acidic 21 J. Kondo, Y. Ito, H. Shinokubo and K. Oshima, Angew. Chem., Int. Ed.,
2004, 43, 106–108; P. Knochel, N. Jeong, M. J. Rozema and M. C. P. Yeh,
J. Am. Chem. Soc., 1989, 111, 6474–6476; T. Tsuda, T. Nakatsuka,
T. Hirayama and T. Saegusa, J. Chem. Soc., Chem. Commun., 1974,
lithium preferentially coordinates to the nitrile nitrogen in both struc-
tural types. Magnesiated nitriles exhibit greater coordination changes,
preferring N-magnesiation with arylacetonitriles and C-magnesiation
with cyclohexanecarbonitrile. The less electropositive metal, copper
prefers C-metalation with both arylaceto- and alkylnitriles. The solu-
tion NMR analyses correlate with the reactivity, and stereoselectivity
trends implied by divergent alkylations of N- and C-metalated nitriles,
and demonstrate the profound influence of the metal and carbon
scaffold on the coordination site of metalated nitriles.
557–558; E. J. Corey and I. Kuwajima, Tetrahedron Lett., 1972, 487–489.
22 Unfortunately the 1H NMR spectrum of 14 was poorly resolved.
23 The broadening may be due to spin coupling to lithium.
24 S. Bradamante and G. A. Pagani, J. Chem. Soc., Perkin Trans. 2, 1986,
1035–1046.
25 F. F. Fleming, Z. Zhang, W. Liu and P. Knochel, J. Org. Chem., 2005,
70, 2200–2205.
26 T. Clark, C. Rhode and P. v. R. Schleyer, Organometallics, 1983, 2,
1344–1351.
c
4702 Chem. Commun., 2013, 49, 4700--4702
This journal is The Royal Society of Chemistry 2013
