Oligonucleotide tagging for copper-free click conjugation

Article abstract of DOI:10.3390/molecules18077346

Copper-free click chemistry between cyclooctynes and azide is a mild, fast and selective technology for conjugation of oligonucleotides. However, technology for site-specific introduction of the requisite probes by automated protocols is scarce, while the reported cyclooctynes are large and hydrophobic. In this work, it is demonstrated that the introduction of bicyclo[6.1.0]nonyne (BCN) into synthetic oligonucleotides is feasible by standard solid-phase phosphoramidite chemistry. A range of phosphoramidite building blocks is presented for incoporation of BCN or azide, either on-support or in solution. The usefulness of the approach is demonstrated by the straightforward and high-yielding conjugation of the resulting oligonucleotides, including biotinylation, fluorescent labeling, dimerization and attachment to polymer.

Full text of DOI:10.3390/molecules18077346

Molecules 2013, 18, 7346-7363; doi:10.3390/molecules18077346
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Oligonucleotide Tagging for Copper-Free Click Conjugation
Anup M. Jawalekar 1, Sudip Malik 1, Jorge M. M. Verkade 2, Brian Gibson 3, Nancy S. Barta 3,
John C. Hodges 3, Alan Rowan 1 and Floris L. van Delft 1,2,
*
1
Radboud University Nijmegen, Institute for Molecules and Materials, Heyendaalseweg 135,
6525 AJ Nijmegen, The Netherlands; E-Mails: jawanup@yahoo.com (A.M.J.);
psusm2@iacs.res.in (S.M.); a.rowan@science.ru.nl (A.R.)
2
3
SynAffix BV, Heyendaalseweg 135, 6525 AJ Nijmegen, The Netherlands;
E-Mail: j.verkade@synaffix.com
Berry and Associates, Inc., 2434 Bishop Circle East, Dexter, MI 48130, USA;
E-Mails: bgibson@berryassoc.com (B.G.); nbarta@berryassoc.com (N.S.B.);
jhodges@berryassoc.com (J.C.H.)
* Author to whom correspondence should be addressed; E-Mail: f.vandelft@science.ru.nl;
Tel.: +31-24-365-2373; Fax: +31-24-365-3393.
Received: 19 April 2013; in revised form: 24 May 2013 / Accepted: 5 June 2013 /
Published: 24 June 2013
Abstract: Copper-free click chemistry between cyclooctynes and azide is a mild, fast and
selective technology for conjugation of oligonucleotides. However, technology for
site-specific introduction of the requisite probes by automated protocols is scarce, while the
reported cyclooctynes are large and hydrophobic. In this work, it is demonstrated that the
introduction of bicyclo[6.1.0]nonyne (BCN) into synthetic oligonucleotides is feasible by
standard solid-phase phosphoramidite chemistry. A range of phosphoramidite building
blocks is presented for incoporation of BCN or azide, either on-support or in solution. The
usefulness of the approach is demonstrated by the straightforward and high-yielding
conjugation of the resulting oligonucleotides, including biotinylation, fluorescent labeling,
dimerization and attachment to polymer.
Keywords: copper-free click; oligonucleotide conjugation; bicyclononyne; azide;
strain-promoted cycloaddition

Molecules 2013, 18
7347
1. Introduction
Synthetic DNA and RNA oligonucleotides (ONs) are key tools in a broad variety of diagnostic
and therapeutic applications, including microarray technology [1], antisense and gene-silencing
therapies [2], nanotechnology [3] and materials sciences [4,5]. Generally, such applications require the
introduction of a suitable handle in an oligonucleotide to enable selective conjugation to a functionality
of interest [6–8]. For example, attachment of a cell-penetrating ligand is the most commonly
applied strategy to tackle the low internalization rate of ONs into target cells [2], currently the main
bottleneck in oligonucleotide-based therapeutics (antisense, siRNA). Similarly, the preparation of
oligonucleotide-based microarrays requires the selective immobilization of ONs on a suitable solid
surface, e.g., glass [1]. Conventional post-synthetic labeling protocols, based on amide bond formation
or sulfide-based chemistry [8–10] typically suffer from low yield and long reaction times and often
require a high concentration of the biomolecule in combination with a large excess of coupling partner.
One promising alternative to the traditional conjugation technologies involves the copper-catalyzed
cycloaddition of alkynes and azides, a procedure commonly referred to as “click reaction” [11,12].
However, the use of copper for oligonucleotide conjugation may be compromised due to potential
metal-catalyzed strand degradation and/or difficulties in final purification [13–15]. Although new
ligands reduce the chance of undesired chain cleavage during copper-catalyzed click reaction [16–18],
strain-promoted azide-alkyne cycloaddition (SPAAC) offers the possibility of oligonucleotide conjugation
in the absence of copper [19–23] as demonstrated for oligonucleotides labeled with plain cyclooctyne
(OCT) [15] or the more reactive dibenzofused cyclooctyne DIBO [24]. Most recently, Brown
et al. [25,26] further extended the latter approach by ON incorporation of aminoalkyl thymidine
derivatives, followed by selective N-acylation with azide or cyclooctyne after cleavage from support.
Alternative approaches for the preparation of azide-containing nucleotides—compromised by the
incompatibility of azide with phosphoramidite chemistry—involve post-synthetic nucleophilic
substitution [27–29] or selective diazotransfer reaction [30] or phosphonate-based coupling
chemistry [31–34] However, a simple and general strategy for the on-support, automated synthesis of
oligonucleotides with readily accessible building blocks, and suitable for introduction of any
functional group (including cyclooctyne and azide), is still desirable.
We here report two versatile approaches for conjugation of oligonucleotides by strain-promoted
azide-alkyne cycloaddition. First, a range of novel phosphoramidite building blocks was developed for
incorporation of bicyclo[6.1.0]nonyne (BCN) [35] and an adenosine-based building block is presented
suitable for BCN or azide introduction following standard oligonucleotide synthesis protocols, and
allowing multiple nucleotide 2′-functionalization (Figure 1). The ease of operation of copper-free click
conjugation is demonstrated for a range of functional groups, by oligonucleotide dimerization, and by
the preparation and characterization of an amphiphilic polythiophene-oligonucleotide hybrid polymer.

Molecules 2013, 18
Figure 1. Structures of BCN- and adenosine-based phosphoramidites for incorporation into
7348
and copper-free conjugation of oligonucleotides.
2. Results and Discussion
2.1. 5′-Labeling and Conjugation of Oligonucleotides
2.1.1. Preparation of BCN-Phosphoramidites
Earlier reported approaches for copper-free conjugation of oligonucleotides were based solely on
DIBO, a dibenzofused cyclooctyne that inevitably leads to a mixture of regioisomeric and diastereomeric
adducts upon reaction with azide. We reasoned that bicyclo[6.1.0]nonyne (BCN) has particular
potential for oligonucleotide conjugation, due to its higher reactivity in comparison to DIBO, its
relatively low lipophilicity in comparison all dibenzofused cyclooctynes [36], and its plane-symmetry,
which precludes the formation of regioisomers upon cycloaddition. Thus, phosphoramidite derivative
1 was, prepared in a single step from commercially available BCN alcohol (R=OH) with 81% yield
(Scheme 1), as well as a diethyleneglycol chain-extended phosphoramidite 2.
Scheme 1. Synthesis of BCN-phosphoramidites 1 and 2.
2.1.2. Activation and Incorporation of BCN-Phosphoramidites
Next, compound 1 was activated with 5-ethylthiotetrazole (ETT) and attached to hexathymidine
nucleotide (3, n = 6), supported on controlled pore glass (Scheme 2), leading to a single ON after
oxidation and cleavage from support, as indicated by HPLC. However, mass spectrometry indicated

Molecules 2013, 18
7349
that not the expected BCN-containing diester 5, but 5′-monophosphate 4 had been isolated instead. We
attribute the formation of 4 to rapid hydrolysis of the transiently formed diester phosphate 5,
presumably involving a heterolytic cleavage mechanism with formation of a surprisingly stable
BCN-derived cyclopropylmethyl cation [37]. Based on the latter assumption, phosphoramidite 2 was
next subjected to the same oligonucleotide synthesis protocol, now leading to the isolation of the
desired 5′-BCN-containing hexanucleotide 6 in high yield. Another successful strategy to avoid the
formation of a cyclopropylmethyl cation involved the preparation of hexathymidine conjugate ON 7,
containing a homologated BCN ethyl derivative (Scheme 3).
Scheme 2. Solid-phase synthesis of BCN-charged oligonucleotides 5–8.
Scheme 3. Synthesis of exo-BCN-ethanol phosphoramidite for the preparation of 7.
2.1.3. Comparison of BCN-Containing Oligonucleotides to Dibenzofused Cyclooctynes
Now the stage was set to compare the lipophilicity of the oligonucleotides 6 and 7 containing a
BCN-type cyclooctyne to a dibenzoannulated cyclooctyne. To this end, we prepared DBCO-containing
hexa-T (compound 8 in Scheme 2) from commercially available DBCO-phosphoramidite. To our
satisfaction, C18-reversed phase HPLC analysis confirmed the higher polarity of BCN-containing ONs

Molecules 2013, 18
7350
6 and 7 (elution after 13.2 and 12.0 min, respectively) with respect to DBCO-containing ON 8
(19.6 min). The usefulness of BCN-containing ONs for metal-free cycloaddition with azide was also
evaluated, by addition of desthiobiotin azide 9 to BCN-charged ON 7 (Figure 2B). HPLC analysis
indicated a rapid and quantitative cycloaddition of 6 and 9 (Figures 2C and S1), to give the expected
triazole adduct 10 in only 75 min, thereby corroborating the usefulness of 5′-BCN incorporation for
copper-free conjugation of oligonucleotides.
Figure 2. (A) HPLC-reversed phase profile of 6–8. (B) Formation of 10 by SPAAC
dimerization of 6 and 9. (C) HPLC-traces of conversion of 6 into 10 upon the addition of 9.
(A)
(B)
(C)
2.2. 3′-Fmoc-Aminopropyl Adenosine for Internal Labeling and Conjugation of Oligonucleotides
Despite the promising results with BCN-derived phosphoramidites for the preparation of
5′-functionalized ONs, the introduction of BCN at other positions in an oligonucleotide (3′-end or
internally) is not readily accessible with simple building blocks. Moreover, it is clear that a
phosphoramidite-based strategy for the introduction of an azide group, the complementary partner for
SPAAC, is hampered by competitive Staudinger reduction of azide with PIII-type reagents [27,31].
Therefore, our next aim was to develop a generic building block for internal incorporation in an ON
chain, to facilitate subsequent on-support derivatization with any functional group of choice, including
BCN or azide.
2.2.1. Preparation, Incorporation and Model Studies
Based on the above reasoning, a straightforward synthetic route towards Fmoc-protected
2′-O-aminopropyl adenosine-based building block 13 was designed (Scheme 4). Importantly, the
2′-aminopropyl group would ensure subsequent selective functionalization after Fmoc-deprotection. A
similar strategy was recently reported based on a 2′-aminoethyl thymidine building block [25], but to
the best of our knowledge on-support oligonucleotide functionalization has not been reported to date.
An advantage of modification via 2′-OH of ribose, instead of conjugation via the nucleobase, is that

Molecules 2013, 18
7351
negligible interference with hybridization is expected, due to the direction of a 2′-O-functional group
towards the minor groove of a DNA duplex.

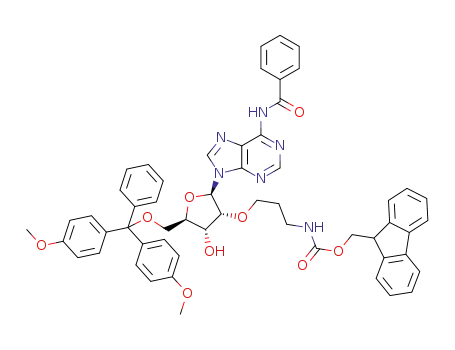

Thus, starting phosphoramidite 13 was conveniently prepared in only three high-yielding steps from
readily available 2′-(3-azidopropyl) adenosine building block 11 [38] by Staudinger reduction,
Fmoc-protection and phosphitylation (Scheme 4).
Scheme 4. Synthesis of Fmoc-aminopropyl adenosine 13.
Next, CPG-immobilized thymidine (3) was 5′-chain extended with building block 13 (Scheme 5)
under standard conditions. The successful formation of the projected phosphate diester 14 was
corroborated by Fmoc removal (20% piperidine in DMF) to give intermediate 15, followed by
cleavage from CPG, leading to the free amino-derivative 16 in high purity, as confirmed by HPLC and
HRMS (Figure S2 and Table S1). Alternatively, the Fmoc-deprotected dinucleotide 15 was subjected
to on-support acylation before cleavage with NH4OH, thereby generating a range of DMT-on
dinucleotides functionalized with phenylalanine (17), biotin (18) or fluorescein (19). Similarly,
intermediate 15 could be smoothly and cleanly converted into BCN-charged carbamate derivative 20,
or azide-containing dinucleotide 21.
Scheme 5. On-support incorporation and conjugation of 13 into a dinucleotide.
The usefulness of the BCN-charged oligonucleotide for follow-up functionalization by SPAAC was
in this case corroborated by two experiments. First, treatment of 20 with excess of

Molecules 2013, 18
7352
2-(2-(2-azidoethoxy)ethoxy)ethanamine (22) afforded the anticipated triazole adduct in quantitative
yield (Figure S2 and Table S1). A similar smooth reaction was observed for dimerization of
BCN-charged dinucleotide 20 and azide-charged dinucleotide 21, affording exclusively the (3+2)
cycloaddition product, as confirmed by HPLC and LC-MS analysis (Figure S2 and Table S1).
2.2.2. Oligonucleotide Dimerization
Now the stage was set to evaluate the scope of building block 13 for the synthesis and
functionalization of longer oligonucleotides, and to explore the usefullness of SPAAC to obtain
site-specifically conjugated oligonucleotides (Scheme 6). As anticipated, attachment of Fmoc building
block 13 to a CPG-tetranucleotide, and subsequent repetitive coupling with standard ON building
blocks, proceeded smoothly to give the 12-mer ON 23 with sequence d(AGTATTGX*CCTA)
(X* = 2′-Fmoc-N-propyladenosine), as corroborated by cleavage from CPG of an analytical sample.
Next, undecanucleotide 23 was on-support Fmoc-deprotected with piperidine (to 24) and coupled with
azidohexanoic acid or a BCN-derived active carbonate and cleaved from support, to give the
respective azide derivative 25 and BCN-derivative 26, respectively. As anticipated, overnight stirring
of a 1:1 mixture of the BCN- and the azide-functionalized ON conjugates 26 and 25, respectively, was
found to give the desired oligonucleotide dimer 27, as confirmed by HPLC and MALDI-TOF analysis
(Table S2), thereby demonstrating for the versatility of our approach for conjugation of oligonucleotides
at any adenosine in the ribose backbone.
Scheme 6. On-support preparation of azide or BCN-charged oligonucleotides and
dimerization in solution.
2.2.3. Oligonucleotide-Polythiophene Hybrid
Finally, we were intrigued by the idea of applying SPAAC for the synthesis of functional
oligonucleotide-containing materials, in particular toward the construction of bioresponsive films.
Poly(3-hexylthiophene) (P3HT) is a well known electroconductive material which can be found in
solar cells and other nanoelectronic devices but is known to be notoriously insoluble in aqueous
systems. One potential strategy for solubilization would involve attachment of oligonucleotides to

Molecules 2013, 18
7353
these synthetic lipophilic polymers. To this end, azido-functionalized P3HT (28) was treated with
BCN-conjugated ON 5′-d(AGTATTGXCCTA)-3′ (26) and the reaction was monitored by color
change as well as UV-VIS spectroscopy (Figure 3). To our satisfaction, mixing 28 and 26 led to the
formation of a yellowish solution, thereby indicating the formation of composites through (3+2)
cycloaddition between P3HT and ON as the result of the slow solubilization of the otherwise
completely water-insoluble hydrophobic polymer 28. More conclusive support for succesfull
conjugation was obtained by UV-VIS spectroscopy, which clearly revealed the presence of P3HT in
the aqueous solution as indicated by the appearance of absorption peak at 455 nm (Figure 3C), as well
as by MALDI-TOF analysis (Figure S4).
Figure 3. (A) Conjugation of azido-terminated P3HT 28 and BCN-containing
oligonucleotide 26 leading to 29. (B) Aqueous solution of 28 turns yellow as a
consequence of spontaneous (3+2) cycloaddition leading to solubilization. (C) UV-VIS
spectrum of aqueous solution shows the appearance of the typical absorption band of P3HT
at 455 nm.
(A)
(B)
(C)
3. Experimental
1H-NMR spectra were recorded on Bruker DMX 300 or Varian Inova-400 spectrometers at 300 K.
TMS (δH 0.00) or CD3CN (δH 1.94) was used as the internal reference. 13C-NMR spectra were
recorded in CDCl3 at 75 MHz on a Bruker DMX 300 spectrometer, using the central resonance of
CDCl3 (δC 77.0) as the internal reference. 31P NMR and 1H-NMR spectra for 1, 2 and V were provided
by NuMega Resonance Labs. Mass spectra were obtained on Applied Biosystems Voyager DE-Pro
MALDI-TOF (no calibration) or JEOL AccuToF. Identities of 4, 5, 6, 7, 8, and 10 were confirmed by
MS or LCMS that were provided by Novatia, LLC. Except as specified below, chemicals were
purchased from Aldrich Chemical Co. and used without further purification. CH2Cl2, acetonitrile,
THF, Et2O and toluene were obtained dry from a MBRAUN SPS-800 solvent purification system; and
CH3OH was distilled from magnesium and iodine. Aqueous solutions are saturated unless otherwise
specified. All reactions were performed under anhydrous conditions under argon and monitored by
TLC on Kieselgel 60 F254 (Merck, Darmstadt, Germany). Prior to analysis of phosphoramidites, TLC
plates were buffered by dipping in 2% Et3N in hexanes and air dried. Detection was by examination
under UV light (254 nm) and by charring with 10% sulfuric acid in methanol, with aqueous KMnO4,
or ethanolic phosphomolybdic acid (PMA). Silica gel (Acros 0.035–0.070 mm, and for

Molecules 2013, 18
7354
phosphoramidites, SiliCycle, 0.060–0.200 mm) was used for chromatography. (i-Pr2N)2POCH2CH2CN
was obtained from Digital Specialty Chemicals, catalog # 269 (2-Cyanoethyl N,N,N′N′-
tetraisopropylphosphorodiamidite). Compound 9 was provided by Berry and Associates, Inc., catalog
# BT 1075 (Desthiobiotin-TEG azide). DBCO-phosphoramidite was obtained from Glen Research
Corp., catalog #10-1941 (5′-DBCO-TEG phosphoramidite).
Automated ON synthesis was completed using a Millipore Expedite (8900 series) nucleic acid
synthesis system using the recommended thymidine conditions for each synthesis cycle in a DMT-on
protocol for 0.2 Mol columns. Standard synthesizer reagents and thymidine-CPG were obtained from
Glen Research Corporation. The ONs were deprotected and cleaved from the CPG support by
manually passing conc. NH4OH back and forth through the column with a pair of syringes for 15 min.
The resulting ON solutions were sparged with N2 for 3 hours to remove excess NH3. The concentrated
solutions were frozen and lyophilized.
2-(endo-Bicyclo[6.1.0]non-4-yn-9-yl)methyl (2-cyanoethyl) diisopropylphosphoramidite (1) Endo-BCN-
methanol (1.00 g, 6.66 mmol) was dissolved in anhydrous CH2Cl2 (17 mL) and treated with
(i-Pr2N)2POCH2CH2CN (2.43 mL, 7.66 mmol). A solution of CF3CO2H (0.25 M) and 1-methylimidazole
(0.50M) in anhydrous CH2Cl2 (13.3 mL) was added dropwise then the reaction was stirred at RT for 90
min. TLC (hexane-acetone, 90:10, PMA stain) shows the complete consumption of endo-BCN-methanol
(Rf 0.40) and the appearance of a single new product (Rf 0.68). The reaction mixture was partitioned
between CH2Cl2 (50 mL) and H2O (50 mL). The organic layer was washed with H2O (50 mL) and
saturated NaHCO3 (35 mL). The organic layer was dried over Na2SO4, filtered and concentrated at reduced
pressure. Silica (36 g) was slurried in hexane-Et3N (95:5, 85 mL) and packed into a 60 mL sintered glass
funnel. The bed of silica was eluted with hexanes (50 mL) before a solution of crude product in hexanes
(7 mL) was applied. Elution with hexane-acetone (96:4), collecting 30 mL fractions affords purified 1
1
(1.88 g, 80.6%) after evaporation of solvent and drying under vacuum overnight. H-NMR (500 MHz,
CD3CN) δ 3.82–3.67 (m, 4H), 3.65–3.55 (m, 2H), 2.62 (q, 2H), 2.29–2.18 (m, 6H), 2.14 (s, 2H), 1.35–1.27
31
(m, 1H), 1.17 (d, 12H), 0.90–0.82 (2H). P NMR (500 MHz, CD3CN) δ 147.64 (s, 98.6%). MS (AP+):
351 (M+H); 373 (M+Na).
endo-Bicyclo[6.1.0]non-4-yn-9-ylmethyl (2-(2-hydroxyethoxy)ethyl)carbamate Under an atmosphere
of argon, BCN (1.80 g; 12.0 mmol) was dissolved in 100 mL anhydrous MeCN, and
disuccinimidylcarbonate (3.38 g; 13.2 mmol) and triethylamine (5.0 mL; 3.64 mmol; 36.0 mmol) were
added. The resulting mixture was stirred for 2.5 h and concentrated. The residue was taken up in
diethyl ether (100 mL) and washed with a saturated aqueous solution of NH4Cl. After separation, the
organic layer was dried (Na2SO4) and concentrated. The residue was taken up in DCM (100 mL),
washed with water (50 mL), dried (Na2SO4) and concentrated. The residue was taken up in EtOAc
(50 mL) and concentrated. Crude carbonate: 3.08 g.
The crude residue (2.5 g, max 8.6 mmol) was dissolved in DCM (100 mL) under an atmosphere of
argon. 2-(2-Aminoethoxy)ethanol (1.0 mL; 1.1 g; 10.3 mmol) and triethylamine (3.6 mL: 2.6 g;
25.8 mmol) were added and the resulting mixture was stirred for 15 min. After concentration, the
residue was purified by column chromatography (EtOAc/pentane 3/1). The pure fractions were
combined, concentrated, taken up in EtOAc, filtered and concentrated. Yield over two steps: 1.48 g

Molecules 2013, 18
7355
1
(5.26 mmol; 54%). H-NMR (CDCl3, 300 MHz): δ (ppm) 5.04 (bs, 1H), 4.16 (d, J = 8.1 Hz, 2H),
3.79–3.70 (m, 2H), 3.62–3.54 (m, 2H), 3.40 (dd, J = 10.7 Hz, 5.4 Hz), 2.37–2.12 (m, 6H), 2.01
(bs, 1H), 1.70–1.48 (m, 2H), 1.43–1.30 (m, 1H), 1.02–0.87 (m, 2H).
endo-Bicyclo[6.1.0]non-4-yn-9-ylmethyl(2-(2-(((2-cyanoethoxy)(diisopropylamino)-phosphino)oxy)
ethoxy)ethyl)carbamate (2) Endo-bicyclo[6.1.0]non-4-yn-9-ylmethyl (2-(2-hydroxyethoxy)ethyl)
carbamate (5.00 g, 17.8 mmol) was dissolved in anhydrous CH2Cl2 (65 mL) and treated with
(i-Pr2N)2POCH2CH2CN (6.49 mL, 20.4 mmol). A solution of CF3CO2H (0.25 M) and 1-methylimidazole
(0.50 M) in anhydrous CH2Cl2 (35.5 mL) was added dropwise then the reaction was stirred at RT for
90 min. TLC (hexane-acetone, 80:20, PMA stain) shows the complete consumption of starting material
(Rf 0.15) and the appearance of a single new product (Rf 0.50). The reaction mixture was partitioned
between CH2Cl2 (50 mL) and H2O (150 mL). The organic layer was washed with H2O (150 mL) and
5% NaHCO3 (150 mL). The organic layer was dried over Na2SO4, filtered and concentrated at reduced
pressure. Silica (130 g) was slurried in hexane-acetone-Et3N (95:5:5, 250 mL) and packed into a 5 cm
diameter column. The crude product was dissolved in CH2Cl2 (8 mL) and diluted with hexanes
(12 mL) and the cloudy solution was applied to the column. Initial elution was performed with hexane-
acetone-CH2Cl2-Et3N (79.5:10:10:0.5, 100 mL). Subsequent elution was performed with Hexane-
Acetone-Et3N (85.5:14:0.5), collecting 75 mL fractions. Pure product fractions were combined and
concentrated at reduced pressure. The resulting colorless liquid was re-dissolved in CH2Cl2 (50 mL)
and concentrated again. Further drying overnight under vacuum affords purified 2 (6.86 g, 80%).
1H-NMR (500 MHz, CD3CN) δ 5.17 (s, 1H), 4.13 (d, 2H), 3.82–3.51 (m, 8H), 3.38–3.26 (m, 2H), 2.64
(q, 2H), 2.29–2.18 (m, 6H), 2.14 (s, 2H), 1.38–1.22 (m, 1H), 1.17 (d, 12H), 0.88–0.84 (2H). 31P NMR
(500 MHz, CD3CN) δ 149.11 (s, 100%). MS (AP+): 482 (M+H); 504 (M+Na).
(Z)-exo-Bicyclo[6.1.0]non-4-ene-9-carbaldehyde (31) (Z)-exo-Bicyclo[6.1.0]non-4-en-9-ylmethanol
(30) (5.2 g, 26.6 mmol) was dissolved in DCM (300 mL). Pyridinium chlorochromate (10.5 g,
48.5 mmol) was added. The resulting reaction mixture was stirred for 2 h and subsequently filtered
over a short path of silica gel. The filtrate was concentrated and purified by column chromatography
(DCM), yielding 4.95 g of the aldehyde (B). 1H NMR (300 MHz, CDCl3) δ (ppm) 9.04 (d, J = 5.5 Hz,
1H), 5.71–5.58 (m, 2H), 2.49–2.01 (m, 6H), 1.77–1.44 (m, 5H).
(Z)-exo-2-(Bicyclo[6.1.0]non-4-en-9-yl)ethanol (32) Under an atmosphere of argon (methoxymethyl)-
triphenylphosphonium chloride (17.1 g; 50 mmol) was suspended in anhydrous THF (100 mL) and
cooled to 0 °C. Potassium tert-butoxide (5.6 g; 50 mmol) was added and the resulting mixture was
stirred for 20 min. A solution of 31 (4.95 g, 33.0 mmol) in anhydrous THF (100 mL) was added. The
resulting reaction mixture was stirred for 15 min and then poured into a mixture of diethyl ether and
water (200 mL/200 mL). The aqueous phase was separated and extracted a second time with diethyl
ether (100 mL). The two combined organic layers were dried (Na2SO4) and concentrated at reduced
pressure. The residue was dissolved in THF (200 mL) and aqueous hydrochloric acid (1M, 100 mL)
was added. The resulting mixture was heated to reflux for 45 min, cooled to room temperature and
poured into a mixture of diethyl ether and water (200 mL/200 mL). The aqueous phase was separated
and extracted a second time with diethyl ether (100 mL). The two combined organic layers were dried

Molecules 2013, 18
7356
(Na2SO4) and concentrated at reduced pressure. The residue was dissolved in methanol (200 mL) and
placed under an atmosphere of argon. After cooling the reaction mixture to 0°C, NaBH4 (1.89 g;
50 mmol) was added in portions. The mixture was stirred for 15 min, quenched with saturated aqueous
ammonium chloride (100 mL) and partitioned between diethyl ether (200 mL) and water (100 mL).
The aqueous phase was separated and extracted with diethyl ether (2 × 200 mL). The three combined
organic layers were dried (Na2SO4) and concentrated at reduced pressure. The crude product was
purified by column chromatography on silica gel, eluting with a 10–25% gradient of ethylacetate in
1
pentane to provide 4.22 g (77%) of 32. H NMR (300 MHz, CDCl3) δ 5.70–5.56 (m, 2H), 3.68 (t,
J = 6.6 Hz, 2H), 2.39–1.94 (m, 6H), 1.51 (q, J = 6.7 Hz, 2H), 1.44–1.23 (m, 3H), 0.71–0.57 (m, 2H),
0.30–0.20 (m, 2H).
Exo-BCN-ethanol (33) A solution of bromine (1.37 mL, 26.7 mmol) in dichloromethane (25 mL) was
added dropwise to an ice-cold solution of 32 (4.22 g, 25.4 mmol) in dichloromethane (100 mL).
Subsequently, 10% aqueous Na2S2O3 (50 mL) is added. The aqueous phase was separated and
extracted a second time with dichloromethane (50 mL). The two combined organic layers were dried
(Na2SO4) and concentrated at reduce pressure to afford dibromide (8.33 g, quant.). Without further
purification, the crude intermediate was dissolved in anhydrous THF (100 mL), placed under an argon
atmosphere, and cooled to 0°C. A solution of potassium tert-butoxide (9.3 g; 83 mmol) in anhydrous
THF (100 mL) was added dropwise. The resulting reaction mixture was heated to 70 °C, stirred for
30 min, and quenched with a saturated aqueous solutiono of NH4Cl (100 mL). The resulting mixture
was extracted twice with diethyl ether (200 mL). The two combined organic layers were then dried
(Na2SO4) and concentrated at reduced pressure. The crude product was purified chromatography on
silica gel to afford exo-BCN-ethanol (33) (2.57 g; 15.6 mmol; 62%) as a slightly yellow solid/wax. 1H
NMR (300 MHz, CDCl3) δ (ppm) 3.71 (t, J = 6.5 Hz, 2H), 2.46–2.07 (m, 6H), 1.63–1.54 (m, 2H),
1.44–1.22 (m, 3H), 0.63–0.46 (m, 2H), 0.34–0.22 (m, 1H). 13C NMR (300 MHz, CDCl3) δ (ppm) 99.6,
63.0, 49.0, 38.6, 34.9, 25.6, 22.8, 22.1. (ESI+): calculated for C11H16O: 164.1201, found 164.1186.
exo-Bicyclo[6.1.0]non-4-yn-9-ylmethyl (2-(2-(((2-cyanoethoxy)(diisopropyl-amino)phosphino)-oxy)-
ethoxy)ethyl)carbamate (34) Exo-BCN-ethanol 33 (2.00 g, 12.2 mmol) was dissolved in anhydrous
CH2Cl2 (30 mL) and treated with (i-Pr2N)2POCH2CH2CN (4.50 mL, 14.1 mmol). A solution of
CF3CO2H (0.25 M) and 1-methylimidazole (0.50 M) in anhydrous CH2Cl2 (25.0 mL) was added
dropwise, then the reaction was stirred at RT for 3 hr. TLC (hexane-acetone, 90:10, PMA stain) shows
the complete consumption of exo-BCN-ethanol (Rf 0.25) and the appearance of a single new product
(Rf 0.70). The reaction mixture was partitioned between CH2Cl2 (50 mL) and H2O (100 mL). The
organic layer was washed with H2O (100 mL) and saturated NaHCO3 (50 mL). The organic layer was
dried over Na2SO4, filtered and concentrated at reduced pressure. Silica (70 g) was slurried in
hexane-Et3N (95:5, 170 mL) and packed into a 5 cm diameter column. The silica column was eluted
with hexanes (80 mL) before a solution of crude product in hexanes (13 mL) was applied. Elution with
hexane-acetone (97:3), collecting 50 mL fractions affords purified 34 (3.50 g, 79%) after evaporation
31
of solvent and drying under vacuum for 48 h. P NMR (500 MHz, CD3CN) δ 147.39 (s, 100%). MS
(AP+): 365 (M+H); 387 (M+Na).

Molecules 2013, 18
7357
HPLC-analysis of 6, 7 and 8
The lyophilized ONs were each dissolved in 0.1 M Et3N.HOAc-MeCN (95:5, 3 mL) for analysis by
reversed phase HPLC analysis: Stationary phase, Supelco 5 M C-18 (150 × 4.6 mm); Mobile phase
gradient 10%–35% MeCN in 0.1M TEAA over 25 minutes; Elution 1.0 mL/min; Detection 254 nm.
SPAAC reaction of 6 and 9
Oligonucleotide 6 (lyophilized product from a 0.2 mol column) was dissolved in 0.1 M
Et3N.HOAc/MeCN (90:10, v/v, 0.8 mL). This solution was passed through a 0.2 M PTFE filter into a
concentrated solution of 9 (2 mg, 4.8 mol, ~25 equivalents, dissolved in 60 L MeCN). The progress of
the SPAAC reaction was monitored by reversed phase HPLC on a C18 column (150 × 4.6 mm), eluting
at 1.0 mL/min with a gradient of 5%–35% MeCN in 0.1 M Et3N.HOAc over 30 min, recording UV
absorption at 260 nM. Excess 9 does not absorb at this wavelength and, therefore, only 6 and 10 are
visible in the chromatograms. Mass spectral analysis of the major peak corroborated the expected
formation of product 10. MS (AP+): 2521.2 (M+H).
5′-O-(4,4′-Dimethoxytriphenylmethyl)-2′-O-(9H-fluoren-9-yl-methylcarbonyl)-aminoprop-1-yl-6-N-
benzoyladenosine (12) To the solution of 5′-O-(4,4′-dimethoxytriphenylmethyl)-2′-O-azidoprop-1-yl-
6-N-benzoyladenosine 11 (750 mg, 0.99 mmol) in THF/H2O (2:1) (18 mL), trimethylphosphine
(1.5 mL, 1.5 mmol) was added. Reaction stirred at rt for 8 h and evaporated to dryness. The residue
was taken into Dioxane/H2O (1:1) (20 mL), NaHCO3 (185 mg, 2.2 mmol) was added. The reaction
mixture was cooled down to 0 °C, Fmoc-OSu (415 mg, 1.23 mmol) in dioxane (2 mL) was added drop
wise and stirred for 15 min at 0 °C. The reaction was quenched with water, extracted with CH2Cl2
(3 × 20 mL), the combined organic layer was dried over Na2SO4 and concentrated to dryness.
Flash-chromatography (CH2Cl2/acetone, 6:4, v/v), gave the desired compound (850 mg, 90%) as a
1
colorless foam. H-NMR (400 MHz, DMSO) δ 11.23 (s, 1H), 8.68 (s, 1H), 8.62 (s, 1H), 8.06 (d,
J = 7.2 Hz, 2H), 7.87 (d, J = 7.2 Hz, 2H), 7.66 (m, 3H), 7.57 (m, 2H), 7.39–7.18 (m, 14H), 6.85 (m,
4H), 6.19 (d, J = 4.8 Hz, 1H), 4.65 (m, 1H), 4.48 (m, 1H), 4.28 (d, J = 6.8 Hz, 2H), 3.71 (s, 3H),
13
3.65–3.53 (m, 2H), 3.27 (m, 2H), 3.26 (m, 2H), 1.66 (m, 2H). C-NMR (75 MHz, DMSO) δ 165.7,
158.0, 157.8, 156.1, 151.9, 151.6, 150.5, 144.8, 143.9, 143.2, 140.7, 135.6, 135.4, 133.4, 132.4, 129.7,
128.9, 128.5, 128.5, 127.8, 127.7, 127.5, 127.4, 127.0, 126.6, 125.8, 125.0, 120.1, 113.1, 112.8, 86.3,
85.5, 83.6, 80.3, 69.1, 67.7, 65.2, 63.5, 55.0, 46.8, 37.3, 29.6. (ESI+): calculated for C56H52N6O9
(M+H+): 953.3874, found 953.3866.
5′-O-(4,4′-Dimethoxytriphenylmethyl)-2′-O-(9H-fluoren-9-yl-methylcarbonyl)-aminoprop-1-yl-6-N-
benzoyladenosine-3′-O-(2-cyanoethyl N,N-diisopropylphosphoramidite) (13) Compound 12 (120 mg,
0.126 mmol) dried overnight at high vacuum, was dissolved in CH2Cl2 (2 mL) and flushed with N2
for 5 min. DIPEA (29 µL, 0.166 mmol) was added to the reaction mixture followed by
(i-Pr2N)P(OCH2CH2CN)Cl (37 µL, 0,166 mmol). The reaction was stirred for 1 h, at rt, under N2
atmosphere. It was diluted with CH2Cl2 (20 mL) and 2.5% aqueous NaHCO3 solution (10 mL) was
added. Organic layer was separated and aqueous layer was extracted with CH2Cl2 (2 × 10 mL). The
combined organic layers were dried over Na2SO4, filtered and concentrated in vacuo. The residue was

Molecules 2013, 18
7358
purified by flash chromatography (CH2Cl2/acetone, 8:2) to give the desired compound 13 (850 mg,
1
90%) as colorless foam. H-NMR (500 MHz, CDCl3) δ 8.91 (s), 8.72 (d), 8.26 (s), 8.18 (s), 7.93 (d),
7.66 (d), 7.61–7.20 (m), 6.79 (dd), 6.17 (d) 5.22 (br s), 4.74–4.62 (m), 4.44–4.28 (m), 4.20 (t), 3.78
31
(d), 3.76–3.44 (m), 3.40–3.18 (m), 2.47 (t), 2.30 (t), 1.77 (br s), 1.19–1.05 (m). P NMR (500 MHz,
CDCl3) δ 150.19, 149.84. HRMS (ESI+): calculated for C65H69N8O10P (M+H+): 1153.4918, found
1153.4952.
Synthesis of dinucleotides 16–21
Dinucleotide-CPG (Fmoc-on) (14). Solutions of 13 (140 mg, 0.12 mmol) in MeCN (1 mL) and DCI
(450 mg, 3.6 mmol) in MeCN (5.5 mL) were stored separately over 4 Å MS for 20 min, then mixed
together and introduced into the cartridge containing thymidine-CPG (300 mg). The coupling reaction
was performed for 25 min with manual mixing. The CPG was washed with MeCN (3 × 5 mL) and
dried. To which oxidizing agent (4% iodine in THF/pyridine/H2O) (2 mL) was added and mixed
manually for 30 min. The resulting CPG was washed with DMF (2 × 5 mL), MeCN (2 × 5 mL) and
dried to give dinucleotide CPG (325 mg).
Dinucleotide-CPG (Fmoc-off) (15). Dinucleotide-CPG 14 (300 mg) was treated with piperidine
(20% in DMF) (1 mL) for 20 min at rt. It was washed with DMF (2 × 1 mL), CH2Cl2 (2 × 1 mL) and
dried to give Fmoc-off CPG 15 (250 mg).
Dinucleotide (Fmoc-off) (16). Fmoc-off CPG 15 (20 mg) was treated with aq. NH4OH solution
(0.5 mL) for 12 h, 55 °C. The solution was filtered-off and dinucleotide 16 was confirmed by HPLC
and HR-MS analysis.
General procedure for the synthesis of 17–21
A solution of corresponding carboxylic acid (0.019 mmol), HATU (0.019 mmol) and NMM (5 L)
in DMF (200 L), was added to the dried Fmoc-off CPG 15. The resulting mixture was stirred for 2 h at
rt and filtered off. It was further washed with DMF (2 × 1 mL), MeCN (2 × 1 mL), CH2Cl2 (2 × 1 mL)
and dried. The corresponding coupled dinucleotides 17–21 were cleaved from CPG with aq. NH4OH
solution (0.5 mL) for 12 h, 55 °C and confirmed by HPLC and HR-MS analysis.
For 21a (DMT off). A solution of azidoacetic acid (0.019 mmol), HATU (0.019 mmol) and NMM
(5 L) in DMF (200 L), was added to the dried Fmoc-off CPG 15. The resulting mixture was stirred for
2 h at rt and filtered off. It was further washed with DMF (2 × 1 mL), CH2Cl2 (2 × 1 mL) and treated
with 1.5% TFA in CH2Cl2 for 2 min. Removal of solvent, washing of CPG with CH2Cl2 (2 × 1 mL)
and subsequent cleavage with aq. NH4OH solution (0.5 mL) for 12 h, 55 °C, afforded the azido
dinucleotide (5′-OH) 21a, as confirmed by HPLC and HR-MS analysis.
SPAAC reactions and analysis of 20 with 21 and 22
The solutions of 20 (50 mL) and 21 (100 mL) or 22 (100 mL, 1 mg/100 mL) in water were mixed
for 2 min to afford the (3+2) cycloaddition product, as confirmed by HPLC and HR-MS analysis.

Molecules 2013, 18
7359
Synthesis and conjugation of dodecamer ONs 25 and 26
CPG 23 (50 mg) was treated with piperidine (20% in DMF) (1 mL) for 25 min at rt. It was washed
with DMF (2 × 1 mL), CH2Cl2 (2 × 1 mL) and dried to give Fmoc-off CPG 24 (48 mg). A solution of
activated BCN-hydroxysuccinimide carbonate or azidoacid hydroxysuccinimide ester (0.019 mmol) in
DMF (100 L) was mixed with CPG 24 (20 mg), to which DIPEA (0.029 mmol) was added. The
resulting mixture was stirred for 12 h at rt and filtered off. It was further washed with DMF (2 × 1 mL),
MeCN (2 × 1 mL), CH2Cl2 (2 × 1 mL) and dried. The corresponding ON-conjugates were cleaved
from CPG with aq. NH4OH solution (0.5 mL) for 12 h, 55 °C. Purification on Sep-pak cartridge
afforded the ON-conjugates 25 or 26, respectively, as confirmed by HPLC and MALDI-TOF analysis.
Dimerization of 25 and 26 to give 27
The solutions of 25 (50 L, 28 nmol) and 26 (70 L, 32 nmol) in water were mixed for 20 min to afford
the (3+2) cycloaddition product 27, as confirmed by HPLC (Figure S3) and MALDI-TOF analysis.
Preparation of 28
Bromoterminated poly(3-hexyl thiophene) (Mn = 3000, PDI = 1.35) was reacted with excess
amount of sodium azide in CH2Cl2 overnight. After precipitation in MeOH and drying, azide-terminated
P3HT 28 was obtained as product. FT-IR (cm−1): 3052 (γ-C=CH, aromatic), 2952-2854 (γ-C-H aliphatic) 2085
(γ-N3), 1509 (γ-C=C, asym ring), 1456 (γ-C=C, sym ring), 1376 (γ-CH3, deformation), 821 (γ-C-H, aromatic, out-of-plane) and
725 (γ-CH2, rocking).
Conjugation of 26 to polymer 28
Solution of P3HT-azide 28 (1mg /10 mL, in CH2Cl2) was stirred with aqueous slution of BCN
conjugated ON 26 for 24 h at room temperature to get P3HT-ON bioconjugate. Aqueous layer treated
several times with DCM to wash out unreacted P3HT.
Preparation of 29
Solution of P3HT-azide 28 (1 mg/10 mL, in CH2Cl2) was stirred with aqueous slution of BCN
conjugated ON 26 for 24 h at room temperature to get P3HT-ON bioconjugate. Aqueous layer treated
several times with DCM to wash out unreacted P3HT.
4. Conclusions
We have successfully demonstrated the suitability of BCN and derivatives thereof for the
preparation of oligonucleotide conjugates by (3+2) cycloaddition with azides. Several BCN-derived
phosphoramidites were prepared and incorporated into oligonucleotides with high yield and purity. In
addition, an Fmoc-protected 2′-modified adenosine derivative, prepared in only 6 steps from
adenosine, served as a versatile building block for both solution and solid phase ON synthesis, thereby
allowing the introduction of a functional group at any adenosine during or after oligonucleotide
synthesis, and potential extension to other nucleobases (research in progress). The BCN-containing

Molecules 2013, 18
7360
oligonucleotides were found to undergo fast SPAAC functionalization or dimerization, and were even
suitable for conjugation to lipophilic polymers. The coupling of oligonucleotide to azide-substituted
polythiophene opens the possiblity for the construction of a variety of simple field effect transistor
biodevices in which sequence specific ON functionalized conjugated polymers are the key component.
In a broader context, we have demonstrated the unique combination of reaction efficiency and
selectivity of cyclooctyne-based chemistry for the conjugation of sensitive (bio)molecules in aqueous
systems, which may be readily extended toward the conjugation of BCN-oligonucleotides to azide-
containing solid surfaces, polymers and large proteins. Finally, we [39] and others [40,41] recently
demonstrated that cycloadditions of BCN is not limited to azides, but BCN also undergoes extremely
fast strain-promoted inverse-electron-demand Diels-Alder cycloaddition (SPIEDAC) with tetrazines.
In contrast, benzofused cyclooctynes DBCO and DIBO are inreactive towards tetrazine [42], which
further lifts the potential of BCN-modified oligonucleotides for fast and selective bioconjugations,
potentially also in vivo [43]. Research along this line, as well as extension of the strategy towards other
2′-O-alkylated nucleobases, is currently ongoing in our laboratory.
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/18/7/7346/s1.
Acknowledgments
This work was financially supported by the Netherlands Organisation for Scientific Research
(NWO, ECHO 700.57.015).
Conflict of Interest
The authors declare no conflict of interest.
References
1. Pollack, J.R. DNA microarray technology. Introduction. Methods Mol. Biol. 2009, 556, 1–6.
2. Dagle, J.M.; Weeks, D.L. Oligonucleotide-based strategies to reduce gene expression. Differentiation
2011, 69, 75–82.
3. El-Sagheer, A.H.; Brown, T. Click nucleic acid ligation: Applications in biology and nanotechnology.
Acc. Chem. Res. 2012, 45, 1258–1267.
4. Sacca, B.; Niemeyer, C.M. Functionalization of DNA nanostructures with proteins. Chem. Soc. Rev.
2011, 40, 5910–5921.
5. Niemeyer, C.M. Semisynthetic DNA-Protein Conjugates for Biosensing and Nanofabrication.
Angew. Chem. Int. Ed. 2010, 49, 1200–1216.
6. Weisbrod, S.H.; Marx, A. Novel strategies for the site-specific covalent labelling of nucleic acids.
Chem. Commun. 2001, 5675–5685.
7. Lönnberg, H. Solid-phase synthesis of oligonucleotide conjugates useful for delivery and targeting
of potential nucleic acid therapies. Bioconj. Chem. 2009, 20, 1065–1094.

Molecules 2013, 18
7361
8. Singh, Y.; Murat, P.; Defrancq, E. Recent developments in oligonucleotide conjugation.
Chem. Soc. Rev. 2010, 39, 2054–2070.
9. Lu, K.; Duan, Q.-P.; Ma, L.; Zhao, D.-X. Chemical strategies for the synthesis of
peptide-oligonucleotide conjugates. Bioconj. Chem. 2010, 21, 187–202.
10. Singh, Y.; Spinelli, N.; Defrancq, E. Chemical strategies for oligonucleotide-conjugates synthesis.
Curr. Org. Chem. 2008, 12, 263–290.
11. Tornøe, C.W.; Christensen, C.; Meldal, H. Peptidotriazoles on solid phase: [1,2,3]-Triazoles by
regiospecific copper(I)-catalyzed 1,3-dipolar cycloadditions of terminal alkynes to azides. J. Org.
Chem. 2002, 67, 3057–3064.
12. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A stepwise Huisgen cycloaddition
process: Copper(I)-catalyzed regioselective “ligation” of azides and terminal alkynes.
Angew. Chem. Int. Ed. 2002, 41, 2596–2599.
13. Kanan, M.W.; Rozenman, M.M.; Sakurai, K.; Snyder, T.M.; Liu, D.R. Reaction discovery
enabled by DNA-templated synthesis and in vitro selection. Nature 2004, 431, 545–549.
14. Seela, F.; Pujari, S.S. Azide-Alkyne “Click” Conjugation of 8-Aza-7-deazaadenine-DNA:
Synthesis, Duplex Stability and Fluorogenic Dye Labelling. Bioconj. Chem. 2010, 21, 1629–1641.
15. Yamada, T.; Peng, C.G.; Matsuda, S.; Addepalli, H.; Jayaprakash, K.N.; Alam, M.R.; Mills, K.;
Maier, M.A.; Charisse, K.; Sekine, M.; et al. Versatile site-specific conjugation of small molecules
to siRNA using click chemistry. J. Org. Chem. 2001, 76, 1198–1211.
16. Soriano del Amo, D.; Wang, W.; Jiang, H.; Besanceney, C.; Yan, A.C.; Levy, M.; Liu, Y.;
Marlow, F.L.; Wu, P. Biocompatible copper(I) catalysts for in vivo imaging of glycans. J. Am.
Chem. Soc. 2010, 132, 16893–16899.
17. Kennedy, D.C.; McKay, C.S.; Legault, M.C.B.; Danielson, D.C.; Blake, J.A.; Pegoraro, A.F.;
Stolow, A.; Mester, Z.; Pezacki, J.P. Cellular consequences of copper complexes used to catalyze
bioorthogonal click reactions. J. Am. Chem. Soc. 2011, 133, 17993–18001.
18. Eltepu, L.; Jayaraman, M.; Rajeev, K.G.; Manoharan, M. An immobilized and reusable Cu(I)
catalyst for metal ion-free conjugation of ligands to fully deprotected oligonucleotides through
click reaction. Chem. Commun. 2013, 49, 184–186.
19. Jayaprakash, K.N.; Geng Peng, C.; Butler, D.; Varghese, J.P.; Maier, M.A.; Rajeev, K.G.;
Manoharan, M. Non-nucleoside building blocks for copper-assisted and copper-free click
chemistry for the efficient synthesis of RNA conjugates. Org. Lett. 2010, 12, 5410–5413.
20. Van Delft, P.; Meeuwenoord, N.J.; Hoogendoorn, S.; Dinkelaar, J.; Overkleeft, H.S.;
van der Marel, G.A.; Filippov, D.V. Synthesis of oligoribonucleic acid conjugates using a
cyclooctyne phosphoramidite. Org. Lett. 2010, 12, 5486–5489.
21. Marks, I.S.; Sung Kang, J.; Jones, B.T.; Landmark, K.J.; Cleland, A.J.; Taton, T.A.
Strain-promoted “click” chemistry for terminal labeling of DNA. Bioconj. Chem. 2011, 22,
1259–1263.
22. Shelbourne, M.; Chen, X.; Brown, T.; Al-Sagheer, A.H. Fast copper-free click DNA ligation by
the ring-strain promoted alkyne-azide cycloaddition reaction. Chem. Commun. 2011, 47, 6257–6259.
23. Santoshkumar, L.K.; Kang, J.S.; Mullen, D.G.; Hast, M.A.; Beese, L.S.; Distefano, M.D.;
Taton, T.A. Covalent protein-oligonucleotide conjugates by copper-free click reaction.
Bioorg. Med. Chem. 2012, 20, 4532–4539.

Molecules 2013, 18
7362
24. Ning, X.; Guo, J.; Wolfert, M.A.; Boons, G.-J. Visualizing metabolically labeled glycoconjugates
of living cells by copper-free and fast Huisgen cycloadditions. Angew. Chem. Int. Ed. 2008, 47,
2253–2255.
25. Richardson, J.A.; Gerowska, M.; Shelbourne, M.; French, D.; Brown, T. Six-colour HyBeacon
probes for multiplex genetic analysis. ChemBioChem 2010, 11, 2530–2533.
26. Shelbourne, M.; Brown, T. El-Sagheer, A.H.; Brown, T. Fast and efficient DNA crosslinking
and multiple orthogonal labelling by copper-free click chemistry. Chem. Commun. 2012, 48,
11184–11186.
27. Lietard, J.; Meyer, A.; Vasseur, J.J.; Morvan, F. An efficient reagent for 5'-azido oligonucleotide
synthesis. Tetrahedr. Lett. 2007, 48, 8795–8798.
28. Miller, G.P.; Kool, E.T. Versatile 5′-functionalization of oligonucleotides on solid support:
Amines, azides, thiols, and thioethers via phosphorus chemistry. J. Org. Chem. 2004, 69,
2404–2410.
29. Kumar, R.; El-Sagheer, A.H.; Tumpane, J.; Lincoln, P.; Wilhelmsson, L.M.; Brown, T.
Template-directed oligonucleotide strand ligation, covalent intramolecular DNA circularization
and catenation using click chemistry. J. Am. Chem. Soc. 2007, 129, 6859–6864.
30. Lartia, R.; Murat, P.; Dumy, P.; DeFrancq, E. Versatile introduction of azido moiety into
oligonucleotides through diazo transfer reaction. Org. Lett. 2011, 13, 5672–5675.
31. Wada, T.; Mochizuki, A.; Higashiya, S.; Tsuruoka, H.; Kawahara, S.; Ishikawa, M.; Sekine, M.
Synthesis and properties of 2-azidodeoxyadenosine and its incorporation into oligodeoxynucleotides.
Tetrahedr. Lett. 2001, 42, 9215–9219.
32. Kiviniemi, A.; Virta, R.; Lönnberg, H. Utilization of intrachain 4′-C-azidomethylthymidine for
preparation of oligodeoxyribonucleotide conjugates by click chemistry in solution and on a solid
support. Bioconj. Chem. 2008, 19, 1726–1734.
33. Aigner, M.; Hartl, M.; Fauster, K.; Steger, J.; Bister, K.; Micura, R. Chemical synthesis of
site-specifically 2′-azido-modified RNA and potential applications for bioconjugation and RNA
interference. ChemBioChem 2011, 12, 47−51.
34. Fauster, K.; Hartl, M.; Santner, T.; Aigner, M.; Kreutz, C. Bister, K.; Ennifar, E.; Micura, R.
2′-Azido RNA, a versatile tool for chemical biology: Synthesis, X-ray structure, siRNA
applications, click labeling. ACS Chem. Biol. 2012, 7, 581–589.
35. Dommerholt, J.; Schmidt, S.; Temming, R.; Hendriks, L.J.A.; Rutjes, F.P.J.T.; van Hest, J.C.M.;
Lefeber, D.J.; Friedl, P.; van Delft, F.L. Readily accessible Bicyclononynes for bioorthogonal
labeling and three-dimensional imaging of living cells. Angew. Chem. Int. Ed. 2010, 49,
9422–9425.
36. Debets, M.F.; van Berkel, S.S.; Dommerholt, J.; Dirks, A.J.; Rutjes, F.P.J.T.; van Delft, F.L.
Bioconjugation with strained alkenes and alkynes. Acc. Chem. Res. 2011, 44, 805–815.
37. Smith, M.B.; March, J. March’s Advanced Organic Chemistry, 5th ed.; Wiley: Hoboken, NJ,
USA, 2001; pp. 222–225.
38. Jawalekar, A.M.; Meeuwenoord, N.; Cremers, J.G.O.; Overkleeft, H.S.; van der Marel, G.A.;
Rutjes, F.P.J.T.; van Delft, F.L. Conjugation of nucleosides and oligonucleotides by [3+2]
cycloaddition. J. Org. Chem. 2008, 73, 287–290.

Molecules 2013, 18
7363
39. Borrmann, A.; Milles, J.; Plass, T.; Dommerholt, J.; Verkade, J.M.M.; Wießler, M.; Schultz, C.J.;
van Hest, C.M.; van Delft, F.L.; Lemke, E.A. Genetic Encoding of a bicyclo[6.1.0]nonyne-
charged amino acid enables fast cellular protein imaging by metal-free ligation. ChemBioChem
2012, 13, 2094–2099.
40. Chen, W.; Wang, D.; Dai, C.; Hamelberg, D.; Wang, B. Clicking 1,2,4,5-tetrazine and cyclooctynes
with tunable reaction rates. Chem. Commun. 2012, 48, 1736–1738.
41. Lang, K.; Davis, L.; Wallace, S.; Mahesh, M.; Cox, D.J.; Blackmann, M.L.; Fox, J.M.; Chin, J.W.
Genetic encoding of bicyclononynes and trans-cyclooctenes for site-specific protein labeling
in vitro and in live mammalian cells via rapid fluorogenic Diels-Alder reactions. J. Am. Chem.
Soc. 2012, 134, 10317–10320.
42. Plass, T.; Milles, S.; Koehler, C.; Schultz, C.; Lemke, E.A. Genetically encoded copper-free click
chemistry. Angew. Chem. Int. Ed. 2012, 51, 4166–4170.
43. Rossin, R.; Renart Verkerk, P.; van den Bosch, S.; Vulders, R.; Verel, I.; Lub, J.; Robillard, M.
In vivo chemistry for pretargeted tumor imaging in live mice. Angew. Chem. Int. Ed. 2012, 49,
3375–3378.
Sample Availability: Samples of the compounds 1, 2, 6, 7, 10, 30, 33, 34 are available from the authors.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
