The effects of phenyl-bridged glucosyltriazolyl groups on the
properties of water-soluble diarylethene derivatives
*
Shouzhi Pu , Hongliang Liu, Gang Liu, Bing Chen, Zhipeng Tong
Jiangxi Key Laboratory of Organic Chemistry, Jiangxi Science & Technology Normal University, Nanchang 330013, PR China
a r t i c l e i n f o
a b s t r a c t
Article history:
Three water-soluble diarylethenes with glycosyltriazolyl groups and variable phenyl units have been
synthesized, and their properties, such as water solubility, photochromism, and fluorescence have been
discussed. Upon alternating irradiation with UV and visible light, each of the diarylethenes exhibited
favorable photochromism and functioned as fluorescent switches in water. Experimental results showed
that their water solubility as well as absorption features, cyclization quantum yields, photoconversion
ratios, thermal stability, and fatigue resistance exhibited a strong correlation with the number of phenyl-
bridged glucosyltriazolyl groups in diarylethene systems. The absorption maximum, thermal stability,
and fatigue resistance were significantly improved, but the water solubility and fluorescent modulation
efficiency were suppressed with the increase of the number of phenyl-bridged glucosyltriazolyl groups
for these diarylethene derivatives.
Received 9 September 2013
Received in revised form 16 November 2013
Accepted 12 December 2013
Available online 17 December 2013
Keywords:
Diarylethene
Glycosyltriazolyl group
Water solubility
Photochromism
Fluorescence
Ó 2013 Elsevier Ltd. All rights reserved.
1. Introduction
light in aqueous solution.10a,15 For example, Yi and co-workers
prepared
a new amphiphilic diarylethene, which exhibited
Organic photochromic molecules have gained much attention
for potential applications in optical memories and photo-
switches.1e3 In recent decades, considerable attention has been
focusing on photochromic diarylethenes due to high conversion
efficiency of reversible photochromic reactivity, excellent thermal
stability of both isomers, and remarkable fatigue resistance.4e7 On
one hand, diarylethenes have shown great promise as new mate-
rials for optoelectronic devices and molecular switches.8e12 On the
other hand, their biological applications have not yet been exten-
sively explored, although a few precedent works have been re-
ported.13 For biological applications, it is necessary for
diarylethenes to undergo photocyclization and cycloreversion re-
actions in aqueous solution. Solubility in water is a very important
property to be applied in biological fields, such as biosensors or
drug deliveries. However, most of the reported works are carried
out in organic systems, including the newly developed fluorescent
photochromic diarylethenes for labeling biomolecules.14 During
the past decade, much effort has been focusing on designing and
synthesizing water-soluble diarylethenes, since they have potential
applications in biological field.
switchable fluorescence and formed stable vesicle nanostructures
in aqueous solution.15a Irie and co-workers synthesized diary-
lethene derivatives with hexaethylene glycol side chains and in-
vestigated their self-assembling photochromic behavior in organic
solvents and water.10a,15b,c But their solubility in water was rela-
tively small and the aqueous solutions easily turned turbid upon
heating. Irie and co-workers also developed a simple non-covalent
approach to improve the water solubility of the perfluorinated
diarylethenes.15e The water-insoluble diarylethenes could be en-
capsulated into a water-soluble nanocavitand to induce photo-
chromic performance in aqueous solution. However, this method is
not easy to achieve due to its difficulty in selecting a perfect cav-
itand for each diarylethene molecule. In order to capsulate hydro-
phobic diarylethenes into a cavitand, the entrance diameter and
volume of cavitand should be very large. Belov and co-workers
reported a water-soluble photochromic diarylethene, but the syn-
thetic method was very complex and the total yield was only about
3%.15f As mentioned above, it is strongly desired to develop simple
methods to explore new photochromic systems with good water
solubility.
So far, several amphiphilic photochromic diarylethenes exhibi-
ted favorable photochromism upon irradiation with UV and visible
In a previous work, we have reported that a diarylethene with
two glucosyltriazolyl groups exhibited favorable photochromism in
both water and a PMMA solid film.16 The result inspired us to do
a consecutive research in this work. We have a strong desire
to understand what the relationship is between the molecular
structures and the water solubility of diarylethenes with
* Corresponding author. Tel./fax: þ86 791 83831996; e-mail address: pushouzhi@
tsinghua.org.cn (S. Pu).
0040-4020/$ e see front matter Ó 2013 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.tet.2013.12.037

S. Pu et al. / Tetrahedron 70 (2014) 852e858
853

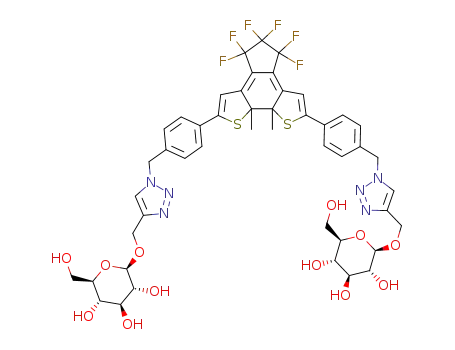

glucosyltriazolyl groups. Therefore, three diarylethenes (1oe3o)
with glucosyltriazolyl groups were synthesized to investigate the
effects of phenyl-bridged glucosyltriazolyl groups on the properties
of these diarylethene derivatives. All of these diarylethene de-
rivatives showed favorable photochromism in both aqueous solu-
tion and PMMA amorphous films. The photochromic reactions of
1oe3o are shown in Scheme 1.
CHN 2400 analyzer. Fluorescent spectra were measured using
a Hitachi F-4500 fluorimeter. Absorption spectra were measured
using an Agilent 8453 UV/vis spectrophotometer. Photoirradiation
was carried out using an SHG-200 UV lamp, CX-21 ultraviolet
fluorescence analysis cabinet, and a BMH-250 Visible lamp. The
required wavelength was isolated by the use of the appropriate
filters. The quantum yields of cyclization/cycloreversion were de-
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
HO
HO
OH
OH
S
S
S
S
N
N
N
N
N
N
O
O
N
N
N
N
O
O
1o
1c
O
O
O
N
O
N
OH
OH
OH
OH
HO
HO
HO
HO
HO
HO
OH
OH
F
F
F
F
F
F
F
F
F
F
OH
OH
HO
HO
S
S
S
S
N
N
N
N
N
N
O
O
N
N
UV
Vis
N
O
N
O
O
O
N
OH
OH
N
OH
OH
O
2o
O
HO
HO
2c
HO
HO
HO
HO
OH
OH
F
F
F
F
F
F
F
F
F
F
HO
HO
OH
OH
S
S
S
N
N
N
S
N
N
N
O
N
N
O
O
N
O
N
O
O
O
O
HO
N
OH
OH
HO
N
OH
OH
3c
3o
HO
HO
OH
OH
HO
HO
