Figure 1. The position of the electrodes in the cell.
Figure 2. Cyclic voltammograms of 4BP (1.0 mM): (a) in the absence and
(b) in the presence of 2MB (1.0 mM) and, (c) cyclic voltammogram of 2MB
(1.0 mM) in the absence of 4BP, at a glassy carbon electrode, in aqueous
perchloric acid (c = 0.1 M)/ethanol mixture (50/50 v/v). Scan rate: 100 mV
of the electrolysis was checked by TLC using n-hexane/ethyl acetate
(50:50) as eluent. The process was interrupted during the electrolysis
and the carbon anode was washed in acetone in order to reactivate
it. At the end of electrolysis, the solution neutralized with a saturated
sodium bicarbonate solution. The crude product was separated by fil-
tration and was washed several times with cold water and dried. The
products were characterized by their physical and spectroscopic data.
s
−1. t = 25 1◦C.
appears at more positive potentials. In addition under these conditions
a new anodic peak AN appears at less positive potentials. From these
data it can be concluded that a chemical reaction follows the electron
transfer process.
The effects of the 2MB on the cyclic voltammogram 4BP disap-
pear when the potential scan rate significantly increases. Under these
conditions, anodic and cathodic peaks A2 and C2 disappear and the
peak current ratio (IpC1/IpA1) becomes about one. The data confirm
that peaks A2 and C2 belong to the product of the reaction of 2MB
with 4BPox. Another result that can be obtained from this figure is
that, the product is more difficult to oxidize than the starting material
(4BP) which shows that the 2MB added to the 4BP plays the role
of an electron withdrawing group. A literature survey shows that, the
oxidation potential of catechol thioethers are lower than those of par-
ent catechols, would cause greater oxidative damage than their parent
catechols.34 Accordingly, the adduct formed from the reaction of 2MB
with 4BPox mediated less oxidative damage than 4BP.
In Fig. 2, curve c is the cyclic voltammogram of 2MB in the
absence of 4BP. It exhibited anodic (AN) and cathodic (CN) peaks at
0.51 and 0.31 V vs. Ag/AgCl, respectively. The anodic peak, AN, can
be attributed to the oxidative dimerization of 2MB via the formation
of sulfur-sulfur bond.35 Comparison of voltammogram 2MB (curve c)
with voltammogram 4BP in the presence of 2MB (curve b) confirms
that the anodic peak observed at about 0.51 V is due to the anodic
oxidation of 2MB.
The constant current electrolysis and voltammetry of the elec-
trolyzed solution can give us more information. The constant current
electrolysis of 4BP (0.25 mmol) in the presence of 2MB (0.25 mmol)
was performed in aqueous perchloric acid solution (40 ml, c =
0.1 M)/ethanol (40 ml) (50/50 v/v) at J = 0.35 mA/cm2. The electrol-
ysis progress was monitored using linear sweep voltammetry (Fig. 3).
As shown, during the electrolysis progress, the current of the anodic
peaks AN and A1 decrease and finally disappear after consumption of
about 2e− per molecule of 4BP. It should be noted that the number of
transferred electrons (n = 2) has also been confirmed using controlled
potential coulometry.
The electrochemical results and spectroscopic data of the isolated
electrolysis product (for example, the molecular mass of 334) all point
out to product P1 which might have been formed according to the
pathway shown in Scheme 1. Accordingly, the first step would be the
electrochemical generation of 4BPox. The second step, would be the
reaction of 4BPox with 2MB and the formation of intermediate, BPMB
and the third step, is the aromatization of BPMB and the formation of
final product P1. The greater oxidation of P1 along with its insolubility

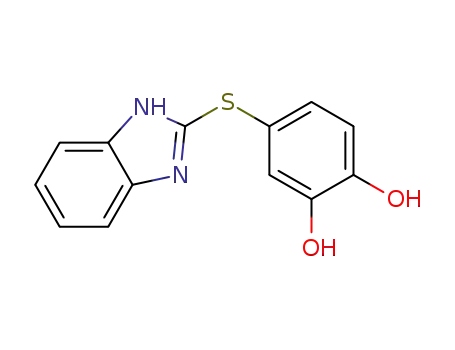

4-((1H-benzo[d]imidazol-2-yl)thio)benzene-1,2-
3-((1H-benzo[d]imidazol-2-yl)thio)-5-(tert-
butyl)benzene-1,2-diol
diol
Characteristics of P2.—Isolated yield: 51%. M.p = 208–210◦C
(Dec). 1H NMR (300 MHz, DMSO-d6) δ (ppm): 6.83 (d, J = 8.2 Hz,
1H, aromatic), 6.93 (dd, J = 2.1 and 8.1 Hz, 1H, aromatic), 6.99 (d,
J = 2.1 Hz, 1H, aromatic), 7.13 (dd, J = 3 and 6 Hz, 2H, aromatic),
7.45 (dd, J = 3 and 6 Hz, 2H, aromatic), 9.42 (2H, OH), 12.3 (broad,
1H, NH). 13C NMR (75 MHz, DMSO-d6) δ (ppm): 114.8, 117.1,
117.9, 121.4, 122.2, 125.9, 140.0, 146.6, 147.5, 150.1. IR (KBr) ν
(cm−1): 3265 (medium, O-H), 1596 (medium, C=C), 1511 (medium,
C=C), 1404, 1271, 1121, 989, 809,588. MS (EI, 70 eV) m/z (relative
intensity): 258 (M, 100), 257 (100), 197 (9), 150 (21), 106 (15), 63 (9).
Characteristics of P3 .—Isolated yield: 71%. M.p = 187–189◦C
(Dec). 1H NMR (300 MHz, DMSO-d6) δ (ppm): 1.19 (s, 9H, aliphatic),
6.79 (d, J = 2.1 Hz, 1H, aromatic), 6.90 (d, J = 2.1 Hz, 1H, aromatic),
7.15 (dd, J = 3 and 5.8 Hz, 2H, aromatic), 7.45 (s, 2H, aromatic), 9.44
(2H, OH), 12.49 (broad band, 1H, NH). 13C NMR (75 MHz, DMSO-
d6) δ (ppm): 31.7, 34.2, 114.5, 115.9, 120.5, 122.2, 142.5, 143.9,
146.2, 149. IR (KBr) ν (cm−1): 3437 (medium, N-H), 3301(medium,
O-H), 2962 (medium, C-H), 1570 (medium, C=C), 1483 (medium,
C=C), 1412, 1285, 1233, 960, 743, 615. MS (EI, 70 eV) m/z (relative
intensity): 314 (M, 48), 299 (84), 150 (100), 91 (64), 41 (67).
Results and Discussion
Electrochemical study of 4BP .—The cyclic voltammogram of
4BP in aqueous perchloric acid (c = 0.1 M)/ethanol mixture (50/50
v/v) is shown in Fig. 2a. It shows an anodic peak A1 in the positive-
going scan and a corresponding cathodic peak C1 in the negative-
going scan. These peaks are assigned to the oxidation of 4BP
to 4,4’-diphenoquinone (4BPox) and reduction of 4BPox to 4BP,
respectively.33 Comparison of Fig. 2a with that of 4BP in the presence
of 2MB (Fig. 2b) shows that the cathodic peak C1 decreases signif-
icantly and a new anodic peak A2 and its cathodic counterpart (C2)
