Inorg. Chem. 1997, 36, 764-769
Ar ticles
Synthesis and Excited State Raman Spectroscopy of Sterically Crowded Ruthenium(II)
Octaethyltetraphenylporphyrin
S. E. Vitols,† J. Scott Roman, Daniel E. Ryan,‡ Milton E. Blackwood, Jr., and
Thomas G. Spiro*
Department of Chemistry, Princeton University, Princeton, New Jersey 08544-1009
ReceiVed June 27, 1996X
Pyridine and CO adducts of RuIIOETPP (OETPP ) 2,3,7,8,12,13,17,18-octaethyl-5,10,15,20-tetraphenylporphinato)
have been prepared and characterized by absorption and resonance Raman (RR) spectroscopy. Ru f porphyrin
back-bonding is evident from the ground state RR spectra. Skeletal mode frequency downshifts in RuIIOETPP-
(Py)2 relative to RuIIOETPP(CO)(Py) are comparable to those seen for the TPP (tetraphenylporphyrin) and OEP
(octaethylporphyrin) analogs, indicating that distortion of the porphyrin ring from substituent crowding has little
effect on the extent of back-bonding. Photoexcited RuIIOETPP(Py)2 has absorption and RR spectra which are
similar to those of RuIITPP(Py)2 and are characteristic of a (dπ,π*) charge transfer state. As for RuIITPP(Py)2,
the photoexcited RR spectrum has features indicating porphyrin anion formation and does not have pyridine
anion features, as have been observed for photoexcited RuIIOEP(Py)2. The ethyl substituents raise the porphyrin
eg* orbital above the lowest pyridine π* orbital in RuIIOEP(Py)2, but not in RuIIOETPP(Py)2, for which the effect
of the phenyl substituents is dominant.
Introduction
The highly distorted dodecasubstituted porphyrins have
attracted much interest1-3 as model systems for studying the
effects of nonplanar conformational distortions on the biological
properties of the tetrapyrroles found in the photosynthetic
reaction center of Rhodopseudomanas Viridis4,5 and the antenna
system of Prosthecochloris Viridis.6 In the models, steric
crowding of the peripheral substituents takes the place of
environmental influences from the surrounding protein in the
photosynthetic systems7 and permits systematic exploration of
the electronic effects of out-of-plane distortions.
The steric clash of substituents at the meso and pyrrole â
positions (Figure 1) can produce ruffled or saddle-shaped
porphyrins.1,2 The lowered symmetry increases the complexity
* To whom correspondence should be addressed.
† Present address: CST-4 MS J586 TA-46, Spectroscopy and Biophysics
Group, Los Alamos National Laboratory, Los Alamos, NM 87545.
‡ Present address: Department of Biology, California Institute of
Technology, Pasadena, CA 91125.
X Abstract published in AdVance ACS Abstracts, February 1, 1997.
(1) (a) Barkigia, K. M.; Berber, M. D.; Fajer, J.; Medforth, C. J.; Renner,

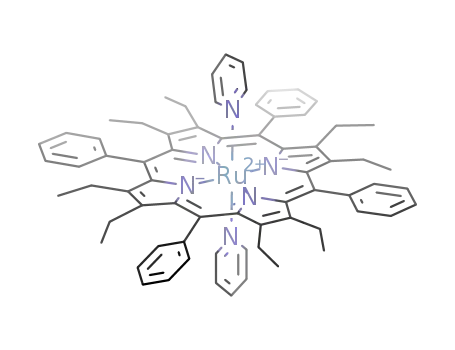

Figure 1. Structural diagram for RuIIOETPP.
