A convenient approach to arenediazonium tosylates

Article abstract of DOI:10.1016/j.dyepig.2020.108726

Herein we present a mild, simple and environmentally friendly diazotization protocol of aromatic and heteroaromatic anilines into stable diazonium salts that surpass previously reported procedures. The reaction proceeds with tert-butyl nitrite in the presence of an equimolar amount or small excesses of p-toluenesulfonic acid in ethyl acetate, at room temperature. o-Phenylenediamines yield benzotriazolium tosylates. The resulting diazonium tosylates proved to be bench stable over a long period of time. In selected examples, diazonium salts were let to react with activated aromatic compounds including 2-naphthol and aniline derivatives into the corresponding azo dyes.

Full text of DOI:10.1016/j.dyepig.2020.108726

Journal Pre-proof
A Convenient Approach to Arenediazonium Tosylates
Mateja Mihelač, Ana Siljanovska, Janez Košmrlj
PII:
S0143-7208(20)31423-6
DOI:
https://doi.org/10.1016/j.dyepig.2020.108726
DYPI 108726
Reference:
To appear in: Dyes and Pigments
Received Date: 10 May 2020
Revised Date: 5 June 2020
Accepted Date: 19 July 2020
Please cite this article as: Mihelač M, Siljanovska A, Košmrlj J, A Convenient Approach to
Arenediazonium Tosylates, Dyes and Pigments, https://doi.org/10.1016/j.dyepig.2020.108726.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2020 The Author(s). Published by Elsevier Ltd.

CRediT authorship contribution statement
Mateja Mihelač: Methodology, Investigation, Writing - original draft.
Ana Siljanovska: Methodology, Investigation, Writing - original draft.
Janez Košmrlj: Conceptualization, Supervision, Funding acquisition, Writing - review & editing.

1
A Convenient Approach to Arenediazonium Tosylates
2
3
Mateja Mihelač#, Ana Siljanovska#, Janez Košmrlj*
Faculty of Chemistry and Chemical Technology, University of Ljubljana, Večna pot 113,
SI-1000, Ljubljana, Slovenia
4
5
6
7
# The authors contributed equally
8
*Corresponding author: janez.kosmrlj@fkkt.uni-lj.si
9
10
11
12
13
14
15
16
17
18
19
20
Abstract
Herein we present a mild, simple and environmentally friendly diazotization protocol of aromatic
and heteroaromatic anilines into stable diazonium salts that surpass previously reported
procedures. The reaction proceeds with tert-butyl nitrite in the presence of an equimolar amount
or small excesses of p-toluenesulfonic acid in ethyl acetate, at room temperature. o-
Phenylenediamines yield benzotriazolium tosylates. The resulting diazonium tosylates proved to
be bench stable over a long period of time. In selected examples, diazonium salts were let to

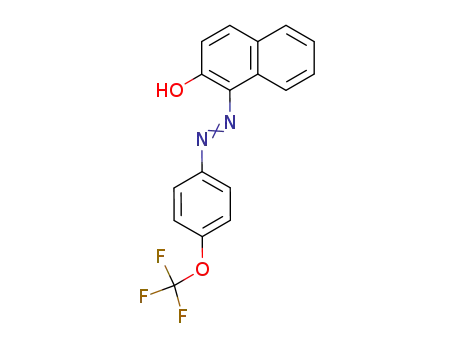

react with activated aromatic compounds including 2-naphthol and aniline derivatives into the
corresponding azo dyes.
Keywords: Diazotization, Diazonium salts, Azo compounds, p-Toluenesulfonic acid
21
22
23
1. Introduction
Aromatic diazonium salts are highly important building blocks in many fields of
24
synthetic organic chemistry. Since their discovery by Griess [1] in 1858 these compounds have
1

25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
played a role in named reactions including Sandmeyer, [2] Gomberg-Bachmann [3], Balz-
Schiemann [4], and Meerwein [5], to name just a few. Wide utility in the synthesis of industrially
important chromophores [6], modification of polymer, and nano-materials [7–10] as well as
syntheses of new metallic and non-metallic materials are well documented [11,12]. Aromatic
diazonium salts are excellent electrophiles or proelectrophiles, either directly through nitrogen
coupling, or by releasing a dinitrogen molecule to form in situ aryl carbocation species.
Noteworthy is their application in palladium catalyzed carbon-carbon and carbon-heteroatom
coupling reactions, in which their “superelectrophilicity” is recognized as an advantage over aryl
halides [13,14]. This high reactivity has enabled development of new metal-free carbon-carbon
bond forming reactions [15,16]. Coupling reactions that involve diazonium salts as nitrogen
electrophiles are crucial for the preparation of triazenes, potential antitubercular and antitumor
agents [17,18,19] and synthetic equivalents of amines and diazonium salts [20,21]. Several
radical reactions with diazonium salts are also well known and established as major pathways to
synthetically useful molecules [22,23]. An extremely important industrial application of
diazonium salts is the preparation of azo compounds, well known for their uses as organic dyes
and pigments, pharmaceutical agents and food additives [24].
The propensity of aryl diazonium salts to undergo uncontrolled dediazotization pathways
makes them unstable and potentially explosive. The stability is governed by the nature of
substituents present at the aromatic ring with those having strongly electron-withdrawing
character being less stable. In addition, also the access to those salts is more challenging because
diazotization of weakly basic amines is difficult due to their low reactivity and solubility. In
industrial process, the diazotization of weakly basic amines with sodium nitrite is conducted in
the presence of large excess quantities of concentrated sulfuric acid as a solvent rising economic,
2

48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
environmental and safety concerns. It produces high acid content wastewater. The strong dilution
heat effect of concentrated sulfuric acid during the addition of sodium nitrite solution demands
efficient cooling of the reaction mixture to control the temperature of the process. The above
makes aryl diazonium salts with two or three strong electron-withdrawing functional groups,
highly important for the preparation of deep-shade disperse azo dyes with excellent color
fastnesses, challenging. The stability of diazonium salts can be greatly increased by the choice of
counterions such as tetrafluoroborate, hexafluorophosphates, or disulfonimide [25].
Recently, Tang and co-workers reported the synthesis of stable solid diazonium salts of
weakly basic amines through diazotization by tert-butyl nitrite in the presence of excess amounts
of 1,5-naphthalenedisulfonic acid as a proton donor and stabilizer of diazonium salts [24].
Although showing excellent stability profile, the obtained products existed as mixtures of mono-
and di-aryldiazonium 1,5-naphthalenedisulfonates in the ratio that could not be predicted and/or
controlled. Despite the mild reaction conditions used, with ethyl acetate as the reaction solvent,
at room temperature, the relatively high price of 1,5-naphthalenesulfonic acid and undefined
product composition render this method less attractive.
Arenediazonium tosylates reported by Filimonov, Chi and co-authors also exhibit great
high thermal stability. However, although their procedure involves diazotization of anilines in
the presence of cheaper p-toluenesulfonic acid, it utilizes polymer-supported nitrite [26]. The
later was prepared by treating ion exchange of porous tetramethylammonium hydroxide resin
AV-17-86 or Amberlyst A26 with an aqueous solution of NaNO2, rendering the method less
appealing.
3

71
72
Fig. 1. Representative diazotization methods.
73
74
75
76
77
78
79
80
81
82
83
High demand for a sustainable preparation of isolable and nonhazardous arenediazonium
salts prompted us to combine the above two methods into a truly practical protocol for the
synthesis of arenediazonium tosylates that proceeds in a green reaction solvent and at room
temperature by employing commercially available reagents. We selected tert-butyl nitrite as a
surrogate for nitrous acid (NaNO2/HCl) because it is mild, easy to handle, commercially
available and inexpensive reagent of good solubility in organic solvents [27,28]. It has been
frequently used to generate arenediazonium salts in situ under safe conditions from small to bulk
multikilogram scale [29].
84
85
2. Experimental section
2.1. Materials and instruments
4

86
87
Starting materials and solvents were used as obtained from the commercial sources
without further purification (Merck, Fluorochem, abcr).
88
Melting points were determined on a Leica Galen III micro hot stage and are uncorrected.
IR spectra were obtained with Bruker ALPHA FT-IR equipped with a Platinum ATR as a
solid sample support.
89
90
91
NMR spectra were recorded with a Bruker Avance III 500 MHz NMR operating at 500
MHz (1H), 471 MHz (19F), and 126 (13C) MHz at 296 K or with a Bruker DPX 300 spectrometer
operating at 300 MHz (1H) at 302 K. Proton spectra were referenced to the residual signals of
CHCl3 (at δ 7.26 ppm) and DMSO-d5 (at δ 2.50 ppm). Carbon chemical shifts are given against
the central line of the solvent signal: CDCl3 (at δ 77.16 ppm), DMSO-d5 (at δ 39.52 ppm). 19F
NMR spectra were referenced to CCl3F and 15% BF3 etherate in CDCl3 as external standard at δ
0. Chemical shifts are given on δ scale (ppm). Coupling constants (J) are given in Hertz.
Multiplicities are indicated as follows: s (singlet), d (doublet), t (triplet), q (quartet), m
(multiplet), or br (broadened).
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
An Agilent 6224 time-of-flight (TOF) mass spectrometer equipped with a double
orthogonal electrospray source at atmospheric pressure ionization (ESI) coupled to an Agilent
1260 HLPC was used for recording HRMS spectra. Mobile phase composed of two solvents: A
was 0.1% formic acid in Milli-Q water, and B was 0.1% formic acid in acetonitrile mixed in the
ratio of 1:1. Compounds were prepared by dissolving the samples in acetonitrile. 0.1–10 μL of
each sample and injected into the LC-MS. Flow rate was 0.4 mL/min. Fragmentor voltage was
150 V. Capillary voltage 4000 V. Mass range 100–1700.
For radial chromatography, Chromatotron model 7924T was used. Silica gel 60 PF254
containing gypsum for preparative layer chromatography was used for glass radial
5

109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
chromatography plates. Analytical thin-layer chromatography (TLC) was carried out on Fluka
Silica Gel TLC cards, visualized with a UV lamp (254 nm and/or 366 nm).
2.2. General procedure for diazotization of (hetero)arylamines 1a–1n.
In a round bottomed flask equipped with a magnetic stirrer, p-toluenesulfonic acid
monohydrate (1–2.3 mmol) was dissolved in ethyl acetate (10 mL). Aniline (1 mmol) was added
followed by dropwise addition of tert-butyl nitrite (1–6 mmol). The resulting mixture was stirred
for 15 min at room temperature. For the synthesis of 2k and 2l, the reaction mixture was stirred
for 1 h and 24 h, respectively. The product was filtrated, washed with ethyl acetate and air dried
to give pure diazonium tosylate. The exceptions were crude products 2e and 2f, which were
purified by recrystallization from acetone. Compound 2l was oily and was isolated by
evaporation of the solvent under reduced pressure.
Benzenediazonium tosylate (2a): Following the general procedure employing p-
toluenesulfonic acid (190 mg, 1.00 mmol), aniline (1a, 95 mg, 1.00 mmol) and tert-butyl nitrite
(356 µL, 3.00 mmol). The product was obtained as a dark pink solid (276 mg, 0.99 mmol, 99%).
The data were in agreement with those from the literature [30]. Mp: 90.7–91.9 °C. IR: 3092,
2293, 1618, 1568, 1494, 1187 cm–1. 1H NMR (500 MHz, DMSO-d6) δ 8.69–8.65 (m, 2H), 8.28–
8.24 (m, 1H), 8.00–7.96 (m, 2H), 7.48–7.44 (m, 2H), 7.13–7.08 (m, 2H), 2.28 (s, 3H). HRMS
+
(ESI+): calcd for C6H5N2 [M]+ m/z 105.0447; found: 105.0450.
The synthesis of product 2a was also conducted on 4 mmol scale following the general
procedure, employing p-toluenesulfonic acid monohydrate (760 mg, 4.00 mmol), ethyl acetate
(15 mL), aniline (365 μL, 4.00 mmol) and tert-butyl nitrite (1425 μL, 12.00 mmol) to give
diazonium tosylate 2a (1.0151 g, 3.67 mmol, 92%).
6

132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
3,4-Dichlorobenzenediazonium tosylate (2b): Following the general procedure employing
p-toluenesulfonic acid (190 mg, 1.00 mmol), 3,4-dichloroaniline (1b, 163 mg, 1.00 mmol) and
tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a white solid (314 mg, 0.91
mmol, 91%). Mp: 144.3–145.5 °C. IR: 3105, 2288, 1551, 1445, 1223, 1170, 1029, 817, 678 cm–
1. 1H NMR (500 MHz, DMSO-d6) δ 9.08 (d, J = 2.4 Hz, 1H), 8.68 (dd, J = 2.4, 8.9 Hz, 1H), 8.28
13
(d, J = 8.9 Hz, 1H), 7.47–7.44 (m, 2H), 7.13–7.09 (m, 2H), 2.28 (s, 3H). C NMR (126 MHz,
DMSO-d6) δ 145.5, 145.1, 137.8, 133.7, 133.4, 133.2, 132.5, 128.1, 125.5, 115.9, 20.8. HRMS
+
(ESI+): calcd for C6H3Cl2N2 [M]+ m/z 172.9668; found: 172.9671.
The synthesis of product 2b was also conducted on 4 mmol scale following the general
procedure, employing p-toluenesulfonic acid monohydrate (760 mg, 4.00 mmol), ethyl acetate
(30 mL), 3,4-dichloroaniline (1b, 648 mg, 4.00 mmol) and tert-butyl nitrite (1425 μL, 12.00
mmol) to give diazonium tosylate 2b (1.2586 g, 3.65 mmol, 91%).
4-Chloro-3-(trifluoromethyl)benzenediazonium tosylate (2c): Following the general
procedure employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 4-chloro-3-
(trifluoromethyl)aniline (1c, 195 mg, 1.00 mmol) and tert-butyl nitrite (118.8 µL, 1.00 mmol).
The product was obtained as a white solid (337 mg, 0.89 mmol, 89%). Mp: 149.0–151.1 °C. IR:
1
3069, 2304, 1591, 1560, 1314, 1181, 1121, 1034, 682 cm–1. H NMR (500 MHz, DMSO-d6) δ
9.32 (d, J = 2.4 Hz, 1H), 8.96 (dd, J = 2.4, 8.9 Hz, 1H), 8.39 (d, J = 8.9 Hz, 1H), 7.48–7.44 (m,
2H), 7.13–7.08 (m, 2H), 2.28 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 145.4, 144.0, 137.8,
137.7, 134.8, 132.8 (q, J = 6.2 Hz), 128.7 (q, J = 33.1 Hz), 128.1, 125.5, 121.0 (q, J = 273.5 Hz),
+
116.7, 20.8. HRMS (ESI+): calcd for C7H3ClF3N3 [M]+ m/z 206.9931; found: 206.9931.
3-Chloro-4-cianobenzenediazonium tosylate (2d): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 4-amino-2-chlorobenzonitrile (1d, 152
7

155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
mg, 1.00 mmol) and tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a white
solid (278 mg, 0.83 mmol, 83%). Mp: 130.0–133.3 °C. IR: 3071, 2309, 1453, 1397, 1201, 1032,
818, 677 cm–1. 1H NMR (500 MHz, DMSO-d6) δ 9.13 (d, J = 2.0 Hz, 1H), 8.82 (dd, J = 2.0, 8.7
Hz, 1H), 8.54 (d, J = 8.7 Hz, 1H), 7.47–7.43 (m, 2H), 7.13–7.08 (m, 2H), 2.29 (s, 3H). 13C NMR
(126 MHz, DMSO-d6) δ 145.4, 137.8, 136.9, 136.6, 132.5, 131.5, 128.1, 125.5, 122.8, 121.9,
114.1, 20.8. HRMS (ESI+): calcd for C7H3N3Cl+ [M]+ m/z 164.001; found: 164.0002.
3-Nitrobenzenediazonium tosylate (2e): Following the general procedure employing p-
toluenesulfonic acid (190 mg, 1.00 mmol), 3-nitroaniline (1e, 138 mg, 1.00 mmol) and tert-butyl
nitrite (118.8 µL, 1.00 mmol). Crude product was recrystallized from acetone (beige solid, 175
mg, 0.64 mmol, 64%). The data were in agreement with those from the literature [26]. Mp:
137.4–138.0 °C (lit. [26] 134 °C). IR: 3080, 2306, 1597, 1535, 1349, 1191, 1119, 815, 683 cm–1.
1H NMR (500 MHz, DMSO-d6) δ 9.60 (dd, J = 2.1, 2.3 Hz, 1H), 9.04 (ddd, J = 1.0, 2.1, 8.2 Hz,
1H), 8.96 (ddd, J = 1.0, 2.3, 8.4 Hz, 1H), 8.22 (dd, J = 8.2, 8.4 Hz, 1H), 7.47–7.44 (m, 2H),
13
7.13–7.08 (m, 2H), 2.28 (s, 3H). C NMR (126 MHz, DMSO-d6) δ 147.6, 145.4, 138.0, 137.8,
135.0, 133.7, 128.2, 128.1, 125.5, 118.3, 20.9. HRMS (ESI+): calcd for C6H4N3O2 [M]+ m/z
+
150.0298; found: 150.0297.
4-Nitrobenzenediazonium tosylate (2f): Following the general procedure employing p-
toluenesulfonic acid (438 mg, 2.30 mmol), 4-nitroaniline (1f, 138 mg, 1.00 mmol) and tert-butyl
nitrite (118.8 µL, 1.00 mmol). Crude product was recrystallized from acetone (beige solid, 144
mg, 0.45 mmol, 45%). The data were in agreement with those from the literature [26]. Mp:
132.4–133.9 °C (lit. [26] 132 °C). IR: 3105, 2306, 1615, 1541, 1347, 1223, 1169, 1119, 822, 682
1
cm–1. H NMR (500 MHz, DMSO-d6) δ 8.96–8.92 (m, 2H), 8.71–8.67 (m, 2H), 7.48–7.45 (m,
8

+
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
2H), 7.12–7.08 (m, 2H), 2.28 (s, 3H). HRMS (ESI+): calcd for C6H4N3O2 [M]+ m/z 150.0298;
found: 150.0302.
2-Bromo-5-nitrobenzenediazonium tosylate (2g): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 2-bromo-5-nitroaniline (1g, 217 mg,
1.00 mmol) and tert-butyl nitrite (118.8 µL, 1.00 mmol). The product was obtained as pale
yellow solid (313 mg, 0.78 mmol, 78%). Mp: 140.8–142.0 °C. IR: 3094, 2302, 1593, 1580,
1530, 1347, 1215, 1192, 1036, 680 cm–1. 1H NMR (500 MHz, DMSO-d6) δ 8.98 (d, J = 3.2 Hz,
1H), 8.05 (dd, J = 3.2, 10.2 Hz, 1H), 7.49–7.45 (m, 2H), 7.13–7.09 (m, 2H), 6.59 (d, J = 10.2 Hz,
1H), 2.29 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 174.9, 145.0, 138.2, 132.6, 132.2, 130.0,
128.3, 125.6, 124.2, 91.0, 20.9. HRMS (ESI+): calcd for C6H3BrN3O2 [M]+ m/z 227.9403;
+
found: 227.94.
4-Nitro-2-(trifluoromethyl)benzenediazonium tosylate (2h): Following the general
procedure employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 4-nitro-2-
(trifluoromethyl)aniline (1h, 206 mg, 1.00 mmol) and tert-butyl nitrite (118.8 µL, 1.00 mmol).
The product was obtained as a yellow solid (289 mg, 0.74 mmol, 74%). Mp: 134.9–136.0 °C. IR:
3099, 3001, 2309, 1618, 1542, 1353, 1162, 796 cm–1. 1H NMR (500 MHz, DMSO-d6) δ 9.35 (d,
J = 9.0 Hz, 1H), 9.13 (d, J = 2.3 Hz, 1H), 9.04 (dd, J = 2.3, 9.0 Hz, 1H), 7.47–7.44 (m, 2H),
7.12–7.08 (m, 2H), 2.28 (s, 3H). 13C NMR spectrum of compound 2h could not be recorded due
to its rapid decomposition in DMSO-d6 solution. HRMS (ESI+): calcd for C7H3F3N3O2 [M]+
+
m/z 218.0172; found: 218.0166.
2-Cyano-4-nitrobenzenediazonium tosylate (2i): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 2-amino-5-nitrobenzonitrile (1i, 163
mg, 1.00 mmol) and tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a
9

200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
yellow solid (152 mg, 0.44 mmol, 44%). Mp: 128.6–129.9 °C. IR: 3104, 3060, 2312, 1597,
1348, 1219, 1192, 1119, 1036, 1011, 896, 821, 799, 739, 681 cm–1. 1H NMR (500 MHz, DMSO-
d6) δ 9.19 (d, J = 2.4 Hz, 1H), 8.86 (dd, J = 2.4, 8.9 Hz, 1H), 8.63 (d, J = 8.9 Hz, 1H), 7.49–7.44
(m, 2H), 7.13–7.09 (m, 2H), 2.28 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 151.3, 145.5, 137.9,
137.8, 131.8, 131.2, 128.9, 128.1, 125.5, 113.3, 113.0, 20.8. HRMS spectrum of compound 2i
could not be obtained due to its decomposition under the applied condition.
4-(Trifluoromethoxy)benzenediazonium tosylate (2j): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 4-(trifluoromethoxy)aniline (1j, 135 µL,
1.00 mmol) and tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a white
solid (323 mg, 0.90 mmol, 90%). Mp: 147.3–148.1 °C. IR: 3052, 2297, 1578, 1479, 1314, 1246,
1208, 1172, 1120, 1092, 1034, 1010, 927, 848, 815, 701, 681 cm–1. 1H NMR (500 MHz, DMSO-
d6) δ 8.88–8.84 (m, 2H), 8.00–7.97 (m, 2H), 7.48–7.45 (m, 2H), 7.12–7.09 (m, 2H), 2.28 (s, 3H).
13C NMR (126 MHz, DMSO-d6) δ 155.8 (q, J = 1.9 Hz), 145.6, 137.7, 136.3, 128.1, 125.5,
122.2, 119.5 (q, J = 261.6 Hz), 114.2, 20.8. HRMS (ESI+): calcd for C7H4F3N2O+ [M]+ m/z
189.027; found 189.0275.
2-Chloro-4-nitrobenzenediazonium tosylate (2k): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 2-chloro-4-nitroaniline (1k, 176 mg,
1.00 mmol) and tert-butyl nitrite (356 µL, 3.00 mmol). The reaction mixture was stirred for 1 h.
The product was obtained as a yellow solid (210 mg, 0.59 mmol, 59%). Mp: 143.5–145.2 °C. IR:
3088, 2316, 1542, 1344, 1302, 1193, 1118, 1035, 785, 680 cm–1. 1H NMR (300 MHz, DMSO-d6)
δ 9.13 (d, J = 9.1 Hz, 1H), 9.00 (d, J = 2.3 Hz, 1H), 8.67 (dd, J = 2.3, 9.1 Hz, 1H), 7.49–7.43 (m,
2H), 7.13–7.07 (m, 2H), 2.28 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 153.4, 145.4, 137.8,
10

+
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
136.8, 136.0, 128.1, 127.0, 125.5, 124.7, 122.60, 20.8. HRMS (ESI+): calcd for C6H3ClN3O2
[M]+ m/z 183.9919; found 183.9918.
2-Benzoyl-4-chlorobenzenediazonium tosylate (2l): Following the general procedure
employing p-toluenesulfonic acid (389 mg, 2.00 mmol), (2-amino-5-
chlorophenyl)(phenyl)methanone (1l, 230 mg, 1.00 mmol) and tert-butyl nitrite (712 µL, 6.00
mmol). The reaction mixture was stirred for 24 h. The solvent was evaporated under reduced
pressure. The product was obtained as brown oil (355 mg, 0.86 mmol, 86%). IR: 3088, 2278,
1665, 1597, 1556, 1283, 1120, 1031, 1005, 948, 813, 735, 708, 679 cm–1. H NMR (500 MHz,
1
DMSO-d6): δ 9.03 (d, J = 8.8 Hz, 1H), 8.39 (dd, J = 1.9, 8.8 Hz, 1H), 8.23–8.20 (m, 1H), 7.93–
7.89 (m, 2H), 7.85–7.80 (m, 1H), 7.69–7.64 (m, 2H), 7.49–7.44 (m, 2H), 7.13–7.09 (m, 2H),
2.29 (s, 3H). 13C NMR (126 MHz, DMSO-d6): δ 188.8, 145.9, 145.5, 138.9, 137.8, 137.2, 134.8,
134.2, 133.7, 133.6, 130.9, 129.0, 128.2, 125.5, 114.1, 20.8. HRMS (ESI+): calcd for
C13H8ClN2O+ [M]+ m/z 243.032; found 243.0318.
6-Methoxypyridine-3-diazonium tosylate (2m): Following the general procedure
employing p-toluenesulfonic acid (190 mg, 1.00 mmol), 3-amino-6-methoxypyridine (1m, 125
mg, 1.00 mmol) and tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a purple
solid (266 mg, 0.86 mmol, 86%). Mp: 147.9–148.9 °C. IR: 3104, 2276, 1580, 1483, 1397, 121,
1197, 1002, 815, 679 cm–1. 1H NMR (500 MHz, DMSO-d6) δ 9.56 (d, J = 2.6 Hz, 1H), 8.77 (dd,
J = 2.6, 9.3 Hz, 1H), 7.48–7.45 (m, 2H), 7.39 (d, J = 9.3 Hz, 1H), 7.13–7.09 (m, 2H), 4.13 (s,
3H), 2.28 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 166.7, 157.1, 145.5, 141.6, 137.7, 128.1,
125.5, 113.4, 105.0, 56.3, 20.8. HRMS (ESI+): calcd for C6H6N3O+ [M]+ m/z 136.0505; found:
136.0509.
11

244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
The synthesis of product 2m was also conducted on 4 mmol scale following the general
procedure, employing p-toluenesulfonic acid monohydrate (760 mg, 4.00 mmol), ethyl acetate
(30 mL), 6-methoxypyridine-3-amine (1m, 498 mg, 4.00 mmol) and tert-butyl nitrite (1425 μL,
12.00 mmol) to give diazonium tosylate 2m (1.0525 g, 3.42 mmol, 85%).
Benzotriazolium tosylate (2n'): Following the general procedure employing p-
toluenesulfonic acid (380 mg, 2.00 mmol), benzene-1,2-diamine (1n, 108 mg, 1.00 mmol) and
tert-butyl nitrite (356 µL, 3.00 mmol). The product was obtained as a white solid (212 mg, 0.73
1
mmol, 73%). Mp: 143.3–145.0 °C. IR: 1898, 1614, 1223, 1149, 1117, 1007, 822, 753 cm–1. H
NMR (500 MHz, DMSO-d6) δ 7.93–7.89 (m, 2H), 7.49–7.45 (m, 2H), 7.45–7.43 (m, 2H), 7.13–
7.09 (m, 2H), 4.16 (brs, 2H), 2.29 (s, 3H). 13C NMR (126 MHz, DMSO-d6) δ 144.9, 138.7Btz,
138.3, 128.3, 125.6, 125.5Btz, 115.0Btz, 20.9. Literature data for benzotriazole: 13C NMR (125
+
MHz, CDCl3) δ 138.8, 126.0, 114.9 [31]. HRMS (ESI+): calcd for C6H6N3 [M]+ m/z 120.0556;
found: 120.0561.
2.3. General procedure for the synthesis of azo compounds 3b and 3j.
In a round bottomed flask equipped with a magnetic stirrer, 2-naphthol (1.1 eq) was
dissolved in water (1 mL/1 mmol). pH of the reaction mixture was adjusted to 10–11 by using 10
wt % sodium hydroxide solution and cooled to 0–5 °C. Diazonium salt 2 (1 eq) was added
portionwise within ca. 20 min, maintaining pH at 10–11. The reaction mixture was stirred for 30
min and the resulting pure dye 3 was collected by filtration, washed with water, and air dried.
1-((3,4-Dichlorophenyl)diazenyl)naphthalen-2-ol (3b): Following the general procedure
employing 2-naphthol (48 mg, 0.33 mmol) and 3,4-dichlorobenzenediazonium tosylate (2b, 104
mg, 0.30 mmol). The product was obtained as a red solid (68 mg, 0.21 mmol, 73%). Mp: 139.0–
12

267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
139.9 °C. IR: 1622, 1559, 1501, 1452, 1369, 1242, 1205, 1152, 1123, 1022, 986, 822, 753 cm–1.
1H NMR (500 MHz, CDCl3) δ 15.82 (brs, 1H), 8.41 (d, J = 8.1 Hz, 1H), 7.78–7.71 (m, 1H), 7.66
13
(d, J = 9.3 Hz, 1H), 7.59–7.49 (m, 2H), 7.48–7.35 (m, 3H), 6.78 (d, J = 9.3 Hz, 1H). C NMR
(126 MHz, CDCl3) δ 172.2, 144.4, 140.9, 133.9, 133.2, 131.2, 131.0, 130.6, 129.2, 128.8, 128.3,
126.4, 124.6, 121.9, 119.6, 117.9. HRMS (ESI+): calcd for C16H11Cl2N2O+ [M + H]+ m/z
317.0243; found 317.0243.
1-((4-(Trifluoromethoxy)phenyl)diazenyl)naphthalen-2-ol (3j): Following the general
procedure
employing
2-naphthol
(104
mg,
0.70
mmol)
and
4-
(trifluoromethoxy)benzenediazonium tosylate (2j, 231 mg, 0.64 mmol). The product was
obtained as a red solid (185 mg, 0.56 mmol, 87%). Mp: 95.0–96.2 °C. IR: 3067, 1622, 1451,
1
1261, 1208, 1159, 1146, 1098, 986, 833, 753, 651 cm–1. H NMR (500 MHz, CDCl3) δ 15.98
(brs, 1H), 8.50 (d, J = 8.5 Hz, 1H), 7.73–7.68 (m, 3H), 7.58 (d, J = 7.9 Hz, 1H), 7.56–7.52 (m,
1H), 7.42–7.37 (m, 1H), 7.31 (d, J = 8.5 Hz, 2H), 6.85 (d, J = 9.4 Hz, 1H). 13C NMR (126 MHz,
CDCl3) δ 171.1, 148.0, 143. 8, 140.4, 133.5, 130.4, 129.1, 128.8, 128.3, 126.1, 124.5, 122.3,
121.8, 120.1 (q, J = 258.2 Hz), 119.9. 19F NMR (471 MHz, CDCl3) δ –57.92. HRMS (ESI+):
calcd for C16H11Cl2N2O+ [M + H]+ m/z 333.0845, found 333.0847.
2.4. General procedure for the synthesis of azo compounds 4b,i,j,m.
In a round bottomed flask equipped with a magnetic stirrer, N-ethyl-N-(2-
hydroxyethyl)aniline (1 eq) was dissolved in acetic acid (8 mL/1 mmol), to which diazonium
tosylate (1 eq) was added portionwise at room temperature. The reaction mixture was stirred for
15 min and the product was isolated by extraction into dichloromethane (3 × 15 mL). The
combined organic layers were washed with saturated aqueous solution of sodium bicarbonate,
13

290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
dried over anhydrous sodium sulphate, and the solvent was removed by rotary evaporation.
Crude products 4b,i,j,m were purified by radial chromatography on silica gel with petroleum
ether/ethyl acetate (2:1 v/v).
2-((4-((3,4-Dichlorophenyl)diazenyl)phenyl)(ethyl)amino)ethan-1-ol (4b): Following the
general procedure employing N-ethyl-N-(2-hydroxyethyl)aniline (66 mg, 0.40 mmol) and 3,4-
dichlorobenzenediazonium tosylate (2b, 138 mg, 0.40 mmol). The product was obtained as an
orange oil (123 mg, 0.36 mmol, 92%). Mp: 107.3–108 °C. IR: 2980, 2191, 2172, 2005, 1593,
1
1568, 1508, 1487, 1394, 1319, 1246, 1137, 1071, 1020, 815, 612 cm–1. H NMR (500 MHz,
CDCl3) δ 7.93 (d, J = 2.2 Hz, 1H), 7.85–7.80 (m, 2H), 7.69 (dd, J = 2.2, 8.5 Hz, 1H), 7.52 (d, J =
8.5 Hz, 1H), 6.80–6.75 (m, 2H), 3.86 (q, J = 5.8 Hz, 3H), 3.58 (t, J = 5.8 Hz, 2H), 3.52 (q, J =
7.1 Hz, 2H), 1.23 (t, J = 7.1 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 152.3, 151.2, 143.4, 133.3,
132.8, 130.8, 125.8, 123.2, 122.4, 111.6, 52.5, 46.0, 31.1, 12.2. HRMS (ESI+): calcd for
C16H18Cl2N3O+ [M + H]+ m/z 338.0821; found 338.0819.
2-((4-(Ethyl(2-hydroxyethyl)amino)phenyl)diazenyl)-5-nitrobenzonitrile (4i): Following
the general procedure employing N-ethyl-N-(2-hydroxyethyl)aniline (23 mg, 0.14 mmol) and 4-
(trifluoromethoxy)benzenediazonium tosylate (2i, 49 mg, 0.14 mmol). The product was obtained
as a dark purple solid (41 mg, 0.12 mmol, 87%). Mp: 165.5–166.5 °C. IR: 3538, 2917, 2228,
1595, 1575, 1513, 1322, 1304, 1200, 1113, 1071, 905, 821, 751, 729 cm–1. 1H NMR (500 MHz,
CDCl3) δ 8.57 (d, J = 2.5 Hz, 1H), 8.39 (dd, J = 2.5, 9.1 Hz, 1H), 7.97–7.93 (m, 3H), 6.82–6.78
(m, 2H), 3.92 (q, J = 5.7 Hz, 2H), 3.65 (t, J = 5.7 Hz, 2H), 3.61 (q, J = 7.1 Hz, 2H), 1.77–1.72
(m, OH), 1.28 (t, J = 7.1 Hz, 3H). 13C NMR (126 MHz, CDCl3) δ 157.8, 153.2, 146.3, 144.3,
129.2, 128.3, 127.9, 117.9, 115.8, 112.1, 111.9, 60.4, 52.6, 46.4, 12.3. HRMS (ESI+): calcd for
+
C17H18N5O3 [M + H]+ m/z 340.1404, found 340.1405.
14

313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
2-(Ethyl(4-((4-(trifluoromethoxy)phenyl)diazenyl)phenyl)amino)ethan-1-ol
(4j):
Following the general procedure employing N-ethyl-N-(2-hydroxyethyl)aniline (55 mg, 0.33
mmol) and 4-(trifluoromethoxy)benzenediazonium tosylate (2j, 117 mg, 0.33 mmol). The
product was obtained as a red solid (94 mg, 0.27 mmol, 81%). Mp: 83.3–84.5 °C. IR: 3252,
1
2988, 1600, 1513, 1396, 1213, 1152, 1129, 1057, 849, 818, 666 cm–1. H NMR (500 MHz,
CDCl3) δ 7.88–7.83 (m, 4H), 7.33–7.29 (m, 2H), 6.82–6.78 (m, 2H), 3.87 (q, J = 5.8 Hz, 2H),
3.59 (t, J = 5.8 Hz, 2H), 3.53 (q, J = 7.1 Hz, 2H), 1.73–1.69 (m, OH), 1.23 (t, J = 7.1 Hz, 3H).
13C NMR (126 MHz, CDCl3) δ 151.6, 150.9, 149.8 (q, J = 1.9 Hz), 143.6, 125.5, 123.6, 121.5,
120.0 (q, J = 258.5 Hz), 111.7, 52.5, 46.0, 31.1, 12.2. 19F NMR (471 MHz, CDCl3) δ –57.76.
HRMS (ESI+): calcd for C17H18F3N3O2 [M + H]+ m/z 354.1424; found 354.1424.
+
2-(Ethyl(4-((6-methoxypyridin-3-yl)diazenyl)phenyl)amino)ethan-1-ol (4m): Following
the general procedure employing N-ethyl-N-(2-hydroxyethyl)aniline (38 mg, 0.23 mmol) and 6-
methoxypyridine-3-diazonium tosylate (2m, 71 mg, 0.23 mmol). The product was obtained as an
orange solid (58 mg, 0.19 mmol, 84%). Mp: 107.3–108 °C. IR: 3362, 2968, 2871, 1709, 1593,
1558, 1511, 1442, 1395, 1346, 1310, 1231, 1182, 1141, 1112, 1042, 881, 818, 668 cm–1. H
1
NMR (500 MHz, CDCl3) δ 8.69 (d, J = 2.6 Hz, 1H), 8.07 (dd, J = 2.6, 8.9 Hz, 1H), 7.83–7.78
(m, 2H), 6.80 (d, J = 8.9 Hz, 1H), 6.79–6.75 (m, 2H), 4.01 (s, 3H), 3.85 (q, J = 5.8 Hz, 2H), 3.57
(t, J = 5.8 Hz, 2H), 3.51 (q, J = 7.1 Hz, 2H), 1.22 (t, J = 7.1 Hz, 3H). 13C NMR (126 MHz,
CDCl3) δ 164.8, 150.5, 146.2, 144.5, 143.7, 128.7, 125.1, 111.7, 111.6, 54.1, 52.5, 45.9, 31.1,
+
12.2. HRMS (ESI+): calcd for C16H21N4O2 [M + H]+ m/z 301.1659; found 301.1666.
3. Results and discussion
3.1. Synthesis of diazonium salts
15

336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
Herein, we report an effective method for the synthesis of stable diazonium salts in the
presence of tert-butyl nitrite and p-toluensulfonic acid as a source of mild acidic conditions at
room temperature in ethyl acetate. Solid diazonium salts were isolated from the reaction mixture
by simple filtration in pure form.
The reaction between aniline, p-toluenesulfonic acid and tert-butyl nitrite in ethyl acetate
as the reaction solvent at room temperature was selected as a model reaction. Optimization of
diazotization conditions was conducted with different molar ratios of aniline (1a), p-
toluenesulfonic acid and tert-butyl nitrite. The optimal ratio was found to be 1:1:3, respectively,
affording phenyldiazonium tosylate (2a) in 99% isolated yield (Table 1, Entry 4). Although the
result is similar to that for the aniline:1,5-naphthalenesulfonic acid:tert-butyl nitrite (1:1:1.5)
system reported by Tang [24], it is much better as in the case of aniline:polymer-supported
nitrite:TsOH of Filimonov, Chi et al. [26], for which the optimal molar ratio was reported to
range from 1:3:3 to 1:6:6. Varying the amount of ethyl acetate or prolonging the reaction time
had no effect on the yield of 2a. As judged by TLC monitoring, optimal reaction time was 15
min, although precipitate started to form immediately after the addition of tert-butyl nitrite into
the reaction mixture. No nitrogen oxides could be observed during the process.
Table 1
The effect of TsOH and tert-butyl nitrite loading on diazotization of aniline (1a).
355
Entry 1a (mmol) TsOH (eq.) tert-butyl nitrite (eq.) EtOAc (mL) 2a, yield (%)a
16

1
2
3
4
1
1
1
1
1
1
1
1
1
1
2
3
10
20
10
10
71
72
94
99
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
a Refers to isolated yield of pure product (average value of two independent runs).
With the optimized reaction conditions in hand, the substrate scope was investigated, and
the results are collected in Fig. 2. In general, aromatic amines with electron-accepting
substituents proved to be better substrates for diazotization under these reaction conditions [24].
In some cases, that of 2c,e–h, adding only one equivalent of tert-butyl nitrite was enough to
obtain the insoluble diazonium salt. The reactions were completed within 15 min. Longer
reaction times were only required for strongly electron deficient and sparingly soluble 2-chloro-
4-nitroaniline (1k) as well as sterically demanding (2-amino-5-chlorophenyl)(phenyl)methanone
(1l). In case of 4-nitroaniline (1f) and (2-amino-5-chlorophenyl)(phenyl)methanone (1l) an
excess (2.0–2.3 equiv.) of p-toluenesulfonic acid was used to achieve reasonable conversions.
All products, except for 2e and 2f, were obtained in pure form by filtration from the reaction
mixture, without further purification needed. Analytically pure products 2e and 2f were obtained
by recrystallization. The obtained tosylates were soluble in both protic and aprotic polar solvents,
which is an advantage over other types of stable diazonium salts. Interestingly, diazonium salt 2l
appeared as an oily product and was isolated from the reaction mixture by evaporation of the
solvent under reduced pressure. Scalability of the protocol was tested in diazotization of aniline
(1a), 3,4-dichloroaniline (1b) and 3-amino-6-methoxypyridine (1m) on 4 mmol scale, affording
products 2a, 2b and 2m, respectively, in comparable yields as on 1 mmol scale.
17

375
376
377
a
b
Fig. 2. Substrate scope, 3 equiv. of tert-butyl nitrite were employed 1 equiv. of tert-butyl
nitrite were employed c 2.3 eq of TsOH and 1 equiv. of tert-butyl nitrite were employed d 2 equiv.
of TsOH and 6 equiv. of tert-butyl nitrite were employed
378
379
380
381
382
383
384
385
All products were bench stable at room temperature for a long period of time. The
1
stability of the products was monitored by re-acquiring H NMR spectra of the isolated solid
compounds that were stored at room temperature. Diazonium salts 2c and 2m, for example,
showed no structural changes even after a year of storage. The only exceptions were products 2a
and 2k, which decomposed within a week.
18

386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
To further explore the scope, benzene-1,2-diamine (1n) as a representative example of o-
phenylenediamines was let to react with tert-butyl nitrite in the presence of p-toluenesulfonic
acid (Fig. 2). As expected, the transformation proceeds through intermediately formed 2-
aminobenzenediazonium tosylate (2n) and smoothly returned benzotriazolium tosylate (2n'). In
an unoptimized reaction, the product was obtained in pure form in 73% isolated yield (Fig. 2).
13
The 1H NMR and C NMR spectra of the product benzotriazolium salt 2n' recorded in DMSO-
d6 are in agreement with those for the parent benzotriazole [31]. Benzotriazoles are important
entities in organic synthetic and medicinal chemistry and have been recently prepared by tert-
butyl nitrite mediated nitrogen transfer to o-phenylenediamines [31]. Crystal structure of
benzotriazolium tosylate has been reported [32].
3.2. Synthesis of azo compounds
3.2.1. Synthesis of azo compounds 3
Diazonium tosylates 2b and 2j were tested in the synthesis of azo dyes with 2-naphthol
(Fig. 3). The reactions were conducted in alkaline aqueous solutions with pH being maintained at
10–11 to enhance the reactivity of the naphthol coupling partner. As judged by TLC analysis the
reactions were complete once the coupling partners were combined. To allow for complete
precipitation of the products, the reaction mixtures were stirred for additional 30 min after which
crude products 3b and 3j were isolated by filtration in 73% and 83% yields, respectively. The
crude products were NMR pure and required no additional purification. The coupling protocol
and the results are comparable to those reported by Tang and co-workers [33], and superior to
the traditional approach that involves diazotization under strongly acidic conditions, especially
for weakly basic anilines, followed by azo coupling reaction at high pH [34].
19

409
410
411
Fig. 3. Synthesis of azo dyes 3 from selected diazonium salts 2
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
3.2.1. Synthesis of azo compounds 4
In addition to 2-naphthol, coupling of diazonium tosylates was also tested with N-ethyl-
N-(2-hydroxyethyl)aniline to give azo compounds 4. The interest in using this coupling partner
steams form the fact that the resulting rod-like products of structure 4 having a delocalized π-
system have the potential to label protein aggregates of different compositions formed in the
brain of patients suffering from neurodegenerative diseases like Alzheimer disease [35,36]. The
frameworks based on azo dyes like Chrysamine G, Thiazine Red, Sirius Red F3B, and Benzo
Scarlet 4BNS (amyloid red) are notable [37]. Furthermore, the N-(2-hydroxyethyl) fragment
enables a facile entry to radiolabeled fluorine-18 N-(2-[18F]fluoroethyl) derivatives that can be
used as radiotracers to image neurodegenerative diseases [38]. Other applications in
optoelectronic devices and other functional materials can be envisioned [39].
Diazotization of N-ethyl-N-(2-hydroxyethyl)aniline was conducted with 2(b,i,j,m) at
room temperature. Acetic acid was used as a reaction solvent to assure the solubility of the
aniline coupling partner. Products 4, formed almost instantly after the reactants were combined,
20

427
428
429
430
were isolated by extraction into dichloromethane and purified by radial chromatography. This
protocol is notably different to the classical diazotization where the use of strongly acidic
reaction conditions largely deactivates anilines by protonation. [40].
431
432
Fig. 4. Synthesis of azo dyes 4 from selected diazonium salts 2
433
434
435
436
437
438
439
440
4. Conclusion
We have demonstrated an efficient, environmentally friendly, and simple protocol for the
synthesis of stable diazonium tosylates from the appropriate aromatic amines, p-toluenesulfonic
acid and tert-butyl nitrite in ethyl acetate at room temperature. The substrate scope shows that
aromatic amines with electron-withdrawing substituents are more suitable substrates for
diazotization under the employed reaction conditions. In most cases the products were obtained
in pure form by simple evaporation of the reaction solvent and exhibited great stability over a
21

441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
longer period of time. The method is applicable for the transformation of o-phenylenediamines
benzotriazolium tosylates. Application in the synthesis of azo dyes has been demonstrated.
Declaration of competing interest
The authors declare that they have no known competing financial interests or personal
relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
The Slovenian Research Agency (Research Core Funding Grant P1-0230, Project J1-8147,
Project J1-9166) and the Ministry of Education, Science and Sport, Republic of Slovenia (PhD
Scholarship to M.M.) are gratefully acknowledged for financial support. The authors thank to Dr.
Damijana Urankar from the Research Infrastructure Centre at the Faculty of Chemistry and
Chemical Technology University of Ljubljana for HRMS analyses.
References
[1] Griefs P. Vorläufige Notiz über die Einwirkung von salpetriger Säure auf Amidinitro - und
Aminitrophenylsäure. Liebigs Ann Chem 1858;106:123–5.
[2] Sandmeyer T. Über die Ersetzung der Amidgruppe durch Chlor in den aromatischen
Substanzen. Ber Dtsch Chem Ges 1884;17:1633–5.
[3] Gomberg M, Bachmann WE. The Synthesis of Biaryl Compounds by Means of the Diazo
Reaction. J Am Chem Soc 1924;42:2339–43. https://doi.org/10.1021/ja01675a026.
[4] Balz G, Schiemann G. Über aromatische Fluorverbindungen, I.: Ein neused Verfahren zu
ihrer Darstellung. Ber Dtsch Chem Ges 1927;60:1186–90.
22

[5] Meerwein H, Büchner E, Van Emster K. Über die Einwirkung aromatischer
Diazoverbindungen auf α,β-ungesättigte Carbonylverbindungen.
J
Prakt Chem
1939;152:237–66.
[6] Zollinger H. Color Chemistry. Syntheses, Properties, and Applications of Organic Dyes
and Pigments. 3rd revised ed. Zürich: Wiley-VCH Verlag; 2003.
https://doi.org/10.1002/anie.200385122.
[7] Greenwood J, Phan TH, Fujita Y, Li Z, Ivasenko O, Vanderlinden W, et al. Covalent
Modification of Graphene and Graphite using Diazonium Chemistry: Tunable Grafting and
Nano-manipulation. ACS Nano 2015;9:5520–35. https://doi.org/10.1021/acsnano.5b01580.
[8] Allongue P, Delamar M, Desbat B, Fagebaume O, Hitmi R, Pinson J, Saveant JM.
Covalent Modification of Carbon Surfaces by Aryl Radicals Generated from the
Electrochemical Reduction of Diazonium Salts. J Am Chem Soc 1997;119:201–7.
https://doi.org/10.1021/ja963354s.
[9] Xia Z, Leonardi F, Gobbi M, Liu Y, Bellani V, Liscio A, Kovtun A, Li R, Feng X, Orgiu
E, Samori P, Treossi E, Palermo V. Electrochemical Functionalization of Graphene at the
Nanoscale with Self-Assembling Diazonium Salts. ACS Nano 2016;10:7125–34.
https://doi.org/10.1021/acsnano.6b03278.
[10] Mahouche-Chergui S, Gam-Derouich S, Mangeney C, Chehimi MM. Aryl diazonium salts:
a new class of coupling agents for bonding polymers, biomacromolecules and
nanoparticles
to
surfaces.
Chem
Soc
Rev
2011;40:4143–66.
https://doi.org/10.1039/C0CS00179A.
[11] Bernard MC, Chaussé A, Cabet-Deliry E, Chehimi MM, Pinson J, Podvorica F, Vautrin-Ul
C. Organic Layers Bonded to Industrial Coinage and Noble Metals through
23

Electrochemical Reduction of Aryldiazonium Salts. Chem Mater 2003;15:3450–62.
https://doi.org/10.1021/cm034167d.s001.
[12] Doppelt P, Hallais G, Pinson J, Podvorica F, Verneyre S. Surface Modification of
Conducting Substrates, Existence of Azo Bonds in the Structure of Organic Layers
Obtained
https://doi.org/10.1021/cm0700551.
[13] Fabrizi G, Goggiamani A, Sferrazza A, Cacchi S. Sonogashira Cross-Coupling of
Arenediazonium Salts. Angew Chem Int Ed 2010;49:4067–70.
https://doi.org/10.1002/anie.201000472.
[14] Panda B, Sarkar TK. Gold and palladium combined for the Sonogashira-type cross-
coupling of arenediazonium salts. Chem Commum 2010;46:3131–3.
https://doi.org/10.1039/C001277G.
from
Diazonium
Salts.
Chem
Mater
2007;19:4570–5.
[15] Hari DP, Schroll P, König B. Metal-Free, Visible-Light-Mediated Direct C-H Arylation of
Heteroarenes with Aryl Diazonium Salts. J Am Chem Soc 2012;134:2958–61.
https://doi.org/10.1021/ja212099r.
[16] Felpin FX, Miqueu K, Sotiropoulos JM, Fouquet E, Ibarguren O, Laudien J. Room-
Temperature, Ligand- and Base-Free Heck Reactions of Aryl Diazonium Salts at Low
Palladium Loadings: Sustainable Preparation of Substituted Stilbene Derivatives. Chem
Eur J 2010;16: 5191–204. https://doi.org/10.1002/chem.200903050.
[17] Diana P, Stagno A, Barraja P, Carbone A, Parrino B, Dall’Acqua F, Vedaldi D, Salvador
A, Brun P, Castagliuolo I, Issinger OG, Cirrincione G. Synthesis of Triazenoazaindoles: a
New Class of Triazenes with Antitumor Activity. Chem Med Chem 2011;6:1291–9.
https://doi.org/10.1002/cmdc.201100027.
24

[18] Kleihaus P, Kolar GF, Margeson GP. Interaction of the Carcinogen 3,3-Dimethyl-1-
phenyltriazene with Nucleic Acids of Various Rat Tissues and the Effect of a Protein-free Diet.
Cancer Res 1976;36:2189–93.
[19] Torfs E, Vajs J, de Macedo MB, Cools F, Vanhoutte B, Gorbanev Y, Bogaerts A,
Verschaeve L, Caljon G, Maes L, Delputte P, Cos P, Košmrlj J, Cappoen D. Synthesis and
in vitro investigation of halogenated 1,3-bis(4-nitrophenyl)triazenide salts as antitubercular
compounds. Chem Biol Drug Des 2018;91:631–40. https://doi.org/10.1111/cbdd.13087.
[20] Hudson JL, Jian H, Leonard AD, Stephenson JJ, Tour JM. Triazenes as a Stable
Diazonium Source for Use in Functionalizing Carbon Nanotubes in Aqueous Suspensions.
Chem Mater 2006;18:2766–70. https://doi.org/10.1021/cm060020l.
[21] Schotten C, Aldmairi AH, Sagatov Y, Shepherd M, Browne DL. Protected Diazonium
Salts: A Continuous-Flow Preparation of Triazenes Including the Anticancer Compounds
Dacarbazine
and
Mitozolomide.
J
Flow
Chem
2016;6:218–25.
https://doi.org/10.1556/1846.2016.00025.
[22] Hari DP, König B. The Photocatalyzed Meerwein Arylation: Classic Reaction of Aryl
Diazonium Salts in a New Light. Angew Chem Int Ed 2013;52:4734–43.
https://doi.org/10.1002/anie.201210276.
[23] Heinrich MR, Blank O, Ullrich D, Kirschstein M. Allylation and Vinylation of Aryl
Radicals Generated from Diazonium Salts.
https://doi.org/10.1021/jo701717k.
J
Org Chem 2007;72:9609–16.
[24] Qiu J, Tang B, Ju B, Xu Y, Zhang S. Stable diazonium salts of weakly basic amines–
Convenient reagents for synthesis of disperse azo dyes. Dyes Pigments 2017;136:63–9.
https://doi.org/10.1016/j.dyepig.2016.08.026.
25

[25] Roglans A, Pla-Quintana A, Moreno-Mañas M. Diazonium Salts as Substrates in
Palladium-Catalyzed Cross-Coupling Reactions. Chem Rev 2006;106:4622–43.
https://doi.org/10.1021/cr0509861.
[26] Filimonov VD, Trusova M, Postnikov P, Krasnokutskaya EA, Lee YM, Hwang HY, Kim
H, Chi KW. Unusually Stable, Versatile, and Pure Arenediazonium Tosylates: Their
Preparation, Structures, and Synthetic Applicability. Org Lett 2008;10:3961–4.
https://doi.org/10.1021/ol8013528.
[27] Li PF, Jia XD. tert-Butyl Nitrite (TBN) as a Versatile Reagent in Organic Synthesis.
Synthesis 2018;50:711−22. https://doi.org/10.1055/s-0036-1589155.
[28] Khaligh NG. Recent Advances and Application of tert-Butyl Nitrite (TBN) in Organic
Synthesis.
Mini-Rev
Org
Chem
2020;17:3–25.
https://doi.org/10.2174/1570193X15666181029141019.
[29] Oger N, d’Halluin M, Le Grognec E, Felpin FX. Using Aryl Diazonium Salts in
Palladium-Catalyzed Reactions under Safer Conditions. Org Process Res Dev
2014;18:1786−801. https://doi.org/10.1021/op500299t.
[30] Tang ZY, Zhang Y, Wang T, Wang W. Rhodium(I)-Catalyzed Synthesis of
Aryltriethoxysilanes from Arenediazonium Tosylate Salts with Triethoxysilane. Synlett
2010;5:804–8. https://doi.org/10.1055/s-0029-1219090.
[31] Azeez S, Chaudhary P, Sureshbabu P, Sabiah S, Kandasamy J. tert-Butyl nitrite mediated
nitrogen transfer reactions: synthesis of benzotriazoles and azides at room temperature.
Org Biomol Chem 2018;16:8280–5. https://doi.org/10.1039/C8OB01950A.
26

[32] Thirunavukkarasu A, Silambarasan A, Kumar RM, Umarani PR, Chakkaravarthi G.
Benzotriazolium 4-methylbenzenesulfonate. Acta Cryst 2014;E70:o350.
https://doi.org/10.1107/S1600536814003857.
[33] Qiu J, Xiao J, Tang B, Ju B, Zhang S. Facile synthesis of novel disperse azo dues with
aromatic hydroxyl group. Dyes Pigments 2019;160:524–29.
https://doi.org/10.1016/j.dyepig.2018.08.052.
[34] Nachlas MM, Goldstein TP, Rosenblatt DH, Kirsch M, Seligman AM. Influence of
chemical structure on the rate of azo coupling and its significance in histochemical
methodology. J Histochem Cytochem 1959;7:50–65. https://doi.org/10.1177/7.1.50.
[35] Rejc L, Fabris J, Adrović A, Kasunič M, Petrič A. Elongation of the molecular probe
DDNP with phenylethynylidene or phenyldiazenylidene spacers. Tetrahedron Lett
2014;55:1218–21. https://doi.org/10.1016/j.tetlet.2014.01.002.
[36] Rejc L, Šmid L, Kepe V, Podlipnik Č, Golobič А, Bresjanac M, Barrio JR, Petrič A,
Košmrlj J. Design, Syntheses, and in Vitro Evaluation of New Fluorine-18 Radiolabeled
Tau-Labeling
Molecular
Probes.
J
Med
Chem
2017;60:8741–57.
https://doi.org/10.1021/acs.jmedchem.7b00764.
[37] Verwilst P, Kim HS, Kim S, Kang C, Kim JS. Shedding light on tau protein aggregation: the
progress in developing highly selective fluorophores. Chem Soc Rev 2018;47:2249–65.
https://doi.org/ 10.1039/c7cs00706j.
[38] Tiepolt S, Patt M, Aghakhanyan G, Meyer PM, Hesse S, Barthel H, Sabri O. Current
radiotracers to image neurodegenerative diseases. EJNMMI Radiopharm Chem 2019;4.
https://doi.org/10.1186/s41181-019-0070-7.
27

[39] Kim E, Lee Y, Park SB. Discovery, Understanding, and Bioapplication of Organic
Fluorophore: A Case Study with an Indolizine-Based Novel Fluorophore, Seoul-Fluor. Acc
Chem Res 2015;48:538–47. https://doi.org/10.1021/ar500370v.
[40] H. Zollinger: The kinetics of the Diazo Coupling Reaction. Chem Rev 1952;51:347–61.
https://doi.org/10.1021/cr60159a004.
28
