Synthesis, structure and magnetic properties of manganese(II) coordination polymer with azido and zwitterionic dicarboxylate ligand

Article abstract of DOI:10.1016/j.cclet.2014.05.026

A coordination polymer formulated as {[Mn₂L(N₃) ₄]·2H₂O}_n(1) [L = 1,4-bis(pyridinil-3- carboxylato)-l,4-dimethylbenzene] was synthesized and structurally and magnetically characterized. The uniform Mn(II) chains with mixed (μ-EO-N ₃)₂(μ-COO) triple bridges (EO = end-on) are linked by L ligands to generate a 2-fold interpenetrating 3D framework. Meanwhile, magnetism analysis reveals antiferromagnetic coupling for 1.

Full text of DOI:10.1016/j.cclet.2014.05.026

G Model
CCLET 3007 1–5
Chinese Chemical Letters xxx (2014) xxx–xxx
Contents lists available at ScienceDirect
Chinese Chemical Letters
journal homepage: www.elsevier.com/locate/cclet
1
2
Original article
3
4
5
Synthesis, structure and magnetic properties of manganese(II)
coordination polymer with azido and zwitterionic dicarboxylate
ligand
*
Q1 Rong-Mei Wen, Song-De Han, Hao Wang, Ying-Hui Zhang
6
7
8
Department of Chemistry, Tianjin Key Laboratory of Metal and Molecule-based Material Chemistry, and Key Laboratory of Advanced Energy Materials
Chemistry (MOE), Nankai University, Tianjin 300071, China
A R T I C L E I N F O
A B S T R A C T
Article history:
A coordination polymer formulated as {[Mn2L(N3)4]ꢀ2H2O}n(1) [L = 1,4-bis(pyridinil-3-carboxylato)-
Received 15 April 2014
Received in revised form 7 May 2014
Accepted 15 May 2014
Available online xxx
l,4-dimethylbenzene] was synthesized and structurally and magnetically characterized. The uniform
Mn(II) chains with mixed (m-EO-N3)2(m-COO) triple bridges (EO = end-on) are linked by L ligands to
generate a 2-fold interpenetrating 3D framework. Meanwhile, magnetism analysis reveals antiferro-
magnetic coupling for 1.
ß 2014 Ying-Hui Zhang. Published by Elsevier B.V. on behalf of Chinese Chemical Society. All rights
Keywords:
reserved.
Manganese(II)
Azido anion
Magnetism
1,4-Bis(pyridinil-3-carboxylato)-l,4-
dimethylbenzene
9
10
1. Introduction
In this paper, we selected 1,4-bis(pyridinil-3-carboxylato)-l, 31
4-dimethylbenzene (L) as organic linker (Scheme 1) and azide as 32
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Over the past decades, considerable attentions have been paid
to rational design and synthesis of novel coordination polymers
with intriguing structure and diverse functions [1,2], owing to its
promising application as functional materials in many fields [3,4].
As two typical bridging groups affording magnetic clusters and
polymers, carboxylate and azido anions have been widely used due
to their rich coordination modes as well as diverse magnetic
coupling patterns [5–7], and therefore many unique carboxylate-
containing ligands have been developed to construct magnetic
coordination compounds.
Recently, some coordination compounds derived from azide
and zwitterionic dicarboxylate ligands were reported [7], which
demonstrates that using zwitterionic carboxylates as ligands is an
efficient synthetic strategy toward mixed azide- and carboxylate-
bridging systems [7,8]. Normally when zwitterionic carboxylates
are used as neutral organic ligands to construct metal–organic
compounds, additional anions are necessary for charge balance [9].
Compared with rigid ligands, flexible ligands can form some
unique and interesting frameworks because it can freely bend and
rotate in the assembly process [8a,10].
co-ligand to produce a novel 2-fold interpenetrating three 33
dimension (3D) Mn(II) polymer {[Mn2L(N3)4]ꢀ2H2O}n (1) with 34
anti-ferromagnetism.
35
2. Experimental
36
Materials and physical measurements: 1,4-Bis(pyridinil-3- 37
carboxylato)-l,4-dimethylbenzene (L) was prepared according to 38
the literature [11]. Other chemicals are commercially available 39
and were used as received. Elemental analysis was carried on a 40
Perkin-Elmer 240C analyzer. IR spectrum was measured on a 41
Tensor 27 (Bruker) FT-IR spectrometer with KBr pellets. The X-ray 42
powder diffraction (XRPD) experiments were carried out on a 43
Rigaku D/Max-2500 diffractometer, operated at 40 kV and 100 mA, 44
using a Cu-target tube and a graphite monochromator. Simulation 45
of the PXRD spectra were conducted based on the single-crystal 46
data and diffraction-crystal module of the Mercury (Hg) 47
program available free of charge in Internet (http://www.iucr.org). 48
Magnetic data were collected using crushed crystals of the sample 49
on a Quantum Design MPMS-XL SQUID magnetometer.
50
Synthesis of L:L was prepared in a way similar to that reported 51
in literature [11]. 1,4-Bis-bromomethylbenzene (1.75 g, 10 mmol) 52
was dissolved in the acetone solution of ethyl nicotinate (2.83 mL, 53
*
Corresponding author.
E-mail address: zhangyhi@nankai.edu.cn (Y.-H. Zhang).
http://dx.doi.org/10.1016/j.cclet.2014.05.026
1001-8417/ß 2014 Ying-Hui Zhang. Published by Elsevier B.V. on behalf of Chinese Chemical Society. All rights reserved.
Please cite this article in press as: R.-M. Wen, et al., Synthesis, structure and magnetic properties of manganese(II) coordination polymer
with azido and zwitterionic dicarboxylate ligand, Chin. Chem. Lett. (2014), http://dx.doi.org/10.1016/j.cclet.2014.05.026

G Model
CCLET 3007 1–5
2
R.-M. Wen et al. / Chinese Chemical Letters xxx (2014) xxx–xxx
Table 1
Crystal data and structure refinement parameters for polymer 1.
Chemical formula
Fw
C20H20Mn2N14O6
662.35
Space group
P-1
˚
a (A)
11.129 (2)
11.407 (2)
12.024 (2)
63.55 (3)
81.91 (3)
78.44 (3)
1337.8 (5)
2
˚
b (A)
˚
c (A)
a
b
g

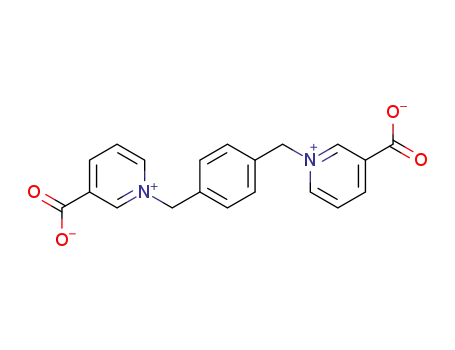

Scheme 1. The structure of
L
[L = 1,4-bis(pyridinil-3-carboxylato)-1,4-
3
˚
V (A )
dimethylbenzene].
Z
D (g cmꢁ3
)
1.634
m
(mm)
1.009
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
20 mmol). The mixture was refluxed and filtered to give a white
precipitate, which was further hydrolyzed by dilute hydrochloric
acid (5%, 50 mL). Then, the bromide ions were removed by fresh
silver(I) oxide (prepared by the reaction of AgNO3 and NaOH in
aqueous solution), and white powder of L was obtained (Yield: 80%
based on 1,4-bis-bromomethylbenzene). Anal. calcd. for
C20H16N2O4 (%): C 68.96, H 4.63, N 8.04. Found (%): C 68.82, H
4.68, N 8.13. IR (KBr, cmꢁ1): 3342(w), 3288(w), 3037(m), 1728(m),
1640(m), 1301(s), 1130(s), 750(s), 671(s).
Synthesis of {[Mn2L(N3)4]ꢀ2H2O}n (1): Mn(ClO4)2ꢀ6H2O
(0.2 mmol), L (0.15 mmol) and NaN3 (1 mmol) were added to a
mixture solution of C2H5OH (4 mL) and H2O (2 mL). The resulting
mixture was sealed in a Teflon-lined autoclave, and heated at 75 8C
for 24 h. After cooling to room temperature, yellow block crystal
was obtained with a yield of 80% based on L. FT-IR (KBr pellet,
cmꢁ1): 3607(s), 3384(m), 3302(m), 2080(s), 1635(m), 1602(w),
1406(w), 1384(s). Element. Anal. Calcd. for C20H20Mn2N14O6 (%): C
36.25, H 3.02, N 29.61; Found (%): C 36.22, H 3.01, N 29.59.
Temperature (K)
Ra/(wR)b
293 (2)
0.0547/0.1296
P
P
a
R = øøFoø ꢁ øFcøø/ øFoø.
P
P
b
2
wR = [ [w(Fo ꢁ Fc2)]/ w(Fo2)]1/2
.
summarized in Table 1 and selected bond lengths and angles
are listed in Table S1 in Supporting information. Crystallographic Q2 89
88
data (excluding structure factors) for 1 have been deposited in the
Cambridge Crystallographic Data Centre, CCDC, 12 Union Road,
Cambridge CB21EZ, UK. Copies of the data can be obtained free of
charge on quoting the depository number CCDC-996878, the
names of the authors, (E-mail: deposit@ccdc.cam.ac.uk, http://
www.ccdc.cam.ac.uk).
90
91
92
93
94
95
3. Results and discussion
96
Single-crystal X-ray diffraction analysis reveals that 1 crystal-
lized in triclinic P-1 space group. The asymmetric unit comprises of
one crystallographically independent Mn(II) ion (Mn1), two
independent halves of Mn(II) ions (Mn2 and Mn3), four azido
anions, one L ligand and two uncoordinated water molecules, as
displayed in Fig. 1a. Mn1 locates in a disordered coordination
environment defined by four azido nitrogen atoms (N1, N4, N7 and
N10) and two cis carboxylate oxygen atoms (O2 and O3). Mn2 and
Mn3 both assume the trans-octahedral [N4O2] coordination
environment defined by four equatorial azido nitrogen atoms
(N7, N7B, N10 and N10B for Mn2, N1, N1A, N4 and N4A for Mn3)
and two axial carboxylate oxygen atoms (O4 and O4B for Mn2, O1
and O1A for Mn3) (Fig. 1b). The Mn-N distances for Mn2 and Mn3
97
98
99
73
74
Caution! Azido compounds of metal ions are potentially explosive,
and only a small amount of materials should be prepared with care.
100
101
102
103
104
105
106
107
108
109
110
111
112
113
75
76
77
78
79
80
81
82
83
84
85
86
87
Cystallographic Studies: X-ray diffraction data were collected
on a SCX-mini diffractometer at 293 K with graphite monochro-
˚
mated Mo-Ka radiation (l = 0.71073 A) by an v scan mode. The
program SAINT [12] was used for the integration of the diffraction
profiles. Absorption corrections were carried out by using multi-
scan program SADABS [13]. The structures were solved by direct
method and refined by full-matrix least-squares technique using
SHELXTL [14]. The positions of metal atoms were located from E-
maps by direct-method and other non-hydrogen atoms were
refined with anisotropic displacement parameters. The hydrogen
atoms of the ligands were generated theoretically onto specific
atoms and refined isotropically with fixed thermal factors.
Crystallographic data and structure refinement results are
˚
˚
(2.195(4)–2.271(4) A for Mn2 and 2.213(3)–2.214(3) A for Mn3)
˚
are slightly longer than the Mn-O distances (2.167(3) A for Mn2
˚
and 2.211(3) A for Mn3), indicating an axial elongation of the
octahedron. The metal ions alternate in Mn1–Mn2–Mn1–Mn3
Fig. 1. View of (a) the asymmetric unit of polymer 1 and (b) the coordination environment of Mn(II) and 1D chain. Hydrogen atoms and water molecules are omitted for
clarity. Symmetry codes: (A) ꢁx + 2, ꢁy, ꢁz + 1. (B) ꢁx + 2, ꢁy, ꢁz. (C) ꢁx + 1, ꢁy, ꢁz + 2. (D) ꢁx + 1, ꢁy + 1, ꢁz + 1.
Please cite this article in press as: R.-M. Wen, et al., Synthesis, structure and magnetic properties of manganese(II) coordination polymer
with azido and zwitterionic dicarboxylate ligand, Chin. Chem. Lett. (2014), http://dx.doi.org/10.1016/j.cclet.2014.05.026

G Model
CCLET 3007 1–5
R.-M. Wen et al. / Chinese Chemical Letters xxx (2014) xxx–xxx
3
Fig. 2. (a) Single 3D network. (b) The two-fold interpenetration of network.
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
sequence and two adjacent metal ions are triply bridged by two EO
(EO = end-on) azido ions and one syn–syn carboxylate group, to
generate a uniform chain (Fig. 1b).
high-spin Mn(II) ion (g = 2.0), which reveals the presence of anti- 141
ferromagnetic (AF) coupling in this polymer. The shape of xmT plot 142
(Fig. 4a) implies the AF interaction between the Mn(II) ions in 1, 143
which is corroborated by the large negative Weiss constant 144
For the
L
in 1, the two pyridinium rings adopts trans
ꢁ1
conformation with respect to the 1,4-dimenthylbenzene, leading
to a zigzag shape for the ligand. Each chain is linked with adjacent
four identical chains through L ligands to give a complicated 3D
network (Fig. 2a). Large ‘‘empty’’ space related to the L linkers is
observed for the single network, but is filled by the 2-fold
interpenetration occurred between two equivalent 3D networks
(Fig 2b).
The X-ray powder diffraction (XRPD) experiment was per-
formed in order to make sure that the crystal structure is truly
representative of the bulk materials. The diffraction intensity data
u
= ꢁ68 K deduced from the Curie-Weiss fitting of the xm vs T 145
data above 50 K (Fig. S1 in Supporting information). The field- 146
dependent magnetization at 2 K shows a linear increasing trend 147
and reaches 0.61 N
the saturated vale 5 N
and S = 5/2 and further confirms the AF coupling of 1.
b
at 7 T (Fig. 4b), which is much smaller than 148
expected for one Mn(II) ion with g = 2.0 149
150
b
The global AF behavior of 1 can be interpreted by magneto- 151
structural relationship. The Mn(II) ions in 1 are bridged by EO azido 152
and syn,syn carboxylate of L ligand. It is well known that syn,syn 153
carboxylate mediates AF interaction, while the nature of the 154
coupling transmitted by EO mode depends on the M–Nazido–M 155
angle [5c]. For Mn(II) ions, the ferromagnetic coupling appears over 156
the crossover angle of 988 and reaches its top at 1068 [5c]. In 157
polymer 1, the bridging angle of EO azido is 94.698 for Mn(1)–N(4)– 158
Mn(3) and 95.088 for Mn(1)–N(1)–Mn(3); while the bridging angle 159
of EO azido is 94.278 for Mn(1)–N(7)–Mn(2) and 93.128 for Mn(1)– 160
N(10)–Mn(2). All of these angles are smaller than 988 and therefore 161
conduct AF coupling. The AF exchange interaction mediated by EO 162
azido and syn,syn carboxylate of L ligand should account for the 163
were recorded by continuous scan in a 2u/u mode from 58 to 508
with a step size of 0.028 and a scan speed of 88 minꢁ1. The
experimental diffraction pattern and the simulated pattern are
shown in Fig. 3. Good consistence between the experimental
pattern and the simulated pattern as displayed in Fig. 3 indicates
that bulk-synthesized materials and the as-grown crystals are
homogeneous.
The solid state magnetic susceptibility of polymer 1 was
measured in 2–300 K at a field of 1 kOe, and the dependence
of magnetic susceptibility on temperature was plotted in
x
mT vs
global AF behavior of 1.
164
T profile (Fig. 4a) and xmꢁ1 vs T (Fig. S1). The
x
mT value per Mn(II)
Complex 1 can be magnetically considered as an infinite 165
uniform chain in which the magnetic coupling is mediated through 166
the mixed (m-EO-N3)2(m-COO) triple bridges. The interchain 167
at 300 K (3.96 emu K molꢁ1
)
is lower than the spin-only
value (4.38 emu K molꢁ1) expected for a magnetically isolated
interactions via the long L ligand could be ignored. Considering 168
that the chain contains two sets of triple bridges with different 169
structural parameters that alternating in AABB sequence, it 170
should be described as a 1D Heisenberg chain with alternating 171
J1–J1–J2–J2 interactions. The corresponding Hamiltonian is 172
H = ꢁJ1
expression of
was exported as follows [15]:
S
(S4iꢁ2S4iꢁ1 + S4iꢁ1S4i) ꢁ J2
S(S4iS4i+1 + S4i+1S4i+2) and the 173
for such a chain in the classical-spin approximation 174
x
175
176
"
#
ꢀ ꢁ
Ng2
b
12kT
2SðS þ 1Þ
A
xchain
¼
B
2
2
where A = 4 + 4u1 + 4u2 + 4u1u2 + 2u12 + 2u22 + 4u1 u2 + 4u1u2
+
1778
4u12u2 and B = 1 ꢁ u12u22. The u is the Langevin function u = 179
2
Fig. 3. X-ray powder diffraction (XRPD) patterns for 1.
coth[JS(S + 1)/kT] ꢁ kT/[JS(S + 1)] with S = 5/2. The best simulation 180
Please cite this article in press as: R.-M. Wen, et al., Synthesis, structure and magnetic properties of manganese(II) coordination polymer
with azido and zwitterionic dicarboxylate ligand, Chin. Chem. Lett. (2014), http://dx.doi.org/10.1016/j.cclet.2014.05.026

G Model
CCLET 3007 1–5
4
R.-M. Wen et al. / Chinese Chemical Letters xxx (2014) xxx–xxx
Q4
Fig. 4. (a) The xmT vs T plot of 1. The solid red lines represent the best fits to the uniform-chain model. (b) The M vs H plot of 1. (For interpretation of the references to color in
this figure legend, the reader is referred to the web version of this article.)
(d) F. Pointillart, K. Bernot, G. Poneti, R. Sessoli, Crystal packing effects on the
magnetic slow relaxation of Tb(III)-nitronyl nitroxide radical cyclic dinuclear
clusters, Inorg. Chem. 51 (2012) 12218–12229;
(e) G.Q. Kong, C.D. Wu, Four novel coordination polymers based on a flexible
zwitterionic ligand and their framework dependent luminescent properties,
Cryst. Growth Des. 10 (2010) 4590–4595.
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
181
gives rise to J1 = ꢁ9.889 cmꢁ1, J2 = ꢁ4.697 cmꢁ1 and g = 2.02.
Different J values indicate that appreciably different magnetic
interactions are mediated through different triple bridges, while
negative J values reconfirm the AF coupling of 1.
182
183
184
[4] (a) J.Y. Lee, O.M. Farha, J. Roberts, et al., Metal–organic framework materials as
catalysts, Chem. Soc. Rev. 38 (2009) 1450–1459;
185
4. Conclusion
(b) A. Corma, H. Garcia, F.X. Llabres, I. Xamena, Engineering metal organic
frameworks for heterogeneous catalysis, Chem. Rev. 110 (2010) 4606–4655;
(c) F.J. Song, C. Wang, J.M. Falkowski, L.Q. Ma, W.B. Lin, Isoreticular chiral metal–
organic frameworks for asymmetric alkene epoxidation: tuning catalytic activity
by controlling framework catenation and varying open channel sizes, J. Am. Chem.
Soc. 132 (2010) 15390–15398;
(d) K.K. Tanabe, S.M. Cohen, Engineering a metal–organic framework catalyst
by using postsynthetic modification, Angew. Chem. Int. Ed. 48 (2009)
7424–7427;
186
187
188
189
A Mn(II) coordination polymer with a 2-fold interpenetrating
3D framework based on azide ion and zwitterionic dicarboxylate
was synthesized under hydrothermal conditions. Furthermore,
magnetism analysis reveals anti-ferromagnetism for 1.
190
Acknowledgment
(e) C.M. Liu, D.Q. Zhang, D.B. Zhu, Field-induced single-ion magnets based
on enantiopure chiral b-diketonate ligands, Inorg. Chem. 52 (2013)
8933–8940.
191 Q3
This work was financially supported by MOE Innovation Team
of China (No. IRT13022).
[5] (a) J. Ribas, A. Escuer, M. Monfort, et al., Polynuclear Ni(II) and Mn(II) azido
bridging complexes. Structural trends and magnetic behavior, Coord. Chem. Rev.
193 (1999) 1027–1068;
192
(b) X.Y. Wang, Z.M. Wang, S. Gao, Constructing magnetic molecular solids by
employing three-atom ligands as bridges, Chem. Commun. (2008) 281–294;
(c) Y.F. Zeng, X. Hu, F.C. Liu, X.H. Bu, Azido-mediated systems showing different
magnetic behaviors, Chem. Soc. Rev. 38 (2009) 469–480;
(d) F.C. Liu, Y.F. Zeng, J.R. Li, et al., Novel 3-D framework nickel(II) complex with
azide, nicotinic acid, and nicotinate(1ꢁ) as coligands: hydrothermal synthesis,
structure, and magnetic properties, Inorg. Chem. 44 (2005) 7298–7300;
(e) H.H. Ko, J.H. Lim, H.C. Kim, C.S. Hong, Coexistence of spin canting and
193
References
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
[1] (a) B. Moulton, M.J. Zaworotko, From molecules to crystal engineering: supra-
molecular isomerism and polymorphism in network solids, Chem. Rev. 101
(2001) 1629–1658;
(b) D. Tian, Q. Chen, Y. Li, et al., A mixed molecular building block strategy for the
design of nested polyhedron metal–organic frameworks, Angew. Chem. Int. Ed. 53
(2013) 837–841;
(c) J.R. Li, Y. Tao, Q. Yu, et al., Selective gas adsorption and unique structural
topology of a highly stable guest-free zeolite-type MOF material with N-rich
chiral open channels, Chem. Eur. J. 14 (2008) 2771–2776;
(d) S.R. Batten, K.S. Murray, Structure and magnetism of coordination polymers
containing dicyanamide and tricyanomethanide, Coord. Chem. Rev. 246 (2003)
103–130;
(e) K.H. He, Y.W. Li, Y.Q. Chen, Z. Chang, A new 8-connected self-penetrating
metal–organic framework based on dinuclear cadmium clusters as secondary
building units, Chin. Chem. Lett. 24 (2013) 691–694.
metamagnetism in
a one-dimensional Mn(III) complex bridged by a single
end-to-end azide, Inorg. Chem. 45 (2006) 8847–8849.
[6] (a) E. Ruiz, J. Cano, S. Alvarez, P. Alemany, Magnetic coupling in end-on azido-
bridged transition metal complexes: a density functional study, J. Am. Chem. Soc.
120 (1998) 11122–11129;
(b) E.C. Yang, Z.Y. Liu, Z.Y. Liu, L.N. Zhao, X.J. Zhao, Long-range ferromagnetic
ordering in a 3D Cu(II)-tetracarboxylate framework assisted by an unprecedented
bidentate m2-O1,N4 hypoxanthine nucleobase, Dalton Trans. 39 (2010)
8868–8871;
(c) C.S. Hong, J.E. Koo, S.K. Son, et al., Unusual ferromagnetic couplings in single
end-to-end azide-bridged cobalt (II) and nickel (II) chain systems, Chem. Eur. J. 7
(2001) 4243–4252;
(d) T.C. Stamatatos, G. Christou, Azide groups in higher oxidation state manga-
nese cluster chemistry: from structural aesthetics to single-molecule magnets,
Inorg. Chem. 48 (2009) 3308–3322;
(e) H.R. Wen, C.F. Wang, Y. Song, J.L. Zuo, X.Z. You, One-dimensional azido-
bridged chiral metal complexes with ferromagnetic or antiferromagnetic inter-
actions: syntheses, structures, and magnetic studies, Inorg. Chem. 44 (2005)
9039–9045.
[2] (a) K. Sumida, D.L. Rogow, J.A. Mason, et al., Carbon dioxide capture in metal–
organic frameworks, Chem. Rev. 112 (2012) 724–789;
(b) T.R. Cook, Y.R. Zheng, P.J. Stang, Metal–organic frameworks and self-assem-
bled supramolecular coordination complexes: comparing and contrasting the
design, synthesis, and functionality of metal–organic materials, Chem. Rev. 113
(2013) 734–777;
(c) G. Fe´rey, C. Mellot-Draznieks, C. Serre, F. Millange, Crystallized frameworks
with giant pores: are there limits to the possible? Acc. Chem. Res. 38 (2005)
217–225;
[7] (a) X.B. Li, Y. Ma, X.M. Zhang, J.Y. Zhang, E.Q. Gao, Azide-bridged copper (II) and
manganese(II) compounds with a zwitterionic tetrazolate ligand: structures and
magnetic properties, Eur. J. Inorg. Chem. 30 (2011) 4738–4744;
(b) F.C. Liu, Y.F. Zeng, J. Jiao, et al., First metal azide complex with isonicotinate as
a bridging ligand showing new net topology: hydrothermal synthesis, structure,
and magnetic properties, Inorg. Chem. 45 (2006) 2276–2778.
[8] (a) Y.F. Zeng, F.C. Liu, J.P. Zhao, et al., An azido-metal-isonicotinate complex
showing long-range ordered ferromagnetic interaction: synthesis, structure
and magnetic properties, Chem. Commun. (2006) 2227–2229;
(d) G.Q. Kong, C.D. Wu, A self-assembled supramolecular solid for catalytic
application, Inorg. Chem. Commun. 12 (2009) 731–734.
[3] (a) S.L. James, Metal–organic frameworks, Chem. Soc. Rev. 32 (2003) 276–288;
(b) H.L. Jiang, T. Akita, T. Ishida, M. Haruta, Q. Xu, Synergistic catalysis of Au@Ag
core–shell nanoparticles stabilized on metal–organic framework, J. Am. Chem.
Soc. 133 (2011) 1304–1306;
(c) Y. Mizuno, M. Okubo, K. Kagesawa, et al., Precise electrochemical control of
ferromagnetism in a cyanide-bridged bimetallic coordination polymer, Inorg.
Chem. 51 (2012) 10311–10316;
Please cite this article in press as: R.-M. Wen, et al., Synthesis, structure and magnetic properties of manganese(II) coordination polymer
with azido and zwitterionic dicarboxylate ligand, Chin. Chem. Lett. (2014), http://dx.doi.org/10.1016/j.cclet.2014.05.026

G Model
CCLET 3007 1–5
R.-M. Wen et al. / Chinese Chemical Letters xxx (2014) xxx–xxx
5
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
(b) Y.F. Zeng, J.P. Zhao, B.W. Hu, et al., Structures with tunable strong ferromag-
netic coupling: from unordered (1D) to ordered (discrete), Chem. Eur. J. 13 (2007)
9924–9930;
(c) F.C. Liu, Y.F. Zeng, J.P. Zhao, et al., An unusual 1D manganese azido complex
with novel EO/EO/EO/EE coordination mode: synthesis, structure, and magnetic
properties, Inorg. Chem. 46 (2007) 1520–1522.
(c) L. Han, H. Valle, X.H. Bu, Homochiral coordination polymer with infinite 304
double-stranded helices, Inorg. Chem. 46 (2007) 1511–1513;
305
(d) X.L. Hong, J. Bai, Y. Song, Y.Z. Li, Y. Pan, Luminescent open-framework 306
antiferromagnet-hydrothermal syntheses, structures, and luminescent and 307
magnetic properties of two novel coordination polymers: [Zn(pdoa)(bipy)]n 308
and {[Mn(pdoa)(bipy)](bipy)}n [pdoa = 2,20-(1,3-phenylenedioxy)bis(acetate); 309
[9] (a) X.J. Li, X.F. Guo, X.L. Weng, S. Lin, Two novel 2D cadmium(II) MOFs based on
flexible bis(imidazolyl) and zwitterionic dicarboxylate ligands, CrystEngComm 14
(2012) 1412–1418;
(b) Y.Q. Wang, Q. Yue, Y. Qi, et al., Manganese(II), iron(II), and mixed-metal metal–
organic frameworks based on chains with mixed carboxylate and azide bridges:
magnetic coupling and slow relaxation, Inorg. Chem. 52 (2013) 4259–4268.
[10] (a) S.D. Han, W.C. Song, J.P. Zhao, et al., Synthesis and ferrimagnetic properties of
an unprecedented polynuclear cobalt complex composed of [Co24] macrocycles,
Chem. Commun. 49 (2013) 871–873;
bipy = 4,40-bipyridine], Eur. J. Inorg. Chem. 45 (2006) 3659–3666.
310
[11] F.K. Zheng, A.Q. Wu, Y. Li, G.C. Guo, J.S. Huang, Synthesis and structural charac- 311
terization of a new cadmium (II) complex with a double betaine, Chin. J. Struct. 312
Chem. 8 (2005) 940–944.
[12] A.X.S. Bruker, SAINT Software Reference Manual, Bruker Analytical X-ray Instru- 314
ments Inc., Madison, WI, 1998.
[13] G.M. Sheldrick, SADABS, Siemens Area Detector Absorption Corrected Software, 316
University of Go¨ttingen, Germany, 1996.
313
315
317
[14] G.M. Sheldrick, A short history of SHELX, Acta Crystallogr. A 64 (2008) 112–122. 318
[15] Y.Q. Wang, Q.X. Jia, K. Wang, A.L. Cheng, E.Q. Gao, Diverse manganese(II) coordi- 319
nation polymers with mixed azide and zwitterionic dicarboxylate ligands: struc- 320
(b) D. Foguet-Albiol, K.A. Abboud, G. Christou, High-nuclearity homometallic iron
and nickel clusters: Fe22 and Ni24 complexes from the use of N-methyldietha-
nolamine, Chem. Commun. (2005) 4282–4284;
ture and magnetic properties, Inorg. Chem. 49 (2010) 1551–1560.
321
Please cite this article in press as: R.-M. Wen, et al., Synthesis, structure and magnetic properties of manganese(II) coordination polymer
with azido and zwitterionic dicarboxylate ligand, Chin. Chem. Lett. (2014), http://dx.doi.org/10.1016/j.cclet.2014.05.026
