Synthesis of a novel oxoxanthenoisoquinoline via a palladium-catalysed cross-coupling reaction; as a fluorophore

Article abstract of DOI:10.1016/S0040-4039(00)00288-4

Suzuki cross-coupling of a bromoaromatic anhydride with 2-methoxyboronic acid afforded a novel oxoxanthenoisoquinoline. Subsequent coupling with 2,3,4,6-tetra-O-acetyl-D-galactose-1,3-diyl phosphate gave a fluorophore. (C) 2000 Elsevier Science Ltd.

Full text of DOI:10.1016/S0040-4039(00)00288-4

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 41 (2000) 2987–2990
Synthesis of a novel oxoxanthenoisoquinoline via a
palladium-catalysed cross-coupling reaction; as a fluorophore
Mark P. Prickett, Gurdial Singh ∗ and Hariprasad Vankayalapati
Department of Chemistry, University of Sunderland, Sunderland SR1 3SD, UK
Received 10 January 2000; accepted 14 February 2000
Abstract
Suzuki cross-coupling of a bromoaromatic anhydride with 2-methoxyboronic acid afforded a novel oxoxan-
thenoisoquinoline. Subsequent coupling with 2,3,4,6-tetra-O-acetyl-D-galactose-1,3-diyl phosphate gave a fluoro-
phore. © 2000 Elsevier Science Ltd. All rights reserved.
The Suzuki cross-coupling reaction of aryl bromides, aryl iodides and pseudohalides, e.g. triflates, is
usually catalysed with palladium salts.1 These reactions generally proceed in good yields for the synthesis
of a range of aryl, biphenyl and styryl derivatives.2 Recently, the groups of Buchwald and Fu reported
phosphine-modified palladium-mediated coupling reactions which employ aryl chlorides as substrates.3
As a direct result of these studies the Suzuki reaction has become the method of choice for synthesis of
aryl and hetereoaryl systems.
In parallel with this development there has been a resurgence of interest in the chemistry of carbo-
hydrates and the important roles they play in a large number of biological events has become well-
recognised. Alongside this, much effort has been directed towards the detection of saccharides by
fluorescent chemosensors.4 These studies have established that the response which signals an interaction
between carbohydrate and a receptor is communicated by changes in fluorescence intensity through
chelation.5 The current generation of saccharide sensors almost exclusively has a common anthracene
or polyaromatic hydrocarbon-based fluorophore as the reporting unit, with synthetic modification of the
methylene spacers that bind these structures together.
We have recently developed the 1,3-diylphosphate leaving group for the synthesis of saccharides.6 In
order to further extend the scope of this procedure we wished to employ this type of activation for the
introduction of fluorophores that were not based upon the anthracene framework.
In this Communication we report on the synthesis of an oxoxanthenoisoquinoline 1 using Suzuki
chemistry and its subsequent introduction into a protected sugar. The structural design requirements for
a compound such as 1 was based on the premise that we desired the molecule to have an absorption
∗
Corresponding author. Tel: +44 191 5153094; fax: +44 191 5153148; e-mail: gurdial.singh@sunderland.ac.uk (G. Singh)
0040-4039/00/$ - see front matter © 2000 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(00)00288-4
tetl 16568

2988
maximum above 400 nm and, in addition, we wished to have a functionality that would not form a strong
complex/interaction with Lewis acids, as well as having a nucleophilic arm for easy attachment to the
anomeric centre of sugars. These requirements appeared to be fulfilled by the oxoxanthenoisoquinoline
1.
Our starting point for the synthesis of 1 was 4-bromoacenaphthene 2 which is commercially available
(Scheme 1). Treatment of 2 with sodium dichromate7 in 85% acetic acid afforded the bromoanhydride 3
in 80% yield (m.p. 200°C) as a grey crystalline solid. With the anhydride 3 in hand we investigated its
elaboration.
Scheme 1. Reagents and conditions: (i) Na2Cr2O7·2H2O (6 equiv.), 85% HOAc, ∆, 12 h; (ii) Pd(OAc)2 (3 equiv.), Na2CO3,
PhCH3, H2O, ∆, 5 h; (iii) BBr3, (1.1 equiv.), CH2Cl2, 0°C then rt, 2 h; (iv) 5% Pd/C (cat.), Ph2O, ∆, 12 h; (v) NH2CH2CH2OH
(10 equiv.), ∆, 12 h
Initially, we examined the coupling reaction of the bromoanhydride 3 with the boronic acid 4 using
hindered palladium(0) phosphines as catalysts and all of these proved to be unsuccessful. Variation of
the base employed in these reactions also did not improve the outcome of the reactions. After some
experimentation we were able to obtain the desired outcome if we used 3 equivalents of palladium
acetate in the reaction and we were able to isolate the cross-coupled product 5 in 50% yield after
column chromatography. Removal of the methoxy protecting group of 5 with boron tribromide afforded

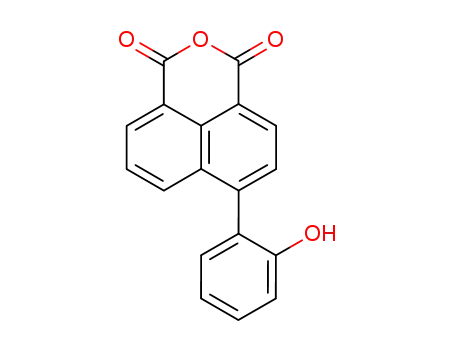

the phenol 6 in 76% yield. Ring closure to the phenolic anhydride (6 to 7) was realised on heating
6 in diphenyl ether in the presence of a catalytic amount of 5% palladium on carbon in a yield of
69%, orange crystals, m.p. 225°C; νmax 3396, 1781 cm−1. Heating the anhydride 7 in ethanolamine
resulted in formation of the desired oxoxanthenoisoquinoline 1, in 77% yield after chromatography. The
oxoxanthenoisoquinoline 1 was found to be a highly luminous yellow material, λmax (MeOH) 438, 332,
284, 260 nm.

2989
Having established a successful synthesis of this system we investigated its coupling reaction with a
glycosyl donor having an anomeric propane-1,3-diylphosphate as a leaving group. Thus, treatment of 18,
with the phosphate 8 in the presence of trimethylsilyl triflate, gave the β-glycoside 9 in 69% yield. The
glycoside 9 proved to be a highly yellow fluorescent material that had absorption maxima at 427, 333,
233 nm (Scheme 2).
Scheme 2.
In summary, we have established that Suzuki coupling of the bromoaromatic anhydride can be
employed to afford biaryl systems that can be elaborated to afford novel oxoxanthenoisoquinoline which
is an excellent fluorophore.
Acknowledgements
We thank the EPSRC for access to mass spectrometry service at the University of Wales, Swansea
(Director, Professor D. E. Games).
References
1. (a) Miyauara, N.; Suzuki, A. Chem. Rev. 1995, 95, 2457–2483; (b) Suzuki, A. J. Organometallic Chem. 1999, 576, 147–168.
2. (a) Hamann, B. C.; Hartwig, J. F. J. Am. Chem. Soc. 1998, 120, 7369–7370; (b) Reetz, M. T.; Lohmer, G.; Schwickardi, R.
Angew. Chem., Int. Ed. Engl. 1998, 37, 481–483.
3. (a) Old, D. W.; Wolfe, J. P.; Buchwald, S. L. J. Am. Chem. Soc. 1998, 120, 9722–9723, and references cited therein; (b)
Littke, A. F.; Fu, G. C. Angew. Chem., Int. Ed. Engl. 1998, 37, 3387–3388.
4. James, T. D.; Linnane, P.; Shinkai, S. Chem. Commun. 1996, 281–288.
5. (a) Czarnik, A. W. Fluorescent Chemosensors for Ion and Molecular Recognition; American Chemical Society: Washington,
DC, 1993; (b) Bissel, R. A.; de Silva, A. P.; Gunaratne, H. Q. N.; Lynch, P. L. M.; Maguire, G. E. M.; Sandanayake, K. R. A.
S. Chem. Soc. Rev. 1992, 187–195.
6. (a) Vankayalapati, H.; Singh, G. Chem. Commun. 1998, 2129–2130; (b) Vankayalapati, H.; Singh, G. Tetrahedron Lett. 1999,
40, 3925–3928; (c) Vankayalapati, H.; Singh, G. Tetrahedron: Asymmetry, 2000, 11, 125–138.
7. Feldman, K. S.; Campbell, R. F.; Saunders, J. C.; Ahn, C.; Masters, K. M. J. Org. Chem. 1997, 62, 8814–8820.
8. Selected data: compound 1: m.p. 171–173°C, νmax (KBr) 3650, 1731 cm−1; λmax (MeOH) 438 (ε 3540), 332 (ε 2313), 284
(ε 4415), 260 (ε 4670) nm; δH (270 MHz, CDCl3), 1.59 (1H, brs), 3.96 (2H, dd, J=5.3, 4.3 Hz), 4.43 (2H, app. t, J=5.3 Hz),
7.02 (1H, dd, J=8.59, 6.6 Hz), 7.11 (1H, d, J=6.6 Hz), 7.39 (1H, ddd, J=7.9, 7.9, 7.3 Hz), 7.67 (1H, dd, J=7.9, 7.3 Hz), 7.74

2990
(1H, d, J=7.3 Hz), 8.06 (1H, dd, J=8.6, 7.3 Hz), 8.60 (1H, d, J=6.6 Hz), 8.65 (1H, d, J=7.3 Hz); m/z (EI). Found: 332.0923;
C20H13NO4 requires: 332.0992. Compound 9: [α]D +67.6 (c 1.0, CHCl3); νmax (film) 1747; λmax (MeOH) 427 (ε 1147), 333
(ε 7923), 233 (ε 29359) nm; δH (270 MHz, CDCl3), 1.97 (3H, s), 2.03 (3H, s), 2.08 (3H, s), 2.14 (3H, s), 3.92 (1H, dd, J=6.6,
6.6 Hz), 4.06–4.14 (4H, m), 4.41 (1H, dd, J=5.3, 4.6 Hz), 4.68 (1H, d, J=6.6 Hz), 5.01–5.15 (2H, m), 5.38 (1H, s), 5.45 (1H,
dd, J=3.31, 3.3 Hz), 7.27 (1H, unresolved), 7.73, (1H, d, J=7.9 Hz), 7.76 (1H, d, J=7.9 Hz), 7.78 (1H, d, J=7.9 Hz), 8.20 (1H,
d, J=7.9 Hz), 8.24 (1H, d, J=9.2 Hz), 8.59 (1H, d, J=7.3 Hz), 8.62 (1H, d, J=7.3 Hz); δC (67.8 MHz, CDCl3), 20.54, 20.56,
20.60, 20.64, 61.73, 66.03, 67.19, 68.14, 68.29, 70.85, 70.87, 98.85, 126.93, 126.97, 131.39, 131.58, 134.15, 134.32, 170.08,
170.12, 170.21, 170.28, 170.45, 170.61; m/z (CI, NH3). Found: 679.2149; (M+NH4) C34H35N2O13 requires: 679.2139.
