New titanium complexes having two indolide-imine chelate ligands for living ethylene polymerization

Article abstract of DOI:10.1246/cl.2001.566

Three new titanium complexes having two indolide-imine ligands were synthesized and investigated as ethylene polymerization catalysts. These complexes using MAO as a cocatalyst promoted ethylene polymerization at 25 °C to produce polyethylenes (M_n: 11000-41800) having narrow molecular weight distributions (M_w/M_n: 1.11-1.14), displaying very high activities (52-288 kg-PE/mol-Ti·h·atm).

Full text of DOI:10.1246/cl.2001.566

566
Chemistry Letters 2001
New Titanium Complexes Having Two Indolide-Imine Chelate Ligands
for Living Ethylene Polymerization
Tomoaki Matsugi, Shigekazu Matsui, Shin-ichi Kojoh, Yukihiro Takagi,
Yoshihisa Inoue, Terunori Fujita,* and Norio Kashiwa
R&D Center, Mitsui Chemicals, Inc., 580-32 Nagaura, Sodegaura, Chiba 299-0265
(Received March 9, 2001; CL-010207)
Three new titanium complexes having two indolide-imine
ligands were synthesized and investigated as ethylene polymer-
ization catalysts. These complexes using MAO as a cocatalyst
promoted ethylene polymerization at 25 °C to produce polyeth-
ylenes (Mn:11000–41800) having narrow molecular weight dis-
tributions (Mw/Mn: 1.11–1.14), displaying very high activities
(52–288 kg-PE/mol-Ti·h·atm).
The development of high performance living olefin poly-
merization catalysts has been the subject of extensive study for
many years since living olefin polymerization is a powerful tool
for creating precisely-controlled polymers such as monodis-
perse polymers, end-functionalized polymers, and block
copolymers.1,3k The living olefin polymerization requires low
temperatures to suppress the side reactions, namely chain termi-
nation or transfer reactions and, thus, it generally produces a
relatively low molecular weight polymer, displaying low activi-
ty. Much research effort devoted to the study on soluble, well-
defined transition metal complexes for olefin polymerization2
has resulted in the introduction of a variety of living olefin
polymerization catalysts working at relatively high tempera-
tures. There are, however, a limited number of examples of
room-temperature living ethylene polymerizations using solu-
ble, well-defined transition metal complexes so far.1f,1g,1o
Recently, we have found, as a result of ligand-oriented cat-
alyst design research, that transition metal complexes having
non-symmetric bidentate ligand(s) (e.g., phenoxy-imine ligand,
pyrrolide-imine ligand, and imine-pyridine ligand) exhibit high
catalytic performance for olefin polymerization. 3 These results
inspired us to conduct further study on transition metal com-
plexes having non-symmetric bidentate ligand(s) as potentially
viable olefin polymerization catalysts.
The activities obtained were in the range of 52–288 kg-
PE/mol-Ti·h·atm. In all cases, solid polyethylene was obtained.
The melting temperature (Tm) of the polyethylenes, based on
DSC measurement, lies in the range of 132.2–134.2 °C, sug-
gesting that the polyethylenes possess a linear structure. GPC
analyses revealed that the polyethylenes produced at 25 °C pos-
sess narrow molecular weight distributions (Mw/Mn: 1.11–1.14,
entries 1–3) for their high molecular weights (Mn:
11000–41800). The Mw/Mn values suggest that complexes 1–3
/ MAO catalyst systems have the character of living polymer-
ization. Initiation efficiencies for the polymerization are more
than 71%.7 Interestingly, ethylene polymerization using com-
plex 3 / MAO at 50 °C for 10 min produced polyethylene hav-
ing a reasonably narrow molecular weight distribution (Mw/Mn:
1.24, Mn: 53200), displaying higher catalytic activity (290 kg-
PE/mol-Ti·h·atm) (entry 4). A comparison of the polymeriza-
tion results of entries 1–3 indicates that the substituents on the
imine nitrogen influenced catalytic activities. The introduction
of fluorine atoms to the benzene ring on imine nitrogen is sup-
posed to enhance the electrophilicity of the titanium metal in
active species for olefin polymerization. Thus, concerning the
titanium complexes we studied, the electrophilicity of the titani-
In this paper, we introduce three titanium complexes, bear-
ing two indolide-imine chelate ligands, which promote living
ethylene polymerization at room temperature.
A general synthetic route for titanium complexes employed
in this study is shown in Scheme 1. The indolide-imine ligands
of general structures A–C, namely 7-(N-aryliminomethyl)
indole ligands, are prepared in high yields (A: 98%, B: 64%, C:
72%) by the Schiff-base condensation of the desired primary
amine with 7-formylindole.4 The titanium complexes possess-
ing two indolide-imine ligands, namely bis[7-(N-arylimi-
nomethyl)indolinyl]titanium(IV) dichloride complexes, are
obtained as dark purple powder in moderate yields (1: 36%, 2:
27%, 3: 29%) by the treatment of TiCl4 with 2 equiv of the
lithium salt of the indolide-imine ligand. 5
Complexes 1–3 were investigated as ethylene polymeriza-
tion catalysts using MAO as a cocatalyst for 10 min at 25 °C
under atmospheric pressure.6 The results are collected in Table 1.
Copyright © 2001 The Chemical Society of Japan

Chemistry Letters 2001
567
Hagihara, T. Shiono, and T. Ikeda, Macromolecules, 31, 3184
(1998). l) Y. M. Jeon, S. J. Park, J. Heo, and K. Kim,
Organometallics, 17, 3161 (1998). m) K. C. Jayaratne and L.
R. Sita, J. Am. Chem. Soc., 122, 958 (2000). n) E. Y. Tshuva,
I. Goldberg, and M. Kol, J. Am. Chem. Soc., 122, 10706
(2000). o) A. C. Gottfried and M. Brookhart, Macromolecules,
34, 1140 (2001).
For recent reviews see; a) G. J. P. Biritovsek, V. C. Gibson,
and D. F. Wass, Angew. Chem. Int. Ed., 38, 428 (1999). b) S.
D. Ittel, L. K. Johnson, and M. Brookhart, Chem. Rev., 100,
1169 (2000).
a) T. Fujita, Y. Tohi, M. Mitani, S. Matsui, J. Saito, M.
Nitabaru, K. Sugi, H. Makio, and T. Tsutsui, (Mitsui
Chemicals Inc.), European Patent 0874005 (1998); Chem.
Abstr., 129, 331166 (1998). b) S. Matsui, Y. Tohi, M.
Mitani, J. Saito, H. Makio, H. Tanaka, M. Nitabaru, T.
Nakano, and T. Fujita, Chem. Lett., 1999, 1065. c) S.
Matsui, M. Mitani, J. Saito, Y. Tohi, H. Makio, H. Tanaka,
and T. Fujita, Chem. Lett., 1999, 1263. d) S. Matsui, M.
Mitani, J. Saito, N. Matsukawa, H. Tanaka, T. Nakano, and
T. Fujita, Chem. Lett., 2000, 554. e) Y. Yoshida, S. Matsui,
Y. Takagi, M. Mitani, M. Nitabaru, T. Nakano, H. Tanaka,
and T. Fujita, Chem. Lett., 2000, 1270. f) J. Saito, M.
Mitani, S. Matsui, N. Kashiwa, and T. Fujita, Macromol.
Rapid Commun., 21, 1333 (2000). g) S. Matsui and T.
Fujita, Catal. Today, 66, 61 (2001). h) S. Matsui, Y. Inoue,
and T. Fujita, J. Synth. Org. Chem., Jpn., 59, 232 (2001). i)
N. Matsukawa, S. Matsui, M. Mitani, J. Saito, K. Tsuru, N.
Kashiwa, and T. Fujita, J. Mol. Catal. A, 169, 99 (2001). j)
S.Matsui, M. Mitani, J. Saito, Y. Tohi, H. Makio, N.
Matsukawa, Y. Takagi, K. Tsuru, M. Nitabaru, T. Nakano,
H. Tanaka, N. Kashiwa, and T. Fujita, J. Am. Chem. Soc., in
press. k) J. Saito, M. Mitani, J. Mohri, S. Ishii, Y. Yoshida,
T. Matsugi, S. Kojoh, N. Kashiwa, and T. Fujita, Chem.
Lett., 2001, 576.
um metal in active species probably plays a predominant role in
determining the polymerization activity. The highest activity
(288 kg-PE/mol-Ti·h·atm) (entry 3) is extremely high through
the polymerization proceeded in a living fashion.
Catalytic performance of complex 3 / MAO catalyst sys-
tem was further investigated since this catalyst system exhibited
the highest catalytic activity and the narrowest molecular
weight value. Mn and Mw/Mn values of complex 3 / MAO were
monitored as a function of polymer yield at 25 °C. As shown in
Figure 1, the Mn value increased proportionally with the poly-
mer yield while the narrow Mw/Mn value was retained, further
confirming a living polymerization.
2
3
4
5
a) D. R. Dobson, J. Gilmore, and D. A. Long, Synlett, 1992,
79. b) G. Bartoli and G. Palmieri, Tetrahedron Lett., 30,
2129 (1989).
1
Complex 1: H NMR (270 MHz, CDCl3, 25 °C, TMS); δ
In summary, three new titanium complexes with two
indolide-imine chelate ligands were prepared and found to be
room-temperature living ethylene polymerization catalysts.
The influence of substitution groups of the ligands and cocata-
lysts as well as potential applications of the catalyst systems are
under active investigation.
6.01 (d, 2H), 6.7–7.3 (m, 4H(indole-H) + 10H(phenyl-H)),
7.55 (d, 2H), 8.24 (s, 2H), 8.35 (d,2H). Anal. Calcd for
C30H22N4Cl2Ti: C, 64.66. H, 3.98; N, 10.05%. Found: C,
64.18. H, 4.10; N, 10.21%. FD-mass: m/z: 556(M+).
1
Complex 2: H NMR (270 MHz, CDCl3, 25 °C, TMS); δ
5.98 (d, 2H), 6.14 (m, 2H), 6.74 (d, 2H), 6.77 (d, 2H), 7.10
(t, 2H), 7.31 (m, 2H), 7.65 (m, 2H), 8.18 (m, 2H), 8.31 (s,
2H). FD-mass: m/z: 628(M+). Reasonable elemental analysis
data were not obtained since complex 2 was unstable and
References and notes
1
a) Y. Doi, S. Ueki, and T. Keii, Macromolecules, 12, 814
(1979). b) G. Jeske, H. Lauke, H. Mauermann, P. N.
Swepston, H. Schumann, and T. J. Marks, J. Am. Chem. Soc.,
107, 8091 (1985). c) V. M. Mohring and G. Fink, Angew.
Chem., Int. Ed. Engl., 24, 1001 (1985). d) H. Yasuda, M.
Furo, H. Yamamoto, A. Nakamura, A. Miyake, and N.
Kibino, Macromolecules, 25, 5115 (1992). e) K. Mashima, S.
Fujikawa, and A. Nakamura, J. Am. Chem. Soc., 115, 10990
(1993). f) K. Mashima, S. Fujikawa, H. Urata, E. Tanaka,
and A. Nakamura, J. Chem. Soc., Chem. Commun., 1994,
1623. g) K. Mashima, S. Fujikawa, Y. Tanaka, T. Oshiki, E.
Tanaka, and A. Nakamura, Organometallics, 14, 2633
(1995). h) J. D. Scollard and D. H. McConville, J. Am.
Chem. Soc., 118, 10008 (1996). i) C. M. Killian, D. J.
Tempel, L. K. Johnson, and M. Bookhart, J. Am. Chem. Soc.,
118, 11664 (1996). j) R. Baumann, W. M. Davis, and R. R.
Schrock, J. Am. Chem. Soc., 119, 3830 (1997). k) H.
1

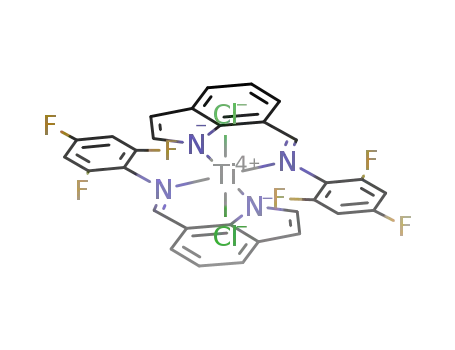

decomposed on standing. Complex 3: H NMR (270MHz,
CDCl3, 25 °C, TMS); δ 5.98 (m, 2H), 6.08 (d, 2H), 6.51 (m,
2H), 7.14 (t, 2H), 7.33 (m, 2H), 7.73 (m, 2H), 8.20 (m, 2H),
8.29 (s, 2H). Anal. Calcd for C30H16N4 F6Cl2Ti: C, 54.17. H,
2.42; N, 8.42%. Found: C, 54.15. H, 2.09; N, 8.23%. FD-
mass: m/z: 664(M+).
General polymerization procedure: Flow of ethylene gas
(100 L/h) was charged into 250 mL of toluene at 25 °C. To
this solution, MAO (Albemarle MAO, 1.2 M toluene solu-
tion) and a toluene solution of a complex was added at the
desired polymerization temperature. After the prescribed
time, 25 mL of isobutyl alcohol was added to terminate the
polymerization.
6
7
Although initiation efficiency cannot be discussed accurately
for such low polymer yields, the values suggest the high effi-
ciency for generating active species.
