Synthesis of a series of fluorinated boronate compounds and their use as additives in lithium battery electrolytes

Article abstract of DOI:10.1149/1.1779407

A new series of anion receptors based on boronate compounds have been synthesized. These compounds can be used as anion receptors in lithium battery electrolytes. The so-called boronate means that the compounds contain a boron bonded with two oxygen atoms and one carbon atom. This series includes various boronate compounds with different fluorinated aryl and fluorinated alkyl groups. When these anion receptors are used as additives in 1,2-dimethoxyethane (DME) solutions containing various lithium salts, the ionic conductivities of these solutions are greatly increased. The electrolytes tested in this study were DME solutions containing the following lithium salts: LiF, CF₃COOLi, and C₂F₅COOLi. Without the additive, the solubility of LiF in DME (and all other nonaqueous solvents) is very low. With some of these boronate compounds as additives, LiF solutions in DME with concentration as high as 1 M were obtained. The solubilities of the other salts were also increased by these additives. Near-edge X-ray absorption fine structure (NEXAFS) spectroscopy studies show that I^- anions are complexed with these compounds in DME solutions containing LiI salts. The degree of complexation is also closely related to the structures of the fluorinated aryl and alkyl groups which act as electron-withdrawing groups. The NEXAFS results are in good agreement with ionic conductivity studies.

Full text of DOI:10.1149/1.1779407

Journal of The Electrochemical Society, 151 ͑9͒ A1429-A1435 ͑2004͒
A1429
0013-4651/2004/151͑9͒/A1429/7/$7.00 © The Electrochemical Society, Inc.
Synthesis of a Series of Fluorinated Boronate Compounds
and Their Use as Additives in Lithium Battery Electrolytes
a, ,z
,c
H. S. Lee,a Z. F. Ma,b, X. Q. Yang,
*
*
*
a,**
X. Sun,a, and J. McBreen
aBrookhaven National Laboratory, Upton, New York 11973, USA
bDepartment of Chemical Engineering, Shanghai Jiaotong University, Shanghai 200240, China
A new series of anion receptors based on boronate compounds have been synthesized. These compounds can be used as anion
receptors in lithium battery electrolytes. The so-called boronate means that the compounds contain a boron bonded with two
oxygen atoms and one carbon atom. This series includes various boronate compounds with different fluorinated aryl and fluori-
nated alkyl groups. When these anion receptors are used as additives in 1,2-dimethoxyethane ͑DME͒ solutions containing various
lithium salts, the ionic conductivities of these solutions are greatly increased. The electrolytes tested in this study were DME
solutions containing the following lithium salts: LiF, CF3COOLi, and C2F5COOLi. Without the additive, the solubility of LiF in
DME ͑and all other nonaqueous solvents͒ is very low. With some of these boronate compounds as additives, LiF solutions in DME
with concentration as high as 1 M were obtained. The solubilities of the other salts were also increased by these additives.
Near-edge X-ray absorption fine structure ͑NEXAFS͒ spectroscopy studies show that IϪ anions are complexed with these com-
pounds in DME solutions containing LiI salts. The degree of complexation is also closely related to the structures of the
fluorinated aryl and alkyl groups which act as electron-withdrawing groups. The NEXAFS results are in good agreement with
ionic conductivity studies.
© 2004 The Electrochemical Society. ͓DOI: 10.1149/1.1779407͔ All rights reserved.
Manuscript submitted October 8, 2003; revised manuscript received January 12, 2004. Available electronically August 18, 2004.
Numerous studies on developing new cathode and anode mate-
rials for lithium batteries have been reported. In contrast, studies on
developing new electrolyte systems somewhat lag behind. Recent
studies1,2 have shown that the low thermal stability of LiPF6-based
electrolyte plays an important role in the capacity fading of lithium-
ion batteries during cycling. Therefore, the development of new
electrolyte systems with high ionic conductivity, and good chemical
and electrochemical stability will help to improve the cycling life of
lithium-ion batteries. Studies on a new electrolyte using a boron-
compounds were shown in Fig. 1. The starting materials were pur-
chased from Aldrich Chemical Co. All the reactions and processes
were performed under an argon atmosphere or under vacuum. Pro-
ton nuclear magnetic resonance ͑HNMR͒ spectra were recorded on a
Hitachi R-1200 ͑60 MHz͒ spectrometer. The synthesis procedures of
compounds ͑1͒, ͑2͒, and ͑3͒ are sketched in Fig. 2. The following are
the outlines of these procedures:
Compound (1).—2-͑2.4-Difluorophenyl͒-4-fluoro-1,3,2-benzodioxa-
borole, or (C6H3F͒O2B͑C6H3F2). 3-fluorocatechol ͑3.84 g, 0.03
mol͒ and 2,4-difluoroboronic acid ͑4.73 g, 0.03 mol͒ were mixed in
40 mL toluene. The mixture was heated to reflux. Water from con-
densation reaction was removed by azeotropic distillation. After 4 h
of reaction, the solvent was evaporated from the reaction mixture
under reduced pressure. The residue was sublimed at 98-100°C/0.1
mm Hg. The final product ͑7.2 g of white crystal͒ was obtained in
96% yield. Melting point: 112°C. HNMR (CDCl3 ppm͒ ␦: 6.7-7.2
͑m, 5H͒, 7.8-8.3 ͑m, 1H͒. IR ͑neat cmϪ1͒, ␯ 3082.7, 1613.0, 1499.4,
1462.4, 1422.6, 1393.3, 1368.5, 1331.9, 1268.9, 1173.6, 1140.3,
1103.5, 1057.7, 1025.0, 968.7, 853.3, 774.7, 725.5, 653.4.
3,4
containing lithium salt bis͑oxalato͒ borate ͑LiBOB͒ have shown
the advantages of the higher electrochemical stability of this new
system. The potential of using boron-containing compounds in non-
aqueous electrolytes is attracting more and more attention from both
the academic and industrial communities. In our previous
publications,5,6 it has been demonstrated that using anion receptors
as additives can significantly reduce ion pairing in nonaqueous elec-
trolytes. These types of anion receptors can be used in two ways.
One is to use them as additives to improve the properties of cur-
rently used electrolytes;1 the other is to use them in combination
with various salts to develop new electrolyte systems. Here we re-
port the synthesis of a series of boronate compounds. The effect of
these new compounds on conductivity of lithium salts in nonaque-
ous solution was studied. The molecular weights of most of these
new boronate compounds are lower than our previously reported
boron compounds, and many of them are liquids at room tempera-
ture. Therefore, their effects on conductivity enhancement are supe-
rior. The effects on anion complexation were investigated by near-
edge X-ray absorption spectroscopy. Electrolytes using some
compounds in this series display high electrochemical stability up to
5 V. Although the molecular structures and the synthesis of some
compounds in this new series of boronate compounds had been
briefly described in our previous publication,7,8 detailed and system-
atic study of the series reported here provides more complete infor-
mation about these compounds.
Compound

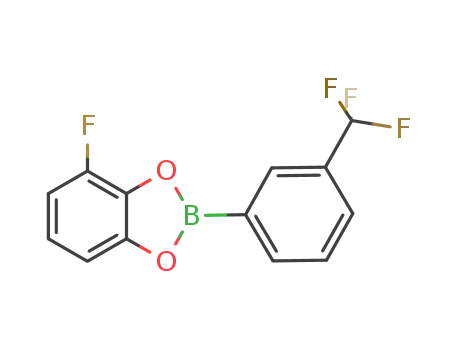

(2).—2-͑3-Trifluoromethyl
phenyl͒-4-fluoro-1,3,2-
benzodioxaborole, or (C6H3F͒O2B͑C7H4F3). The same synthesis
procedure as for compound ͑1͒ was used. 3-Fluorocatechol reacted
Experimental
Synthesis and characterization.—Fourteen fluorinated 1,3,2-
benzodioxaborole and 1,3,2-dioxaborolane compounds synthesized
in our laboratory are reported here. The chemical structures of these
* Electrochemical Society Active Member.
** Electrochemical Society Fellow.
c Present address: DuPont Fluoroproducts, Wilmington, Delaware 19803, USA.
z E-mail: xyang@bnl.gov
Figure 1. Chemical structure of boronate-based anion receptors. The num-
bers under the structures correspond to the compound number in the text.
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).

A1430
Journal of The Electrochemical Society, 151 ͑9͒ A1429-A1435 ͑2004͒
Figure 2. Scheme of synthesis steps of compounds ͑1-3͒.
with equivalent 3-trifluoromethylboronic acid to yield 95% pure
product. Melting point: 81-82°C. HNMR (CDCl3 ppm͒ ␦ 6.8-7.4
͑m, 3H͒, 7.5-8.1 ͑m, 2H͒, 8.2-8.5 ͑m, 2H͒. IR ͑neat cmϪ1͒, ␯ 3059.5,
1632.7, 1499.7, 1462.5, 1376.1, 1301.9, 1171.3, 1131.0, 1080.0,
1026.9, 917.7, 847.7, 808.7, 774.7, 721.7, 701.1, 605.7.
Figure 4. Scheme of synthesis steps of compounds ͑9-11͒.
2,5-Bis͑trifluoromethyl͒phenylboronic acid, an intermediate
compound. 160 mL of 2.5 M butyl lithium in hexane was mixed
with 400 mL of anhydrous ether. 77.2 g ͑0.27 M͒ of 1,4-
bis͑trifluoromethyl͒benzene was added dropwise to this solution at
room temperature. After refluxing for 6 h, the solution was added
dropwise, over a 1 h period, from a dropping funnel, to a flask in an
ice bath containing 100 mL trimethylborate mixed with 400 mL
ether. The mixture was further stirred for 2 h at room temperature.
Then the mixture was poured into an aqueous ammonium chloride
solution. The ether layer was separated and washed with water. The
product was dried over magnesium sulfate. The solvent was evapo-
rated and a crystalline of the product was formed. Pentane was
added to precipitate out all the crystals. The crude product was fil-
tered out and further purified through recrystallization. The yield
was 21 g, and the melting point was 133-135°C.
Compound (5).—2-͑2,4-Difluorophenyl͒-tetrafluoro-1,3,2-benzodi-
oxaborole ͑5͒ or (C6F4)O2B͑C6H3F2). The crude product was ob-
tained from 3.64 g of tetrafluorocatechol and 3.16 g of 2,4-
difluorophenylboronic acid. The crude product was sublimed at
125°C/0.2 mm Hg to obtain 5.7 g of pure compound. The melting
point of the compound was 112-114°C. HNMR ͓dimethyl sulfoxide
͑DMSO͒-d6 ppm͔ ␦: 6.7-7.2 ͑m, 2H͒, 7.3-7.7 ͑m, 1H͒.
Compound (6).—2-͑Pentafluorophenyl͒-tetrafluoro-1,3,2-benzodi-
oxaborole or (C6F4)O2B͑C6F5). 3.64 g of tetrafluorocatechol was
condensed with 4.2 g pentafluoroboronic acid. The crude product
was then sublimed at 110°C/0.1 mm Hg to obtain 6.2 g of pure
compound. The melting point of the compound was 131-132°C.
Compound (7).—2-͑2-Trifluoromethyl phenyl͒-tetrafluoro-1,3,2-
benzodioxaborole or (C6F4)O2B͑C7H4F3). 3.3 g of tetrafluorocat-
echol was reacted with 3.42 g of 2-trifluoromethylphenylboronic
acid to obtain 5.9 g of crude product. The crude product was then
sublimed at 110°C/0.1 mm Hg to obtain 5.2 g of pure compound.
The melting point of the compound was 102-103°C. HNMR
͑acetone-d6 ppm͒ ␦: 7.8-8.1 ͑m, 3H͒, 8.2-8.4 ͑m, 1H͒.
Compound
(3).—2,5-Bis͑trifluoromethyl͒phenyl-4-fluoro-1,3,2-
benzodioxaborole, or (C6H3F͒O2B͑C8H3F6). The same synthesis
procedure as for compound ͑1͒ was used. 2.56 g of 3-fluorocatechol
was condensed with 5.16 g of 2,5-bis͑trifluoromethyl͒phenylboronic
acid to obtain 6.8 g of pure product ͑sublimed at 120°C/0.3 mm Hg͒.
The yield was 92%. The melting point of the compound was 81-
83°C. HNMR ͑Acetone-d6 ppm͒ ␦: 7-7.4 ͑m, 3H͒, 8.1-8.25 ͑m, 2H͒,
8.6 ͑s, 1H͒.
Compound (8).—2,5-Bis͑trifluoromethyl phenyl͒-tetrafluoro-1,3,2-
benzodioxaborole or (C6F4)O2B͑C8H3F6). 3.2 g of tetrafluorocat-
The synthesis procedure of compounds ͑4-8͒ was similar as de-
scribed for compound ͑1͒ and is sketched in Fig. 3.
echol
was
condensed
with
5.16
g
of
2,5-
bis͑trifluoromethyl͒phenylboronic acid to obtain the crude
compound. The crude product was distilled using a Kugelrohr at
105-110°C/0.3 mm Hg. After cooling, crystals were formed and the
yield was 7.4 g. The melting point of the compound was 81-83°C.
HNMR ͑Acetone-d6 ppm͒ ␦: 8.05-8.2 ͑m, 2H͒, 8.6 ͑s, 1H͒.
The synthesis procedure of compounds ͑9-11͒ are sketched in Fig.
4. The following are the outlines of these procedures:
Compound
(4).—2-͑4-Fluorophenyl͒-tetrafluoro-1,3,2-benzodi-
oxaborole or (C6F4)O2B͑C6H4F). 3.3 g of tetrafluorocatechol was
condensed with 2.5 g of 4-fluoroboronic acid to obtain 5 g of crude
product. It was sublimed at 135°C/͑0.15 mm Hg͒ twice to obtain 4 g
of pure product. The melting point of the compound was 128-130°C.
Figure 3. Scheme of synthesis steps of compounds ͑4-8͒.
Figure 5. Scheme of synthesis steps of compounds ͑12-14͒.
