Regiocon tr ol of Cyclom eta la tion in a P 4Ru (II) System .
Un u su a l Ba se-In d u ced Meta la tion w ith in a Ch ela te Rin g
ver su s Activa tion of a Meth yl Gr ou p
Andrew W. Holland and Robert G. Bergman*
Department of Chemistry and Center for New Directions in Organic Synthesis,
University of California, Berkeley, California 94720
Received April 1, 2002
Summary: The internally cyclometalated complex (MeSi-
(CH2PMe2)2CHPMe2)(PMe3)RuH has been prepared by
the treatment of MeSi(CH2PMe2)3PMe3Ru(H)(Cl) with
base, and an analogue has been structurally character-
ized by X-ray diffraction. The externally cyclometalated
isomer MeSi(CH2PMe2)3PMe2CH2RuH has been cleanly
generated by the thermolysis of MeSi(CH2PMe2)3PMe3-
Ru(H)(Me), and the two isomers have been contrasted
in terms of their spectroscopic features, calculated ener-
gies, and relative reactivities toward cresol and H2. The
two isomers are surprisingly resistant to interconversion.
A chloride derivative, (MeSi(CH2PMe2)2CHPMe2)(PMe3)-
RuCl, has also been prepared, and its reactivity has
shown the internally cyclometalated framework to be
surprisingly stable.
ration of various targets including catalysts,9-12 optical
materials,13 and biological agents.14 Cyclometalation
reactions may be triggered by a variety of events,
including ligand dissociation or elimination, group
abstraction, and deprotonation,1,2 but in the vast major-
ity of reported systems these reactions are complemen-
tary processes: they convert structurally similar start-
ing materials to a common product. Herein we report
evidence that this need not be the case and describe a
system in which thermolysis and deprotonation of
similar precursors yield two different cyclometalation
isomers. Despite the fact that one of them has a novel,
unusually strained structure, we find that it is es-
sentially impossible to interconvert them.
Cyclometalation reactions are ubiquitous in the chem-
istry of reactive transition metal centers1,2 and can
function either as obstacles to the development of
catalytic processes3,4 or as key components within
them.5-8 Intramolecular activation of precoordinated
groups can also be employed synthetically in the prepa-
(6) Murai, S.; Chatani, N.; Kakiuchi, F. Bull. Chem. Soc. J pn. 1997,
699, 5589.
(7) Tan, K. L.; Bergman, R. G.; Ellman, J . A. J . Am. Chem. Soc.
2001, 123, 2685.
(8) Thalji, R. K.; Ahrendt, K. A.; Bergman, R. G.; Ellman, J . A. J .
Am. Chem. Soc. 2001, 39, 9692.
(9) Shundermann, A.; Uzan, O.; Milstein, D.; Martin, J . M. L. J .
Am. Chem. Soc. 2000, 122, 7095.
(10) Morales-Morales, D.; Grause, C.; Kasaoka, K.; Redon, R.;
Cramer, R. E.; J ensen, C. M. Inorg. Chim. Acta 2000, 300, 958.
(11) Dani, P.; Van Klink, G. P. M.; Van Koten, G. Eur. J . Inorg.
Chem. 2000, 7, 1465.
(12) Couturier, J .-L.; Paillet, C.; Leconte, M.; Basset, J .-M.; Weiss,
K. Angew. Chem., Int. Ed. Engl. 1992, 31, 628.
(13) Aiello, I.; Dattilo, D.; Ghedini, M.; Golemme, A. J . Am. Chem.
Soc. 2001, 123, 5598.
(1) Collman, J . P.; Hegedus, L. S.; Norton, J . R.; Finke, R. G.
Principles and Applications of Organotransition Metal Chemistry;
University Science Books: Mill Valley, CA, 1987; p 297.
(2) Ryabov, A. D. Chem. Rev. 1990, 90, 403.
(3) Hill, C., Ed. Activation and Functionalization of Alkanes; J ohn
Wiley and Sons: New York, 1989.
(4) Davis, J . A., Watson, P. L., Liebman, J . F., Greenberg, A., Eds.
Selective Hydrocarbon Activation; VCH Publishers: Toldeo, OH, 1989.
(5) Murai, S.; Kakiuchi, F.; Sekine, S.; Tanaka, Y.; Kamatani, M.;
Sonoda, M.; Chatani, N. Nature 1993, 366, 529.
(14) Navarro-Ranninger, C.; Solera, I. L.; Rodriguez, J .; Garcia-
Ruano, J . L.; Raithby, P. R.; Masaguer, J . R.; Alonso, C. J . Med. Chem.
1993, 36, 3795.
10.1021/om0202470 CCC: $22.00 © 2002 American Chemical Society
Publication on Web 05/03/2002

2150 Organometallics, Vol. 21, No. 11, 2002
Communications
Sch em e 1
In the course of efforts to synthesize ruthenium
alkoxide and amide complexes bearing a variety of
phosphine ligands,15 we have prepared compounds of
the general type (MeSi(CH2PMe2)3)(PMe3)Ru(H)(X) (X-
) Cl-, NH3BPh4-) and found that they undergo cyclo-
metalation upon addition of strong base (Scheme 1).
Treatment of the dichloride complex 1 with LiBEt3H
yields the corresponding hydridochloride complex 2 in
36% isolated yield. Alternatively, the dihydride complex
3 can be prepared in 91% yield by treating 1 with
LiAlH4, and addition of 1 equiv of NH4BPh4 to 3

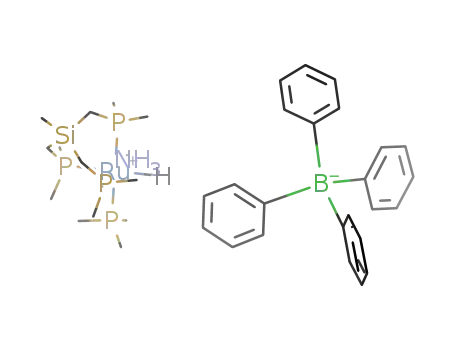

provides ammonia complex 4 in 83% yield.16 Treatment
of either 4 or chloride 2 with strong base (KOtBu or KN-
(SiMe3)2) does not result in attack on the PMe3 or NH3
protons. Instead, the internally cyclometalated complex
5 is formed in >70% isolated yield. No other cyclo-
metalation products are observed in these reactions. The
1H NMR spectrum of 5 is characterized by a broad
singlet at δ -0.96 ppm integrating to one proton
(relative to the three-proton Si-Me resonance at δ 0.48
ppm and the Ru-H signal at δ -8.63 ppm) and
corresponding to the remaining hydrogen on the ruthe-
nium-bound carbon. The 13C NMR spectrum also fea-
tures a characteristic upfield resonance at δ -15.0 ppm
associated with the corresponding methine carbon.
The solid-state structure of product 5 was confirmed
by an X-ray diffraction study of the tBu analogue (Figure
1). The molecule possesses a strongly distorted octahe-
dral geometry (P1-Ru1-P2 ) 129.25(6)°, P1-Ru1-P4
) 120.25(7)°, P4-Ru1-C1 ) 163.4(2)°), but its Ru-P
bonds are not substantially elongated relative to those
of other complexes bearing the intact ligand set.17 While
the Ru-C bond is long (2.282(6) Å; 2.18(1) Å was
observed for a Ru-C bond in a related complex17), the
Ru-P bond involved in cyclometalation is rather short
(2.243(2) Å) and the bonds from the activated carbon to
silicon and phosphorus (1.822(6) and 1.766(6) Å, respec-
F igu r e 1. ORTEP diagram of 5-tBu (thermal ellipsoids
are shown at 50% probability). Hydrogen atoms have been
omitted for clarity. Selected bond distances (Å) and angles
(deg): Ru1-P1, 2.243(2); Ru1-P2, 2.279(2); Ru1-P3,
2.326(2); Ru1-P4, 2.258(2); Ru1-C1, 2.282(2); P1-C1,
1.766(6), P1-C8, 1.822(7); P2-C2, 1.838(6); Si1-C1, 1.822-
(6), Si1-C3, 1.880(7); P1-Ru1-P2, 129.25(6); P1-Ru-P3,
93.16(6); P1-Ru-P4, 120.25(7); P2-Ru-P3, 93.66(6); P2-
Ru1-P4, 107.93(6); P3-Ru1-P4, 99.69(7); P1-Ru1-C1,
45.9(1); P1-C1-Si1, 130.8(3).
