available 7) after drying: mp 177-178 °C; TLC Rf (85:10:5 CH2-
Cl2/MeOH/AcOH) ) 0.29; 1H NMR (DMSO-d6) δ 13.48 (bs, 1 H),
9.36 (bs, 1 H), 7.91 (s, 1 H), 7.46-7.50 (m, 2 H), 7.27-7.34 (m,
3 H), 1.33 (m, 9 H); 13C NMR (DMSO-d6) δ 163.8, 157.0, 150.3,
137.1, 134.0, 129.7, 128.1, 126.2, 122.0, 50.9, 28.6; FAB MS m/z
288 [M + H]+. Anal. Calcd for C15H17N3O3: C, 62.71; H, 5.96;
N, 14.63. Found: C, 62.92; H, 6.18; N, 14.74.
Exp er im en ta l Section
Gen er a l Meth od s. All apparatus were oven-dried and cooled
in a desiccator. Reagent-grade THF and CH2Cl2 were distilled
from sodium benzophenone ketyl and CaH2, respectively, before
use. All other reagents were purchased from commercial sup-
pliers and used without purification. Thin-layer chromatography
was done on 250 µm silica gel plates containing a fluorescent
indicator and visualized by using UV and I2 as well as ninhydrin
spray for amines. Melting points are uncorrected, and elemental
analyses were done by a contracting lab. 1H and 13C NMR
spectra were measured in DMSO-d6 at 400 and 75.5 MHz,
respectively, and are referenced to DMSO [1H (δ 2.50) and 13C
(δ 39.5)].
5,10-Dioxo-5H,10H-d iim id a zo[1,5-a :1′-5′-d ]p yr a zin e-1,6-
d ica r boxylic Acid Dip h en yl Ester (7). To a dry round-bottom
flask were added 10.01 g of imidazole-4,5-dicarboxylic acid (64.13
mmol) and 50 mL of benzene. To this stirred suspension were
added 28.0 mL of thionyl chloride (384 mmol) and 2.5 mL of
DMF (32 mmol), and the resulting mixture was refluxed for 16
h. After the mixture was cooled to room temperature, the solid
product was collected by vacuum filtration, washed with two 20
mL portions of benzene, and dried under vacuum to yield 9.80
g of crude 2 (98% recovery) as a tan solid. This product was used
without characterization.
4(5)-n -Bu tyla m in oca r bon yl-5(4)-isop r op yla m in oca r bon -
ylim id a zole (6a ). To a dry round-bottom flask were added 8a
(0.862 g, 3.00 mmol) and isopropylamine (0.51 mL, 6.00 mmol)
in 10 mL of THF under N2. The solution was refluxed for 5 h
before concentration of the solution under vacuum to yield an
oil. The oil was dissolved in 20 mL of 9:1 hexane-chloroform.
This solution was extracted with two 50 mL portions of 0.1 M
HCl followed by three 100 mL portions of H2O. The organic
fraction was concentrated and the resulting solid crystallized
from methanol to yield 0.608 g of 6a (80%) after drying: mp
141-143 °C; TLC Rf (85:10:5 CH2Cl2/MeOH/AcOH) ) 0.69. The
1H spectrum indicated the presence of conformers: 1H NMR
(DMSO-d6) δ 13.16 (bs, 1 H), 11.11 (bs, 1 H), 8.53 (bs, 0.6 H),
8.24 (bs, 0.4 H), 7.78 (s, 1 H), 3.95-4.16 (m, 2 H), 3.17-3.30 (m,
2 H), 1.46-1.54 (m, 2 H), 1.32-1.34 (m, 2 H), 1.17 (s, 3.6 H),
1.18 (s, 5.4 H), 0.87-0.91 (m, 3 H); 13C NMR (DMSO-d6) δ 163.3,
157.1, 135.8, 132.7, 128.3, 40.66, 38.33, 31.16, 22.30, 19.64, 13.67;
FAB MS m/z 253 [M + H]+. Anal. Calcd for C12H20N4O2: C,
57.13; H, 7.99; N, 22.21. Found: C, 57.11; H, 8.16; N, 22.30.
4(5)-n -Bu t yla m in oca r b on yl-5(4)-t-b u t yla m in oca r b on -
ylim id a zole (6b). To a dry round-bottom flask were added 8a
(0.862 g, 3.00 mmol) and tert-butylamine (0.63 mL, 6.00 mmol)
in 10 mL of THF under N2. The solution was refluxed for 12 h
before workup as described for 6a . The organic fraction was
concentrated and the resulting oil azeotroped (three times) with
10 mL portions of chloroform to yield 0.716 g of 6b (90%) as an
oil after drying: TLC Rf (85:10:5 CH2Cl2/MeOH/AcOH) ) 0.72.
The 1H and 13C NMR spectrum indicated the presence of
conformers: 1H NMR (DMSO-d6) δ 13.19 (bs, 0.4 H), 13.06 (bs,
0.6 H), 11.49 (bs, 0.6 H), 11.21 (bs, 0.4 H), 8.50 (bs, 1 H), 7.76
(s, 1 H), 3.23-3.42 (m, 2 H), 1.42-1.53 (m, 2 H), 1.38 (s, 9 H),
1.22-1.32 (m, 2 H), 0.87-0.99 (m, 3 H); 13C NMR (DMSO-d6) δ
163.4, 162.9, 157.9, 157.2, 135.5, 133.0, 132.2, 129.1, 128.0, 50.7,
50.2, 31.1, 28.4, 19.6, 13.6; FAB MS m/z 267 [M + H]+. Anal.
Calcd for C13H22N4O2: C, 58.63; H, 8.33; N, 21.04. Found: C,
58.72; H, 8.53; N, 21.07.
To a dry round-bottom flask was added crude 2 (0.524 g, 1.67
mmol) followed by 10 mL of dichloromethane and phenol (0.332
g, 3.53 mmol) under N2. The suspension was cooled to 0 °C, and
285 µL of pyridine (3.53 mmol) was added dropwise over two
min. After 1 h, the solid was collected by vacuum filtration and
washed with two 10 mL portions of dichloromethane. Pyridine
is the most frequent contaminant of this solid as determined by
1H NMR analysis. The pyridine can be completely removed by
suspending the solid in 20 mL of refluxing dichloromethane for
10 min, cooling to room temperature, collecting the solid by
vacuum filtration, rinsing the solid with two 10 mL portions of
dichloromethane, and drying the solid under vacuum. This
procedure yielded 0.612 g of 7 (83% from 1): 1H NMR (DMSO-
d6) δ 9.12 (s, 2 H), 7.52-7.56 (m, 4 H), 7.34-7.40 (m, 6 H); 13C
NMR (DMSO-d6) δ 159.0, 150.0, 148.2, 139.2, 139.0, 129.9, 126.6,
123.3, 121.5; FAB MS m/z 429 [M + H]+. Anal. Calcd for
C
21.04H11.36N4O6 (7, 92%:3, 8%): C, 60.72; H, 2.75; N, 13.47.
Found: C, 60.32; H, 2.64; N, 13.16.

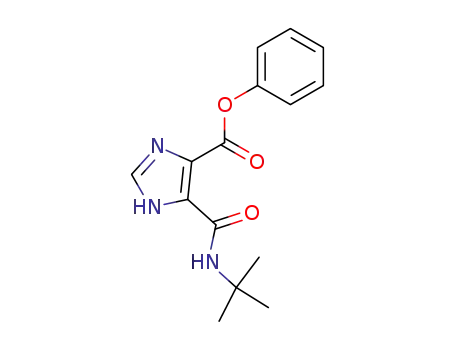

4-P h en oxyca r bon yl-5-n -bu tyla m in oca r bon ylim id a zole
(8a ). To a dry round-bottom flask were added 7 (3.945 g, 9.21
mmol, 92% pure) and 60 mL of THF under N2. To this
suspension at -40 °C was added n-butylamine (1.82 mL, 18.4
mmol) dropwise over 2 min before stirring for 1.5 h. The THF
was removed under vacuum to yield a solid that was crystallized
and subsequently recrystallized from methanol until pure. The
final product was dried under vacuum to yield 4.11 g of 8a (84%
from available 7): mp 142-144 °C; TLC Rf (85:10:5 CH2Cl2/
MeOH/AcOH) ) 0.38; 1H NMR (DMSO-d6) δ 13.52 (bs, 1 H), 9.37
(bs, 1 H), 7.93 (s, 1 H), 7.46-7.50 (m, 2 H), 7.26-7.34 (m, 3 H),
3.26-3.29 (m, 2 H), 1.43-1.49 (m, 2 H), 1.26-1.30 (m, 2 H),
0.81-0.85 (m, 3 H). Carbonyl resonances and one of the
substituted imidazole carbons were observed only as weak and
broad signals in the 13C NMR spectrum recorded in DMSO-d6.
The peak maximum for each is estimated to the nearest whole
ppm: 13C NMR (DMSO-d6) δ 163, 158, 150.2, 137.3, 133, 129.6,
126.1, 121.9, 38.5, 31.0, 19.5, 13.5; FAB MS m/z 288 [M + H]+;
Anal. Calcd for C15H17N3O3: C, 62.71; H, 5.96; N, 14.63. Found:
C, 62.51; H, 5.70; N, 14.59.
4-P h en oxyca r b on yl-5-t-b u t yla m in oca r b on ylim id a zole
(8b). To a dry round-bottom flask were added 7 (3.218 g, 7.51
mmol, 92% pure) and 100 mL of THF under N2. To this
suspension at -20 °C was added tert-butylamine (1.58 mL, 15.0
mmol) dropwise over 2 min, and the reaction was stirred for 50
h. The reaction mixture was diluted with 200 mL of ethyl ether
and filtered to remove solids. Concentration under vacuum
resulted in an oily residue that was redissolved in 10 mL of THF.
Addition of 200 mL of water resulted in precipitation of a light-
yellow solid that was collected by filtration. This solid was
crystallized from methanol to yield 1.792 g of 8b (45% from
4(5)-Ben zyla m in oca r b on yl-5(4)-n -b u t yla m in oca r b on -
ylim id a zole (6c). Meth od A, via Stoich iom etr ic Ad d ition s.
To a dry round-bottom flask was added 2 (1.002 g, 3.19 mmol)
in 100 mL of THF under Ar, and the suspension was cooled to
-78 °C. A solution of benzylamine (698 µL, 6.38 mmol) and
diisopropylethylamine (1.11 mL, 6.38 mmol) in 25 mL of THF
was added dropwise with stirring over 30 min. The solution was
held 24 h at -78 °C before a solution of n-butylamine (0.631
µL, 6.38 mmol) in 20 mL of THF was added dropwise, and the
reaction mixture was stirred for another 8 h at -78 °C and then
allowed to warm to room temperature. After 12 h at room
temperature, the THF was removed under vacuum and the
resulting material partitioned between ethyl acetate and 10%
citric acid. The organic fraction was washed with 1 M NaHCO3,
water, and brine. The solution was dried over MgSO4, filtered,
and concentrated to a solid containing both symmetric I45DCs
and 6c. TLC and 1H NMR analysis of the reaction following
workup indicated the presence of significant quantities (∼25%
of the isolated total) of the symmetric I45DCs 9 and 10 along
with 6c. The three products were separable by column chroma-
tography, although this synthetic method to dissymmetric
I45DCs was not further pursued. TLC: 9, Rf (19:1 CH2Cl2/
MeOH) ) 0.54; 10, Rf (19:1 CH2Cl2/MeOH) ) 0.44; 6c, Rf ( 19:1
CH2Cl2/MeOH) ) 0.58.
Meth od B, via 8a . To a dry round-bottom flask were added
8a (0.863 g, 3.00 mmol) and benzylamine (0.66 mL, 6.00 mmol)
in 10 mL of THF under N2. The solution was refluxed for 5 h
before concentration under vacuum. The solid was suspended
in 50 mL of water, stirred for 10 min, filtered, and washed with
an additional 50 mL of water. Crystallization from methanol
provided 0.559 g of 6c (88%) after drying: mp 126-128 °C; TLC
