Photochromic dihetarylethenes
11.* Synthesis and photochromic properties of diarylethenes
containing furan or furopyrimidine bridges
M. M. Krayushkin,a« S. N. Ivanov,a A. Yu. Martynkin,a B. V. Lichitsky,a A. A. Dudinov,a and B. M. Uzhinovb
aN. D. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences,
47 Leninsky prosp., 119991 Moscow, Russian Federation.
Fax: +7 (095) 135 5328. E-mail: mkray@ioc.ac.ru
bDepartment of Chemistry, M. V. Lomonosov Moscow State University,
Leninskie Gory, 119899 Moscow, Russian Federation.
Fax: +7 (095) 932 8846. E-mail: uzhinov@light.chem.msu.su
Procedures were developed for the synthesis of substituted bis(2,5-dimethyl-3-thienyl)furans
based on 1,2-bis(2,5-dimethyl-3-thienyl)-2-hydroxyethanone. Dithienylethene structures in
which the ethene fragment is involved in the furan or furopyrimidine system possess
photochromic properties and their open forms exhibit fluorescence.
Key words: furan, furopyrimidines, α-hydroxyketone, photochromes, 1,2-dithienylethenes,
fluorescence.
Scheme 1
Photochromic thermally irreversible dihetarylethenes
are being extensively studied as elements of optical
memory, photoswitches, dosimeters, etc.2,3 Previously,
we have synthesized dithienylethenes containing triaz-
ine4 or azole5 bridges and demonstrated that the former
compounds do not possess photochromic properties,
whereas the azole derivatives bearing electron-donating
substituents are photochromes. As part of continuing
studies aimed at searching for new readily accessible
compounds exhibiting photochromic activity, we devel-
oped procedures for the synthesis of substituted
bis(2,5-dimethyl-3-thienyl)furans in which the ethene
bridges are involved in the furan or furopyrimidine
systems.
HO
O
CH2(CN)2
DBU
Me
Me
S
S
Me Me
1
NH2
CN
O
Me
Me
Structures of this type are often synthesized with the
use of 1,2-bifunctional compounds.6,7 In the present
work, we used thenoin 1, viz., 1,2-bis(2,5-dimethyl-3-
thienyl)-2-hydroxyethanone, as the starting compound.
Its synthesis has been reported previously.4
S
S
Me Me
2
whose reaction with hydroxylamine yielded aminofuro-
pyrimidine N-oxide 6 (Scheme 3).

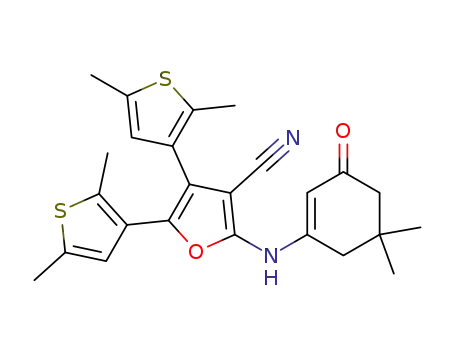

Treatment of compound 2 with dimedone produced
enaminone 7. According to a procedure developed by us
previously,8 the reaction of the latter compound with
arylmethylidenemalononitrile afforded furopyrimido-
quinoline 8 (Scheme 4).
We examined the photochromic and spectroscopic
characteristics of compounds 2—4, 6, and 8 (solutions
in MeCN). In the absorption spectra of the open forms
of compounds 2, 3, 6, and 8, the long-wavelength bands
are observed in the narrow range of 304—310 nm. The
spectrum of hydroxypyrimidine 4 has the analogous
band at 375 nm, i.e., it is shifted bathochromically by
∼65 nm. The conversion of aminopyrimidine 3 into
Results and Discussion
The reaction of thenoin 1 with malononitrile in the
presence of DBU afforded furan derivative 2 (Scheme 1).
Treatment of compound 2 with formamide or formic
acid gave rise to the amino or oxo derivatives of
furopyrimidine (3 or 4), respectively, in good yields
(Scheme 2).
By analogy with the known procedure,6 we used
compound 2 for the synthesis of amidine 5,
* For Part 10, see Ref. 1.
