C. Brahic et al. / Bioorg. Med. Chem. 10 (2002) 2845–2853
2851
C9–H); 10.14 (s, 1H, C11–H). 13C NMR (CDCl3) 57.07;
114.90; 119.80; 128.73; 129.48; 130.27; 137.38; 140.26;
146.88; 148.53; 148.91; 152.39; 153.40; 174.07; 180.61.
IR (CHCl3) 1674 cmꢀ1. MS (m/z) 263 (82); 248 (62); 220
(100); 192 (32). tR is 3.74 min (98% purity).
15 min. NH4Cl (254 mg, 4.74 mmol) and absolute EtOH
(40mL) were added and the reaction was refluxed for
30min. Flash chromatography (CH 2Cl2/MeOH 99:1)
gave the expected tetracyclic compound as a yellow
solid (10mg, 23%), mp >260 ꢁC. 1H NMR (CDCl3)
8.07 (d, 1H, J=5.8 Hz, C3–H); 8.63 (dd, 1H, J=5.5 and
0.7 Hz, C11–H); 9.01 (d, 1H, JH-F=1.4 Hz, C5–H); 9.06
(d, 1H, J=5.8 Hz, C2–H); 9.07 (d, 1H, J=5.5 Hz, C10–
H); 9.66 (d, 1H, J=0.7 Hz, C8–H). 13C NMR (CDCl3)
114.23; 118.19; 121.49; 126.14; 129.04 (d, J=17 Hz);
135.14 (d, J=23 Hz); 141.54; 143.65; 147.88; 149.07;
150.79; 155.15; 155.60 (d, J=274 Hz); 180.11. IR
(CHCl3) 1721, 1684 cmꢀ1. MS (m/z) 251 (100); 222 (17);
196 (26); 169 (24). tR is 3.75 min (94% purity).
(9b). Yellow solid (63 mg, 81%), mp >260 ꢁC. 1H NMR
(CDCl3) 4.27 (s, 3H); 8.15 (d, 1H, J=5.9 Hz, C3–H);
8.63 (dd, 1H, J=5.5 and 0.8 Hz, C11–H); 8.71 (s, 1H,
C5–H); 8.97 (d, 1H, J=5.9 Hz, C2–H); 9.04 (d, 1H,
J=5.5 Hz, C10–H); 9.67 (d, 1H, J=0.8 Hz, C8–H). 13C
NMR (CDCl3) 57.14; 116.31; 118.16; 121.08; 126.56;
129.34; 130.41; 140.36; 141.98; 146.96; 148.37; 150.72;
152.95; 154.64; 180.65. IR (CHCl3) 1674 cmꢀ1. MS (m/z)
263 (20); 248 (13); 220 (8). tR is 3.88 min (99% purity).
Benzo[b]pyrido[4,3,2-de][1,9]phenanthroline-8-one (12). A
solution of compound 6d (100 mg, 0.25 mmol) in CHCl3
(75 mL) and 1 N NaOH (3.3 mL) was stirred at room
temperature for 2 h 30min. The organic layer was sepa-
rated and the aqueous layer was extracted with CHCl3
(3 ꢂ 100 mL). The combined organic layers were dried
over MgSO4 and concentrated over vacuum to give the
expected pentacyclic compound as a yellow solid
(65 mg, 91%), mp >260 ꢁC. 1H NMR (CDCl3): 7.85
4-Fluoro-7H-pyrido[4,3,2-de][1,9]phenanthroline-7-one
(8c), 4-dimethylamino-7H-pyrido[4,3,2-de][1,9]phenanthro-
line-7-one (10) and ethoxy-4-fluoro-7H-pyrido[4,3,2-
de][1,9]phenanthroline-7-one (11). Method B was used
and involved tricyclic compound 6c (80mg, 0.33 mmol),
DMF-DEA (0.2 mL, 1.16 mmol) in DMF (0.7 mL),
heating at 120 ꢁC for 15 min. NH4Cl (507 mg,
9.48 mmol) and absolute EtOH (80mL) were added and
the reaction was refluxed for 30min. Flash chroma-
tography (CH2Cl2/MeOH 99:1) gave the expected
tetracyclic compound and two side products.
(ddd, 1H, J=7.7, 7.0and 1.4 Hz, C –H); 7.97 (dd, 1H,
3
J=8.1, 7.0and 1.1 Hz, C –H); 8.23 (d, 1H, J=5.1 Hz,
2
C9–H); 8.40(dd, 1H, J=8.1 and 1.1 Hz, C1–H); 8.62
(dd, 1H, J=7.7 and 1.4 Hz, C4–H); 8.70(d, 1H,
J=5.5 Hz, C5–H); 9.04 (d, 1H, J=5.1 Hz, C10–H); 9.35
(d, 1H, J=5.5 Hz, C6–H); 10.30 (s, 1H, C12–H). 13C
(CDCl3) NMR 118.47; 119.48; 120.28; 121.67; 122.92;
128.53; 129.32; 131.69; 132.09; 137.12; 138.29; 145.63;
146.70; 147.66; 149.03; 150.35; 152.42; 181.97. IR
(CHCl3): 1685 cmꢀ1. MS (m/z) 283 (100); 254 (4); 228
(8).
(8c). Yellow solid (24 mg, 29%), mp >260 ꢁC. 1H NMR
(CDCl3) 8.00 (d, 1H, J=5.8 Hz, C3–H); 8.22 (d, 1H,
J=5.2 Hz, C8–H); 9.01 (d, 1H, JH-F=0.8 Hz, C5–H);
9.04 (d, 1H, J=5.2 Hz, C9–H); 9.05 (d, 1H, J=5.8 Hz,
C2–H); 10.15 (s, 1H, C11–H). 13C NMR (CDCl3) 112.91;
119.93; 120.81; 128.25; 129.06 (d, J=20Hz); 135.27 (d,
J=24 Hz); 137.09; 143.65; 147.92; 148.65; 149.81;
153.04; 156.11 (d, J=288 Hz); 180.19. IR (CHCl3)
1684 cmꢀ1. MS (m/z) 251 (100); 223 (36); 196 (24); 169
(25). tR is 3.58 min (100% purity).
Benzo[b]pyrido[4,3,2 - de][1,8]phenanthroline - 8 - one (13).
The same procedure as for compound 12 involving
compound 7d (32 mg, 0.081 mmol) in CHCl3 (25 mL)
and 1 N NaOH (1.1 mL) was used. The aqueous layer
was extracted with CHCl3 (3 ꢂ 50mL). The combined
organic layers were dried over MgSO4 and concentrated
over vacuum to give the expected pentacyclic compound
(10). Red solid (6 mg, 7%), mp >260 ꢁC. 1H NMR
(CDCl3) 3.36 (s, 6H); 7.94 (d, 1H, J=5.9 Hz); 8.23 (dd,
1H, J=5.1 and 0.7 Hz); 8.60 (s, 1H); 8.84 (d, 1H,
J=5.9 Hz); 8.96 (d, 1H, J=5.1 Hz); 10.14 (d, 1H,
J=0.7 Hz). 13C NMR (CDCl3) 29.68; 44.05; 117.66;
119.50; 120.84; 128.66; 129.37; 135.11; 137.50; 137.60;
144.65; 147.39; 148.47; 149.27; 151.87; 180.06. IR
(CHCl3) 3690; 1660 cmꢀ1. MS (m/z) 251 (100); 223 (36);
196 (24); 169 (25).
as a yellow solid (22 mg, 96%), mp>260 ꢁC. H NMR
1
(CDCl3) 7.87 (ddd, 1H, J=7.1; 8.0and 1.1 Hz, C –H);
3
7.99 (ddd, 1H, J=8.4; 7.1 and 1.1 Hz, C2–H); 8.41 (dd,
1H, J=8.4 and 1.1 Hz, C1-H); 8.65 (dd, 1H, J=8.0and
1.1 Hz, C4–H); 8.68 (d, 1H, J=5.5 Hz, C5–H); 8.81 (dd,
1H, J=5.1 and 0.8 Hz, C12–H); 9.09 (d, 1H, J=5.1 Hz,
C11–H); 9.36 (d, 1H, J=5.5 Hz, C6–H); 9.70(d, 1H,
J=0.8 Hz, C9–H). 13C NMR (CDCl3): 118.28; 119.02;
119.77; 122.23; 123.02; 126.44; 129.82; 131.82; 132.07;
138.07; 141.89; 145.48; 146.83; 147.13; 150.37; 150.62;
154.75; 181.69. IR (CHCl3): 1684 cmꢀ1. MS (m/z) 283
(100); 254 (29); 227 (14).
(11). Brown solid (7 mg, 7%), mp 196 ꢁC. 1H NMR
(CDCl3) 1.56 (t, 3H, J=7 Hz); 4.69 (q, 2H, J=7 Hz);
7.24 (s, 1H); 8.18 (dd, 1H, J=5.0and 0.7 Hz); 8.76 (s,
1H); 9.01 (d, 1H, J=5.0 Hz); 10.03 (s, 1H). 13C NMR
(CDCl3) 14.65; 63.75; 95.91; 117.93; 120.03; 128.08;
132.74 (d, J=18 Hz); 133.66 (d, J=24 Hz); 137.19;
144.08; 148.37; 149.18; 153.03; 155.71 (d, J=277 Hz);
163.61; 180.49. IR (CHCl3) 1689; 1618 cmꢀ1. MS (m/z)
295 (20); 239 (44).

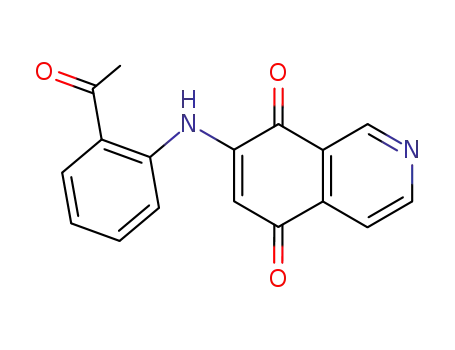

5-(2-Acetylphenylamino)isoquinoline-3,6-dione (16).
A
solution of isoquinoline-5,8-dione (1 g, 6.29 mmol) in
ethanol (60mL) was added dropwise to a solution of
cerium(III) chloride CeCl3 (3 g, 12.59 mmol) and amino-
acetophenone (1.7 g, 12.59 mmol) in ethanol (25 mL).
The reaction media was stirred at room temperature
overnight, hydrolysed by 10% acetic acid (100 mL) and
4-Fluoro-7H-pyrido[4,3,2-de][1,8]phenanthroline-7-one
(9c). Method B was used and involved tricyclic com-
pound 7c (40 mg, 0.17 mmol), DMF-DEA (0.1 mL,
0.58 mmol) in DMF (0.35 mL), heating at 120 ꢁC for
