Charge Transport and Quantum Interference Effects
in Oxazole-Terminated Conjugated Oligomers
Songsong Li, Hao Yu, Kenneth Schwieter, Kejia Chen, Bo
Li, Yun Liu, Jeffrey S. Moore, and Charles M. Schroeder
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b08427 • Publication Date (Web): 13 Sep 2019
Downloaded from pubs.acs.org on September 13, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
Charge Transport and Quantum Interference Effects
in Oxazole-Terminated Conjugated Oligomers
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Songsong Li1,4†, Hao Yu2†, Kenneth Schwieter3, Kejia Chen2, Bo Li2, Yun Liu4,
Jeffrey S. Moore1,3,4, and Charles M. Schroeder1,2,3,4
*
1Department of Materials Science and Engineering, University of Illinois at Urbana-Champaign,
Urbana, Illinois, 61801, United States
2Department of Chemical and Biomolecular Engineering, University of Illinois at Urbana-
Champaign, Urbana, Illinois, 61801, United States
3Department of Chemistry, University of Illinois at Urbana-Champaign, Urbana, Illinois, 61801,
United States
4Beckman Institute for Advanced Science and Technology, University of Illinois at Urbana-
Champaign, Urbana, Illinois, 61801, United States
†Contributed equally to this work.
*To whom correspondence should be addressed. Email: cms@illinois.edu
Keywords: single molecule conductance, oxazole, molecular electronics, quantum interference,
scanning tunneling microscope break-junction (STM-BJ)
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 26
1
2
3
4
5
Abstract
6
7
8
9
Charge transport in single molecule junctions critically depends on the chemical identity of anchor
groups used to connect molecular wires to electrodes. In this work, we report the charge transport
properties of conjugated oligomers with oxazole anchors, focusing on the role of the heteroatom
substitution position in terminal oxazole groups. Our results show that oxazole serves as an
efficient anchor group to form stable gold-molecule-gold junctions. We further observe quantum
interference (QI) effects in oxazole-terminated phenylene molecular junctions, including
destructive QI in meta-substituted phenyl rings and constructive QI in para-substituted phenyl
rings containing terminal oxazole groups with the same chemical constitution on both termini (i.e.
O5O5 (5-oxazolyl) or O4O4 (4-oxazolyl) linkages on both termini). Surprisingly, meta-substituted
phenyl rings with non-equivalent constitutions (i.e. O4O5 oxazole terminal linkages) show
unexpectedly higher conductance compared to para-substituted analogs. These results suggest that
charge transport in oxazole-terminated molecules is determined by the heteroatom substitution
position of the oxazole anchor in addition to the aryl substitution pattern of the pi-conjugated core.
Our results further show that conjugated molecules with homogeneous oxazole linkages obey a
quantum circuit rule such that GO4-p-O4/GO4-m-O4 = GO5-p-O5/GO5-m-O5, where G is molecular
conductance. Overall, our work provides key insight into the development of new chemistries for
molecular circuitry in the rapidly advancing field of single molecule electronics.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
ACS Paragon Plus Environment

Page 3 of 26
Journal of the American Chemical Society
1
2
3
4
5
INTRODUCTION
6
7
8
9
Recent advances in single molecule electronics have uncovered new chemistries and molecular
systems that offer new fundamental insight into molecular electronic structure and charge
transport.1-6 Single molecule junctions generally contain a central bridge terminated by anchor
groups that are used to connect molecular wires to electrodes.7 Charge transport in molecular
junctions significantly depends on the chemical identity of the anchor groups and on the nature of
the chemical interactions at the electrode-molecule interface.8 From this view, anchor groups are
conveniently divided into two categories based binding interactions with metal electrodes: dative
anchors bind to metal electrodes via coordination interactions, whereas covalent anchors provide
direct metal-molecule contacts.7 Prior work has explored a wide array of anchor groups for single
molecule junctions, including dative anchors with -donor groups such as fullerene,9 dative
anchors with lone pair donors such as primary amine (-NH2),10 pyridine11,12, cyano (-CN),13
isocyano (-NC),14 isothiocyanate (-NCS),15 selenol (-Se),16 methyl thio (-SCH3),17 phosphine,18
nitro (-NO2),19 and carboxylic acid (-COOH),20 and covalent anchors such as thiol (-SH),20
trimethyltin,21 trimethylsilyl-terminated alkynes,22 and diazonium.23
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Chemical anchors are a critical component of single molecule junctions and often play a key
role in determining molecular conductance in these systems. In particular, the chemical identity of
dative linker groups often determines whether charge transport occurs by a highest occupied
molecular orbital (HOMO)-dominated or lowest unoccupied molecular orbital (LUMO)-
dominated pathway.7 In addition, chemical anchors have been used to tune symmetric or
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 26
1
2
3
4
5
6
7
8
9
asymmetric coupling interactions between molecular wires and electrode surfaces. In one case,
molecular design was used to install dative and covalent anchor groups at two termini of a junction,
thereby generating a molecular rectifier.24
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Quantum interference (QI) effects play an essential role in the charge transport properties of
molecular electronics.25,26 Single molecule conductance measurements have shown that meta-
substituted phenyl groups generally exhibit lower conductance than para-substituted phenyls.27 In
a meta-substituted phenyl ring, the de Broglie electron waves emerge out-of-phase after traversing
different molecular conduction pathways, thereby resulting in destructive QI. On the other hand,
para-substituted phenyl rings give rise to constructive QI and consequently higher levels of
conductance compared to the meta-substituted analog.25 QI effects also arise in anchor groups with
conjugated rings, though only a few chemical anchors for molecule-metal junctions feature a fused
ring structure. Anchor groups containing a conjugated ring structure have several potential
molecular conduction pathways, complicating the molecular design of quantum circuits due to
quantum effects.28 Despite recent progress, the effect of heteroatom substitution position on QI
effects is not fully understood in the context of anchor groups with conjugated ring structures.
In this work, we show that oxazole serves an efficient anchor group to form stable gold-
molecule-gold junctions, resulting in conductive molecular wires. We systematically explore the
role of heteroatom substitution position on QI in oxazole-terminated molecular junctions using the
scanning tunneling microscope break-junction (STM-BJ) technique and density functional theory
(DFT) simulations. Our results show that oligophenyls terminated with oxazole exhibit an
4
ACS Paragon Plus Environment

Page 5 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Charge transport in oxazole-terminated molecular wires. (a) Schematic of metal-
molecule-metal junction and structures of compounds OX1-OX4. (b) Characteristic single
molecule conductance traces for OX1-OX4 molecular junctions. (c) Conductance histograms
for OX1-OX4, with each constructed from >10,000 traces.
exponential conductance decay constant (β = 0.40 Å-1), comparable to amine-terminated analogs
(β = 0.42 Å-1). Combined results from single molecule experiments and molecular modeling show
that the nitrogen atom in the oxazole ring is the point-of-contact to the metal surface through the
lone electron pair, similar to pyridine-based anchor groups.11 Our results further reveal unexpected
QI phenomena in oxazole-terminated molecular junctions. For oxazole-terminated molecules with
the same chemical constitution on both termini, including O5O5 (5-oxazolyl) or O4O4 (4-oxazolyl)
linkages, destructive QI is observed in meta-substituted phenyl molecular junctions. Surprisingly,
our results show that meta-substituted phenyl rings with non-equivalent constitutions (O4O5
oxazole linkages) exhibit constructive QI. Taken together, these results suggest that the heteroatom
position in oxazole rings plays a key role in conductance, in addition to the arene substitution
pattern in conjugated phenyl bridges. This work expands the library of chemical anchor groups
and explores the effect of anchors with conjugated ring structures on QI, thereby opening new
opportunities for molecular electronics.29
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2: Two-dimensional (2D) conductance histograms for OX1-OX4, determined over a
large ensemble of >10,000 individual molecules.
RESULTS AND DISCUSSION

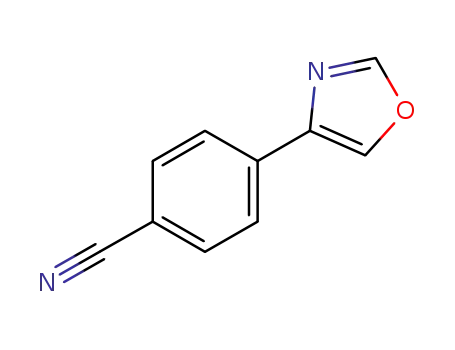

A series of oxazole-containing molecules was synthesized by van Leusen oxazole synthesis30
1
and characterized by H and 13C NMR spectroscopies and mass spectrometry (Supporting
Information, Figures S1-S21). We began by synthesizing oxazole-terminated oligomers with
homogenous linkages at both termini with respect to heteroatom position on the oxazole ring. In
particular, we synthesized 5,5’-bioxazole (OX1), (E)-1,2-bis(oxazol-5-yl)ethene (OX2), 1,4-
6
ACS Paragon Plus Environment

Page 7 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
bis(oxazol-5-yl)benzene (OX3), and 4,4’-bis(oxazol-5-yl)-1,1’-biphenyl (OX4), all of which
contain homogeneous linkages to oxazole anchors at the 5-position on the oxazole ring (Figure
1a). We further synthesized an expanded library of oxazole-terminated phenyl compounds with
varying arene substitution patterns (meta or para-linked) and defined linkages to the conjugated
ring oxazole anchors (Table 1). Additional details on the synthesis and chemical characterization
for all compounds can be found in the Supporting Information (Figures S1-S21).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Single molecule conductance measurements were performed using a custom-built scanning
tunneling microscope break-junction (STM-BJ) technique under constant applied bias (250 mV)
in a liquid solvent (1,2,4-trichlorobenzene) (Figure 1a), as previously described.31-33 In brief, the
STM-BJ experiment is performed by measuring molecular conductance at a constant applied bias
while pulling a gold tip away from a gold electrode surface, eventually leading to a break in the
molecular junction. Figure 1b shows characteristic single molecule conductance traces of OX1-
OX4, together with a break junction measurement in the absence of organic molecules (denoted
as Au). Plateaus in molecular conductance G at values less than the quantum unit of conductance
(G0 = 2e2/h = 77.5 μS) correspond to charge transport through organic molecules bridging the
junction between the gold electrodes. Single molecule pulling experiments are generally repeated
for thousands of trials to enable robust statistical analysis. In this way, one-dimensional (1D)
conductance histograms are generated over a large ensemble of approximately 104 molecules for
OX1-OX4 (Figure 1c). Interestingly, we observe two peaks in the conductance histograms for
OX1 but only a single peak for OX2, OX3, and OX4. We conjecture that the two distinct
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. Charge transport behavior of oxazole-terminated oligomers determined by single
molecule experiments and density functional theory (DFT) simulations. (a) Conductance peak
values for amine-terminated (green, n = 1, 2, 3), pyridine-terminated (blue, n = 0, 1), and
oxazole-terminated oligophenyls (red, n = 0, 1, 2) plotted on a semi-log scale as a function of
distance between N-N atoms on terminal anchors. Lines show fits to experimental data
following a quantum tunneling model G=G0e-βL. (b) Transmission spectra of OX1-OX4
determined by DFT simulations. (c) Calculated conductance values for OX1-OX4 determined
from DFT simulations.
conductance states in OX1 are due to two binding geometries.12 On the other hand, OX2, OX3,
and OX4, adopt a single favored binding geometry, thereby resulting in distinct conductance peaks
in the 1D histograms.
Two-dimensional (2D) conductance histograms of OX1-OX4 are shown in Figure 2. 2D
histograms show that average displacements during molecular pulling experiments tend to increase
with increasing molecular length, such that OX4 junctions can be stretched to approximately 0.8
nm. At an applied bias of 0.25 V, we found that the signal of OX4 merged with the amplifier
background noise. Therefore, we repeated the experiments and collected 2D conductance
histograms of OX4 at high bias (1 V) and observed a clear separation between signal and
background (Figure S22). Average molecular conductance values for OX1, OX3, and OX4 were
determined from the peak values in the corresponding 1D histogram data and plotted on a semi-
log scale versus the distance between nitrogen atoms in terminal anchor groups for each respective
8
ACS Paragon Plus Environment

Page 9 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
molecule (Figure 3a). In all cases, N-N distance was determined by density functional theory
(DFT) and corresponds to the distance between nitrogen atoms in terminal amines for amine-
terminated oligophenyls or N-N heteroatom distance between terminal oxazole rings. Our results
show that the average molecular conductance follows an exponential decay as a function of
molecular length, which suggests that charge transport follows a quantum tunneling model such
that ln(G/G0) = -βL, where β is the molecular decay constant β and L is the molecular length
between terminal nitrogen atoms. Using this approach, we determine a molecular decay constant
β = 0.40 ± 0.01 Å-1 for oxazole-terminated oligophenyls, which is consistent with amine-
terminated (β = 0.42 ± 0.01 Å-1) (Figure S23) and pyridine-terminated oligophenyls (β = 0.5 Å-
1).11,31 These results suggest that oxazole anchors form robust molecular contacts with metallic
gold electrodes and enable stable measurements of conductance. To identify the specific anchoring
site linking oxazole rings to gold electrodes, we synthesized a control molecule 1,4-di(furan-2-
yl)benzene (FU1) for single molecule conductance experiments (Figure S24). In contrast to
oxazole-terminated OX3, no conductance signal was observed for furan-terminated compound
FU1, which confirms that the nitrogen heteroatom serves as the anchoring site in oxazole rings.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To further understand the charge transport properties of oxazole-terminated molecules, we
performed molecular modeling using nonequilibrium Green’s function-density functional theory
(NEGF-DFT) via the Atomistix Toolkit package.34 Molecular geometries for OX1-OX4 are
optimized using DFT calculations performed on Spartan’16 Parallel Suite using the B3LYP
functional with a 6-31G (d,p) basis set. Following determination of geometry-optimized structures,
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 1. Molecular conductance properties of oxazole-terminated phenyls, including
average conductance (expressed as log(G/Go)) and Gpara/Gmeta from STM-BJ experiments
and DFT simulations. Molecule names refer to amine anchors (A), oxazole anchors linked
at the 5-oxazolyl (O5) or 4-oxazolyl (O4) position, and arene substitution pattern (p,m).
transmission functions are determined for relaxed molecules for OX1-OX4 using NEGF-DFT
(Figure 3b). For oxazole-terminated molecules OX1-OX4, the peaks in the transmission function
appear between +0.1 to +0.5 eV, which corresponds to charge transport through the LUMO. We
found that the slope of the transmission spectrum is positive at the Fermi level which suggests that
the conduction orbital is in an unoccupied state, the thermopower becomes negative, and electrons
are transported through the LUMO in OX1-OX4.35 We also found that the magnitude of the
transmission values for OX1-OX4 close to Fermi energy are consistent with conductance trends
in the experimental results (Figure 3c).
We next characterized the charge transport properties of a series of oxazole-terminated
10
ACS Paragon Plus Environment

Page 11 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4. Two-dimensional (2D) molecular conductance histograms for a series of oxazole-
terminated phenyl compounds at 0.25 V bias, each constructed from over 10,000 traces.
phenylene compounds with varying arene substitution patterns (para, meta) and different linkages
to terminal oxazole groups (5-oxazolyl or 4-oxazolyl, denoted as O5 and O4, respectively) (Figure
4, Figures S25-S28 and Table 1). To begin, we synthesized and studied the single molecule
conductance of 1,4-bis(4-oxazolyl)benzene (O4-p-O4), 1,3-bis(4-oxazolyl)benzene (O4-m-O4),
1,4-bis(5-oxazolyl)benzene (O5-p-O5, also denoted as OX3), and 1,3-bis(5-oxazolyl)benzene (O5-
m-O5). Our results show that meta-substituted oxazole-terminated phenylenes with homogeneous
O5O5 and O4O4 linkages show lower conductance than para-substituted analogs with homogeneous
O5O5 and O4O4 linkages, consistent with a destructive quantum interference (QI) effect
analogously observed in amine-linked,36 methyl sulfide-linked,28 and thiophene-linked27
molecular junctions. Experimental results and NEGF-DFT simulation data in Table 1 clearly show
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 26
1
2
3
4
5
that the QI ratio of meta/para-linkage satisfies a quantum circuit rule such that GO4-p-O4/GO4-m-O4
=
6
7
8
9
GO5-p-O5/GO5-m-O5 ≈ 6. 37,38 As a comparison, pyridine-terminated molecules also follow a quantum
circuit rule such that Gppp/Gpmp = Gmpm/Gmmm, where the contribution to the conductance from the
central phenylene ring is independent of the anchor groups with para or meta-linkages.27 From this
view, oxazole anchors offer an interesting opportunity to probe QI effects due to the asymmetric
nature of the five-membered ring associated with terminal oxazole groups. For oxazole-terminated
junctions with equivalent constitutions on both termini, we found that the conductance of
molecules with O4O4 linkages is higher compared to their counterparts with O5O5 linkages based
on most-probable conductance results and NEGF-DFT simulations, which further supports the
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
quantum circuit rule GO4-p-O4/GO5-p-O5 = GO4-m-O4/GO5-m-O5
.
To further examine QI effects through oxazole-terminated molecular junctions with non-
equivalent constitutions on both termini, we synthesized and studied the molecular conductance
of 5-(4-(oxazol-4-yl)phenyl)oxazole (O4-p-O5) and 5-(3-(oxazol-4-yl)phenyl)oxazole (O4-m-O5).
From most-probable conductance results and NEGF-DFT simulations, our results show that the
conductance of O4-p-O5 is lower than O4-m-O5, such that GO4-p-O5/GO4-m-O5 < 0.5. Surprisingly,
these results suggest that the meta-substituted phenylene exhibits a higher conductance than the
para-substitute phenylene in oxazole-terminated molecules with heterogeneous O4O5 linkages.
Recently, Li et al.39 and Huang et al.40 used electrochemical gating to tune QI, which revealed that
meta-substituted phenyl groups show higher conductance than para-substitute phenyls. On the
other hand, our results show that a meta-substituted phenylene group can exhibit a higher
molecular conductance relative to the para-substituted analog without external electrochemical
12
ACS Paragon Plus Environment

Page 13 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
gating41. In prior work, Borges et al. reported that meta-coupled bipyridine molecules show higher
conductance through a σ-bonded system compared to the para-coupled analog.42 For O4-m-O5, the
electronic coupling occurs across seven bonds, whereas for O4-p-O5 the coupling is through eight
bonds. Therefore, we posit that O4-m-O5 has a higher σ contribution to charge transport which
gives rise to a larger total transmission for O4-m-O5 compared to O4-p-O5. Similar observations
were reported by Gorczak and coworkers,43 who showed that meta-substitute biphenyl bridges
exhibit a higher hole transfer rate compared to para-substitute analogs. Interestingly, this
phenomenon was attributed to the asymmetric donor and acceptor states which leads to asymmetry
in the molecular orbitals. In our work, we studied the molecular conductance of phenylenes
containing heterogenous anchor groups based on oxazole-terminated O4O5 linkages. For such
heterogeneous linked molecules, we conjecture that one anchor group contributes constructive QI
and the second anchor results in destructive QI. When coupled with a meta-substituted phenylene
bridge with destructive QI, heterogeneous oxazole O4O5 linkages can alter the overall QI in the
molecular junction, thereby giving rise to unexpectedly high conductance in the meta-linked
molecular bridge.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
CONCLUSION
In this work, we study the charge transport properties of a series of oxazole-terminated phenylene
compounds with varying arene substitution patterns (para, meta) and different linkages to terminal
oxazole rings using a combination of single molecule experiments and molecular models. Our
results show that oxazole serves as a stable chemical anchor group for facilitating molecular
13
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 26
1
2
3
4
5
6
7
8
9
connections to gold metal electrode surfaces. Oxazole-terminated (O5 linkage) oligophenyls
exhibit a decay constant β = 0.40 ± 0.01 Å-1, which is comparable with amine-terminated and
pyridine-terminated equivalents. In addition, we systematically studied QI phenomena through the
central phenyl ring and terminal oxazole ring. In particular, for oxazole-terminated junctions with
equivalent constitutions on both termini, which include O4O4 and O5O5 oxazole-terminated
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
molecules, the QI of the central phenylene follows a quantum circuit rule that GO4-p-O4/GO4-m-O4
=
GO5-p-O5/GO5-m-O5. For oxazole-terminated junctions with non-equivalent constitutions on both
termini, including O4O5 oxazole-terminated molecules, meta-substituted phenylene exhibits a
higher conductance compared to para-substitute phenylene. These results reveal the role of the
anchor group in controlling QI which facilitates an increased understanding of molecular
conductance in junctions with complex heterogeneous structures. Moving forward, this work could
aid in the design and development of new chemistries for molecular electronics.
Associated Content
Supporting Information
The Supporting Information is available free of charge on the ACS Publications website at DOI:
XXX. Description of chemical synthesis, chemical and physical characterization of oxazole-
terminated molecules, experimental details on STM-BJ, simulation methods, supporting text,
supporting figures.
Corresponding Author
cms@illinois.edu
14
ACS Paragon Plus Environment

Page 15 of 26
Journal of the American Chemical Society
1
2
3
4
ORCID
Songsong Li: 0000-0001-9784-2877
Hao Yu: 0000-0002-1594-769X
Yun Liu: 0000-0001-7077-363X
5
6
7
8
Charles M. Schroeder: 0000-0001-6023-2274
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Notes
The authors declare no competing financial interests.
Acknowledgements
We thank Prof. Latha Venkataraman and Dr. Yaping Zang for generously providing advice in
building the STM-BJ instrument. This work was supported by the U.S. Department of Defense by
a MURI (Multi-University Research Initiative) through the Army Research Office (ARO) through
Award W911NF-16-1-0372 to C.M.S. and J.S.M.
References
(1) Aviram, A.; Ratner, M. A. Molecular rectifiers. Chemical Physics Letters 1974, 29, 277.
(2) Xu, B.; Tao, N. J. Measurement of single-molecule resistance by repeated formation of
molecular junctions. Science 2003, 301, 1221.
(3) Metzger, R. M. Unimolecular electronics. Chemical Reviews 2015, 115, 5056.
(4) Aradhya, S. V.; Venkataraman, L. Single-molecule junctions beyond electronic transport.
Nature Nanotechnology 2013, 8, 399.
(5) Leary, E.; La Rosa, A.; González, M. T.; Rubio-Bollinger, G.; Agraït, N.; Martín, N.
Incorporating single molecules into electrical circuits. The role of the chemical anchoring group.
Chemical Society Reviews 2015, 44, 920.
(6) Zang, Y.; Ray, S.; Fung, E. D.; Borges, A.; Garner, M. H.; Steigerwald, M. L.; Solomon,
15
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 26
1
2
3
4
5
G. C.; Patil, S.; Venkataraman, L. Resonant Transport in Single Diketopyrrolopyrrole Junctions.
6
7
Journal of the American Chemical Society 2018, 140, 13167.
8
9
(7) Su, T. A.; Neupane, M.; Steigerwald, M. L.; Venkataraman, L.; Nuckolls, C. Chemical
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
principles of single-molecule electronics. Nature Reviews Materials 2016, 1, 16002.
(8) Leary, E.; La Rosa, A.; Gonzalez, M. T.; Rubio-Bollinger, G.; Agrait, N.; Martin, N.
Incorporating single molecules into electrical circuits. The role of the chemical anchoring group.
Chemical Society Reviews 2015, 44, 920.
(9) Martin, C. A.; Ding, D.; Sørensen, J. K.; Bjørnholm, T.; van Ruitenbeek, J. M.; van der
Zant, H. S. Fullerene-based anchoring groups for molecular electronics. Journal of the American
Chemical Society 2008, 130, 13198.
(10)Venkataraman, L.; Klare, J. E.; Tam, I. W.; Nuckolls, C.; Hybertsen, M. S.; Steigerwald,
M. L. Single-molecule circuits with well-defined molecular conductance. Nano Letters 2006, 6,
458.
(11)Kamenetska, M.; Quek, S. Y.; Whalley, A.; Steigerwald, M.; Choi, H.; Louie, S. G.;
Nuckolls, C.; Hybertsen, M.; Neaton, J.; Venkataraman, L. Conductance and geometry of
pyridine-linked single-molecule junctions. Journal of the American Chemical Society 2010, 132,
6817.
(12)Kim, T.; Darancet, P.; Widawsky, J. R.; Kotiuga, M.; Quek, S. Y.; Neaton, J. B.;
Venkataraman, L. Determination of Energy Level Alignment and Coupling Strength in 4,4′-
Bipyridine Single-Molecule Junctions. Nano Letters 2014, 14, 794.
(13)Mishchenko, A.; Zotti, L. A.; Vonlanthen, D.; Bürkle, M.; Pauly, F.; Cuevas, J. C.; Mayor,
M.; Wandlowski, T. Single-Molecule Junctions Based on Nitrile-Terminated Biphenyls: A
Promising New Anchoring Group. Journal of the American Chemical Society 2011, 133, 184.
(14)Kim; Beebe, J. M.; Jun, Y.; Zhu, X. Y.; Frisbie, C. D. Correlation between HOMO
Alignment and Contact Resistance in Molecular Junctions:ꢀ Aromatic Thiols versus Aromatic
16
ACS Paragon Plus Environment

Page 17 of 26
Journal of the American Chemical Society
1
2
3
4
5
Isocyanides. Journal of the American Chemical Society 2006, 128, 4970.
6
7
(15)Ko, C.-H.; Huang, M.-J.; Fu, M.-D.; Chen, C.-h. Superior Contact for Single-Molecule
8
9
Conductance: Electronic Coupling of Thiolate and Isothiocyanate on Pt, Pd, and Au. Journal of
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
the American Chemical Society 2010, 132, 756.
(16)Yasuda, S.; Yoshida, S.; Sasaki, J.; Okutsu, Y.; Nakamura, T.; Taninaka, A.; Takeuchi,
O.; Shigekawa, H. Bond fluctuation of S/Se anchoring observed in single-molecule conductance
measurements using the point contact method with scanning tunneling microscopy. Journal of the
American Chemical Society 2006, 128, 7746.
(17)Garner, M. H.; Li, H.; Chen, Y.; Su, T. A.; Shangguan, Z.; Paley, D. W.; Liu, T.; Ng, F.;
Li, H.; Xiao, S. Comprehensive suppression of single-molecule conductance using destructive σ-
interference. Nature 2018, 1.
(18)Kamenetska, M.; Koentopp, M.; Whalley, A.; Park, Y.; Steigerwald, M.; Nuckolls, C.;
Hybertsen, M.; Venkataraman, L. Formation and evolution of single-molecule junctions. Physical
Review Letters 2009, 102, 126803.
(19)Zotti, L. A.; Kirchner, T.; Cuevas, J. C.; Pauly, F.; Huhn, T.; Scheer, E.; Erbe, A.
Revealing the role of anchoring groups in the electrical conduction through single-molecule
junctions. Small 2010, 6, 1529.
(20)Chen, F.; Li, X.; Hihath, J.; Huang, Z.; Tao, N. Effect of anchoring groups on single-
molecule conductance: comparative study of thiol-, amine-, and carboxylic-acid-terminated
molecules. Journal of the American Chemical Society 2006, 128, 15874.
(21)Batra, A.; Kladnik, G.; Gorjizadeh, N.; Meisner, J.; Steigerwald, M.; Nuckolls, C.; Quek,
S. Y.; Cvetko, D.; Morgante, A.; Venkataraman, L. Trimethyltin-mediated covalent gold–carbon
bond formation. Journal of the American Chemical Society 2014, 136, 12556.
(22)Hong, W.; Li, H.; Liu, S.-X.; Fu, Y.; Li, J.; Kaliginedi, V.; Decurtins, S.; Wandlowski, T.
Trimethylsilyl-terminated oligo (phenylene ethynylene) s: an approach to single-molecule
17
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 26
1
2
3
4
5
junctions with covalent Au–C σ-bonds. Journal of the American Chemical Society 2012, 134,
6
7
19425.
8
9
(23)Hines, T.; Díez-Pérez, I.; Nakamura, H.; Shimazaki, T.; Asai, Y.; Tao, N. Controlling
Formation of Single-Molecule Junctions by Electrochemical Reduction of Diazonium Terminal
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Groups. Journal of the American Chemical Society 2013, 135, 3319.
(24)Batra, A.; Darancet, P.; Chen, Q. S.; Meisner, J. S.; Widawsky, J. R.; Neaton, J. B.;
Nuckolls, C.; Venkataraman, L. Tuning Rectification in Single-Molecular Diodes. Nano Lett 2013,
13, 6233.
(25)Lambert, C. Basic concepts of quantum interference and electron transport in single-
molecule electronics. Chemical Society reviews 2015, 44, 875.
(26)Manrique, D. Z.; Huang, C.; Baghernejad, M.; Zhao, X.; Al-Owaedi, O. A.; Sadeghi, H.;
Kaliginedi, V.; Hong, W.; Gulcur, M.; Wandlowski, T. A quantum circuit rule for interference
effects in single-molecule electrical junctions. Nature communications 2015, 6, 6389.
(27)Arroyo, C. R.; Tarkuc, S.; Frisenda, R.; Seldenthuis, J. S.; Woerde, C. H.; Eelkema, R.;
Grozema, F. C.; van der Zant, H. S. Signatures of quantum interference effects on charge transport
through a single benzene ring. Angewandte Chemie 2013, 125, 3234.
(28)Aradhya, S. V.; Meisner, J. S.; Krikorian, M.; Ahn, S.; Parameswaran, R.; Steigerwald,
M. L.; Nuckolls, C.; Venkataraman, L. Dissecting contact mechanics from quantum interference
in single-molecule junctions of stilbene derivatives. Nano letters 2012, 12, 1643.
(29)Xiang, D.; Wang, X.; Jia, C.; Lee, T.; Guo, X. Molecular-Scale Electronics: From
Concept to Function. Chemical Reviews 2016, 116, 4318.
(30)Van Leusen, A.; Hoogenboom, B.; Siderius, H. A novel and efficient synthesis of
oxazoles from tosylmethylisocyanide and carbonyl compounds. Tetrahedron Letters 1972, 13,
2369.
18
ACS Paragon Plus Environment

Page 19 of 26
Journal of the American Chemical Society
1
2
3
4
(31)Venkataraman, L.; Klare, J. E.; Nuckolls, C.; Hybertsen, M. S.; Steigerwald, M. L.
5
6
7
Dependence of single-molecule junction conductance on molecular conformation. Nature 2006,
8
9
442, 904.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(32)Zang, Y.; Ray, S.; Fung, E.-D.; Borges, A.; Garner, M. H.; Steigerwald, M. L.; Solomon,
G. C.; Patil, S.; Venkataraman, L. Resonant Transport in Single-Diketopyrrolopyrrole Junctions.
Journal of the American Chemical Society 2018.
(33)Li, B.; Yu, H.; Montoto, E.; Liu, Y.; Li, S.; Schwieter, K.; Rodríguez-López, J.; Moore,
J. S.; Schroeder, C. M. Intrachain Charge Transport through Conjugated Donor-Acceptor
Oligomers. ACS Applied Electronic Materials 2019, 1, 7.
(34)Cai, Z.; Lo, W.-Y.; Zheng, T.; Li, L.; Zhang, N.; Hu, Y.; Yu, L. Exceptional single-
molecule transport properties of ladder-type heteroacene molecular wires. Journal of the American
Chemical Society 2016, 138, 10630.
(35)Komoto, Y.; Fujii, S.; Iwane, M.; Kiguchi, M. Single-molecule junctions for molecular
electronics. Journal of Materials Chemistry C 2016, 4, 8842.
(36)Kiguchi, M.; Nakamura, H.; Takahashi, Y.; Takahashi, T.; Ohto, T. Effect of anchoring
group position on formation and conductance of a single disubstituted benzene molecule bridging
Au electrodes: change of conductive molecular orbital and electron pathway. The Journal of
Physical Chemistry C 2010, 114, 22254.
(37)Lambert, C. J.; Liu, S. X. A Magic Ratio Rule for Beginners: A Chemist's Guide to
Quantum Interference in Molecules. Chemistry–A European Journal 2018, 24, 4193.
(38)Sangtarash, S.; Huang, C.; Sadeghi, H.; Sorohhov, G.; Hauser, J. r.; Wandlowski, T.;
Hong, W.; Decurtins, S.; Liu, S.-X.; Lambert, C. J. Searching the hearts of graphene-like
molecules for simplicity, sensitivity, and logic. Journal of the American Chemical Society 2015,
137, 11425.
(39)Li, Y.; Buerkle, M.; Li, G.; Rostamian, A.; Wang, H.; Wang, Z.; Bowler, D. R.; Miyazaki,
19
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 20 of 26
1
2
3
4
T.; Xiang, L.; Asai, Y.; Zhou, G.; Tao, N. Gate controlling of quantum interference and direct
5
6
7
observation of anti-resonances in single molecule charge transport. Nature Materials 2019, 18,
8
9
357.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(40)Huang, B.; Liu, X.; Yuan, Y.; Hong, Z.-W.; Zheng, J.-F.; Pei, L.-Q.; Shao, Y.; Li, J.-F.;
Zhou, X.-S.; Chen, J.-Z. Controlling and Observing Sharp-Valleyed Quantum Interference Effect
in Single Molecular Junctions. Journal of the American Chemical Society 2018, 140, 17685.
(41)Li, X.; Tan, Z.; Huang, X.; Bai, J.; Liu, J.; Hong, W. Experimental investigation of
quantum interference in charge transport through molecular architectures. Journal of Materials
Chemistry C 2019.
(42)Borges, A.; Fung, E. D.; Ng, F.; Venkataraman, L.; Solomon, G. C. Probing the
Conductance of the σ-System of Bipyridine Using Destructive Interference. The Journal of
Physical Chemistry Letters 2016, 7, 4825.
(43)Gorczak, N.; Renaud, N.; Tarkuç, S.; Houtepen, A. J.; Eelkema, R.; Siebbeles, L. D.;
Grozema, F. C. Charge transfer versus molecular conductance: molecular orbital symmetry turns
quantum interference rules upside down. Chemical Science 2015, 6, 4196.
20
ACS Paragon Plus Environment

Page 21 of 26
Journal of the American Chemical Society
1
2
3
4
TOC Graphic
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
21
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 22 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1
167x40mm (300 x 300 DPI)
ACS Paragon Plus Environment

Page 23 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2
106x93mm (300 x 300 DPI)
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 24 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3
169x40mm (300 x 300 DPI)
ACS Paragon Plus Environment

Page 25 of 26
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4
158x91mm (300 x 300 DPI)
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 26 of 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table of contents graphic
75x33mm (300 x 300 DPI)
ACS Paragon Plus Environment
