Synthesis of 2,2- and 2,5-Disubstituted 1-Oxyl Pyrrolidine Radicals as
New Homobifunctional Cross-Linking Spin Labels
1
-Oxyl Pyrrolid
a
ine Radical
m
s
as
N
ew
H
omobifu
á
nctional Cr
s
oss-Linking Spi
K
n Labels álai,a József Jekő,b Wayne L. Hubbell,c Kálmán Hideg*a
a
Institute of Organic and Medicinal Chemistry, University of Pécs, 7602 Pécs, P. O. Box 99, Hungary
Fax +36(72)536219; E-mail: kalman.hideg@aok.pte.hu
b
c
ICN Hungary Ltd., 4440 Tiszavasvári, P. O. Box 1, Hungary
Jules Stein Eye Institute and Department of Chemistry and Biochemistry, UCLA, Los Angeles, CA 90095-7008, USA
Received 28 May 2003
able)11,12 and thiol-specific homobifunctional cross-link-
ing reagents13,14 containing reactive substituents only in
the 3,4-positions of the pyrroline nitroxide ring. In this pa-
per, we present an extension of the above idea with the
synthesis of novel 2,2- and 2,5-disubstituted pyrrolidine
nitroxide homobifunctional reagents that are designed to
serve the purposes mentioned above.
Abstract: The synthesis of 2,2- and 2,5-disubstituted pyrrolidine
nitroxide radicals starting from readily available nitrones 1, 11 is
described. The stable radicals are acylating (10, 20), alkylating (7,
17) and thiol-specific (8, 18) reagents capable of producing cross-
links in proteins over distances in the range of 10–15 Å.
Key words: cross linking reagents, proteins, free radicals, Grignard
reactions, nitrones, lithium

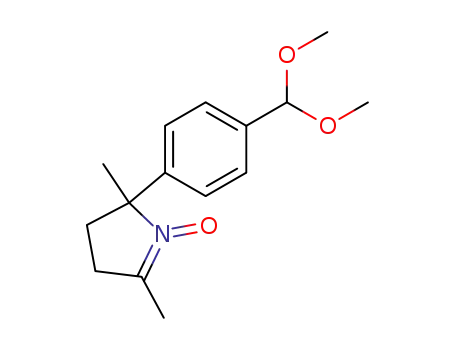

Treatment of 5,5-dimethyl-1-pyrroline N-oxide (DMPO)
(1) or 2,5-dimethyl-1-pyrroline N-oxide15 (11) with 4-
dimethoxymethylphenylmagnesium bromide yielded
trisubstituted nitrones16 2 and 12, respectively, after oxi-
dation of the hydroxylamines to the nitrones by activated
MnO2. Further treatment of nitrone 12 with 4-
dimethoxymethylphenylmagnesium bromide gave trans
diphenyl nitroxide 13 analogously to earlier cases.17 On
the other hand, similar treatment of nitrone 2 yielded only
the unsubstituted hydroxylamine. Apparently, the second
phenyl substituent cannot be easily introduced into this
sterically hindered position, as was observed earlier by
Iwahashi et al.18 Treatment of compound 2 with the more
reactive 4-dimethoxymethylphenyllithium obtained by
translithiation19 of 4-bromobenzaldehyde dimethyl acetal
gave the desired nitroxide 3 after oxidation with activated
MnO2.
Nitroxides have received considerable attention as co-ox-
idants,1 spin labels,2 MRI agents,3 antioxidants4 and dou-
ble sensor molecules.5 Among these uses, spin labeling is
the most important and wide-spread application. A major
advance in the field of protein spin labeling was the intro-
duction of site directed spin labeling (SDSL). SDSL is
proving to be a general strategy for determining the struc-
ture of both soluble and membrane proteins of any molec-
ular weight.6–8 Moreover, recent work indicates that
protein dynamics, an important determinant of protein
function, can be extracted from the motion of nitroxide
side chains.9,10 Homo-bifunctional nitroxide reagents,
particularly those with reactive functionality toward sulf-
hydryl groups, promise to significantly extend the capa-
bilities of SDSL. For example, bifunctional reagents that
cross-link a pair of cysteine residues spaced by one or two
turns along an a-helix are strongly immobilized with re-
spect to the protein backbone, as expected. In this case,
motion of the nitroxide group, reflected in the EPR spec-
trum, is dominated by rigid body motions of the helix.
Thus, the EPR spectra of spin labels with dual attachment
points may provide a direct and powerful measure of pro-
tein dynamics without the usual contributions from the in-
ternal motion of the side chain itself.10 Because the
orientation of the nitroxide ring is necessarily fixed by the
cross-link, the angular dependence of the EPR spectrum
in an oriented system (i.e., membranes) can be used to de-
duce the orientation of the helical axis with respect to the
director of the system. Finally, the rate of cross-link for-
mation, easily monitored by EPR in real time, will provide
direct measures of both cysteine proximity and protein
flexibility. In our laboratory we have synthesized several
heterobifunctional (thiol-specific and photoactivat-
Dimethylacetals 3 and 13 could be deprotected by treat-
ment with aqueous H2SO4 in THF to give aldehydes 4 and
14,20 which were in turn reduced with NaBH4 in ethanol
to give alcohols 5 and 15. The alcohols were converted to
the corresponding mesylates, which yielded the benzylic
bromides 6 and 16 upon treatment with LiBr in ace-
tone.21,22 To obtain the more reactive benzylic iodides for
use as alkylating agents,23 compounds 6 and 16 were treat-
ed with NaI to give compounds 7 and 17. The thiol-specif-
ic bismethanethiosulfonate reagents 8 and 18 were
obtained by treatment of bromides 6 and 16 with
NaSSO2CH3 in aqueous acetone.24 Reagents 8 and 18 are
capable of making cross-links between SH of cysteine res-
idues. Dialdehydes 4 and 14 were oxidized to dicarboxyl-
ic acids 9 and 19 by Ag2O in an aq NaOH (10%)–THF
mixture.25 The dicarboxylic acids were converted to dis-
uccinimidyl esters26 10 and 20 by treatment with N-hy-
droxysuccinimide and N,N¢-dicyclohexylcarbodiimide
(Schemes 1 and 2). The resulting disuccinimides are acy-
lating reagents for amino groups and capable of making
cross-link between lysine side chains.
Synthesis 2003, No. 13, Print: 18 09 2003. Web: 22 08 2003.
Art Id.1437-210X,E;2003,0,13,2084,2088,ftx,en;P04103SS.pdf.
DOI: 10.1055/s-2003-41053
© Georg Thieme Verlag Stuttgart · New York

PAPER
1-Oxyl Pyrrolidine Radicals as New Homobifunctional Cross-Linking Spin Labels
2085
Scheme 1 Reagents and conditions: (a) 4-dimethoxymethylphenylmagnesium bromide (1.2 equiv) THF, 0 °CÆreflux, 3 h, under N2, then
activated MnO2 (1.0 equiv), O2, 10 min, CHCl3, reflux, 1 h, 70%; (b) 4-dimethoxymethylphenyllithium (1.2 equiv), THF, –78 °C, 20 min, then
2, reflux 5 h, then activated MnO2, CHCl3, O2, 30 min, 65%; (c) THF, aq H2SO4 (5%), r.t., 8 h, 92%; (d) NaBH4 (2.5 equiv) EtOH, 40 °C, 30
min, 78%; (e) MsCl (2.2 equiv), Et3N (2.2 equiv), CH2Cl2, 0 °C Æ r.t., 1 h, then LiBr (4.0 equiv), acetone, reflux, 1 h, 55%; (f) NaI, 4.0 equiv,
reflux, 30 min, 68%; (g) NaSSO2CH3 (4.0 equiv), acetone–H2O, 30 min, reflux, 43%; (h) Ag2O (4.0 equiv), aq NaOH (10%)–THF, 60 °C, 40
min, then H+, 45%; (i) N-hydroxysuccinimide (2.0 equiv), DCC (2.0 equiv), EtOAc, 0 °C ∆ r.t., 12 h, 61%.
Mps were determined with a Boetius micro melting point apparatus
and are uncorrected. Elemental analyses (C, H, N, S) were per-
formed on Carlo Erba EA 1110 CHNS elemental analyzer. IR
(Specord 75) spectra were in each case consistent with the assigned
structure. Mass spectra were recorded on a VG TRIO-2 instrument
in the EI mode (70 eV, direct inlet). ESR spectra were obtained from
10–5 molar solutions (CHCl3), using a Bruker ECS-106 spectrome-
ter. All monoradicals exhibited three equally spaced lines with
aN = 15.1–15.5 G. Preparative flash column chromatography was
performed on Merck Kieselgel 60 (0.040–0.063 mm). Qualitative
TLC was carried out on commercially prepared plates
In summary, new 2,2- and 2,5-disubstituted stable pyrro-
lidine radicals were obtained with simple procedures
starting from readily available nitrones. These homobi-
functional amino-specific and thiol-specific reagents
serve as cross-linkers between lysine and cysteine resi-
dues, respectively. The general synthetic procedure is
readily extendable to include spacer groups other than
benzyl to vary the cross-linking distance. Applications of
the reagents will be reported separately.
Scheme 2 Reagents and conditions: (a) 4-dimethoxymethylphenylmagnesium bromide (1.2 equiv) THF, 0 °C Æreflux, 3 h, under N2, then
activated MnO2 (1.0 equiv), O2, 10 min, CHCl3, reflux, 1 h, 55%; (b) 4-dimethoxymethylphenylmagnesium bromide (1.2 equiv), THF, 0 °C,
then 12, reflux, 3 h, under N2, then activated MnO2, CHCl3, O2, 30 min, 60%; (c) THF, aq H2SO4 (5%), r.t., 8 h, 85%; (d) NaBH4 (2.5 equiv)
EtOH, 40 ºC, 30 min, 70%; (e) MsCl (2.2 equiv), Et3N (2.2 equiv), CH2Cl2, 0 °C Ær.t., 1 h, then LiBr (4.0 equiv), acetone, reflux, 1 h, 53%;
(f) NaI (4.0 equiv), acetone, reflux, 30 min, 77%; (g) NaSSO2CH3 (4.0 equiv), acetone–H2O, 30 min, reflux, 28%; (h) Ag2O (4.0 equiv), aq
NaOH (10%)–THF, 60 °C, 40 min, then H+, 40%; (i) N-hydroxysuccinimide (2.0 equiv), DCC (2.0 equiv), EtOAc, 0 ºC Ær.t., 12 h, 55%.
