Drug repurposing: Discovery of troxipide analogs as potent antitumor agents

Article abstract of DOI:10.1016/j.ejmech.2020.112471

Drug repurposing plays a vital role in the discovery of undescribed bioactivities in clinical drugs. Based on drug repurposing strategy, we for the first time reported a novel series of troxipide analogs and then evaluated their antiproliferative activity against MCF-7, PC3, MGC-803, and PC9 cancer cell lines and WPMY-1, most of which showed obvious selectivity toward PC-3 over the other three cancer cell lines and WPMY-1. Compound 5q, especially, could effectively inhibit PC3 with an IC₅₀ value of 0.91 μM, which exhibited around 53-fold selectivity toward WPMY-1. Data indicated that 5q effectively inhibited the colony formation, suppressed the cell migration, and induced G1/S phase arrest in PC3 cells. Also, compound 5q induced cell apoptosis by activating the two apoptotic signaling pathways in PC3 cells: death receptor-mediated extrinsic pathway and mitochondria-mediated intrinsic pathway. Compound 5q up-regulated the expression of both pro-apoptotic Bax and P53, while down-regulated anti-apoptotic Bcl-2 expression. Besides, compound 5q significantly increased the expression of cleaved caspase 3/9 and cleaved PARP. Therefore, the successful discovery of compound 5q may further validate the feasibility of this theory, which will encourage researchers to reveal undescribed bioactivities in traditional drugs.

Full text of DOI:10.1016/j.ejmech.2020.112471

Journal Pre-proof
Drug repurposing: Discovery of troxipide analogs as potent antitumor agents
Nan Lu, Jin-ling Huo, Shuai Wang, Xiao-Han Yuan, Hong-Min Liu
PII:
S0223-5234(20)30442-6
DOI:
https://doi.org/10.1016/j.ejmech.2020.112471
EJMECH 112471
Reference:
To appear in: European Journal of Medicinal Chemistry
Received Date: 29 April 2020
Revised Date: 14 May 2020
Accepted Date: 14 May 2020
Please cite this article as: N. Lu, J.-l. Huo, S. Wang, X.-H. Yuan, H.-M. Liu, Drug repurposing: Discovery
of troxipide analogs as potent antitumor agents, European Journal of Medicinal Chemistry (2020), doi:
https://doi.org/10.1016/j.ejmech.2020.112471.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2020 Published by Elsevier Masson SAS.

Drug Repurposing: discovery of troxipide analogs as potent antitumor agents
Nan Lu b,#, Jin-ling Huo a, #, Shuai Wang a,c, #, Xiao-Han Yuan a, Hong-Min Liu a,*.
School of Pharmaceutical Sciences, Zhengzhou University, Zhengzhou 450001,
a
China;
b Department of Pharmacy, University of Copenhagen, Universitetsparken 2, 2100
Copenhagen, Denmark;
c Gordon Center for Medical Imaging, Massachusetts General Hospital and Harvard
Medical School, Boston, MA 02129, USA;
* Corresponding authors:
Prof. Hong-Min Liu (liuhm@zzu.edu.cn)
#Nan Lu, #Jin-ling Huo, and #Shuai Wang contributed equally to this work.
1 / 30

Abstract:
Drug repurposing plays a vital role in the discovery of undescribed bioactivities in
clinical drugs. Based on drug repurposing strategy, we for the first time reported a
novel series of troxipide analogs and then evaluated their antiproliferative activity
against MCF-7, PC3, MGC-803, and PC9 cancer cell lines and WPMY-1, most of
which showed obvious selectivity toward PC-3 over the other three cancer cell lines
and WPMY-1. Compound 5q, especially, could effectively inhibit PC3 with an IC50
value of 0.91 μM, which exhibited around 53-fold selectivity toward WPMY-1. Data
indicated that 5q effectively inhibited the colony formation, suppressed the cell
migration, and induced G1/S phase arrest in PC3 cells. Also, compound 5q induced
cell apoptosis by activating the two apoptotic signaling pathways in PC3 cells: death
receptor-mediated extrinsic pathway and mitochondria-mediated intrinsic pathway.
Compound 5q up-regulated the expression of both pro-apoptotic Bax and P53, while
down-regulated anti-apoptotic Bcl-2 expression. Besides, compound 5q significantly
increased the expression of cleaved caspase 3/9 and cleaved PARP. Therefore, the
successful discovery of compound 5q may further validate the feasibility of this
theory, which will encourage researchers to reveal undescribed bioactivities in
traditional drugs.
Keywords: [1,2,4]triazolo[1,5-a]pyrimidines; Apoptosis; Antiproliferative activity;
Drug repurposing
2 / 30

1. Introduction
The rapid development of technology and enhanced knowledge of human diseases
fails to meet therapeutic advances, since the new drug discovery will be subjected to
the high attrition, plenty of costs, and slow pace process.[1, 2] Drug repurposing, an
effective strategy for the discovery of undescribed bioactivities in clinical drugs, has
attracted a lot of researchers to devote themselves to seeking novel applications of
traditional drugs, which offers many advantages over the development of an entirely
novel drug. [1, 3] First, the most important advantage of drug repurposing is the lower
risk of failure due to the fact that the repurposed drug has been validated safe enough
in preclinical models and humans. Second, as most of the preclinical testing and
safety assessment has already been completed, the required length of time for novel
drug development will be significantly reduced. Third, the costs of the overall
development of the repurposing candidate will markedly decrease due to the above
two advantages. The proportion of drugs developed based on drug repurposing theory
is probably around 75%.[4] Historically, drug repurposing strategy has achieved great
success, resulting in a lot of promising candidate drugs, some of which have been
used for the treatment of both common and rare diseases.[5-8] As one of the most
successful examples of drug repurposing so far, sildenafil citrate, originally developed
as an antihypertensive drug by Pfizer, was repurposed for the effective treatment of
erectile dysfunction.[9] Thalidomide, originally used for the treatment of sedative in
1957, was infamous for its serious side effect of leading to severe skeletal birth
defects in children born to mothers who had taken the drug the first trimester of their
pregnancies, which was serendipitously discovered to be effective for the treatment of
multiple myeloma[10], subsequently generating some more successful derivatives,
such as lenalidomide, with worldwide sales of up to $8.2 billion in 2017.[11] Based
on drug repurposing strategy, dolutegravir and dictegravir, anti-HIV drugs targeting
integrase, were developed as the first PA endonuclease inhibitor—Baloxavir marboxil,
which was approved in 2018 by Japan for the treatment of influenza A and B virus
infections in paediatric and adult patients.[12] Besides, given the pretty severe
situation facing the world, there is still no approved effective drug against COVID-19.
3 / 30

How to quickly obtain effective compounds for the treatment of COVID-19 remains a
challenge. Therefore, drug repurposing, as a fast and effective strategy to reveal new
indications of traditional drugs, has been successfully exploited to identify novel
application of ‘old’ drugs for the treatment of COVID-19, generating some potent
candidates, such as chloroquineor or hydroxychloroquine, Remdesivir, Favipiravir,
and Tocilizumab.[13, 14] Chloroquine or hydroxychloroquine, clinically used as an
antimalarial drug, has been found to effectively inhibit COVID-19 in vitro.[15, 16] As
an antiviral agent, Remdesivir, initially researched in Ebola virus clinical studies,
showed potent inhibitory activity against COVID-19 in vitro.[17] Besides, Favipiravir,
previously approved by Japan for the treatment of anti-flu drug, was validated to be
safe and effective for the treatment of COVID-19 patients.[14] Tocilizumab, clinically
used as an immunosuppressive agent in the clinic, was discovered to be effective for
the treatment of COVID-19 patients in vivo.[18] All these discovered drugs need to be
subjected to further testing to avoid unexpected side effects.
Troxipide, clinically used in the treatment of gastroesophageal reflux disease, has
been reported to have anti-inflammatory properties, which has not been found any
reports related to tumor so far.[19] In addition, our previous work has indicated that
[1,2,4]triazolo[1,5-a]pyrimidine fragment possesses various pharmaceutical properties
[20-24], making it promising in drug design. In this work, we performed drug
repurposing strategy to design and synthesize a novel series of troxipide derivatives
by introducing [1,2,4]triazolo[1,5-a]pyrimidine with different substituents to troxipide,
hopefully achieving some promising compounds with interesting bioactivities.
Figure 1. Design of Troxipide analog 5q based on the Drug Repurposing strategy.
4 / 30

2. Results and Discussion
2.1. Chemistry

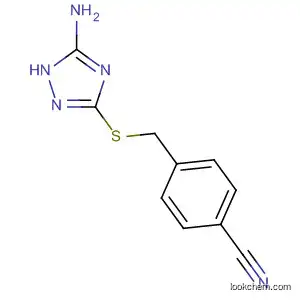

The synthetic routes for the synthesis of compounds 5a-5v. Compounds 4a-4v
were obtained by following the previously reported method. As depicted in Scheme 1,
compounds 2a-2s were obtained by reacting 5-amino-4H-1,2,4-triazole-3-thiol with
different alkyl halides, followed by refluxing with various β-ketoesters in acetic acid,
respectively, giving compounds 3v-3v, which were further subjected to chlorination
by POCl3, affording compounds 4a-4v. Finally, compounds 4a-4v reacted with
commercially available Troxipide to give compounds 5a-5v.
Scheme 1. Synthesis of compounds 5a-5v.
2.2. Biochemical evaluation of troxipide analogs.
Initially, the first troxipide analog 5a was obtained by introducing
[1,2,4]triazolo[1,5-a]pyrimidines group to troxipide based on drug repurposing
strategy. We next screened its antitumor activities against four different kinds of
cancer cell lines, namely, MCF-7 (human breast cancer cell line), PC3 (human
prostatic carcinoma cell line), MGC-803 (human gastric cancer cell line), and PC9
(human lung cancer cell line) by the MTT assay, taking 5-Fu and troxipide as the
controls. Intriguingly, compound 5a displayed acceptable antiproliferative activity
toward the four selected cell lines, but less potent than that of 5-Fu, while troxipide
showed no any activity (IC50 > 100 μM) (Table 1). Encouraged by the interesting
5 / 30

result, we next performed further structural modification around the different
positions of the [1,2,4]triazolo[1,5-a]pyrimidines group, giving compounds 5a-5v. All
these compounds were evaluated for their antitumor efficacy against MCF-7, PC3,
MGC-803, and PC9 cancer cell lines, respectively, and 5-Fu was chosen as a positive
control. As shown in Table 1, compounds 5a-5v displayed weak to strong inhibitory
activity against the selected cancer cells, and it was worth noting that all of these
compounds showed obvious selectivity toward PC3 over the other three cancer cell
lines, except compound 5s. Therefore, in the following structural modifications, we
mainly concentrated on the effect of compounds 5a-5v on PC3.
Firstly, we focused primarily on the molecular fine-tuning of substituents on the
phenyl of compound 5a, generating compounds 5b-5n, most of which displayed
moderate to strong inhibitory activity against PC3. Compared to compound 5a and
5-Fu, compounds 5b-5d, 5g, and 5k, bearing electron-withdrawing group at the
4-position of phenyl in compound 5a, showed pretty strong inhibitory activity against
PC3 while compound 5h, with pretty strong electron-withdrawing –CF3 group at the
4-position of phenyl, exhibited reduced activity. Whether moving 4-Br to 2-Br or 3-Br
of the phenyl in compound 5d, resulting in compound 5e and 5f, led to the decrease of
inhibitory activity toward PC3. Similarly, both compounds 5i (2–CF3) and 5j (4–CF3)
significantly decreased the inhibitory activity toward PC3 compared with compound
5h (4–CF3). Besides, incorporation of a methoxy group at the 4-position of the phenyl
in compound 5a giving compound 5l induced a sharp decrease of activity, while
compound 5m, bearing methyl group at the 4-position of the phenyl, exhibited almost
comparable activity toward PC3 with compound 5a. Besides, compound 5n, with
2,6-diCl groups at the phenyl in compound 5a, also displayed moderate antitumor
activity toward PC3, which was less potent than compound 5c. Taken together, these
data suggested that the introduction of moderate electron-withdrawing group at the
4-position of the phenyl in compound 5a was favorable for increasing the
antiproliferative activity toward PC3. To further investigate the SARs, we investigated
the effect of the number of methylene between sulfydryl and Phenyl on the inhibitory
activity, giving compounds 5o-5p. Unfortunately, both of them showed significantly
6 / 30

decreased inhibitory activity toward PC3, suggesting the number of methylene
between sulfydryl and Phenyl was necessary for the activity. Intriguingly,
replacement of the phenyl with bulky group naphthalene in compound 5a resulted in
compound 5o, which could significantly inhibit PC3 with an IC50 value of 0.91 μM,
about 5.8-fold more potent than 5-Fu. However, replacement of the phenyl group with
small alkyl group n-propylene in compound 5a gave compound 5r, which led to
significant loss of antiproliferative activity. Besides, replacement of the phenyl group
with heterocyclic group benzimidazole in compound 5a, generating compound 5s,
exhibited improved anticancer efficacy toward PC3 but less than that of compound 5q,
while compound 5s showed much better inhibitory activity toward MCF-7, MGC-803,
and PC9 than compound 5a.
Also, we next explored the effect of the size of R2 on the antiproliferative activity
toward PC3 by replacing the methyl group at R2 in compound 5c with ethyl or Phenyl
group, respectively, producing compounds 5t-5u. Compound 5t showed almost the
same inhibitory activity as compound 5c toward PC3 while compound 5u displayed
significantly decreased antiproliferative activity, indicating the bulky group such as
phenyl group at R2 was not favorable for other for the antitumor activity. To the end,
one n-pentane group was also incorporated into the position of R3 in compound 5c to
further investigate the SARs, generating compound 5v, which led to a sharp decrease
of the antiproliferative activity toward PC3.
7 / 30

Table 1. In vitro inhibitory activity of compound 5a-5v against the selected cancer cells.
IC50 Value (μM)
Compound
R1
R2
R3
MCF-7
PC3
MGC-803
PC9
-Me
-Me
-Me
-Me
-H
-H
-H
-H
12.21±0.72
7.86±0.69
28.89±0.84
41.41±1.06
5a
5b
5c
5d
10.45±0.16
5.20±0.18
8.56±0.41
4.23±0.35
1.53±0.42
1.87±0.27
23.69±0.57
8.57±0.55
10.30±0.52
23.38±0.53
33.00±0.48
39.27±0.63
-Me
-Me
-H
-H
13.35±0.53
24.87±0.06
8.87±0.46
14.84±0.68
34.59±0.66
24.24±0.63
>50
5e
5f
11.64±0.21
-Me
-Me
-H
-H
6.61±0.42
2.22±0.09
13.19±0.50
26.38±1.21
>50
>50
5g
5h
16.49±1.22
10.46±1.02
-Me
-H
>50
25.09±0.34
>50
>50
5i
8 / 30

-Me
-H
23.59±0.20
26.10±0.52
32.92±0.47
>50
5j
-Me
-Me
-Me
-H
-H
-H
5.79±0.25
>50
1.89±0.03
24.35±0.80
13.38±0.37
14.73±0.67
>50
36.21±0.79
>50
5k
5l
17.16±0.71
30.37±0.52
>50
5m
-Me
-H
12.62±0.42
4.56±0.19
13.13±0.48
45.32±0.73
5n
-Me
-Me
-H
-H
36.98±0.60
>50
19.79±0.25
28.75±0.24
35.59±0.41
32.06±0.49
>50
>50
5o
5p
-Me
-Me
-H
-H
-H
-H
11.54±0.18
>50
0.91±0.31
>50
8.21±0.50
>50
34.68±0.67
>50
5q
5r
5s
5t
-Me
3.55±0.55
5.74±0.12
6.30±0.11
2.18±0.07
4.02±0.48
10.62±0.42
10.37±0.64
43.48±0.54
-Ethyl
9 / 30

-Ph
-Me
--
-H
>50
>50
15.81±0.26
29.65±0.22
5.32 ± 1.17
>100
28.50±0.54
>50
>50
>50
5u
5v
n-pentane
--
--
--
--
4.55±1.03
>100
6.52 ± 1.06
>100
4.12±0.83
>100
5-Fu
--
Troxipide
10 / 30

Given the encouraging results, troxipide analogs 5a-5v have further tested their
possible toxicity toward the WPMY-1 (normal human prostatic stromal myofibroblast
cell line), taking 5-Fu as the control. As depicted in Table 2, compounds 5a-5v
displayed moderate to weak toxicity toward WPMY-1. Compound 5q, especially,
showed pretty weak inhibitory activity toward WPMY-1 with an IC50 value of 48.15
μM while it could effectively inhibit PC3 (IC50 = 0.91 μM), showing up to 53-fold
selectivity, which exhibited obvious advantages over 5-Fu.
Table 4. In vitro inhibitory activity of compound 5a-5v against WPMY-1.
IC50 (μM)
WPMY-1
44.86±0.69
30.22±0.34
29.55±0.40
31.48±0.17
>50
IC50 (μM)
WPMY-1
34.29±0.63
28.24±0.35
37.44±0.38
>50
Compound
Compound
5a
5b
5c
5d
5e
5f
5m
5n
5o
5p
5q
5r
48.15±0.33
>50
41.55±0.19
32.72±0.43
>50
>50
5g
5h
5i
5s
39.56±0.19
45.25±0.72
>50
5t
42.27±0.35
33.47±0.39
>50
5u
5v
5j
8.32 ± 0.97
5k
5l
5-Fu
36.27±0.87
11 / 30

2.3. The effect of Compound 5q on colony formation and cell cycle distribution of
PC3
Encouraged by the potent antiproliferative activity of compound 5q against PC3, we
next evaluated the inhibitory activity of compound 5q against PC3 at 24 h, 48 h, and
72 h, respectively. The results demonstrated that compound 5q significantly inhibited
the proliferation of PC3 cells dose- and time-dependently (Figure 2A). Subsequently,
colony formation assay was performed, and we found that cells incubated with 0.125
μM, 0.25 μM, and 0.5 μM compound 5q formed fewer and smaller colonies (Figure
2B & 2C). Inducement of cell cycle arrest is an important method of human
anti-tumor therapy [25, 26]. Therefore, we tested the effect of different concentrations
of compound 5q on the cell cycle in PC3 cells using flow cytometry. As shown in
Figure 2D & 2E, compound 5q significantly increased the G1/S phase population
while decreased G2/M content at high concentration in PC3 cells. It has been reported
that p27 is a cyclin-dependent kinase inhibitor and its expression level can reflect cell
cycle progression[27]. Therefore, we further explored the effect of compound 5q on
the expression of p27 by western blotting. As depicted in Figure 2F & 2G, compound
5q dose-dependently elevated the expression of p27. The data revealed that the
antiproliferative activity of compound 5q toward PC3 cells was associated with the
G1/S cell cycle arrest.
12 / 30

Figure 2. The effect of Compound 5q on colony formation and cell cycle distribution
of PC3 (A) The cell viabilities of PC3 cells treated with different concentrations of
compound 5q for 24 h, 48 h, and 72 h, respectively by MTT assay. (B, C) The colony
formation and absorbance analysis of crystal violet in PC3 cells treated with indicated
concentrations of compound 5q for 6 days. (D, E) PC3 cells were treated with
compound 5q at the indicated concentrations for 24 h and the cell cycle distributions
were then analyzed by flow cytometry. (F, G) The expression and quantitative
13 / 30

analysis of p27 protein in PC3 cells treated with compound 5q at the indicated
concentrations for 24 h by western blotting. Three independent experiments were
performed. All data were expressed as the mean ± SEM. *p < 0.05, **p < 0.01, ***p
< 0.001 compared to the control group.
2.4. The effect of compound 5q on apoptosis of PC3 cells
To further explore the cytotoxicity of compound 5q on PC3 cells, we further
investigated the mechanism of inhibitory efficacy of compound 5q on PC3 cells.
Firstly, Hoechst 33342 staining was carried out to examine the effect of compound 5q
on cell apoptosis. As shown in Figure 3A & 3B, PC3 cells treated with compound 5q
at the indicated concentrations displayed apoptosis-associated morphologies, such as
cell rounding up, chromatin condensation, and formation of apoptotic bodies. Next,
Annexin V-FITC/PI apoptosis detection kit was utilized to examine the apoptosis of
PC3 cells using flow cytometry. As shown in Figure 3C & 3D, treatment of PC3 with
compound 5q at different concentrations (1, 2, and 4 μM) dose-dependently led to
significant increase of FITC-Annexin V/PI positive population, and especially the
treatment of PC3 by compound 5q at 4 μM, the apoptotic percentage was up to 70.7%,
which was far higher than the control group (3.5%).
It has been reported that the accumulation of reactive oxygen species (ROS), the main
source of mitochondrial metabolism, could induce cellular apoptosis through a
mitochondrial-dependent pathway.[28] So we next explored the effect of compound
5q on the level of intracellular ROS by using DCFH-DA. As shown in Figure 3E &
3F, compound 5q could effectively increase the accumulation of intracellular ROS in
a concentration-dependent manner, which at 4 μM led to 2-fold increase compared
with the control. The data indicated that compound 5q could induce the accumulation
of ROS which contributed to the apoptosis of PC3 cells.
14 / 30

Figure 3. The effect of compound 5q on apoptosis of PC3 cells and cellular ROS. (A,
B) The apoptotic morphological changes (marked with red arrows) and the
quantitative analysis of PC3 cells treated with different concentrations of compound
5q for 48h, respectively, by Hoechst 33342 staining. (C, D) The quantitative analysis
of PC3 cells treated with compound 5q at the indicated concentrations for 48h,
respectively, using Annexin V-FITC/PI double staining through flow cytometry. (E, F)
The quantitative analysis of the levels of ROS in PC3 cells treated with different
concentrations of compound 5q for 24 h, respectively, by flow cytometry. Three
independent experiments were performed. All data were expressed as the mean ±
SEM. *p < 0.05, **p < 0.01, ***p < 0.001 compared to the control group.
Apoptosis has been reported to be mainly mediated by the mitochondria-mediated
intrinsic pathway and the death receptor-mediated extrinsic pathway[29]. To further
investigate the underlying molecular mechanisms of compound 5q on the apoptosis of
PC3 cells, we next tested the apoptosis-related proteins affected by compound 5q
based on western blotting assay. As shown in Figure 4A-4D, compound 5q markedly
elevated the expression of pro-apoptotic Bax and P53 while anti-apoptotic Bcl-2
expression was down-regulated.
15 / 30

Besides, upon apoptotic stimulation, caspase-9, a member of the cysteine aspartic acid
protease (caspase) family, performs interaction with cytochrome C and then it
mediates activation of caspase-9. Cleaved caspase-9 further processes other caspase
members, such as caspase-3, which is responsible for the proteolytic cleavage of the
nuclear enzyme poly (ADP-ribose) polymerase (PARP). They all interact to initiate a
caspase cascade and eventually leads to cell apoptosis[30]. As shown in Figure
4A-4D, compound 5q significantly increased the expression of cleaved caspase 3/9
and cleaved PARP in a dose-dependent manner. These findings demonstrated that
compound 5q could induce the apoptosis of PC3 cells through activating the two
apoptotic signaling pathways simultaneously.
Figure 4. The effect of compound 5q on apoptosis-related proteins. (A, B, C, D)
Expression and quantitative analysis of Bax, Bcl-2, and P53 in PC3 cells treated with
compound 5q at the indicated concentrations for 48h. (E, F, G, H) Expression and
quantitative analysis of Cleaved-caspase 9/3 and cleaved-PARP in PC3 cells treated
with compound 5q at the indicated concentrations for 48h. Three independent
experiments were performed. All data were expressed as the mean ± SEM. *p < 0.05,
**p < 0.01, ***p < 0.001 compared to the control group.
2.5. The effect of compound 5q on the migration of PC3 cells.
16 / 30

Cancer metastasis represents an advanced stage of malignancy and is the leading
cause of cancer-related deaths while cell migration is involved in cancer metastasis[31,
32]. Inhibition of tumor cell migration is an important strategy for the treatment of
various cancers in the clinic. Therefore, we evaluated whether compound 5q affected
the inhibition of the migration of PC3 cells. As shown in Figure 5A-5D, the wound
healing assay indicated that compound 5q effectively inhibited the wound healing in a
dose-dependent manner, while transwell assay demonstrated that compound 5q could
also significantly inhibit the migration of PC3 cells concentration-dependently.
Figure 5. The effect of compound 5q on the migration ability of PC3 cells. (A, B)
Effect and statistical analysis of migration in PC3 cells treated with compound 5q at
the indicated concentrations for 48h in wound healing assay. (C, D) Effect and
statistical analysis of migration in PC3 cells treated with different concentrations of
compound 5q for 48h in transwell assay. Three independent experiments were
performed. All data were expressed as the mean ± SD. **p < 0.01, ***p < 0.001
compared to Con group.
3. Conclusions
In this work, we for the first time reported a novel series of troxipide analogs and then
17 / 30

evaluated their antiproliferative activity against MCF-7, PC3, MGC-803, and PC9
cancer cell lines and WPMY-1, most of which showed obvious selectivity toward
PC-3 over the other three cancer cell lines and WPMY-1. Among these analogs,
compound 5q could effectively inhibit PC3 with an IC50 value of 0.91 μM, which
exhibited around 53-fold selectivity toward WPMY-1. Biological studies indicated
that 5q could effectively inhibit the colony formation, suppress the cell migration, and
induce G1/S phase arrest in PC3 cells. What’s more, compound 5q could induce cell
apoptosis by activating the two apoptotic signaling pathways in PC3 cells: death
receptor-mediated extrinsic pathway and mitochondria-mediated intrinsic pathway.
Compound 5q could up-regulate the expression of both pro-apoptotic Bax and P53,
but down-regulate anti-apoptotic Bcl-2 expression. Besides, compound 5q could
significantly increase the expression of cleaved caspase 3/9 and cleaved PARP.
Therefore, the successful application of drug repurposing strategy may further
encourage researchers to reveal undescribed indications in clinical drugs.
4. Experimental section
4.1. General Information.
Reagents and solvents were purchased from commercial sources and used without
further purification. Thin-layer chromatography (TLC) was carried out on glass plates
coated with silica gel (Qingdao Haiyang Chemical Co., G60F-254) and visualized by
UV light (254 nm). The products were purified by column chromatography over silica
gel (Qingdao Haiyang Chemical Co., 200–300 mesh). Melting points were
determined on an X-5 micromelting apparatus and are uncorrected. All the NMR
spectra were recorded with a Bruker DPX 400 MHz spectrometer with TMS as the
internal standard in CDCl3 or DMSO-d6. Chemical shifts are given as δ ppm values
relative to TMS. High-resolution mass spectra (HRMS) were recorded on a Waters
Micromass Q-T of Micromass spectrometer by electrospray ionization (ESI).
4.2. The general method for the synthesis of 1a-1k, 2a-2q, and 3a-3q.
Compounds 2a-2s, 3a-3v, and 4a-4v were prepared following the previously reported
method. [21]
18 / 30

4.3. The general method for the synthesis of 5a-5v.
N-(1-(2-(benzylthio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidin-3-yl)-3,
1
4,5-trimethoxybenzamide (5a), white solid, yield: 84%. m.p.: 146-148 . H NMR
(400 MHz, DMSO-d6) δ 8.37 (d, J = 7.3 Hz, 1H), 7.42 (d, J = 7.4 Hz, 2H), 7.34 –
7.20 (m, 3H), 7.17 (s, 2H), 5.49 (s, 1H), 4.38 (s, 2H), 4.11 (s, 1H), 3.81 (s, 6H), 3.70
(s, 3H), 3.33 (d, J = 11.6 Hz, 1H), 3.21 (d, J = 12.5 Hz, 1H), 2.79 (dd, J = 13.9, 7.2
Hz, 2H), 2.17 (s, 3H), 1.96 – 1.82 (m, 2H), 1.62 (m, 2H). 13C NMR (100 MHz,
DMSO-d6) δ 165.93, 160.98, 160.36, 158.41, 157.47, 153.02, 140.67, 138.82, 129.78,
129.27, 128.82, 127.49, 105.52, 96.04, 60.58, 56.53, 47.62, 44.79, 44.00, 34.90, 28.95,
23.90, 22.09. HRMS (ESI): m/z calcd for C28H32N6NaO4S (M+Na)+, 571.2103; found,
571.2102.
N-(1-(2-((4-fluorobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5b), white solid, yield: 87%. m.p.: 150-152
.
1H NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.4 Hz, 1H), 7.51 – 7.42 (m, 2H), 7.17
(s, 2H), 7.11 (t, J = 8.6 Hz, 2H), 5.49 (s, 1H), 4.38 (s, 2H), 4.13 (d, J = 6.5 Hz, 1H),
3.82 (s, 6H), 3.70 (s, 3H), 3.34 (d, J = 11.7 Hz, 1H), 3.22 (d, J = 12.5 Hz, 1H), 2.80
(dd, J = 20.5, 9.8 Hz, 2H), 2.17 (s, 3H), 1.96 – 1.84 (m, 2H), 1.72 – 1.56 (m, 2H). 13C
NMR (100 MHz, DMSO-d6) δ 165.94, 162.92, 160.83, 160.22, 158.31, 157.42,
153.02, 140.69, 135.26, 135.23, 131.24, 131.15, 129.76, 115.64, 115.43, 105.53,
96.09, 60.57, 56.54, 47.54, 44.73, 43.95, 34.00, 28.90, 23.82, 22.01. HRMS (ESI):
m/z calcd for C28H31FN6NaO4S (M+Na)+, 589.2009; found, 589.2009.
N-(1-(2-((4-chlorobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5c), white solid, yield: 93%. m.p.: 143-145 . 1H
NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.4 Hz, 1H), 7.45 (d, J = 7.9 Hz, 2H), 7.34
(d, J = 8.0 Hz, 2H), 7.17 (s, 2H), 5.48 (s, 1H), 4.37 (s, 2H), 4.11 (s, 1H), 3.82 (s, 6H),
3.70 (s, 3H), 3.33 (d, J = 11.4 Hz, 1H), 3.20 (d, J = 12.5 Hz, 1H), 2.79 (dd, J = 20.7,
13
9.9 Hz, 2H), 2.17 (s, 3H), 1.95 – 1.82 (m, 2H), 1.70 – 1.53 (m, 2H). C NMR (100
MHz, DMSO-d6) δ 165.92, 160.65, 160.48, 158.51, 157.46, 153.02, 140.67, 138.26,
132.05, 131.09, 129.77, 128.73, 105.52, 96.03, 60.57, 56.53, 47.65, 44.81, 44.01,
34.02, 28.97, 23.95, 22.13. HRMS (ESI): m/z calcd for C28H32ClN6O4S (M+H)+,
19 / 30

583.1894; found, 583.1894.
N-(1-(2-((4-bromobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5d), white solid, yield: 89%. m.p.: 154-157
1H NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.3 Hz, 1H), 7.47 (d, J = 7.8 Hz, 2H),
7.38 (d, J = 7.9 Hz, 2H), 7.17 (s, 2H), 5.48 (s, 1H), 4.36 (s, 2H), 4.12 (s, 1H), 3.82 (s,
6H), 3.70 (s, 3H), 3.34 (d, J = 11.6 Hz, 1H), 3.21 (d, J = 12.5 Hz, 1H), 2.80 (dd, J =
20.9, 10.1 Hz, 2H), 2.17 (s, 3H), 1.97 – 1.83 (m, 2H), 1.71 – 1.56 (m, 2H). 13C NMR
(100 MHz, DMSO-d6) δ 165.93, 160.67, 160.18, 158.30, 157.39, 153.03, 140.69,
138.67, 131.66, 131.45, 129.75, 120.56, 105.53, 96.12, 60.58, 56.55, 47.53, 44.73,
43.95, 34.08, 28.90, 23.80, 22.01. HRMS (ESI): m/z calcd for C28H32BrN6O4S
(M+H)+, 627.1389; found, 627.1390.
.
N-(1-(2-((2-bromobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5e), white solid, yield: 87%. m.p.: 145-148 . 1H
NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.4 Hz, 1H), 7.62 (t, J = 9.0 Hz, 2H), 7.31
(t, J = 7.5 Hz, 1H), 7.25 – 7.12 (m, 3H), 5.48 (s, 1H), 4.47 (s, 2H), 4.11 (s, 1H), 3.82
(s, 6H), 3.70 (s, 3H), 3.37 – 3.30 (m, 1H), 3.21 (d, J = 12.6 Hz, 1H), 2.79 (dd, J =
13
21.6, 10.6 Hz, 2H), 2.17 (s, 3H), 1.90 (t, J = 17.0 Hz, 2H), 1.70 – 1.55 (m, 2H). C
NMR (100 MHz, DMSO-d6) δ 165.92, 160.46, 160.40, 158.47, 157.43, 153.02,
140.67, 137.81, 133.10, 131.64, 129.80, 129.76, 128.31, 124.42, 105.52, 96.08, 60.58,
56.54, 47.60, 44.78, 43.99, 35.54, 28.94, 23.92, 22.08. HRMS (ESI): m/z calcd for
C28H32BrN6O4S (M+H)+, 627.1389; found, 627.1389.
N-(1-(2-((3-bromobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5f), white solid, yield: 90%. m.p.: 155-159 . 1H
NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.3 Hz, 1H), 7.65 (s, 1H), 7.48 – 7.38 (m,
2H), 7.25 (t, J = 7.8 Hz, 1H), 7.17 (s, 2H), 5.49 (s, 1H), 4.38 (s, 2H), 4.12 (s, 1H),
3.82 (s, 6H), 3.70 (s, 3H), 3.34 (d, J = 11.8 Hz, 1H), 3.22 (d, J = 12.5 Hz, 1H), 2.80
(dd, J = 21.7, 10.7 Hz, 2H), 2.17 (s, 3H), 1.95 – 1.85 (m, 2H), 1.78 – 1.50 (m, 2H).
13C NMR (100 MHz, DMSO-d6) δ 165.94, 160.61, 160.20, 158.32, 157.38, 153.02,
142.06, 140.68, 131.88, 130.94, 130.32, 129.75, 128.35, 121.92, 105.53, 96.15, 60.58,
56.54, 47.51, 44.72, 43.94, 34.05, 28.89, 23.81, 22.00. HRMS (ESI): m/z calcd for
20 / 30

C28H32BrN6O4S (M+H)+, 627.1389; found, 627.1387.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((4-nitrobenzyl)thio)-[1,2,4]triazolo[1,5-a]pyrimid
1
in-7-yl)piperidin-3-yl)benzamide (5g), white solid, yield: 86%. m.p.: 164-166 . H
NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.3 Hz, 1H), 7.45 (d, J = 7.9 Hz, 2H), 7.34
(d, J = 8.0 Hz, 2H), 7.17 (s, 2H), 5.49 (s, 1H), 4.38 (s, 2H), 4.12 (s, 1H), 3.82 (s, 6H),
3.70 (s, 3H), 3.34 (d, J = 11.6 Hz, 1H), 3.22 (d, J = 12.5 Hz, 1H), 2.80 (dd, J = 20.8,
13
10.0 Hz, 2H), 2.17 (s, 3H), 1.95 – 1.85 (m, 2H), 1.74 – 1.54 (m, 2H). C NMR (100
MHz, DMSO-d6) δ 165.93, 160.70, 160.17, 158.28, 157.39, 153.02, 140.69, 138.22,
132.06, 131.09, 129.75, 128.73, 105.53, 96.13, 60.58, 56.54, 47.50, 44.71, 43.93,
34.03, 28.88, 23.79, 21.98. HRMS (ESI): m/z calcd for C28H32N7O6S (M+H)+,
594.2135; found, 594.2134.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((4-(trifluoromethyl)benzyl)thio)-[1,2,4]triazolo[1
,5-a]pyrimidin-7-yl)piperidin-3-yl)benzamide (5h), white solid, yield: 79%. m.p.:
1
159-162 . H NMR (400 MHz, DMSO-d6) δ 8.38 (d, J = 7.4 Hz, 1H), 7.65 (s, 4H),
7.18 (s, 2H), 5.48 (s, 1H), 4.47 (s, 2H), 4.13 (d, J = 6.4 Hz, 1H), 3.82 (s, 6H), 3.70 (s,
3H), 3.34 (d, J = 11.7 Hz, 1H), 3.21 (d, J = 12.7 Hz, 1H), 2.80 (dd, J = 19.7, 9.5 Hz,
2H), 2.17 (s, 3H), 1.95 – 1.84 (m, 2H), 1.65 (m, 2H). 13C NMR (100 MHz, DMSO-d6)
δ 165.92, 160.47, 160.42, 158.47, 157.43, 153.02, 144.24, 140.68, 129.99, 125.66,
125.62, 105.53, 96.09, 60.56, 56.53, 47.54, 44.72, 43.94, 34.17, 28.89, 23.91, 21.99.
HRMS (ESI): m/z calcd for C29H32F3N6O4S (M+H)+, 617.2158; found, 617.2159.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((2-(trifluoromethyl)benzyl)thio)-[1,2,4]triazolo[1
,5-a]pyrimidin-7-yl)piperidin-3-yl)benzamide (5i), white solid, yield: 83%. m.p.:
150-152 . 1H NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.3 Hz, 1H), 7.75 (dd, J =
18.3, 7.8 Hz, 2H), 7.62 (t, J = 7.5 Hz, 1H), 7.49 (t, J = 7.5 Hz, 1H), 7.17 (s, 2H), 5.49
(s, 1H), 4.56 (s, 2H), 4.12 (s, 1H), 3.82 (s, 6H), 3.70 (s, 3H), 3.33 (d, J = 11.6 Hz, 1H),
3.21 (d, J = 12.5 Hz, 1H), 2.79 (dd, J = 21.8, 10.8 Hz, 2H), 2.17 (s, 3H), 1.88 (m, 2H),
1.72 – 1.56 (m, 2H). 13C NMR (100 MHz, DMSO-d6) δ 165.92, 164.87, 160.48,
158.52, 157.45, 153.02, 140.67, 137.06, 133.28, 132.20, 129.75, 128.37, 126.47,
126.42, 105.52, 96.13, 60.57, 56.53, 47.53, 44.73, 43.94, 31.56, 28.90, 23.95, 22.02,
21.63. HRMS (ESI): m/z calcd for C29H32F3N6O4S (M+H)+, 617.2158; found,
21 / 30

617.2158.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((3-(trifluoromethyl)benzyl)thio)-[1,2,4]triazolo[1
,5-a]pyrimidin-7-yl)piperidin-3-yl)benzamide (5j), white solid, yield: 87%. m.p.:
1
161-163 . H NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.4 Hz, 1H), 7.81 (s, 1H),
7.75 (d, J = 7.5 Hz, 1H), 7.59 (d, J = 7.7 Hz, 1H), 7.53 (t, J = 7.6 Hz, 1H), 7.18 (s,
2H), 5.48 (s, 1H), 4.48 (s, 2H), 4.12 (s, 1H), 3.82 (s, 6H), 3.70 (s, 3H), 3.33 (d, J =
11.8 Hz, 1H), 3.21 (d, J = 12.6 Hz, 1H), 2.80 (dd, J = 19.1, 8.5 Hz, 2H), 2.17 (s, 3H),
13
1.90 (t, J = 16.6 Hz, 2H), 1.70 – 1.57 (m, 2H). C NMR (100 MHz, DMSO-d6) δ
165.92, 160.50, 160.20, 158.51, 157.44, 153.02, 140.85, 140.67, 133.41, 129.83,
129.76, 125.77, 125.73, 124.18, 124.14, 105.52, 96.06, 60.57, 56.54, 47.55, 44.74,
43.96, 34.12, 28.92, 23.95, 22.03. HRMS (ESI): m/z calcd for C29H32F3N6O4S
(M+H)+, 617.2158; found, 617.2156.
N-(1-(2-((4-cyanobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5k), white solid, yield: 92%. m.p.: 147-150
.
1H NMR (400 MHz, DMSO-d6)) δ 8.38 (d, J = 7.3 Hz, 1H), 7.75 (d, J = 7.7 Hz, 2H),
7.63 (d, J = 7.8 Hz, 2H), 7.17 (s, 2H), 5.49 (s, 1H), 4.46 (s, 2H), 4.14 (d, J = 6.7 Hz,
1H), 3.82 (s, 6H), 3.70 (s, 3H), 3.35 (d, J = 11.7 Hz, 1H), 3.23 (d, J = 12.5 Hz, 1H),
2.81 (dd, J = 21.0, 10.1 Hz, 2H), 2.17 (s, 3H), 1.91 (t, J = 15.3 Hz, 2H), 1.74 – 1.56
13
(m, 2H). C NMR (100 MHz, DMSO-d6) δ 165.95, 160.40, 160.23, 158.29, 157.37,
153.02, 145.33, 140.69, 132.70, 130.21, 129.72, 119.27, 110.17, 105.52, 96.19, 60.58,
56.54, 47.38, 44.63, 43.87, 34.32, 28.81, 23.79, 21.87. HRMS (ESI): m/z calcd for
C29H31N7NaO4S (M+Na)+, 596.2056; found, 596.2057.
3,4,5-trimethoxy-N-(1-(2-((4-methoxybenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyr
imidin-7-yl)piperidin-3-yl)benzamide (5l), white solid, yield: 90%. m.p.: 144-148
.
1H NMR (400 MHz, DMSO-d6) δ 8.39 (d, J = 7.3 Hz, 1H), 7.34 (d, J = 8.0 Hz, 2H),
7.17 (s, 2H), 6.85 (d, J = 8.0 Hz, 2H), 5.51 (s, 1H), 4.33 (s, 2H), 4.14 (d, J = 6.1 Hz,
1H), 3.81 (s, 6H), 3.71 (d, J = 4.3 Hz, 6H), 3.36 (d, J = 11.3 Hz, 1H), 3.24 (d, J = 12.5
Hz, 1H), 2.82 (dd, J = 20.4, 9.9 Hz, 2H), 2.18 (s, 3H), 1.91 (t, J = 15.1 Hz, 2H), 1.74
13
– 1.56 (m, 2H). C NMR (100 MHz, DMSO-d6) δ 165.95, 161.24, 159.47, 158.84,
157.76, 157.28, 153.03, 140.70, 130.46, 129.74, 114.25, 105.54, 96.28, 60.58, 56.54,
22 / 30

55.50, 47.37, 44.62, 43.87, 34.46, 28.81, 23.44, 21.85. HRMS (ESI): m/z calcd for
C29H35N6O5q (M+H)+, 579.2390; found, 579.2390.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((4-methylbenzyl)thio)-[1,2,4]triazolo[1,5-a]pyri
midin-7-yl)piperidin-3-yl)benzamide (5m), white solid, yield: 86%. m.p.: 151-154
.
1H NMR (400 MHz, DMSO-d6) δ 8.38 (d, J = 7.4 Hz, 1H), 7.29 (d, J = 7.5 Hz, 2H),
7.17 (s, 2H), 7.09 (d, J = 7.6 Hz, 2H), 5.50 (s, 1H), 4.34 (s, 2H), 4.14 (d, J = 6.5 Hz,
1H), 3.81 (s, 6H), 3.70 (s, 3H), 3.35 (d, J = 9.7 Hz, 1H), 3.22 (d, J = 12.5 Hz, 1H),
2.81 (dd, J = 19.9, 9.6 Hz, 2H), 2.25 (s, 3H), 2.18 (s, 3H), 1.96 – 1.84 (m, 2H), 1.72 –
1.55 (m, 2H). 13C NMR (100 MHz, DMSO-d6) δ 165.94, 161.12, 159.88, 158.05,
157.37, 153.02, 140.69, 136.66, 135.59, 129.75, 129.38, 129.18, 105.53, 96.16, 60.58,
56.53, 47.46, 44.69, 43.91, 34.71, 28.87, 23.64, 21.94, 21.14. HRMS (ESI): m/z calcd
for C29H35N6O4S (M+H)+, 563.2440; found, 563.2438.
N-(1-(2-((2,6-dichlorobenzyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)pipe
ridin-3-yl)-3,4,5-trimethoxybenzamide (5n), white solid, yield: 76%. m.p.: 140-142
1H NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.3 Hz, 1H), 7.51 (d, J = 8.0 Hz, 2H),
7.37 (t, J = 8.0 Hz, 1H), 7.17 (s, 2H), 5.50 (s, 1H), 4.66 (s, 2H), 4.11 (s, 1H), 3.81 (s,
6H), 3.70 (s, 3H), 3.34 (d, J = 11.6 Hz, 1H), 3.21 (d, J = 12.5 Hz, 1H), 2.79 (dd, J =
21.2, 10.3 Hz, 2H), 2.18 (s, 3H), 1.95 – 1.85 (m, 2H), 1.73 – 1.55 (m, 2H). 13C NMR
(100 MHz, DMSO-d6) δ 165.91, 160.64, 160.48, 158.59, 157.52, 153.01, 140.67,
135.54, 133.21, 130.65, 129.75, 129.18, 105.51, 96.06, 60.57, 56.53, 47.64, 44.79,
44.01, 31.72, 28.95, 24.01, 22.10. HRMS (ESI): m/z calcd for C28H31Cl2N6O4S
(M+H)+, 617.1505; found, 617.1504.
.
3,4,5-trimethoxy-N-(1-(5-methyl-2-(phenethylthio)-[1,2,4]triazolo[1,5-a]pyrimidin-7-
yl)piperidin-3-yl)benzamide (5o), white solid, yield: 85%. m.p.: 149-152 . 1H NMR
(400 MHz, DMSO-d6) δ 8.38 (d, J = 7.3 Hz, 1H), 7.29 (m, 4H), 7.24 – 7.14 (m, 3H),
5.50 (s, 1H), 4.13 (d, J = 6.3 Hz, 1H), 3.81 (s, 6H), 3.70 (s, 3H), 3.39 – 3.29 (m, 3H),
3.22 (d, J = 12.5 Hz, 1H), 2.99 (t, J = 7.4 Hz, 2H), 2.80 (dd, J = 20.5, 9.9 Hz, 2H),
2.18 (s, 3H), 1.97 – 1.82 (m, 2H), 1.73 – 1.54 (m, 2H). 13C NMR (101 MHz, DMSO)
δ 165.93, 161.15, 159.89, 158.15, 157.40, 153.02, 140.77, 140.67, 129.77, 129.02,
128.77, 126.69, 105.52, 96.10, 60.58, 56.53, 47.57, 44.76, 43.97, 35.94, 32.22, 28.93,
23 / 30

23.67, 22.04. HRMS (ESI): m/z calcd for C29H35N6O4S (M+H)+, 563.2440; found,
563.2441.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((3-phenylpropyl)thio)-[1,2,4]triazolo[1,5-a]pyrim
idin-7-yl)piperidin-3-yl)benzamide (5p), white solid, yield: 77%. m.p.: 154-156 . 1H
NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.3 Hz, 1H), 7.39 – 7.05 (m, 7H), 5.48 (s,
1H), 4.13 (d, J = 6.4 Hz, 1H), 3.81 (s, 6H), 3.70 (s, 3H), 3.34 (d, J = 10.1 Hz, 1H),
3.22 (d, J = 12.4 Hz, 1H), 3.10 (t, J = 7.0 Hz, 2H), 2.80 (dd, J = 20.4, 9.8 Hz, 2H),
13
2.70 (t, J = 7.5 Hz, 2H), 2.16 (s, 3H), 2.04 – 1.83 (m, 4H), 1.73 – 1.54 (m, 2H). C
NMR (100 MHz, DMSO-d6) δ 165.91, 161.20, 159.88, 158.13, 157.38, 153.03,
141.74, 140.69, 129.79, 128.79, 128.77, 126.28, 105.54, 96.06, 60.57, 56.90, 56.54,
47.67, 44.83, 44.02, 34.53, 31.53, 30.46, 28.99, 23.68, 22.14. HRMS (ESI): m/z calcd
for C30H37N6O4S (M+H)+, 577.2597; found, 577.2597.
3,4,5-trimethoxy-N-(1-(5-methyl-2-((naphthalen-1-ylmethyl)thio)-[1,2,4]triazolo[1,5-
a]pyrimidin-7-yl)piperidin-3-yl)benzamide (5q), white solid, yield: 88%. m.p.:
1
174-176 . H NMR (400 MHz, DMSO-d6) δ 8.37 (d, J = 7.4 Hz, 1H), 8.18 (d, J =
8.1 Hz, 1H), 7.95 (d, J = 7.8 Hz, 1H), 7.86 (d, J = 8.2 Hz, 1H), 7.70 – 7.48 (m, 3H),
7.42 (t, J = 7.6 Hz, 1H), 7.17 (s, 2H), 5.51 (s, 1H), 4.89 (s, 2H), 4.12 (d, J = 6.1 Hz,
1H), 3.81 (s, 6H), 3.70 (s, 3H), 3.34 (d, J = 9.7 Hz, 1H), 3.20 (d, J = 12.6 Hz, 1H),
2.79 (t, J = 11.1 Hz, 2H), 2.19 (s, 3H), 1.90 (t, J = 18.3 Hz, 2H), 1.72 – 1.53 (m, 2H).
13C NMR (100 MHz, DMSO-d6) δ 165.93, 161.08, 160.29, 158.37, 157.47, 153.02,
140.67, 133.94, 131.52, 129.75, 129.10, 128.48, 127.86, 126.79, 126.38, 125.93,
124.35, 105.52, 96.13, 60.57, 56.53, 47.54, 44.74, 43.95, 32.89, 28.90, 23.86, 22.01.
HRMS (ESI): m/z calcd for C32H35N6O4S (M+H)+, 599.2440; found, 599.2439.
N-(1-(2-(allylthio)-5-methyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidin-3-yl)-3,4,5
1
-trimethoxybenzamide (5r), white solid, yield: 82%. m.p.: 138-140 . H NMR (400
MHz, DMSO-d6) δ 8.37 (d, J = 7.4 Hz, 1H), 7.17 (s, 2H), 5.97 (m, 1H), 5.48 (s, 1H),
5.26 (d, J = 17.0 Hz, 1H), 5.06 (d, J = 10.0 Hz, 1H), 4.12 (d, J = 6.6 Hz, 1H), 3.82 (s,
6H), 3.78 (d, J = 6.8 Hz, 2H), 3.70 (s, 3H), 3.34 (d, J = 9.5 Hz, 1H), 3.22 (d, J = 12.6
Hz, 1H), 2.80 (dd, J = 21.9, 10.7 Hz, 2H), 2.16 (s, 3H), 1.96 – 1.85 (m, 2H), 1.71 –
1.56 (m, 2H). 13C NMR (100 MHz, DMSO-d6) δ 165.92, 160.69, 160.32, 158.40,
24 / 30

157.47, 153.02, 140.66, 134.87, 129.79, 117.87, 105.51, 95.98, 60.57, 56.53, 47.64,
44.81, 44.01, 33.62, 28.98, 23.88, 22.12. HRMS (ESI): m/z calcd for C24H31N6O4S
(M+H)+, 499.2127; found, 499.2126.
N-(1-(2-(((1H-benzo[d]imidazol-2-yl)methyl)thio)-5-methyl-[1,2,4]triazolo[1,5-a]pyri
midin-7-yl)piperidin-3-yl)-3,4,5-trimethoxybenzamide (5s), white solid, yield: 84%.
m.p.: 174-177 . 1H NMR (400 MHz, DMSO-d6) δ 8.39 (d, J = 7.4 Hz, 1H), 7.52 (dd,
J = 5.2, 3.3 Hz, 2H), 7.24 – 7.10 (m, 4H), 5.52 (s, 1H), 4.62 (s, 2H), 4.16 (d, J = 6.5
Hz, 1H), 3.82 (s, 6H), 3.70 (s, 3H), 3.40 (d, J = 9.3 Hz, 1H), 3.27 (d, J = 12.5 Hz, 1H),
2.85 (dd, J = 19.9, 9.6 Hz, 2H), 2.18 (s, 3H), 1.92 (dd, J = 18.5, 11.5 Hz, 2H), 1.81 –
1.54 (m, 2H). 13C NMR (100 MHz, DMSO-d6) δ 165.97, 161.21, 160.49, 158.77,
157.67, 153.02, 151.92, 140.67, 129.79, 122.27, 105.53, 95.99, 60.58, 56.54, 47.54,
44.80, 43.92, 28.96, 28.52, 24.18, 22.04. HRMS (ESI): m/z calcd for C29H33N8O4S
(M+H)+, 589.2345; found, 589.2344.
N-(1-(2-((4-chlorobenzyl)thio)-5-ethyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidin-
1
3-yl)-3,4,5-trimethoxybenzamide (5t), white solid, yield: 89%. m.p.: 162-166 . H
NMR (400 MHz, DMSO-d6) δ 8.38 (d, J = 7.3 Hz, 1H), 7.45 (d, J = 7.8 Hz, 2H), 7.34
(d, J = 7.9 Hz, 2H), 7.17 (s, 2H), 5.50 (s, 1H), 4.38 (s, 2H), 4.13 (s, 1H), 3.82 (s, 6H),
3.70 (s, 3H), 3.35 (d, J = 11.6 Hz, 1H), 3.23 (d, J = 12.6 Hz, 1H), 2.81 (dd, J = 20.6,
10.0 Hz, 2H), 2.44 (m, 2H), 1.91 (t, J = 15.3 Hz, 2H), 1.74 – 1.54 (m, 2H), 1.16 (t, J =
7.5 Hz, 3H). 13C NMR (101 MHz, DMSO) δ 165.95, 165.18, 160.79, 158.33, 157.65,
153.03, 140.70, 138.23, 132.06, 131.07, 129.74, 128.74, 105.54, 94.84, 60.58, 56.54,
47.40, 44.63, 43.89, 34.02, 30.36, 28.81, 21.86, 13.77. HRMS (ESI): m/z calcd for
C29H34ClN6O4S (M+H)+, 597.2051; found, 597.2050.
N-(1-(2-((4-chlorobenzyl)thio)-5-phenyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl)piperidi
n-3-yl)-3,4,5-trimethoxybenzamide (5u), white solid, yield: 86%. m.p.: 170-172
.
1H NMR (400 MHz, DMSO-d6) δ 8.39 (d, J = 7.2 Hz, 1H), 7.99 (d, J = 7.4 Hz, 2H),
7.54 – 7.30 (m, 7H), 7.18 (s, 2H), 6.15 (s, 1H), 4.43 (s, 2H), 4.17 (d, J = 6.3 Hz, 1H),
3.82 (s, 6H), 3.70 (s, 3H), 3.26 (d, J = 12.4 Hz, 2H), 2.84 (m, 2H), 1.92 (t, J = 12.2 Hz,
2H), 1.78 – 1.55 (m, 2H). 13C NMR (100 MHz, DMSO-d6) δ 166.01, 161.29, 159.27,
158.81, 158.05, 153.04, 140.75, 139.46, 138.28, 132.07, 131.11, 129.66, 129.38,
25 / 30

128.77, 127.18, 105.56, 93.15, 60.59, 56.56, 46.97, 44.32, 43.67, 34.02, 28.55, 21.45.
HRMS (ESI): m/z calcd for C33H34ClN6O4S (M+H)+, 645.2051; found, 645.2050.
N-(1-(2-((4-chlorobenzyl)thio)-5-methyl-6-pentyl-[1,2,4]triazolo[1,5-a]pyrimidin-7-yl
)piperidin-3-yl)-3,4,5-trimethoxybenzamide (5v), white solid, yield: 85%. m.p.:
1
167-169 . H NMR (400 MHz, DMSO-d6) δ 8.33 (d, J = 7.4 Hz, 1H), 7.45 (d, J =
7.8 Hz, 2H), 7.34 (d, J = 7.8 Hz, 2H), 7.17 (s, 2H), 4.38 (s, 2H), 4.08 (s, 1H), 3.81 (s,
6H), 3.70 (s, 3H), 3.30 (d, J = 10.3 Hz, 1H), 3.17 (d, J = 12.4 Hz, 1H), 2.75 (dd, J =
20.4, 9.8 Hz, 2H), 2.46 – 2.36 (m, 2H), 2.24 (s, 3H), 1.88 (dd, J = 27.9, 12.3 Hz, 2H),
1.62 (m, 2H), 1.44 – 1.22 (m, 6H), 0.86 (t, J = 6.3 Hz, 3H). 13C NMR (100 MHz,
DMSO-d6) δ 165.86, 160.88, 157.11, 155.54, 153.01, 140.63, 138.22, 132.07, 131.08,
129.84, 128.73, 107.48, 105.50, 60.56, 56.52, 48.10, 45.11, 44.25, 34.06, 31.82, 29.23,
29.11, 25.96, 22.59, 21.28, 14.45. HRMS (ESI): m/z calcd for C33H42ClN6O4S
(M+H)+, 653.2677; found, 653.2676.
4.4. Cell culture
Human prostatic carcinoma cell line PC3, human breast adenocarcinoma cell line
MCF-7, human gastric carcinoma cell line MGC-803, human lung carcinoma cell line
PC9, normal human prostatic cell line WPMY-1 were all purchased from the Cell
Bank of Shanghai Institute of Biochemistry and Cell Biology. They were cultured in
RPMI-1640 and DMEM complete medium (Solarbio, China) at 37
CO2 humidified atmosphere.
in a 5%
4.5. MTT assay
Briefly, cells were incubated with serial concentrations of the compounds for 24 h, 48
h and 72 h, respectively. 20 ul MTT solution was added to each well and then the
plates were incubated for another 4 h. Finally, absorbance values were measured by
an enzyme-linked immunosorbent assay reader (BioTek, USA) at 490 nm. The cell
viability and IC50 were calculated by SPSS20 software.
4.6. Colony Formation Assay
Cells were seeded into 6-well plates at a concentration of 800 cells per well. Then
they were respectively incubated with 0.125 μM, 0.25 μM and 0.5 μM compound 5q
26 / 30

for 6 days. After that, cells were stained by 0.1% crystal violet solution at room
temperature for 30min and then photographed. Subsequently, the crystal violet
crystals were dissolved in 75% ethanol and the absorbance values were measured by
an enzyme-linked immunosorbent assay reader at 595 nm.
4.7. Cell cycle Assay
PC3 cells seeded in 6-well plates at a concentration of 4×105 cells per well were
respectively incubated with 1 μM, 2 μM and 4 μM compound 5q for 24h.
Subsequently, cells were harvested and stained in 500 ul Propidium Iodide solution
（PI 1 mg/ml, RNase A 10 mg/ml, Solarbio）at room temperature away from light for
30 min. Staining cells were detected and analyzed by flow cytometry (BD Bioscience,
USA).
4.8. Hoechst 33342 staining
Cells were incubated with indicated concentrations of compound 5q in 12-well plate
for 48h. Then cells were stained by Hoechst 33342 buffer (10 ug/ml, Solarbio) for 20
min in the dark. The morphological changes and nuclear fragmentation were imaged
by an inverted fluorescence microscope (Nikon Eclipse TE 2000-S).
4.9. ROS Assay
Cells seeded in 6-well plates were incubated with indicated concentrations of
compound 5q for 24 h. Then cells were washed in PBS and stained by 10 μM
dichlorodihydrofluorescein diacetate (DCFH-DA, Beyotime) at 37 ℃ for 20 min in
the dark. Then cells were collected and detected by flow cytometry.
4.10. Cell apoptosis Assay
Cells plated in 6-well plates were respectively incubated with 1 μM, 2 μM and 4 μM
compound 5q for 48h. Then cells were collected and stained by 200 ul binding buffer
including 2 ul Annexin V-FITC and 2 ul PI (Beyotime) for 10 min at room
temperature in the dark. Lastly, flow cytometry was used to detect the apoptotic cells.
4.11. Migration assay
For the wound healing assay, when PC3 cells seeded in 6-well plates reached to the
density of 90%, they were scraped off using a sterile yellow pipette tip and
27 / 30

photographed. Subsequently, cells were incubated with 0.25 μM, 0.5 μM and 1 μM
compound 5q for 48h, and then each well was photographed again.
For the transwell assay, 600 ul fresh medium with 20% FBS were added to the
substrate of the 24-well plates. 2×104 cells per well were seeded and incubated with
indicated concentrations of compound 5q in the upper chambers for 48h. Then these
chambers were stained by 0.1% crystal violet solution and photographed.
4.12. Western blotting analysis
Cells incubated with indicated concentrations of compound 5q for 24 h or 48 h were
collected with trypsin and total proteins were extracted in lysis buffer. BCA protein
assay kit (Solarbio) was used to determine the concentration of the total proteins.
Then these samples were detected by standard protocol of western blot as described
before.
Acknowledgment
This work was supported by the financial support from the National Natural Science
Foundation of China (Nos. 81773562, 81973177 and 81703326).
References
[1] T.T. Ashburn, K.B. Thor, Drug repositioning: identifying and developing new uses
for existing drugs, Nat. Rev. Drug Discov., 3 (2004) 673-683.
[2] F. Pammolli, L. Magazzini, M. Riccaboni, The productivity crisis in
pharmaceutical R&D, Nat. Rev. Drug Discov., 10 (2011) 428-438.
[3] H.A.M. Mucke, E. Mucke, Sources and Targets for Drug Repurposing:
Landscaping Transitions in Therapeutic Space, Assay Drug Dev. Technol., 13
(2015) 319-324.
[4] N. NOSENGO, New tricks for old drugs, Nature, 534 (2016) 314-316.
[5] W.A. Chow, C. Jiang, M. Guan, Anti-HIV drugs for cancer therapeutics: back to
the future?, Lancet Oncol., 10 (2009) 61-71.
[6] S. Pushpakom, F. Iorio, P.A. Eyers, K.J. Escott, S. Hopper, A. Wells, A. Doig, T.
Guilliams, J. Latimer, C. McNamee, A. Norris, P. Sanseau, D. Cavalla, M.
Pirmohamed, Drug repurposing: progress, challenges and recommendations, Nat.
Rev. Drug Discov., 18 (2019) 41-58.
[7] YCha, TErez, IJReynolds, DKumar, J. Ross, GKoytiger, RKusko, BZeskind,
SRisso, EKagan, SPapapetropoulos, IGrossman, D. Laifenfeld, Drug repurposing
from the perspective of pharmaceutical companies, Br. J. Pharmacol., 175 (2018)
28 / 30
