Journal of Organometallic Chemistry 689 (2004) 2586–2592
www.elsevier.com/locate/jorganchem
Syntheses of methylene-bridged ansa-zirconocene complexes
and copolymerization studies of ethylene and norbornene
a
Si-Geun Lee , Sung-Don Hong , Young-Whan Park , Boong-Goon Jeong ,
a
a
a
a
a
a,
* b
Dae-Woo Nam , Hye Young Jung , Hyosun Lee *, Kwang Ho Song
a
LG Chemical Ltd./Research Park, Munji-dong, Yuseong-gu, Daejon-city 305-380, Republic of Korea
Department of Chemical and Biological Engineering, Korea University 1,5-ka, Anam-dong, Sungbuk-ku, Seoul 136-701, Republic of Korea
b
Received 2 March 2004; accepted 11 May 2004
Available online 2 July 2004
Abstract
Methylene-bridged ansa-metallocene complexes bearing substituents on the cyclopentadienyl (Cp) and fluorenyl (Flu) moieties,
namely methylene[9-(2,7-di-tert-butyl)fluorenyl(2-(1,3-dimethylcyclopentadienyl))]zirconium dichloride (1a) and its analogue, meth-
ylene[(9-(2,7-di-tert-butyl)fluorenyl(2-(1-methyl-3-phenyl)cyclopentadienyl))]zirconium dichloride (2a), have been prepared from
(2,7-di-tert-butyl)-9-prop-2-ynyl-9H-fluorene (2). This procedure includes the use of 3-bromo-1-propyne which affords the methy-
lene bridging unit by way of an intermolecular Pauson–Khand reaction in which norbornadiene and a pendant alkyne cyclize to
form a ring that later becomes a substituted cyclopentadienyl group. Ethylene–norbornene (E–N) copolymerization was then carried
out using these new complexes (1a and 1b) in the presence of methylaluminoxane (MAO) as a cocatalyst; these activities can be
compared to that of isopropylene[9-fluorenyl-cyclopentadienyl]zirconium dichloride (3a). The activity of catalyst 1a was comparable
to that of 3a but much higher than that of 2a. In addition, 1a shows higher norbornene insertion performance, and gives an E–N
copolymer with a higher glass transition temperature (Tg) than 2a under identical conditions; both 1a and 2a give a lower Tg poly-
mer than 3a does.
ꢀ 2004 Elsevier B.V. All rights reserved.
Keywords: ansa-Zirconocene; Ethylene–norbornene copolymerization; Glass transition temperature (Tg); MAO
1. Introduction
ene copolymerization by rationally designed ansa-metal-
locenes has been demonstrated for substrates including
a-olefins, propene, hexene and various cycloolefins [6].
In particular, ethylene–norbornene (E–N) copolymers
constitute a major commercial family of cyclic olefin
copolymers (COCs), possessing applied mechanical and
optical properties [7]. The novel properties of E–N co-
polymers may be used in place of polycarbonate (PC), ac-
ronitrile–butadiene–styrene (ABS) and glass substrates.
E–N copolymers have also been of particular interest dur-
ing last decade since they have been produced by metallo-
cene catalysts [8]. Thus, the design of new ligands in
metallocene catalysis has led to polymerization activity
control studies, the acceptance of two different comono-
mers, and the stereoregularity of COCs to modulate the
Since the discovery of metallocene/methylaluminox-
ane (MAO) olefin polymerization catalysis by Kaminsky
and Sinn [1], tremendous efforts have been made to
search for novel transition metal catalysts through the
use of appropriate ligand systems [2,3]. In general, the
metallocene ligand geometry and central metal electron-
ics allow for control of: (i) catalytic activity, (ii) olefin
monomer and/or comonomer response, (iii) tacticity
and (iv) polymer molecular weight [4,5]. To date, ethyl-
*
Corresponding author. Tel.: +82-42-866-2758; fax: +82-42-861-
3647.
E-mail address: hyobone@lgchem.com (H. Lee).
0022-328X/$ - see front matter ꢀ 2004 Elsevier B.V. All rights reserved.
doi:10.1016/j.jorganchem.2004.05.015

S.-G. Lee et al. / Journal of Organometallic Chemistry 689 (2004) 2586–2592
2587
polymerÕs physical properties [9,10]. Recently, Lee et al.
have reported the methylene-bridged ansa-zirconocene
complex, [H2C(Me2C5H2)2]ZrCl2, bearing methyls adja-
cent to the bridge-head carbon. This derivative possesses
exceptional E–N copolymerization activity [11] and the
electronic effect can be tuned through substitution, and
steric hindrance can be minimized to readily accept bulky
substrates such as norbornene. Since the modification of
ligands were limited to only Cp and four methyls on the
carbons adjacent to the bridge-head carbon groups in
the complex [H2C(Me2C5H2)2]ZrCl2, we are interested
in expanding our scope toward designing heavier ligands,
such as those involving indenyl or fluorenyl groups. Spe-
cifically, in the ansa-metallocene complexes bearing a Flu
group, the bulkier substituents at the 2- and 7-position
have shown to allow for higher olefin polymerization ac-
tivity and higher molecular weight polymers, [12] which is
less common and more challenging.
In this work, we report the syntheses of two novel
methylene-bridged zirconocenes, methylene[9-(2,7-di-
tert-butyl)fluorenyl(2-(1,3-dimethylcyclopentadienyl))]

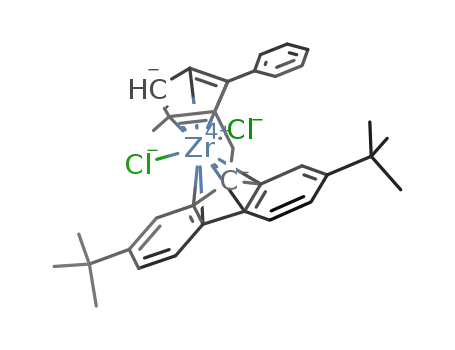

zirconium dichloride (1a) and methylene[(9-(2,7-di-tert-
butyl)fluorenyl(2-(1-methyl-3-phenyl)cyclopentadienyl))]
zirconium dichloride (2a). Their catalytic reactivity to-
ward ethylene–norbornene copolymerization is also
compared to the parent zirconocene 3a [13].
trated in Scheme 1. While an ansa bridge carbon unit is
commonly synthetically incorporated via a fulvene unit,
here the methylene-bridge unit was brought about by an
intermolecular Pauson–Khand reaction at the triple
bond of substrate 2, which later affords the accompany-
ing substituted cyclopentadiene group.
Deprotonation of 2,7-di-tert-butylfluorene (1) with n-
BuLi gave the corresponding mono-anion compound
which when treated with propargyl bromide gave 2 pos-
sessing a pendant alkyne group, in high yield (95%). The
tricyclic compound 3 was then generated by an intermo-
lecular Pauson–Khand reaction with norbornadiene re-
quiring a catalytic amount of Co2(CO)8 [14]. Addition
of Me2CuLi to compound 4 produced the 1,4-addition
product 5. Interestingly, the addition of Me2CuLi to
the unsubstituted analog (3), did not give the 1,4-addi-
tion product. It is believed that compound 3 has poor
solubility at À10 ꢁC in diethyl ether and thus does not
undergo reaction with the cuprate reagent [15], whereas;
the presence of the tert-butyl groups in 4 improves its
solubility, giving 5 in high yield (91%).
The retro-Diels–Alder reaction of 5 was performed at
300 ꢁC to give compound 6. This condition is milder
than that for the retro-Diels–Alder synthesis of
[H2C(Me2C5H2)2]ZrCl2 (420 ꢁC), starting from 1,4-pen-
tadiyne [11]. The 1,2-addition of MeLi and PhLi fol-
lowed by dehydration during aqueous HCl workup,
gave the desired cyclopentadiene compound 7 and 8, re-
spectively, in good yield.
2. Results and discussion
The deprotonation of 7 and 8 with n-BuLi gave the
corresponding dianions which were then treated with
ZrCl4 in hexane to cleanly afford the ansa-zirconocene
complexes 1a and 2a as light red and bright red solids,
respectively. The H NMR spectrum of 2a indicated a
molecular symmetry change from CS in complex 1a to
2.1. Preparation and characterization of complexes 1a
and 2a
1
The new metallocene complexes for E–N copolymer-
ization were synthesized according to the reactions illus-
O
Br
R
R
R
R
R
R
iii
i
ii
R = t-Bu (1)
R = t-Bu (2)
R = H (3)
R = t-Bu (4)
R'
O
R'
O
Cl
Zr
Me
R
R
Cl
R
R
v
R
R
iv
vi
R
R
R = t-Bu (5)
R = t-Bu, R' = Me (7)
R = t-Bu, R' = Ph (8)
R = t-Bu (6)
R = t-Bu, R' = Me [1a]
R = t-Bu, R' = Ph [2a]
Scheme 1. Synthesis of complexes 1a and 2a. (i) n-BuLi; (ii) CO/CO2(CO)8; (iii) Me2CuL; (iv) 300 ꢁC; (v) MeLi or PhLi, then aq. HCl; (vi) n-BuLi
and ZrCl4.

2588
S.-G. Lee et al. / Journal of Organometallic Chemistry 689 (2004) 2586–2592
C1 with the inclusion of a Cp ring phenyl substituent.
Two doublets are present in the spectrum at d 6.38
and 6.33 (3JH-H =4 Hz) in 2a, compared to the singlet
at d 6.21 in 1a assigned to the Cp-ring hydrogens. Also,
two doublets at d 5.36 and 5.08 (2JH-H =15 Hz) are pres-
ent in 2a, compared to a singlet at d 4.89 for 1a, assigned
to the ansa-bridge hydrogens. Lastly two singlets at d
1.37 and 0.90 are present for 2a, compared to the singlet
at d 1.35 in 1a assigned to the tert-butyl substituent on
the Flu group.
25
20
15
10
5
catalyst 1a (P/A)
catalyst 1a (notP/A)
catalyst 2a
catalyst 3a
0
0
30
60
90
Pressure(psi)
2.2. Copolymerization of ethylene and norbornene with 1a
and 2a and MAO
Fig. 1. Catalyst activity for the E–N copolymerization at different
ethylene pressures (70 ꢁC).
Catalysts 1a and 2a were used in combination with
methylaluminoxane (MAO) for ethylene–norbornene
copolymerization [16] and compared to isopropylene[9-
fluorenylcyclopentadienyl]zirconium dichloride [3a]
activity under identical conditions [17]. The results of
E–N copolymerization are summarized in Table 1.
A comparative reactivity of each catalyst is presented
in Fig. 1, depending on ethylene pressure. The activity
of catalysts increased as the ethylene pressure increases
from 30 to 100 psi for all catalysts (1a–3a) [18]. The ac-
tivity of catalyst 2a was very poor compared to its deriv-
ative catalyst 1a. The replacement of the a-methyl
substituent with a phenyl group on the Cp ring in com-
pound 2a seems to give tremendous hindrance to intro-
ducing an olefin monomer into the active zirconium
center although electronic stabilization of active cat-
ion–anion complex by phenyl group is expected during
polymerization. Moreover the preactivation of catalyst
2a for copolymerization did not increase the activity.
It is probable that the phenyl group causes the inhibition
of the activation of catalyst by MAO.
It is noted that all catalysts show much higher in-
creasing activities as increasing ethylene pressure,
whether the catalyst was preactivated or not. Specifically,
when the copolymerization was carried out after adding
active species by MAO preactivation of catalyst 1a,
resulted in nearly twice as high an activity as that with-
out preactivation (Table 1, entries 1–6). E–N copoly-
merization activity of catalyst 3a, however, was not
affected by the preactivation of the catalyst at all. Thus,
somehow longer time is needed for catalyst 1a to
become an activated cation–anion complex to initiate
polymerization, compared to catalyst 3a. Apparently,
the steric hindrance imparted by the Cp and Flu ring
substituents affects the accessibility of the approaching
cocatalyst MAO; thus it is believed that the preactiva-
tion of catalyst before starting copolymerization is what
resulted in the different activities.
The glass transition temperatures (Tgs) of the result-
ing copolymers as a function of ethylene pressure are
presented for each catalyst in Fig. 2. The copolymer
