Homoleptic Nickel(0) Phenyl Isocyanide Complexes
F. Ekkehardt Hahna, Marco Mu¨ndera, and Roland Fro¨hlichb
a Institut fu¨r Anorganische und Analytische Chemie, Westfa¨lische Wilhelms-Universita¨t Mu¨nster,
Corrensstraße 36, D-48149 Mu¨nster, Germany
b Organisch-Chemisches Institut, Westfa¨lische Wilhelms-Universita¨t Mu¨nster,
Corrensstraße 40, D-48149 Mu¨nster, Germany
Reprint requests to Prof. Dr. F. E. Hahn. E-mail: fehahn@uni-muenster.de
Z. Naturforsch. 59b, 850 – 854 (2004); received April 30, 2004
The tetrakis(phenyl isocyanide)nickel(0) complexes [Ni(CNR)4](R = C6H5, 1; R = C6H3-2,6-Me2,
2; R = C6H4-2-NO2, 3) have been synthesized from [Ni(COD)2] and the corresponding phenyl iso-
cyanides in toluene. Complexes 1 – 3 were characterized by X-ray diffraction. All three complexes
contain a nickel atom which is coordinated in a slightly distorted tetrahedral fashion.
Key words: Phenyl Isocyanide Complexes, Nickel(0), Crystal Structures
Introduction
Carbene complexes with benzannulated N-hetero-
cyclic carbene ligands can be obtained from 2-
functionalized phenyl isocyanides. 2-(Trimethylsil-
oxy)phenyl isocyanide, for example, reacts after cleav-
age of the Si-O bond under formation of the NH,O-
stabilized carbene complex A [1], which can be N-
alkylated giving B (Scheme 1) [2]. This cyclization
reaction can also be used to generate complexes C
with NH,NH-stabilized carbene ligands [3]. Dialky-
lation of complexes of type C leads to complexes D
with NR,NR-stabilized benzannulated carbene ligands
(Scheme 1) [3]. Such carbene ligands are stable in
the free state and can also be generated in a metal
Scheme 2. Preparation of tetrakis(phenyl isocyanide)-
nickel(0) complexes.
template free reaction sequence from benzimidazol-2-
thiones [4].
We tried to prepare nickel(II) carbene complexes
by cyclization of coordinated 2-functionalized phenyl
isocyanides. However, nickel(II) is a catalyst for the
polymerization of isocyanides [5] and the prepara-
tion of nickel(II) isocyanide complexes is hampered
by this polymerization. We have therefore studied
the reaction of phenyl isocyanides with nickel(0) to
obtain homoleptic nickel(0) phenyl isocyanide com-
plexes. It was intended to oxidize these complexes
later to the nickel(II) derivatives, which should then
undergo the cyclization reaction to give the carbene
complexes. In this contribution we describe the reac-
tion of [Ni(COD)2] with three differently substituted
phenyl isocyanides and the molecular structures of
three homoleptic tetrakis(phenyl isocyanide)nickel(0)
complexes 1 – 3 (Scheme 2).
Scheme 1. Cyclization of 2-functionalized phenyl iso-
cyanides.
c
0932–0776 / 04 / 0800–0850 $ 06.00 ꢀ 2004 Verlag der Zeitschrift fu¨r Naturforschung, Tu¨bingen · http://znaturforsch.com
Brought to you by | University Paris-Sud
Authenticated
Download Date | 4/16/19 9:18 PM

F. E. Hahn et al. · Homoleptic Nickel(0) Phenyl Isocyanide Complexes
851
Fig. 1. Molecular structures of 1 and 3 (hydrogen atoms omit-
ted for clarity). Both molecules reside on special positions
∗
(site symmetry 4, and ∗∗ denotes symmetry equivalent po-
¯
˚
sitions) in the unit cell. Selected bond lengths [A] and an-
gles [◦] for 1 [3]: Ni-C1 1.828(3) [1.835(3)], C1-N1 1.162(4)
[1.167(3)], N1-C2 1.388(5) [1.388(3)]; C1-Ni-C1∗ 111.4(1) Fig. 2. Molecular structure of 2 (hydrogen atoms omitted
[114.40(15)], C1-Ni-C1∗∗ 106.6(2) [107.07(7)], Ni-C1-N1 for clarity). The molecule resides on a general position
˚
176.9(3) [174.3(2)], C1-N1-C2 168.4(4) [168.9(3)].
in the unit cell. Selected bond lengths [A] and angles
[◦]: Ni-C11 1.822(4), Ni-C21 1.839(3), Ni-C31 1.839(4),
Ni-C41 1.841(3), C11-N11 1.177(4), N11-C12 1.389(4),
C21-N21 1.161(4), N21-C22 1.388(4), C31-N31 1.173(4),
N31-C32 1.387(4), C41-N41 1.168(4), N41-C42 1.193(4);
C11-Ni-C21 109.45(14), C11-Ni-C31 101.69(14), C11-
Ni-C41 111.60(15), C21-Ni-C31 112.28(14), C21-Ni-C41
110.13(14), C31-Ni-C41 111.43(14), Ni-C11-N11 172.7(3),
C11-N11-C12 161.5(3), Ni-C21-N21 179.3(3), C21-
Results and Discussion
Homoleptic tetraisocyanide complexes of nickel(0)
complexes have been described as early as 1950
[6, 7]. Tetrakis(phenyl isocyanide)nickel(0) complexes
were prepared by substitution of the CO ligands
in [Ni(CO)4]. Nicolocene is reported to react with N21-C22 175.0(3), Ni-C31-N31 172.9(3), C31-N31-C32
169.9(3), Ni-C41-N41 175.9(3), C41-N41-C42 173.4(3).
phenyl isocyanide to give [Ni(CN-C6H5)4] [8] and
tetrakis(isocyanide)nickel(0) complexes were also ob-
isocyanide or 2-nitrophenyl isocyanide to give the
tained by disproportionation of K4[Ni2(CN)6] in the
tetrakis(phenyl isocyanide)nickel(0) complexes 1 – 3
in good (around 80%) yield (Scheme 2). All three com-
plexes are stable in air. Complexes 1 and 2 are yellow
presence of alkyl and aryl isocyanides [9]. Most
known tetrakis(aryl isocyanide)nickel(0) complexes
were characterized only by microanalytical data. The
solids which are soluble in almost all organic solvents
13C NMR spectrum of [Ni(CN-C6H5)4] has bee re-
with the exception of aliphatic hydrocarbons. Complex
ported [10]. IR spectra of some complexes have been
3 is a dark purple solid which is less soluble in chlori-
recorded showing one C≡N stretching mode slightly
nated organic solvents but is freely soluble in THF.
above 2000 cm−1, which is indicative of the expected
1H and 13C NMR spectra were recorded for 1 – 3.
tetrahedral coordination geometry [9, 11]. It has been
The chemical shifts for the isocyanide carbon atoms
noted that sometimes more than one C≡N stretching
fall in the narrow range of δ = 169.0 − 176.1 ppm
vibration was observed in the IR spectra of complexes
taking into account that the spectra were recorded in
[Ni(CNR)4] [9, 12]. It was proposed that M→C back-
three different solvents. The chemical shift for the iso-
cyanide carbon atom in 1 has been reported (15.1 MHz
in CHCl3) at δ = 165.6 ppm [10]. The substitution
pattern of the isocyanide ligand appears to have no in-
fluence on the chemical shift of the isocyanide carbon
atom.
bonding causes loss of linearity of the coordinated iso-
cyanide ligand and thus leads to a coordination ge-
ometry less symmetrical than Td for these complexes.
However, to date no structural data for any homolep-
tic tetrakis(isocyanide)nickel(0)complex have been re-
ported.
In our preparation of homoleptic nickel(0) iso-
IR spectra of 1 – 3 were measured in KBr. Two
cyanide complexes we have substituted the toxic C≡N absorptions (one vs around 2030 cm−1 and
[Ni(CO)4] or the other reported NiII starting materials one s around 2000 cm−1) were detected for each
by stable and easy to handle [Ni(COD)2]. [Ni(COD2] complex confirming earlier observations [9, 12] that
reacts with phenyl isocyanide, 2,6-dimethylphenyl the complexes possess less than ideal Td symme-
Brought to you by | University Paris-Sud
Authenticated
Download Date | 4/16/19 9:18 PM

852
F. E. Hahn et al. · Homoleptic Nickel(0) Phenyl Isocyanide Complexes
Table 1. Crystal and data col-
1
2
3
lection details for 1 – 3.
Crystal habit
Crystal size [mm]
Formula
yellow needle
0.50×0.07×0.7
yellow cube
0.20×0.15×0.10
C36H36N4Ni
583.40
11.537(1)
11.803(1)
12.549(1)
106.44(1)
106.70(1)
98.65(1)
black needle
0.15×0.05×0.05
C28H16N8NiO8
651.20
9.671(1)
9.671(1)
14.559(1)
90
C28H20N4Ni
f w [amu]
471.19
12.575(2)
12.575(2)
7.266(1)
90
˚
a [A]
˚
b [A]
˚
c [A]
α [deg]
β [deg]
90
90
90
90
γ [deg]
3
˚
V [A ]
1149.0(3)
1524.5(2)
1361.7(2)
P42/n (no. 86)
2
¯
¯
space group
P4 (no. 82)
P1 (no. 2)
Z
2
2
µ [mm−1
]
0.867
0.667
0.781
Abs. corr.
empirical
0.671 ≤ T ≤ 0.942
4.6 to 55.1
1316
empirical
0.878 ≤ T ≤ 0.936
3.6 to 52.5
6133
empirical
0.892 ≤ T ≤ 0.962
5.1 to 55.0
1566
2θ Range [deg]
Unique data
Obsvd. data (I > 2σ(I))
R(observed)[%]
R(all), [%]
1071
4308
1115
5.13, Rw = 9.09
6.90, Rw = 9.75
1.024
5.47, Rw = 10.17
9.51, Rw = 12.41
1.020
4.76, Rw = 11.12
7.57, Rw = 12.30
1.036
GOF
BASF
0.5
–
–
No. of variables
Res. el. dens. [e/A ]
75
378
102
3
˚
0.607/−0.356
0.354/−0.459
0.513/−0.635
try. Free 2-functionalized phenyl isocyanides exhibit from 161.5(3)◦ to 175.0(3)◦ are found for isocyanides
a C≡N stretching frequency around 2120 cm−1 [13]. coordinated to the same metal center. We therefore as-
The lower frequency absorptions observed in com- sume, that the non-linearity of the C≡N-C moieties in
plexes 1 – 3 indicate significant d → π ∗ backbond- 1 – 3 is not only determined by electronic effects but
ing to the isocyanide ligands as would be expected also by the packing of the molecules in the crystal.
for electron-rich nickel(0) centers. No significant dif-
ferences for the C≡N absorptions in 1 – 3 depend-
ing on the substituents of the isocyanide ligand were
observed. It should be noted that C≡N stretching
frequencies for 1 – 3 are observed around the value
found for [Ni(CO)4], and are much lower than ob-
served for the less electron-rich complexes of type
[Ni(X2)(CNR)2] [14].
The Ni-C bond lengths in 1 – 3 fall in the narrow
range of 1.822(4) to 1.841(3) A. These values are very
˚
similar compared to those of the only other homolep-
tic, albeit nickel(II) tetraisocyanide complex [Ni(CN-
C6H3-2,6-CH3)4]2+ [15]. As we have noticed with
alkyl isocyanides, enhanced backbonding from a metal
center to the isocyanide, which manifests itself by a re-
duction of the wave number for the C≡N vibration, is
not necessarily reflected in the M-CN bond length [16].
Backbonding from Ni0 to the isocyanide ligands in
1 – 3 is stronger than in the NiII phenyl isocyanide
complexes but significant differences in the M-CN
bond lengths are not observed. This holds also for the
C≡N bond lengths in 1 – 3, which are not significantly
longer than in NiII phenyl isocyanide complexes. The
bond parameters of the Ni(C≡N)4 core can be com-
pared to the molecular structure of [Ni(CO)4] [17],
where the Ni-C and C≡O separations are 1.817(2) and
Complexes 1 – 3 can be crystallized from toluene
and crystals suitable for X-ray diffraction studies were
obtained this way. The molecular structures of 1 and 3

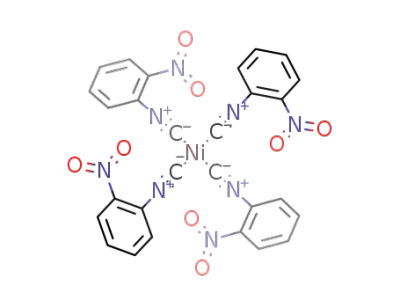

are depicted in Fig. 1 and the molecular structure of 2
is shown in Fig. 2. The nickel atom in 1 and 3 resides
on a special position in the tetragonal unit cell (site
¯
symmetry 4) and the asymmetric unit contains only
1/4 of the complex. Complex 2 is located on a general
position in the unit cell. All three complexes show a
slightly distorted tetrahedral coordination environment
(range of C-Ni-C angles 101.69(14)◦ – 114.40(15)◦).
The unique C≡N-C angles in 1 and 3 deviate from
˚
1.127(3) A, respectively.
We have developed a new synthetic procedure for
linearity (C1-N1-C2 168.4(4)◦ for 1 and 168.9(3)◦ for the preparation of homoleptic Ni0 phenyl isocyanide
3). However, in 2 four different C≡N-C angles ranging complexes 1 – 3 starting from [Ni(COD)2]. The com-
Brought to you by | University Paris-Sud
Authenticated
Download Date | 4/16/19 9:18 PM

F. E. Hahn et al. · Homoleptic Nickel(0) Phenyl Isocyanide Complexes
853
plexes 1 – 3 are air stable and easy to handle com- 12 H, Ar-H), 2.39 (s, 24 H, CH3). – 13C NMR (50.3 MHz,
[D6]benzene, ppm): δ = 176.1 (CN-Ph), 134.3, 131.6, 126.9,
pounds, which will be useful starting materials for the
preparation of other Ni0 complexes.
˜
125.2 (Ar-C). IR (KBr): ν = 2029 (vs, CN), 1999 (s, CN). –
C36H36N4Ni (583.40): calcd. C 74.12, H 6.22, N 9.60; found
C 73.26, H 6.10, N 9.40.
Experimental Section
Analytical data for 3: Purple crystals (83% yield). –
1H NMR (200.1 MHz, CDCl3, ppm): δ = 8.0 (m, 4 H, Ar-
H), 7.7 (m, 8 H, Ar-H), 7.5 (m, 4 H, Ar-H). – 13C NMR
(50.3 MHz, [D8]THF, ppm): δ = 173.4 (br, CN-Ph), 134.1,
130.3, 127.2, 123.8 (Ar-C), only 4 of the expected 6 Ar-C
All experiments were carried out in an argon atmosphere
using standard Schlenk techniques. All solvents were dried
by standard methods and distilled prior to use. NMR spectra
were recorded on a Bruker AC 200 spectrometer. The iso-
cyanide ligands were prepared by dehydration of formamides
according to the procedure described by Ugi et al. [18].
Preparation of tetrakis(phenyl isocyanide)nickel(0) com-
plexes 1-3: An almost identical procedure was employed for
the preparation of 1 – 3. The synthesis of 1 is described as an
example. A sample of bis(cyclooctadiene)nickel(0) (100 mg,
0.37 mmol) was dissolved in 150 ml of toluene. Phenyl iso-
cyanide (200 mg, 1.94 mmol) dissolved in 10 ml of toluene
was added to this solution over a period of 1 h at room
temperature. Subsequently the reaction mixture was concen-
trated to 30 ml and cooled to −10 ◦C. After 24 h at −10 ◦C
yellow crystals of 1 were collected by filtration. Yield 142 mg
(30.1 mmol, 81%). Suitable crystals for the X-ray struc-
ture determination were obtained by recrystallization from
toluene at −10 ◦C. – 1H NMR (200.1 MHz, CD2Cl2, ppm):
δ = 7.32 (m, br, 20 H, Ar-H). – 13C NMR (50.3 MHz,
CD2Cl2, ppm): δ = 169.0 (CN-Ph), 130.1, 129.3, 126.2,
˜
resonances were detected. – IR (KBr): ν = 2037 (vs, CN),
2003 (s, CN). – C28H16N8NiO8 (651.20): calcd. C 51.65,
H 2.48, N 17.21; found C 52.67, H 2.75, N 16.96.
X-ray structure determination of 1-3 [19]: Data sets were
collected with a Nonius KappaCCD diffractometer, equipped
with a rotating anode generator Nonius FR591 at 198(2) K.
The data for 1 were refined as a racemic twin with a ra-
tio of 0.5 to 0.5. All non-hydrogen atoms were refined with
anisotropic displacement parameters. Hydrogen atom were
placed on calculated positions and were refined as riding
atoms. The nickel atoms in 1 and 3 reside on special posi-
¯
tions (site symmetry 4) with 1/4 of the molecule per asym-
metric unit. Additional data collection and refinement de-
tails are listed in Table 1. Programs used: data collection
COLLECT [20], data reduction Denzo-SMN [21], absorp-
tion correction SORTAV [22], structure solution SHELXS-
97 [23], structure refinement SHELXL-97 [24], graphics
ORTEP [25].
˜
124.1 (Ar-C). IR (KBr): ν = 2031 (vs, CN), 1986 (s, CN). –
C28H20N4Ni (471.19): calcd. C 71.38, H 4.28, N 11.89;
found C 71.33, H 4.19, N 11.77.
Acknowledgment
Financial support of this work from the Deutsche
Forschungsgemeinschaft is gratefully acknowledged.
Analytical data for 2: Yellow crystals (89% yield). –
1H NMR (200.1 MHz, [D6]benzene, ppm): δ = 6.78 (m, br,
[1] a) F. E. Hahn, M. Tamm, T. Lu¨gger, Angew.
Chem. 106, 1419 (1994); Angew. Chem. Int. Ed.
33, 1356 (1994); b) F. E. Hahn, M. Tamm, J.
Organomet. Chem. 465, C11 (1993); c) F. E. Hahn,
L. Imhof, Organometallics 16, 763 (1997); d) U. Kern-
bach, T. Lu¨gger, F. E. Hahn, W. P. Fehlhammer,
J. Organomet. Chem. 541, 51 (1997); e) F. E.
Hahn, M. Tamm, J. Chem. Soc., Chem. Commun.
842 (1993); f) M. Tamm, T. Lu¨gger, F. E. Hahn,
Organometallics 15, 1251 (1996); g) F. E. Hahn,
M. Tamm, Organometallics 14, 2597 (1995); h) F. E.
Hahn, M. Tamm, J. Chem. Soc., Chem. Commun. 569
(1995); i) F. E. Hahn, P. Hein, T. Lu¨gger, Z. Anorg.
Allg. Chem. 629, 2341 (2003); j) F. E. Hahn, T. Lu¨gger,
J. Organomet. Chem. 481, 189 (1994).
[3] a) F. E. Hahn, V. Langenhahn, N. Meier, T. Lu¨gger,
W. P. Fehlhammer, Chem. Eur. J. 9, 704 (2003); b) F. E.
Hahn, V. Langenhahn, D. Le Van, M. Tamm, L. Witten-
becher, T. Lu¨gger, Heteroatom Chem. 13, 540 (2002).
[4] a) F. E. Hahn, L. Wittenbecher, R. Boese, D. Bla¨ser,
Chem. Eur. J. 5, 1931 (1999); b) F. E. Hahn, L. Witten-
becher, D. Le Van, R. Fro¨hlich, Angew. Chem. 112,
551 (2000); Angew. Chem. Int. Ed. 39, 541 (2000);
c) F. E. Hahn, T. von Fehren, R. Fro¨hlich, Z. Natur-
forsch. 59b, 348 (2004).
[5] W. Drenth, R. J. M. Nolte, Acc. Chem. Res. 12, 30
(1979).
[6] W. Hieber, Z. Naturforsch. 5b, 129 (1950).
[7] F. Klages, K. Mo¨nkemeyer, Chem. Ber. 83, 501 (1950).
[8] H. Behrens, K. Meyer, Z. Naturforsch. 21b, 489
(1966).
[2] For reviews of this cyclization reaction see: a) F. E.
Hahn, Angew. Chem. 105, 681 (1993); Angew. Chem.
Int. Ed. 32, 650 (1993); b) M. Tamm, F. E. Hahn, Co-
ord. Chem. Rev. 182, 175 (1999).
[9] R. Nast, H. Schulz, H.-D. Moerler, Chem. Ber. 103,
777 (1970).
Brought to you by | University Paris-Sud
Authenticated
Download Date | 4/16/19 9:18 PM

854
F. E. Hahn et al. · Homoleptic Nickel(0) Phenyl Isocyanide Complexes
[10] D. L. Cronin, J. R. Wilkinson, L. J. Todd, J. Magn. Res.
17, 353 (1975).
[11] M. Bigorgne, J. Organomet. Chem. 1, 101 (1963).
[12] F. A. Cotton, F. Zingales, J. Am. Chem. Soc. 83, 351
(1961).
[13] a) P. Jutzi, U. Gilge, J. Organomet. Chem. 246, 159
(1983); b) I. Ugi, R. Meyer, Chem. Ber. 93, 239 (1960).
[14] a) J. S. Miller, A. L. Balch, Inorg. Chem. 11, 2069
(1972); b) Y. Yamamoto, K. Ehara, K. Takahashi,
H. Yamazaki, Bull. Chem. Soc. Jpn. 64, 3376 (1991).
[15] J. A. Kanters, H. L. L. M. Nus, P. van der Sluis, Acta
Crystallogr. C45, 16 (1989).
[16] F. E. Hahn, M. Tamm, Chem. Ber. 125, 119 (1992).
[17] a) D. Braga, F. Grepioni, G. A. Orpen, Organometallics
12, 1481 (1993); b) J. Ladell, B. Post, I. Fankucken,
Acta Crystallogr. 5, 795 (1952).
the structures reported in this paper have been de-
posited with the Cambridge Crystallographic Data
Centre as supplementary publications nos. CCDC
234058 (1), 234056 (2) and 234057 (3). Copies of
the data can be obtained free of charge on ap-
plication to CCDC, 12 Union Road, Cambridge,
CB2 1EZ, UK (Fax: (+44) 1223-336033; e-mail: de-
posit@ccdc.ac.uk).
[20] COLLECT, Nonius B.V. (1998).
[21] Z. Otwinowski, W. Minor, Denzo-SMN, Methods in
Enzymology, 276, 307 (1997).
[22] R. H. Blessing, SORTAV, Acta Crystallogr. A51, 33
(1995); R. H. Blessing, J. Appl. Crystallogr. 30, 421
(1997).
[23] G. M. Sheldrick, SHELXS-97, Acta Crystallogr. A46,
467 (1990).
[18] I. Ugi, U. Fetzer, U. Eholzer, H. Knupfer, K. Offer-
mann, Angew. Chem. 77, 492 (1965).
[24] G. M. Sheldrick, SHELXL-97, Universita¨t Go¨ttingen
(1997).
[19] Crystallographic data (excluding structure factors) for [25] L. J. Farrugia, J. Appl. Crystallogr. 30, 565 (1997).
Brought to you by | University Paris-Sud
Authenticated
Download Date | 4/16/19 9:18 PM
