Cyclodiphosphazanes with Hemilabile Ponytails: Synthesis, Transition
Metal Chemistry (Ru(II), Rh(I), Pd(II), Pt(II)), and Crystal and Molecular
Structures of Mononuclear (Pd(II), Rh(I)) and Bi- and Tetranuclear
Rhodium(I) Complexes
P. Chandrasekaran,† Joel T. Mague,‡ and Maravanji S. Balakrishna*,†
Departments of Chemistry, Indian Institute of Technology Bombay, Powai,
Mumbai 400 076, India, and Tulane UniVersity, New Orleans, Louisiana 70118
Received June 11, 2005
Cyclodiphosphazanes having hemilabile ponytails such as cis-[tBuNP(OC6H4OMe-o)]2 (2), cis-[tBuNP(OCH2CH2-
OMe)]2 (3), cis-[tBuNP(OCH2CH2SMe)]2 (4), and cis-[tBuNP(OCH2CH2NMe2)]2 (5) were synthesized by reacting
cis-[tBuNPCl]2 (1) with corresponding nucleophiles. The reaction of 2 with [M(COD)Cl2] afforded cis-[MCl2(2)2]
derivatives (M
2 with [Pd(PEt3)Cl2]2, [
)
Pd (6), Pt (7)), whereas, with [Pd(NCPh)2Cl2], trans-[MCl2(2)2] (8) was obtained. The reaction of
Ru( Rh, Ir) afforded mononuclear complexes of
6-p-cymene)Cl2]2, and [M(COD)Cl]2 (M
{
η
)
Pd(II) (9), Ru(II) (11), Rh(I) (12), and Ir(I) (13) irrespective of the stoichiometry of the reactants and the reaction
condition. In the above complexes the cyclodiphosphazane acts as a monodentate ligand. The reaction of 2 with
3-C3H5)]2 afforded binuclear complex [(PdCl( 3-C3H5))2 (tBuNP(OC6H4OMe-o))2-κ
[PdCl(η η { P}] (10). The reaction of
ligand 3 with [Rh(CO)2Cl]2 in 1:1 ratio in CH3CN under reflux condition afforded tetranuclear rhodium(I)
metallamacrocycle (14), whereas the ligands 4 and 5 afforded bischelated binuclear complexes 15 and 16,
respectively. The crystal structures of 8, 9, 12, 14, and 16 are reported.
Chart 1. Possible Coordination Modes of Cyclodiphosphazanes
Introduction
The main group and transition metal chemistry of dianionic
bis(amido)cyclodiphosphazanes, cis-[tBuNP(tBuN-)]2, and
their chalcogenide derivatives, cis-[tBuNP(E)(tBuN-)]2 (E )
O, S, Se), has been studied extensively by Chivers,1 Stahl,2
and others.3 In contrast, the coordination chemistry of neutral
cyclodiphosphazanes is less extensive4 despite their ability
to show monodentate (I; Chart 1) and bridged bidentate (II)
modes of coordination. Krishnamurthy et al. have reported
some homo- and heterobinuclear complexes of group 6 and
8 metals with cyclodiphosphazanes showing both mono- and
bridged bidentate modes of coordination.5 A nickel complex
* To whom correspondence should be addressed. E-mail: krishna@
iitb.ac.in.
(3) (a) Axenov, K. V.; Kotov, V. V.; Klinga, M.; Leskela¨, M.; Repo, T.
Eur. J. Inorg. Chem. 2004, 695. (b) Bashall, A.; Bond, A. D.; Doyle,
E. L.; Garcia, F.; Kidd, S.; Lawson, G. T.; Parry, M. C.; McPartlin,
M.; Woods, A. D.; Wright, D. S. Chem.sEur. J. 2002, 3377. (c)
Beswick, M. A.; Elvidge, B. R.; Feeder, N.; Kidd, S. J.; Wright, D.
S. Chem. Commun. 2001, 379. (d) Kommana, P.; Kumara Swamy,
K. C. Inorg. Chem. 2000, 39, 4384.
(4) (a) Balakrishna, M. S.; Sreenivasa Reddy, V.; Krishnamurthy, S. S.;
Nixon, J. F.; St. Laurent, J. C. T. R. B. Coord. Chem. ReV. 1994,
129, l. (b) Balakrishna, M. S.; Krishnamurthy, S. S. J. Organomet.
Chem. 1992, 424, 243. (c) Sreenivasa Reddy, V.; Krishnamurthy, S.
S.; Nethaji, M. J. Organomet. Chem. 1992, 438, 99. (d) Prakasha, T.
K.; Krishnamurthy, S. S.; Davies, S. E.; Meidine, M. F.; Nixon, J. F.
J. Organomet. Chem. 1992, 438, 241. (e) Hawker, P. N.; Jenkins, L.
S.; Willey, G. R. J. Organomet. Chem. 1976, 118, C44.
† Indian Institute of Technology Bombay.
‡ Tulane University.
(1) (a) Briand, G. G.; Chivers, T.; Krahn, M. Coord. Chem. ReV. 2002,
233-234, 237. (b) Chivers, T.; Krahn, M.; Parvez, M. Chem. Commun.
2000, 463. (c) Chivers, T.; Fedorchuk, C.; Krahn, M.; Parvez, M.;
Schatte, G. Inorg. Chem. 2001, 40, 1936. (d) Chivers, T.; Krahn, M.;
Parvez, M.; Schatte, G. Inorg. Chem. 2001, 40, 2547. (e) Briand, G.
G.; Chivers, T.; Parvez, M.; Schatte, G. Inorg. Chem. 2003, 42, 525.
(2) (a) Stahl, L. Coord. Chem. ReV. 2000, 210, 203. (b) Lief, G. R.; Moser,
D. F.; Stahl, L.; Staples, R. J. J. Organomet. Chem. 2004, 689, 1110.
(c) Moser, D. F.; Grocholl, L.; Stahl, L.; Staples, R. J. J. Chem. Soc.,
Dalton Trans. 2003, 1402. (d) Haagenson, D. C.; Moser, D. F.; Stahl,
L.; Staples, R. J. Inorg. Chem. 2002, 41, 1245. (e) Lief, G. R.; Carrow,
C. J.; Stahl, L.; Staples, R. J. Organometallics 2001, 20, 1629.
10.1021/ic0509478 CCC: $30.25
Published on Web 09/21/2005
© 2005 American Chemical Society
Inorganic Chemistry, Vol. 44, No. 22, 2005 7925

Chandrasekaran et al.
Scheme 1
Scheme 2
containing chelating cyclodiphosphazanes was reported
without appropriate phosphorus-31 NMR data or structural
support.5c In an effort to utilize the rigid cyclodiphosphazanes
as heterodifunctional and bi- or tetradentate ligands, we
incorporated pendant hemilabile functionalities on phospho-
rus centers so that they can show a variety of coordinating
modes. As a part of our interest6 and the interest of others7
in transition metal chemistry of cyclic and acyclic phosphorus
based ligands, we describe here the preparation and transition
metal chemistry of cyclodiphosphazanes containing pendant
hemilabile ponytails. The crystal and molecular structures
of mononuclear (palladium(II), rhodium(I)) and bi- and
tetranuclear rhodium(I) complexes are also reported.
phorus-31 chemical shifts.9 Further, the structure and com-
positions of compounds 2-5 were confirmed by analytical
1
data and H NMR spectroscopy and mass spectrometry.
Results and Discussion
Palladium and Platinum Derivatives. The reactions of
cis-[tBuNP(OC6H4OMe-o)]2 (2) with [M(COD)Cl2] (M ) Pd
or Pt) are independent of stoichiometry and the reaction
conditions and afford exclusively cis complexes, 6 and 7,
with the ligand exhibiting monodentate coordination. In
contrast, the reaction of 2 equiv of 2 with [Pd(NCPh)2Cl2]
in dichloromethane affords a mononuclear trans-palladium-
(II) derivative 8 as shown in Scheme 2. The 31P NMR
spectrum of complex 6 exhibits two doublets centered at 67.9
and 121.2 ppm, respectively, for coordinated and free
phosphorus centers with a 2JPP coupling of 53 Hz. Similarly,
the phosphorus-31 chemical shift due to the coordinated
phosphorus of 7 appears at 40.4 ppm whereas the uncoor-
dinated phosphorus resonates at 126.1 ppm. The 2JPP coupling
is 7.3 Hz. The platinum-bound phosphorus center exhibits
Ligand Synthesis. The reactions of cis-[tBuNPCl]2 (1)
with 2 equiv of 2-(methoxy)phenol or 2-substituted ethanols,
ECH2CH2OH (E ) OMe, SMe), in the presence of trieth-
ylamine afford the corresponding hemilabile cyclodiphos-
phazane derivatives cis-[tBuNP(OC6H4OMe-o)]2 (2)8 and cis-
[tBuNP(OCH2CH2EMe)]2 (3; E ) OMe, 4; SMe) in
quantitative yield. The corresponding amine-functionalized
derivative, cis-[tBuNP(OCH2CH2NMe2)]2 (5), was prepared
by reacting cis-[tBuNPCl]2 (1) with the sodium salt of
2-(dimethylamino)ethanol in THF (Scheme 1). Compound
2 is a white crystalline solid whereas 3-5 are oily liquids
which were purified by vacuum distillation. The 31P NMR
spectra of 2-5 exhibit single resonances at 145.6, 133.8,
134.1, and 133.7 ppm, respectively. Interestingly, all these
compounds exist in cis-conformation as indicated by phos-
1
platinum-195 satellites with a large JPtP coupling of 4861
Hz, which is consistent with the proposed cis geometry10
for 7. The trans-palladium(II) complex 8 exhibits two single
resonances at 128.3 and 84.6 ppm, respectively, for unco-
(5) (a) Reddy, V. S.; Krishnamurthy, S. S.; Nethaji, M, J. Chem. Soc.,
Dalton Trans. 1994, 2661. (b) Reddy, V. S.; Krishnamurthy, S. S.;
Nethaji, M. J. Chem. Soc., Dalton Trans. 1995, 1933. (c) Kuhn, N.;
Winter, M. J. Organomet. Chem. 1983, 243, C47.
(6) (a) Balakrishna, M. S.; Panda, R.; Mague, J. T. Inorg. Chem. 2001,
40, 5620. (b) Balakrishna, M. S.; Panda, R. Phosphorus, Sulfur, Silicon
Relat. Elem. 2003, 178, 1391. (c) Balakrishna, M. S.; Panda, R.;
Mague, J. T. J. Chem. Soc., Dalton Trans. 2002, 4617. (d) Balakrishna,
M. S.; Chandrasekaran, P.; George, P. P. Coord. Chem. ReV. 2003,
241, 87. (e) Priya, S.; Balakrishna, M. S.; Mobin, S. M.; McDonald,
R. J. Organomet. Chem. 2003, 688, 227. (f) Balakrishna, M. S.;
Abhyankar, R. M.; Mague, J. T. J. Chem. Soc., Dalton Trans. 1999,
1407.
2
ordinated and coordinated phosphorus centers, and no JPP
coupling was observed. Treatment of cis-[tBuNP(OC6H4-
OMe-o)]2 (2) with palladium(II) dimer [Pd(PEt3)Cl2]2 in an

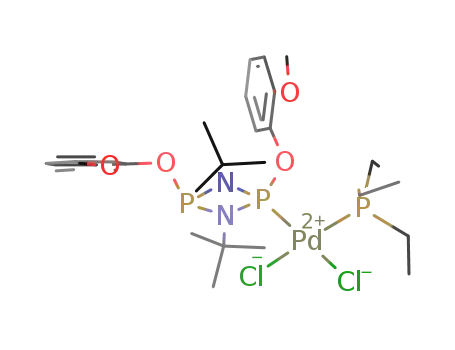

equimolar ratio also affords a mononuclear complex 9
