2-chloro-3-quinolinecarboxaldehyde in the synthesis of condensed quinoline systems. 1. Synthesis of derivatives of 3,4-dihydro-2H-[1,3]thiazino[6,5-b]quinolines

Article abstract of DOI:10.1023/A:1023975129116

A method for the synthesis of derivatives of previously unknown heterocyclic systems - 3,4-dihydro-2H-[1,3]thiazino[6,5-b]quinolines - has been developed based on 7,8-dimethyl-2-chloro-3-quinolinecarboxaldehyde via the consecutive steps of conversion into its Schiff's base with a primary amine, reduction to the corresponding aminomethyl derivative, conversion to the thiourea with isothiocyanates, and heterocyclization by intramolecular substitution of the chlorine atom.

Full text of DOI:10.1023/A:1023975129116

Chemistry of Heterocyclic Compounds, Vol. 39, No. 3, 2003
2-CHLORO-3-QUINOLINECARBOXALDEHYDE
IN THE SYNTHESIS OF CONDENSED QUINOLINE
SYSTEMS. 1. SYNTHESIS OF DERIVATIVES OF
b
3,4-DIHYDRO-2H-[1,3]THIAZINO[6,5- ]QUINOLINES
P. V. Kombarov1 and M. A. Yurovskaya2
A method for the synthesis of derivatives of previously unknown heterocyclic systems – 3,4-dihydro-2H-
[1,3]thiazino[6,5-b]quinolines
–
has been developed based on 7,8-dimethyl-2-chloro-3-
quinolinecarboxaldehyde via the consecutive steps of conversion into its Schiff's base with a primary
amine, reduction to the corresponding aminomethyl derivative, conversion to the thiourea with
isothiocyanates, and heterocyclization by intramolecular substitution of the chlorine atom.
Keywords: 3,4-dihydro-2H-[1,3]thiazino[6,5-b]quinolines, 2-methoxyethylamine, Schiff's base,
thiourea, intramolecular nucleophilic cyclization.
Systems based on the quinoline unit annelated to partially substituted heterocycle are of considerable
interest to study for possible biological activity. We have shown previously that the synthesis of one such
system – 4,5-dihydro[1,4]oxazepino[7,6-b]quinolines-3 – is readily achieved based on 3-aminomethyl-
quinolones-2 [1].
The objective of the present study is the development of a method for the synthesis of the previously
unknown dihydrothiazinoquinoline system. Our proposed synthesis is based on a method used for the
preparation of pyridothiazines, in which the key step is the heterocyclization of the isothiuronium salt under the
influence of sodium ethoxide with the intramolecular nucleophilic substitution of the mobile chlorine atom in
position 2 of the pyridine ring [2]. However there is no information in the literature of the use of quinoline
structures in similar syntheses. We have used substituted 2-chloro-3-quinolinecarboxaldehydes [3], which are
suitable universal synthons for the construction of condensed heterocycles [4, 5], as the initial quinoline
structure for the synthesis of dihydrothiazinoquinolines. We have proposed the following sequence of reactions
for the synthesis of derivatives dihydrothiazinoquinoline systems (Scheme 1).
This sequence includes the formation of the Schiff's base of aldehyde 1 with a primary amine, its
reduction to the corresponding aminomethyl derivative 2, which is converted to the thioureas 3 by reaction with
isothiocyanates. Cyclization of these thioureas in the presence of KOH in ethanol leads to the formation of the
desired derivatives of dihydrothiazinoquinoline 4. Since the objective of the study is not strictly the synthesis of
new heterocyclic systems, but the most promising materials with respect to biological activity, we used
2-methoxyethylamine as the primary amine. The choice of this model was determined by calculation of
molecular parameters satisfying the Lipinski parameters [6, 7] for compounds possessing biological activity
(log P, the number of freely rotating bonds, the type and bonding of heteroatoms in the molecule, etc.) The best
results were obtained for the amine NH2(CH2)2OMe.
__________________________________________________________________________________________
1 ASINEKS, Moscow 123182, Russia; e-mail: R.Kombarov@asinex.com. 2 M. V. Lomonosov Moscow
State University, Moscow 119234, Russia; e-mail: yumar@org.chem.msu.su. Translated from Khimiya
Geterotsiklicheskikh Soedinenii, No.3 , 401-413, March, 2003. Original article submitted December 19, 2002.
364
0009-3122/03/3903-0364$25.00©2003 Plenum Publishing Corporation

Scheme 1
β
α
4
5
3
OMe
6
O
N
H
1. H2NCH2CH2OMe
γ
2
7
2. NaBH4, MeOH
Me
N
Cl
Me
N
Cl
8
1
Me
Me
1
2
S
R
β
6
5
4
MeO(CH2)2N
N
H
3
N
2
OMe
7
8
RNCS
EtOH
KOH
EtOH
γ
Me
N
S
N
R
9
1
10
Me
N
Cl
3a–c
3, 4 a R = Me, b R = CH2Ph, c R = 4-MeC6H4
Me
Me
4a–c
The synthesis of amines 2 needed to be carried out under mild conditions because reaction of the
2-chloro-3-quinolinecarboxaldehyde 1 with a primary amine could give not only the Schiff's base which we
required but also the undesirable substitution of the labile chlorine atom at position of the quinoline substrate.
Best results were obtained by carrying out the reaction in ethanol with an equivalent amount of triethyl
orthoformate as dehydrating agent. The Schiff 's bases obtained in this way were readily reduced by NaBH4 in
methanol to the corresponding amines, which are of interest in their own right both from the point of view of
biological activity and from the point of view of their use for the synthesis of combinatorial libraries of
derivatives.

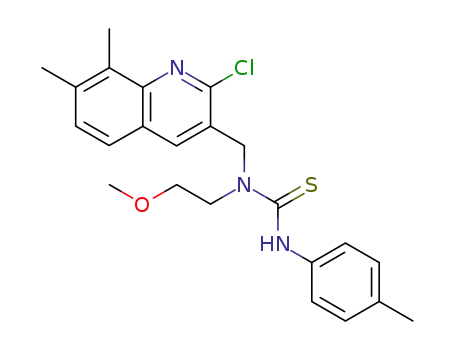

It is evident that the interaction of the amine with isothiocyanates initially forms the thioureas 3 which
we isolated and characterised. However our choice of reaction conditions led to cyclization in the presence of
KOH without isolation which improved the synthetic method. The rate and completion of the reaction depended
little on the structure of the isothiocyanates, which shows that this method is universal for the synthesis of a
variety of derivatives in which R may be a substituents of alkyl, benzyl, or phenyl type. Formation of the cyclic
structure 4 is indicated by elemental analysis of the products (Table 1) and the 1H NMR spectra (Table 2). When
1
the cyclic structures are formed the H NMR spectra of compounds 4 show shifts of the protons of the 4-, β-,
and γ-methylene groups to weaker fields in comparison with spectra of the alicyclic starting materials 2. The
largest shifts are observed for protons 4-H (α-H of structures 2) and γ-H, by 0.85 and 0.95 ppm respectively,
while the signals of the β-protons are shifted by approximately 0.65 ppm. These changes can serve as spectral
criteria for the formation of a cyclic structure.
TABLE 1. Characteristics of Compounds 2, 4a-c
Found, %
——————
Empirical
formula
mp, °С
Yield,
%
Compound
Calculated, %
(solvent)
С
Н
N
C15H19ClN2O
C17H21N3OS
C23H25N3OS
C23H25N3OS
64.87
64.63
7.04
6.87
10.15
10.05
58-61
94
65
89
92
2
(aq. ethanol)
65.30
6.76
13.70
105 (subl.)
4a
4b
4c
64.73
6.71
13.32
127-129 (ethanol)
70.77
70.56
6.47
6.44
10.77
10.73
120-122
(ethanol)
70.98
6.77
11.07
136-138
(ethanol)
70.56
6.44
10.73
365

TABLE 2. 1H NMR Spectra of Compounds 2, 4a-c
Com-
1Н NMR spectrum, δ, ppm (J, Hz)
pound
2
2.25 (1H, br. s, NH); 2.45 and 2.61 (2×3Н, 2 s, 7- and 8-Ме); 2.75 (2Н, t, β-Н);
3.25 (3Н, s, ОМе); 3.44 (2Н, t, γ-Н); 3.92 (2Н, s, α-Н); 7.45 (1Н, d, J56 = 10, 5-Н);
7.73 (1Н, d, J65 = 10, 6-Н); 8.34 (1Н, s, 4-Н)
2.43 and 2.62 (2×3Н, 2 s, 8- and 9-Ме); 3.28 (3Н, s, ОМе); 3.70 (2Н, t, β-Н);
3.86 (3Н, s, =N–Me); 4.18 (2Н, t, γ-Н); 4.78 (2Н, s, 4-Н); 7.30 (1Н, d, J76 = 10, 7-Н);
7.61 (1Н, d, J67 = 10, 6-Н); 8.05 (1Н, s, 5-Н)
2.38 and 2.42 (2×3Н, 2 s, 8- and 9-Ме); 3.32 (3Н, s, ОМе); 3.75 (2Н, t, β-Н);
4.25 (2Н, t, γ-Н); 4.87 (2Н, s, 4-Н); 6.12 (2Н, s, СН2Ph); 7.13-7.29 (5Н, m, Ph);
7.34 (1Н, d, J76 = 10, 7-Н); 7.58 (1Н, d, J67 = 10, 6-Н); 8.05 (1Н, s, 5-Н)
2.30, 2.44 and 2.53 (2×3Н, 3 s, 8-, 9-Ме and МеC6H4); 3.28 (3Н, s, ОМе);
3.65 (2Н, t, β-Н); 3.87 (2Н, t, γ-Н); 4.65 (2Н, s, 4-Н); 6.71 (2Н, d, J = 10, 3'-, 5'-H),
7.12 (2Н, d, J = 10, 2'-, 6'-H); 7.40 (1Н, d, J76 = 10, 7-Н); 7.68 (1Н, d, J67 = 10, 6-Н);
8.18 (1Н, s, 5-Н)
4a
4b
4c
For isothiocyanates which do not contain halogen, the Beilstein test for halogens is a simple and reliable
for monitoring the purity of products 4. It is positive for the amine starting material but negative for the
cyclization products.
EXPERIMENTAL
1H NMR spectra were recorded with a Bruker AM-400 (400 MHz) instrument. Purity of the products
was controlled by TLC on Sorbfil strips with 20:1 chloroform–methanol as eluent.
Synthesis of starting 2-chloro-7,8-dimethyl-3-quinolinecarboxaldehyde (1) was carried out by a
method analogous to that reported in [3].
N-[(2-Chloro-7,8-dimethylquinolin-3-yl)methyl]-2-methoxyethylamine (2). Triethyl orthoformate
(1.6 ml, 15.0 mmol) and 2-methoxyethylamine (0.75 ml, 14.0 mmol) were added to a suspension of aldehyde 1
(3 g, 13.6 mmol) in ethanol (30 ml) – the aldehyde dissolved. The reaction mixture was stirred for 2 h at 50°C.
The precipitate which deposited on cooling was filtered off and washed with ethanol (2 × 10 ml). The Schiff's
base obtained in this way was reduced without further purification by sodium borohydride (0.76 g, 20 mmol) in
methanol (50 ml). The solvent was removed in vacuum and the residue was treated with water (50 ml). The
crystals which separated were filtered off, washed with water (2 × 15 ml), and air dried to give amine 2 (3.67 g)
which was used in further synthesis without further purification. An analytical sample was obtained by
recrystallization from 90% aqueous ethanol.
b
2-Imino-3-(2-methoxyethyl)-8,9-dimethyl-3,4-dihydro-2H-[1,3]thiazino[6,5- ]quinolines
(4a-c).
The corresponding isothiocyanate (1 mmol) was added to a solution of amine 2 (0.278 g, 1 mmol) in ethanol
(3-4 ml). The reaction mixture was boiled for 30 min (controlled by TLC). Potassium hydroxide (0.062 g,
1.1 mmol) was then added and the mixture was boiled for a further 20 min (TLC monitoring). The crystals
which separated after cooling were filtered off, washed with water (2 × 5 ml), and recrystallized from ethanol.
REFERENCES
1.
2.
R. V. Kombarov and M. A. Yurovskaya, Khim. Geterotsikl. Soedin., 1310 (2002).
E. G. Paronikyan, S. N. Sirakanyan, I. S. Narovyan, E. M. Arzanunts, R. G. Paronikyan, I. S. Sarkisyan,
and N. E. Akopyan, Khim.-farm. Zh., 28, 20 (1994).
366

3.
4.
5.
O. Meth-Cohn, B. Narine, and B. Tarnowski, Tetrahedron Lett., 3111 (1979).
O. Meth-Cohn, S. Rhouati, and B. Tarnowski, Tetrahedron Lett., 4885 (1979).
O. Meth-Cohn, B. Narine, B. Tarnowski, R. Hayes, S. Rhouati, and A. Robinson, J. Chem. Soc., Perkin
Trans. 1, 2509 (1981).
6.
7.
K. Calkins, Bio-Century, 10, A1 (2002)
Ch. A. Lipinski, J. Pharm. Toxicol. Methods, 44, 235 (2000).
367
