Inorg. Chem. 2006, 45, 3705−3717
Various Coordination Modes of the
Bis(di(o-N,N-dimethylanilinyl)phosphino)methane Ligand in Mononuclear
and Binuclear Complexes of Group 8 and Group 9 Metals
James N. L. Dennett,† Matthias Bierenstiel,† Michael J. Ferguson,‡ Robert McDonald,‡ and
Martin Cowie*,†
Department of Chemistry, UniVersity of Alberta, Edmonton, Alberta, T6G 2G2, Canada, and
X-ray Crystallography Laboratory, UniVersity of Alberta, Edmonton, Alberta, T6G 2G2, Canada
Received September 22, 2005
The synthesis and characterization of a series of compounds involving the bis(di(o-N,N-dimethylanilinyl)phosphino)-
methane (dmapm) ligand are described. The mononuclear complexes [MCl(CO)(P,N-dmapm)] (M Rh, Ir) have
)
a square-planar geometry in which the dmapm ligand chelates via a phosphine functionality and an adjacent amino
group. The carbonyl ligand lies opposite the amine, while the chloro ligand is trans to the phosphine. The related

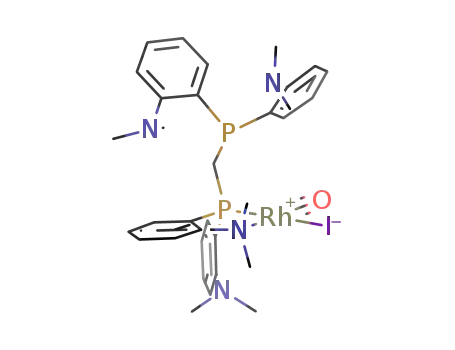

complex [RhI(CO)(P,N-dmapm)] has also been prepared. All compounds are highly fluxional by at least three
independent processes, as discussed for the rhodium
dmapm)], and the closely related rhodium/iridium analogue, [RhIrCl2(CO)2(P,N,P
in which the metals are bridged by the diphosphine group while an amino group at each end of the diphosphine
is also coordinating to each metal on opposite faces of the MIrP2 plane (M Ir or Rh). For the Ir2 species, the
carbonyl and chloro groups are again shown to be opposite the amine and phosphine functionalites, respectively.
The mononuclear complex [Ru(CO)3(P,P -dmapm)] has also been prepared. In contrast to the mononuclear species
−
chloro species. A diiridium complex, [Ir2Cl2(CO)2(P,N,P
′,N′-
′
,N′-dmapm)], have been prepared
)
′
of rhodium and iridium, the dmapm group chelates the ruthenium center through both phosphorus atoms, occupying
one axial and one equatorial site of Ru in a distorted trigonal bipyramidal geometry. Reaction of this Ru species
1
with /2 equiv of the complexes [RhClL2]2 (L2
)
COD, (C2H4)2, (CO)2) yields the unstable Rh/Ru product [RhRuCl-
(CO)3(P,N,P′,N′-dmapm)].
Introduction
NMR spectroscopy has also been especially useful in
characterization of its complexes.3
Studies of binuclear complexes, in which the adjacent
metals can function in a synergic manner in their interactions
with substrate molecules,1 have been possible owing in a
large part to the use of bridging ligands that hold the metals
in close proximity even upon cleavage of metal-metal
bonds. Arguably, the most frequently used family of bridging
ligands are the diphosphines, of which bis(diphenylphos-
phino)methane (dppm) is the most common.2 This ligand
has been particularly prominent in chemistry involving late
transition-metal complexes, to which it binds effectively. Not
only does this ligand have a flexible bite that allows it to
span a wide range in metal-metal separations, corresponding
to a range in metal-metal bond orders, but the use of 31P
(1) (a) Jones, N. D.; James, B. R. AdV. Synth. Catal. 2002, 344, 1. (b)
Tsukada, N.; Ohba, Y.; Inoue, Y. J. Organomet. Chem. 2003, 687,
436. (c) Sola, E.; Bakhmutov, V. I.; Torres, F.; Elduque, A.; Lo´pez,
J. A.; Lahoz, F. J.; Werner, H.; Oro, L. A. Organometallics 1998, 17,
683. (d) Yuan, Y.; Jime´nez, M. V.; Sola, E.; Lahoz, F. J.; Oro, L. A.
J. Am. Chem. Soc. 2002, 124, 752. (e) Gauthier, S.; Scopelliti, R.;
Severin, K. Organometallics 2004, 23, 3769. (f) Braunstein, P.; Clerc,
G.; Morise, X. Organometallics 2001, 20, 5036. (g) Severin, K.
Chem. Eur. J. 2002, 8, 1514. (h) Le Gendre, P.; Comte, V.; Michelot,
A.; Mo¨ıse, C. Inorg. Chim. Acta 2003, 350, 289. (i) Wang, J.; Li,
H.; Guo, N.; Li, L.; Stern, C. L.; Marks, T. J. Organometallics
2004, 23, 5112. (j) Man, M. L.; Zhou, Z. Y.; Ng, S. M.; Lau, C.
P. J. Chem. Soc., Dalton Trans. 2003, 3727. (k) Quebatte, L.;
Scopelliti, R.; Severin, K. Angew. Chem., Int. Ed. 2004, 43, 1520. (l)
Torkelson, J. R.; Antwi-Nsiah, F. H.; McDonald, R.; Cowie, M.; Prius,
J. G.; Jalkanen, K. L.; DeKock, R. L. J. Am. Chem. Soc. 1999, 121,
3666. (m) Ristic-Petrovic, D.; Anderson, D. J.; Torkelson, J. R.;
Ferguson, M. J.; McDonald, R.; Cowie, M. Organometallics 2005,
24, 3711.
* To whom correspondence should be addressed. E-mail: martin.cowie@
ualberta.ca.
(2) See the following for examples: (a) Puddephatt, R. J. Chem. Soc.
ReV. 1983, 12, 99. (b) Chaudret, B.; Delavaux, B.; Poilblanc, R. Coord.
Chem. ReV. 1988, 86, 191.
† Department of Chemistry.
‡ X-ray Crystallography Laboratory.
10.1021/ic051639c CCC: $33.50
Published on Web 04/05/2006
© 2006 American Chemical Society
Inorganic Chemistry, Vol. 45, No. 9, 2006 3705

Dennett et al.
groups involving phosphorus together with nitrogen,11 and
some of these systems have shown interesting catalytic
activity.10d,e,12
Chart 1
As noted above, our interest in dmapm is as a ligand that
can bridge pairs of adjacent metals. Binuclear complexes in
which the pairs of metals are either the same or different
are currently of interest as potential catalysts,5,6,13 owing to
the prospects of improved catalytic activity and/or selectivity
as a result of the adjacent metals acting in a cooperative
manner. In this regard, it has been proposed by Tsukada and
co-workers14 that a cis-chelating ligand configuration at the
adjacent metals, similar to those diagrammed in structures
B and C, might be important in promoting the cooperative
involvement of adjacent metals. In this paper we describe
our attempts to generate mononuclear dmapm-containing
precursors for use in synthesizing dmapm-bridged homo- and
heterobinuclear complexes and outline our initial success in
generating the targeted binuclear species.
Most of the late transition-metal complexes involving the
dppm ligand have two such groups in a mutually trans
arrangement at both metals as diagrammed in structure A in
Chart 1 (ancillary ligands and dppm phenyl groups omitted;
the dashed line indicates that a metal-metal bond may or
may not be present). In such a geometry, access of substrates
to the metals can be inhibited by the bulky dppm phenyl
substituents, which project above and below the plane of
the drawing. One approach to increasing accessibility to the
metals is to substitute the phenyl groups with smaller alkyl
groups.4 Another approach is to utilize diphosphines having
pendent groups that can also chelate to the metals giving a
cis arrangement at each metal as shown in structures B and
C. In these geometries (but particularly for C) the cis chelates
appear to allow better access to the metals at the sites
opposite the donor groups. Two such bridging groups that
have received recent attention are a series of tetraphosphines
in which the pendent chelating groups are CH2CH2PR2 (X
) PR2 in structure B), the chemistry of which has been
pioneered by Stanley and co-workers5 and also studied by
Su¨ss-Fink,6 and the bis(di(o-N,N-dimethylanilinyl)phosphi-
no)methane (dmapm) ligand, in which the pendent groups,
both chelated and dangling (R groups in structures B and
C), are dimethylanilinyl substituents (X ) NMe2, only ipso
and ortho carbons of phenyl groups are shown for the
chelated groups), recently reported by James and co-
workers.7-9 We were intrigued by the possibility that dmapm
could perform a dual role, in which the diphosphine moiety
could bridge a pair of late transition metals, while the
chelating amine groups might be labile, generating, in effect,
linked pairs of hemilabile10 P,N-bound ligands at each metal.
There has been significant recent interest in related hemilabile
Experimental Section
General Comments. All solvents were deoxygenated, dried
(using appropriate drying reagents), distilled before use, and stored
under nitrogen. The reactions were performed under an argon
atmosphere using standard Schlenk techniques. RhCl3‚3H2O and
Ru3(CO)12 were purchased from Strem Chemicals, and [NH4]2[IrCl6]
was obtained from Vancouver Island Precious Metals. 13C-enriched
CO (99.4% enrichment) was purchased from Isotec Inc. and
Cambridge Isotope Laboratories (99% enrichment). The compounds
[Rh2(µ-Cl)2(CO)4],15 [Rh2(µ-Cl)2(COD)2],16 [Rh2(µ-Cl)2(C2H4)4],17
and [Ir2(µ-Cl)2(COE)4]18 (COD ) 1,5-cycloctadiene; COE )
cyclooctene) were prepared by the literature routes. The diphosphine
ligand, bis(di(o-N,N-dimethylanilinyl)phosphino)methane (dmapm),
was prepared as previously reported.7
(10) (a) Jeffrey, J. C.; Rauchfuss, T. B. Inorg. Chem. 1979, 18, 2658. (b)
Bader, A.; Lidner, E. Coord. Chem. ReV. 1991, 108, 27. (c) Slone, C.
S.; Weinberger, D. A.; Mirkin, C. A. Prog. Inorg. Chem. 1999, 48,
233. (d) Espinet, P.; Soulantica, K. Coord. Chem. ReV. 1999, 183-
