Reaction of 1,3-Diene and Aldehyde/Ketone on Ni(0)
A R T I C L E S
including 3H of -C(CH3)2OTMS at δ 1.26, 3H of -C(CH3)2OTMS
at δ 1.27, 1H of NiCH2C(CH3) at δ 1.62, 3H of NiCH2C(CH3)C(CH3)
at δ 1.68 (d, J ) 2.4 Hz) and 1H of NiCH2C(CH3) at δ 2.07), 2.11 (s,
3H, NiCH2C(CH3)), 2.35 (d, J ) 14.9 Hz, 1H, -CH2C(CH3)2OTMS),
2.48 (dd, J ) 14.9, 1.5 Hz, 1H, -CH2C(CH3)2OTMS). 31P NMR
(C6D6): δ 42.6 (s). 13C NMR (C6D6): δ 3.07 (s, -OSi(CH3)3), 22.27
(s, NiCH2C(CH3)), 23.06 (d, JCP ) 3.0 Hz, NiCH2C(CH3)C(CH3)), 27.2
(s, Cy), 28.2 (s, Cy), 28.3 (s, Cy), 30.8 (s, Cy), 30.9 (s, Cy), 31.17 (s,
-C(CH3)2OTMS), 32.41 (s, -C(CH3)2OTMS), 34.4 (d, JCP ) 19.0 Hz,
Cy), 39.33 (d, JCP ) 6.9 Hz, NiCH2C(CH3)), 51.01 (d, JCP ) 3.0 Hz,
-CH2C(CH3)2OTMS), 74.51 (d, JCP ) 4.6 Hz, -CH2C(CH3)2OTMS),
100.54 (d, JCP ) 16.1 Hz, NiCH2C(CH3)C(CH3)), 114.22 (s, NiCH2C-
(CH3)). An analytical sample was not obtained due to gradual
decomposition in a solution.
of -CH2CH2CH2- at δ 2.02), 2.26 (m, 1H, -CH2CH2CH2-), 2.32
(s, 3H, NiCH2C(CH3)C(CH3)), 2.33 (m, 1H, -CH2CH2CH2-), 2.38
(m, 1H, -CH2CH2CH2-), 2.69 (d, J ) 12.4 Hz, 1H, -CH2C(cBu)-
ONi), 2.77 (m, 1H, -CH2CH2CH2-). 31P NMR (C6D6): δ 42.2 (s).
13C NMR (C6D6): δ 14.7 (s, -CH2CH2CH2-), 21.9 (s, NiCH2C(CH3)),
23.2 (s, NiCH2C(CH3)C(CH3)), 27.2 (s, Cy), 28.2 (d, JCP ) 1.5 Hz,
Cy), 28.3 (d, JCP ) 1.5 Hz, Cy), 30.7 (d, JCP ) 1.5 Hz, Cy), 30.8 (d,
JCP ) 2.3 Hz, Cy), 33.1 (d, JCP ) 6.1 Hz, NiCH2C(CH3)), 33.5 (d, JCP
) 16.7 Hz, Cy), 43.5 (s, -CH2CH2CH2-), 44.0 (s, -CH2CH2CH2-),
50.5 (d, JCP ) 2.3 Hz, -CH2C(cBu)ONi), 102.0 (d, JCP ) 10.7 Hz,
-CH2C(cBu)ONi), 103.7 (d, JCP ) 15.3 Hz, NiCH2C(CH3)C(CH3)),
114.1 (s, NiCH2C(CH3)). Anal. Calcd for C28H49O1P1Ni1: C, 68.44;
H, 10.05. Found: C, 67.90; H, 9.97.
Reaction of 1g with Carbon Monoxide: A pressure tight NMR
tube containing a solution of 1g (19.6 mg, 0.04 mmol) in C6D6 (0.5
mL) was treated with carbon monoxide (5 atm). The solution changed
from orange to colorless immediately to give the carbonylation products
Reaction of 8e with Carbon Monoxide: A pressure tight NMR
tube containing a solution of 8e (23.5 mg, 0.04 mmol) in C6D6 (0.5
mL) was treated with carbon monoxide (5 atm). The solution changed
from red to light blue gradually. The reaction mixture was quenched
with methanol to give an ester. It was isolated as a hydroxyester (9e:
74%) by a colum (silica). 1H NMR (CDCl3): δ 1.25 (s, 6H, sC(CH3)2-
OH), 1.77 (s, 3H, sC(CH3)dC(CH3)s), 1.79 (s, 3H, sC(CH3)d
C(CH3)s), 2.34 (s, 2H, sCH2COOCH3), 3.12 (s, 2H, sCH2C(CH3)2-
OH), 3.69 (s, 3H, sOCH3). 13C NMR (CDCl3): δ 20.63 (s, sC(CH3)d
C(CH3)s), 21.69 (s, sC(CH3)dC(CH3)s), 30.32 (s, sC(CH3)2OH),
40.20 (s), 47.92 (s), 51.98 (s), 72.62 (s), 126.29 (s, vinyl), 129.12 (s,
vinyl), 172.65 (s, sCH2COOCH3). HRMS (CI) Calcd for C11H21O3
(M + H) 201.1491, found m/z 201.1492.
Isolation of 1f: To a solution of Ni(cod)2 (220 mg, 0.80 mmol),
PCy3 (240 mg, 0.80 mmol), and benzophenone (146 mg, 0.80 mmol)
in 6 mL of toluene and 1 mL of benzene was added 2,3-dibenzyl-1,3-
butadiene (188 mg, 0.80 mmol) at room temperature. The solution
changed from orange to red. The reaction mixture was stirred for 10
min followed by concentration in vacuo to give yellow solids (1f, 585
mg, 97%). An analytical sample and a single crystal for X-ray
diffraction analysis were prepared by recrystallization from hexane at
-20 °C. 1H NMR (C6D6): δ 1.38 (s, 1H, NiCH2C(CH2Ph)C(CH2Ph)),
1.10-2.10 (m, 34H, including 1H of NiCH2C(CH2Ph)C(CH2Ph) at δ
1.80), 2.47 (d, J ) 14.4 Hz, 1H, NiCH2C(CH2Ph)C(CH2Ph)), 2.85 (d,
J ) 10.0 Hz, 1H, CH2C(Ph)2ONi), 2.97 (d, J ) 12.0 Hz, 1H,
NiCH2C(CH2Ph)C(CH2Ph)), 3.37 (d, J ) 12.8 Hz, 1H, CH2C(Ph)2-
ONi), 3.57 (d, J ) 14.4 Hz, 1H, NiCH2C(CH2Ph)), 4.43 (d, J ) 14.4
Hz, 1H, NiCH2C(CH2Ph)), 6.75 (d, J ) 6.0 Hz, 2H, Ph), 7.00-7.25
(m, 12H, Ph), 7.37 (t, J ) 7.6 Hz, 2H, Ph), 7.66 (d, J ) 7.2 Hz, 2H,
Ph), 8.00 (d, J ) 7.6 Hz, 2H, Ph). 31P NMR (C6D6): δ 37.9 (s). 13C
NMR (C6D6): δ 27.2 (s, Cy), 28.3 (d, JCP ) 3.8 Hz, Cy), 28.4 (d, JCP
) 4.6 Hz, Cy), 30.5 (s, Cy), 31.2 (d, JCP ) 1.5 Hz, Cy), 34.1 (d, JCP
) 16.7 Hz, Cy), 36.9 (d, JCP ) 24.4 Hz, NiCH2C(CH2Ph)), 39.1 (s,
NiCH2C(CH2Ph)C(CH2Ph)), 42.5 (s, NiCH2C(CH2Ph)), 48.8 (s,
CH2C(Ph)2ONi), 103.0 (d, JCP ) 42.8 Hz, CH2C(Ph)2ONi), 103.5 (d,
JCP ) 67.2 Hz, NiCH2C(CH2Ph)C(CH2Ph)), 125.4 (s, Ph), 125.7 (s,
Ph), 126.0 (s, Ph), 126.4 (s, Ph), 126.8 (s, Ph), 127.5 (s, Ph), 127.8 (s,
Ph), 127.9 (s, Ph), 128.5 (s, Ph), 129.0 (s, Ph), 129.80 (s, Ph), 129.83
(s, Ph), 139.2 (d, JCP ) 12.0 Hz, NiCH2C(CH2Ph-ipso)), 140.7 (s, Ph-
ipso), 156.1 (s, Ph-ipso), 157.7 (s, Ph-ipso). Anal. Calcd for
C49H61O1P1Ni1: C, 77.88; H, 8.14. Found: C, 77.63; H, 8.21.
1
(3g: 38%). H NMR (CDCl3): δ 1.37 (s, 3H, sC(CH3)(COOs)s),
1.68 (m, 1H, sCH2CH2CH2s), 1.81 (s, 3H, sC(CH3)dCH2),
1.87 (m, 1H, sCH2CH2CH2s), 2.19 (d, J ) 13.4 Hz, 1H, sCH2CH-
(Buc)Os), 2.16 (m, 2H, sCH2CH2CH2s), 2.41 (m, 1H, sCH2-
CH2CH2s), 2.57 (m, 1H, sCH2CH2CH2s), 2.59 (d, J ) 13.4 Hz,
1H, sCH2CH(Buc)Os), 4.93 (s, 2H, sC(CH3)dCH2). 13C NMR
(CDCl3): δ 12.79 (s, sCH2CH2CH2s), 19.39 (s, sC(CH3)dCH2),
23.41 (s, sC(CH3)(COOs)s), 35.63 (s, sCH2CH2CH2s), 35.85 (s,
sCH2CH2CH2s), 46.12 (s, sCH2CH(cBu)Os), 51.02 (s, sC(CH3)-
(COOs)s), 82.82 (s, sCH2CH(cBu)Os), 112.98 (s, sC(CH3)dCH2),
144.32 (s, sC(CH3)dCH2), 179.29 (s, sCOOs). HRMS Calcd for
C11H16O2 180.1150, Found m/z 180.1139.
Isolation of 1h: To a solution of Ni(cod)2 (220 mg, 0.80 mmol),
PCy3 (240 mg, 0.80 mmol), and 96.1 mg of styrene oxide (91.2 µL,
0.80 mmol) in 10 mL of toluene were added 328.6 mg of 2,3-dimethyl-
1,3-butadiene (0.45 mL, 4.00 mmol) at 60 °C. The solution changed
from orange to red. The reaction mixture was stirred for 18 h followed
by concentration in vacuo. The residue was washed with hexane to
1
give orange solids (1h: 312 mg, 88%). H NMR (C6D6): δ 1.00-
2.00 (m, 39H, including 1H of NiCH2C(CH3) at δ 1.11, 3H of NiCH2C-
(CH3)C(CH3) at δ 1.32 (d, J ) 2.8 Hz), 1H of CH2CH(CH2Ph)ONi at
δ 1.37 and 1H of NiCH2C(CH3) at δ 1.57), 2.21 (s, 3H, NiCH2C-
(CH3)), 2.39 (t, J ) 10.8 Hz, 1H, CH2CH(CH2Ph)ONi), 2.98 (m, 2H,
CH(CH2Ph)ONi), 5.36 (m, 1H, CH(CH2Ph)ONi), 7.11 (1H of para in
C6H5, hidden by C6D6 peak), 7.27 (t, J ) 7.6 Hz, 2H of meta in C6H5),
7.48 (d, J ) 7.2 Hz, 2H of ortho in C6H5). 31P NMR (C6D6) δ 42.4 (s).
13C NMR (C6D6) δ 20.5 (d, JCP ) 3.0 Hz, NiCH2C(CH3)C(CH3)), 21.8
(s, NiCH2C(CH3)), 27.2 (s, Cy), 28.1 (s, Cy), 28.3 (s, Cy), 30.7 (d, JCP
) 1.5 Hz, Cy), 30.8 (d, JCP ) 1.5 Hz, Cy), 33.4 (d, JCP ) 3.0 Hz,
NiCH2C(CH3)), 33.5 (d, JCP ) 17.5 Hz, Cy), 47.6 (d, JCP ) 2.3 Hz,
CH2CH(CH2Ph)ONi), 49.0 (s, -CH2Ph), 94.7 (d, JCP ) 10.7 Hz,
CH2CH(CH2Ph)ONi), 102.6 (d, JCP ) 14.5 Hz, NiCH2C(CH3)C(CH3)),
113.2 (s, NiCH2C(CH3)), 125.6 (s, Ph-para), 127.6 (Ph-meta), 130.5
(Ph-ortho), 143.4 (s, Ph-ipso).
Reaction of 1h with Carbon Monoxide: A pressure tight NMR
tube containing C6D6 (0.5 mL) solution of 1h (10.8 mg, 0.02 mmol)
was treated with carbon monoxide (5 atm). The solution changed
from orange to light yellow immediately to give the carbonyl-
ation product (3h: 90%). 1H NMR (CDCl3): δ 1.40 (s, 3H, sC(CH3)-
(COOs)s), 1.77 (s, 3H, sC(CH3)dCH2), 2.01 (m, 1H, sCH2CH-
(CH2Ph)Os), 2.20 (dd, J ) 9.2, 6.5 Hz, 1H, sCH2CH(CH2Ph)Os),
2.94 (m, 1H, sCH2Ph), 3.11 (dd, J ) 7.0, 6.5 Hz, 1H, sCH2Ph), 4.70
(m, 1H, sCH2CH(CH2Ph)Os), 5.00 (d, J ) 1.0 Hz, 1H, sC(CH3)d
CH2), 5.02 (s, 1H, sC(CH3)dCH2), 7.23-7.36 (m, 5H, Ph). 13C NMR
(CDCl3): δ 19.70 (s), 22.22 (s), 40.33 (s), 41.44 (s), 49.70 (s), 77.54
(s), 113.30 (s), 127.18 (s), 128.83 (s), 129.72 (s), 136.18 (s), 144.57
(s), 179.34(s). HRMS Calcd for C15H18O2 230.1307, Found m/z
230.1289.

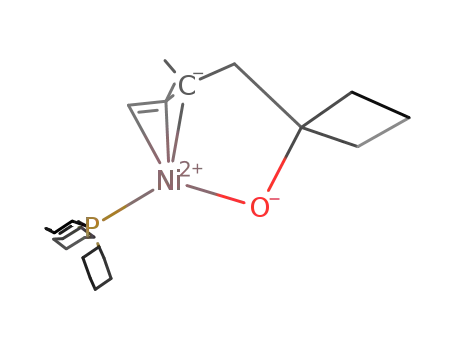

Isolation of 1g: To a solution of Ni(cod)2 (275 mg, 1.0 mmol), PCy3
(289 mg, 1.0 mmol), and 74.7 µL of cyclobutanone (70.1 mg, 1.0 mmol)
in 10 mL of toluene were added 411 mg of 2,3-dimethyl-1,3-butadiene
(0.57 mL, 5.0 mmol) at room temperature. The solution changed from
orange to dark orange. The reaction mixture was stirred for 4 h followed
by concentration in vacuo to give yellow solids (1g, 376 mg, 76%). A
single crystal for X-ray diffraction analysis was prepared by recrys-
tallization from hexane at -20 °C. 1H NMR (C6D6): δ 1.10-2.20 (m,
41H, including 1H of NiCH2C(CH3) at δ 1.22, 3H of NiCH2C(CH3)C-
(CH3) at δ 1.43 (d, J ) 8.4 Hz), 1H of NiCH2C(CH3) at δ 1.56, 1H of
-CH2CH2CH2- at δ 1.68, 1H of -CH2C(cBu)ONi at δ 1.91 and 1H
9
J. AM. CHEM. SOC. VOL. 128, NO. 21, 2006 7085
