Novel α-carboline synthesis using tandem aza-Wittig- electrocyclization reaction of indol-2-yl phosphorane with enone

Article abstract of DOI:10.1055/s-2006-944182

Mild thermal reaction of indol-2-yl triphenyl- and methyldiphenyl- phosphorane derived from 2-azido-1-methylindole with enones provides a novel entry to 9-methyl-9H-pyrido[2,3-b]indoles through a tandem aza-Wittig- electrocyclization process. Georg Thieme

Full text of DOI:10.1055/s-2006-944182

1574
LETTER
Novel a-Carboline Synthesis Using Tandem aza-Wittig–Electrocyclization
Reaction of Indol-2-yl Phosphorane with Enone
N
a
ovel
a
-Carbolin
a
e
Synthesisrlo Bonini,a Maria Funicello,*a Piero Spagnolob
Dipartimento di Chimica, Università della Basilicata, Via N. Sauro 85, 85100 Potenza, Italy
Fax +39(0971)202223; E-mail: funicello@unibas.it
b
Dipartimento di Chimica Organica ‘A. Mangini’, Viale Risorgimento 4, 40136 Bologna, Italy
E-mail: spagnolo@ms.fci.unibo.it
Received 2 March 2006
class of compounds involve construction of either pyri-
dine ring from 2-amino-3-substituted indole derivatives5,8
or synthesis of pyrrole (B ring) ring via cross-coupling
between an appropriately substituted pyridine and aniline
derivative.9 Other approaches involve intramolecular
Diels–Alder reaction of 2(1H)-pyrazinones10 and con-
jugated carbodiimides,11 reaction of 1-methyl-2-oxyin-
dole enolate with a-oxoketene dithioacetals,7a
condensation of 2-amidinylindole-3-carbaldehydes with
arylmethylketones12 as well as reaction of indol-2(3H)-
one derivatives with enamines.13 Very recently, a-carbol-
ines have also been prepared by copper-catalyzed radical
cyclization of b-(3-indolyl)ketone O-pentafluorobenzo-
yloximes.14 However, the existing methods often suffer
from limitations such as not easily accessible starting
materials, overall poor yields or inflexibility for substitu-
ent introduction.
Abstract: Mild thermal reaction of indol-2-yl triphenyl- and
methyldiphenyl-phosphorane derived from 2-azido-1-methylindole
with enones provides a novel entry to 9-methyl-9H-pyrido[2,3-b]in-
doles through a tandem aza-Wittig–electrocyclization process.
Key words: indolyl phosphoranes, enones, aza-Wittig, electro-
cyclization, a-carbolines
In the past thirty years iminophosphoranes, first prepared
at the beginning of the last century by Staudinger in the
reaction of organic azides with triphenylphosphine, have
become a powerful tool in synthetic methods for the con-
struction of nitrogen-containing heterocycles.1 In particu-
lar, the aza-Wittig reaction of suitable iminophosphoranes
with (unsaturated) carbonyl compounds followed by 6p-
electrocyclization of resultant azahexatrienes has found
important applications in the synthesis of simple as well
as c-fused pyridines.2
2-Azido-1-methylindole (1) was prepared by azidation of
commercial 1-methylindole by ‘azido group transfer’
from tosyl azide, following the previously reported proce-
dure.4 The crude azido compound was directly treated
with triphenylphosphine and methyldiphenylphosphine in

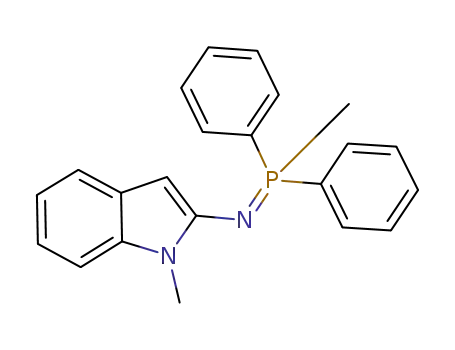

diethyl ether at 0 °C furnishing N-(1-methylindol-2-
yl)iminotriphenylphosphorane (2a) and N-(1-methylin-
dol-2-yl)iminomethyldiphenylphosphorane (2b) in 70%
and 55% yield, respectively, based on the starting indole
(Scheme 1).15 The triphenylphosphorane (2a) was isolat-
ed as a fairly stable solid compound, whereas the methyl-
diphenyl analogue 2b was obtained as a crude viscous oil
which showed a tendency to decompose and thence was
directly used without purification.
Our recent studies have discovered that iminophos-
phoranes derived from 2-azido- and 3-azido-benzothio-
phene can be efficiently employed in the tandem aza-
Wittig–electrocyclization strategy for the synthesis of b-
fused pyridines such as benzothieno[2,3-b]pyridines and
benzothieno[3,2-b]pyridines.3
In this communication we report that such strategy can
successfully be extended to iminophosphoranes derived
from 2-azido-1-methylindole (1) for the construction of
pyrido[2,3-b]indoles (a-carbolines). The use of N-(indol-
2-yl)iminophosphoranes in a-carboline synthesis is un-
precedented; indeed, these heteroaryl phosphoranes are to
date unknown compounds, despite the fact that a synthetic
route to a potential precursor such as azide 1 has been
available since 1989.4 Iminophosphoranes derived from
b-(indol-3-yl)vinyl azides have found previous use in the
production of b-carbolines via analogous aza-Wittig–
electrocyclization process.1c
1) BuLi
2) TsN3
PPh2R
N3
N=PPh2R
N
N
N
Me
Me
Me
1
2a: R = Ph (70%)
2b: R = Me (55%)
The biological importance of a-carboline ring system is
well known. This ring is found in several alkaloids5 and in
carcinogenic metabolites.6 Moreover, some synthetic a-
carboline derivatives are anxiolytic or neuroprotectant
agents.7 The best known synthetic approaches for this
Scheme 1 Synthesis of indolylphosphoranes
The triphenylphosphorane (2a) underwent smooth reac-
tion with equimolar amounts of acrylaldehyde, trans-cro-
tonaldehyde, trans-cinnamaldehyde, and methyl trans-4-
oxo-2-pentenoate in toluene solution at 70 °C over 18–24 h
to give directly the corresponding a-carbolines 3a–d
SYNLETT 2006, No. 10, pp 1574–1576
2
1
.0
6
.2
0
0
6
Advanced online publication: 12.06.2006
DOI: 10.1055/s-2006-944182; Art ID: G08406ST
© Georg Thieme Verlag Stuttgart · New York

LETTER
Novel a-Carboline Synthesis
1575
which were isolated by column chromatography in satis- Under analogous conditions the methyldiphenylphospho-
factory to excellent yields (Scheme 2 and Table 1, entries rane (2b) with the above unsaturated aldehydes and oxo-
1–4).16 Our additional reaction of 2a with but-3-en-2-one pentenoate similarly furnished the carbolines 3a–d, but in
also furnished a useful yield of the respective carboline 3e these cases the resultant yields always were markedly
(Scheme 2 and Table 1, entry 5); this finding was espe- lower (Scheme 2 and Table 1, entries 6–9).16 Thus, our
cially rewarding in light of the relative inertness previous- original expectation that replacement of phenyl with
ly displayed by this ketone with benzothiophenyl electron-donating methyl P-substituent might improve re-
phosphoranes.3a–c
action of indolyl phosphorane with enone19 was unfortu-
nately frustrated as a probable consequence of significant
decomposition of the hardly stable phosphorane 2b under
the reaction conditions.
R2
toluene,
70 °C
+
2a,b
R2CH=CHCOR1
+ O=PPh2R
Evidently, the phosphoranes 2b and, especially, 2a with
our enones could initially form formal aza-Wittig aza-
hexa-1,3,5-triene intermediates. These intermediates then
underwent thermal electrocyclization eventually leading
to the isolated pyridines 3a–e after further dehydrogena-
tion of the cyclized dihydropyridines (Scheme 2). With
both phosphoranes 2a,b the exclusive occurrence of the
tandem aza-Wittig–electrocyclization process was dictat-
ed by the fact that with crotonaldehyde, cinnamaldehyde,
methyl 4-oxo-2-pentenoate as well as butenone the
outcoming substituted carbolines 3b–e were always
produced as single compounds in the expected regio-
chemistry.3 Under these circumstances replacement of
phenyl with methyl substituent did not affect the reaction
mode of indol-2-yl phosphorane with the enone reagent.
In this respect, the phosphoranes 2a,b were consistent
with their benzothiophen-2-yl counterparts which,
irrespective of phenyl or methyl P-substituent, similarly
furnished only aza-Wittig–electrocyclization benzo-
thienopyridines in their reactions with enones.3a,3c,19 The
benzothiophen-3-yl phosphoranes, instead, were found to
exhibit a different trend since progressive replacement of
phenyl with methyl group(s) on phosphorus caused an in-
creasing propensity of the phosphorane itself for addition
to the enone carbonyl moiety by adopting the b-(a-thie-
nyl)carbon instead of the imino nitrogen; this fact then
caused progressive suppression of the b-fused pyridines
due to aza-Wittig–electrocyclization in favor of those due
to opposite regiochemistry.3a,b,19
R1
N
N
Me
R2
– 2 H
R1
N
N
Me
3a: R1 = R2 = H
3b: R1 = H, R2 = Me
3c: R1 = H, R2 = Ph
3d: R1 = Me, R2 = COOMe
3e: R1 = Me, R2 = H
Scheme 2 Synthesis of a-carbolines
Table 1 a-Carbolines 3a–e Prepared from Iminophosphoranes 2a,b
and Enones
Entry
Iminophos- Enone
phorane
Carboline
(yield, %)a
1
2
3
4
5
6
7
8
9
2a
2a
2a
2a
2a
2b
2b
2b
2b
R1 = R2 = H
3a (70)
3b (80)
3c (45)
3d (90)
3e (38)
3a (50)
3b (43)
3c (35)
3d (48)
R1 = H, R2 = Me
R1 = H, R2 = Ph
R1 = Me, R2 = COOMe
R1 = Me, R2 = H
R1 = R2 = H
R1 = H, R2 = Me
R1 = H, R2 = Ph
However, the present indolyl triphenylphosphorane 2a,
unlike the rather disappointing methyldiphenyl analogue
2b, proved to be superior to both previous phenyl/methyl-
substituted benzothiophen-2-yl and benzothiophen-3-yl
congeners as it was usually able to provide enhanced
amounts of (single) b-fused pyridines with the same un-
saturated aldehydes and ketones.
R1 = Me, R2 = COOMe
a Yields isolated by column chromatography.
The carboline 3a was a well-known compound which had
been prepared in several instances, but in modest to poor
yields, through multistep processes;17 the 4-methyl deriv-
ative 3b had been produced in poor yield by reaction of 2-
amino-1-methylindole with 3-buten-2-one;18 the 2-methyl
derivative 3e was very recently prepared in fairly good
yield by radical cyclization of the O-pentafluorobenzoyl
derivative of 4-(1-methyl-3-indolyl)butan-2-one oxime;14
the remaining two carbolines 3c,d were previously un-
known.
In conclusion, we have shown that the mild thermal reac-
tion of enones with the readily accessible 1-methylindol-
2-yl phosphoranes 2a,b can offer a novel synthesis of 9-
methyl-9H-pyrido[2,3-b]indoles 3, which is especially
appealing when using triphenylphosphorane 2a instead of
hardly stable methyldiphenylphosphorane 2b. The practi-
cal procedure is very simple since, at the end of the reac-
tion, the crude reaction mixture just requires evaporation
of the toluene solvent under reduced pressure and even-
tual chromatographic purification. It is presumable that
the present protocol might be of wide utility for the
Synlett 2006, No. 10, 1574–1576 © Thieme Stuttgart · New York

1576
C. Bonini et al.
LETTER
(15) Preparation of the 1-Methylindol-2-yl Phosphoranes
preparation of other variously substituted 9H-pyrido[2,3-
b]indole compounds from appropriate enones and simple
indole precursors. Studies are in progress to explore the
actual scope of our protocol.
2a,b.
2-Azido-1-methylindole (1), freshly obtained after filtration
through a Florisil® pad of the crude product from azido
transfer reaction of 1-methylindole (1 mmol) with tosyl
azide,4 was dissolved in dry Et2O (2 mL) and then slowly
added to an anhyd Et2O solution (2 mL) of PPh3 (1 mmol) at
0 °C under nitrogen. The reaction mixture was stirred at 0 °C
for ca. 1 h after which the separated solid material was
filtered off to give the triphenylphosphorane (2a, 0.7 mmol,
70%) as a dark-yellow powder, mp 90–92 °C. 1H NMR (300
MHz, CDCl3): d = 7.90–7.33 (m, 15 H), 7.20–7.15 (m, 1 H),
7.10–6.95 (m, 1 H), 6.90–6.80 (m, 2 H), 5.15 (s, 1 H), 3.87
(s, 3 H). 13C NMR (50 MHz, CDCl3): d = 149.5, 144.4,
137.0, 134.5, 132.4, 132.0, 131.1, 130.0, 129.3, 127.8,
127.0, 125.5, 125.0, 124.3, 121.5, 118.7, 117.5, 117.0,
114.0, 113.7, 111.0, 109.3, 39.0.
The methyldiphenylphosphorane (2b) was similarly pre-
pared in 55% yield by azidation of 1-methylindole (1 mmol)
followed by direct treatment with methyldiphenylphosphine
(1 mmol). The compound 2b was obtained as a viscous oil
which showed a tendency to decompose under work-up
conditions and was thus employed without purification.
1H NMR (300 MHz, CDCl3): d = 7.95–7.65 (m, 5 H), 7.58–
7.40 (m, 5 H), 7.21–7.18 (m, 1 H), 7.15–7.10 (m, 1 H), 6.90–
6.80 (m, 2 H), 5.20 (s, 1 H), 3.87 (s, 3 H), 2.23 (d, 3 H,
2JPH = 12.8 Hz). 13C NMR (50 MHz, CDCl3): d = 143.6,
141.0, 134.6, 133.0, 132.3, 131.6, 131.5, 130.7, 129.5,
129.2, 129.2, 128.2, 126.1, 125.9, 118.8, 117.0, 116.5,
107.5, 37.0, 14.88.
Acknowledgment
The authors gratefully acknowledge MIUR (Ministry of Instruction,
University and Research-Rome) for financial support (PRIN 2005),
the University of Bologna and the University of Basilicata.
References and Notes
(1) (a) Molina, P.; Vilaplana, M. J. Synthesis 1994, 1197.
(b) Wamhoff, H.; Richardt, G.; Stolben, S. Adv. Heterocycl.
Chem. 1995, 64, 125. (c) Fresneda, P. M.; Molina, P. Synlett
2004, 1.
(2) (a) Molina, P.; Pastor, A.; Vilaplana, M. J. J. Org. Chem.
1996, 61, 8094. (b) Kobayashi, T.; Nitta, M. Chem. Lett.
1981, 1459. (c) Iino, Y.; Nitta, M. Bull. Chem. Soc. Jpn.
1988, 61, 2235. (d) Molina, P.; Pastor, A.; Vilaplana, M. J.
Tetrahedron Lett. 1993, 34, 3773. (e) Molina, P.; Pastor, A.;
Vilaplana, M. J.; Foces-Foces, C. Tetrahedron 1995, 51,
1265.
(3) (a) Degl’Innocenti, A.; Funicello, M.; Scafato, P.; Spagnolo,
P.; Zanirato, P. J. Chem. Soc., Perkin Trans. 1 1996, 2561.
(b) Bonini, C.; Chiummiento, M.; Funicello, M.; Spagnolo,
P. Tetrahedron 2000, 56, 1517. (c) Bonini, C.; D’Auria, M.;
Funicello, M.; Romaniello, G. Tetrahedron 2002, 58, 3507.
(d) Bonini, C.; Funicello, M.; Scialpi, R.; Spagnolo, P.
Tetrahedron 2003, 59, 7515.
(4) (a) Foresti, E.; Spagnolo, P.; Zanirato, P. J. Chem Soc.,
Perkin Trans. 1 1989, 1354. (b) Foresti, E.; Di Gioia, M. T.;
Nanni, D.; Zanirato, P. Gazz. Chim. Ital. 1995, 125, 151.
(5) Molina, P.; Fresneda, P. M.; Sanza, M. A.; Foces-Foces, C.;
De Arellano, M. C. R. Tetrahedron 1998, 54, 9623.
(6) (a) Bhatti, I. A.; Busby, R. E.; Binmohamed, M.; Parrick, J.;
Shaw, C. J. G. J. Chem. Soc., Perkin Trans. 1 1997, 3581.
(b) Kazerani, S.; Novak, S. J. Org. Chem. 1998, 63, 895.
(7) (a) Barun, O.; Patra, P. K.; Ila, H.; Junjappa, H. Tetrahedron
Lett. 1999, 40, 3797. (b) Stolc, S. Life Sci. 1999, 65, 1943.
(8) (a) Meyer, M.; Guyot, M. Tetrahedron Lett. 1996, 37, 4931.
(b) Molina, P.; Fresneda, P. M.; Sanz, M. A. Tetrahedron
Lett. 1997, 38, 6909.
(16) Synthesis of the Carbolines 3a–e. Typical Procedure.
A mixture of the triphenylphosphorane (2a, 1 mmol) and
trans-crotonaldehyde (1 mmol) in dry toluene (5 mL) was
stirred at 70 °C for ca. 20 h under a stream of nitrogen. After
cooling, the solvent was removed in vacuo and the resultant
residue chromatographed on a silica gel column by
progressive elution with PE–EtOAc mixtures to give 4,9-
dimethyl-9H-pyrido[2,3-b]indole (3b,18 80%) as an oil. 1H
NMR (300 MHz, CDCl3): d = 8.40–8.36 (m, 1 H), 8.20–8.15
(m, 1 H), 7.60–7.55 (m, 1 H), 7.40–7.35 (m, 1 H), 7.23 (s, 1
H), 7.15–7.00 (m, 1 H), 4.10 (s, 3 H), 2.94 (s, 3 H). 13C NMR
(50 MHz, CDCl3): d = 153.3, 150.6, 145.8,143.0, 129.4,
125.8, 125.0, 123.1, 117.3, 116.6, 108.3, 30.0, 27.8.
The carbolines 3a17b,17c and 3e14 had physical and/or spectral
data consistent with those previously reported. The hitherto
unknown carbolines 3c,d were identified on the basis of
NMR and MS data as well as elemental analysis.
(17) (a) Zhestkov, V. P.; Druzhinina, V. V.; Rudnitskikh, A. V.
Khim. Geterotsikl. Soedin. 1995, 1507; Chem. Abstr. 1996,
125, 33513x. (b) Clark, V. M.; Cox, A.; Herbert, E. J. J.
Chem. Soc. C 1968, 831. (c) Eiter, K.; Nagy, M. Monatsh.
Chem. 1949, 80, 607. (d) Eiter, K. Monatsh. Chem. 1948,
79, 17.
(18) Abramenko, P. I. Zhurnal Vses. Khim. Obshch. im. D.I.
Mendeleeva 1973, 18, 715; Chem. Abstr. 1974, 80, 95788b.
(19) Replacement of phenyl with methyl group(s) on phosphorus
could enhance the reactivity of our previous benzothiophen-
2-yl and, especially, benzothiophen-3-yl phosphoranes with
enones, see ref. 3b,3c.
(9) (a) Achab, S.; Guyot, M.; Potier, P. Tetrahedron Lett. 1995,
36, 2615. (b) Rocca, P.; Marsais, S.; Godard, A.; Queguiner,
G. Tetrahedron 1993, 49, 49.
(10) Tahri, A.; Buysens, K. J.; Van der Eycken, E. V.;
Vandenberghe, D. M.; Hoornaen, G. J. Tetrahedron 1998,
54, 13211.
(11) (a) Molina, P.; Alajarin, M.; Vidal, A.; Sanchez-Andrada, P.
J. Org. Chem. 1992, 57, 929. (b) Molina, P.; Fresneda, P.
M. Synthesis 1989, 878.
(12) Erba, E.; Gelmi, M. L.; Pocar, D. Tetrahedron 2000, 56,
9991.
(13) Beccalli, E. M.; Clerici, F.; Marchesini, A. Tetrahedron
2001, 57, 4787.
(14) Tanaka, K.; Kitamura, M.; Narasaka, K. Bull. Chem. Soc.
Jpn. 2005, 78, 1659.
Synlett 2006, No. 10, 1574–1576 © Thieme Stuttgart · New York
