Design and Synthesis of Pyrido[2,1‑b][1,3,5]thiadiazine Library via
Uncatalyzed Mannich-Type Reaction
Victor V. Dotsenko,*,†,§ Konstantin A. Frolov,† Tatyana M. Pekhtereva,‡ Olena S. Papaianina,‡
Sergey Yu. Suykov,‡ and Sergey G. Krivokolysko†
†ChemEx Laboratory, Vladimir Dal’ East Ukrainian National University, 91034 Lugansk, Ukraine
§Kuban State University, 350040 Krasnodar, Russian Federation
‡L. M. Litvinenko Institute of Physical-Organic Chemistry and Coal Chemistry NAS of Ukraine, 83114 Donetsk, Ukraine
S
* Supporting Information
ABSTRACT: This Research Article describes the synthesis of
an over 700-member library of (8R/8S)-3-R-8-aryl-6-oxo-
3,4,7,8-tetrahydro-2H,6H-pyrido[2,1-b][1,3,5]thiadiazin-9-car-
bonitriles by uncatalyzed Mannich-type reaction of N-
methylmorpholinium (4R/4S)-4-aryl-3-cyano-6-oxo-1,4,5,6-
tetrahydropyridin-2-thiolates with a set of primary amines
and excessive HCHO. The scope and limitations of the reaction were studied. Starting thiolates were obtained in yields of 53−
82% by multicomponent reaction of aromatic aldehydes, cyanothioacetamide, 2,2-dimethyl-1,3-dioxane-4,6-dione (Meldrum’s
acid), and N-methylmorpholine, followed by heterocyclization of the resulting Michael adducts.
KEYWORDS: uncatalyzed Mannich-type reaction, cyanothioacetamide, Meldrum’s acid, tetrahydropyridine-2-thiolates,
aminomethylation, pyrido[2,1-b][1,3,5]thiadiazines
prostaglandin E2 biosynthesis34 and by inhibition of chitin
INTRODUCTION
■
biosynthesis and integumentary cuticule deposition.35,36 Re-
1,3,5-Thiadiazines have attracted considerable attention over
cently, buprofezin has been found to be an acetylcholinesterase
the years because of their biological activities and applications
in medicine and agriculture (for reviews on the 1,3,5-thiadiazine
chemistry, see refs 1−3). 1,3,5-Thiadiazines are known as
inhibitor in B-biotype Bemisia tabaci.37 Another widely used
compound is tetrahydro-3,5-dimethyl-1,3,5-thiadiazine-2-thi-
antidermatophites,4,5 antifungal and fungistatic agents,6−14
one, also known under names Dazomet, Basamid, Mylone,
antimicrobials and bactericides,15−23 antifibrinolytic
Thiazone, Carbothialdine, or DMTT (Figure 1), which is a soil
agents,24−27 tuberculostatics,28−31 etc. Thiadiazines are widely
fumigant and used as a powerful insecticide, papermaking
used as insecticides.32 2-tert-Butylimino-3-isopropyl-5-phenyl-
3,4,5,6-tetrahydro-2H-l,3,5-thiadiazin-4-one, also known as
slimicide and nematicide, fungicide, and herbicide for cabbage,
cucumber, maize, potato, and tomato plants.38−44 Dazomet also
behaves as a monodentate ligand toward some metal
carbonyls.45 In addition, Dazomet have been reported to
possess an ovicidal effect on helminths eggs.46 Another
bioactive 1,3,5-thiadiazine, NIP-200 (3,5-dimethyl-4,6-diphen-
yl-tetrahydro-2H-1,3,5-thiadiazine-2-thione, Figure 1) is a
potent hypolipidemic agent increasing the synthesis of bile
acids as a result of the activation of cholesterol 7α-hydroxylase,
the rate-limiting enzyme in the conversion of cholesterol to bile
acids.47 3,5-Dibenzyltetrahydro-2H-1,3,5-thiadiazine-2-thione
(D47, Dibenzthion) is an antimycotic agent useful for
treatment of dermatomycoses.48−51
buprofezin or Applaud (Figure 1), was found to be the most
active growth regulator on the greenhouse whitefly (Trialeur-
odes vaporariorum) and the brown planthopper (Nilaparvata
lugens), which is regarded as one of the most serious insect
pests in rice fields.33 Buprofezin acts on the insects by strong
suppression of oviposition because of the inhibition of
One of the most effective approaches to 1,3,5-thiadiazines is
based on the double Mannich-type reaction of thioamides,
dithiocarbamates or related S,N-binucleophilic species with
primary amines and formaldehyde.1−3 Cyclic thioamides (γ-
and δ-thiolactams, 2-mercaptoazoles, -azines, or their 2-
Received: May 16, 2014
Revised: August 1, 2014
Published: September 5, 2014
Figure 1. Biologically active 1,3,5-thiadiazines.
© 2014 American Chemical Society
543
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
thioxotautomers) can also be successfully employed in this
reaction, giving rise to a variety of ring-condensed 1,3,5-
thiadiazines. In fact, the related syntheses of 1,2,4-triazolo[3,4-
b][1,3,5]thiadiazines,52−60 imidazo[2,1-b][1,3,5]-
thiadiazines,61,62 1,2,4-triazino[3,2-b][1,3,5]thiadiazines,61
thiazolo[3′,4′:1,5][1,2,4]triazolo[3,4-b][1,3,5]thiadiazines,63
1,3,5-thiadiazino[3,2-a]benzimidazoles,64 cyclopenta[g]pyrido-
[2,1-b][1,3,5]thiadiazines,65 bis(pyrido[2,1-b][1,3,5]thiadiazin-
7-yl)methanes,66 pyrimido[2,1-b][1,3,5]thiadiazines,67 and
pyrimido[4,3-b][1,3,5]thiadiazines68−70 have been reported
(Scheme 1).
cides.78−80 Recently we found that pyrido[2,1-b][1,3,5]-
thiadiazine 6 and related compounds showed significant
inhibition against tick-borne encephalitis virus and Powassan
virus.81 Encouraged by this success, we turned our attention to
the synthesis of related pyrido[2,1-b][1,3,5]thiadiazines in
regard to library construction.
As we have shown in preliminary communications,82,83 these
pyrido[2,1-b][1,3,5]thiadiazines could be easily prepared by
Mannich-type reaction of N-methylmorpholinium 4-aryl-6-oxo-
3-cyano-1,4,5,6-tetrahydropyridine-2-thiolates 7 with primary
amines and excess formaldehyde (Scheme 2). This effective and
Scheme 2. Synthesis of Pyrido[2,1-b][1,3,5]thiadiazines 8
Scheme 1. Diversity of Ring-Condensed 1,3,5-Thiadiazines
time-saving protocol is based on the use of inexpensive, readily
available building blocks. In contrast to related double Mannich
reactions,52−60 no catalyst is required for this process. In most
cases, the obtained pyrido[2,1-b][1,3,5]thiadiazines 8 were
pure enough for analytical purposes that allowed us to exclude
any purification steps. These results prompted us to study the
scope and limitations of the reaction.
RESULTS AND DISCUSSION
■
In the current study, we report an optimized protocol for the
synthesis of 700+ membered library of 3-R-8-aryl-6-oxo-3,4,7,8-
tetrahydro-2H,6H-pyrido[2,1-b][1,3,5]thiadiazine-9-carboni-
triles 8{1−47,1−31}, employing a small library of N-
methylmorpholinium 4-aryl-6-oxo-3-cyano-1,4,5,6-tetrahydro-
pyridine-2-thiolates 7{1−47} (Table 1), 37% aq. HCHO and
a set of various primary amines 9{1−31} (Figure 3). The
required thiolates 7{1−47} are easily accessible by one-pot
condensation of aromatic aldehydes, cyanothioacetamide 10
and Meldrum’s acid (2,2-dimethyl-1,3-dioxane-4,6-dione) 11 in
the presence of N-methylmorpholine following the consequent
cyclization of the isolable Michael adduct, N-methylmorpholi-
nium 5-(3-amino-1-aryl-2-cyano-3-thioxopropyl)-2,2-dimethyl-
4-oxo-4H-1,3-dioxin-6-olate 12, as outlined in Scheme 3.81−90
As the starting 1,4,5,6-tetrahydropyridine-2-thiolates 7 have
been prepared as racemic mixtures of (4R)- and (4S)-
enantiomers, all the pyrido[2,1-b][1,3,5]thiadiazine-9-carbon-
itriles 8 also were obtained as mixtures of (8R)- and (8S)-
isomers.
However, despite the diversity and availability of ring-
condensed 1,3,5-thiadiazines, their use and applicability is much
less studied.3 Thus, pyrazolo[1,5-c][1,3,5]thiadiazine-2-diones
1 (Figure 2) have been reported as effective fungicides71−73 and
photosynthetic electron transport inhibitors.74,75 1,2,4-Triazolo-
[3,4-b][1,3,5]thiadiazines 2 were recognized as antibacterial
agents,52−55 while their oxo-analogs 3 showed moderate
insecticidal activity.76 In addition, 3-azacephalosporins 4
showed antibacterial activity,77 and imidazo- and pyrimido-
[2,1-b][1,3,5]thiadiazines 5 were recognized as insecti-
We found that 1,4,5,6-tetrahydropyridine-2-thiolates 7{1−
47} easily react with primary amines 9{1−31} and excess 37%
aqueous formaldehyde under short-term heating in EtOH to
give 3-R-8-aryl-6-oxo-3,4,7,8-2H,6H-pyrido[2,1-b][1,3,5]-
thiadiazine-9-carbonitriles 8{1−47,1−31} (Scheme 3). Presum-
ably, the reaction proceeds through the formation of non-
isolable intermediate 13. The order of mixing of the reactants
does not exert a noticeable influence on the yields of the final
products. Thus, when a suspension of thiolate 7{2} in EtOH
was treated consecutively with 4.2 equiv of 37% HCHO and 1.1
equiv of PhCH2NH2 9{ 3}, thiadiazine 8 {2,3} was obtained in
83% yield. Alternatively, when a hot solution of thiolate 7{2} in
aq. EtOH was added to the mixture of HCHO and
benzylamine in EtOH, thiadiazine 8 {2,3} yielded in 77%.
EtOH is the solvent of choice since thiolates 7 were found to be
Figure 2. Biologically active ring-condensed 1,3,5-thiadiazines.
544
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
Table 1. Diversity and Yields of 4-Aryl-6-oxo-3-cyano-1,4,5,6-tetrahydropyridine-2-thiolates 7
entry
compound
Ar
yield
entry
compound
Ar
2-NO2C6H4
yield
a
d
1
7{1}
Ph
67
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
7{24}
7{25}
7{26}
7{27}
7{28}
7{29}
7{30}
7{31}
7{32}
7{33}
7{34}
7{35}
7{36}
7{37}
7{38}
7{39}
7{40}
7{41}
7{42}
7{43}
7{44}
7{45}
7{46}
7{47}
57
b
2
7{2}
2-MeC6H4
71
3-NO2C6H4
64
73
83
a
3
7{3}
4-MeC6H4
71
4-NO2C6H4
4
7{4}
4-EtC6H4
68
70
4-MeSC6H4
g
5
7{5}
4-i-PrC6H4
3-PhCH2OC6H4
4-PhCH2OC6H4
5-Br-2-MeOC6H3
3-Br-4-MeOC6H3
2-furyl
68
g
c
6
7{6}
2-ClC6H4
73
78
7
7{7}
4-ClC6H4
79
76
69
76
73
8
7{8}
2-FC6H4
f
9
7{9}
3-FC6H4
55
d
10
11
12
13
14
15
16
17
18
19
20
21
22
23
7{10}
7{11}
7{12}
7{13}
7{14}
7{15}
7{16}
7{17}
7{18}
7{19}
7{20}
7{21}
7{22}
7{23}
4-FC6H4
71
5-Me-2-furyl
53
e
3-BrC6H4
61
75
62
2-thienyl
71
2-Cl-6-FC6H3
2,6-Cl2C6H3
2-MeOC6H4
4-MeOC6H4
2-EtOC6H4
3-Me-2-thienyl
57
76
82
69
74
69
4-HO-3-MeOC6H3
4-HO-3-EtOC6H3
4-EtO-3-MeOC6H3
3-Br-4-HO-5-MeOC6H2
3-Br-4-HO-5-EtOC6H2
1-naphthyl
h
78
e
72
f
80
a
3,4-(MeO)2C6H3
2,5-(MeO)2C6H3
2,4-(MeO)2C6H3
2,3-(MeO)2C6H3
3,4-(OCH2O)C6H3
2,4,5-(MeO)3C6H2
3,4,5-(MeO)3C6H2
70
a
a
70
72
d
82
2-MeO-1-naphthyl
4-(4-ClC6H4CH2O)C6H4
4-PhCH2O-3-MeOC6H3
4-(2-ClC6H4CH2O)C6H4
4-EtOC6H4
65
g
70
77
a
g
79
75
71
57
a
a
67
65
3-MeOC6H4
68
a
b
c
d
e
f
g
h
Ref 89. Ref 82. Ref 84. Ref 83. Ref 85. Ref 90. Ref 81. Ref 86.
Figure 3. Diversity of primary amines 9.
less soluble in higher alcohols, whereas lower yields of
thiadiazines 8 were obtained with MeOH. Both aliphatic and
aromatic primary amines reacted under these conditions.
However, we did not succeed to obtain pyridothiadiazines 8
from anilines bearing strong electron-withdrawing substituents
(e.g., NO2, CN, Ac, PhC(O)) in ortho- or para-position to
amino group, heterocyclic amines (e.g., Gewald’s 2-amino-
thiophenes, 2-aminopyridines, 2-aminothiazoles) and amino
545
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
Scheme 3. Synthesis of Starting Thiolates 7 and Pyrido[2,1-b][1,3,5]thiadiazine-9-carbonitriles 8
acids (α- and β-alanines). Unsatisfactory results were also
obtained in the case of most sterically hindered amines, such as
2,6-dimethylaniline 9{14}, 2-MeOC6H4NH2 9{21}, 5-Cl-2-
MeOC6H3NH2 9{23}, 2-CF3C6H4NH2, tert-butylamine, and 2-
ethyl-6-methylaniline. Meanwhile, 2-EtOC6H4NH2 9{7}, mesi-
dine 9{22}, and 2-alkylanilines 9{11,16,17,18} showed good
reactivity.
Scheme 5. Aminomethylation of C-5 Substituted 1,4,5,6-
Tetrahydropyridine-2-thiolates
The scope of the reaction is limited to the use of
formaldehyde only. Under these conditions, aliphatic aldehydes
are known to react in different ways: thus, as we have shown
before,91 the reaction of thiolates 7 with primary amines 9 and
isobutyraldehyde leads to thiazolo[3,2-a]pyridines 14 (Scheme
4). The reaction of thiolate 7{6} with acetaldehyde and alkyl
amounts. We were a bit surprised by the fact that the yields of
pyrido[2,1-b][1,3,5]thiadiazines 8 are dependent on the nature
of an aromatic substituent at C-4 position of starting thiolate 7.
The worst results were obtained with thiolates 7{24−26,32,34}
(Ar = 2-NO2Ph, 3-NO2Ph, 4-NO2Ph, 2-furyl, 2-thienyl).
Overall, pyridothiadiazines 8 were obtained in yields ranging
from poor to excellent, depending mostly on the nature of
primary amine and thiolate. Table S1 (Supporting Information)
gives a few representative examples of how the yields of
pyridothiadiazines 8 depend on the nature of the reagents.
N-Methylmorpholinium 4-aryl-6-oxo-3-cyano-1,4,5,6-tetrahy-
dropyridine-2-thiolates 7{1−47} are yellow or orange crystal-
line solids, soluble in hot aqueous EtOH but insoluble in
acetone and cold EtOH. Pyridothiadiazines 8 are colorless or
slightly yellowish crystalline solids, stable in neutral media,
soluble in hot acetone, EtOAc, DMF or DMSO, but sparingly
soluble in ether or alcohols. Compounds 8 are quite stable but
decompose when treated with AcOH or diluted strong acids to
form a complex mixture of retro-Mannich products. On the
other hand, 1,3,5-thiadiazine ring may be cleaved with
hydrazine hydrate to give after further heterocyclization the
known95 pyrazolopyridines of general structure 17. Thus, when
compound 8{6,9} was reacted with excessive N2H4·H2O in hot
EtOH, pyrazolopyridine 17a (Ar = 2-ClC6H4) was obtained in
36% yield (Scheme 6).
Scheme 4. Reaction of Thiolates 7 with Amines 9 and
Various Aldehydes
amines led to appearance of cherry red coloration and resulted
in the formation of tars, probably due to aldol-type
condensations of CH3CHO promoted by amines. The product
of the reaction of thiolate 7{15} with p-toluidine and
benzaldehyde consists of a red tarry mass, while the reaction
with benzylamine and 4-ClC6H4CHO, 4-MeOC6H4CHO or
furfural afforded colorless crystalline solids, which appeared to
be the same compound, benzylammonium salt 15. The
prolonged heating did not result in the formation of any
Mannich-type products with thiolates 7.
Scheme 6. Reactions of Pyridothiadiazines 8
The structure of thiolate component is another key factor
which has strong influence on the reaction outcome. As we
have reported earlier,92−94 those 1,4,5,6-tetrahydropyridine-2-
thiolates that bear an electron-withdrawing group (CN,
CO2R) at C-5 position under the same conditions gave no
1,3,5-thiadiazine derivatives but readily underwent the double
Mannich-type reaction at C-3 and C-5 to afford 3,7-
diazabicyclo[3,3,1]nonanes 16 (Scheme 5). In contrast, the
aminomethylation of thiolates 7 proceeds with high regiose-
lectivity to give no C-3 attacked products, even in trace
546
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
Starting 1,4,5,6-tetrahydropyridine-2-thiolates 7 and pyrido-
[2,1-b][1,3,5]thiadiazines 8 were characterized by H NMR
pyrazolopyridine 17a were recorded on an IKS-29 IR-
spectrometer (LOMO, USSR).
1
LCMS analyses were obtained on a PE SCIEX API 150EX
mass spectrometer (API-ES) following separation on a
Shimadzu LC-10AD liquid chromatography system with
Waters XBridge C18 3,5 μm (4.6 × 150 mm) column,
equipped with Shimadzu SP D-10A UV−vis detector (220 and
254 nm) and Sedex 75 ELSD detector.
and IR spectroscopy. In the IR spectra of compounds 8, strong
absorptions at 1675−1690 and 2190−2205 cm−1 were detected
because of the CO and conjugated CN groups,
respectively. 1D NMR (1H NMR, 13C NMR, 13C DEPT
1
NMR) and 2D NMR experiments (1H−1H COSY, H,13C-
1
HMBC, and H,13C-HSQC) were used for the complete and
unambiguous 1H and 13C chemical shift assignments for
selected compound, 3-(2-furylmethyl)-8-(2,3-dimethoxyphen-
yl)-6-oxo-3,4,7,8-tetrahydro-2H,6H-pyrido[2,1-b][1,3,5]-
thiadiazine-9-carbonitrile 8{20,4} (Figure 4). Full set of data of
homo- and heteronuclear correlations is given in the
Supporting Information, Table S2.
Elementary analyses were taken on a Carlo Erba
Strumentazione 1106 Analyzer.
Melting points were measured on a Koefler hot stage and are
uncorrected. The purity of the compounds were checked by
TLC (thin layer chromatography) on Silufol UV 254 plates
(sorbent, Silpearl, large-pore silicagel after Pitra with
luminiscent indicator for UV 254 on the aluminum foil; binder,
starch) in the acetone−hexane (1:1) system; spots were
visualized with iodine vapors and UV light.
Synthesis of Starting N-Methylmorpholinium 4-Aryl-
3-cyano-6-oxo-1,4,5,6-tetrahydropyridine-2-thiolates
7{1−47}. General Procedure. The thiolates 7{1−47} were
obtained in a manner analogous to reported procedures81−90 as
follows: A 0.5 L round-bottom flask fitted with an overhead
stirrer was charged with the corresponding aromatic aldehyde
(0.1 mol), cyanothioacetamide 10 (10.0 g, 0.10 mol) and EtOH
(100 mL). N-Methylmorpholine (0.8−1.0 mL) was added, and
the mixture was stirred for 1 h at 20 °C (yellow/orange

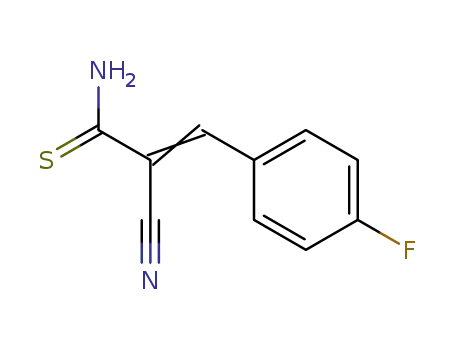

crystalline 3-aryl-2-cyanoprop-2-enethioamides may precipitate
from the solution). Then Meldrum’s acid (2,2-dimethyl-1,3-
dioxane-4,6-dione) 11 (15.0 g, 0.104 mol) and N-methyl-
morpholine (16.5 mL, 0.15 mol) were added, and the solution
was stirred vigorously until the mixture became pale yellow and
a white solid of the Michael adduct 12 precipitated. (If the
precipitate does not appear within 20 min, the mixture was
refluxed for 2−4 h and worked up as shown below.) The
obtained slurry was stirred for 0.5 h. Then the flask was fitted
with a reflux condenser. The mixture was refluxed to complete
dissolution of the Michael adduct 12 and until evolution of
CO2 ceased (∼2−4 h). The solution was evaporated to a
syrupy consistency and treated with dry acetone (100 mL). The
crystalline precipitate of the corresponding thiolate 7 separates
upon cooling to 15 °C and stirring (or seeding). The mixture
was allowed to stand overnight, after which the solid was
filtered off, washed with cold EtOH and acetone to give N-
methylmorpholinium 4-aryl-3-cyano-6-oxo-1,4,5,6-tetrahydro-
pyridine-2-thiolates 7{1−47} in 53−83% yields. The com-
pounds were used without further purification.
Synthesis of (8R/8S)-3-R-8-Aryl-6-oxo-3,4,7,8-tetrahy-
dro-2H,6H-pyrido[2,1-b][1,3,5]thiadiazin-9-carbonitriles
8{1−47,1−31}. General Procedure. Pyrido[2,1-b][1,3,5]-
thiadiazines 8 were prepared as follows: the corresponding
thiolate 7{1−47} (2.5 mmol) was dissolved in 15−20 mL of
warm EtOH; water (3−5 mL) may be added if appropriate.
The obtained solution may be filtered through a paper filter to
remove trace solids. To the solution, a primary amine 9{1−31}
(2.6−2.7 mmol, 1.04−1.08 equiv) and an excess of 37% aq.
HCHO (5.0 mL, d = 1.08 g/mL, 66.6 mmol) were added, and
the mixture was refluxed for 2−4 min under vigorous stirring
until the product began to separate from the boiling solution. If
no solid separated, the solution was allowed to cool to room
temperature and left for 24−72 h. The crystalline solid was
collected and washed with water, cold EtOH, ether, and then
purified (if appropriate) by recrystallization. Selected data on
the yields of pyrido[2,1-b][1,3,5]thiadiazines 8 are given in
1
Figure 4. Assignment of signals and key H−13C HMBC correlations
for compound 8{20,4}.
In conclusion, an efficient and simple method for the
preparation of 3-R-8-aryl-6-oxo-3,4,7,8-tetrahydro-2H,6H-
pyrido[2,1-b][1,3,5]thiadiazine-9-carbonitriles 8{1−47,1−31}
using readily available starting materials by Mannich-type
reaction is reported. A small library of N-methylmorpholinium
4-aryl-6-oxo-3-cyano-1,4,5,6-tetrahydropyridine-2-thiolates
7{1−47}, 37% aq. HCHO and primary amines 9{1−31} were
used as starting compounds. The developed method requires
no catalyst and usually gives acceptable yields of pure
pyridothiadiazines.
EXPERIMENTAL PROCEDURES
■
The 1H NMR and 13C NMR spectra of thiolates 7 and
pyridothiadiazines 8 were performed on Bruker DRX-500
instrument (500.13 and 125.76 MHz for 1H and 13C,
respectively) in DMSO-d6 using residual solvent peak (δ 2.49
ppm; 39.50 ppm for H and 13C, respectively) as reference or
1
1
with Me4Si as the internal standard. The H NMR spectra of
benzylammonium salt 15 were recorded on a Bruker DRX-400
instrument (400.40 MHz) and 1H NMR spectrum of
pyrazolopyridine 17a was recorded on a Varian Gemini 200
instrument (199.975 MHz) in DMSO-d6. NMR experiments
for compound 8{20,4} were performed on a Bruker Avance II
400 instrument (400.13 and 100.62 MHz for H and 13C
1
respectively) in DMSO-d6 or CCl4−DMSO-d6 with Me4Si as
the internal standard. Data are reported as follows: chemical
shift, multiplicity (s = singlet, br. s = broad singlet, d = doublet,
dd = doublet of doublets, t = triplet, q = quartet, m =
multiplet), coupling constants (Hz), integration and assign-
ment of peak.
FT-IR spectra of thiolates 7 were recorded in KBr pellets
using Thermo Nicolet Avatar 370 FT-IR Spectrometer. IR
spectra of thiadiazines 8, benzylammonium salt 15, and
547
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
dihydro-1,3,5-thiadiazine hydrochlorides and their antibacterial and
antifungal studies. J. Indian Chem. Soc. 2005, 82, 1022−1024.
(14) Bhagat, S. K.; Deshmukh, S. P. On glucosylthioureides:
Synthesis of 3-aryl-2-phenylimino-6-p-tolylimino-4-(S-tetra-O-benzo-
yl-D-glucopyranosyl)-2,3-dihydro-1,3,5-thiadiazines (hydrochlorides)
and their antibacterial and antifungal studies. J. Indian Chem. Soc.
2003, 80, 654−655.
(15) El Bialy, S. A. A.; Abdelal, A. M.; El-Shorbagi, A. N.; Kheira, S.
M. M. 2,3-Bis(5-Alkyl-2-thiono-1,3,5-thiadiazin-3-yl)propionic acid:
One-pot domino synthesis and antimicrobial activity. Arch. Pharm.,
Pharm. Med. Chem. 2005, 338, 38−43.
Table S1 (Supporting Information). Spectra of selected
pyridothiadiazines 8 are given as PDF files in the archive
(Supporting Information).
ASSOCIATED CONTENT
* Supporting Information
■
S
Further details on the experimental procedures and spectra.
This material is available free of charge via the Internet at
http://pubs.acs.org.
AUTHOR INFORMATION
Corresponding Author
*E-mail: Victor_Dotsenko@bigmir.net.
(16) Sarac, S.; Ertan, M.; Balkan, A.; Yulug, N. Synthesis and
antimicrobial activities of some new tetrahydro-2H-1,3,5-thiadiazine-2-
thione derivatives of cefadroxil. Arch. Pharm. 1991, 324, 449−453.
(17) Ertan, M.; Tayhan, A. B.; Yulug, N. Synthesis and antimicrobial
activities of some new tetrahydro-2H-1,3,5-thiadiazine-2-thione
derivatives of ampicillin. Arch. Pharm. 1990, 323, 605−609.
(18) El-Shorbagi, A. N. New tetrahydro-2H-1,3,5-thiadiazine-2-
thione derivatives as potential antimicrobial agents. Arch. Pharm.
2000, 333, 281−286.
■
Author Contributions
The study was initiated and designed by V.V.D. Compounds
were synthesized and characterized by V.V.D. and K.A.F. NMR
study was performed by S.Y.S., T.M.P., and O.S.P.; V.V.D.
wrote the manuscript and Supporting Information. The study
was supervised by S.G.K. All authors discussed and approved
the publication of the manuscript.
(19) Deohate, P. P.; Berad, B. N. Synthesis and antimicrobial activity
of 1,3,5-thiadiazines and their isomerism into 1,3,5-triazines. Indian J.
Chem. 2005, 44B, 638−642.
Notes
(20) Ilhan, E.; Capan, G.; Ergenc, N.; Uzun, M.; Kiraz, M.; Kaya, D.
Synthesis and antimicrobial activity of new tetrahydro-2H-1,3,5-
thiadiazine-2-thione derivatives. Farmaco 1995, 50, 787−790.
(21) Ertan, M.; Sarac, S.; Yulug, N. Synthesis and antimicrobial
activities of some new tetrahydro-2H-1,3,5-thiadiazine-2-thione
derivatives of amoxicillin. Arzneim. Forsch. 1990, 40, 790−795.
(22) Balkan, A.; Ertan, M.; Sarac, S.; Yulug, N. Synthesis and
antimicrobial activities of some new tetrahydro-2H-1,3,5-thiadiazine-2-
thione derivatives of cephalexin. Arzneim. Forsch. 1990, 40, 1246−
1249.
The authors declare no competing financial interest.
REFERENCES
■
(1) Moody, C. J. Polyoxa, polythia and polyaza six-membered ring
systems. In Comprehensive Heterocyclic Chemistry, Vol. 3; Katritzky, A.
R., Rees, C. W., Eds.; Pergamon: Oxford, U.K., 1984; pp 1039−1096.
(2) Smalley, R. K. 1,3,5-Oxadiazines and 1,3,5-thiadiazines. In
Comprehensive Heterocyclic Chemistry II, Vol. 6; Boulton, A. J., Ed.;
Elsevier: Oxford, U.K., 1996; pp 783−823.
(3) Shobana, N.; Farid, P. 1,3,5-Oxadiazines and 1,3,5-thiadiazines. In
Comprehensive Heterocyclic Chemistry III, Vol. 9; Katritzky, A. R., Rees,
C. W., Eds.; Pergamon: Oxford, U.K., 2008; pp 457−521.
(4) Manohar, V.; Murthy, S. V. K. N.; Sirsi, M.; Rao, G. R.; Rao, P. L.
N. Antidermatophytic activity of 2-thiotetrahydro-1,3,5-thiadiazines
and isothiocyanates. J. Pharm. Sci. 1975, 64, 164−165.
(5) Wurbach, G. Antimycotic effect and skin tolerance of synthetic
mustard oil compounds. I. 2-Thion-tetrahydro-1,3,5-thiadiazines.
Dermatol. Monatsschr. 1971, 157, 239−247 (In German)..
(6) Hussein, M. A.; El-Shorbagi, A. N.; Khallil, A. R. Synthesis and
antifungal activity of 3,3′-ethylenebis(5-alkyl-1,3,5-thiadiazine-2-thio-
nes). Arch. Pharm., Pharm. Med. Chem. 2001, 334, 305−308.
(7) Aboul-Fadl, T.; Hussein, M. A.; El-Shorbagi, A. N.; Khallil, A. R.
New 2H-tetrahydro-1,3,5-thiadiazine-2-thiones incorporating glycine
and glycinamide as potential antifungal agents. Arch. Pharm., Pharm.
Med. Chem. 2002, 335, 438−442.
(8) Takubo, T.; Tadaoka, T. Synthesis and antifungal effect of
tetrahydro-2H-1,3,5-thiadiazine-2-thione derivatives. Yakugaku Zasshi
1964, 84, 466−469 (in Japanese)..
(9) Smyth, H. F.; Carpenter, C. P.; Weil, C. S. Toxicologic studies on
3,5-dimethyltetrahydro-1,3,5,2H-thiadiazine-2-thione, A soil fungicide
and slimicide. Toxicol. Appl. Pharmacol. 1966, 9, 521−527.
(10) Ertan, M.; Bilgin, A. A.; Palaska, E.; Yulug, N. Syntheses and
antifungal activities of some 3-(2-phenylethyl)-5-substituted-tetrahy-
dro-2H-1,3,5-thiadiazine-2-thiones. Arzneim. Forsch. 1992, 42, 160−
163.
(23) Coburn, R. A.; Ho, C. H.; Bronstein, M. L. Synthesis and in
vitro Antimicrobial Activity of 6-Substituted 2H-1,3,5-Thiadiazine-
2,4(3H)-diones. J. Med. Chem. 1982, 25, 481−483.
(24) Ozcȩ lik, A. B.; Ersan, S.; Ural, A. U.; Ozkan, S.; Ertan, M.
Synthesis of 3-substituted-5-(4-carboxycyclohexylmethyl)-tetrahydro-
2H-1,3,5-thiadiazine-2-thione derivatives as antifibrinolytic and anti-
microbial agents. Arzneim. Forsch. 2007, 57, 554−559.
(25) Wurbach, G.; Klocking, H. P. 2-Thiontetrahydro-1.3.5-
̈
̈
thiadiazines with antifibrinolytic properties. Pharmazie 1973, 28,
254−257.
(26) Klocking, H. P.; Wurbach, G. Antifibrinolytic and antimycotic
properties of 2-thioxotetrahydro-1,3,5-thiadiazine. Farmakol. Toxicol.
1976, 39, 432−436 (in Russian)..
(27) Wurbach, G.; Klocking, H. P. On the fungistatic and
antifibrinolytic effect of tetrahydro-1,3,5-thiadiazine-2-thiones. Ann.
Acad. Med. Lodzensis 1974, 15, 147−151 (in Polish)..
(28) Tartler, G.; Weuffen, W.; Frohling, P. Relations of chemical
̈
constitution and germ-killing action. 9. Tuberculostatic properties of a
2-thiotetrahydro-1,3,5,-thiadiazine in vitro. Arch. Exp. Veterinarmed.
1965, 19 (3), 9−18 (in German)..
(29) Sriram, D.; Mallika, K. J.; Yogeeswari, P. Synthesis of
Tetrahydro-2H-[1,3,5]-thiadiazine-5-(4-pyridylcarboxamido)-2-thione
with antitubercular activity. Sci. Pharm. 2004, 72, 35−41.
(30) Aboul-Fadl, T.; Hassanin, K. Tetrahydro-2H-1,3,5-thiadiazine-5-
(4-pyridylcarboxamide)-2-thione derivatives as prodrugs for isoniazid;
synthesis, investigations and in vitro antituberculous activity.
Pharmazie 1999, 54, 244−247.
(11) Ertan, M.; Ayyildiz, H. G.; Yulug, N. Synthesis and antifungal
activities of some new tetrahydro-2H-1,3,5-thiadiazine-2-thiones.
Arzneim. Forsch. 1991, 41, 1182−1185.
(31) Katiyar, D.; Tiwari, V. K.; Tripathi, R. P.; Srivastava, A.;
Chaturvedi, V.; Srivastava, R.; Srivastava, B. S. Synthesis and
antimycobacterial activity of 3,5-disubstituted thiadiazine thiones.
Bioorg. Med. Chem. 2003, 11, 4369−4375.
(32) Kagabu, S.; Murata, N.; Hibino, R.; Hanzawa, M.; Nishimura, K.
Insecticidal and neuroblocking activities of thiamethoxam-type
compounds in the american cockroach (Periplaneta americana L.). J.
Pestic. Sci. 2005, 30, 111−115.
(12) Rieche, A.; Hilgetag, G.; Martini, A.; Nejedly, O.; Schlegel, J.
New compounds with bactericidal and fungicidal activity and which
inhibit the growth of viruses. I. 2-Thiotetrahydro-1,3,5-thiadiazine
(“carbothialdine”) and dithiocarbamic acid salts. Arch. Pharm. 1960,
293, 957−967 (In German).
(13) Bhagat, S. K.; Deshmukh, S. P. Synthesis of 3-aryl-2-tert-
butylimino-6-p-tolylimino-4-(S-tetra-O-benzoyl-D-glucopyranosyl)-2,3-
548
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
(33) For a brief review on the buprofezin, see: Kanno, H. An
approach to a novel insect growth regulator buprofezin (Applaud).
Pure Appl. Chem. 1987, 59, 1027−1032.
(53) Wang, Z. Y.; You, T. P.; Shi, H. J.; Shi, H. X. Synthesis of 3,6-
disubstituted tetrahydro-s-triazolo[3,4-b][1,3,5]thiadiazines. Molecules
1996, 1, 89−92, http://www.mdpi.net/molecules/list96.htm.
(54) Wang, Z. Y.; You, T. P.; Shi, H. J.; Shi, H. X. Studies on double
Mannich reaction of 3-aryl-5-mercapto-1,2,4-triazoles. Gaodeng Xuex-
iao Huaxue Xuebao 1997, 18 (4), 550−553; (in Chinese) Chem. Abstr.
1997, 127, 95265t.
(55) Shi, H. X.; Shi, H. J.; Wang, Z. Y. Synthesis & bioactivity of
chiral 3,5-disubstituted-s-triazolo[3,4-b]-2,4-dihydro-1,3,5-thiadiazines.
Youji Huaxue 2000, 20 (3), 344−347; (In Chinese) Chem. Abstr.
2000, 133, 120280c.
(56) Hozein, Z. A.; Sarhan, A. A. O.; El-Sherief, H. A. H.; Mahmoud,
A. M. A convenient one-pot synthesis of pyrazolo[3,4-d]pyrimidines
and s-triazolo[3,4-b][1,3,5]thiadiazines. Z. Naturforsch. B 1997, 52,
1401−1412; Chem. Abstr 1998, 128, 88906v.
(57) Shi, H. J.; Shi, H. X.; Wang, Z. Efficient one-pot synthesis of s-
triazolo[3,4-b]-[1,3,5]thiadiazines containing a chiral side chain by
double Mannich type reaction. J. Heterocycl. Chem. 2001, 38, 929−932.
(58) Shi, H. J.; Wang, Z. Y.; Shi, H. X. Synthesis and study of 3-
methyl-5-aryl-s-triazolo[3,4-b]-2H,4H-1,3,5-thiadiazines. Chimia 1997,
51, 529; Ref. Zhurn. Khim. 1998, No. 13ZH272.
(59) Shi, H.; Wang, Z.; Shi, H. Novel synthesis of chiral 5-
aryltriazolo[3,4-b]-3-α-phenylethyl-2,4-2H-1,3,5-thiadiazines by bis-
Mannich reaction. Synth. Commun. 1999, 29, 2027−2034.
(60) Sarfraz, T. B.; Husain, S. A.; Murtaza, N.; Siddiqui, B. S.
Potential antibacterial agents part V. Synthesis and structural
characterization of some new 3-aryl-7H,6-(aryl)-5H-1,2,4-triazolo-
[3,4-b]-1,3,5-thiadiazines. Pak. J. Sci. Ind. Res. 2000, 43, 334−337.
(61) Hozein, Z. A. Intramolecular Mannich reaction for synthesis of
imidazo-[2,1-b]-1,3,5-thiadiazines and 1,2,4-triazino[3,2,-b]-1,3,5-thia-
diazines. J. Chem. Res. 2000, 3, 99.
(62) Frolov, K. A.; Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V.
P. Mannich reaction in the synthesis of N,S-containing heterocycles.
Part 1. Synthesis of novel derivatives of imidazo[2,1-b][1,3,5]-
thiadiazine. Russ. Chem. Bull., Int. Ed. 2005, 54, 2226−2228.
(63) Yadav, L. D. S.; Vaish, A.; Sharma, S. New fungitoxic fused-ring
synthetics incorporating azoles and azines in different combinations. J.
Agric. Food Chem. 1994, 42, 811−813.
(64) Sarhan, A. A. O.; Abdel-Hafez, S. H.; El-Sherief, H.; Aboel-Fadl,
T. Utility and synthetic uses of Mannich reaction: An efficient route
for synthesis of thiadiazino-[1,3,5][3,2-a]benzimidazoles. Synth.
Commun. 2006, 36, 987−996.
(65) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. The
synthesis of cyclopenta[c]pyridine (2-pyrindene) derivatives. Monatsh.
Chem. 2008, 139, 271−275.
(66) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. An efficient
Mannich-type synthesis of bis(pyrido[2,1-b][1,3,5]thiadiazin-7-yl)-
methanes. Monatsh. Chem. 2008, 139, 657−661.
(67) Dotsenko, V. V.; Krivokolysko, S. G.; Rusanov, E. B.; Litvinov,
V. P. The Mannich reaction in the synthesis of N,S-containing
heterocycles. Part 5. Synthesis and structures of new pyrimido[2,1-
b][1,3,5]thiadiazine derivatives. Russ. Chem. Bull., Int. Ed. 2007, 56,
1437−1440.
(68) Dotsenko, V. V.; Frolov, K. A.; Krivokolysko, S. G.; Chernega,
A. N.; Litvinov, V. P. A convenient Mannich-type one-pot synthesis of
pyrimido[6,1-b][1,3,5]thiadiazines. Monatsh. Chem. 2006, 137, 1089−
1098.
(69) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. The
Mannich reaction in the synthesis of N,S-containing heterocycles. Part
6. New approaches to the synthesis of pyrimido[4,3-b][1,3,5]-
thiadiazine derivatives. Russ. Chem. Bull., Int. Ed. 2007, 56, 1474−1476.
(70) Dotsenko, V. V.; Frolov, K. A.; Krivokolysko, S. G.; Litvinov, V.
P. The Mannich reaction in the synthesis of N,S-containing
heterocycles. Part 10. Recyclization of stable cyclic Michael adducts,
N-methylmorpholinium 6-R-6-hydroxy-1,4,5,6-tetrahydropyridine-2-
thiolates, to pyrimido[4,3-b][1,3,5]thiadiazines under conditions of
aminomethylation reaction. Russ. Chem. Bull., Int. Ed. 2009, 58, 1479−
1483.
(34) Uchida, M.; Izawa, Y.; Sugimoto, T. Inhibition of prostaglandin
biosynthesis and oviposition by an insect growth regulator, buprofezin,
in Nilaparvata lugens Stal. Pestic. Biochem. Physiol. 1987, 27, 71−75.
̊
(35) Izawa, Y.; Uchida, M.; Sugimoto, T.; Asai, T. Inhibition of chitin
biosynthesis by buprofezin analogs in relation to their activity
controlling Nilaparvata lugens Stal. Pestic. Biochem. Physiol. 1985, 24,
̊
343−347.
(36) Uchida, M.; Asai, T.; Sugimoto, T. Inhibition of cuticle
deposition and chitin biosynthesis by a new insect growth regulator,
buprofezin, in Nilaparvata lugens Stal. Agric. Biol. Chem. 1985, 49,
̊
1233−1234.
(37) Cottage, E. L. A.; Gunning, R. V. Buprofezin inhibits
acetylcholinesterase activity in B-biotype Bemisia tabaci. J. Mol.
Neurosci. 2006, 30, 39−40.
(38) Smith, M. S.; Weeraratna, C. S. Influence of some biologically
active compounds on microbial activity and on the availability of plant
nutrients in soils II. Nitrapyrin, dazomet, 2-chlorobenzamide and
tributyl-3-chlorobenzylammonium bromide. Pestic. Sci. 1975, 6, 605−
615.
(39) Goksøyr, J. Chemical and fungicidal reactions of 3,5-
dimethyltetrahydro-1,3,5-thiadiazine-2-thione (3,5-D). A comparison
with sodium N-methyl dithiocarbamate and methyl isothiocyanate.
Acta Chem. Scand. 1964, 18, 1341−1352.
(40) Fu, C. H.; Hu, B. Y.; Chang, T. T.; Hsueh, K. L.; Hsu, W. T.
Evaluation of dazomet as fumigant for the control of brown root rot
disease. Pest. Manage. Sci. 2012, 68, 959−962.
(41) Munnecke, D. E.; Martin, J. P. Release of methyl isothiocyanate
from soils treated with mylone (3,5-dimethyltetrahydro-1,3,5-2H-
thiadiazine-2-thione). Phytopathology 1964, 54, 941−945.
(42) Drescher, N.; Otto, S. Uber den abbau von dazomet im boden.
Residue Rev. 1968, 23, 49−54.
(43) Barnard, A. J.; Hornby, D. The effects of dazomet and nitrogen
fertilizer on successive crops of maize (Zea mays L.) grown for either
grain or forage. J. Agric. Sci. 1982, 98, 7−15.
(44) Morrell, J. J.; Sexton, C. M.; Lebow, S. The effect of pH on
decomposition of Mylone (dazomet) and tridipam to fungitoxic
methylisothiocyanate in wood. Wood Fiber Sci. 1988, 20, 422−430.
(45) Sert, S.; Ercag, A.; Senturk, O. S.; Sterenberg, B. T.; Udachin, K.
̈
̈
̈
A.; Ozdemir, U.; Sarikahya, F. U. Photochemical reactions of metal
carbonyls [M(CO)6 (M = Cr, Mo, W), Re(CO)5Br, Mn(CO)3Cp]
with 3,5-dimethyl-tetrahydro-2H-1,3,5-thiadiazine-2-thione (DTTT)
and the crystal structure of [W(CO)5(DTTT)]. Polyhedron 2003, 22,
1689−1693.
(46) Babaeva, R. I. The effect of thiazon on helminth eggs in soil.
Meditsinskaya Parazitologiya i Parazitarnye Bolezni (Medical Para-
sitology and Parasitic Diseases) 1989, 2, 25−27 (in Russian)..
(47) Sakashita, M.; Toyoda, K.; Kitahara, M.; Tsuruzoe, N.;
Nakayama, S.; Oguchi, K. Mechanisms of the hypolipidemic effect
of NIP-200 in rats. Jpn. J. Pharmacol. 1993, 62, 87−91.
(48) Meinhof, W. Experimental studies and clinical experiences with
the new antimycotic agent dibenzthion (3,5-dibenzyl-tetrahydro-1,3,5-
thiadiazine-2-thione). Z. Haut. Geschlechtskr. 1962, 33, 124−131 (In
German).
(49) Meinhof, W.; Jannasch, G. Therapeutic experiences with
dermatological preparations of the antimycotic dibenzthion. Z. Haut.
Geschlechtskr. 1963, 34, 172−179 (In German)..
(50) Paldrok, H. Dibenzthion (3,5-dibenzyltetrahydro-1,3,5-thiadia-
zine-2-thione), A new drug for dermatomycoses. Sven. Lakartidn.
1964, 61, 2922−2926 (in Swedish)..
(51) Weuffen, W. Testing of antimycotic active substances on the
model of experimental cockscomb epidermophytosis. I. Methods and
testing of 3,5-dibenzyl-2-thion-tetrahydro-1,3,5-thiadiazine (D 47).
Mykosen 1968, 11, 33−39 (In German)..
(52) Wang, Z. Y.; Shi, H. X.; Shi, H. J. Novel synthesis of condensed
heterocyclic systems containing 1,2,4-triazole ring. Synth. Commun.
2001, 31, 2841−2848.
549
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550

ACS Combinatorial Science
Research Article
(71) Mares, D.; Romagnoli, C.; Andreotti, E.; Forlani, G.; Guccione,
S.; Vicentini, C. B. Emerging antifungal azoles & effects on
Magnaporthe grisea. Mycol. Res. 2006, 110, 686−696.
(72) Mares, D.; Romagnoli, C.; Vicentini, C. B.; Sacchetti, G.; Bruni,
A. Antifungal screening of seven new azole derivatives. Microbios 1996,
86 (348), 185−193.
(73) Vicentini, C. B.; Forlani, G.; Manfrini, M.; Romagnoli, C.;
Mares, D. Development of new fungicides against Magnaporthe grisea:
Synthesis and biological activity of pyrazolo[3,4-d][1,3]thiazine,
pyrazolo[1,5-c][1,3,5]thiadiazine, and pyrazolo[3,4-d]pyrimidine de-
rivatives. J. Agric. Food Chem. 2002, 50, 4839−4845.
(74) Vicentini, C. B.; Mares, D.; Tartari, A.; Manfrini, M.; Forlani, G.
Synthesis of pyrazole derivatives and their evaluation as photosynthetic
electron transport inhibitors. J. Agric. Food Chem. 2004, 52, 1898−
1906.
structures of tetrahydropyridothienopyridinone and tetrahydropyrido-
thiopyranopyridinone derivatives. Russ. Chem. Bull., Int. Ed. 2003, 52,
969−977.
(90) Dotsenko, V. V.; Lebedeva, I. A.; Krivokolysko, S. G.;
Povstyanoi, M. V.; Povstyanoi, V. M.; Kostyrko, E. O. Reaction of
ethyl 4-aryl-6-bromomethyl-2-oxo-1,2,3,4-tetrahydro-pyrimidine-5-car-
boxylates with N-methylmorpholinium 3-cyano-1,4-dihydro- and 3-
cyano-1,4,5,6-tetrahydropyridine-2-thiolates. Chem. Heterocycl. Compd.
2012, 48, 462−469.
(91) Dotsenko, V. V.; Krivokolysko, S. G. The Mannich reaction in
the synthesis of N,S-containing heterocycles. 14. Unexpected
formation of thiazolo[3,2-a]pyridines in the aminoalkylation of N-
methylmorpholinium 4-aryl-3-cyano-6-oxo-1,4,5,6-tetrahydropyridine-
2-thiolates by isobutyraldehyde and primary amines. Chem. Heterocycl.
Compd. 2012, 48, 672−676.
(92) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P.
Aminomethylation of 1,2,3,4-tetrahydropyridine-6-thiolates: A novel
approach to synthesis of 3,7-diazabicyclo[3.3.1]nonane derivatives.
Chem. Heterocycl. Compd. 2005, 41, 1428−1429.
(75) Vicentini, C. B.; Guccione, S.; Giurato, L.; Ciaccio, R.; Mares,
D.; Forlani, G. Pyrazole derivatives as photosynthetic electron
transport inhibitors: new leads and structure−activity relationship. J.
Agric. Food Chem. 2005, 53, 3848−3855.
(76) Liu, S. Y.; Qian, X. H.; Chen, J.; Song, G. H. Novel fused
heterocycles: Synthesis and activity of 5,6-dihydro-7-thia-1,3,3a,5-
tetraazainden-4-one and 1-thia-3,4a,9-triazafluoren-4-one derivatives.
Monatsh. Chem. 2000, 131, 953−957.
(77) Aratani, M.; Hashimoto, M. Synthesis of 3-azacephalosporins. J.
Am. Chem. Soc. 1980, 102, 6171−6172.
(78) Farooq, S.; Streibert, H.-P. Imidazo- and pyrimido-1,3,5-
thiadiazin-4-ones. U.S. Patent 4,443,445 1984; www.espacenet.com.
(79) Farooq, S.; Streibert, H.-P. Imidazo- and pyrimido-1,3,5-
thiadiazin-4-ones. Great Britain Patent 2,106,513 1983; www.
espacenet.com.
(80) Farooq, S.; Streibert, H.-P. Imidazo- and pyrimido-1,3,5-
thiadiazin-4-ones. Swiss Patent CH654,002 1986. www.espacenet.com.
(81) Osolodkin, D. I.; Kozlovskaya, L. I.; Dueva, E. V.; Dotsenko, V.
V.; Rogova, Yu. V.; Frolov, K. A.; Krivokolysko, S. G.; Romanova, E.
G.; Morozov, A. S.; Karganova, G. G.; Palyulin, V. A.; Pentkovski, V.
M.; Zefirov, N. S. Inhibitors of tick-borne flavivirus reproduction from
structure-based virtual screening. ACS Med. Chem. Lett. 2013, 4, 869−
874.
(93) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. A double
Mannich-type reaction in the 1,4,5,6-tetrahydropyridine-2-thiolate
series:
A convenient approach to functionalized 3,7-
diazabicyclo[3.3.1]nonane derivatives. Monatsh. Chem. 2007, 138,
489−494.
(94) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. The
Mannich reaction in the synthesis of N,S-containing heterocycles. 8.
Aminomethylation of 3,5-dicyano-6-oxo-1,4,5,6-tetrahydropyridine-2-
thiolates as a method for the synthesis of new functionally substituted
3,7-diazabicyclo[3.3.1]nonane derivatives. Russ. Chem. Bull., Int. Ed.
2007, 56, 2482−2486.
(95) Rodrigues-Santos, C. E.; Echevarria, A. Convenient syntheses of
pyrazolo[3,4-b]pyridin-6-ones using either microwave or ultrasound
irradiation. Tetrahedron Lett. 2011, 52, 336−340.
(82) Dotsenko, V. V.; Krivokolysko, S. G.; Chernega, A. N.; Litvinov,
V. P. Synthesis and structure of pyrido[2,1-b][1,3,5]thiadiazine
derivatives. Doklady Chem. 2003, 389 (4−6), 92−96.
(83) Dotsenko, V. V.; Krivokolysko, S. G.; Litvinov, V. P. The
Mannich reaction in the synthesis of N,S-containing heterocycles. 11.
Synthesis of 3,3′-(1,4-phenylene)-bis(8-aryl-6-oxo-3,4,7,8-tetrahydro-
2H,6H-pyrido[2,1-b][1,3,5]thiadiazine-9-carbonitriles). Russ. Chem.
Bull., Int. Ed. 2012, 61, 131−135.
(84) Nesterov, V. N.; Krivokolysko, S. G.; Dyachenko, V. D.;
Dotsenko, V. V.; Litvinov, V. P. Synthesis, properties, and structures of
ammonium 4-aryl-5-cyano-2-oxo-1,2,3,4-tetrahydropyridine-6-thio-
lates. Russ. Chem. Bull., Int. Ed. 1997, 46, 990−996.
(85) Dyachenko, V. D.; Krivokolysko, S. G.; Litvinov, V. P. A new
method for the synthesis of N-methylmorpholinium 4-aryl-5-cyano-2-
oxo-1,2,3,4-tetrahydropyridine-6-thiolates and their properties. Russ.
Chem. Bull., Int. Ed. 1997, 46, 1758−1762.
(86) Krivokolysko, S. G.; Dyachenko, V. D.; Litvinov, V. P. N-
Methylmorpholinium 4-aryl-5-cyano-3-methoxycarbonyl-2-oxo-
1,2,3,4-tetrahydropyridine-6-thiolates: synthesis and properties. Russ.
Chem. Bull., Int. Ed. 2001, 49, 487−489.
(87) Krivokolysko, S. G.; Chernega, A. N.; Litvinov, V. P. Synthesis,
structure, and alkylation of N-methylmorpholinium 5-[2-cyanoethyl-1-
(4-hydroxy-3-methoxyphenyl)-2-thiocarbamoyl]-2,2-dimethyl-6-oxo-
1,3-dioxa-4-cyclohexen-4-olate. Chem. Heterocycl. Compd. 2002, 38,
1269−1275.
(88) Krivokolysko, S. G.; Dyachenko, V. D.; Litvinov, V. P. Synthesis
and alkylation of N-methylmorpholinium 5-cyano-4-(3- and 4-
hydroxyphenyl)-2-oxo-1,2,3,4-tetrahydropyridine-6-thiolates. Russ.
Chem. Bull., Int. Ed. 1999, 48, 2308−2311.
(89) Dotsenko, V. V.; Krivokolysko, S. G.; Chernega, A. N.; Litvinov,
V. P. Fused sulfur-containing pyridine systems. 1. Synthesis and
550
dx.doi.org/10.1021/co5000807 | ACS Comb. Sci. 2014, 16, 543−550
