Design, synthesis and preliminary biological evaluation of benzylsulfone coumarin derivatives as anti-cancer agents

Article abstract of DOI:10.3390/molecules24224034

In this work, a series of benzylsulfone coumarin derivatives 5a-5o were synthesized and characterized. Kinase inhibitory activity assay indicated that most of the compounds showed considerable activity against PI3K. Anti-tumor activity studies of the active compounds were also carried out in vitro on the Hela, HepG2, H1299, HCT-116, and MCF-7 tumor cell lines by MTS assay. The structure-activity relationships (SARs) of these compounds were analyzed in detail. Compound 5h exhibited the most potent activities against the mentioned cell lines with IC50 values ranging from 18.12 to 32.60 μM, followed by 5m with IC50 values of 29.30-42.14 μM. Furthermore, 5h and 5m clearly retarded the migration of Hela cells in vitro. Next, an in silico molecular docking study was conducted to evaluate the binding models of 5h and 5m towards PI3Kαand PI3Kβ. Collectively, the above findings suggested that compounds 5h and 5m might be promising PI3K inhibitors deserving further investigation for cancer treatment.

Full text of DOI:10.3390/molecules24224034

molecules
Article
Design, Synthesis and Preliminary Biological
Evaluation of Benzylsulfone Coumarin Derivatives as
Anti-Cancer Agents
Tao Wang 1,2, Tao Peng 2, Xiaoxue Wen 2, Gang Wang 2, Yunbo Sun 2, Shuchen Liu 2,*,
Shouguo Zhang 2,* and Lin Wang 1,2,
*
1
College of Life Science and Bio-engineering, Beijing University of Technology, Beijing 100124, China;
wt327159682@126.com
Beijing Institute of Radiation Medicine, Beijing 100850, China; peng-tao@sohu.com (T.P.);
crystalcat@vip.sina.com (X.W.); wgang85@126.com (G.W.); sunyunbo0919@126.com (Y.S.)
Correspondence: liusc118@sohu.com (S.L.); zhangshouguo1409@sina.com (S.Z.); wanglin@bmi.ac.cn or
wanglin07@sina.com (L.W.); Tel.: +86-010-6693-2239 (L.W.)
2
*
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: Jean Jacques Vanden Eynde, Annie Mayence and Tien L. Huang
Received: 11 October 2019; Accepted: 4 November 2019; Published: 7 November 2019
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: In this work, a series of benzylsulfone coumarin derivatives 5a
–
5o were synthesized
and characterized. Kinase inhibitory activity assay indicated that most of the compounds showed
considerable activity against PI3K. Anti-tumor activity studies of the active compounds were also
carried out in vitro on the Hela, HepG2, H1299, HCT-116, and MCF-7 tumor cell lines by MTS assay.
The structure–activity relationships (SARs) of these compounds were analyzed in detail. Compound
5h exhibited the most potent activities against the mentioned cell lines with IC50 values ranging
from 18.12 to 32.60
clearly retarded the migration of Hela cells in vitro. Next, an in silico molecular docking study was
conducted to evaluate the binding models of 5h and 5m towards PI3K and PI3K . Collectively, the
µM, followed by 5m with IC50 values of 29.30–42.14 µM. Furthermore, 5h and 5m
α
β
above findings suggested that compounds 5h and 5m might be promising PI3K inhibitors deserving
further investigation for cancer treatment.
Keywords: benzylsulfone; coumarins; phosphoinositide 3-kinase (PI3K); anticancer; cell migration;
molecular docking
1. Introduction
The phosphoinositide 3-kinase (PI3K) pathway, one of the most frequently altered pathways in
cancer, plays a momentous role in tumorigenesis and many other cellular processes [
its contributions to the regulation of cell growth, survival and metastasis, targeting major molecules
within this pathway represents a pivotal opportunity for cancer therapy [ ]. As one key effector
node, the intracellular lipid kinases PI3Ks have been studied thoroughly and validated as promising
anticancer targets over the last 30 years [ ]. Based on their structure and function, PI3K enzymes
can be divided into three classes, of which class I has been the most studied, with the subdivisions of
PI3K , PI3K , PI3K and PI3K 10 11]. PI3K and PI3K are universally expressed in all cells and
1–4]. Considering
5–7
8,9
α
β
γ
δ
[
,
α
β
tissues, whereas gamma and delta isoforms are exclusively enriched in immune cells [12,13].
In recent years, small molecule inhibitors of PI3K, including pan- and isoform-specific, are currently
being evaluated and have exhibited significant anti-tumor activities in laboratory and clinic, either
monotherapy or in combination with cytotoxic agents [14–16]. To our knowledge, pan-PI3K inhibitors
include but are not limited to buparlisib [17], pictilisib [18] and pilaralisib [19], targeting all isoforms.
Conversely, taselisib [20], alpelisib [21], and idelalisib [22] belong to isoform-specific inhibitors.
Molecules 2019, 24, 4034; doi:10.3390/molecules24224034
www.mdpi.com/journal/molecules

Molecules 2019, 24, 4034
2 of 16
Rigosertib (Figure 1), also known as Estybon and ON01910.Na, is a synthetic non-ATP competitive,
multi-kinase inhibitor and an anticancer agent developed by Onconova Therapeutics Inc. [23]. Studies
demonstrated that rigosertib evidently inhibited PI3K
1 and 10 in vitro, yet showed moderate inhibition of
100 M [24]. Furthermore, rigosertib induced cytotoxicity against varieties of tumor cell lines with IC50
α
and PI3Kβ isoforms between concentrations of
µM
γ
and isoforms at high concentrations above
δ
µ
(half maximal inhibitory concentration) values in the nanomolar ranges, while it rarely affects normal
cells [25]. Rigosertib is one of the (E)-styrylbenzylsulfones (I in Figure 1), the biological activity of which
is mainly dependent on the nature, position and number of the substituents on the two parent aromatic
rings [26]. In phase I/II/III trials, rigosertib has revealed significant therapeutic results patients with
solid tumors and hematological malignancies [27,28]. A phase III, open-label, randomized, controlled
study of “Rigosertib versus physician’s choice of treatment in MDS (myelodysplastic syndrome)
patients after failure of an HMA (hypomethylation agents)” is currently in the stage of recruiting
volunteers (registered as NCT02562443).
Figure 1. The design of the new benzylsulfone coumarins (II).
The coumarin (benzo-α-pyrone) skeleton, a common but important pharmacophore, can interact
noncovalently with various active sites, which brings about the various biological activities of coumarins
and their derivatives. Therefore, benzopyrone has been widely used as a structural subunit for the
discovery of anti-cancer agents [29–32].
In an attempt to pursue new antitumor agents with better anticancer activities and higher
selectivity, the target compounds were developed by molecular modification of the styrylbenzyl
sulfones structure (I in Figure 1). A non-classic bioisosteric strategy [33] was used to design
new sulfone structures by replacing styryl with a coumarin unit (Figure 1). Then, a series
of new coumarin substituted benzylsulfone derivatives (II in Figure 1) were synthesized and
assayed with the enzymatic activities against PI3Ks by ELISA, using rigosertib as a comparison.
Furthermore, their inhibitory activities against five cancer cell lines were evaluated by MTS
([3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium, inner
salt]) assay. The most active candidates 5h and 5m were also screened by wound-healing assay and
found to delay Hela cell migration clearly. In addition, the structure–activity relationships of the
synthesized compounds and possible enzyme binding modes of 5h and 5m were also illustrated.
2. Results and Discussion
2.1. Chemistry
The target compounds 5a
benzylchloride/bromide (1a 1j) as outlined in Scheme 1. The starting materials 1a

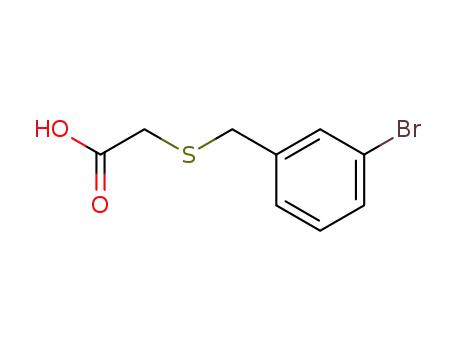

with mercaptoacetic acid in the presence of sodium hydroxide to give benzylmercaptoacetic acids
–
5o were synthesized via a three-step synthetic route from substituted
–
–
1j were treated

Molecules 2019, 24, 4034
3 of 16
2a
Finally, the target compounds (5a
with substituted salicylaldehydes (4a
–
2j
[
34], which were oxidized by 30% hydrogen peroxide to give benzylsulfonylacetic acids 3a
5o) were synthesized from knoevenagel reaction [36 37] of 3a
4c) in the presence of DCC (1,3-di-cyclohexylcarbodiimide) and
–
3j
[
35].
–
,
–
3j
–
DMAP (4-dimethylaminopyrid). All the target compounds were purified by recrystallization and their
structures were confirmed by 1H-NMR, 13C-NMR and HRMS spectra analysis.
1a: R1 = 2-F, X = Cl
1b: R1 = 3-F, X = Cl
1c: R1 = 4-F, X = Cl
1d: R1 = 2-Cl, X = Cl
1e: R1 = 2-Br, X = Br
1f: R1 = 3-Br, X = Br
1g: R1 = 4-Br, X = Br
2a, 3a: R1 = 2-F
2b, 3b: R1 = 3-F
2c, 3c: R1 = 4-F
2d, 3d: R1 = 2-Cl
2e, 3e: R1 = 2-Br
2f, 3f: R1 = 3-Br
2g, 3g: R1 = 4-Br
5d: R1 = 2-Cl, R2 = NO2
5e: R1 = 2-Br, R2 = NO2
5f: R1 = 2-F, R2 = NO2
5g: R1 = 3-F, R2 = NO2
5h: R1 = 4-F, R2 = NO2
5i: R1 = 2-CF3, R2 = NO2
5j: R1 = 2-F, R2 = Br
1h: R1 = 3-CH3, X= Cl 2h, 3h: R1 = 3-CH3
1i: R1 = 4-CH3, X = Cl 2i, 3i: R1 = 4-CH3
5k: R1 = 3-F, R2 = Br
5l: R1 = 3-CH3, R2 = Br
5m: R1 = 4-F, R2 = Br
5n: R1 = 2-Br, R2 = Br
5o: R1 = 3-Br, R2 = Br
1j: R1 = 2-CF3, X = Br
4a: R2 = H
2j, 3j: R1 = 2-CF3
5a: R1 = 4-CH3, R2 = H
5b: R1 = 4-Br, R2 = H
5c: R1 = 2-CF3, R2 = H
4b: R2 = NO2
4c: R2 = Br
Scheme 1. Reagents and conditions: (i) HSCH2COOH, NaOH, methanol, r.t., 1 h; (ii) H2O2, acetic acid,
40–45 ◦C, 4 h; (iii) DCC, DMAP, THF, r.t., 1 h.
2.2. Biological Evaluation
2.2.1. In vitro PI3K Inhibitory Assay
The 15 newly synthesized compounds 5a-5o were first evaluated for PI3K inhibitory activity in
cellular level by ELISA assay [38], using rigosertib as a comparison. Based on the results displayed
in Table 1, compounds 5h and 5m exhibited the most potent activities with inhibition rates of 50.3%
and 50.8% at concentration of 20 µM, respectively, which are comparable to that of rigosertib (53.2%).
At 10 µM, 5h and 5m also showed moderate inhibitory effects, comparable to rigosertib. These valuable
results suggested that 5h and 5m could be potent PI3K inhibitors and worthy of further investigation.
2.2.2. Cytotoxicity against Tumor Cells
To investigate the relationship between anticancer activity and PI3K inhibitory activity, the
cytotoxicity of these compounds was primarily screened and evaluated by MTS assay in vitro according
to the method of Munikrishnappa [39], working with five cancer cell lines (human cervical carcinoma
cell line Hela, human liver carcinoma cell line HepG2, human non-small cell lung cancer cell line
H1299, human colorectal cancer cell line HCT-116, and human breast carcinoma cell line MCF-7), and
rigosertib was used as a reference compound. The in vitro antiproliferative activities are summarized

Molecules 2019, 24, 4034
4 of 16
and presented in Table 2. Each IC50 (mean
±
SD) has been derived from at least three experiments
in duplicate. From the recorded IC50 values, it was clear that all of the tested compounds showed
favorable antitumor activities in low micromolar ranges. In addition, each active compound revealed
better activities against Hela and HepG2 when compared to those against other tumor cells. Notably,
compounds 5h and 5m exhibited remarkable antitumor activities with IC50 values of 18.1–32.6
and 29.3–42.1 M, respectively. Furthermore, 5h was the most effective compound against HepG2
and MCF-7, scoring IC50 values of 18.1 M and 20.5 M. Nevertheless, other derivatives exhibited
µM
µ
µ
µ
only moderate activity against H1299 and HCT-116.The analysis results of antiproliferation activities
against tumor cell lines of 5h and 5m were in accordance with those of their PI3K inhibitory activities,
which suggested that the potent anticancer activities of 5h and 5m were likely related to their PI3K
inhibitory activities.
Table 1. The PI3K inhibitory activity of compounds 5a-5o.
Inhibition Rates (%)
Compound
20 µM
10 µM
Rigosertib
53.2 ± 3.7
39.0 ± 5.1
45.9 ± 6.7
37.9 ± 7.5
36.4 ± 0.4
36.8 ± 4.1
47.0 ± 1.4
43.9 ± 3.4
50.3 ± 4.8
46.8 ± 4.4
37.7 ± 4.5
42.8 ± 2.4
47.0 ± 5.7
50.8 ± 7.0
46.3 ± 6.3
38.8 ± 7.7
40.9 ± 4.4
28.8 ± 3.4
26.4 ± 4.1
25.1 ± 3.1
18.7 ± 3.8
23.4 ± 4.5
31.7 ± 5.7
23.4 ± 4.7
38.0 ± 6.0
20.0 ± 4.0
25.5 ± 1.9
22.8 ± 6.1
24.1 ± 5.0
40.3 ± 4.4
23.7 ± 4.5
27.2 ± 3.5
5a
5b
5c
5d
5e
5f
5g
5h
5i
5j
5k
5l
5m
5n
5o
Table 2. Cytotoxicity of compounds 5a-5o against five cancer cell lines.
IC50 (µM)
Compound
Hela
HepG2
H1299
HCT-116
MCF-7
5a
5b
5c
5d
5e
5f
5g
5h
5i
5j
5k
5l
5m
41.0 ± 4.5
39.5 ± 2.2
39.9 ± 0.9
48.3 ± 4.3
51.8 ± 1.9
32.2 ± 0.7
41.4 ± 2.9
24.3 ± 2.8
37.5 ± 1.5
24.6 ± 1.0
35.9 ± 2.1
22.6 ± 1.8
29.7 ± 2.1
33.8 ± 5.6
44.3 ± 4.3
0.01 ± 0
43.0 ± 3.3
36.8 ± 1.1
36.8 ± 3.1
33.2 ± 4.3
23.6 ± 2.4
29.6 ± 1.9
37.6 ± 3.7
18.1 ± 0.6
32.9 ± 4.1
31.1 ± 3.3
54.4 ± 1.4
49.9 ± 1.5
30.6 ± 4.3
58.9 ± 2.1
41.9 ± 2.7
0.05 ± 0.01
71.8 ± 5.7
54.3 ± 1.0
81.7 ± 5.5
56.9 ± 1.0
38.0 ± 1.8
40.5 ± 2.1
46.3 ± 2.2
29.6 ± 0.7
32.9 ± 0.8
50.2 ± 2.8
63.9 ± 2.2
62.6 ± 2.2
31.5 ± 1.1
81.9 ± 4.6
70.8 ± 7.2
0.14 ± 0.02
83.9 ± 1.3
65.8 ± 2.0
33.5 ± 0.3
56.6 ± 1.4
44.7 ± 0.9
30.6 ± 1.4
38.8 ± 1.8
32.6 ± 0.9
53.7 ± 1.4
41.8 ± 0.2
>100
46.3 ± 1.0
42.1 ± 1.3
50.6 ± 1.4
54.7 ± 0.6
2.36 ± 0.21
56.1 ± 0.7
32.9 ± 1.9
>100
41.0 ± 0.4
39.9 ± 1.7
35.5 ± 0.9
41.1 ± 1.2
20.5 ± 0.8
36.6 ± 0.8
24.6 ± 1.7
54.5 ± 4.3
50.7 ± 4.1
29.3 ± 1.8
69.5 ± 2.5
82.3 ± 5.4
0.83 ± 0.08
5n
5o
Regosertib
From the above data, some interesting structure–activity relationships can be observed: (i) the
nature of substituent on the R2 position seemed to play an important role for the cytotoxic activity: nitro

Molecules 2019, 24, 4034
5 of 16
group > bromine atom > hydrogen atom. For example, in the case of the HepG2 cell line, compounds
5g and 5h, which linked with the nitro group, displayed better anticancer activities compared to 5k and
5m, which linked with the bromine atom; (ii) the different mono-substituents R1 of the benzyl group
showed different effects on the anti-tumor activity: fluorine atom (5f) > bromine atom (5e) > chlorine
atom (5d); (iii) moreover, the positions of R1 also had an evident effect on the activity: para-substitution
(5h) > ortho-substitution (5f) > meta-substitution (5g). In short, when R1 was para-fluorine and R2
was the nitro group, compound (5h) showed the best antitumor activity.
2.2.3. Wound-Healing Assays of 5h and 5m
Wound-healing assays are some of the earliest and most common techniques to study collective
cell migration in vitro due to their simplicity and ability to mimic cell migration during wound healing
in vivo [40,41]. The conventional scratch assay is commonly used to measure cell repair rate and
provides a simple method to study the directional cell migration in vitro [42,43].
Compounds 5h and 5m, with the most potent antitumor activity, were further assessed to
determine their inhibitory effects on cell migration. Migration of Hela cells was observed at 12 and
24 h after wounding (Figure 2). Hela cells treated with different concentrations of 5h and 5m (10
µM
and 5 M) showed different migration rates (Table 2). In the presence of 5h and 5m, the wound closure
µ
rate of Hela cells was much lower compared to the control group, which suggested that 5h and 5m
could obviously retard and inhibit Hela cell migration in vitro.
Figure 2. Images from a scratch assay experiment at different time points (0 h, 12 h, 24 h) and the cell
migration process of Hela cells in response to different concentration of 5h and 5m.
2.3. Molecular Docking Studies of 5h and 5m
Docking studies for the synthesized compounds 5h and 5m, which showed the most potent
inhibitory activity against PI3K, were carried out using the AutoDock 4.2.6 protocol in order to show
their binding modes and suggest the possible mechanism of their antiproliferative activity. As PI3K
proteins were extracted from Hela cells, PI3K
cells [12,13], became the focus of this study.
α and PI3Kβ, which are universally expressed in all
First of all, the validation of the docking protocol was done by re-docking the native ligand into the
active sites of PI3K (PDB ID: 3HHM [44]) and PI3K (PDB ID: 2Y3A [45]) with the root-mean-square
α
β
deviations (RMSD) of 0.78 Å and 0.80 Å, respectively (Figure 3). These lower values of RMSD
represented the reliability and accuracy of the docking procedure in reproducing the experimentally
observed results. Results of the Gibbs free energies (∆G values) of 5h and 5m with PI3Kα and PI3Kβ
are summarized in Table 3, which reveal a rough correlation between their binding free energy and
their activity.

Molecules 2019, 24, 4034
6 of 16
(A)
(B)
Figure 3. Native ligand (yellow) overlap with its best docked pose (black) in a re-docking protocol.
) Native ligand of PI3K overlap with its best docked pose; ( ) Native ligand of PI3K overlap with
its best docked pose.
(A
α
B
β
Table 3. The inhibitory effect of compounds 5h and 5m on cell migration.
Wound Closure (%) a
Compound
12 h
24 h
Control
5h (10 µM)
5h (5 µM)
5m (10 µM)
5m (5 µM)
10.3 ± 2.8
4.2 ± 1.1 **
5.1 ± 1.1 **
3.1 ± 1.0 **
3.9 ± 6.6 **
19.5 ± 4.5
9.9 ± 1.5 **
14.4 ± 3.9 **
8.2 ± 1.6 **
9.1 ± 1.1 **
a
Data were expressed as the mean
±
SD (n = 30) and analyzed using t-test with significance defined as ** p < 0.01.
2.3.1. Binding Modes of Different Compounds with PI3Kα (3HHM)
Figures 4–6 demonstrate compounds rigosertib, 5h, and 5m docking into the binding site of
PI3K
acid residues such as LYS802, VAL851, ILE932 and ILE848 at its active site. In particular, compound 5h
showed the lowest binding free energy of 8.47 kcal/mole, as compared to rigosertib and 5m (Table 4).
The binding model of compound 5h into PI3K revealed several molecular interactions thought to
α. Docking results showed that the tested compounds formed interactions with the key amino
−
α
be responsible for the observed affinity: (i) two hydrogen bond interactions between the two oxygen
atoms of the sulfonyl group and VAL851 and SER854; (ii) pi–alkyl and pi–sigma interactions between
the benzopyrone ring and ILE932 and ILE848; and (iii) other weak interactions, including C–H bonds,
and Van der Waals.
Figure 4. A 2D model of the interaction between rigosertib with the active site of PI3Kα.

Molecules 2019, 24, 4034
7 of 16
Figure 5. A 2D model of the interaction between compound 5h with the active site of PI3Kα.
Figure 6. A 2D model of the interaction between compound 5m with the active site of PI3Kα.

Molecules 2019, 24, 4034
8 of 16
Table 4. Binding energies of compounds 5h and 5m with the PI3Kα and PI3Kβ enzymes.
Compound
Chemical Structure
4G (PI3Kα) Kcal/mole
−7.19
4G(PI3Kβ) Kcal/mole
Rigosertib
−7.26
5h
−8.47
−7.01
−7.74
5m
−7.28
Rigosertib and 5m formed more hydrogen bonds with PI3K
α
than 5h, five and four respectively.
Nevertheless, both rigosertib and 5m showed higher binding free energies of
−
7.19 and 7.01. This might
−
be due to the formation of more efficacious hydrogen bonds with the active site. Furthermore, compared
with the binding model of rigosertib and 5m (Figure 4), compound 5h interacted additionally with
SER854. Thus, it seemed that SER854 played a vital role in the binding affinity of the ligand.
2.3.2. Binding Modes of Different Compounds with PI3Kβ (2Y3A)
Figures 7–9 demonstrate compounds rigosertib, 5h, and 5m docking into the binding site of PI3K
β.
Similarly, compound 5h showed the lowest binding energy of 7.74. Some molecular interactions in
−
Figure 8 were considered to be responsible for the observed affinity: (i) five hydrogen bond interactions
between the ligand and LYS799, TYR833, TRP781 and SER851; (ii) pi–alkyl and pi–sigma interactions
between aromatic rings and ILE797, ILE930, ILE845, MET920 and VAL847; and (iii) other weak
interactions, including pi–anion, pi–pi T shaped bonds and Van der Waals.
Figure 7. A 2D model of the interaction between rigosertib with the active site of PI3Kβ.

Molecules 2019, 24, 4034
9 of 16
Figure 8. A 2D model of the interaction between compound 5h with the active site of PI3Kβ.
Figure 9. A 2D model of the interaction between compound 5m with the active site of PI3Kβ.
With five hydrogen bond interactions between the ligand and PI3Kβ, rigosertib displayed higher
binding energy of 7.26, which is an interesting phenomenon worthy of serious consideration. Finally,
−
it was observed that compound 5h showed additional bindings to TYR833 and SER851 through
hydrogen bond interactions. Another strange example was compound 5m. There were no hydrogen
bond interactions between 5m and PI3Kβ, but 5m exhibited binding energy value comparable to that
of rigosertib. The halogen interactions, and pi–alkyl and pi–sigma interactions might contribute to this
observed affinity.

Molecules 2019, 24, 4034
10 of 16
The nice binding models of compound 5h and 5m with PI3K were consistent with the kinase
assay data, which indicated that 5h and 5m might be potent PI3K inhibitors, especially targeting PI3K
and PI3Kβ.
α
3. Materials and Methods
3.1. Chemistry
All the reagents and solvents were obtained from commercial suppliers (Beijing Innochem
Technology Co., Ltd, Beijing, China) and used without further purification, unless otherwise stated.
Rigosertib was synthesized and characterized by our research group using the reported method [26].
Reactions were monitored by thin layer chromatography (TLC) on pre-coated silica gel F254 plates with
a UV indicator. Melting points were determined on a Uniscience Melting Point apparatus and were
1
uncorrected. H-NMR and 13C-NMR spectra were obtained with a Bruker AM 400 and AM 500 MHz
spectrometer (Palo Alto, CA, USA). Mass spectral data were obtained using electron spray ionization
on a Micromass ZabSpec high-resolution mass spectrometer (Karlsruhe, Germany). The chemical shifts
are reported in parts per million (δ) downfield using tetramethysilane (Me4Si) as the internal standard.
Spin multiplicities are given as s (singlet), d (doublet), m (multiplet) and q (quartet). Coupling constants
(J values) were measured in hertz (Hz).
Note: Only the synthesis and characterization of target compounds are presented in this article.
The intermediates mentioned in Scheme 1 are described in the Supplementary Materials.
Synthesis of The Target Compounds (5a–5o)
3-[(4-Methylbenzyl)sulfonyl]-2H-chromen-2-one
(5a).
To
an
ice-cold
solution
of
2-[(4-methylbenzyl)sulfonyl]acetic acid (3i) (0.98 g, 4.3 mmol, 1.0 eq.) in THF was added
salicylaldehyde (4a) (0.55 g, 4.5 mmol, 1.05 eq.), DCC (0.97 g, 4.7 mmol, 1.1 eq.) and DMAP (0.05 g,
0.4 mmol, 0.1 eq.). Stirring was continued at room temperature for 1h, after which time TLC showed
the completion of reaction. The precipitate was filtered and the filtrate was concentrated in vacuo
almost to dryness, then 50 mL ethyl acetate was added. The transparent solution was washed with
dilute hydrochloric acid (20 mL
sulfate. The dried solution was concentrated to get the crude product, which was recrystallized in
ethyl acetate to give a white product. Yield 37%, white solid; m.p. 168–170 ◦C; 1H-NMR (400 MHz,
×
4) and saturated brine (20 mL
×
2) and dried with anhydrous sodium
DMSO-d6)
δ: 2.25 (s, 3H, -CH3), 4.78 (s, 2H), 7.18 (dd, 4H, J = 8.0 Hz, Ar-H), 7.46 (t, 1H, J = 7.2 Hz,
Ar-H), 7.56 (d, 1H, J = 8.4 Hz, Ar-H), 7.83 (t, 1H, J = 8.4 Hz, Ar-H), 8.01 (d, 1H, J = 7.8 Hz, Ar-H), 8.75
(s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
δ: 21.2, 58.7, 117.1, 117.7, 125.0, 125.8, 125.9, 129.7,
131.3, 131.6, 136.1, 138.7, 149.8, 155.2, 156.3. HRMS-ESI (m/z): calcd. for C17H14O4S [M + H]+ 315.0691,
found: 315.0688.
3-[(4-Bromobenzyl)sulfonyl]-2H-chromen-2-one (5b). Yield 39%, white solid; m.p. 213–214 ◦C; 1H-NMR
(400 MHz, DMSO-d6)
δ: 4.84 (s, 2H, -CH2-), 7.29 (d, 4H, J = 8.4 Hz, Ar-H), 7.47 (t, 1H, J = 7.2 Hz, Ar-H),
7.55–7.59 (m, 2H, Ar-H), 7.83 (t, 1H, J = 7.6 Hz, Ar-H), 8.02 (d, 1H, J = 7.8 Hz, Ar-H), 8.78 (s, 1H, =CH-).
13C-NMR (125 MHz, DMSO-d6)
δ: 58.4, 117.0, 117.7, 122.8, 125.6, 126.0, 127.6, 131.7, 132.1, 133.7, 136.2,
150.1, 155.3, 156.2. HRMS-ESI (m/z): calcd. for C16H11BrO4S [M + H]+ 378.9640, found: 378.9634.
3-{[2-(Trifluoromethyl)benzyl]sulfonyl}-2H-chromen-2-one (5c). Yield 37%, pale yellow solid; m.p.
172–174 ◦C. 1H-NMR (400 MHz, DMSO-d6)
δ
: 5.02 (s, 2H, -CH2-), 7.48 (t, 1H, J = 7.6 Hz, Ar-H), 7.57 (d,
1H, Ar-H), 7.63 (t, 1H, J = 7.2 Hz, Ar-H), 7.70-7.75 (m, 2H, Ar-H), 7.80-7.87 (m, 2H, Ar-H), 8.06 (d, 1H,
J = 7.8 Hz, Ar-H), 8. 87 (s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 55.9, 117.0, 117.9, 125.5, 125.9,
δ
126.6, 127.1 (q, J = 5 Hz), 129.3, 129.6, 130.0, 131.8, 133.0, 134.9, 136.2, 149.8, 155.3, 156.3. HRMS-ESI
(m/z): calcd. for C17H11F3O4S [M + H]+ 369.0408, found: 369.0403.
3-[(2-Chlorobenzyl)sulfonyl]-6-nitro-2H-chromen-2-one (5d). Yield 7%, pale yellow solid; m.p. 258.5–260 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ: 5.01 (s, 2H, -CH2-), 7.40–7.43 (m, 2H, Ar-H), 7.50 (d, 1H, J = 2.0 Hz,

Molecules 2019, 24, 4034
11 of 16
Ar-H), 7.57 (d, 1H, J = 2.4 Hz, Ar-H), 7.79 (d, 1H, J = 8.8 Hz, Ar-H), 8.59 (d, 1H, J1 = 2.8 Hz, J2 = 9.2 Hz,
Ar-H), 8.99 (s, 1H, =CH-), 9.04 (d, 1H, J = 2.8 Hz, Ar-H). 13C-NMR (125 MHz, DMSO-d6)
: 56.5, 118.2,
δ
118.7, 126.2, 127.4, 128.0, 128.3, 130.2, 131.3, 134.5, 135.0, 144.5, 149.1, 155.5, 158.7. HRMS-ESI (m/z):
calcd. for C16H10ClNO6S [M + Na]+ 401.9815, found: 401.9813.
3-[(2-Bromobenzyl)sulfonyl]-6-nitro-2H-chromen-2-one (5e). Yield 13%, yellow solid; m.p. 252–254 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ: 5.01 (s, 2H, -CH2-), 7.34 (t, 1H, J = 8.0 Hz), 7.44 (t, 1H, J = 7.6 Hz,
Ar-H), 7.56 (d, 1H, J = 7.6 Hz, Ar-H), 7.67 (d, 1H, J = 7.6 Hz, Ar-H), 7.79 (d, 1H, J = 9.2 Hz, Ar-H), 8.60
(d, 1H, J1 = 2.8 Hz, J2 = 9.0 Hz, Ar-H), 8.99 (s, 1H, =CH-), 9.05 (d, 1H, J = 2.8 Hz). 13C-NMR (125 MHz,
DMSO-d6) δ: 58.9, 118.3, 118.7, 125.8, 127.4, 128.0, 128.3, 128.5, 130.2, 131.5, 133.5, 134.5, 144.5, 149.1,
155.5, 158.8. HRMS-ESI (m/z): calcd. for C16H10BrNO6S [M + Na]+ 445.9310, found: 445.9309.
3-[(2-Fluorobenzyl)sulfonyl]-6-nitro-2H-chromen-2-one (5f). Yield 17%, yellow solid; m.p. 257–259 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.90 (s, 2H, -CH2-), 7.24 (d, 2H, J = 7.2 Hz, Ar-H), 7.43 (t, 1H, Ar-H),
7.49 (t, 1H, Ar-H), 7.79 (d, 1H, J = 9.2 Hz, Ar-H), 8.60 (d, 1H, J1 = 2.8 Hz, J2 = 9.2 Hz, Ar-H), 8.98 (s, 1H,
=CH-), 9.03 (d, 1H, J = 2.8 Hz, Ar-H). 13C-NMR (125 MHz, DMSO-d6)
: 52.9, 115.2 (d, J = 15 Hz), 116.1
δ
(d, J = 21 Hz), 118.2, 118.7, 125.3 (d, J = 3 Hz), 127.4, 127.9, 130.2, 131.9 (d, J = 8 Hz), 134.1 (d, J = 3 Hz),
144.5, 149.1, 155.4, 158.7, 161.5 (d, J = 246 Hz). HRMS-ESI (m/z): calcd. for C16H10FNO6S [M + H]+
364.0291, found: 364.0290.
3-[(3-Fluorobenzyl)sulfonyl]-6-nitro-2H-chromen-2-one (5g). Yield 23%, yellow solid; m.p. 232–233 ◦C;
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.89 (s, 2H, -CH2-), 7.19–7.26 (q, 3H, Ar-H), 7.39–7.45 (q, 1H, Ar-H),
7.78 (d, 1H, J = 9.2 Hz, Ar-H), 8.59 (d, 1H, J1 = 2.8 Hz, J2 = 9.2 Hz, Ar-H), 9.00 (s, 1H, =CH-), 9.03
(d, 1H, J = 2.8 Hz, Ar-H). 13C-NMR (125 MHz, DMSO-d6)
: 58.6, 116.2, 116.4, 118.3 (d, J = 16 Hz),
δ
118.6 (d, J = 18 Hz), 127.4, 127.8, 127.9 (d, J = 3 Hz), 130.1, 130.3 (d, J = 9 Hz), 131.1 (d, J = 9 Hz), 144.5,
149.2, 155.5, 158.7, 162.4 (d, J = 243 Hz). HRMS-ESI (m/z): calcd. for C16H10FNO6S [M + Na]+ 386.0111,
found: 386.0116.
3-[(4-Fluorobenzyl)sulfonyl]-6-nitro-2H-chromen-2-one (5h). Yield 28%, yellow solid; m.p. 258.5–260 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.85 (s, 2H, -CH2-), 7.22 (t, 2H, J = 8.8 Hz, Ar-H), 7.42 (t, 2H, J = 7.0 Hz,
Ar-H), 7.80 (d, 1H, J = 9.2 Hz, Ar-H), 8.59 (d, 1H, J1 = 2.4 Hz, J2 = 9.2 Hz, Ar-H), 8.97 (s, 1H, =CH-),
9.03 (d, 1H, J = 2.8 Hz, Ar-H). 13C-NMR (125 MHz, DMSO-d6)
: 58.3, 116.1 (d, J = 21 Hz), 118.2, 118.6,
δ
124.0 (d, J = 3 Hz), 127.4, 127.8, 130.1, 133.8 (d, J = 9 Hz), 144.5, 149.1, 155.5, 158.5, 163.0 (d, J = 244 Hz).
HRMS-ESI (m/z): calcd. for C16H10FNO6S [M + Na]+ 386.0111, found: 386.0109.
6-Nitro-3-{[2-(trifluoromethyl)benzyl]sulfonyl}-2H-chromen-2-one (5i). Yield 21%, pale yellow solid; m.p.
255–256 ◦C. 1H-NMR (400 MHz, DMSO-d6)
δ
: 4.98 (s, 2H, -CH2-), 7.59–7.65 (t, 1H, Ar-H), 7.69–7.72 (t,
2H, Ar-H), 7.74–7.81 (q, 2H, Ar-H), 8.57 (d, 1H, J1 = 2.8 Hz, J2 = 9.2 Hz, Ar-H), 9.04 (s, 1H, Ar-H), 9.03
(s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 56.1, 118.4, 118.6, 125.6, 125.5, 127.1 (q, J = 6 Hz),
δ
127.4, 128.7, 129.5 (q, J = 30 Hz), 130.0, 130.1, 133.1, 134.9, 144.5, 148.9, 155.5, 158.8. HRMS-ESI (m/z):
calcd. for C17H10F3NO6S [M + Na]+ 436.0079, found: 436.0076.
6-Bromo-3-[(2-fluorobenzyl)sulfonyl]-2H-chromen-2-one
223–224 ◦C.1H-NMR (400 MHz, DMSO-d6)
: 4.89 (s, 2H, -CH2-), 7.19–7.26 (q, 2H, Ar-H), 7.40–7.50
(m, 2H, Ar-H), 7.55 (d, 1H, J = 8.9 Hz, Ar-H), 7.99 (d, 1H, J1 = 2.2 Hz, J2 = 8.6 Hz, Ar-H), 8.28 (d, 1H,
J = 2.2 Hz, Ar-H), 8.73 (s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 52.8, 115.4 (d, J = 15 Hz), 116.0,
(
5j).
Yield 37%, white solid; m.p.
δ
δ
116.1, 117.4, 119.4 (d, J = 26 Hz), 125.2 (d, J = 3 Hz), 126.9, 131.8 (d, J = 8 Hz), 133.4, 134.1 (d, J = 3 Hz),
138.4, 148.8, 154.4, 155.7, 161.5 (d, J = 246 Hz). HRMS-ESI (m/z): calcd. for C16H10BrFO4S [M + H]+
398.9525, found: 398.9523.
6-Bromo-3-[(3-fluorobenzyl)sulfonyl]-2H-chromen-2-one (5k). Yield 20%, white solid; m.p. 233–235 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.87 (s, 2H, -CH2-), 7.16–7.24 (m, 3H, Ar-H), 7.38–7.43 (m, 1H, Ar-H),
7.54 (d, 1H, J = 8.8 Hz, Ar-H), 7.98 (d, 1H, J1 = 2.4 Hz, J2 = 8.9 Hz, Ar-H), 8.28 (d, 1H, J = 2.4 Hz,
Ar-H), 8.75 (s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 58.6, 116.2 (d, J = 20 Hz), 117.4, 118.3 (d,
δ

Molecules 2019, 24, 4034
12 of 16
J = 21 Hz), 119.32, 119.58, 126.9, 127.8 (d, J = 3 Hz), 130.5 (d, J = 8 Hz), 131.1 (d, J = 9 Hz), 133.4, 138.3,
148.8, 154.4, 155.8, 162.3 (d, J = 243 Hz). HRMS-ESI (m/z): calcd. for C16H10BrFO4S [M + H]+ 398.9525,
found: 398.9520.
6-Bromo-3-[(3-methylbenzyl)sulfonyl]-2H-chromen-2-one (5l). Yield 46%, white solid; m.p. 206–207 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ: 2.75 (s, 3H, -CH3), 4.77 (s, 2H, -CH2-), 7.11 (d, 1H, J = 7.6 Hz, Ar-H),
7.16 (s, 1H, Ar-H), 7.18 (s, 1H, Ar-H), 7.25 (t, 1H, J = 7.8 Hz, Ar-H), 7.54 (d, 1H, J = 8.8 Hz, Ar-H), 7.98
(d, 1H, J1 = 2.4 Hz, J2 = 8.8 Hz, Ar-H), 8.28 (d, 1H, J = 2.4 Hz, Ar-H), 8.74 (s, 1H, =CH-). 13C-NMR
(125 MHz, DMSO-d6) δ: 21.3, 59.0, 117.4, 119.3, 119.6, 127.1, 127.6, 128.6, 129.0, 130.0, 132.2, 133.3, 138.2,
138.3, 148.6, 154.3, 155.9. HRMS-ESI (m/z): calcd. for C17H13BrO4S [M + H]+ 394.9776, found: 394.9772.
6-Bromo-3-[(4-fluorobenzyl)sulfonyl]-2H-chromen-2-one (5m). Yield 49%, white solid; m.p. 224–225 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.83 (s, 2H), 7.18–7.23 (t, 2H, Ar-H), 7.37–7.41 (t, 2H, Ar-H), 7.54 (t,
1H, J = 8.8 Hz, Ar-H), 7.98 (d, 1H, J1 = 2.4 Hz, J2 = 8.8 Hz, Ar-H), 8.28 (d, 1H, J = 2.4 Hz, Ar-H), 8.73 (d,
1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 58.2, 116.1 (d, J = 21 Hz), 117.4, 119.3, 119.6, 124.2 (d,
δ
J = 3 Hz), 126.9, 133.4, 133.7 (d, J = 8 Hz), 138.3, 148.8, 154.3, 155.9, 162.9 (d, J = 244 Hz). HRMS-ESI
(m/z): calcd. for C16H10BrFO4S [M + H]+ 396.9545, found: 396.9538.
6-Bromo-3-[(2-bromobenzyl)sulfonyl]-2H-chromen-2-one (5n). Yield 27%, white solid; m.p. 233–234 ◦C. 1H
-NMR (400 MHz, DMSO-d6)
Ar-H), 7.52–7.56 (t, 2H, Ar-H), 7.66 (d, 1H, J = 8.0 Hz, Ar-H), 7.99 (d, 1H, J1 = 2.4 Hz, J2 = 8.8 Hz, Ar-H),
8.29 (d, 1H, J = 2.4 Hz, Ar-H), 8.75 (s, 1H, =CH-). 13C-NMR (125 MHz, DMSO-d6)
: 58.8, 117.3, 119.3,
δ: 5.0 (s, 2H, -CH2-), 7.33 (t, 1H, J = 7.6 Hz, Ar-H), 7.43 (t, 1H, J = 7.6 Hz,
δ
119.7, 125.8, 127.4, 128.1, 128.5, 131.4, 133.4, 133.4, 134.5, 138.3, 148.8, 154.4, 155.8. HRMS-ESI (m/z):
calcd. for C16H10Br2O4S [M + H]+ 458.8724, found: 458.8718.
6-Bromo-3-[(3-bromobenzyl)sulfonyl]-2H-chromen-2-one (5o). Yield 19%, white solid; m.p. 235–236 ◦C.
1H-NMR (400 MHz, DMSO-d6)
δ
: 4.86 (s, 2H, -CH2-), 7.33 (s, 1H, Ar-H), 7.34 (s, 1H, Ar-H), 7.53–7.59
(m, 3H, Ar-H), 7.99 (d, 1H, J1 = 2.4 Hz, J2 = 8.8 Hz, Ar-H), 8.29 (d, 1H, J = 2.4 Hz, Ar-H), 8.77 (s, 1H,
=CH-). 13C-NMR (125 MHz, DMSO-d6)
δ: 58.4, 117.4, 119.3, 119.6, 122.1, 126.9, 130.5, 130.7, 131.2, 132.1,
133.4, 134.3, 138.3, 148.9, 154.4, 155.8. HRMS-ESI (m/z): calcd. for C16H10Br2O4S [M + H]+ 458.8724,
found: 458.8718.
3.2. Biological Evaluation
3.2.1. PI3K Inhibitory Activity Assay
The PI3K inhibitory activity assay was performed as described in the literature [36]. The ELISA kit
for PI3K (purchased from Shanghai Biological Technology Inc., Shanghai, China) was used according to
the manufacturer’s instructions. Hela cells were incubated with DMSO (vehicle control) and different
concentrations (10 µM and 20 µM) of rigosertib, and compounds 5h and 5m, for 12 h separately. Total
cell lysates were immunoprecipitated with anti-PI3K antibody, and PI3K activity was assessed by
ELISA. Finally, the kinase assay was detected at 450 nm with microplate reader and the inhibition rate
was calculated using the following equation [46].
Inhibition rate (%) = (ODnegative control − ODcompounds)/(ODnegative control − ODblank) × 100%.
3.2.2. Cytotoxic Activity Assays
Four cell lines (Hela, HepG2, H1299 and MCF-7) were cultured using Dulbecco’s Modified Eagle’s
medium (DMEM), and HCT-116 was cultured in RPMI1640 medium. Both media were supplemented
with 10% FBS (fetal bovine serum) and 1% penicillin and streptomycin (v/v). Tumor cells were seeded
in 96-well tissue culture plates at a density of 4000–6000 cells/mL at 37 ◦C in a humidified, 5% CO2

Molecules 2019, 24, 4034
13 of 16
atmosphere for 24 h. Then pre-set concentrations of tested compounds were added into 3 wells.
After 48 h of incubation, the supernatant was replaced by fresh medium (100 L/well), and 10
µ
µL
MTS reagent (some tetrazolium inner salt) was added to each well. After another 2 h of incubation at
37 ◦C, the optical density was measured at a wavelength of 492 nm on an ELISA microplate reader.
The inhibition rates were calculated by the formula in Section 3.2.1. Next, IC50 values for the tested
compounds on each cell line were calculated by nonlinear regression analysis using IBM SPSS Statistics
v20.0 (IBM-SPSS, Chicago, IL, USA).
3.2.3. Wound Healing Assays
First, 6-well culture plates with markers on the outside bottom of the plates were used as reference
points during image acquisition. Then, Hela cells were seeded into plates at a density of 1–1.3
per well in DMEM medium with 10% FBS. After the cells formed a 100% confluent monolayer, a 20-
×
106
µL
pipette tip was used to generate a wound by manually scraping, which was vertical to the parallel line
marked on the plates. The cells were washed thrice with 1 mL of PBS to remove the cell debris from
scratches. Next, 2 mL of DMEM with 1% FBS or 2 mL DMEM with 1% FBS and certain concentrations
of the tested compounds (10 µM and 5 µM) were added to each well.
Images were obtained using an Olympus IX71 microscope (Olympus, Richmond Hill, ON, Canada)
with 10 objective lenses based on the markers, which was in favor of comparing images of each
×
sample at different time points. The wound area was quantified by Image-Pro Plus 6.0 software (Media
Cybernetics, Silver Spring, MD, USA). The migration of cells toward the wounds was displayed as a
percentage of wound closure: wound closure (%) = [(At = 0 h
is the area of the wound measured immediately after scratching, and At = ∆ h is the area measured 12
or 24 h later [47].
−
At = ∆ h)/At = 0 h
]
×
100%, where, At = 0 h
3.2.4. Molecular Docking Studies
Molecular docking of compounds 5h and 5m into the three-dimensional X-ray structures of PI3K
α
(PDB code: 3HHM) and PI3K (PDB code: (2Y3A) was carried out using AutoDock (version 4.2.6).
β
The three-dimensional structures of compounds 5h and 5m were built using ChemBio 3D Ultra 12.0
software (Cambridge Soft Corporation, USA (2009)), which were then energetically minimized by
using MMFF94. The protein crystal structures of PI3Kα and PI3Kβ were retrieved from the RCSB
Protein Data Bank (http://www.rcsb.org). All ligands and bound waters were eliminated from the
protein and the polar hydrogen was added. Docking parameters were set to default values, but only
the generated conformations for each ligand were increased to 100. All docked poses of 5h and 5m
were clustered using a tolerance of 2 Å for RMSD and were ranked in light of the binding docking
energies. The desired conformation with lowest energy in the most populated cluster was selected for
the following study. Discovery Studio 2017 R2 software was used to perform the visualization of the
docking results [48].
4. Conclusions
In summary, to obtain effective lead compounds with new structures that can serve as anti-tumor
agents, 15 coumarin substituted benzylsulfone derivatives 5a–5o were designed, synthesized, fully
characterized and evaluated. It was concluded that most of these derivatives exhibited potent activities
against enzymatic potencies and cell proliferation in vitro. In particular, compounds 5h and 5m
displayed the most potent inhibitory activity against PI3K with inhibition rates of 50.3% and 50.8%
at 20
the greatest inhibitory activities against five tumor cell lines with IC50 values of 18.1–32.6
29.3–42.1 M, respectively. Moreover, 5h and 5m could significantly inhibit the migration of Hela cells.
The following in silico molecular docking investigations of compounds 5h and 5m into PI3K and
PI3K indicated that they could fit appropriately into active sites of PI3K and PI3K , and interact
µM, respectively. In addition, 5h and 5m, with broad spectrum antitumor activities, showed
µM and
µ
α
β
α
β

Molecules 2019, 24, 4034
14 of 16
well with important residues. The above results reveal that compounds 5h and 5m could be possible
lead compounds against PI3K in cancer therapies and are worthy of further study and optimization.
Supplementary Materials: Supplementary materials are available online: the synthesis and identification of the
intermediates mentioned in Scheme 1; 1H-NMR and 13C-NMR spectra of all the target compounds.
Author Contributions: Conceptualization, L.W. and T.W.; methodology, L.W., S.Z. and T.P.; software,
T.W.; performing the chemistry and biological experiments, T.W.; writing—original draft preparation, T.W.;
writing—review and editing, L.W., S.Z. and T.P.; data collection and analysis, X.W. and G.W. and Y.S.; funding
acquisition, S.L. and L.W.
Funding: This research was performed under financial support from National Natural Science Foundation of
China (Grant No. 81273431).
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
4.
5.
6.
7.
8.
9.
Dienstmann, R.; Rodon, J.; Serra, V.; Tabernero, J. Picking the point of inhibition: A comparative review of
PI3K/AKT/mTOR pathway inhibitors. Mol. Cancer Ther. 2014, 13, 1021–1031. [CrossRef] [PubMed]
Martini, M.; De Santis, M.C.; Braccini, L.; Gulluni, F.; Hirsch, E. PI3K/AKT signaling pathway and cancer:
An updated review. Ann. Med. 2014, 46, 372–383. [CrossRef] [PubMed]
LoRusso, P.M. Inhibition of the PI3K/AKT/mTOR Pathway in Solid Tumors. J. Clin. Oncol. 2016, 34, 3803–3815.
[CrossRef] [PubMed]
Mayer, I.A.; Arteaga, C.L. The PI3K/AKT Pathway as a Target for Cancer Treatment. Annu. Rev. Med.
2016, 67, 11–28. [CrossRef] [PubMed]
Courtney, K.D.; Corcoran, R.B.; Engelman, J.A. The PI3K pathway as drug target in human cancer. J. Clin. Oncol.
2010, 28, 1075–1083. [CrossRef]
Bartholomeusz, C.; Gonzalez-Angulo, A.M. Targeting the PI3K signaling pathway in cancer therapy.
Expert Opin. Ther. Targets 2012, 16, 121–130. [CrossRef]
O’Donnell, J.S.; Massi, D.; Teng, M.; Mandala, M. PI3K-AKT-mTOR inhibition in cancer immunotherapy,
redux. Semin. Cancer Biol. 2018, 48, 91–103. [CrossRef]
Engelman, J.A.; Luo, J.; Cantley, L.C. The evolution of phosphatidylinositol 3-kinases as regulators of growth
and metabolism. Nat. Rev. Genet. 2006, 7, 606–619. [CrossRef]
Rodon, J.; Dienstmann, R.; Serra, V.; Tabernero, J. Development of PI3K inhibitors: Lessons learned from
early clinical trials. Nat. Rev. Clin. Oncol. 2013, 10, 143–153. [CrossRef]
10. Vanhaesebroeck, B.; Guillermet-Guibert, J.; Graupera, M.; Bilanges, B. The emerging mechanisms of
isoform-specific PI3K signalling. Nat. Rev. Mol. Cell Biol. 2010, 11, 329–341. [CrossRef]
11. Liu, X.; Xu, Y.; Zhou, Q.; Chen, M.; Zhang, Y.; Liang, H.; Zhao, J.; Zhong, W.; Wang, M. PI3K in cancer: Its
structure, activation modes and role in shaping tumor microenvironment. Future Oncol. 2018, 14, 665–674.
[CrossRef] [PubMed]
12. Katso, R.; Okkenhaug, K.; Ahmadi, K.; White, S.; Timms, J.; Waterfield, M.D. Cellular function of
phosphoinositide 3-kinases: Implications for development, homeostasis, and cancer. Annu. Rev. Cell
Dev. Biol. 2001, 17, 615–675. [CrossRef] [PubMed]
13. Janku, F. Phosphoinositide 3-kinase (PI3K) pathway inhibitors in solid tumors: From laboratory to patients.
Cancer Treat. Rev. 2017, 59, 93–101. [CrossRef] [PubMed]
14. Fruman, D.A.; Rommel, C. PI3K and cancer: Lessons, challenges and opportunities. Nat. Rev. Drug Discov.
2014, 13, 140–156. [CrossRef]
15. Wang, X.; Ding, J.; Meng, L.H. PI3K isoform-selective inhibitors: Next-generation targeted cancer therapies.
Acta Pharmacol. Sin. 2015, 36, 1170–1176. [CrossRef]
16. Mabuchi, S.; Kuroda, H.; Takahashi, R.; Sasano, T. The PI3K/AKT/mTOR pathway as a therapeutic target in
ovarian cancer. Gynecol. Oncol. 2015, 137, 173–179. [CrossRef]
17. Rodon, J.; Brana, I.; Siu, L.L.; De Jonge, M.J.; Homji, N.; Mills, D.; Di Tomaso, E.; Sarr, C.; Trandafir, L.;
Massacesi, C.; et al. Phase I dose-escalation and-expansion study of buparlisib (BKM120), an oral pan-Class I
PI3K inhibitor, in patients with advanced solid tumors. Investig. New Drugs 2014, 32, 670–681. [CrossRef]

Molecules 2019, 24, 4034
15 of 16
18. Sarker, D.; Ang, J.E.; Baird, R.; Kristeleit, R.; Shah, K.; Moreno, V.; Clarke, P.A.; Raynaud, F.I.;
Levy, G.; Ware, J.A.; et al. First-in-human phase I study of pictilisib (GDC-0941), a potent pan-class I
phosphatidylinositol-3-kinase (PI3K) inhibitor, in patients with advanced solid tumors. Clin. Cancer Res.
2015, 21, 77–86. [CrossRef]
19. Tolaney, S.; Burris, H.; Gartner, E.; Mayer, I.A.; Saura, C.; Maurer, M.; Ciruelos, E.; Garcia, A.A.; Campana, F.;
Wu, B.; et al. Phase I/II study of pilaralisib (SAR245408) in combination with trastuzumab or trastuzumab
plus paclitaxel in trastuzumab-refractory HER2-positive metastatic breast cancer. Breast Cancer Res. Treat.
2015, 149, 151–161. [CrossRef]
20. Juric, D.; Krop, I.; Ramanathan, R.K.; Wilson, T.R.; Ware, J.A.; Sanabria, B.S.; Savage, H.M.; Sampath, D.;
Salphati, L.; Lin, R.S.; et al. Phase I Dose-Escalation Study of Taselisib, an Oral PI3K Inhibitor, in Patients
with Advanced Solid Tumors. Cancer Discov. 2017, 7, 704–715. [CrossRef]
21. Greenwell, I.B.; Flowers, C.R.; Blum, K.A.; Cohen, J.B. Clinical use of PI3K inhibitors in B-cell lymphoid
malignancies: Today and tomorrow. Expert Rev. Anticancer Ther. 2017, 17, 271–279. [CrossRef] [PubMed]
22. Westin, J.R. Status of PI3K/Akt/mTOR pathway inhibitors in lymphoma. Clin. Lymphoma Myeloma Leuk.
2014, 14, 335–342. [CrossRef] [PubMed]
23. Gumireddy, K.; Reddy, M.V.; Cosenza, S.C.; Boominathan, R.; Baker, S.J.; Papathi, N.; Jiang, J.; Holland, J.;
Reddy, E.P. ON01910, a non-ATP-competitive small molecule inhibitor of Plk1, is a potent anticancer agent.
Cancer Cell 2005, 7, 275–286. [CrossRef]
24. Prasad, A.; Park, I.W.; Allen, H.; Zhang, X.; Reddy, M.V.; Boominathan, R.; Reddy, E.P.; Groopman, J.E.
Styryl sulfonyl compounds inhibit translation of cyclin D1 in mantle cell lymphoma cells. Oncogene
2009, 28, 1518–1528. [CrossRef] [PubMed]
25. Chapman, C.M.; Sun, X.; Roschewski, M.; Aue, G.; Farooqui, M.; Stennett, L.; Gibellini, F.; Arthur, D.;
Perez-Galan, P.; Wiestner, A. ON 01910.Na is selectively cytotoxic for chronic lymphocytic leukemia cells
through a dual mechanism of action involving PI3K/AKT inhibition and induction of oxidative stress.
Clin. Cancer Res. 2012, 18, 1979–1991. [CrossRef] [PubMed]
26. Reddy, M.V.; Venkatapuram, P.; Mallireddigari, M.R.; Pallela, V.R.; Cosenza, S.C.; Robell, K.A.;
Akula, B.; Hoffman, B.S.; Reddy, E.P. Discovery of
a clinical stage multi-kinase inhibitor
sodium (E)-2-{2-methoxy-5-[(20,40,60-trimethoxystyrylsulfonyl)methyl]phenylamino}acetate (ON 01910.Na):
Synthesis, structure-activity relationship, and biological activity. J. Med. Chem. 2011, 54, 6254–6276.
[CrossRef]
27. Antonio, J.; Jing, L.; Messersmith, W.A.; Daniel, L.; Rudek, M.A.; Manoj, M.; Manuel, H.; Baker, S.D.;
Donehower, R.C. Phase I study of ON 01910.Na, a novel modulator of the Polo-like kinase 1 pathway, in
adult patients with solid tumors. J. Clin. Oncol. 2008, 26, 5504–5510.
28. Jimeno, A.; Chan, A.; Cusatis, G.; Zhang, X.; Wheelhouse, J.; Solomon, A.; Chan, F.; Zhao, M.; Cosenza, S.C.;
Ramana, R.M.; et al. Evaluation of the novel mitotic modulator ON 01910.Na in pancreatic cancer and
preclinical development of an ex vivo predictive assay. Oncogene 2009, 28, 610–618. [CrossRef]
29. Tian, Y.; Liang, Z.; Xu, H.; Mou, Y.; Guo, C. Design, Synthesis and Cytotoxicity of Novel
Dihydroartemisinin-Coumarin Hybrids via Click Chemistry. Molecules 2016, 21, 758. [CrossRef]
30. Morsy, S.A.; Farahat, A.A.; Nasr, M.; Tantawy, A.S. Synthesis, molecular modeling and anticancer activity of
new coumarin containing compounds. Saudi Pharm. J. 2017, 25, 873–883. [CrossRef]
31. Zhang, Z.; Gu, L.; Wang, B.; Huang, W.; Zhang, Y.; Ma, Z.; Zeng, S.; Shen, Z. Discovery of novel coumarin
derivatives as potent and orally bioavailable BRD4 inhibitors based on scaffold hopping. J. Enzyme Inhib.
Med. Chem. 2019, 34, 808–817. [CrossRef] [PubMed]
32. Dimic, D.S.; Markovic, Z.S.; Saso, L.; Avdovic, E.H.; Dorovic, J.R.; Petrovic, I.P.; Stanisavljevic, D.D.;
Stevanovic, M.J.; Potocnak, I.; Samolova, E.; et al.
Synthesis and Characterization of
3-(1-((3,4-Dihydroxyphenethyl)amino)ethylidene)-chroman-2,4-dione as a Potential Antitumor Agent.
Oxid. Med. Cell. Longev. 2019, 2019, 2069250. [CrossRef] [PubMed]
33. Lima, L.M.; Barreiro, E.J. Bioisosterism: A useful strategy for molecular modification and drug design.
Curr. Med. Chem. 2005, 12, 23–49. [CrossRef] [PubMed]
34. Ning, X.; Guo, Y.; Wang, X.; Ma, X.; Tian, C.; Shi, X.; Zhu, R.; Cheng, C.; Du, Y.; Ma, Z. Design, synthesis, and
biological evaluation of (e)-3,4-dihydroxystyryl aralkyl sulfones and sulfoxides as novel multifunctional
neuroprotective agents. J. Med. Chem. 2014, 57, 4302–4312. [CrossRef] [PubMed]

Molecules 2019, 24, 4034
16 of 16
35. Zhou, N.; Feng, T.; Shen, X.; Cui, J.; Wu, R.; Wang, L.; Wang, S.; Zhang, S.; Chen, H. Synthesis, characterization,
and radioprotective activity of alpha, beta-unsaturated aryl sulfone analogs and their Tempol conjugates.
Medchemcomm 2017, 8, 1063–1068. [CrossRef] [PubMed]
36. Freeman, F. Properties and reactions of ylidenemalononitriles. Chem. Rev. 1979, 80, 329–350. [CrossRef]
37. Pedro, V.; Francisco, S.; Emilia, T. Knoevenagel reaction in [MMIm] [MSO4]: Synthesis of coumarins.
Molecules 2011, 16, 4379–4388.
38. Prasad, A.; Khudaynazar, N.; Tantravahi, R.V.; Gillum, A.M.; Hoffman, B.S. ON 01910.Na (rigosertib) inhibits
PI3K/Akt pathway and activates oxidative stress signals in head and neck cancer cell lines. Oncotarget
2016, 7, 79388–79400. [CrossRef]
39. Munikrishnappa, C.S.; Puranik, S.B.; Kumar, G.V.; Prasad, Y.R. Part-1: Design, synthesis and biological
evaluation of novel bromo-pyrimidine analogs as tyrosine kinase inhibitors. Eur. J. Med. Chem.
2016, 119, 70–82. [CrossRef]
40. Riahi, R.; Yang, Y.; Zhang, D.D.; Wong, P.K. Advances in wound-healing assays for probing collective cell
migration. J. Lab. Autom. 2012, 17, 59–65. [CrossRef]
41. Trepat, X.; Chen, Z.; Jacobson, K. Cell Migration. Compr. Physiol. 2012, 2, 2369–2392. [PubMed]
42. Zhang, M.; Li, H.; Ma, H.; Qin, J. A simple microfluidic strategy for cell migration assay in an in vitro
wound-healing model. Wound Repair Regen. 2013, 21, 897–903. [CrossRef] [PubMed]
43. Yarrow, J.C.; Perlman, Z.E.; Westwood, N.J.; Mitchison, T.J. A high-throughput cell migration assay using
scratch wound healing, a comparison of image-based readout methods. BMC Biotechnol. 2004, 4, 21.
[CrossRef] [PubMed]
44. Mandelker, D.; Gabelli, S.B.; Schmidt-Kittler, O.; Zhu, J.; Cheong, I.; Huang, C.H.; Kinzler, K.W.; Vogelstein, B.;
Amzel, L.M. A frequent kinase domain mutation that changes the interaction between PI3Kalpha and the
membrane. Proc. Natl. Acad. Sci. USA 2009, 106, 16996–17001. [CrossRef]
45. Zhang, X.; Vadas, O.; Perisic, O.; Anderson, K.; Clark, J.; Hawkins, P.; Stephens, L.; Williams, R. Structure of
Lipid Kinase p110β/p85β Elucidates an Unusual SH2-Domain-Mediated Inhibitory Mechanism. Mol. Cell
2011, 41, 567–578. [CrossRef]
46. Tang, L.; Peng, T.; Wang, G.; Wen, X.; Sun, Y.; Zhang, S.; Liu, S.; Wang, L. Design, Synthesis and Preliminary
Biological Evaluation of Novel Benzyl Sulfoxide 2-Indolinone Derivatives as Anticancer Agents. Molecules
2017, 22, 1979. [CrossRef]
47. Yue, P.Y.; Leung, E.P.; Mak, N.K.; Wong, R.N. A simplified method for quantifying cell migration/wound
healing in 96-well plates. J. Biomol. Screen. 2010, 15, 427–433. [CrossRef]
48. Mu, C.; Wu, M.; Li, Z. Anti-Inflammatory Effect of Novel 7-Substituted Coumarin Derivatives through
Inhibition of NF-kappaB Signaling Pathway. Chem. Biodivers. 2019, 16, e1800559. [CrossRef]
Sample Availability: Samples of the compounds 5a–5o are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
